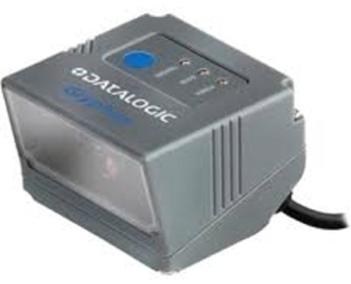

Datalogic Gryphon GFS4170 Fixed Mount Linear Imager Barcode Reader
Available for delivery from Tomorrow
Click & Collect from Today
4 In Stock Now
Order within
You have 0 of these in your basket
Using advanced imaging technology, the Gryphon I GFS4100 fixed mount Barcode reader provides a complete self-contained solution for OEM use into self-service kiosks, price verifiers, ticket readers, document handling, and medical laboratory applications, as well as vending machines and other automated equipment. Designed for easy integration, the Gryphon I GFS4100 reader provides a simple 'plug-and- play' solution for system designers. Constructed using high-impact resin to withstand repeated cleanings with solvents and disinfectant solutions, the sealed enclosure meets industrial standards against water and particulates to provide dependable and reliable scanning performance. The Gryphon I GFS4100 OEM module shares the same excellent reading characteristics found in the premium line of Gryphon 4100 series of handheld devices. Featuring outstanding near-field reading, a wide angle field-of-view, improved motion tolerance and snappy reading, it also offers integrators excellent performance on decoding poor or damaged codes. As with all Gryphon readers, the GFS4100 reader offers users additional good-read visual confirmation with Datalogic's patented 'Green Spot' technology.
Performance
- Light Source: Illumination: Dual LED Array 630 - 670 nm
- Audible/Visual Indicators: Beeper; Datalogic 'Green Spot' Good Read Feedback; Good Read LED
- Decoding Capability: 1D / Linear Codes: Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
- Reading Performance: Imager Sensor: CCD Solid State • Light Source: Illumination: Dual LED Array 630 - 670 nm • Print Contrast Ratio (Minimum): 15% • Read Rate (Maximum): 320 reads/sec. • Reading Angle: Pitch: +/- 65°; Roll (Tilt): +/- 35°; Skew (Yaw): +/- 65° • Resolution (Maximum): 0.076 mm / 3 mils
- Reading Ranges: Typical Depth of Field: Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. 5 mils: 5.0 to 16.0 cm / 2.0 to 6.3 in. 8 mils: 3.0 to 27.0 cm / 1.2 to 10.6 in. 10 mils: 1.5 to 30.0 cm / 0.6 to 11.8 in. 13 mils: 3.0 to 40.0 cm / 1.2 to 15.7 in. 20 mils: up to 60.0 cm / up to 23.6 in
Interfaces/Ports
- Interfaces: RS-232; USB
Compliance
- Certifications: Agency Approvals: The product meets necessary safety and regulatory approvals for its intended use. The Quick Reference Guide for this product can be referred to for a complete list of certifications. • Environmental Compliance: Complies to China RoHS; Complies to EU RoHS • LED Classification: IEC 60825-1 Class 1 LED Product
Electrical
- Current Usage: Current: Operating (Typical): 390 mA. Standby/Idle (Typical): GFS4170: < 2.5 mA • Input Voltage: 5 VDC +/- 5%
Environmental
- Operating Temperature: 0 to 50 °C
- Environmental Standards: Ambient Light: 0 - 100,000 lux • Drop Resistance: Withstands repeated drops from 0.76 m / 2.50 ft onto a concrete surface • ESD Protection (Air Discharge): 16 kV • Humidity (Non-Condensi ng): 95% • Particulate and Water Sealing: IP54
Physical
- Form Factor: Barcode Reader
- Case Colour: Grey
- Pack Quantity: 1
- Width: 5.8 cm
- Depth: 5.7 cm
- Height: 3.9 cm
- Weight: 0.170 kg
Warranty
- Warranty: 18-Month Factory Warranty
Identifiers
- Stock Code: SCA0199
- Mfg Code: GFS4170
Warranty
- Warranty: 18-Month Factory Warranty
