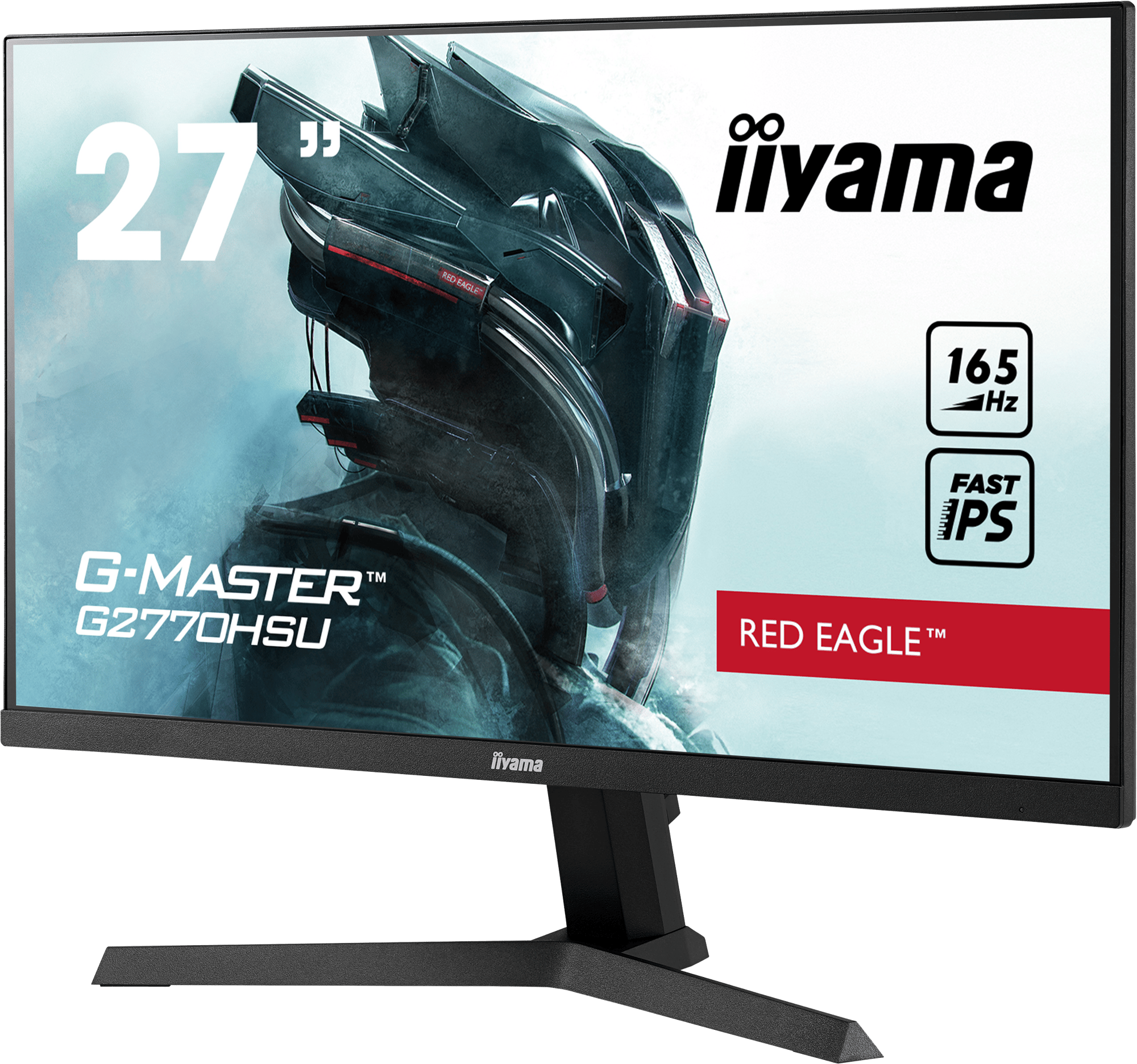

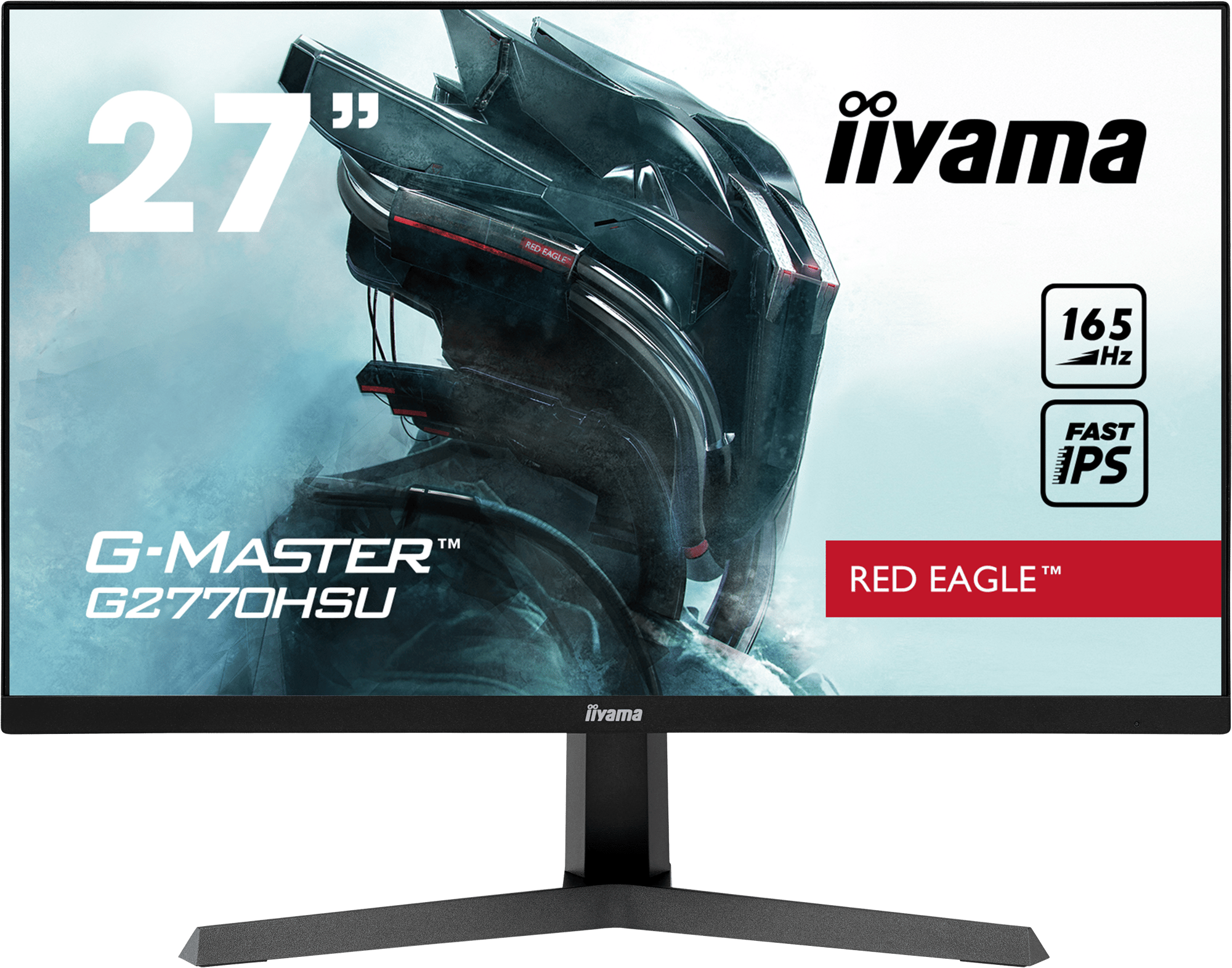

Display

• Screen Size: 27" (68.6 cm)
• Viewable screen size: 598 x 336.5 mm (23.5 x 13.2")
• Display Area: 1920 x 1080 pixels (2.1 MP)
• Screen Width: 598 mm
• Screen Height: 336.5 mm
• Screen technology: Fast IPS IGZO, matte finish

Physical

• Form Factor: 16:9 widescreen

Display

• Screen Technology: LED backlit LCD
• Screen Construction: Flat panel
• Colours: 0.311 mm
• Pixel Pitch: 0.311 mm
• Brightness: 250 cd/m
• View Angle (Horizontal - Max): 178ø
• View Angle (Vertical - Max): 178ø
• Anti-Glare / Anti-Static: Yes, matte anti-glare
• Pixel Clock Speed: Not specified by manufacturer
• Contrast Ratio: 1100:1 (static)
• Contrast Ratio - Dynamic: 80M:1 (Advanced Contrast)
• Resolution (Native): 1920 x 1080
• Resolution Type (Native): Full HD
• Response time: 0.8 ms (MPRT)
• Response Time: 0.8 ms (MPRT)
• Video Bandwidth: HDMI 1.4 up to 144Hz, DP 1.2 up to 165Hz
• Lifetime: Not specified
• Swivel: No
• Resolution (Maximum): 1920 x 1080
• Resolution Type (Maximum): Full HD
• Pixels Per Inch (PPI): ~82 PPI
• Backlight: LED
• Supported Resolutions: 1920 x 1080 @165Hz (DP), 1920 x 1080 @144Hz (HDMI)
• Vertical Frequ: 48-165 Hz (DP), 48-144 Hz (HDMI)
• Colour Gamut: Not specified (standard ~100% sRGB typical for IPS)
• HD Support: Full HD 1080p
• Aspect Ratio: 16:9
• 3D Glasses Included: No
• Pivot: No
• 3D Display: No
• Horizontal Frequency - Low (Digital): 15 kHz
• Horizontal Frequency - High (Digital): 225 kHz
• Vertical Frequency - Low (Digital): 48 Hz
• Vertical Frequency - High (Digital): 165 Hz (via DP) / 144 Hz (via HDMI)
• Vertical Frequency - Low: 48 Hz
• Vertical Frequency - High: 165 Hz (DP) / 144 Hz (HDMI)
• Horizontal Frequency: 15 - 225 kHz
• Vertical Frequency: 48 - 165 Hz

Interfaces/Ports

• Microphone In Port: No
• Audio Line Out Ports: 1 x headphone jack

Physical

• Display Type: LED backlit LCD

Mount

• Wall Mountable: Yes

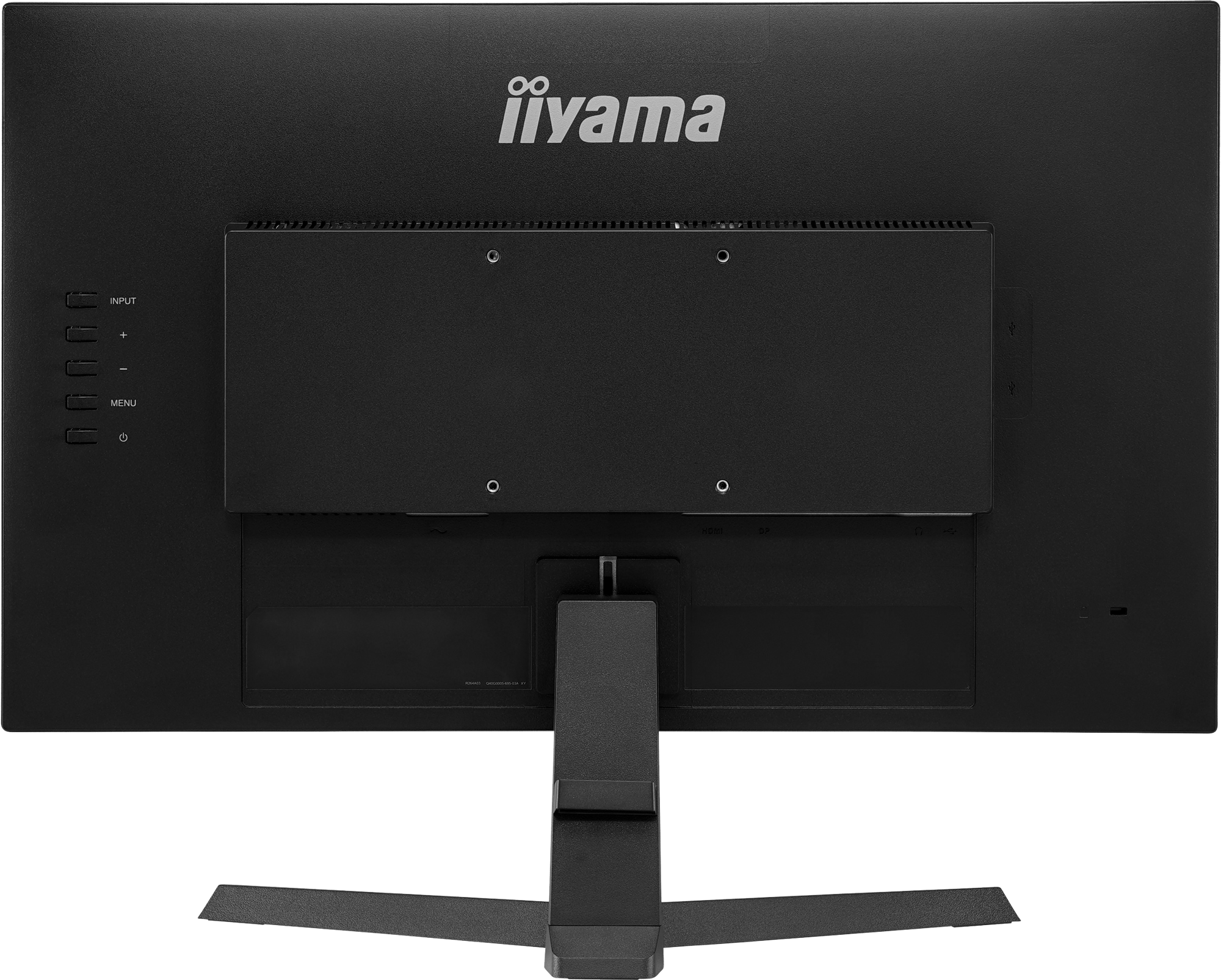

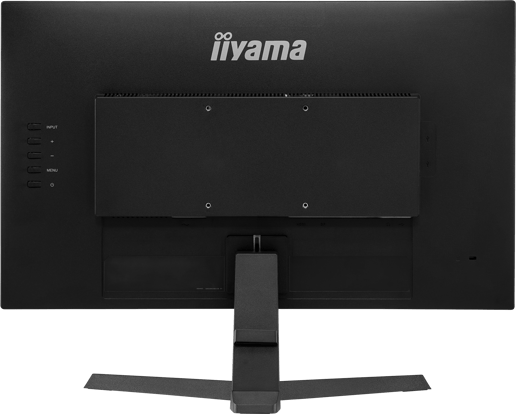

• Wall Mount: 100 x 100 mm VESA

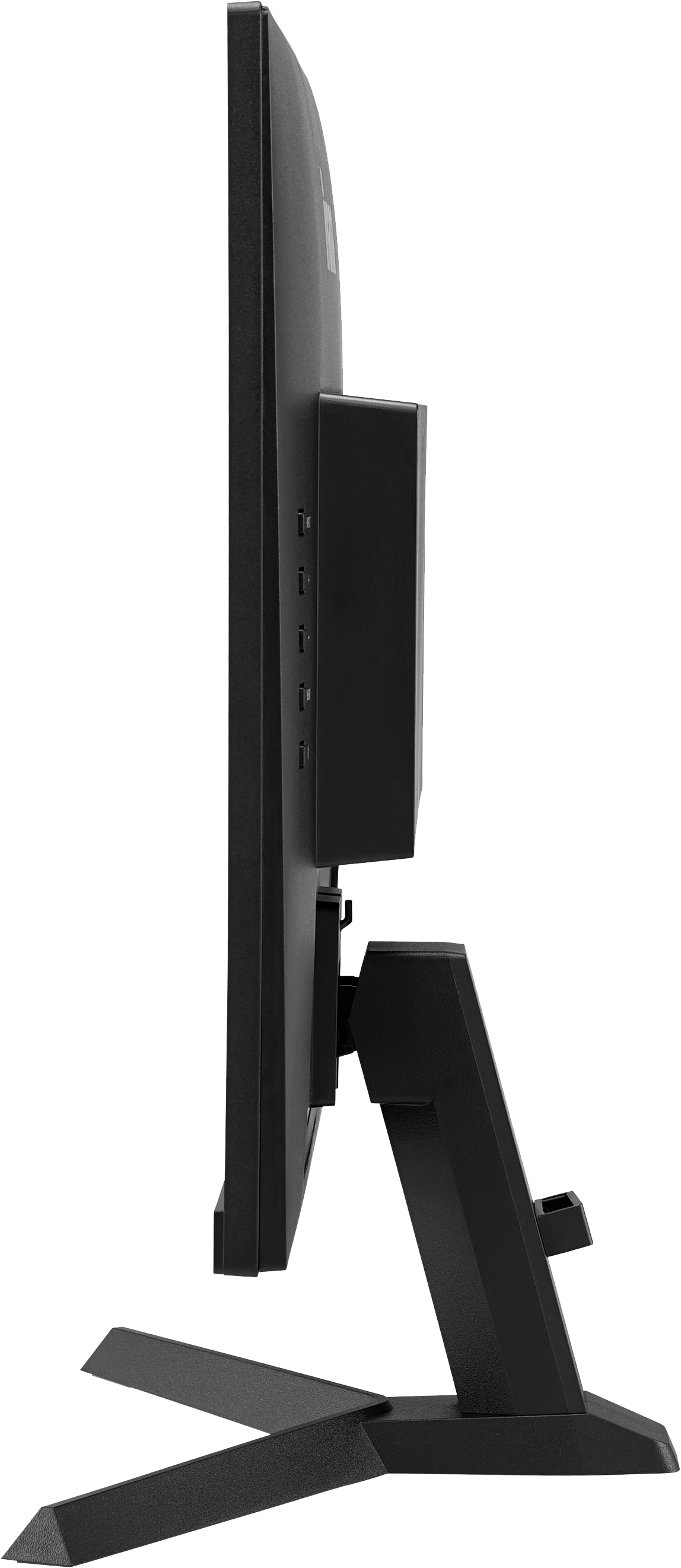

• Tilt (Forward/Backward): Yes
• Tilt Range: +21.5ø up / -3.5ø down
• Swivel (Left/Right): No
• Height Adjustable: No
• Pivot (Rotation): No
• Side Bezel Width: Not specified

Resolution

• 1920 x 1080 Graphic Mode: Supported (Native, up to 165Hz DP / 144Hz HDMI)

Camera

• Webcam: No

Input

• Keyboard: No
• Pointing Device: No
• Fingerprint Reader: No
• User Controls: OSD menu with buttons for power, menu, input select, volume, colour, brightness, etc.

Remote

• Motion Sensing Technology: No
• Wireless Type: No

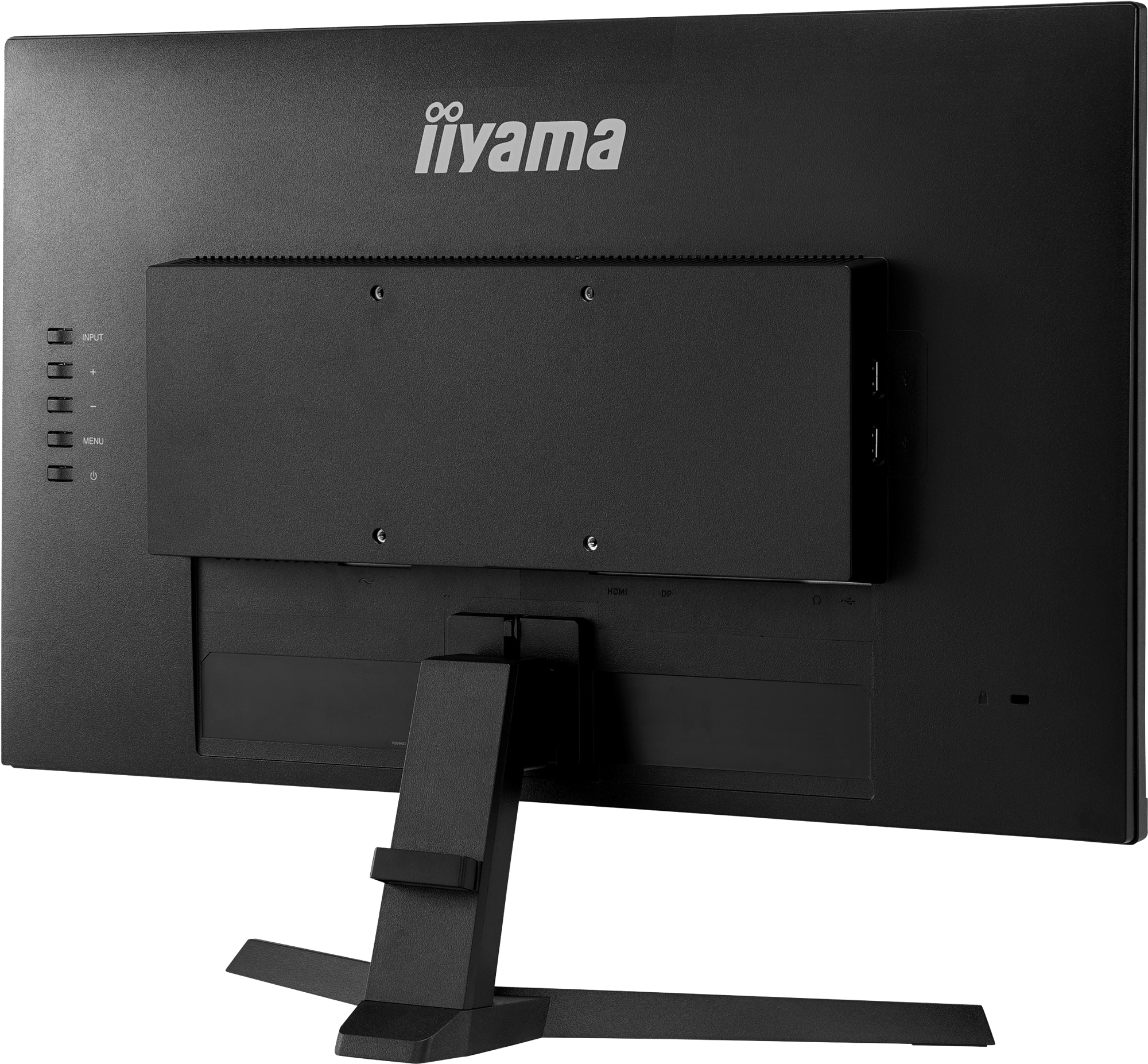

• Control Buttons: Power, Menu, Input select/Exit, +/Volume, -/i-Style Colour
• Button Functions: Contrast, brightness, overdrive, ACR, ECO, blue light reducer, Black Tuner, MBR, gamma, audio, colour temp, presets
• Scroll Wheel: No
• Remote Control: No

Media Adaptor

• Micro Drive: No
• Removable Flash Memory Media: No
• Compact Flash: No
• Smart Media: No
• MultiMedia Card: No
• Sony Memory Stick: No
• Secure Digital: No
• xD-Picture Card: No

Warranty

• Warranty: 3 years

Sound

• Audio Capabilities: Stereo speakers, headphone out
• Speakers: 2 x 2W
• Audio Features: Volume control via OSD, headphone output

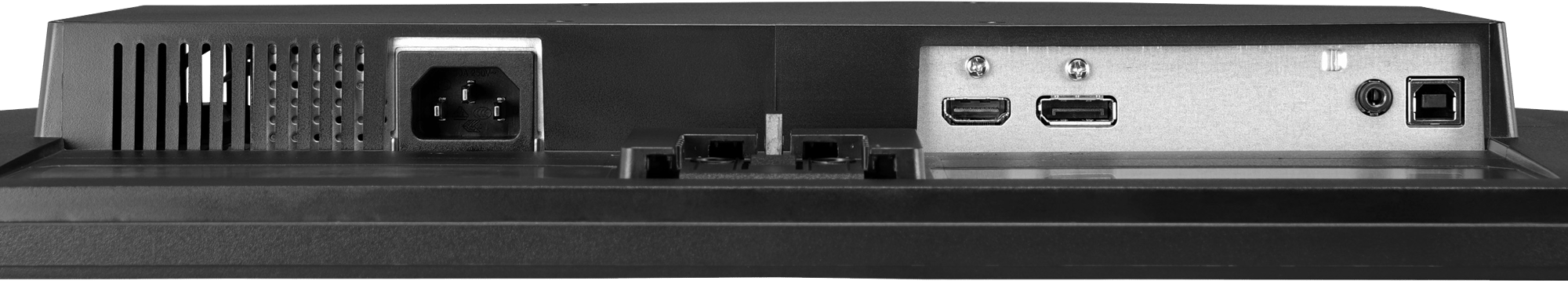

Interfaces/Ports

• Audio Line Out Ports: 1 x headphone jack
• VGA In: No
• SCART Ports: No
• Audio/Visual Port: HDMI, DisplayPort
• BNC Port: No
• Digital In: 1 x HDMI (v1.4), 1 x DisplayPort (v1.2)
• Synch Input: Yes, via DP/HDMI
• S-Video in: No
• Video Composite In: No

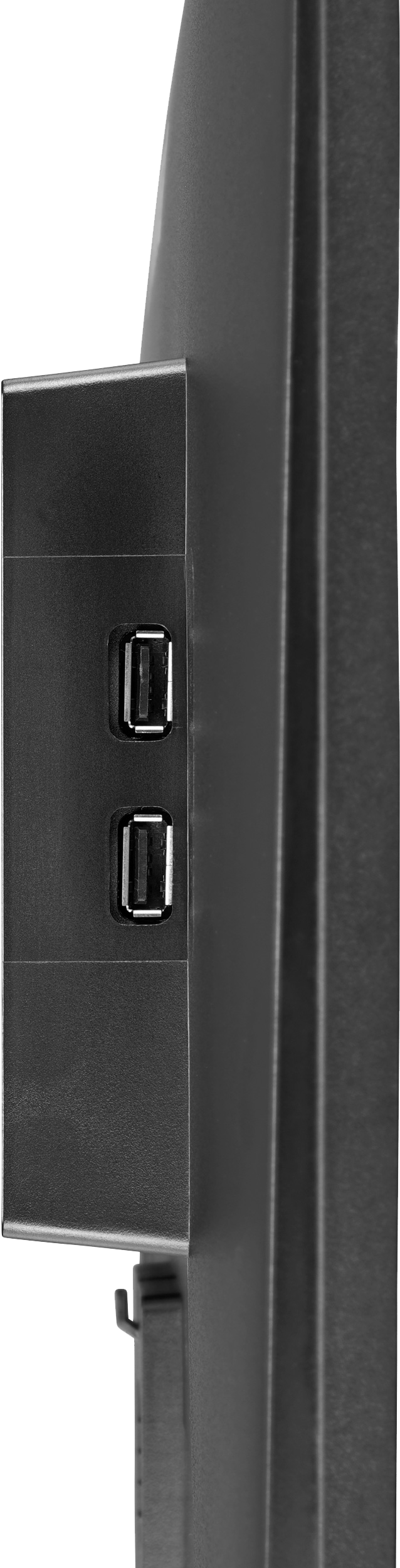

• USB Ports: 2 x USB 2.0 downstream
• Microphone In Port: No
• Audio Line In Ports: No
• Headphone Ports: 1 x 3.5 mm
• Serial Ports: No
• AC Power: Yes (internal PSU, AC 100-240V, 50/60Hz)
• DC Power: No
• Video Component In: No
• Multi-media Player Input: No
• Video Component Out: No
• Video Composite Out: No
• HDMI Ports: 1 x HDMI v1.4 (max 1920 x 1080 @144Hz)
• DisplayPort In: 1 x DisplayPort v1.2 (max 1920 x 1080 @165Hz)
• Firewire Ports: No
• Digital Audio Optical Out: No
• Digital Out: No
• RJ-45 Ports: No
• Thunderbolt Port(s): No
• Infrared Port: No
• DisplayPort Out: No

Network (Wired)

• Network Card: No

Network (Wireless)

• Bluetooth: No
• Wireless System: No

System

• User Programmable Modes: Yes (via OSD custom profiles)
• Factory Presets: Yes (gaming modes, FPS/strategy/RPG presets)
• Language Selection: EN, DE, FR, ES, IT, PT, RU, JP, CZ, NL, PL
• Plug and Play: Yes
• Monitor Management: OSD with user controls (brightness, contrast, colour, presets, Black Tuner, etc.)
• Software Included: Quick start guide (no extra software)

System Requirements

• Operating Systems Supported: Windows, Mac OSX compatible
• System Requirements: Free HDMI or DisplayPort connection

Electrical

• Electrical Power Consumption: 22 W typical
• Electrical Power Consumption Standby: 0.5 W
• Electrical Power Consumption Saving: ECO mode, = 22 W typical

Compliance

• Certifications: CE, TšV-Bauart, EAC, PSE, RoHS, ErP, WEEE, VCCI, REACH

Electrical

• Voltage: AC 100 - 240 V
• Electrical Frequency: 50/60 Hz
• Power Adaptor Type: Internal PSU
• Power Adaptor Output Voltage: N/A (internal PSU)
• Power Management Features: ECO mode, Energy Star compliant, standby <0.5 W
• Battery: No
• Power Supply: Internal PSU, AC 100-240V, 50/60Hz
• Energy Rating: Class E (EU 2017/1369)

Environmental

• Operating Temperature: 5øC - 35øC
• Operating Humidity: 20% - 80% (non-condensing)

Physical

• Form Factor: Flat panel
• Case Colour: Matte black
• Pack Quantity: 1
• Security Locking Mechanics: Kensington-lock prepared
• In The Box: Power cable, HDMI cable, DP cable, USB cable, quick start guide, safety guide
• Width: 612.5 mm
• Depth: 187.5 mm
• Height: 435.5 mm
• Weight: 4 kg (net), 6.1 kg (gross)
• Country of Origin: China (typical for iiyama production)

Shipping

• Shipping Carton Quantity: 1
• Shipping Carton Product Quantity: 1
• SC Width: 690 mm
• SC Depth: 160 mm
• SC Height: 475 mm
• SC Weight: 6.1 kg
• Trade Carton: 1
• Trade Carton Product Quantity: 1
• TC Width: 690 mm
• TC Depth: 160 mm
• TC Height: 475 mm
• TC Weight: 6.1 kg

Attributes

• PCMCIA Slots: No

Identifiers

• Stock Code: MON9703
• Mfg Code: G2770HS-B1
