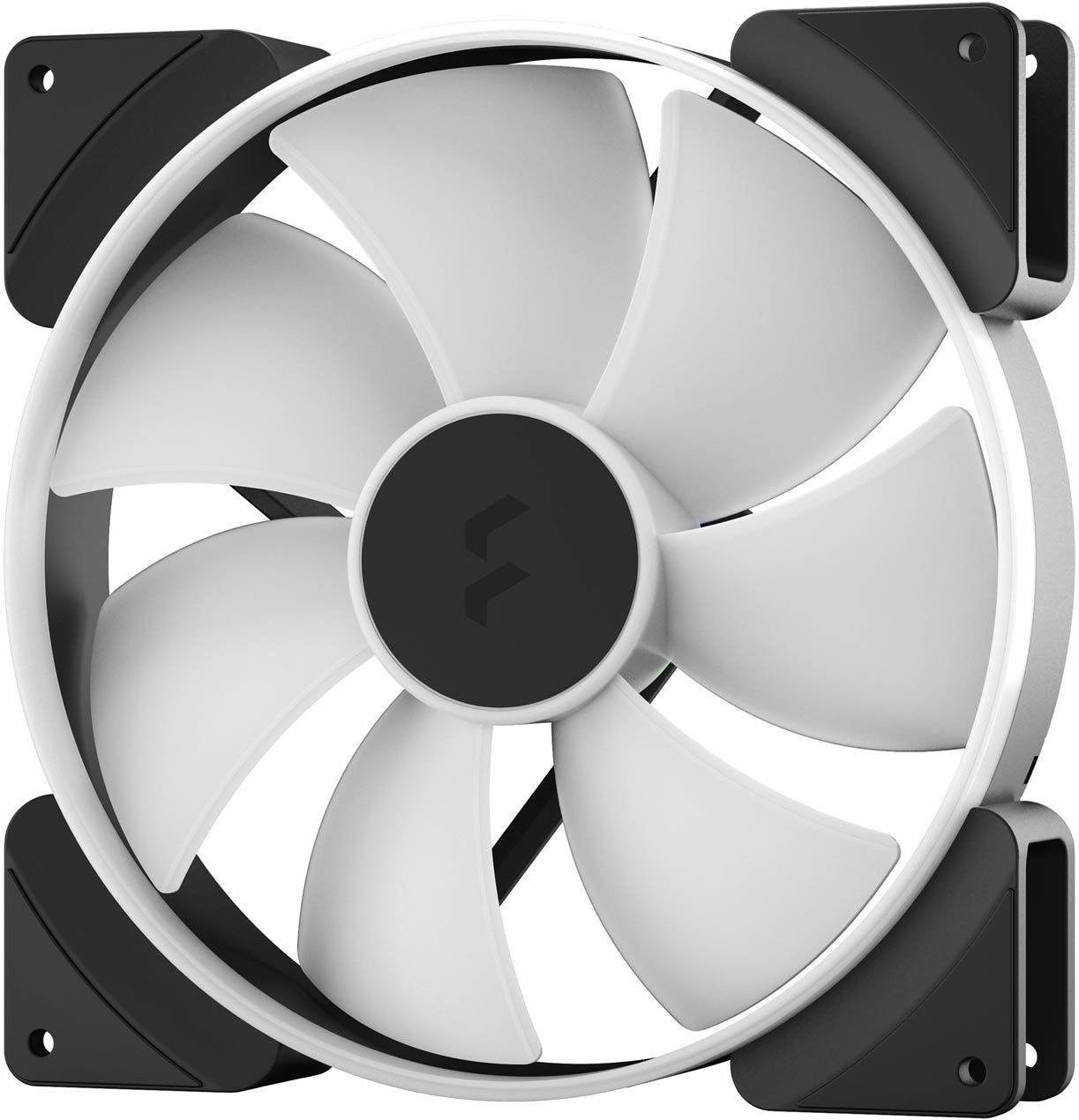

Fractal Design Prisma AL-18 180mm ARGB PWM Chassis Fan

Fractal Design Prisma AL-18 180mm ARGB PWM Chassis Fan

CCL Code: CLR2339

£34.99 inc VAT

Fractal Design Prisma AL-18 180mm ARGB PWM Chassis Fan

FD-FAN-PRI-AL18-PWM

£34.99 inc VAT

Available for delivery from Tomorrow

4 In Stock Now

Order within

Buying in bulk? Contact our business team.

CCL Code: CLR2339
Overview

The Prisma AL-18 is a powerful 180 mm ARGB fan that packs a mean punch in the airflow department. Massive blades, stout 38 mm thickness, and wide 300-1200 RPM range with PWM control allow the AL-18 to yield remarkably high airflow while remaining remarkably quiet.

Main Features

  • Massive 180 x 38 mm RGB fan that yields remarkably high airflow while remaining very quiet
  • Twelve individually addressable hub-mounted RGB LEDs

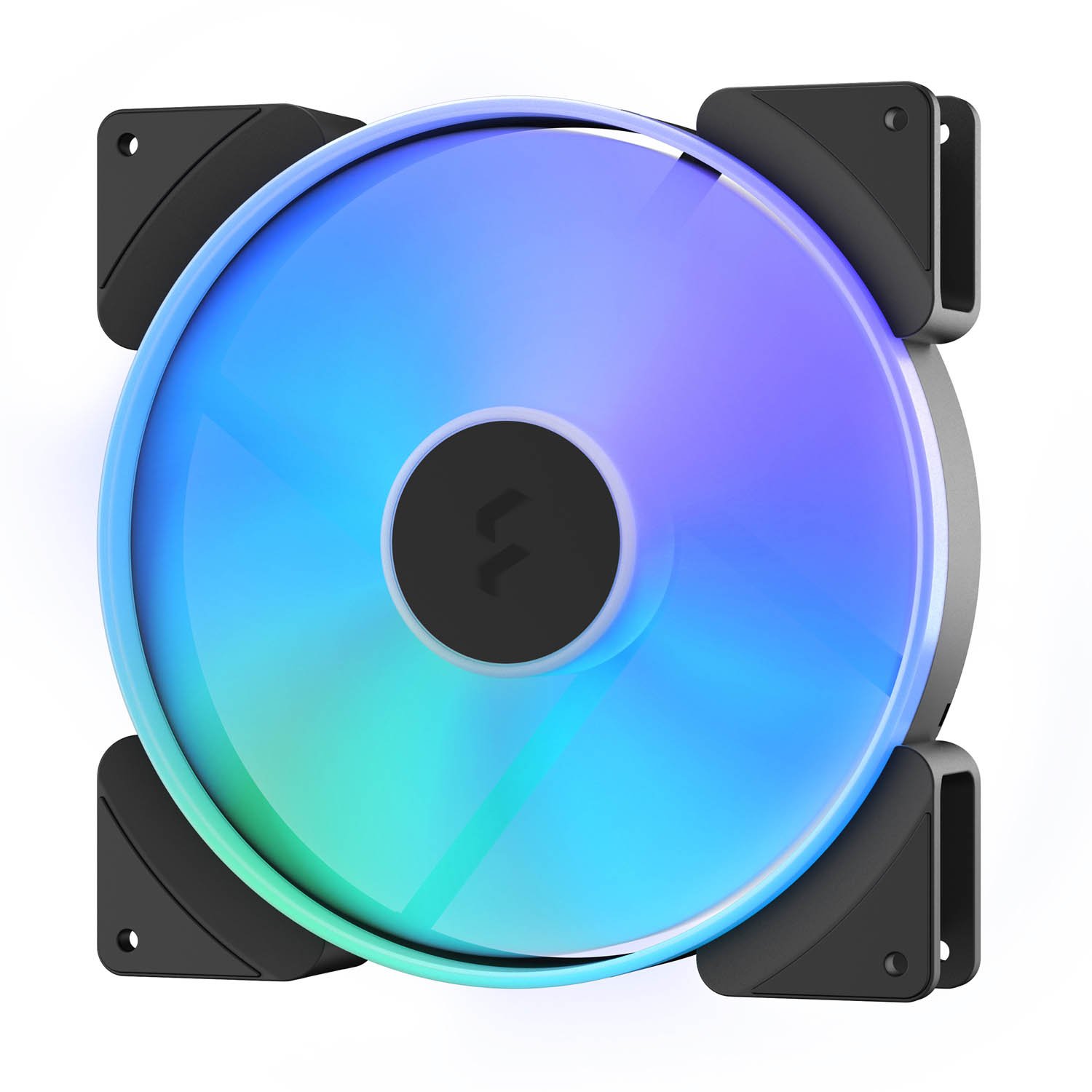

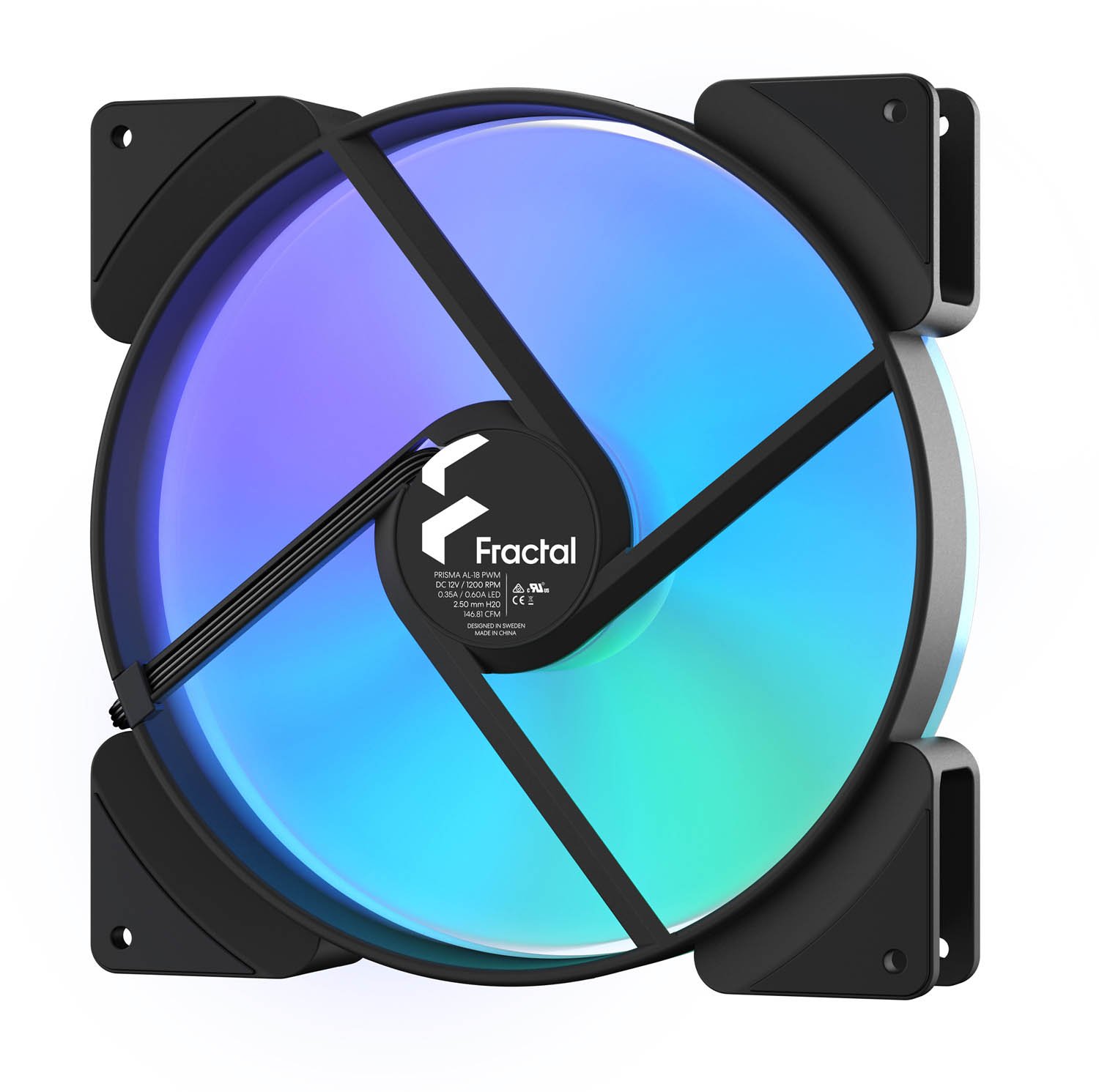

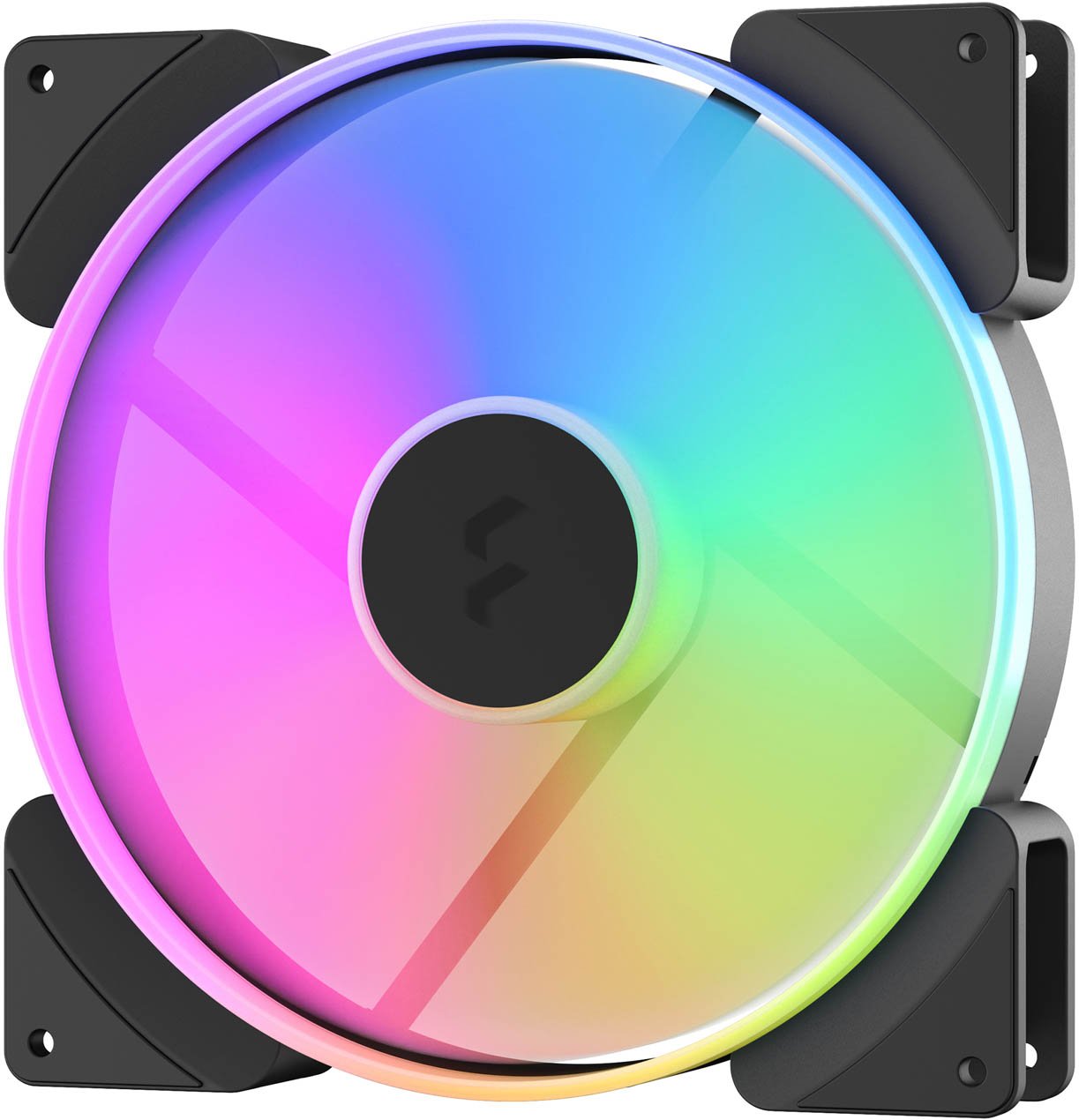

  • Specially designed fan blades and outer ring produce an exceptionally uniform glow
  • LLS (Long Life Sleeve) bearings provide silent operation with a long lifespan

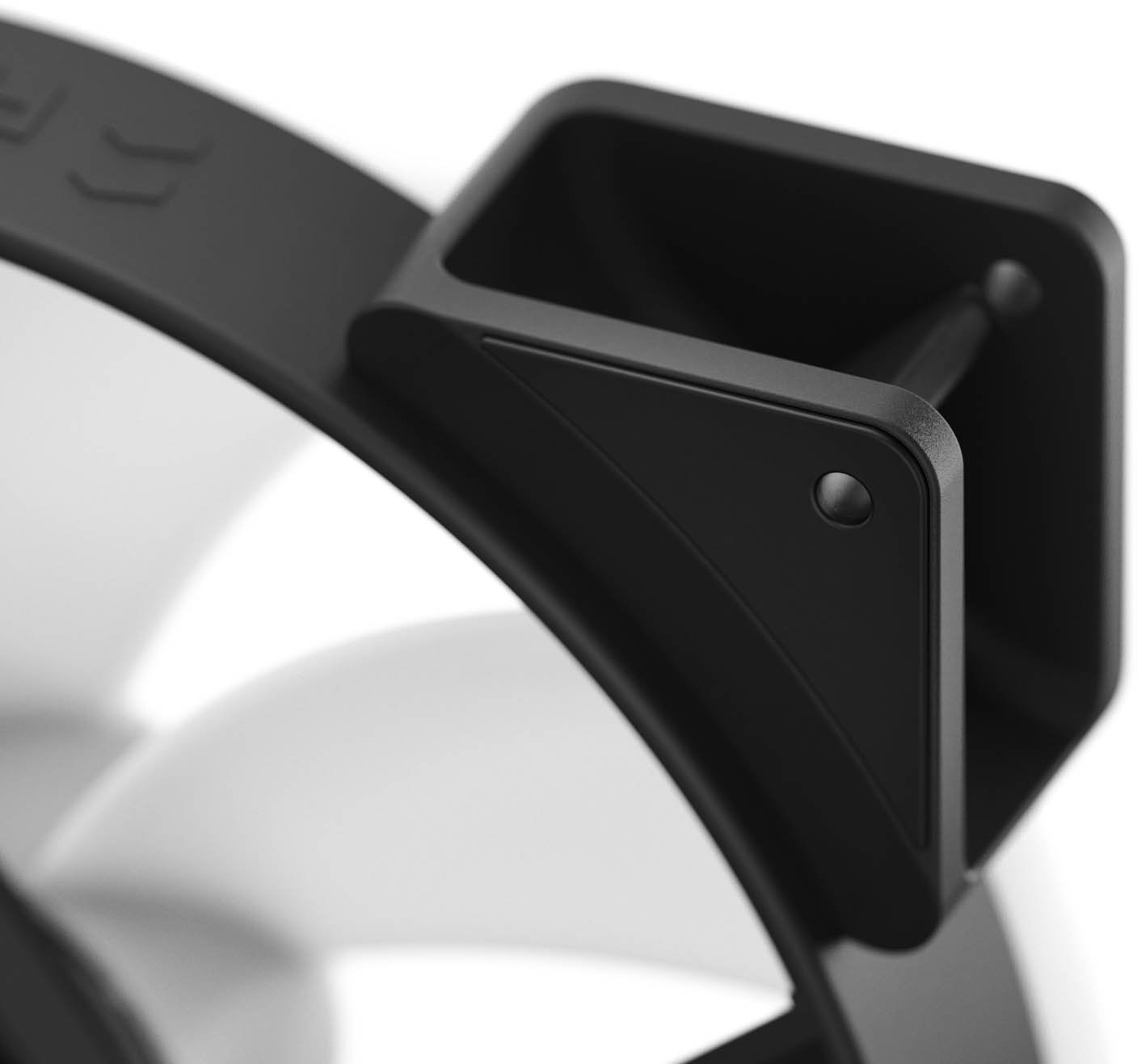

  • Integrated vibration-damping corners made from high-quality synthetic rubber

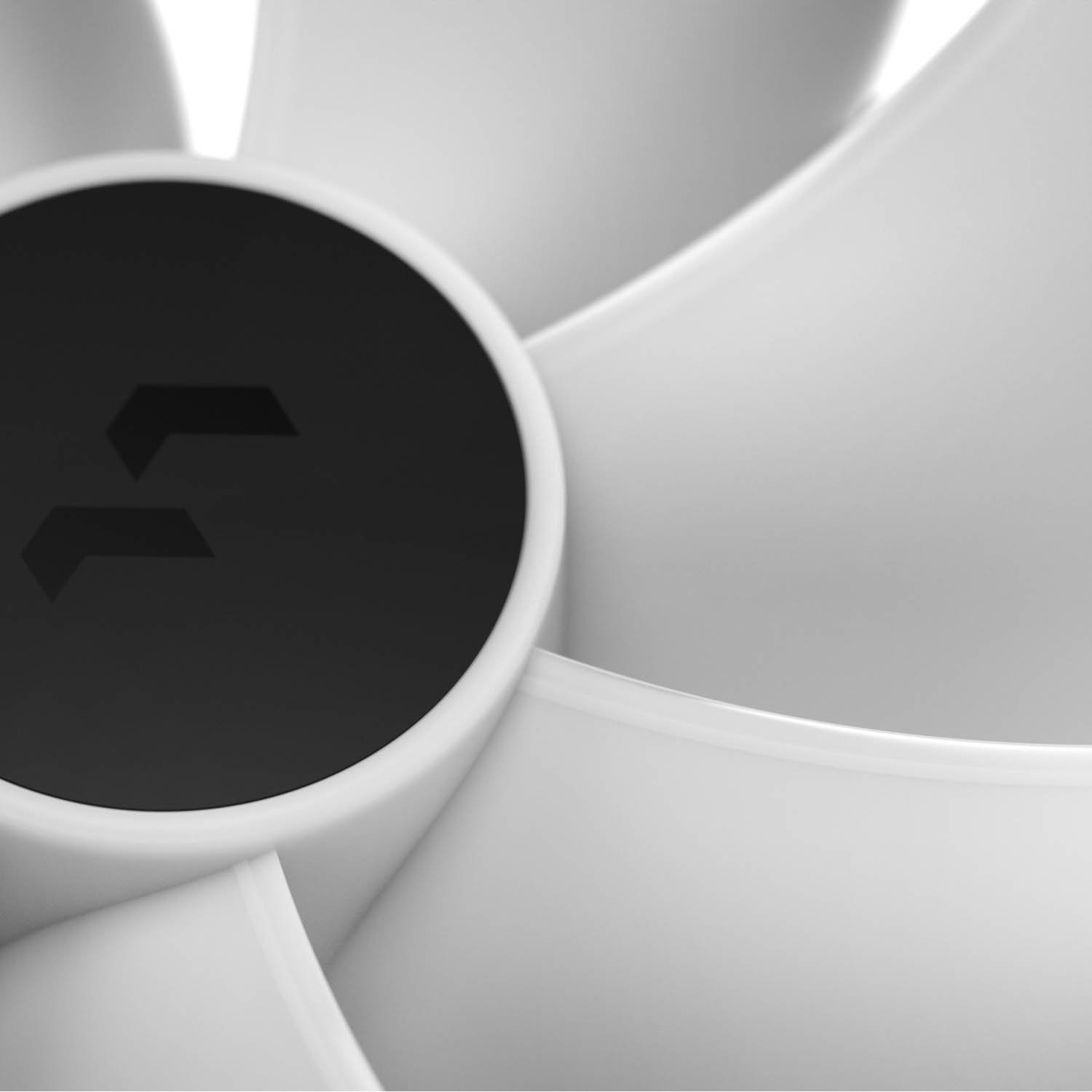

  • Trip Wire technology introduces a micro-turbulent layer for enhanced blade efficiency

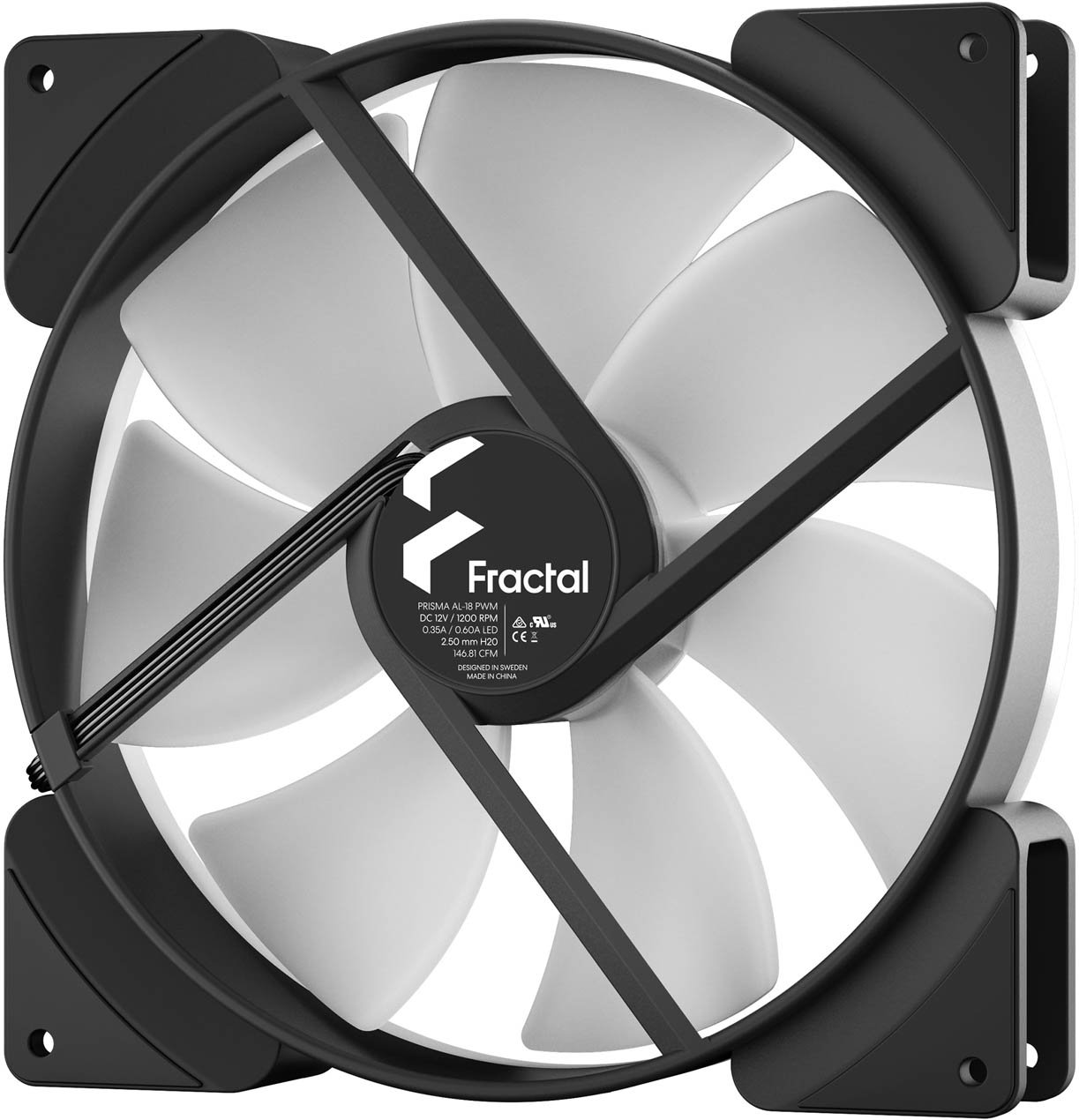

  • Aerodynamic stator struts with embedded wiring reduce noise and turbulence

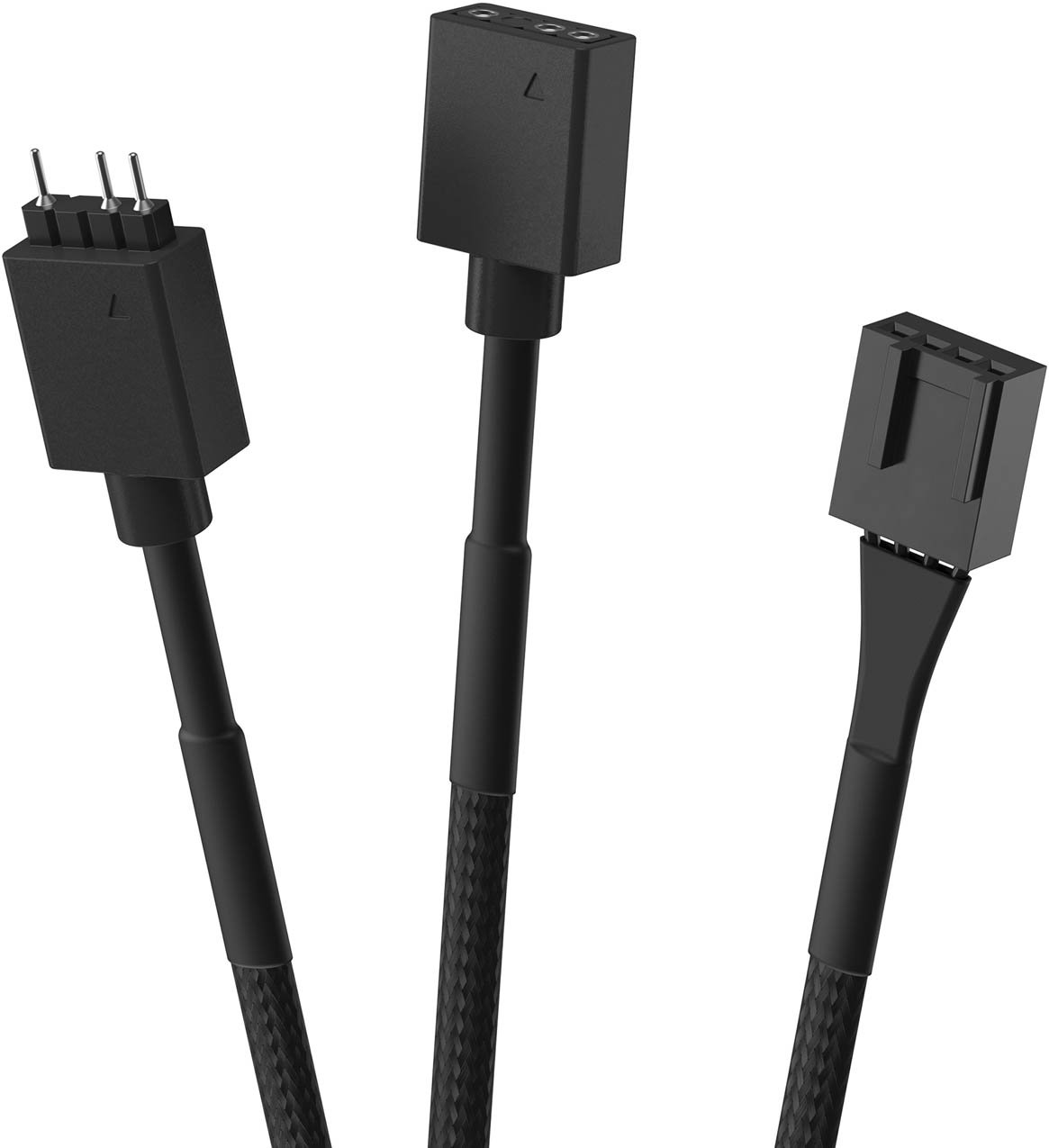

  • Chainable RGB cables simplify wiring and make the most of available connections
  • PWM control with a wide 300-1200 RPM speed range ideal for radiators
  • Black sleeved power cables offer an extra touch of style
  • ASUS AURA, Gigabyte Fusion, MSI Mystic Light and ASRock Polychrome support
  • Adjust R1 RGB controller (sold separately) enables physical control of colors and effects
  • Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern

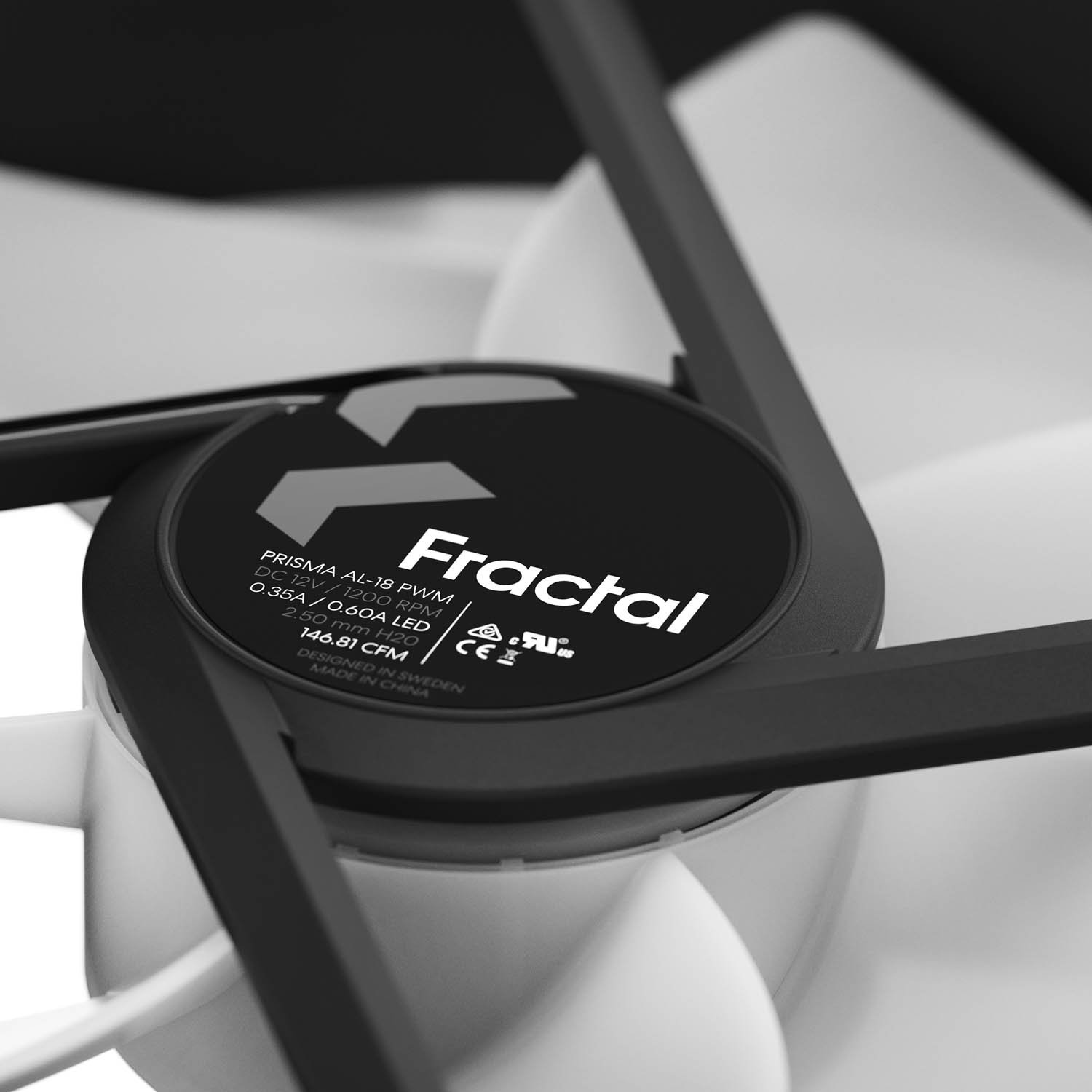

Specifications

Attributes

Fan Speed 300 ~ 1200 RPM
Air Flow 43.1 ~ 146.8 CFM
Bearing Type LLS
Connector 4-pin PWM
3-pin ARGB
Fan Air Pressure 0.44 ~ 2.50 mmH2O
Lifetime 90,000 hours

Electrical

Voltage 12 V
Current 0.35 A

Environmental

Noise Level 14.9 ~ 37.4 dBA

Physical

Form Factor Chassis Fan
Case Colour Black with ARGB
Cable length 1,000 mm
In The Box Prisma AL-180 180mm fan
4 x fan screws
4 x extra-long radiator screws
Fan Width 180 mm
Fan Depth 180 mm
Fan Height 38 mm
Fan Weight 521 g

Key Features

Main Colour Black
Fan Size 180 mm
Display Model in Showroom No
L.E.D Fan No LED
Number of Fans 1 fan(s)
LED Controller Included No
LED Strip(s) Included No
Fan Connector 4-pin PWM

Warranty

Warranty 1 Year

Item Details

Manufacturer Fractal Design
Manufacturer Code FD-FAN-PRI-AL18-PWM
EAN 7340172702580
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Fractal Design
Manufacturer Code FD-FAN-PRI-AL18-PWM
