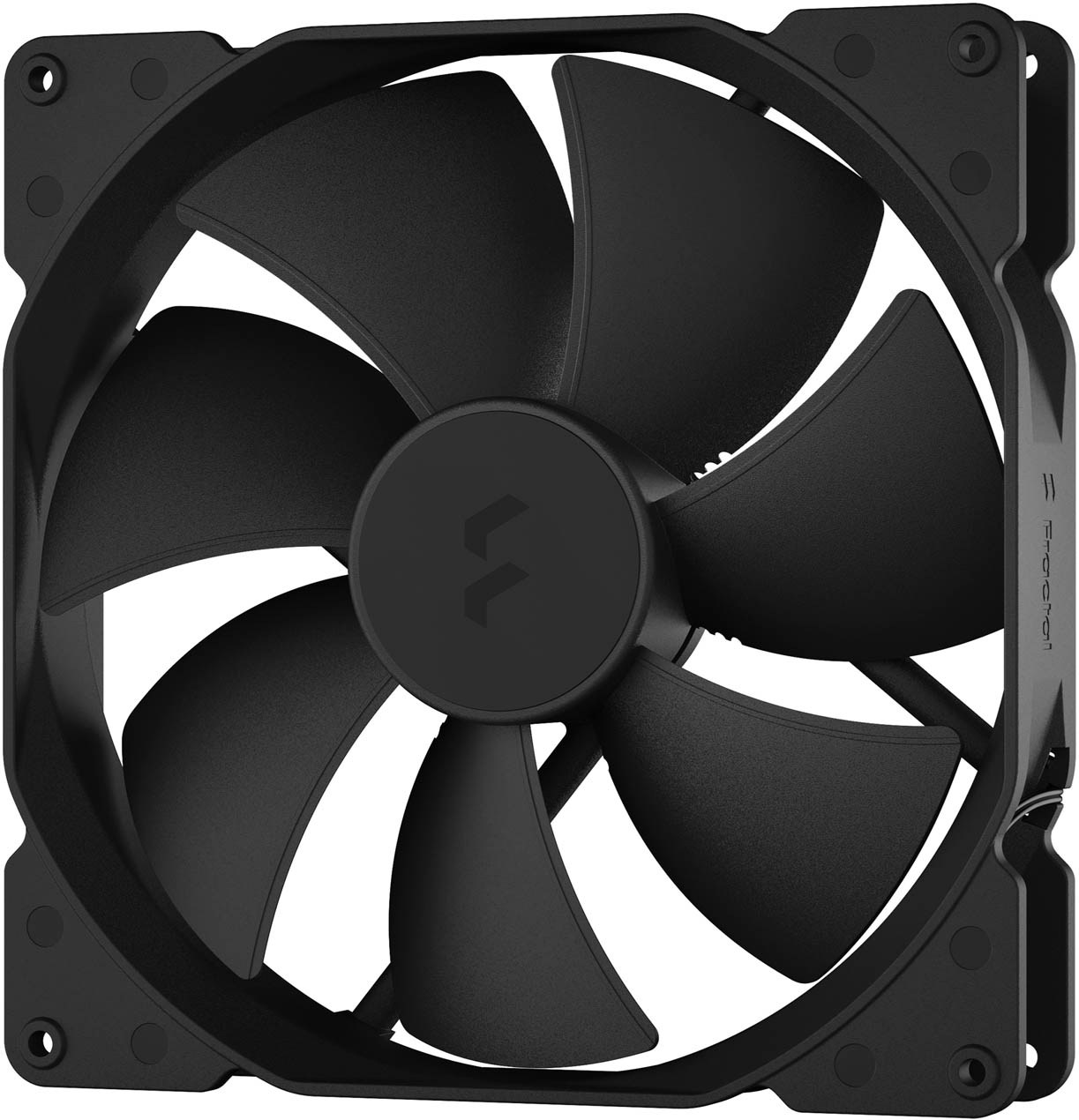

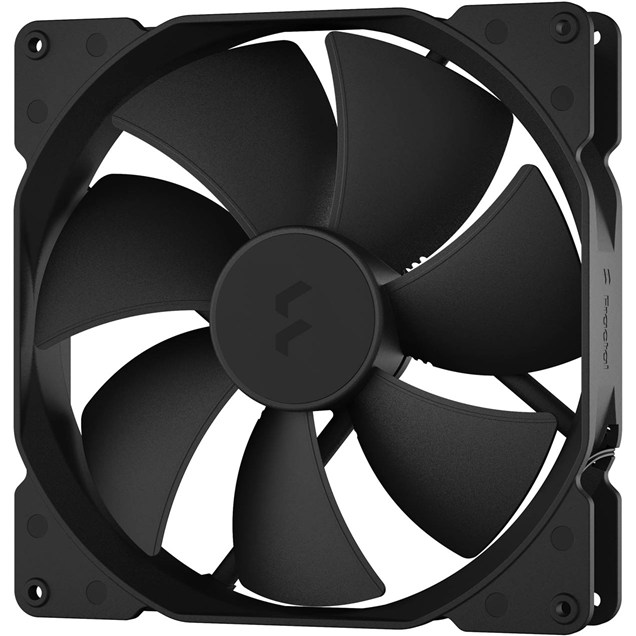

Fractal Design Dynamic X2 GP-18 180mm PWM Chassis Fan

Fractal Design Dynamic X2 GP-18 180mm PWM Chassis Fan

CCL Code: CLR2338

Discontinued

Fractal Design Dynamic X2 GP-18 180mm PWM Chassis Fan

FD-FAN-DYN-X2-GP18-PWM-BK

CCL Code: CLR2338

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The Dynamic X2 GP-18 is a powerful 180 mm fan that packs a mean punch in the air-flow department. Massive blades, stout 38 mm thickness, and a wide 300-1200 RPM range with PWM control allow the GP-18 to yield remarkably high airflow while remaining exceptionally quiet.

Main Features

  • Massive 180 x 38 mm fan that yields remarkably high airflow while remaining very quiet
  • High-grade LLS bearing with 90,000-hour MTTF delivers long-lasting dependability
  • PWM support offers a wide 300-1200 RPM speed range for silent operation under lighter loads and maximum airflow during more demanding activity
  • Optimized fan geometry balances airflow with extra emphasis on static pressure for great performance in any usage scenario
  • Aerodynamic stator struts with embedded wiring helps reduce noise and turbulence
  • Stator struts sit on a wide angle to the trailing edge of the blades, resulting in a lower noise level and smoother noise profile
  • Strategically placed notches near the fan hub on the trailing edge of the blades help to eliminate the humming noise produced when the blades pass stator struts

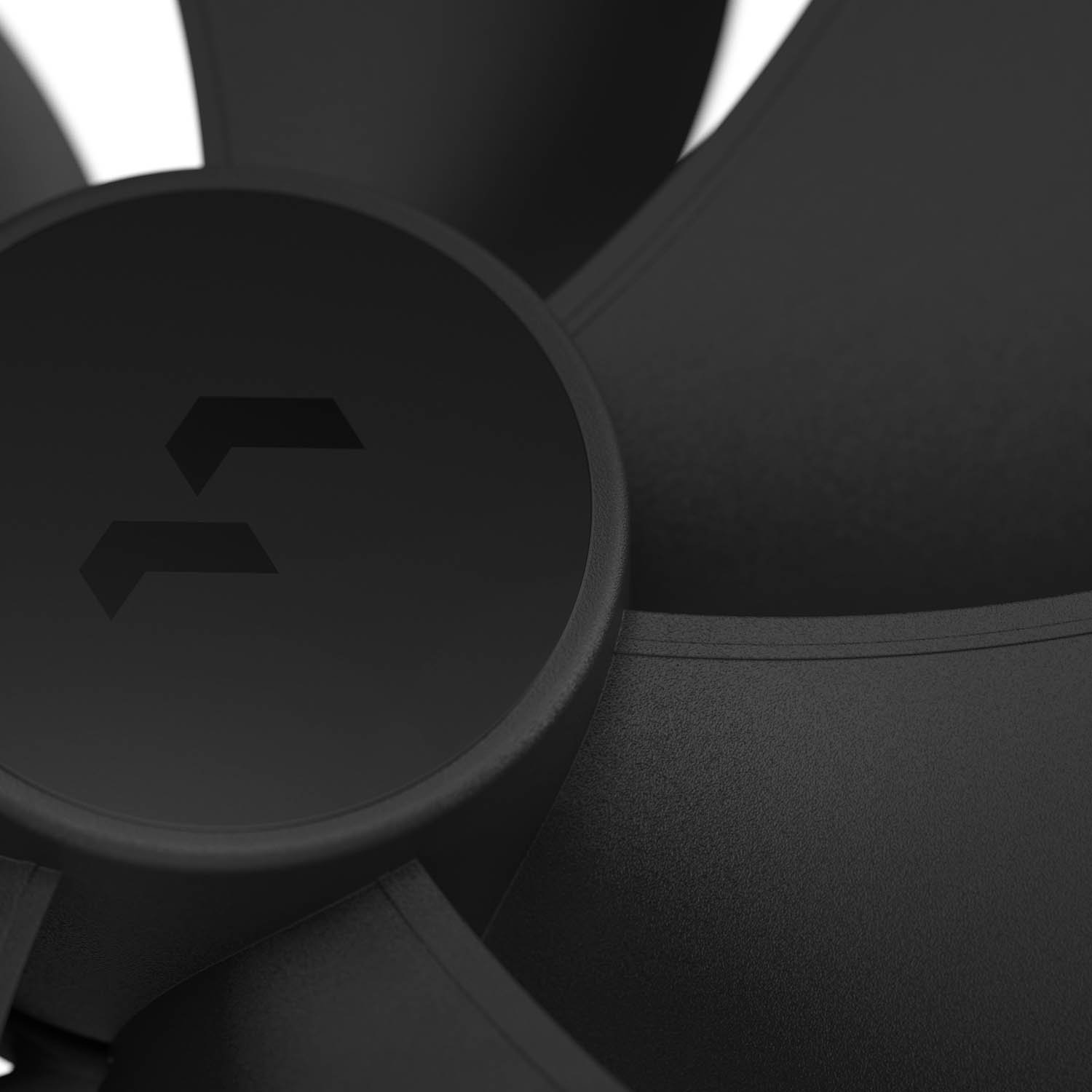

  • Trip Wire technology introduces a micro-turbulent layer that helps to combat elements that negatively affect performance, providing an overall more efficient and quieter fan environment
  • Customized design contributes to a cool running and beautiful looking build
  • Fits standard 180 mm fan mounts with 165 x 165 mm screw hole pattern
Specifications

Attributes

Fan Speed 300 ~ 1200 RPM
Air Flow 44.9 ~ 153.7 CFM
Bearing Type LLS
Connector 4-pin PWM
Fan Air Pressure 0.4 ~ 2.26 mmH2O
Lifetime 90,000 hours

Electrical

Voltage 12 V
Current 0.35 A

Environmental

Noise Level 16 ~ 35.4 dBA

Physical

Form Factor Chassis Fan
Case Colour Black
Cable length 1,000 mm
In The Box Dynamic X2 GP-18 fan
4 x fan screws
4 x extra-long radiator screws
Fan Width 180 mm
Fan Depth 180 mm
Fan Height 38 mm
Fan Weight 499 g

Key Features

Main Colour Black
Fan Size 180 mm
Display Model in Showroom No
L.E.D Fan No LED
Number of Fans 1 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Fan Connector 4-pin PWM
Power Requirement (auto) 3 W

Warranty

Warranty 1 Year

Item Details

Manufacturer Fractal Design
Manufacturer Code FD-FAN-DYN-X2-GP18-PWM-BK
EAN 7340172702573
UPC 843276102579
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Fractal Design
Manufacturer Code FD-FAN-DYN-X2-GP18-PWM-BK
