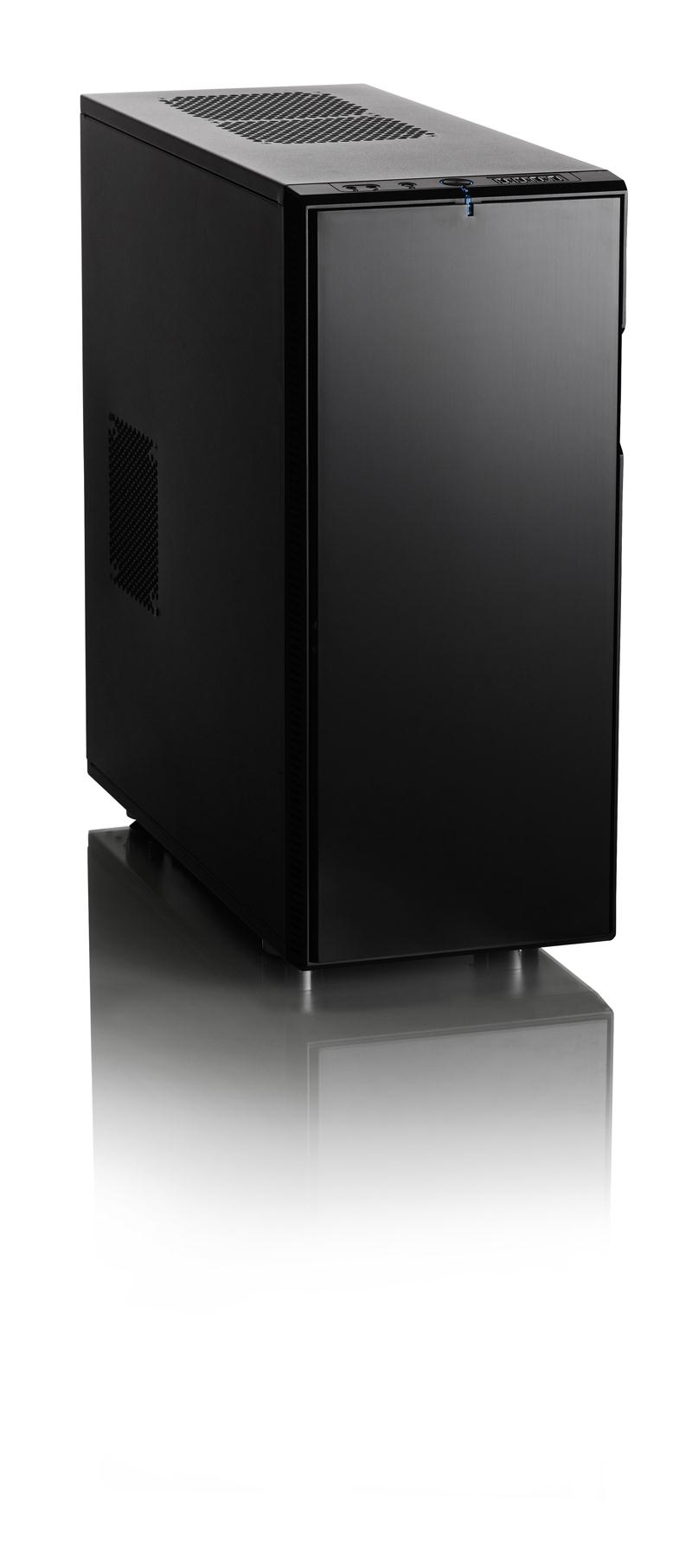

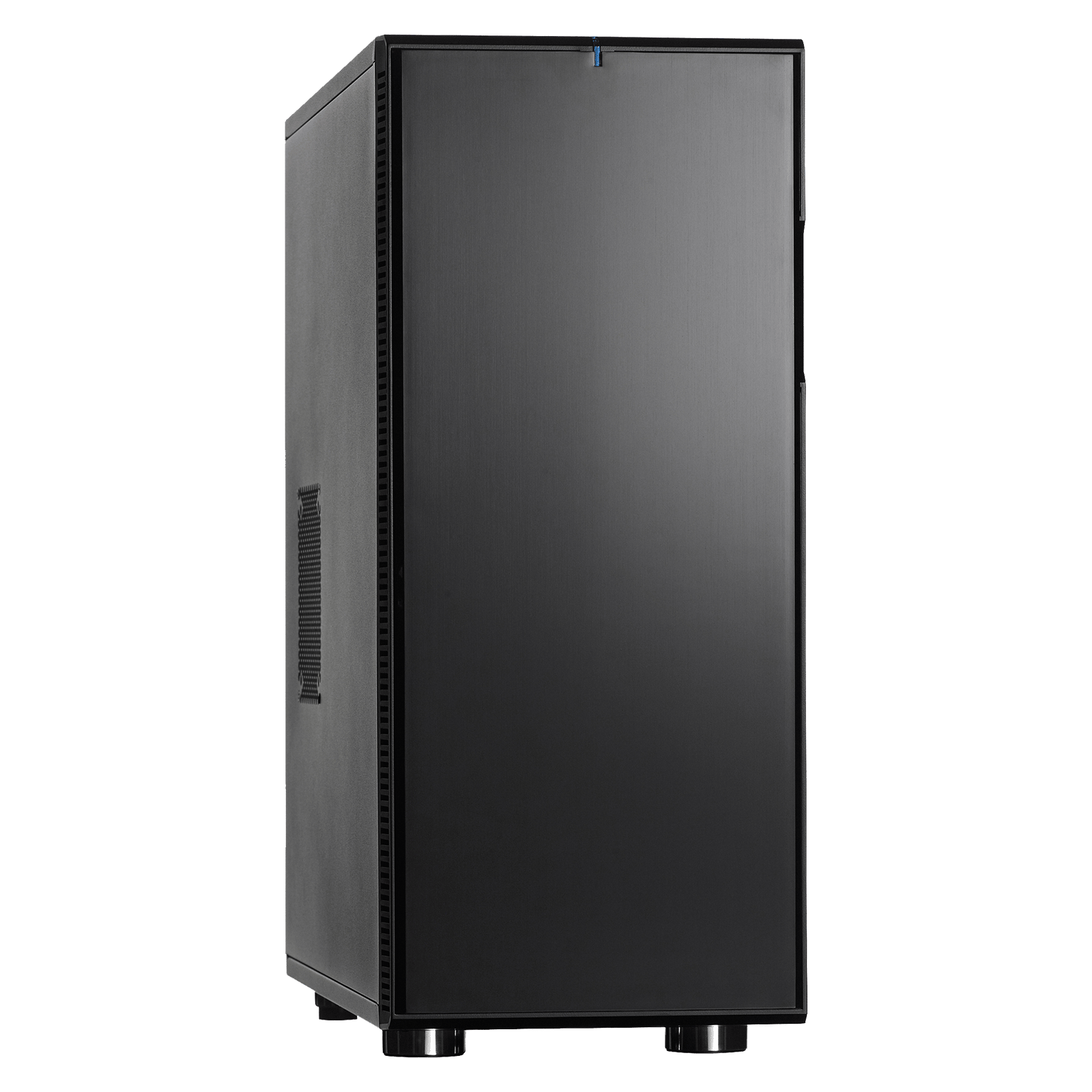

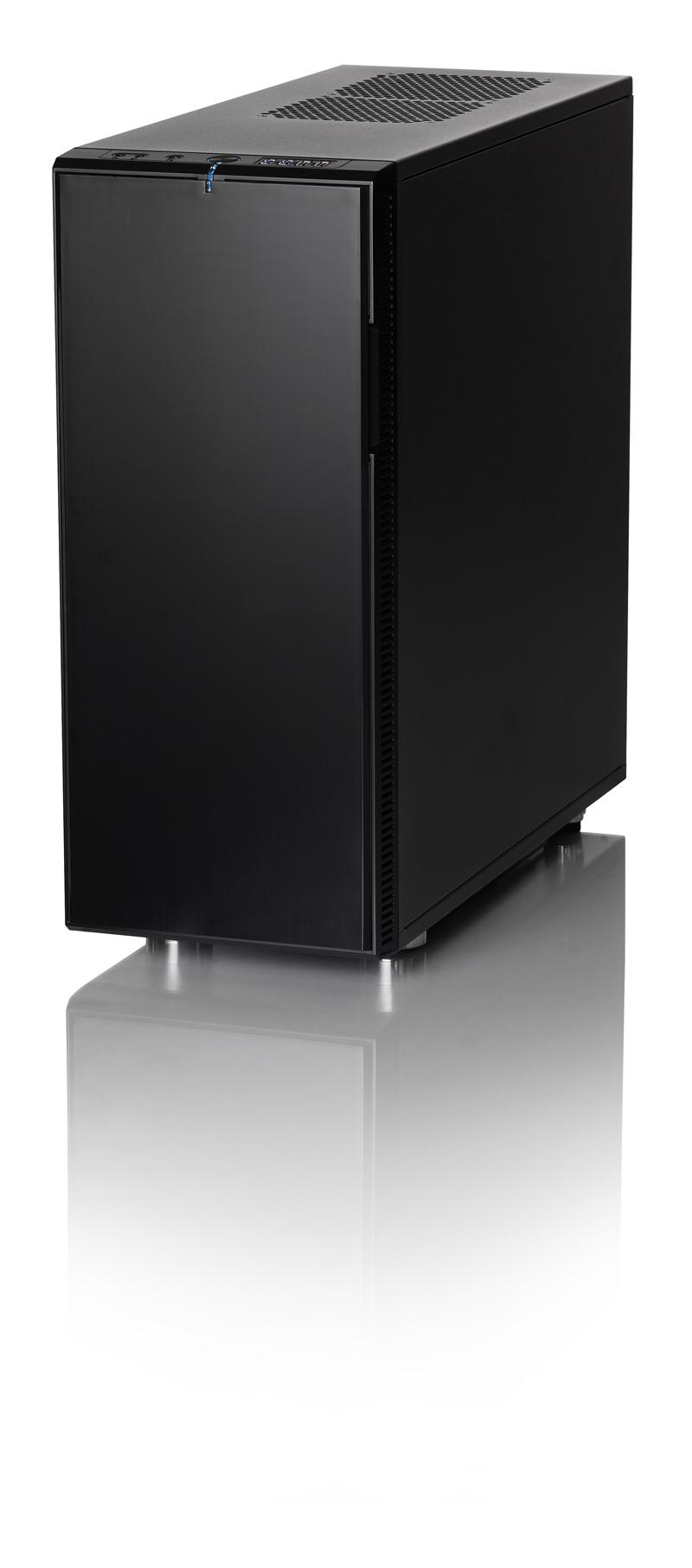

Fractal Design Define XL R2 Full Tower Gaming Case - Black

Fractal Design Define XL R2 Full Tower Gaming Case - Black

CCL Code: CAS0812

£189.01 inc VAT

Fractal Design Define XL R2 Full Tower Gaming Case - Black


£189.01 inc VAT

Available for Free Priority Delivery from Tomorrow

4 In Stock Now

Order within

Buying in bulk? Contact our business team.

Key Features:

  • PSU not included

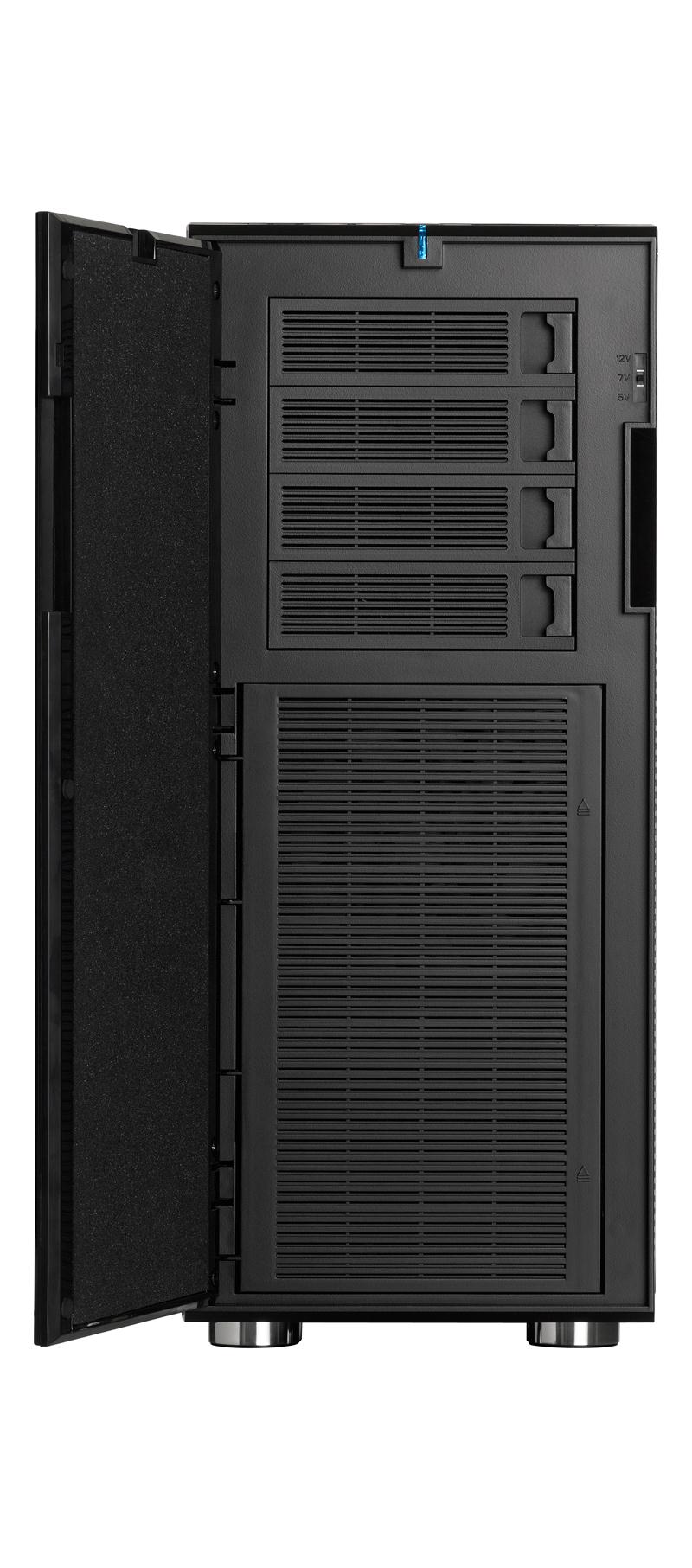

  • 4 x 5.25" External Bay(s)
  • 8 x 2.5" Drive(s) Max
  • 8 x 3.5" Drive(s) Max
  • Max MB Size: XL-ATX
CCL Code: CAS0812

Fractal Design builds on the success of its awarding-winning Define XL computer case with the Define XL R2. This updated chassis carries on the family tradition of providing superb cooling and ventilation capabilities with exceptional expandability, in a sleek and stylish Scandinavian form. The Define XL R2, which includes Fractal Design's innovative ModuVent feature, has an updated internal layout that offers greater expandability, modularity and flexibility, including capacity for 9 PCI cards and two HDD cages that can be repositioned to provide more space for water cooling radiators.

Main Features

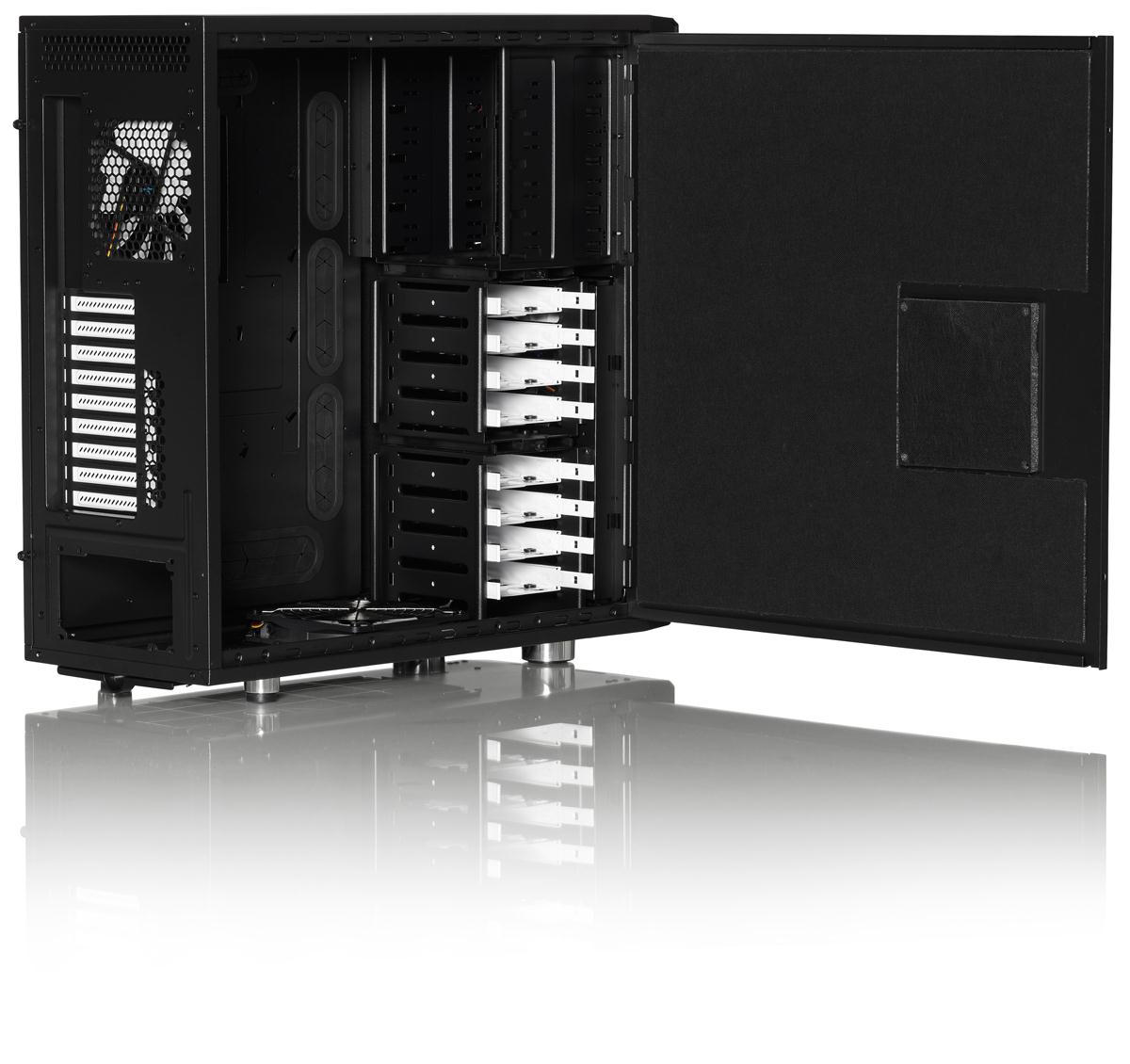

  • High density noise-reducing material for an optimal silent case
  • Patented ModuVent design allowing the user to choose between optimal silence or maximum airflow
  • With a new internal layout and additional PCI expansion slots, it can harbor the most powerful enthusiast systems

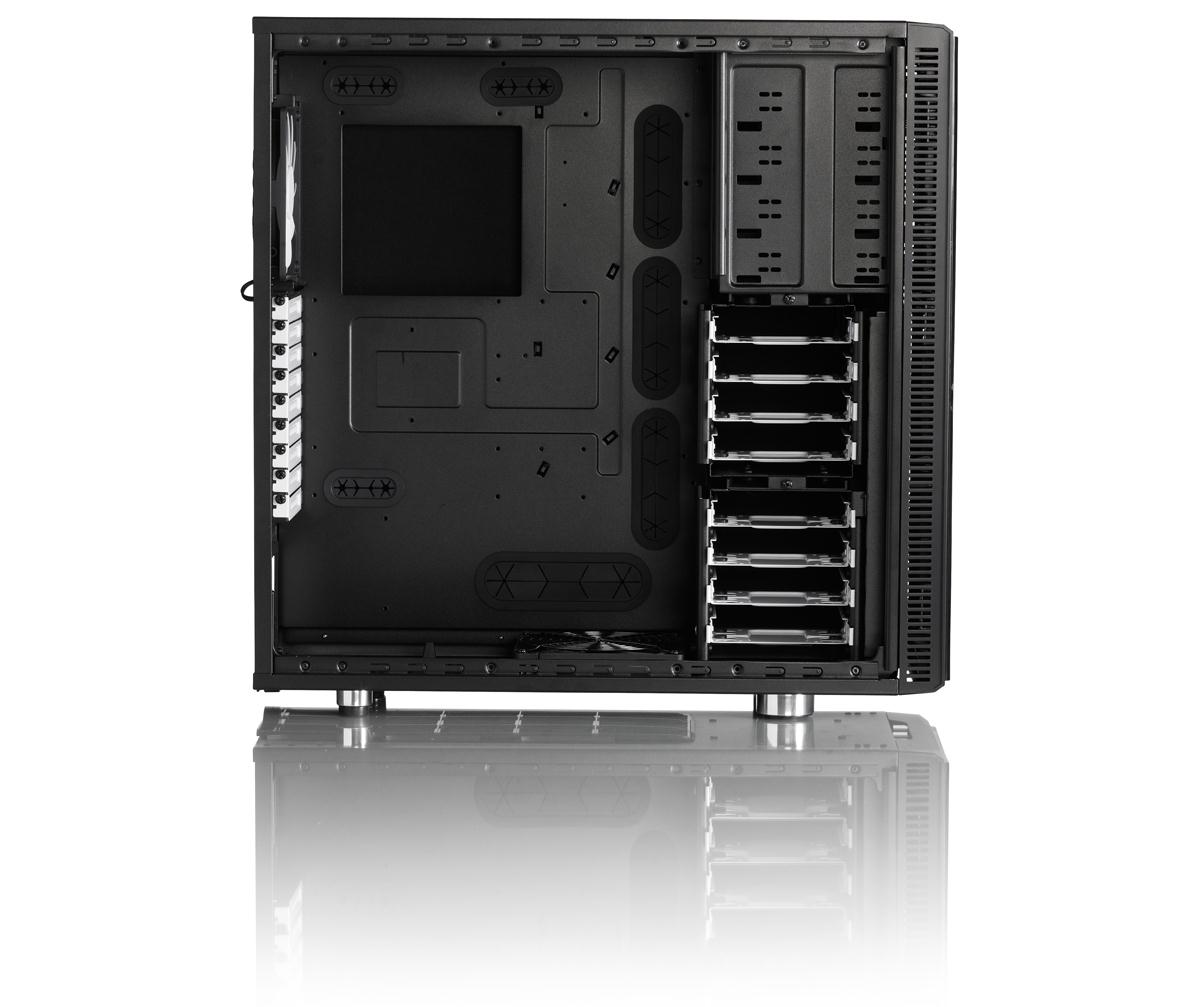

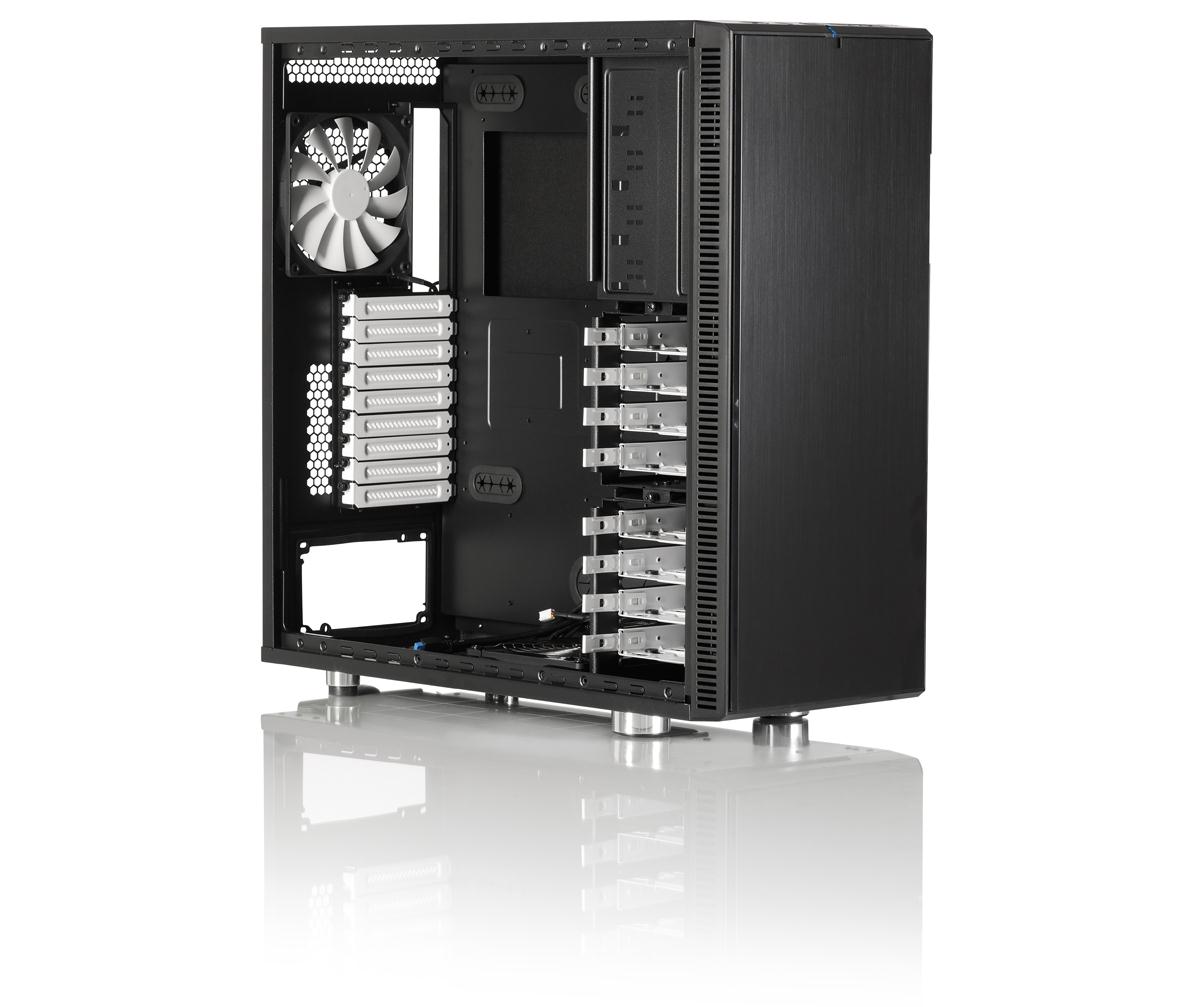

  • Both HDD cages can be removed or repositioned - Top HDD cage can be removed or repositioned for increased airflow whereas bottom HDD cage can be repositioned further into the case to allow for front radiator mount
  • The case can fit water cooling equipment in the front, top, rear and bottom without major modifications
  • Three-speed fan controller is strategically integrated in the front panel and supports up to 3 fans
  • Three Silent Series R2 fans are included, featuring hydraulic bearings which contribute to a longer life expectancy - Silent Series R2 retail fans now come standard in all cases

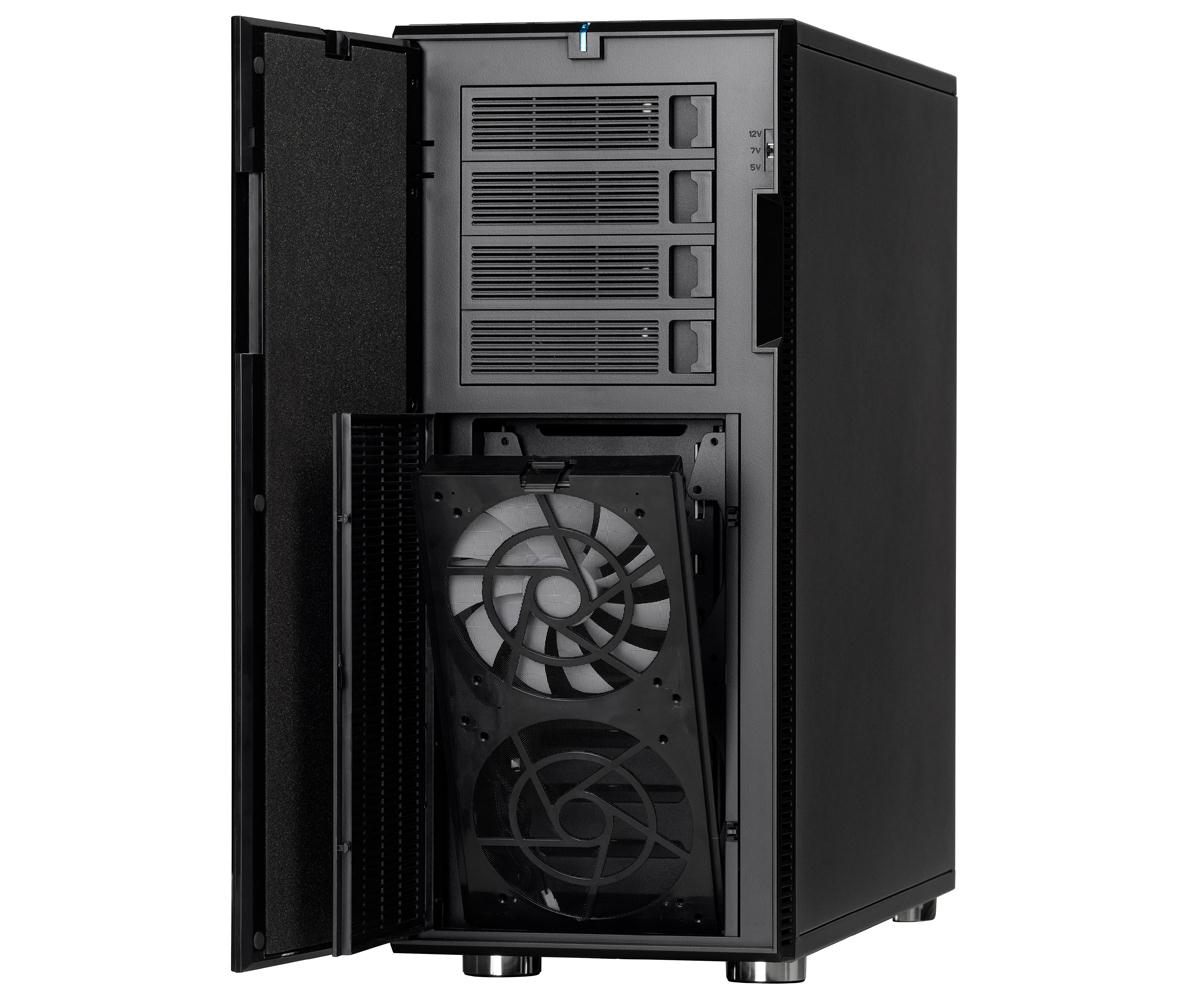

  • New tool-less front fan holder makes switching front fans a breeze


Number of Bays for Hot Pluggable Hard Drives 4

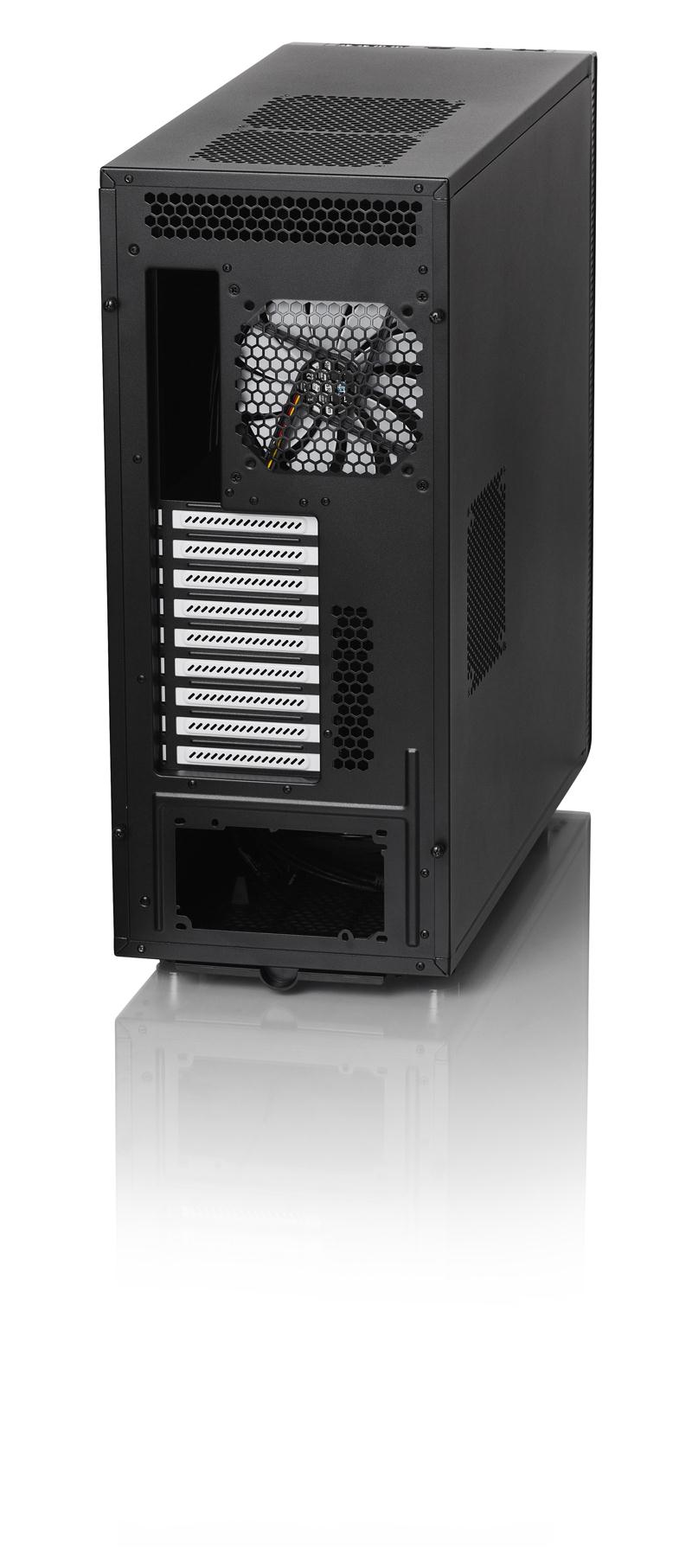

Expansion Slots 9

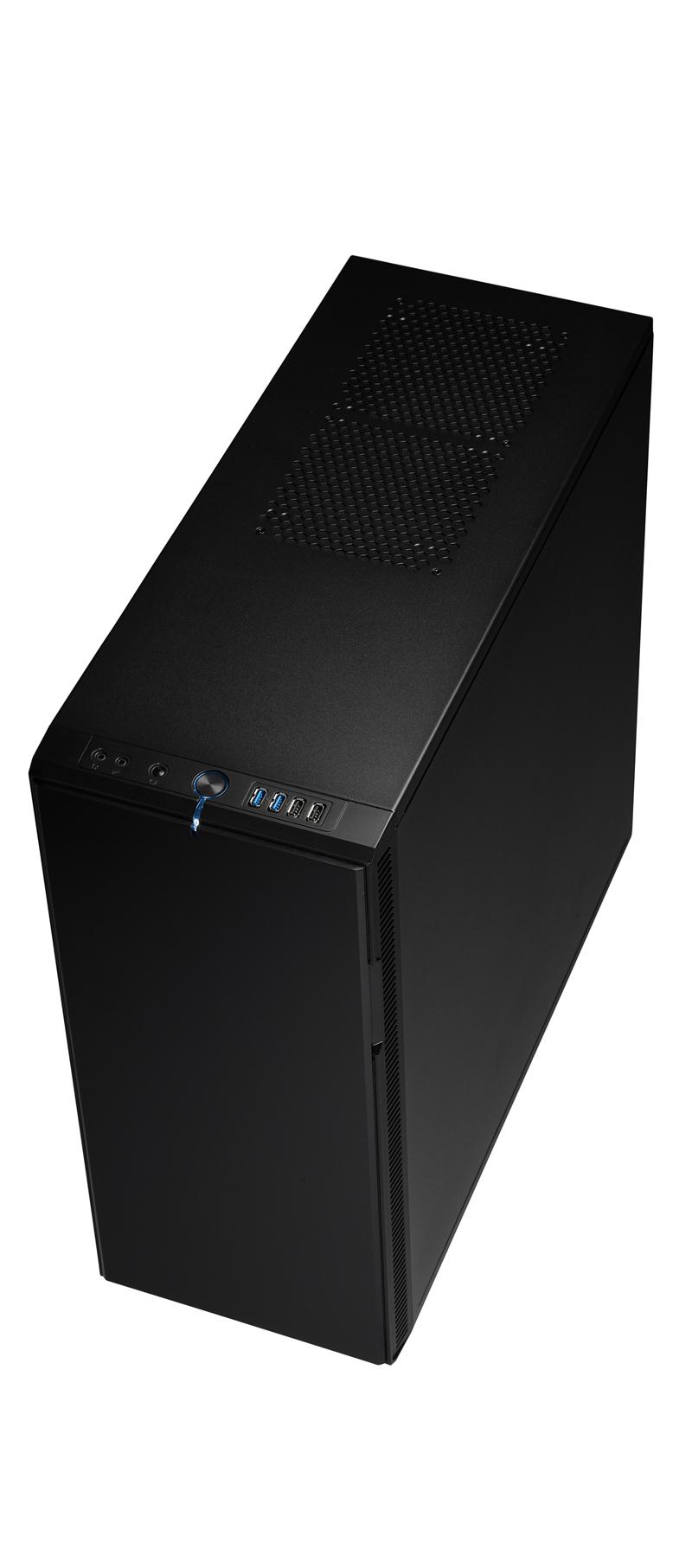

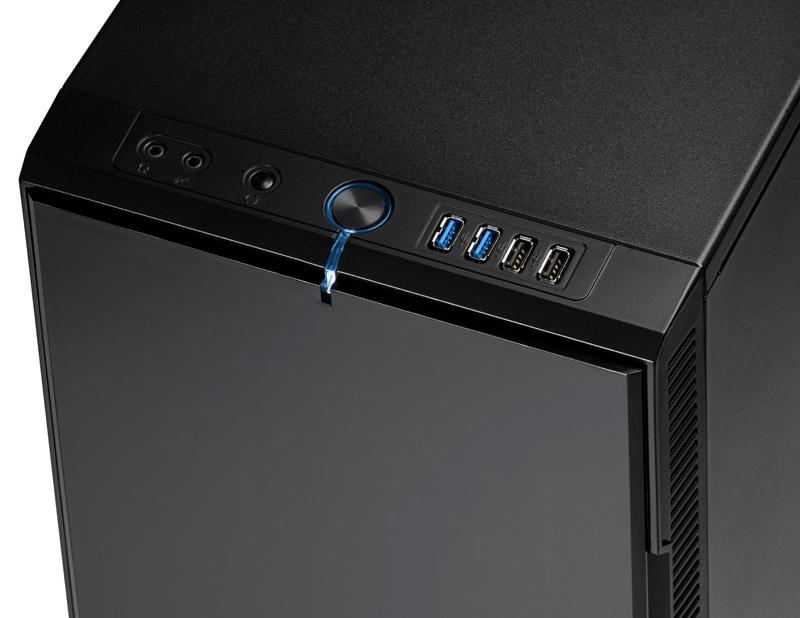

USB Ports 2 x USB 3.0 • 2 x USB 2.0
Audio Line In Ports 1 x Audio In
Audio Line Out Ports 1 x Audio Out


Form Factor Computer Case
Case Colour Black

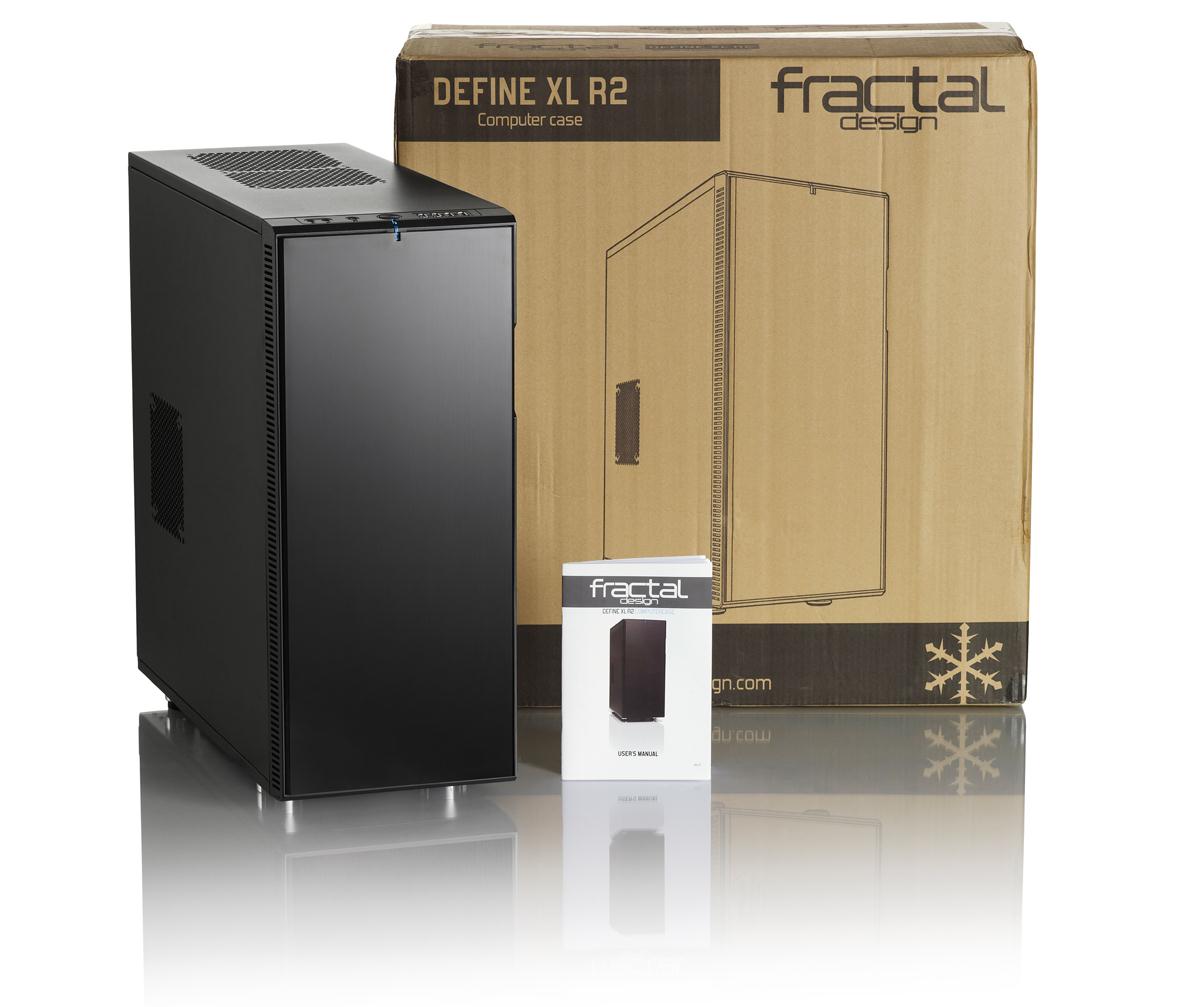

In The Box Fractal Design Define XL R2 Computer Case • User manual • Accessory box
Width 23.2 cm
Depth 56 cm
Height 55.9 cm
Weight 16.4 kg

Key Features

Firewire No
Laptop Size Range ins
Main Colour Black
External Expansion Bays
Internal Expansion Bays
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Full Tower
Power Supply Included No
Optimised for Gaming
Modular Cables
80Plus Rated No
Bag Size
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
L.E.D Fan No LED
Bag Type
Laptop Size
Max 3.5" Drives 8
External 5.25" Bay 4
Max 2.5" Drives 8
Micro-ATX No
Mini PC
Cooler Height 170 mm
Built-in Card Reader No
USB Type-C Support No
Front HDMI No
Side Panel Type Solid
GPU Length 480 mm
PSU Depth 345 mm
Memory Speed MHz
Card Reader Type
Front Audio Type Separate
Number of Fans 2 fan(s)
LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported XL-ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 8
Power Requirement (auto) 6 W
USB2.0 ports 2
USB3.0 ports 2
Low profile expansion No
Config Business Yes
Config Enterprise Yes
Config Professionals Yes
Config Quiet Yes


Warranty 1 Year

Item Details

Manufacturer Fractal Design
Manufacturer Code FD-CA-DEF-XL-R2-BL
EAN 7350041081005
UPC 817301011006
Condition New

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Fractal Design
Manufacturer Code FD-CA-DEF-XL-R2-BL

Do you have you a question about the Fractal Design Define XL R2 Computer Case (Black Pearl)?

Q: does theFractal Design FD-CA-DEF-XL-R2-BL - Define XL R2 Computer Case (Black Pearl) come with a window?
Answer by Website User on 27th June 2018
This case does not have a windowed side panel. - Matthewt
0 customers found this answer helpful.
Post Answer
Q: Can I fit a 5.25" Blu Ray Drive into the front of this Tower? If I can I will order one & pick it up with the rest of my order on Saturday Feb. 11th. Kind regards,
Answer by Website User on 9th February 2017
Yes, this can be installed into this tower.
0 customers found this answer helpful.
Post Answer
No reviews have been received for this product yet

PDF Datasheets and Manuals

Document File type File size
Fractal Design Define XL R2 Computer Case (Titanium Grey) pdf 0.36MB
