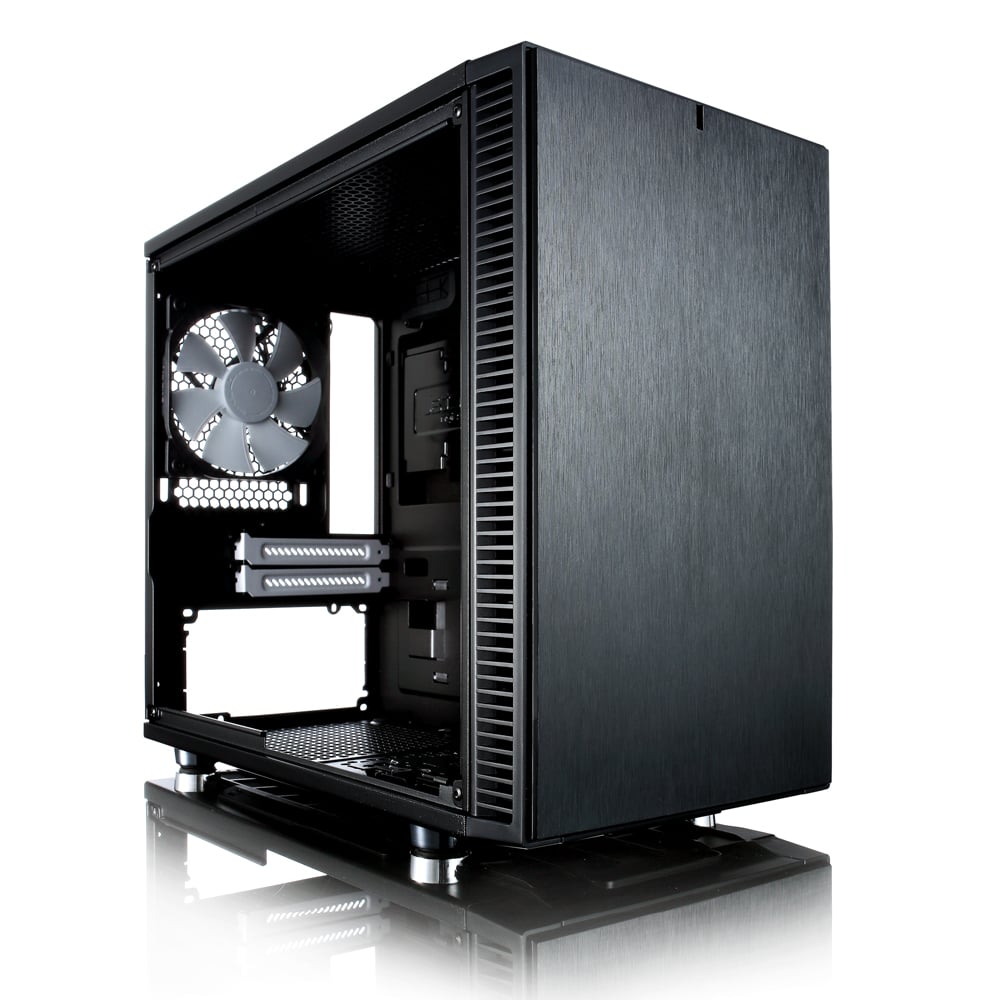

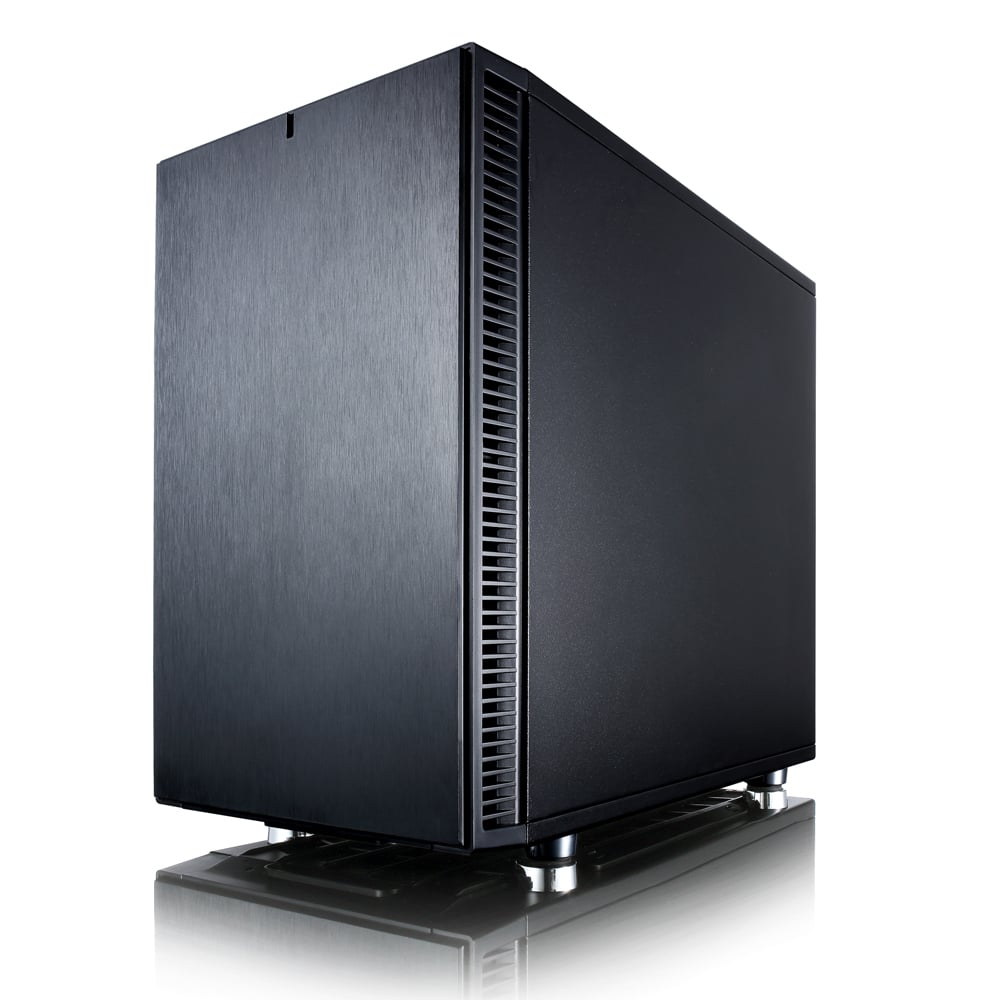

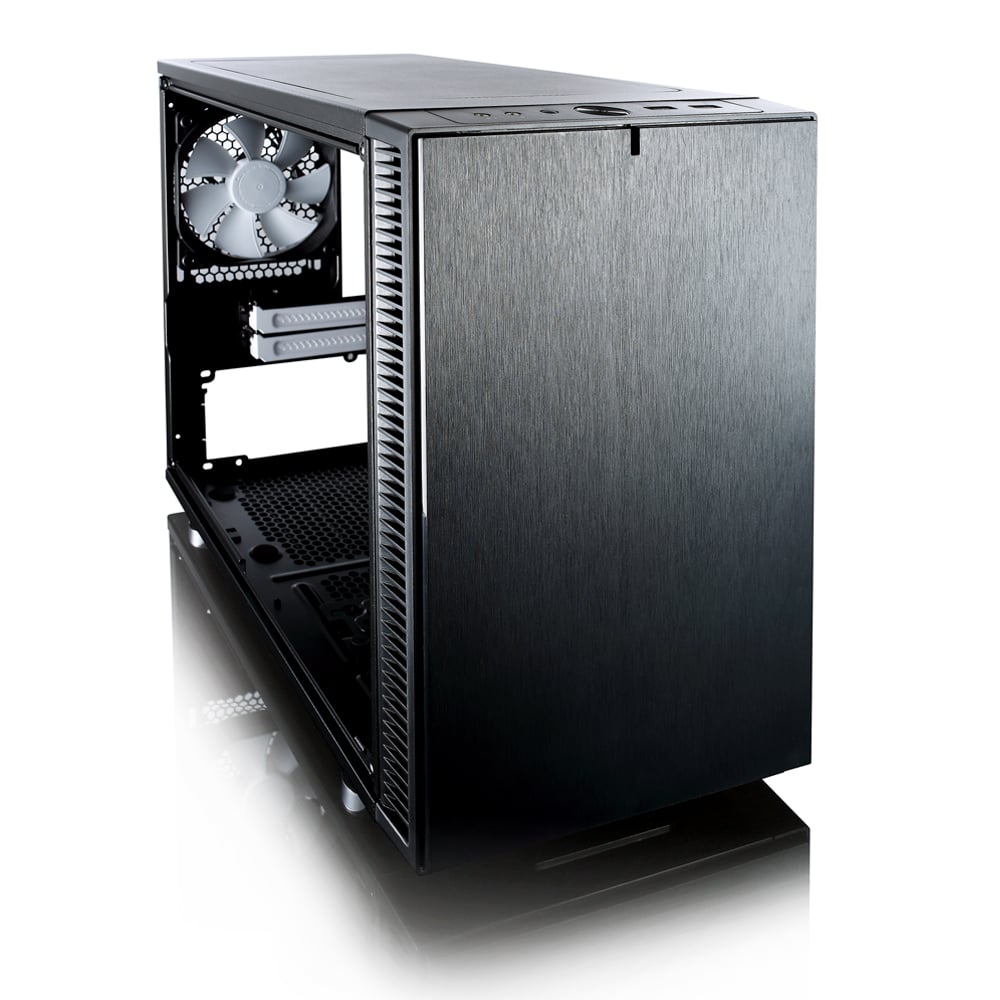

The Define Nano S is an ITX case that features compatibility with high end, full-size components, superior sound dampening, and an ATX-like layout.

The case includes two Dynamic Series fans with both bottom and front intakes protected by easy-to-clean, removable dust filters.

With its mounting capabilities for simultaneous radiators and unobstructed airflow path, the Define Nano S can cool enthusiast-level components.

Equipped with Fractal Design’s signature ModuVent™ technology on the top vents and sound dampening throughout, the Define Nano S can run a powerful system quietly, a hallmark of the Define series.

Specifications

• ITX motherboard compatibility

• 2 expansion slots

• 2 - 3.5" HDD/2.5" SSD positions; 2 - 2.5" dedicated SSD unit positions (fits SSDs up to 13mm thick)

• 6 - Fan positions (1 Fractal Design Dynamic GP14 140mm fan + 1 Fractal Design Dynamic GP-12 120mm fan included)

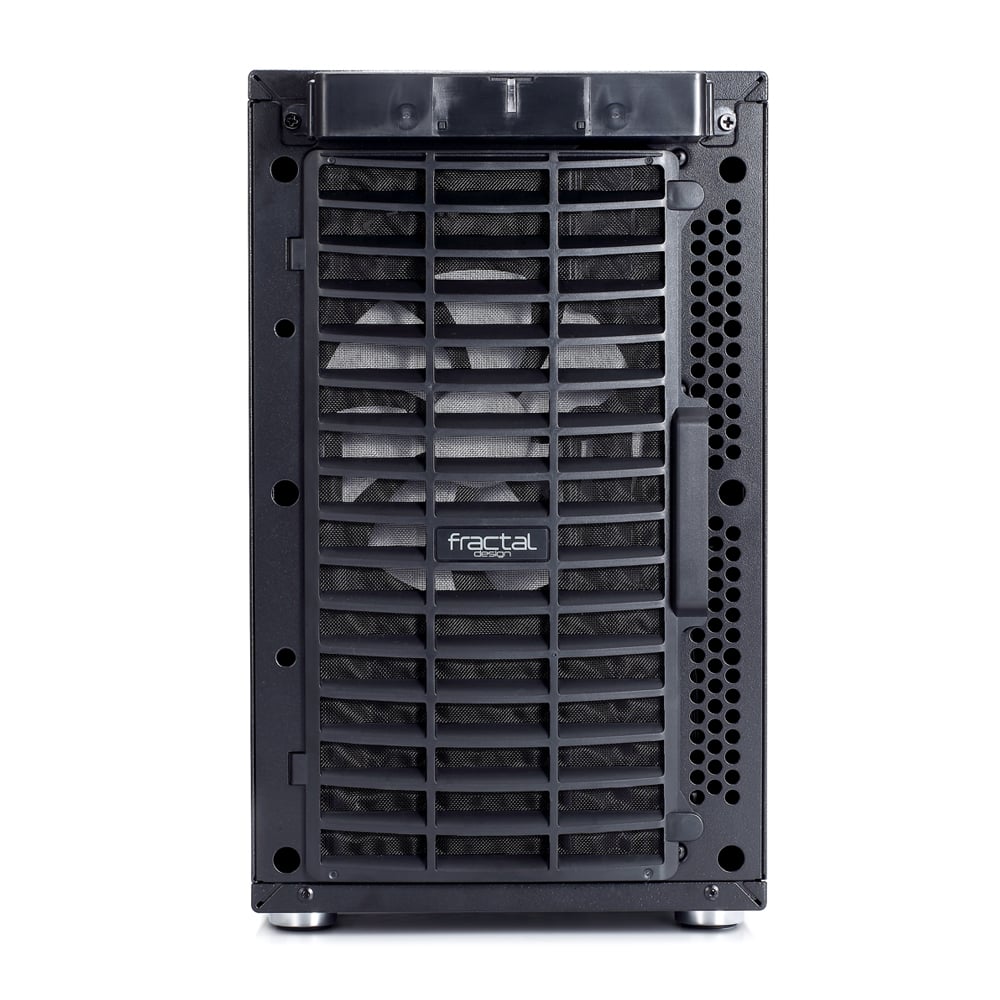

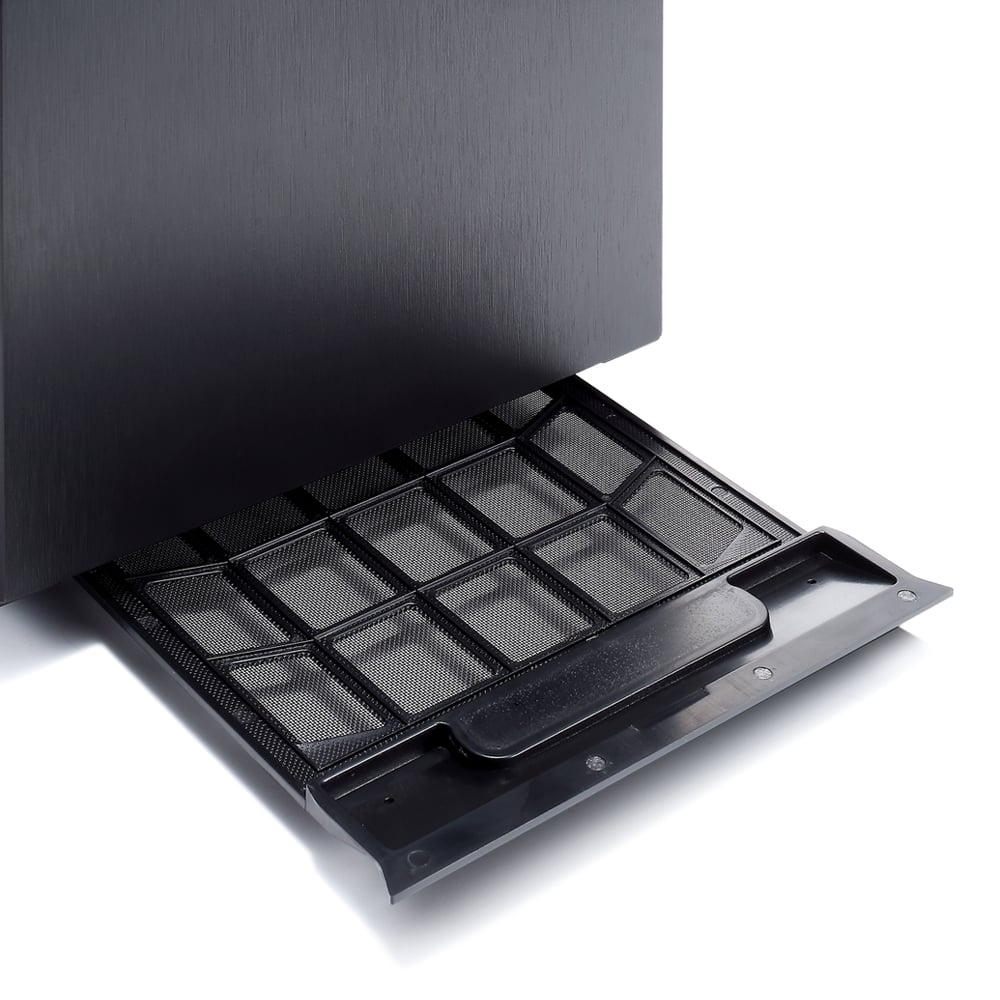

• Filtered fan slots in the front and bottom (ejects from the front of the case)

• CPU coolers up to 160mm in height

• ATX PSUs up to 160mm deep

• Graphics cards up to 315mm in length with front fans mounted (Cards wider than the dual slot bracket are not recommended)

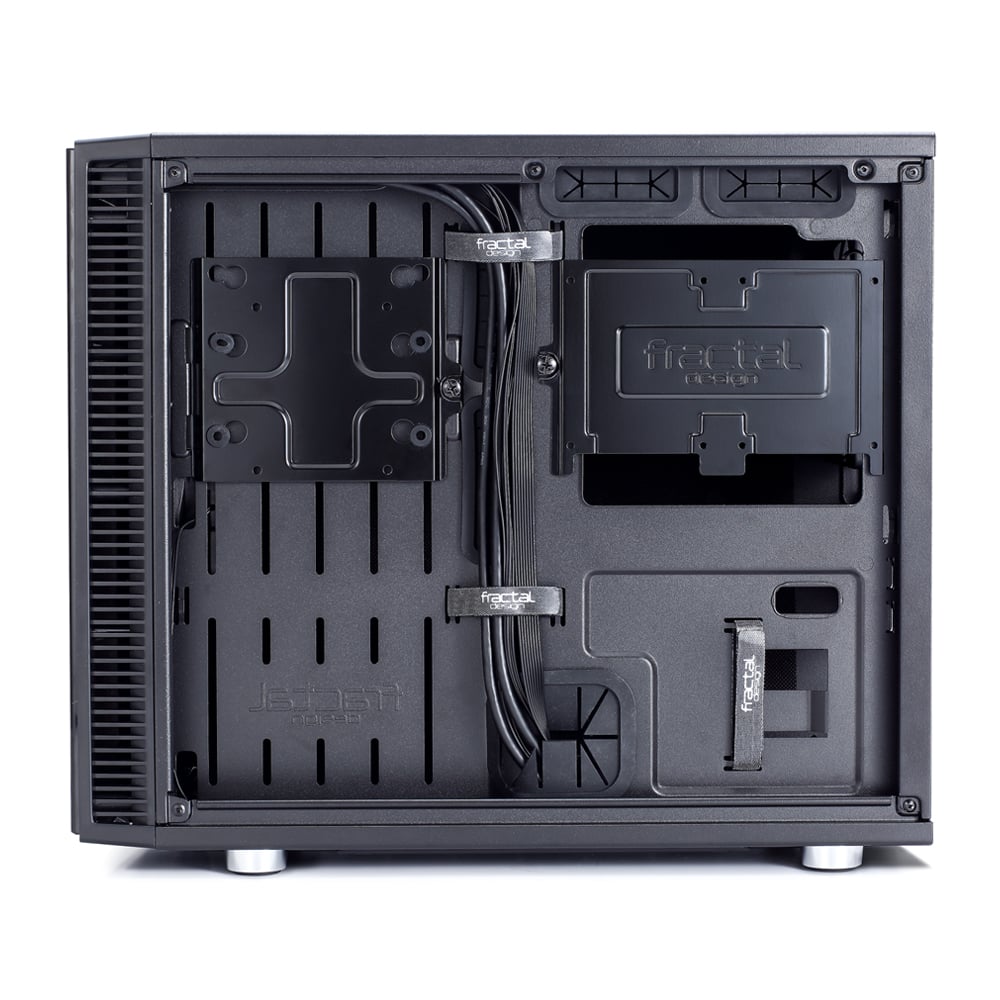

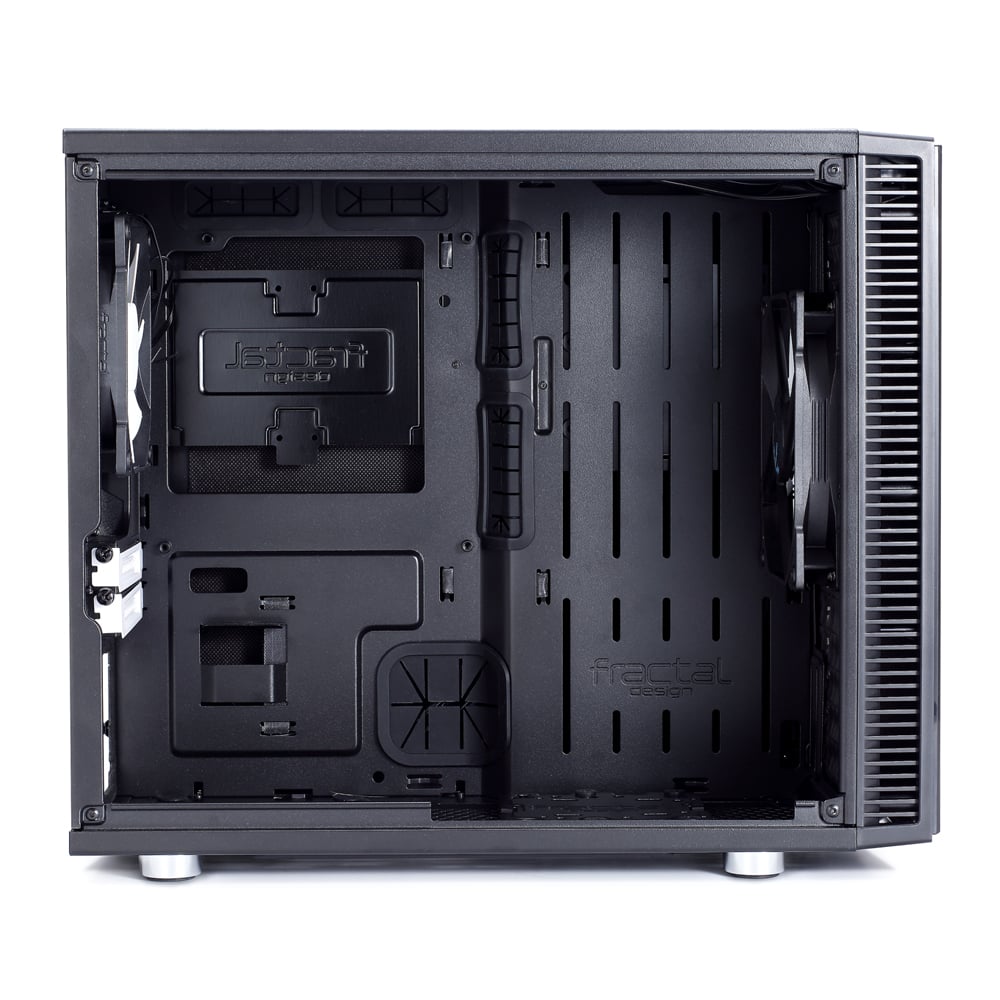

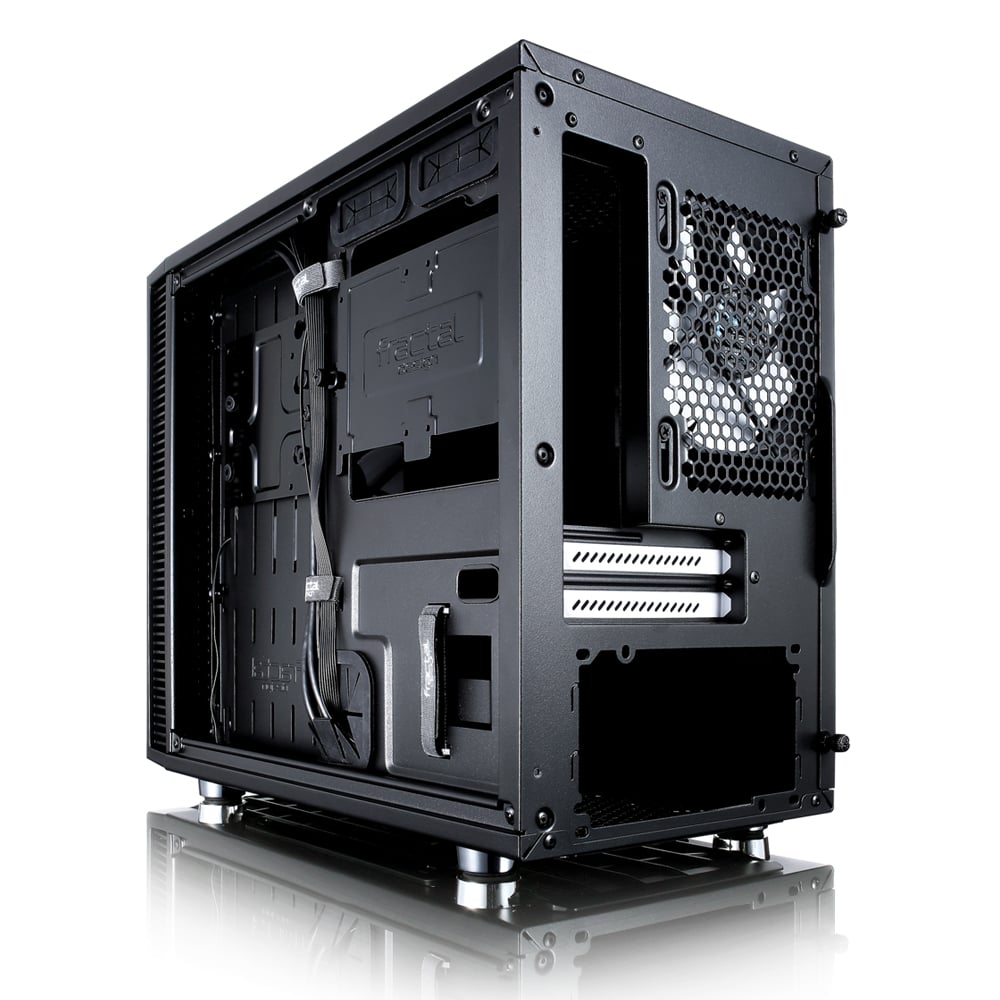

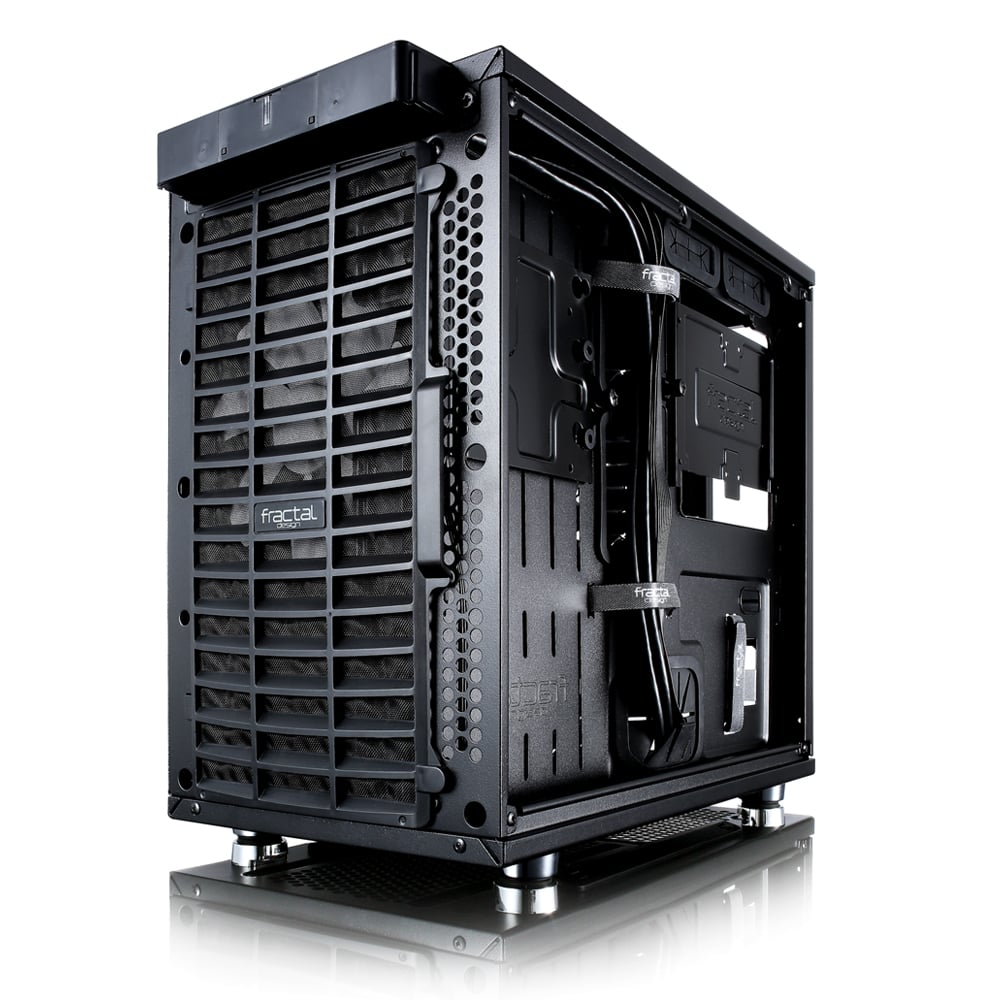

• 17 - 35mm of space for cable routing behind the motherboard plate

• Velcro straps included for easy cable management

• Both side panels and rear HDD/SSD brakcets feature smart captive thumbscrews

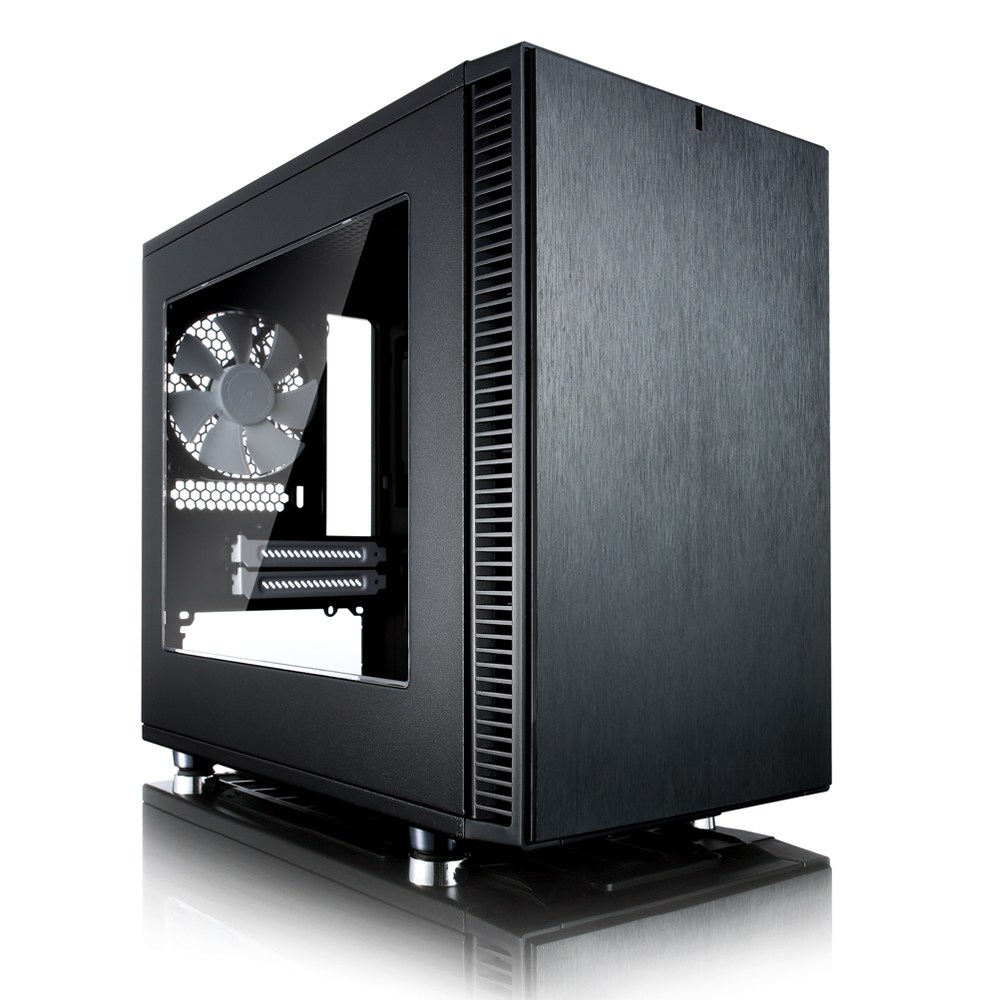

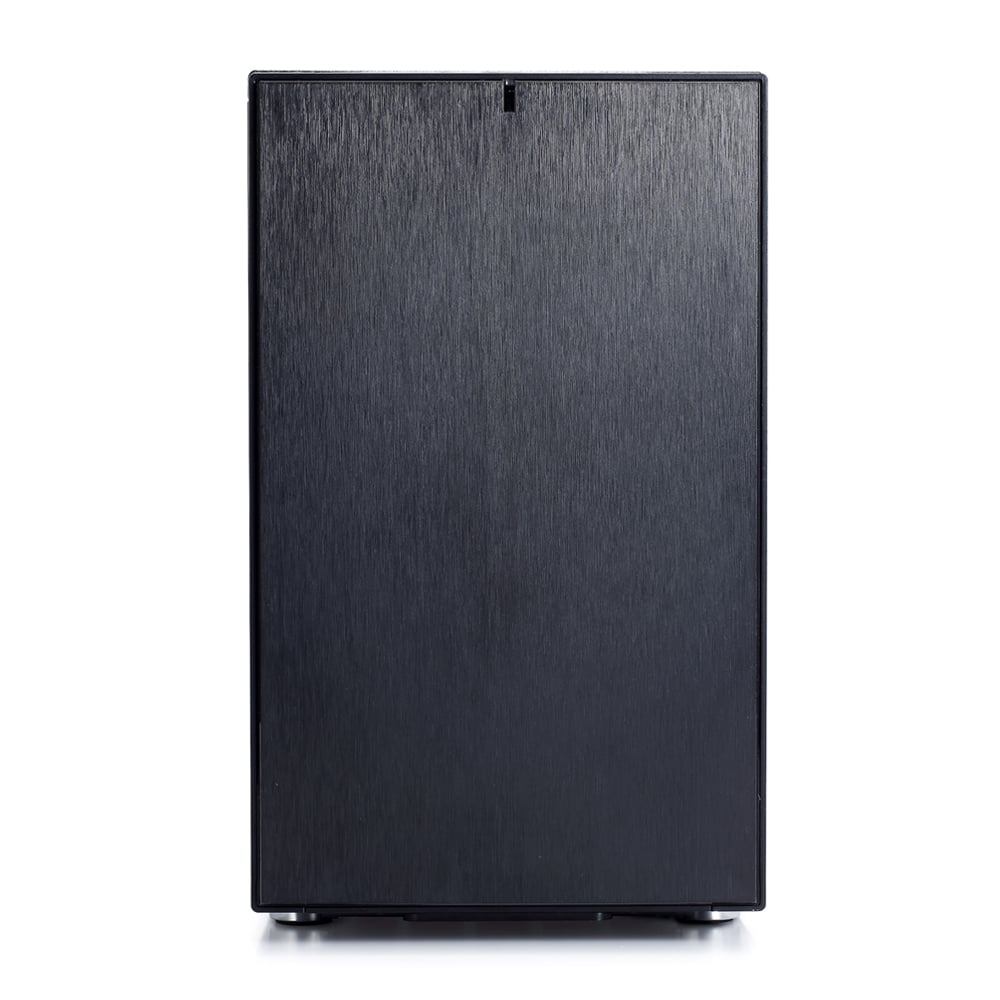

• Dense sound dampening material on front and right side panels; left side panel includes a transparent window

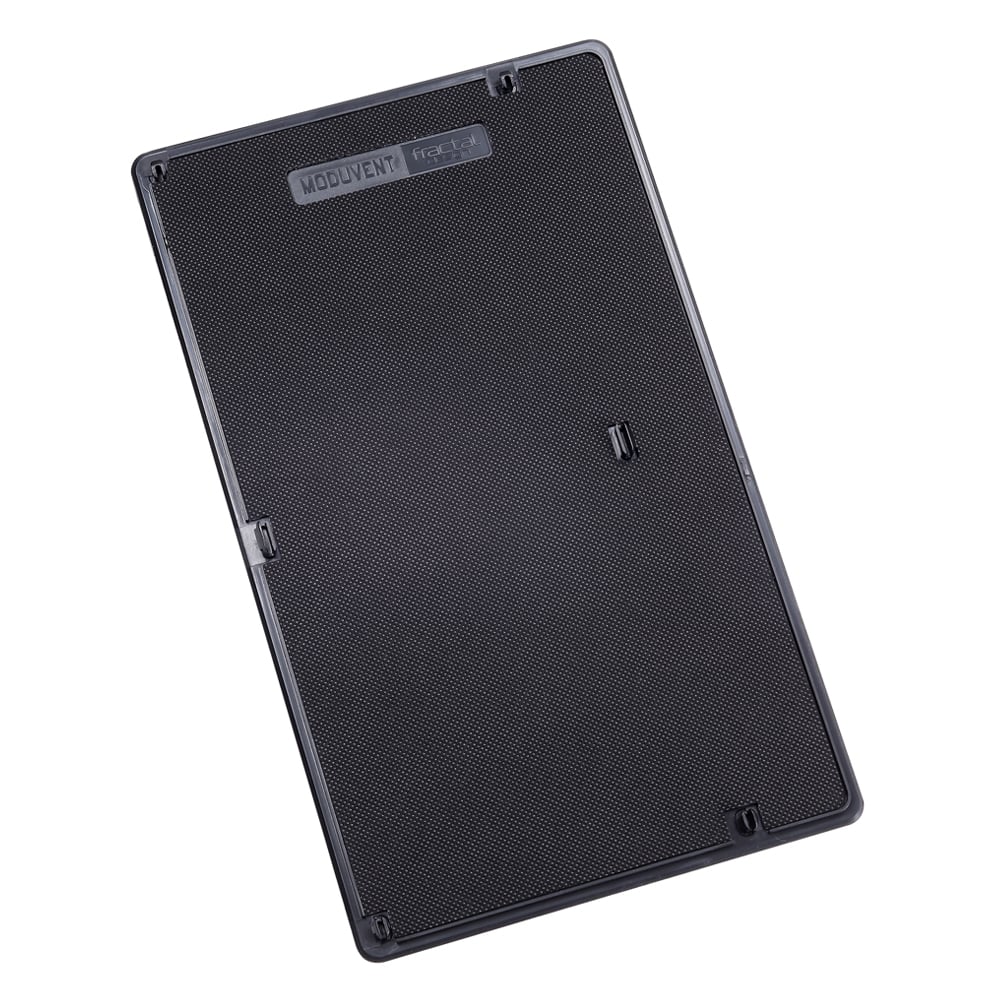

• ModuVent™ on top of case for further silent computing or additional ventilation

• Colours available: Black

• Case dimensions (WxHxD): 203 x 330 x 400mm

• Case dimensions - wtih feet/protrusions/screws: 203 x 344 x 412mm

• Net weight: 4.6 kg

• Case volume: 26.80 litres

• Package dimensions (WxHxD): 275 x 485 x 420mm

• Package weight: 5.8 kg

Cooling system

• Front: 2 – 120/140 mm fans (included is 1 Fractal Design Dynamic GP14 fan, 1000 RPM speed)

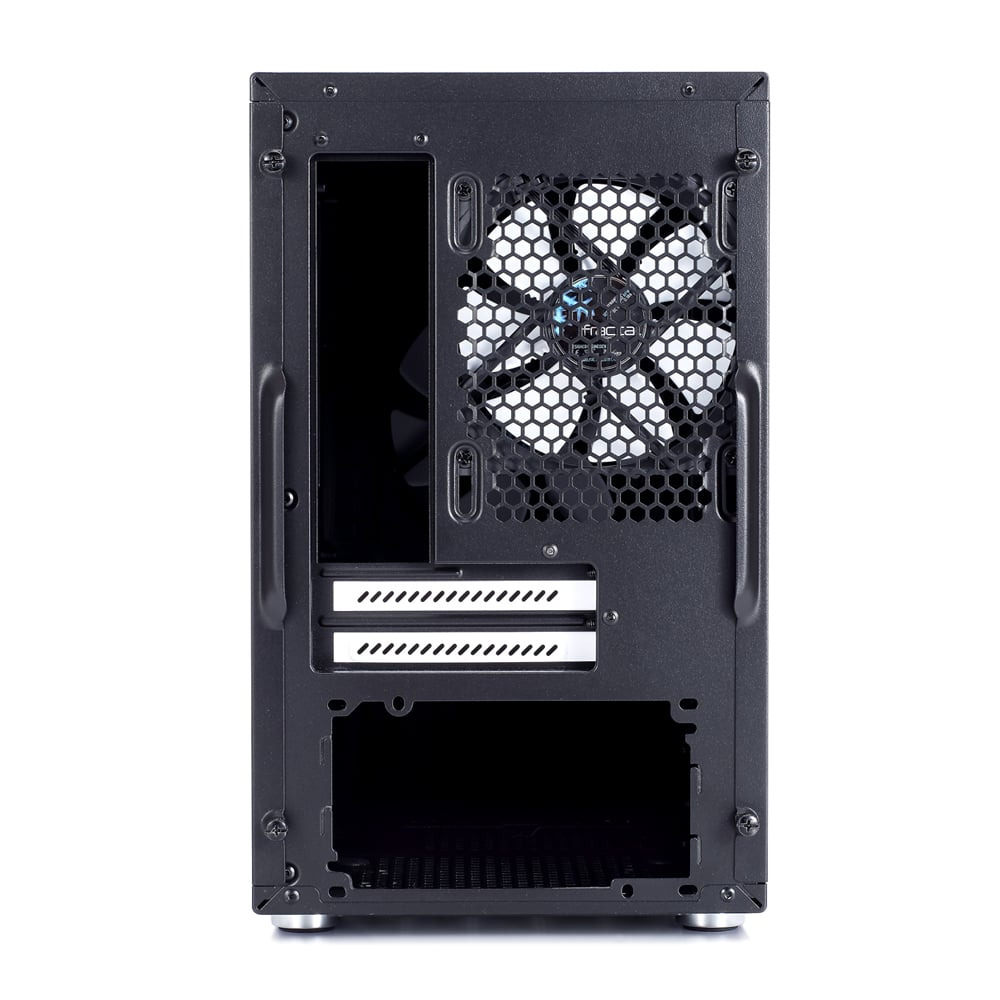

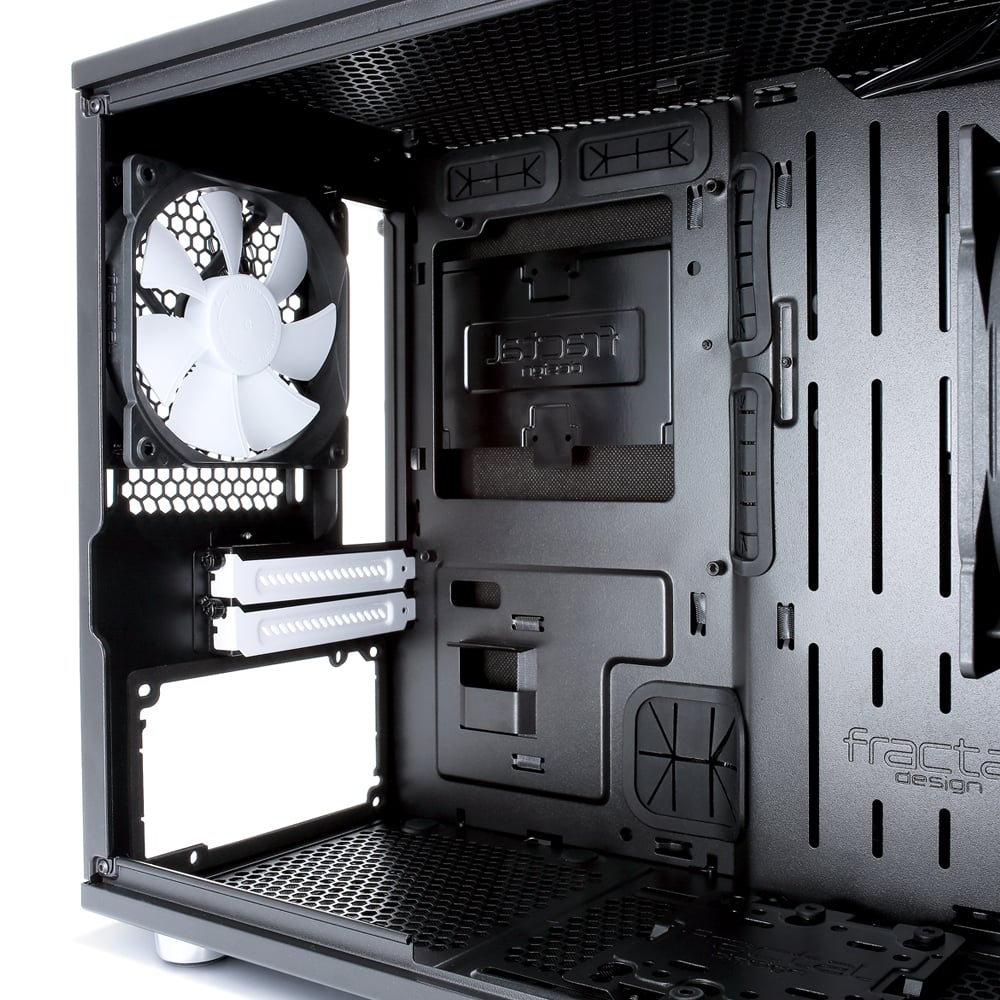

• Rear: 1 – 120 mm fan (included is 1 Fractal Design Dynamic GP12 fan, 1200 RPM speed)

• Top: 2 - 120/140 mm fan (not included)

• Bottom: 1 – 120 mm fan (not included)

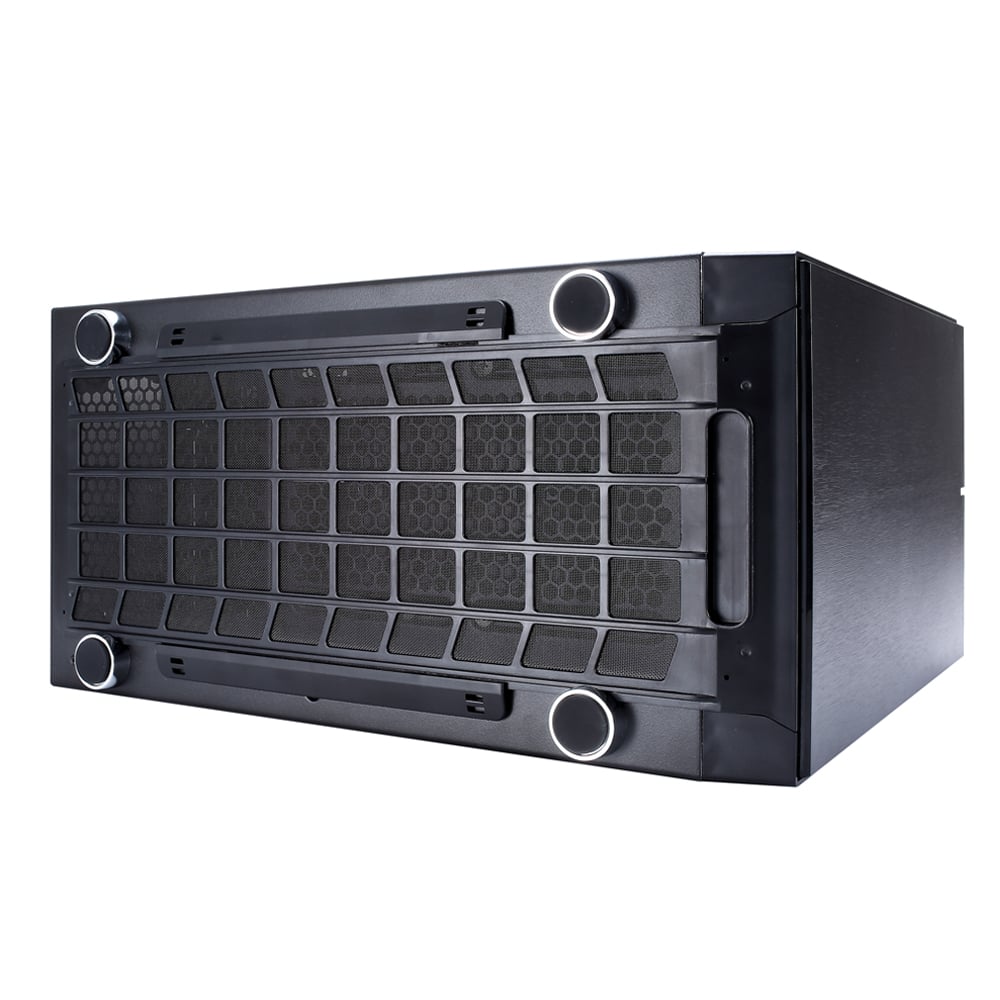

• Dust filters: Bottom and front intakes

Water cooling compatibility - Radiators

• Front – 120/240mm, 140/280mm (max width 147, length 312; some radiators extend beyond the screw holes)

• Top – 120/240mm (max component height on motherboard 35mm. Big heatsinks on RAM or power regulators around CPU could conflict with this restriction)

• Bottom – 120mm (max thickness & length: 85mm x 160mm)

Water cooling compatibility - Pumps

• Pre-drilled holes on multi-bracket, supports many DDC and D5 variants (see manual for detailed measurements)

Water cooling compatibility - Reservoirs

• Adjustable mounting brackets allow for almost any rectangular mounting screw pattern. Maximum distance between the mounting bracket screw positions: 270mm height / 80mm width.

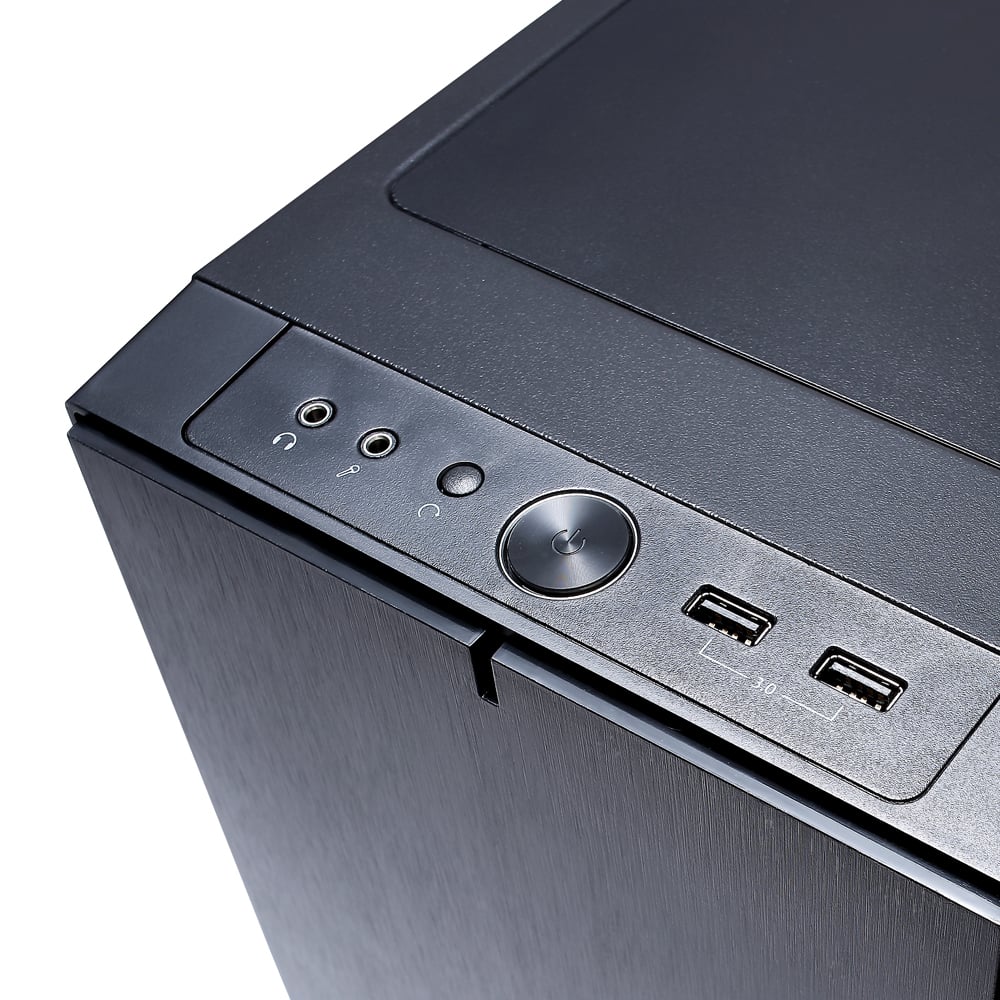

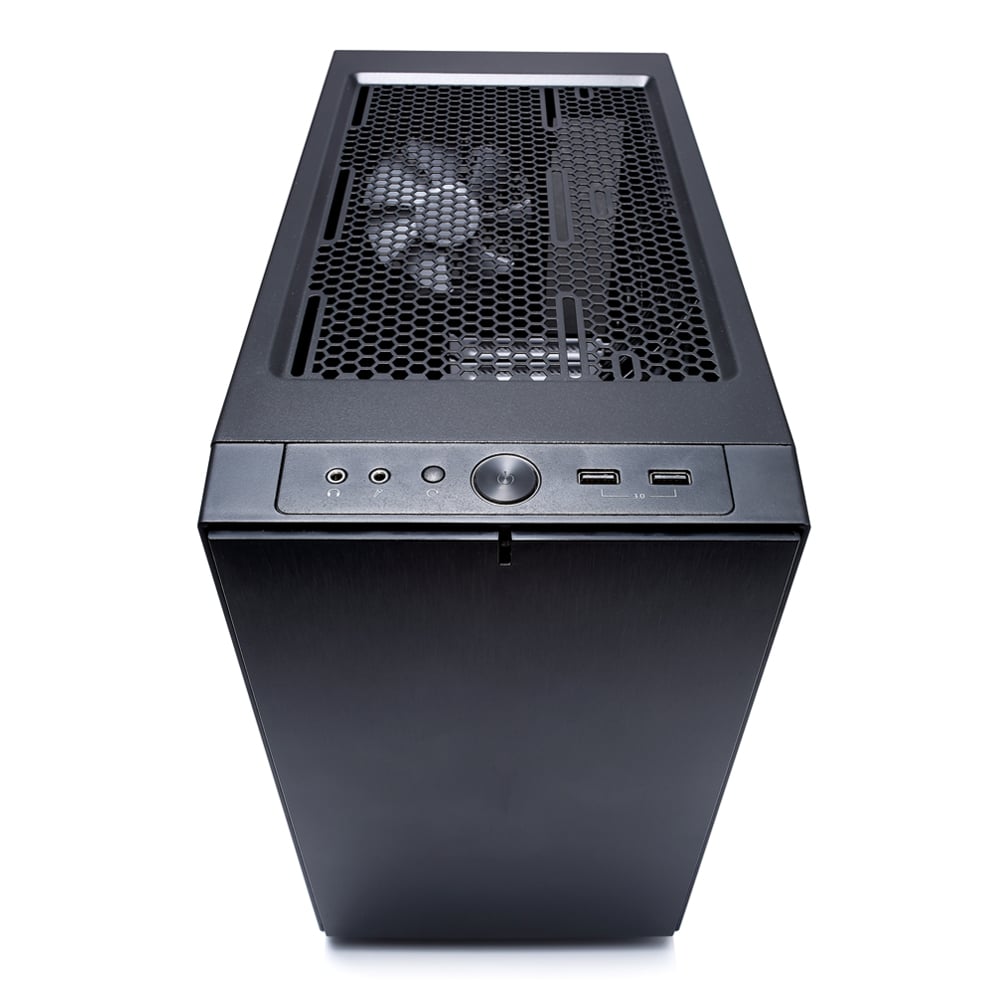

Front interface

• 2 USB 3.0

• Audio in/out

• Power button with LED (blue)

• HDD activity LED (blue)

• Reset button

Package contents

• Define Nano S - Window computer case

• User manual

• Accessory box
