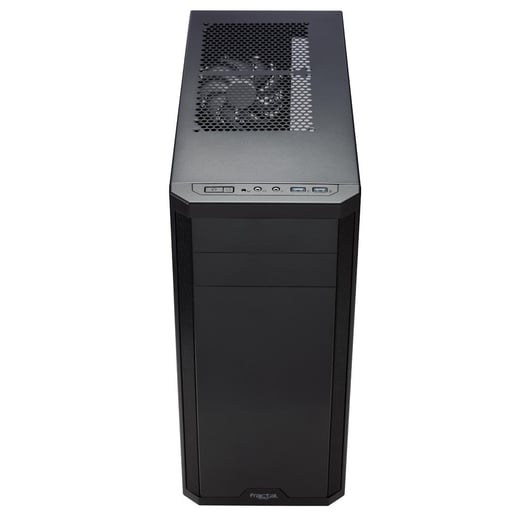

Fractal Design Core 2500 Mid Tower Gaming Case - Black

Fractal Design Core 2500 Mid Tower Gaming Case - Black

CCL Code: CAS2295

Discontinued

Fractal Design Core 2500 Mid Tower Gaming Case - Black

FD-CA-CORE-2500-BL

Key Features:

  • PSU not included
  • 2 x 5.25" External Bay(s)
  • 1 x 2.5" Drive(s) Max
  • 4 x 3.5" Drive(s) Max
  • Max MB Size: ATX
CCL Code: CAS2295

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The Core 2500 is the compact ATX Mid Tower of the x5 Series combines a clean, modern exterior design with great cooling and component compatibility. The case is equipped with two pre-installed 120mm fans, a built-in fan controller as well as support for a 280mm and 240mm water cooling radiators. Two hard drive cages hold up to four 3.5 or 2.5 hard drives on vibration dampened sturdy steel trays. An additional dedicated SSD mounting is available behind the power supply position. A beautiful build is easy to achieve with the black/white contrasted interior and well-designed cable routing capabilities.

Main Features

  • A compact ATX Mid Tower case with bottom-mounted PSU, designed for exceptional airflow and cooling

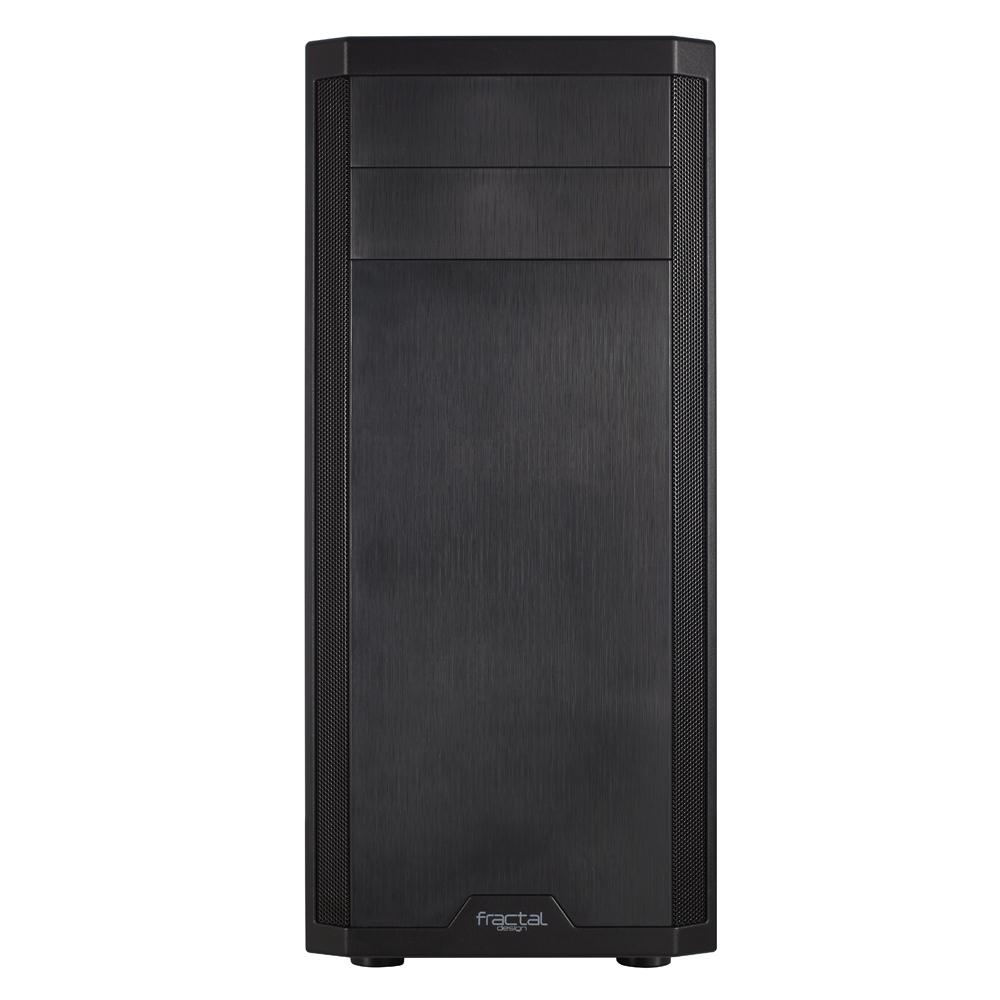

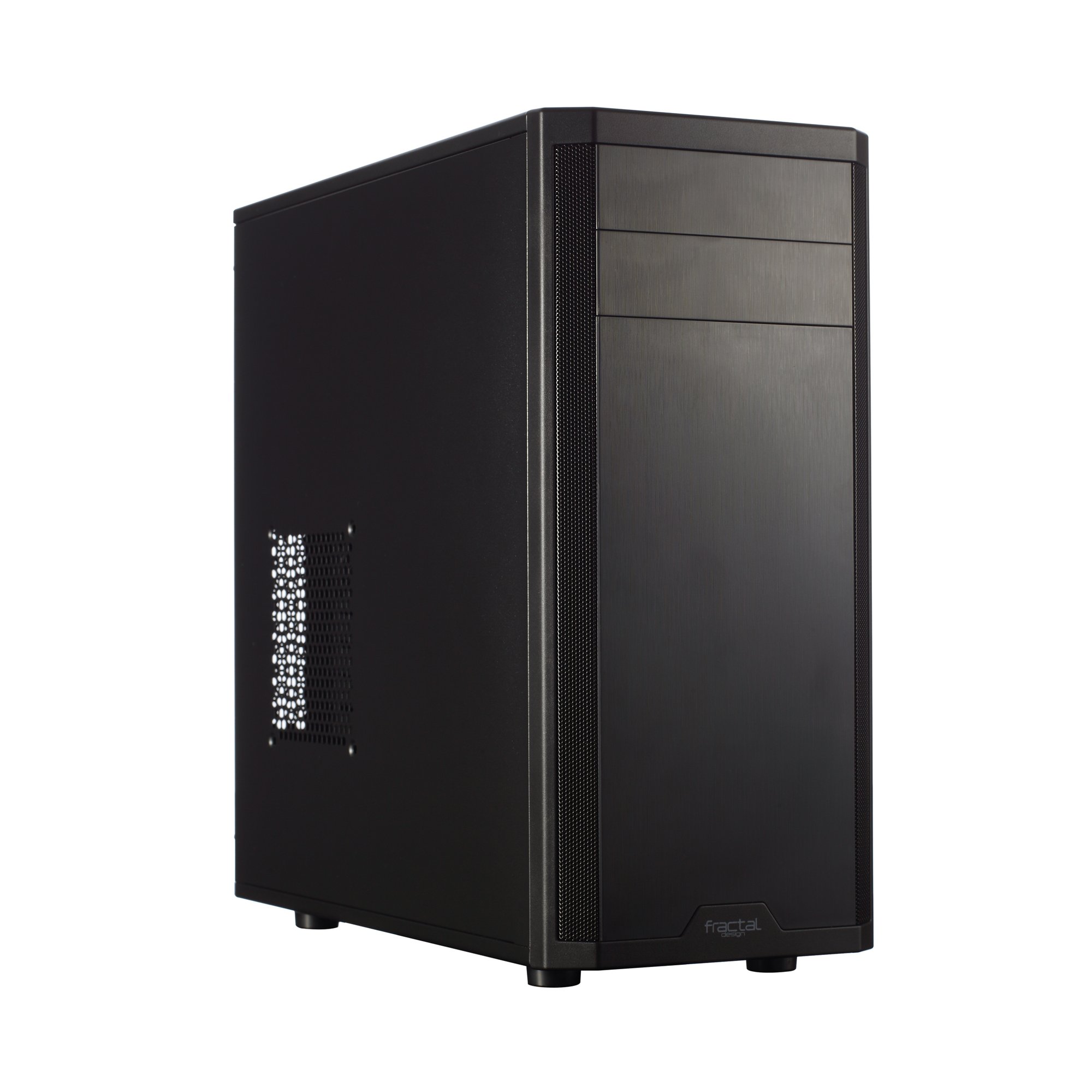

  • Brushed aluminum-look front panel with a sleek, three-dimensional textured finish

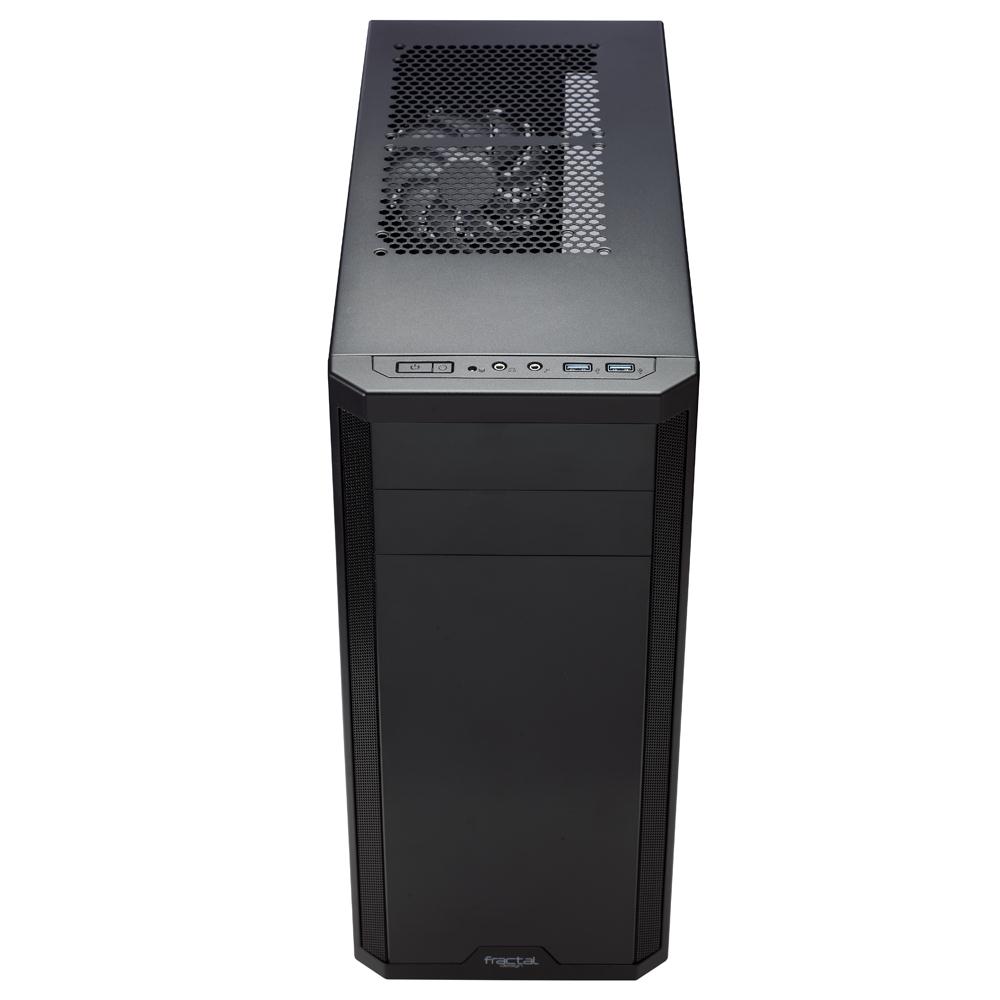

  • Superior water cooling support for its size, supporting one 240/280mm radiator in the front and a 240mm radiator in the top

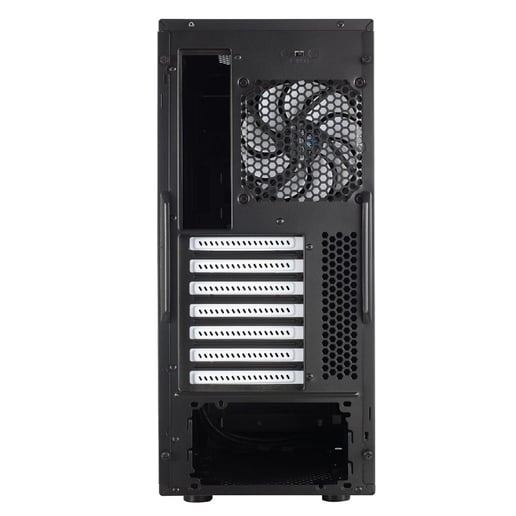

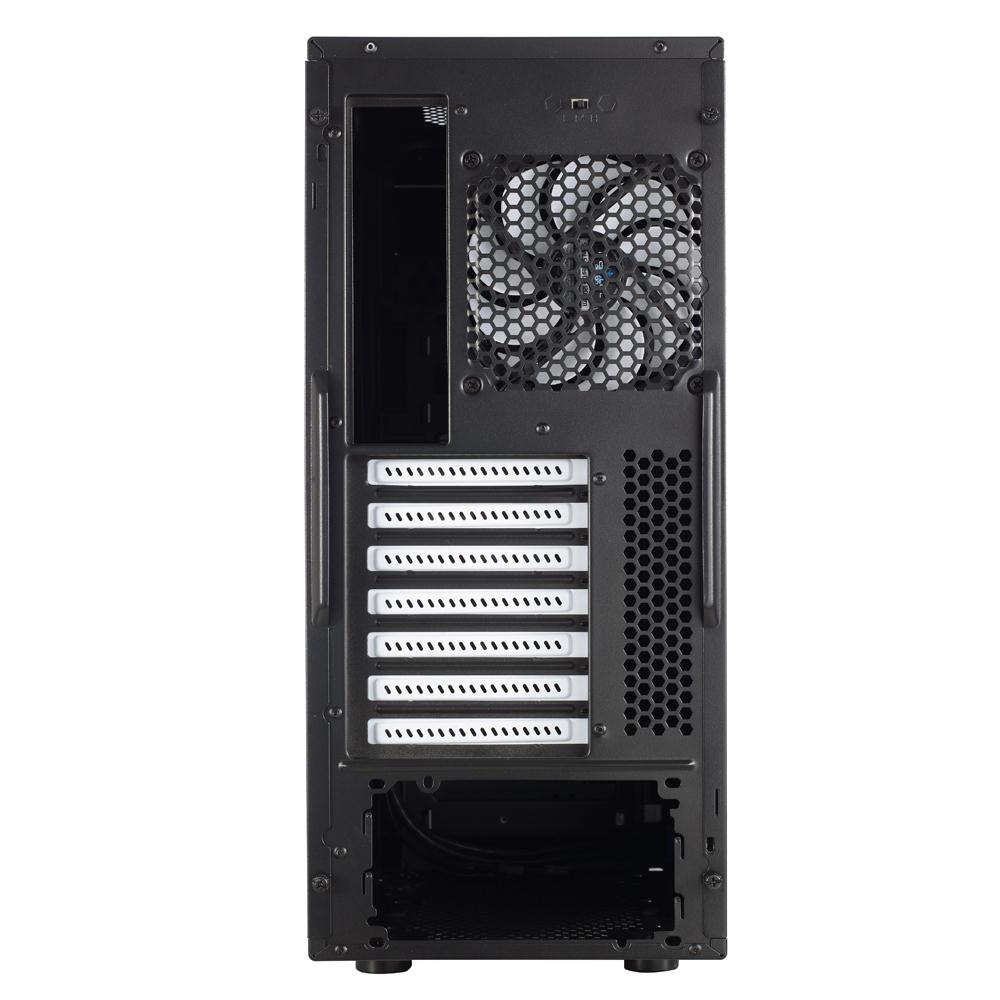

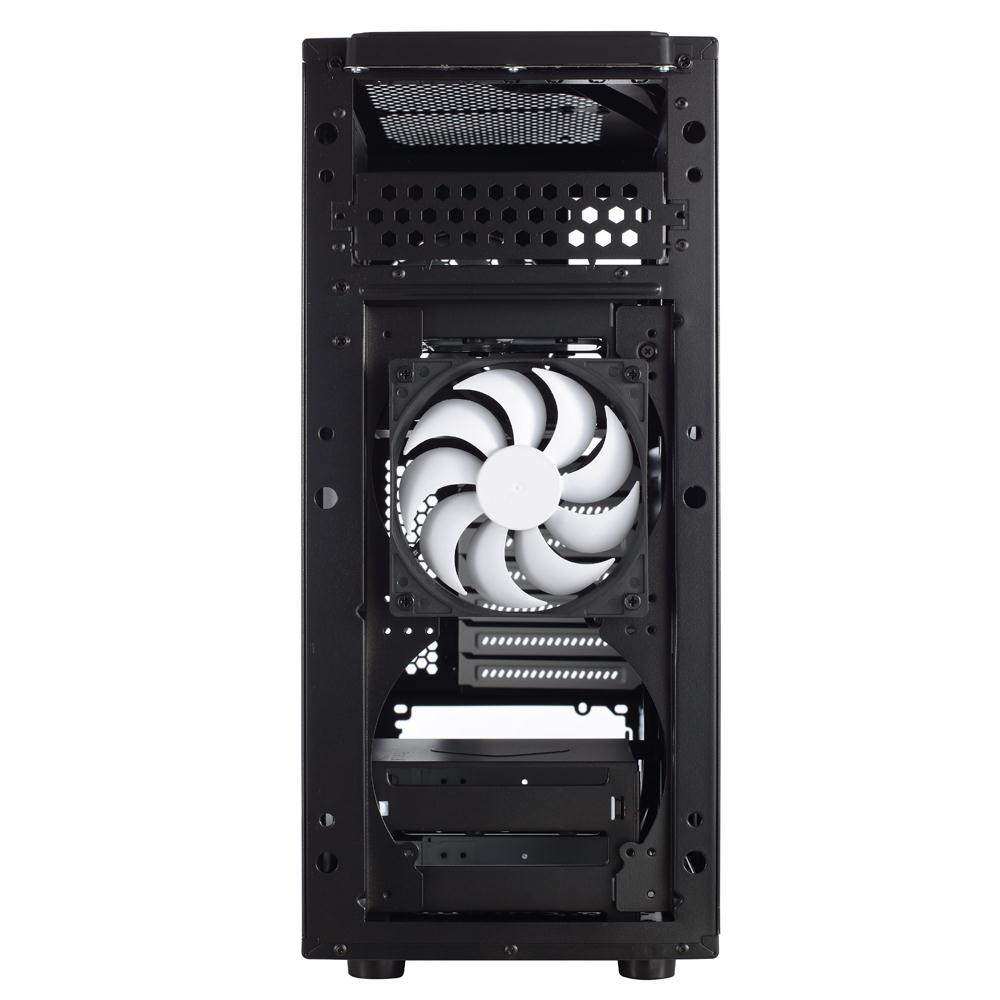

  • Featuring a 120mm rear exhaust fan for great cooling
  • Total 7 fan slots with two 120mm fans included

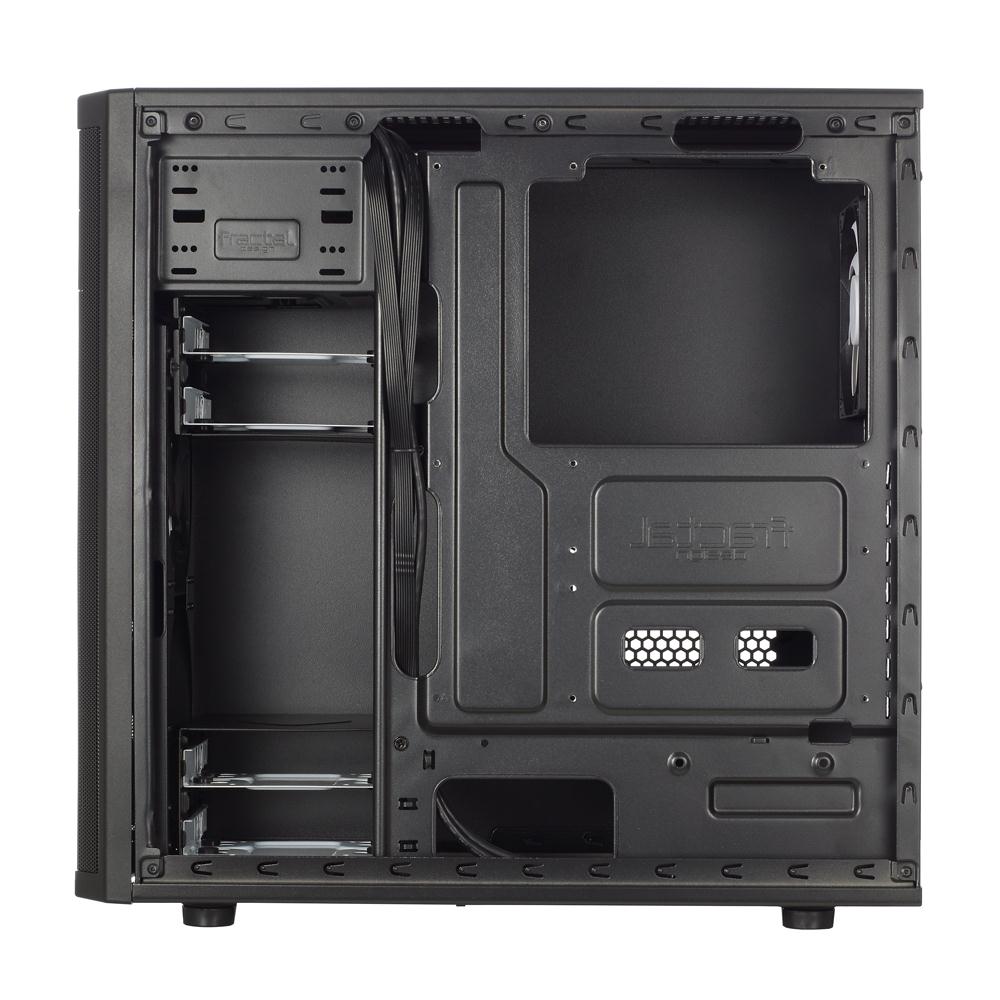

  • Extruded motherboard plate allowing space for additional cable routing; 18.5mm around the motherboard and 13.5mm directly behind it
  • Supports tall CPU cooler towers, up to circa 162mm in height
  • Featuring an integrated three-speed fan controller
  • Multiple easy-to-clean dust filters designed into the case to help maintain a dust free interior

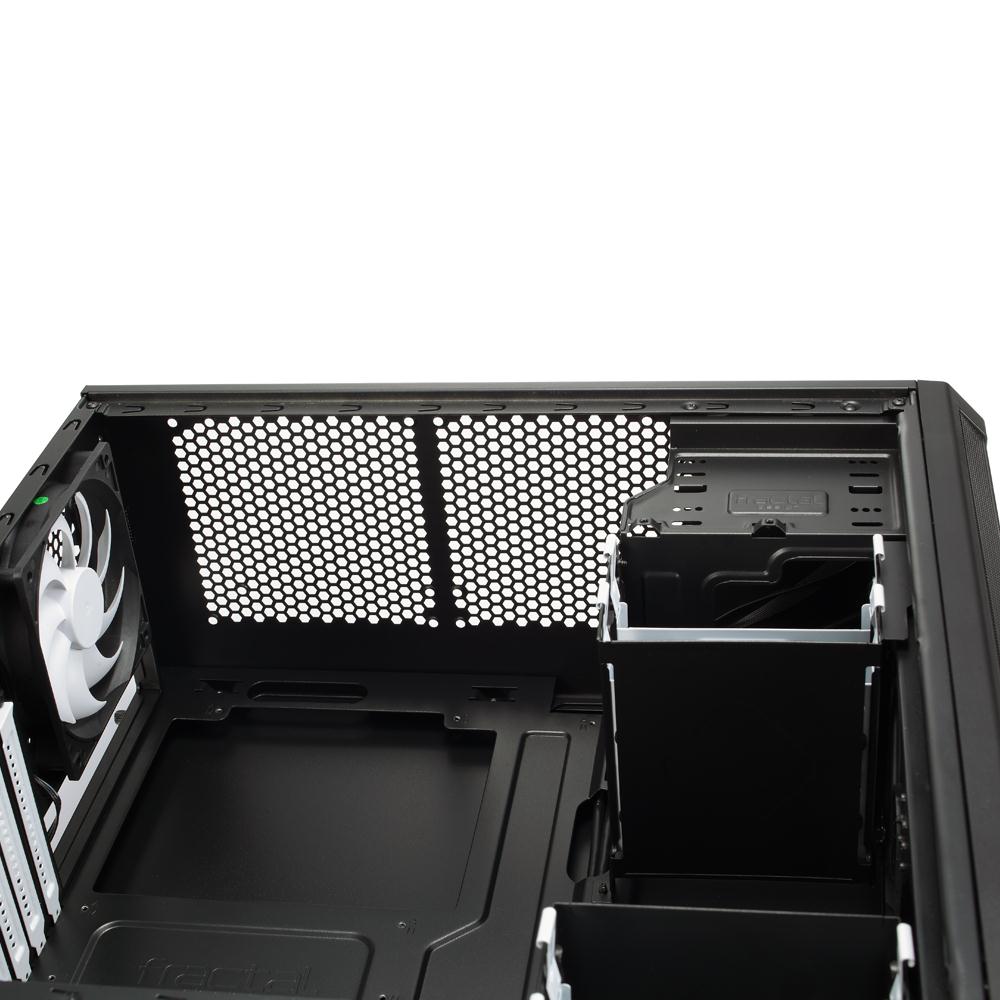

  • Four vibration dampening hard drive trays for up to four 3.5 HDDs, all compatible with 2.5 drives
  • HDD trays split into two cages and strategically positioned with a large space in between to support all long graphics cards up to a maximum length of 380mm, with all hard drive trays in place
  • One additional SSD position behind the PSU area with easy installation and access
Specifications

Storage

External Expansion Bays 2 x 5.25 inch
Internal Expansion Bays 4 x 3.5in HDD trays • 1 x 2.5in dedicated SSD unit position

Expansion

Expansion Slots 7

Interfaces/Ports

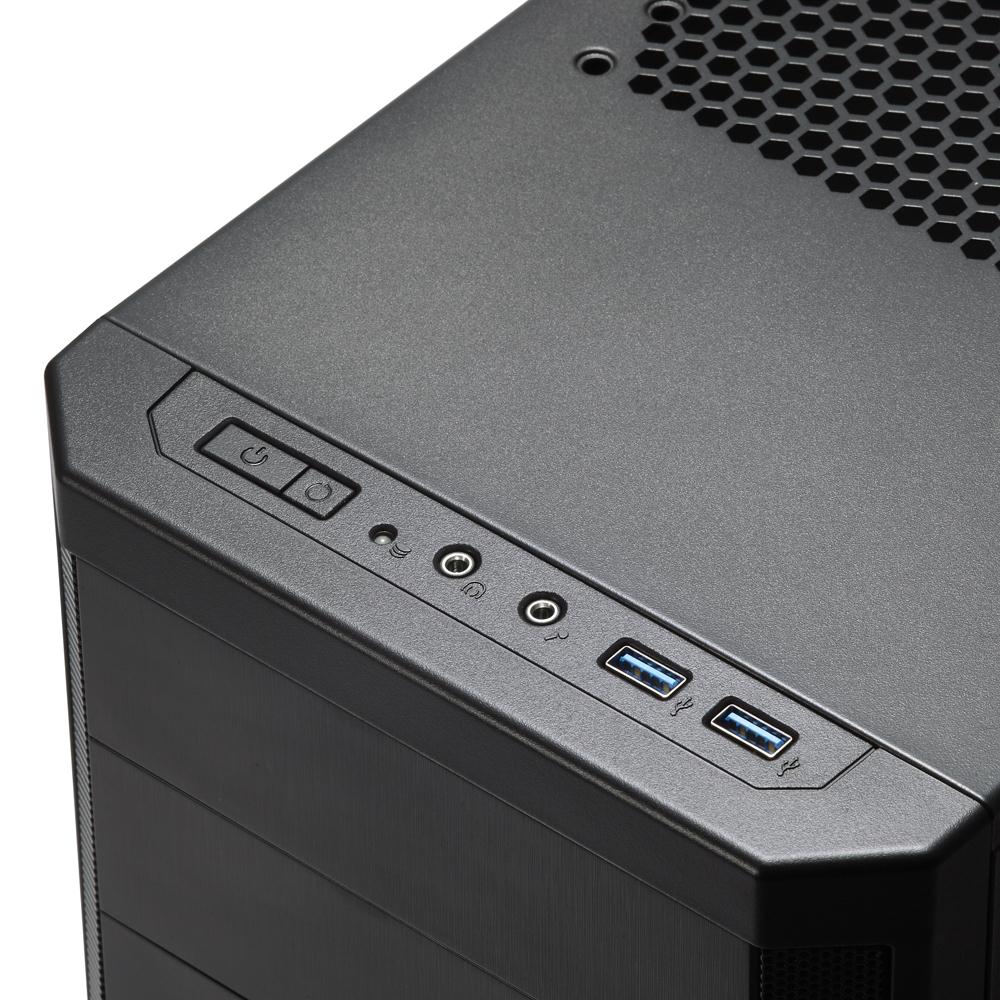

USB Ports 2 x USB 3.0
Audio Line In Ports 1 x Audio In

Physical

Form Factor Case
Case Colour Black
Motherboard Compatibility ATX • Micro ATX • Mini ITX
In The Box Fractal Design Core 2500 Mid Tower Computer Case
Width 19.5 cm
Depth 45 cm
Height 43.1 cm
Weight 5.7 kg

Key Features

Firewire No
Max Motherboard Width 244 mm
Max Motherboard Height 305 mm
Main Colour Black
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
e-SATA No
L.E.D Fan No LED
Max 3.5" Drives 4
External 5.25" Bay 2
Max 2.5" Drives 1
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX No
XL-ATX No
Cooler Height 162 mm
Built-in Card Reader No
USB Type-C Support No
Front HDMI No

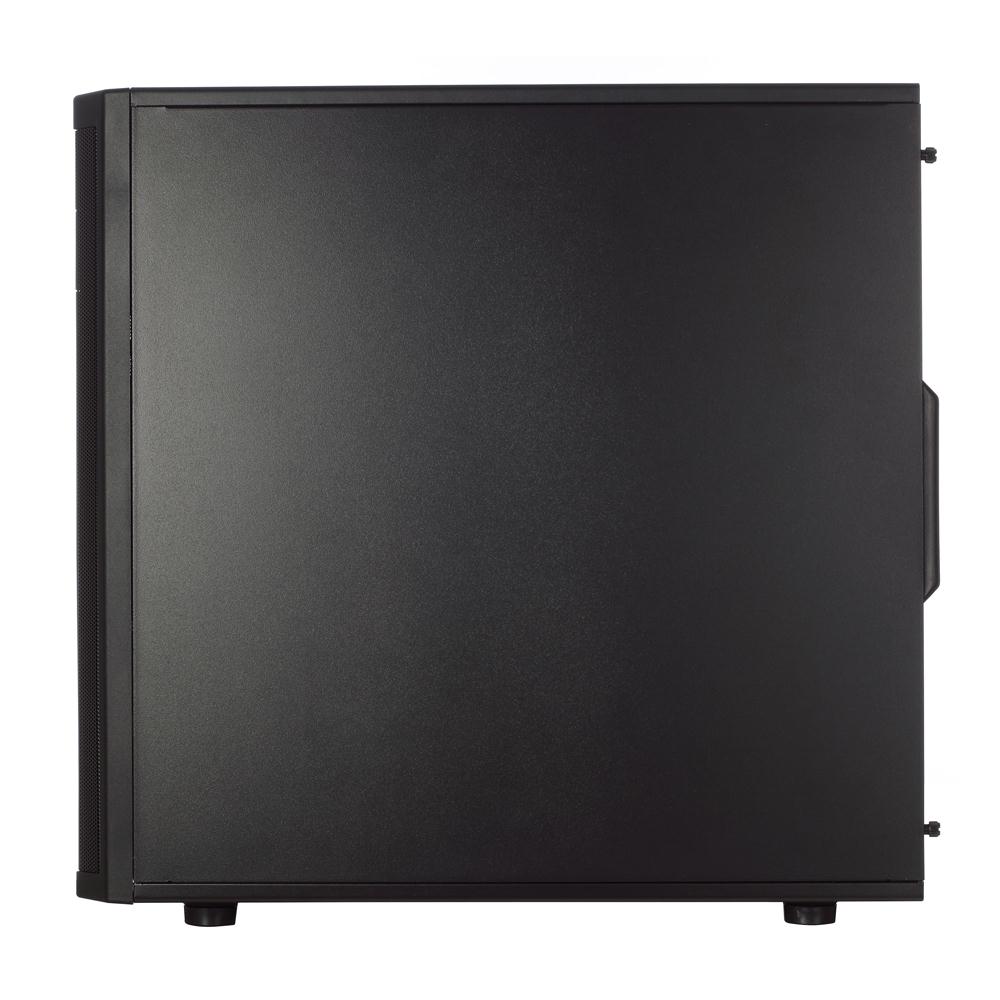

Side Panel Type Solid
GPU Length 380 mm
PSU Depth 155 mm
Front Audio Type Separate
Number of Fans 2 fan(s)
RGB LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 5
Power Requirement (auto) 6 W
USB3.0 ports 2
Low profile expansion No
Vinyl Position - Top No
Vinyl Position - Front No
Vinyl Position - Left No
Vinyl Position - Right No

Warranty

Warranty 1 Year

Item Details

Manufacturer Fractal Design
Manufacturer Code FD-CA-CORE-2500-BL
EAN 7350041081951
UPC 817301011952
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Fractal Design
Manufacturer Code FD-CA-CORE-2500-BL
Reviews
4.0 / 5 1 review

Clifford

October 2020

Easy to setup and good cable routing with adjustable/removable drive trays. Would recommend to others.
