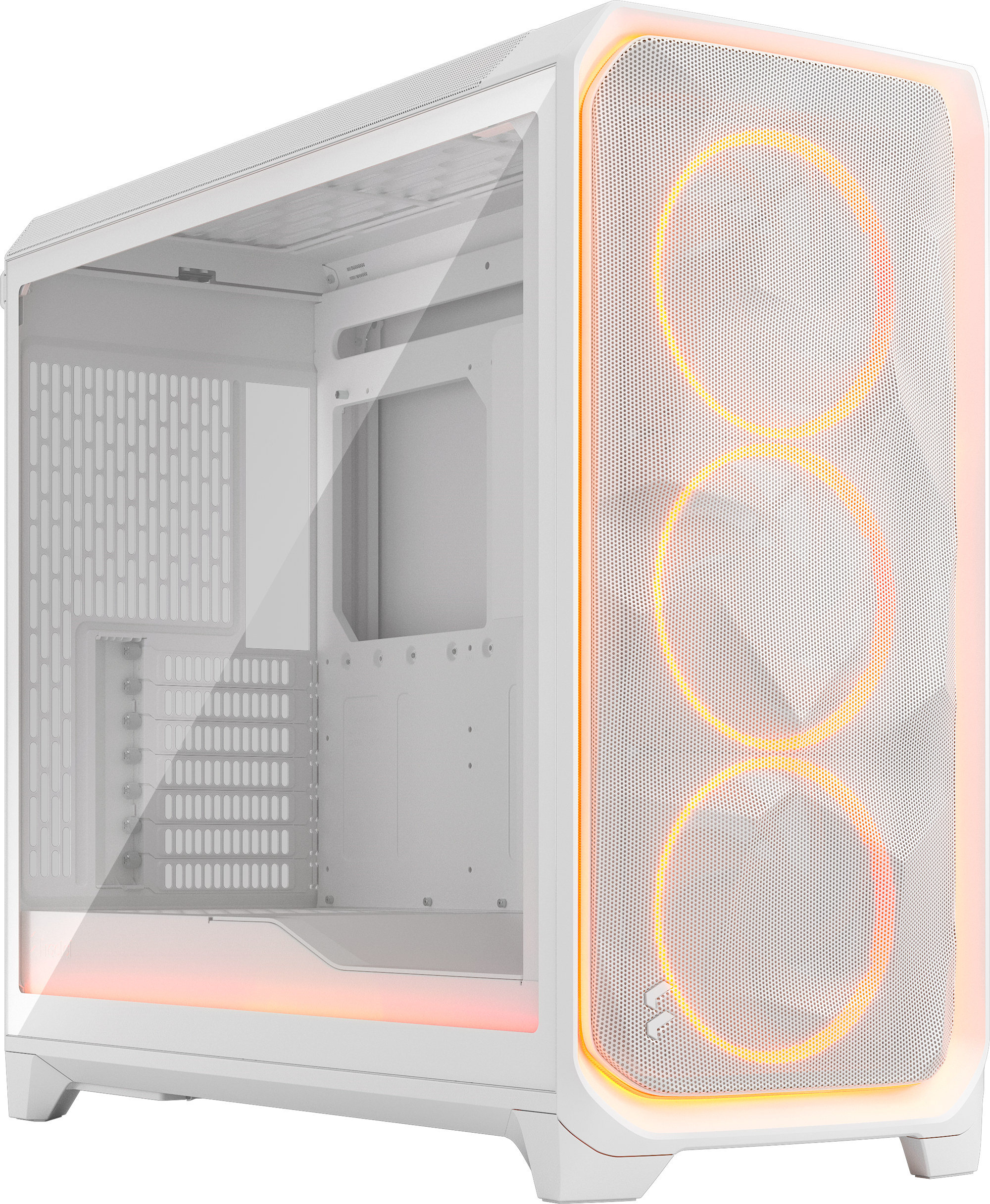

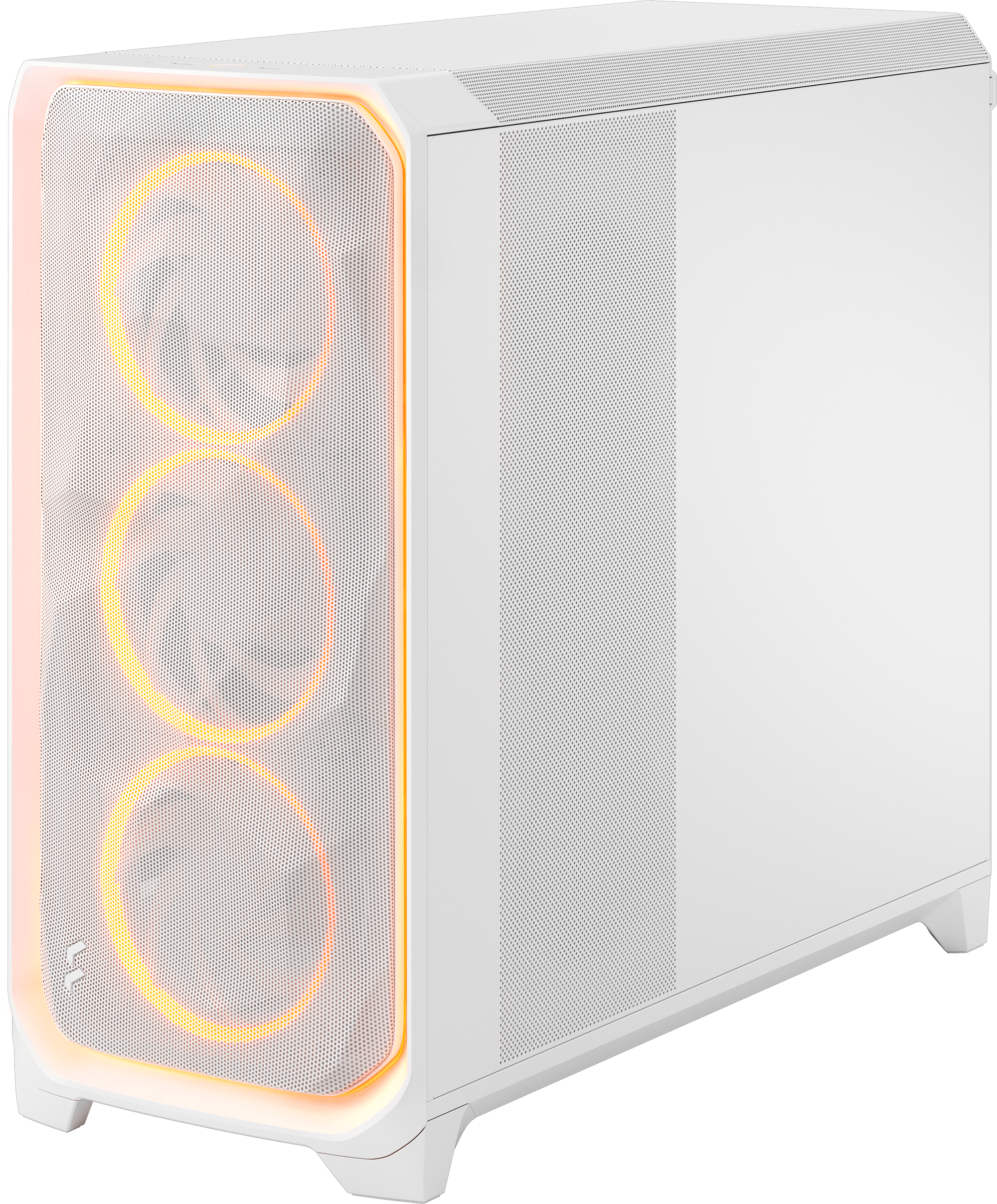

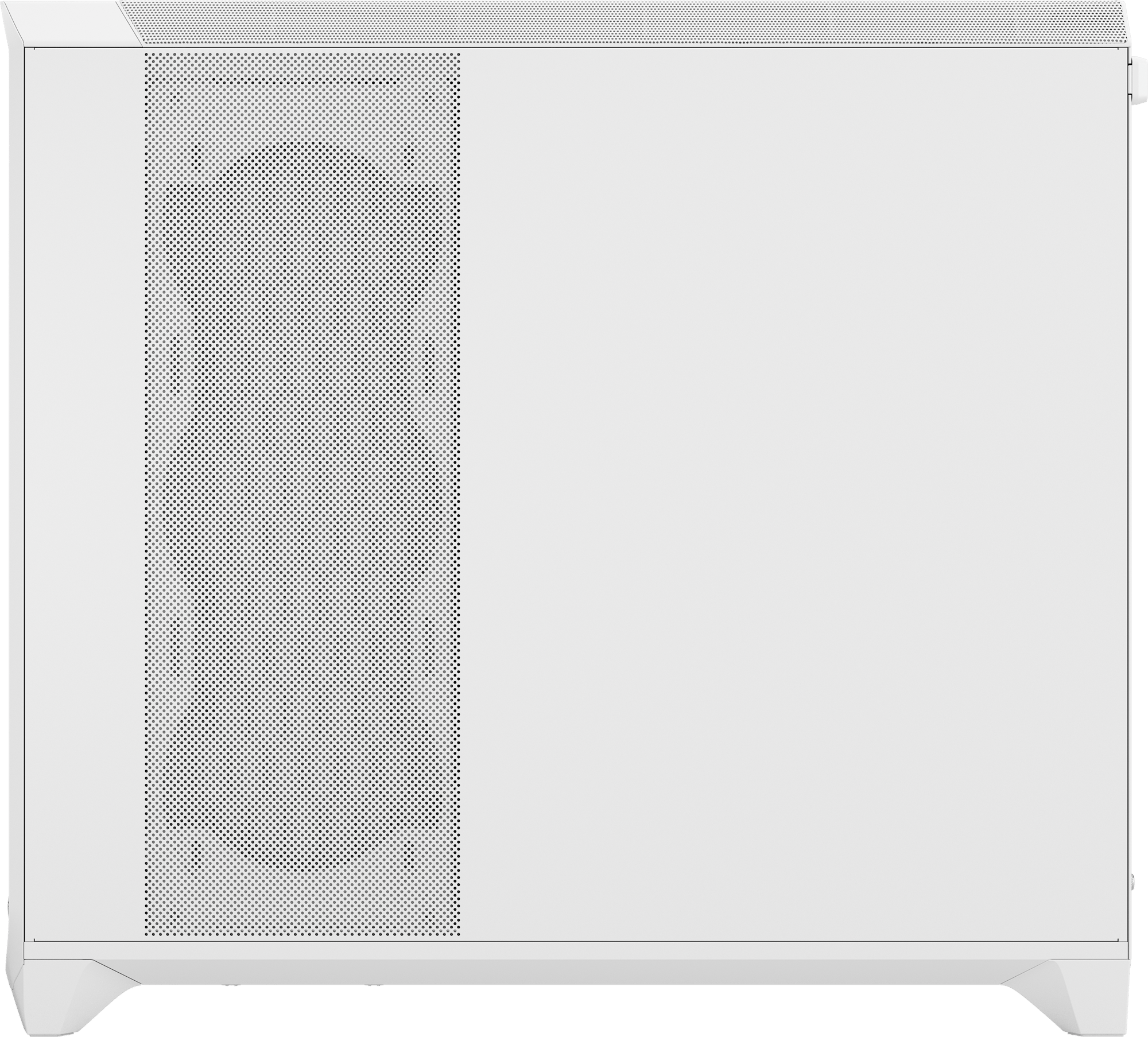

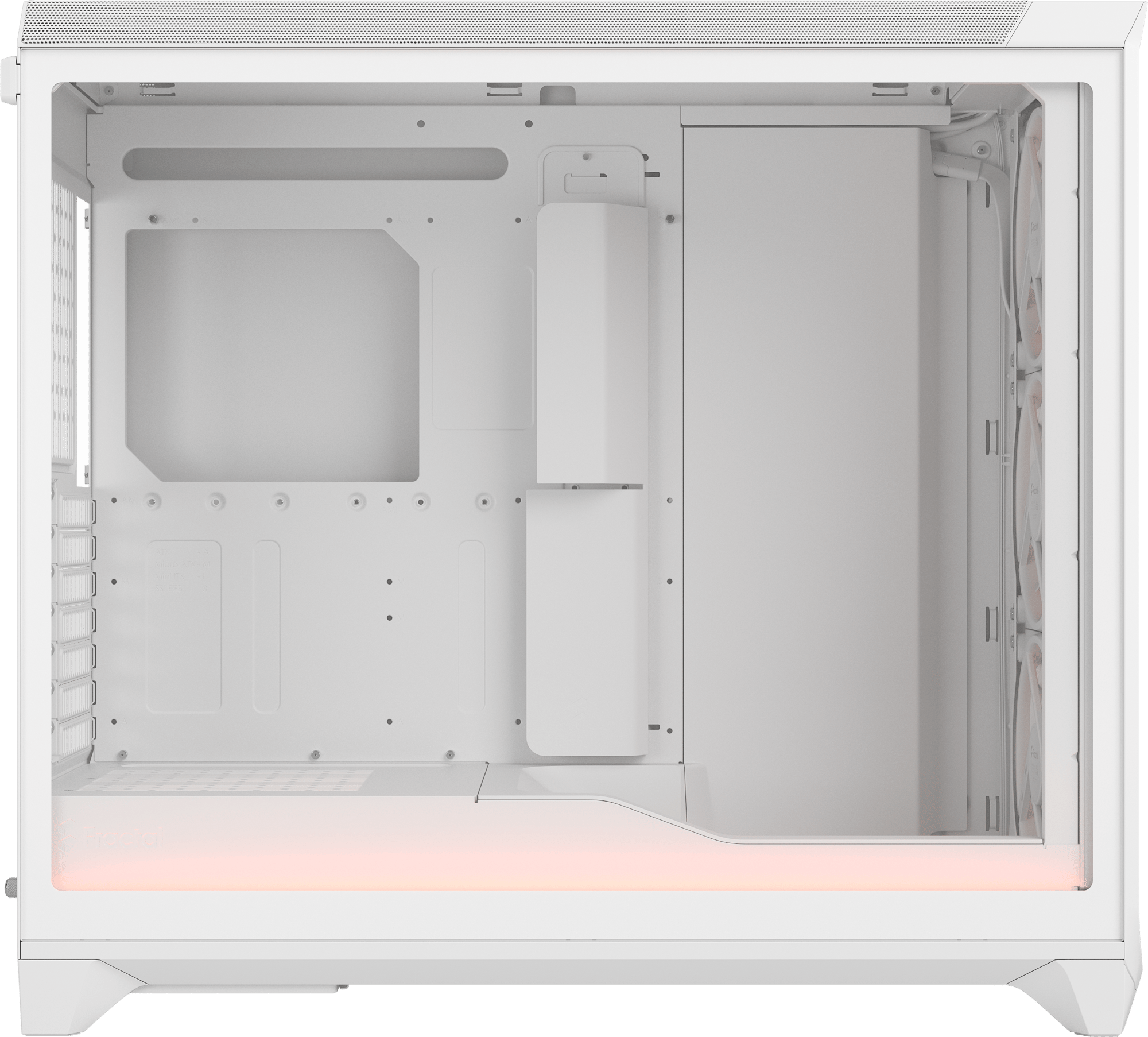

Fractal Meshify 3 XL Ambience Pro RGB Mid Tower Gaming Case - White

Compare

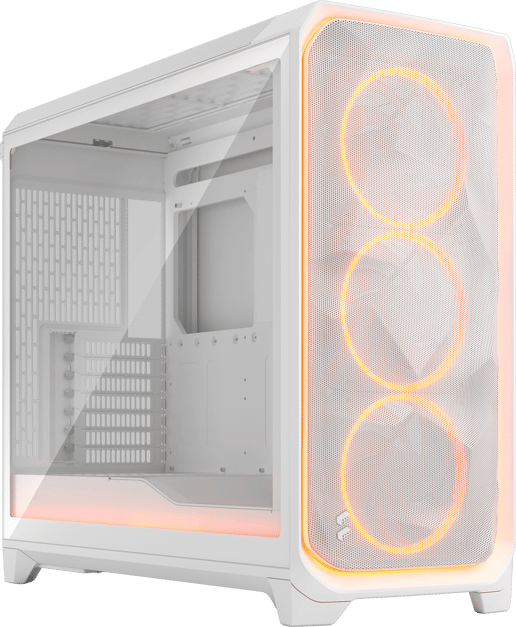

Fractal Meshify 3 XL Ambience Pro RGB Mid Tower Gaming Case - White

FD-C-MES3X-05

Key Features:

Max Motherboard Size: E-ATX
Tempered Glass Side with ARGB
3 x 4-pin PWM Fan(s)
Front USB Type-C Port
5 x 2.5" / 2 x 3.5" Bay(s)

Fractal Meshify 3 XL Ambience Pro RGB Mid Tower Gaming Case - White

FD-C-MES3X-05

£234.99 inc VAT

Add to Basket

Available for delivery from Tuesday 15th July

or Click & Collect from Tomorrow

Hurry, only 2 left!

CCL Code: CAS5574

Max Motherboard Size: E-ATX
Tempered Glass Side with ARGB
3 x 4-pin PWM Fan(s)
Front USB Type-C Port
5 x 2.5" / 2 x 3.5" Bay(s)

Overview

Meshify 3 XL is a PC case offering top-tier cooling performance, versatility and build quality in a generous format.

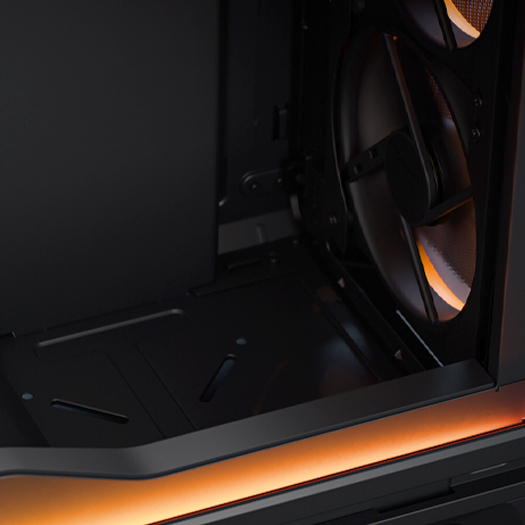

Advanced
airflow

Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.

Evolved
design

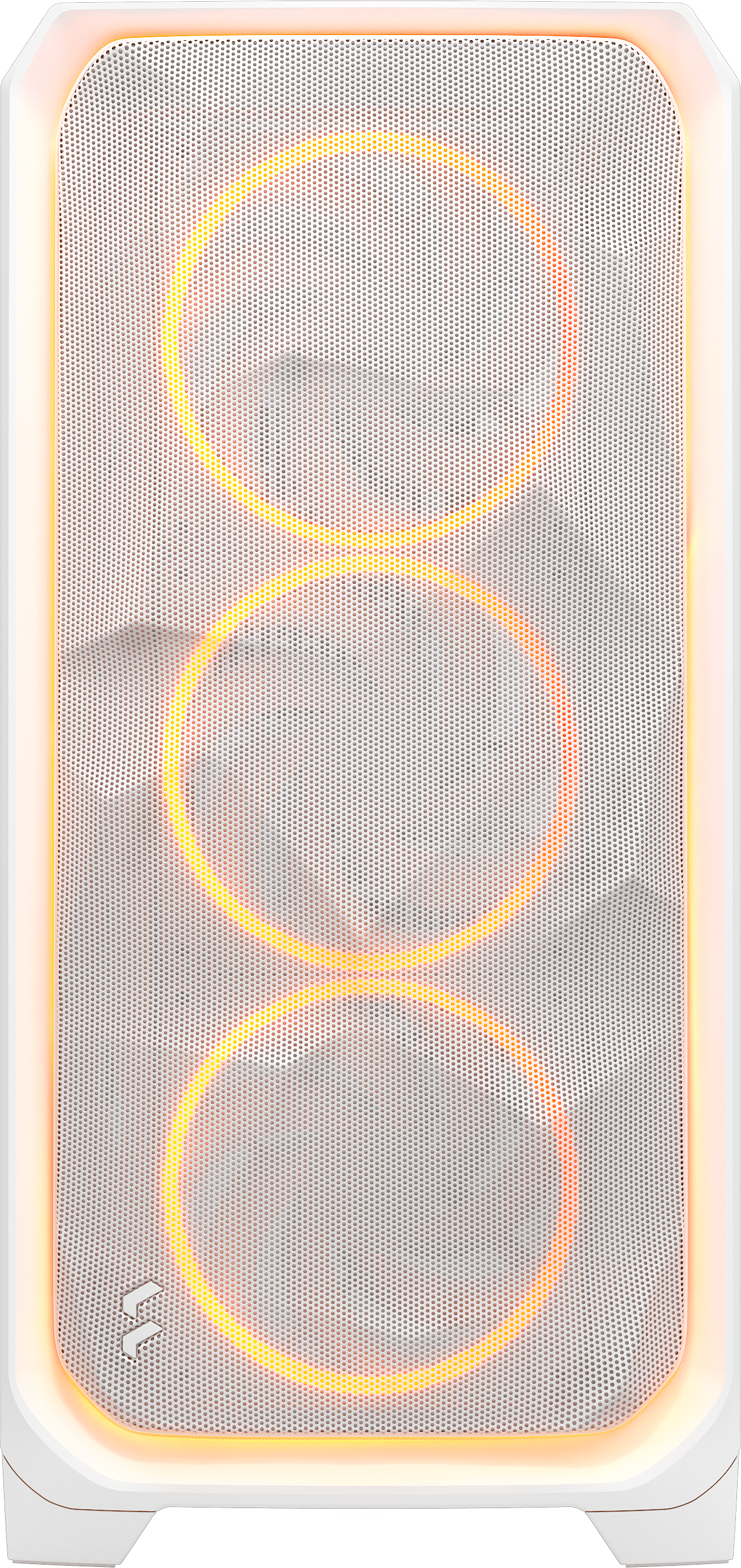

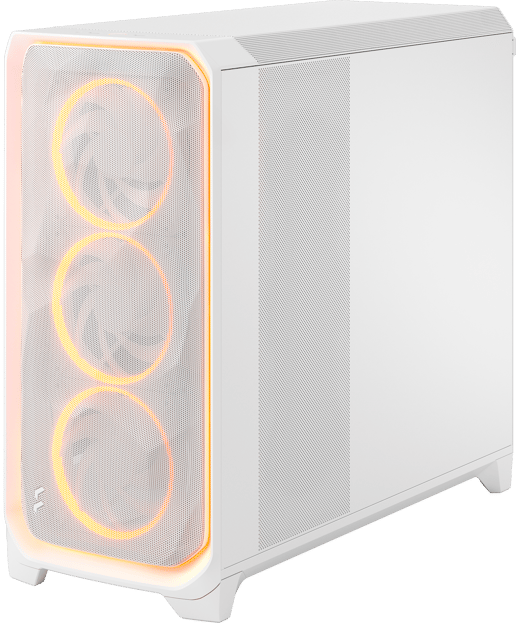

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.

AMBIENCE PRO RGB VERSION

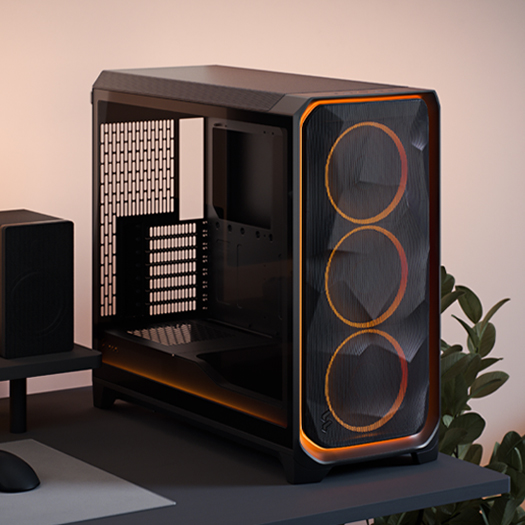

Enhanced
lighting

Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.

AMBIENCE PRO RGB VERSION

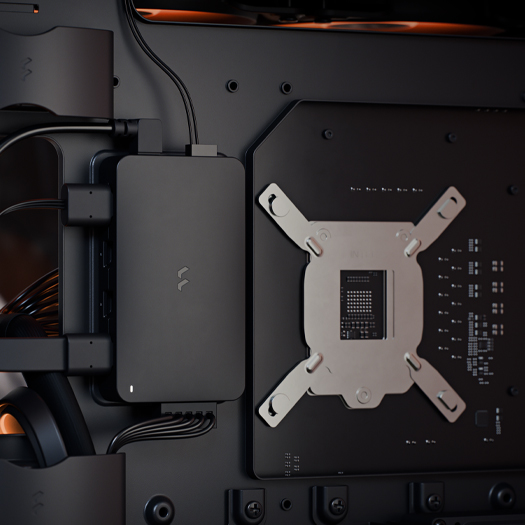

Tailored
experience

Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.

Designed for
gaming

Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX motherboard compatibility.

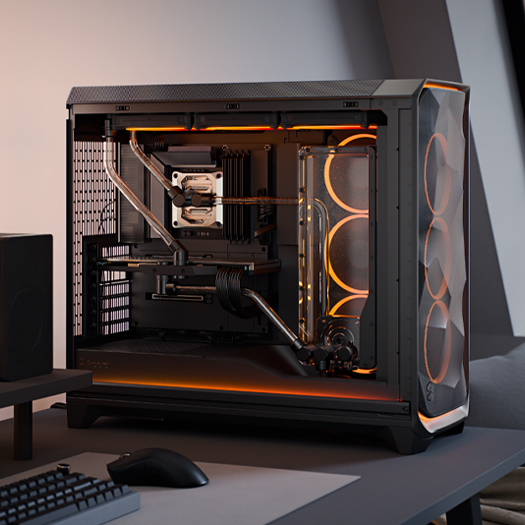

Ideal for
custom loops

Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

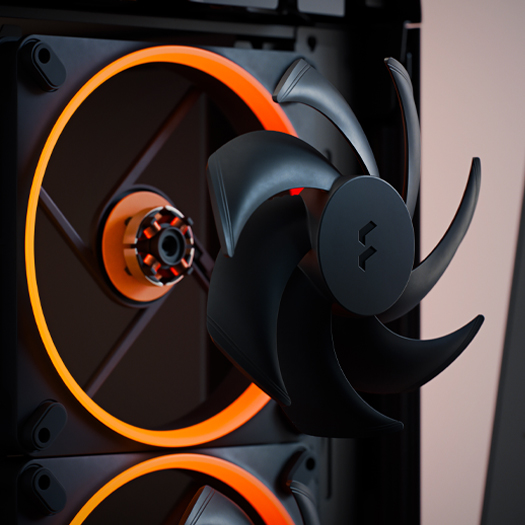

Powerful
fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.

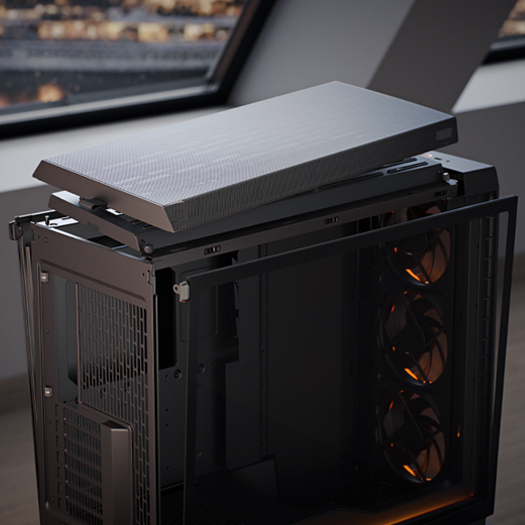

Easily
accessible

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.

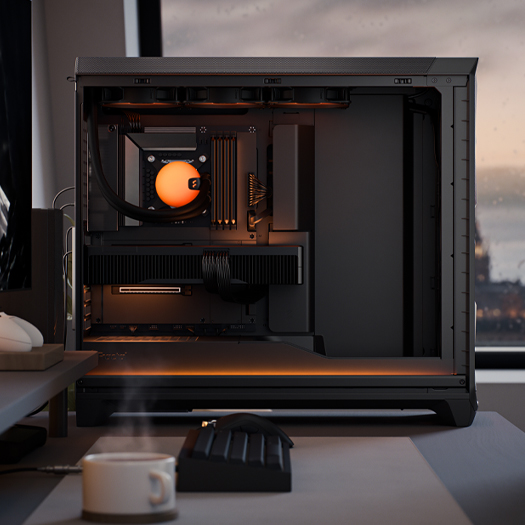

Clean
finish

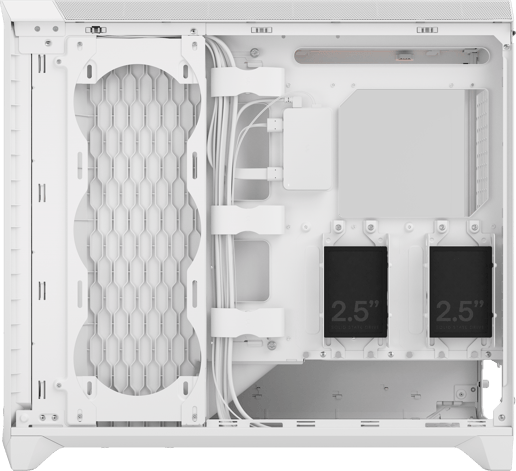

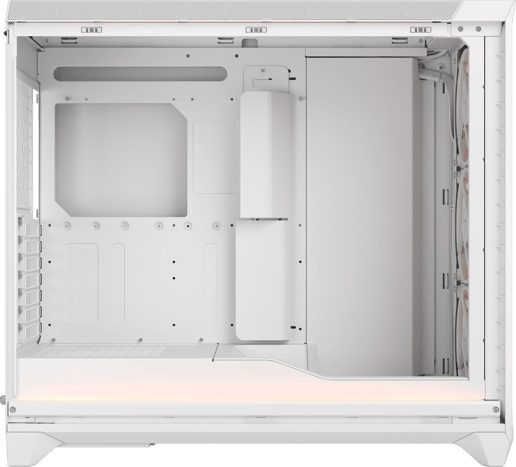

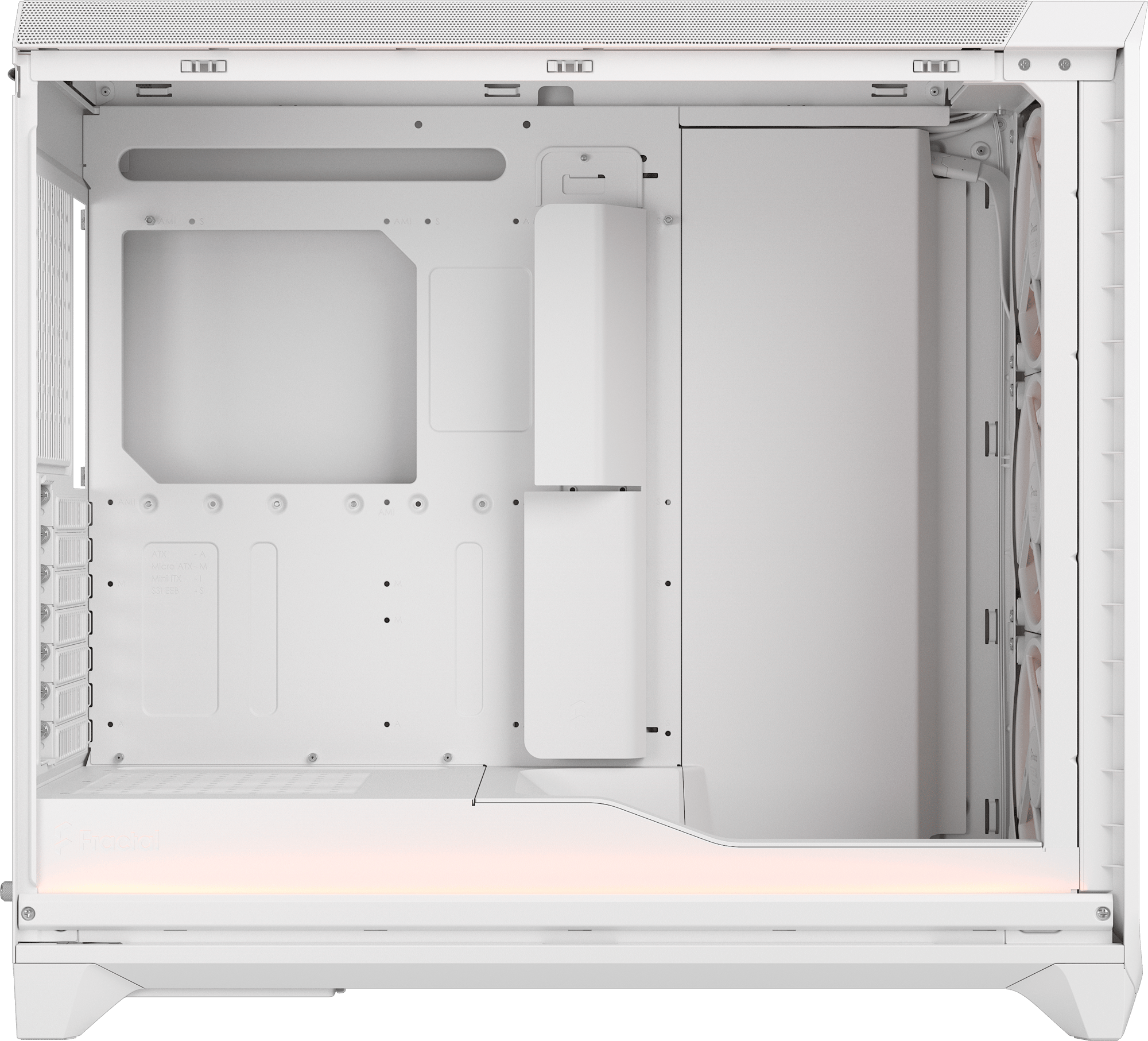

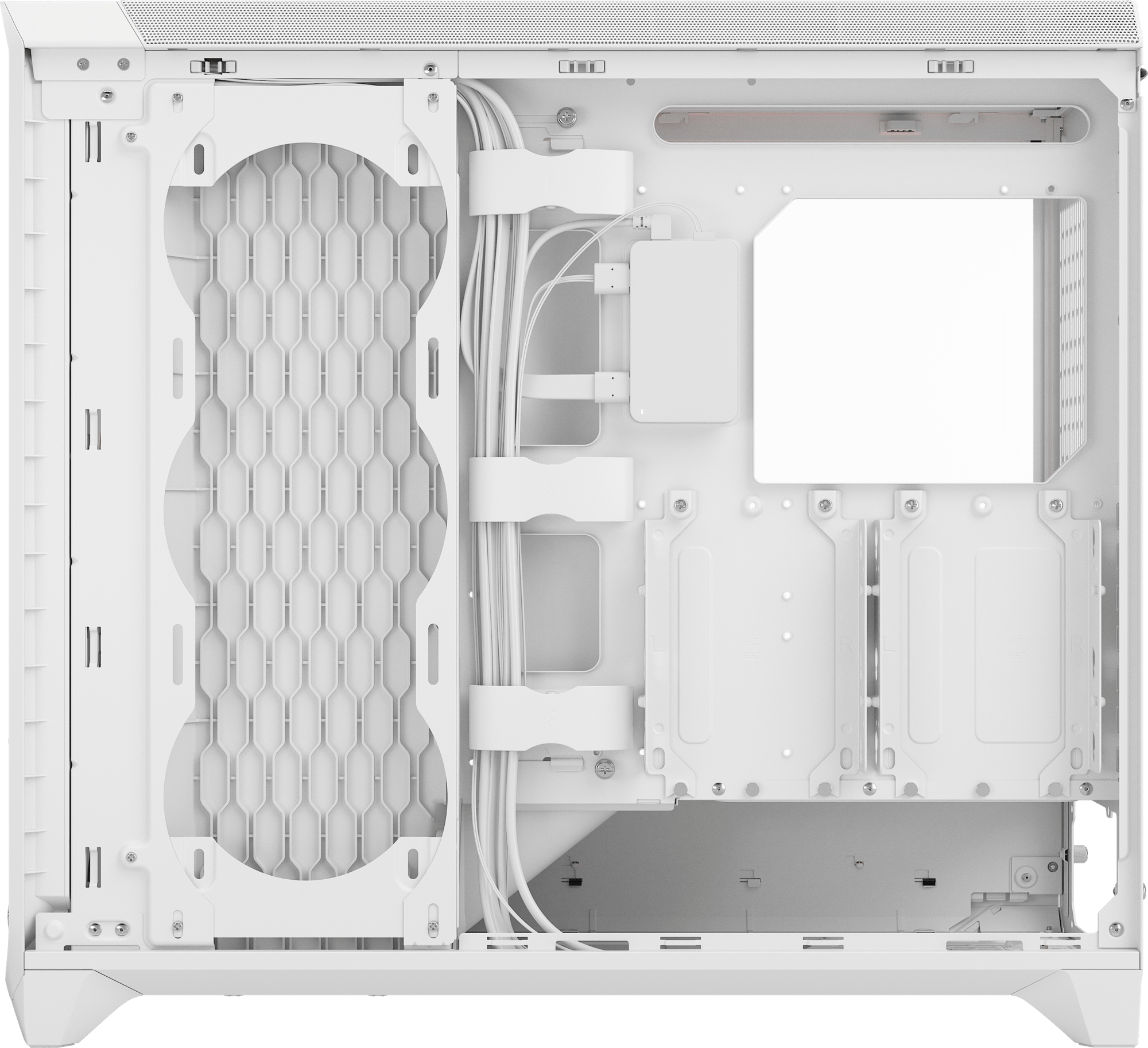

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.

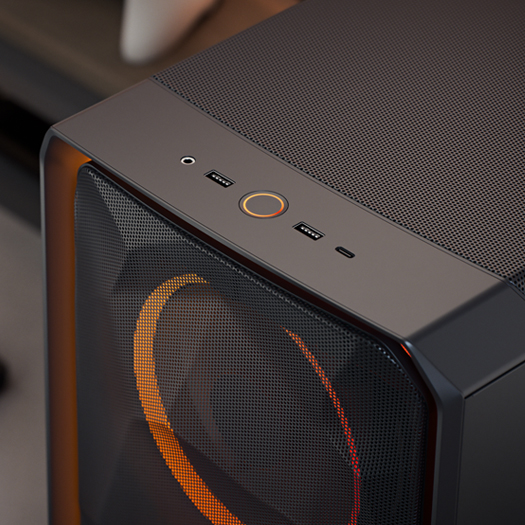

Accessible
I/O

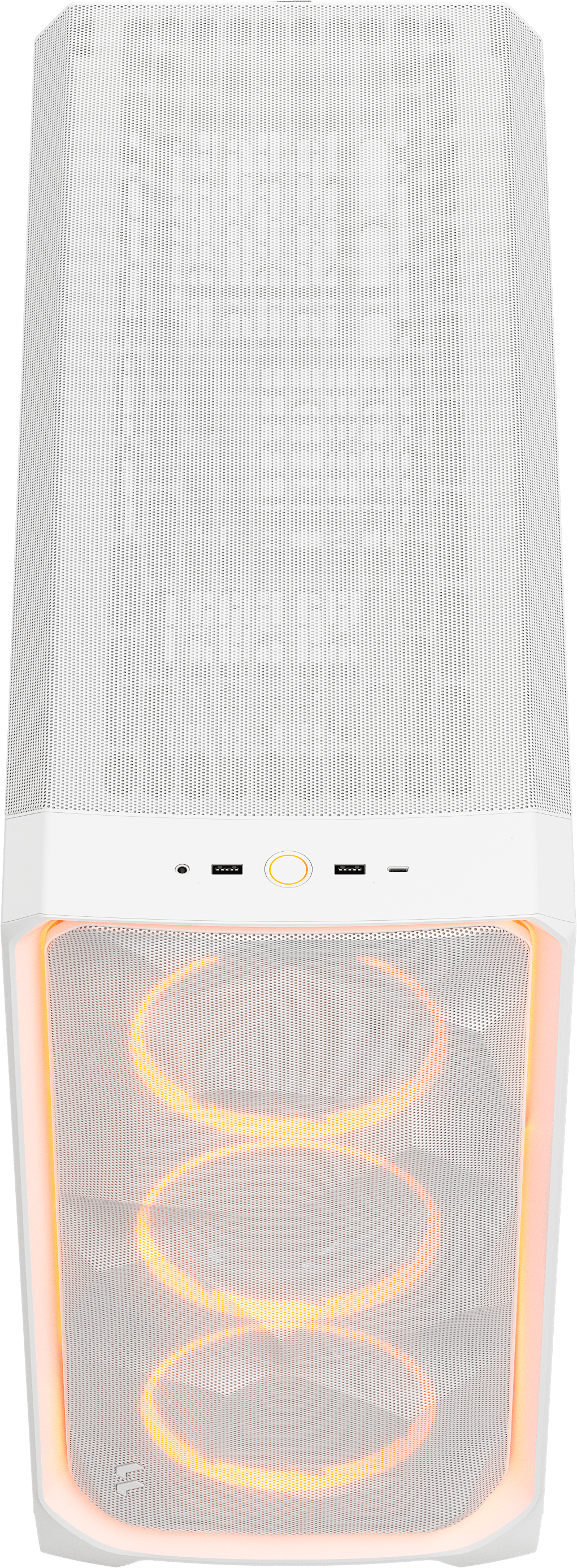

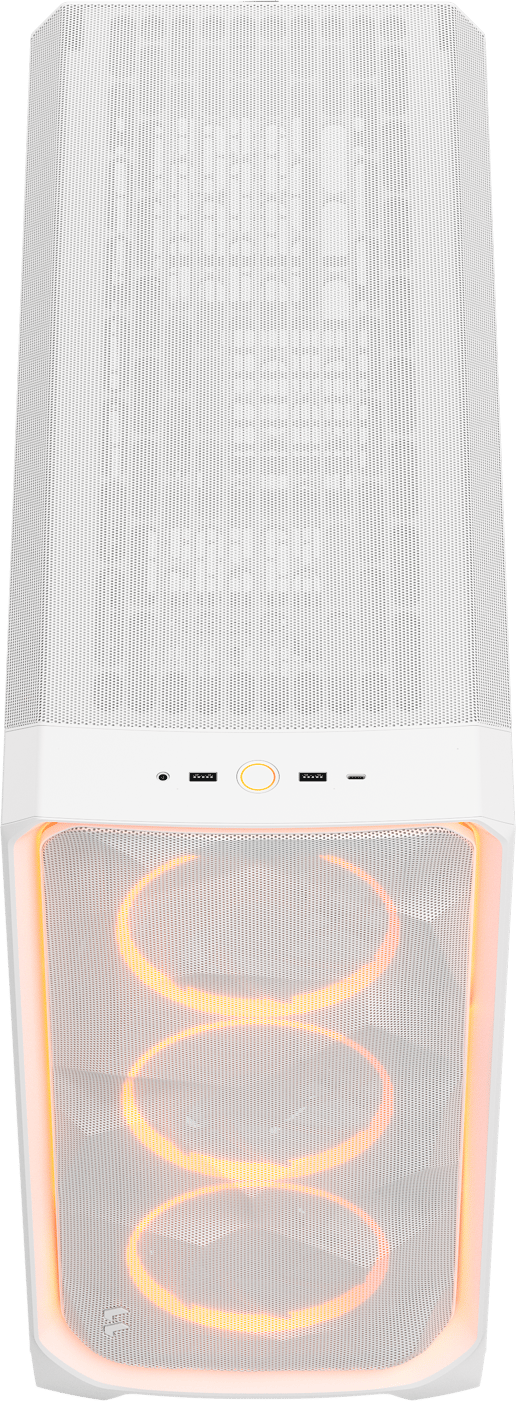

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.

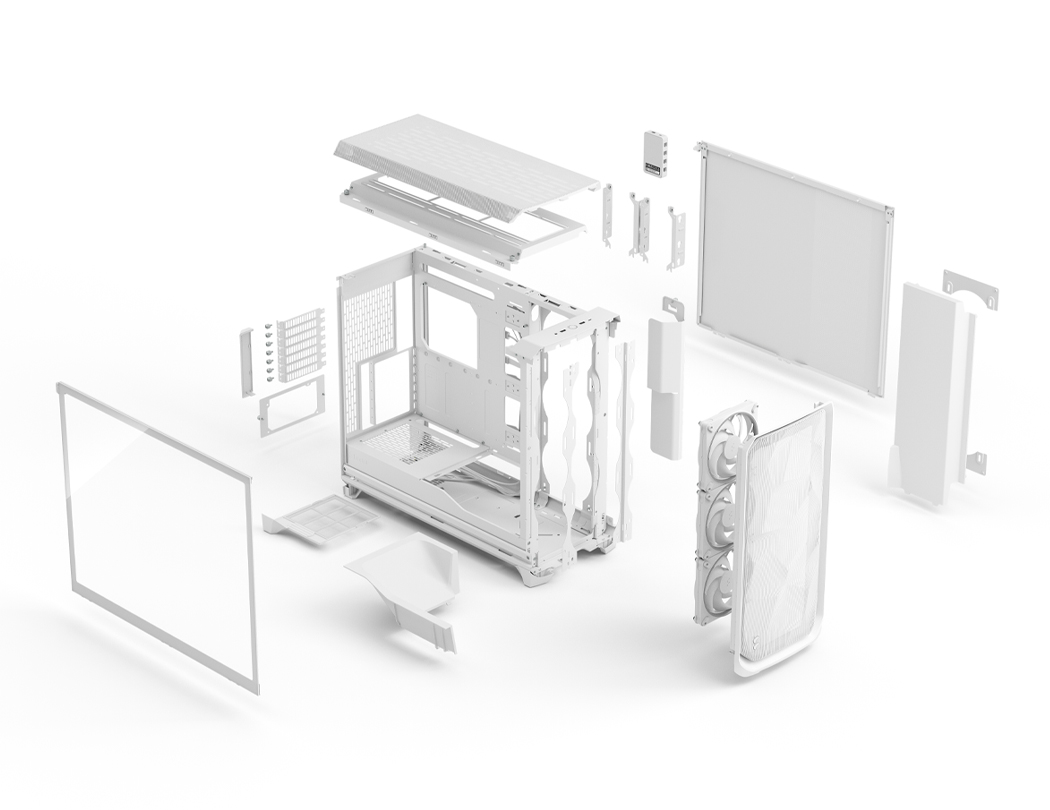

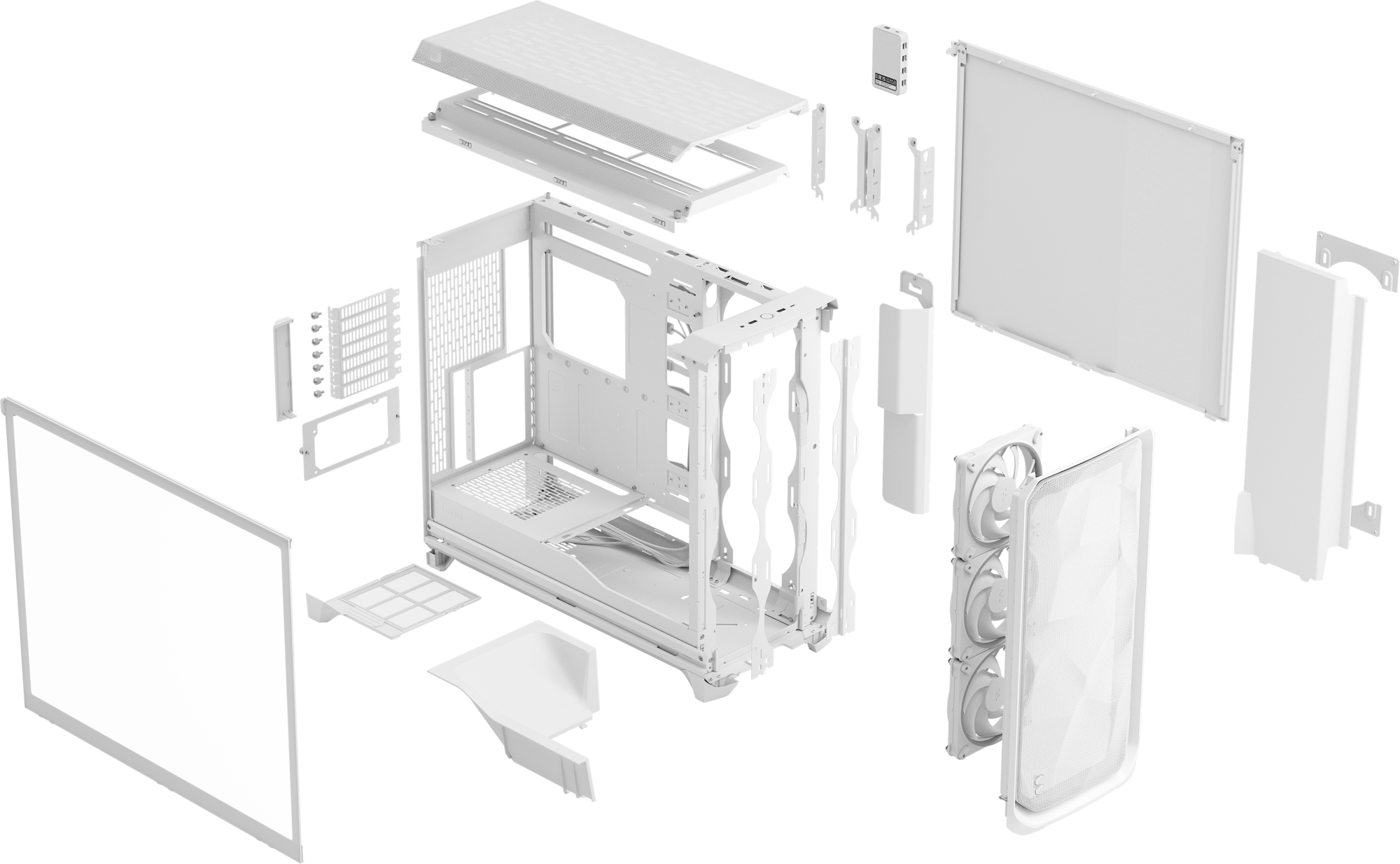

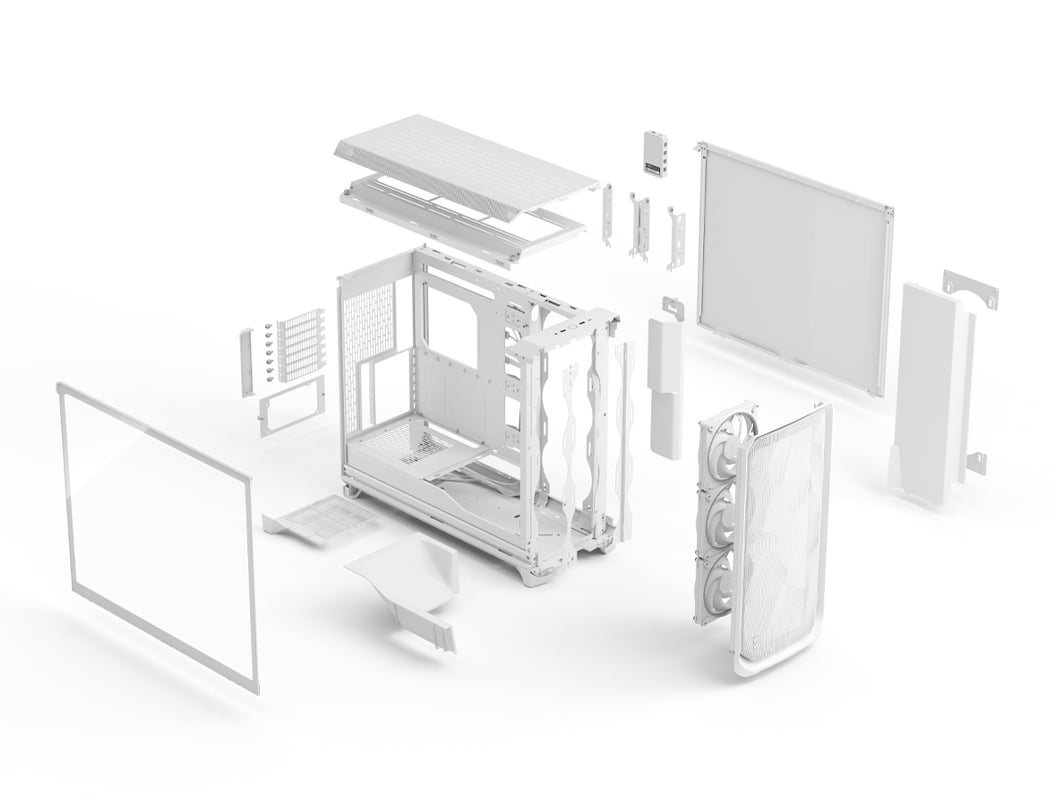

Removable Components

Specifications

User Controls

Power

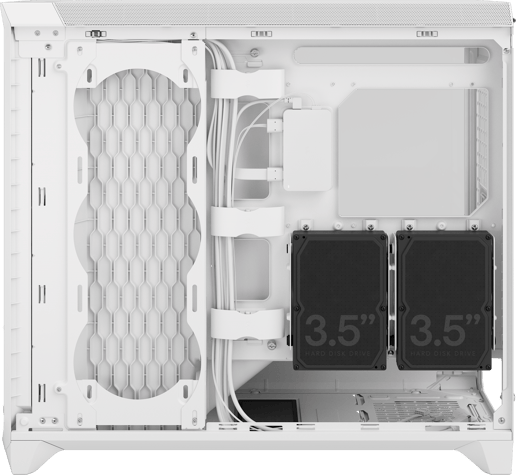

Storage

Internal Expansion Bays

1 x 2.5"
4 x 2.5" or 2 x 3.5"

Expansion

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.2 2 x USB 3.0
Headphone Ports	1 x 3.5mm COMBO Jack
Microphone In Port	Shared with Headphone

Electrical

Cooling System	Front: Supports 2 x 180mm, 3 x 140mm or 3 x 120mm fans (3 x 140mm ARGB fans included) Top: Supports 3 x 140mm or 120mm fans Rear: Supports 1 x 140mm or 120mm fan Side: Supports 3 x 140mm fans
Power Supply	ATX Power Supply supported

Warranty

2 Years

Physical

Form Factor	Mid Tower Case
Case Colour	White
Material	Industrial Steel Tempered Glass
Motherboard Compatibility	SSI-CEB SSI-EEB EE-ATX E-ATX ATX mATX Mini-ITX
In The Box	Case Accessory Box Manual Red Note
Width	245 mm
Depth	575 mm
Height	515 mm
Weight	11.4 kg

Key Features

Max Motherboard Width	330 mm
Max Motherboard Height	305 mm
Supports AIO Cooler	Yes
Main Colour	White
Case Type	Tower
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	Yes
L.E.D Fan	ARGB
Max 3.5" Drives	2
Max 2.5" Drives	5
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	Yes
Cooler Height	182 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Side Panel Type	Tempered Glass
GPU Length	512 mm
PSU Depth	230 mm
Number of Fans	3 fan(s)
RGB LED Controller Included	Yes
LED Strip(s) Included	No
Fan Connector	4-pin PWM
Maximum Motherboard Size Supported	E-ATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	3
Power Requirement (auto)	9 W
USB3.0 ports	2
USB-C ports	1
Low profile expansion	No
Max Supported Radiator Length	420 mm
Create Your Own Gaming PC (CCL)	Yes
Back Connect Support	No
