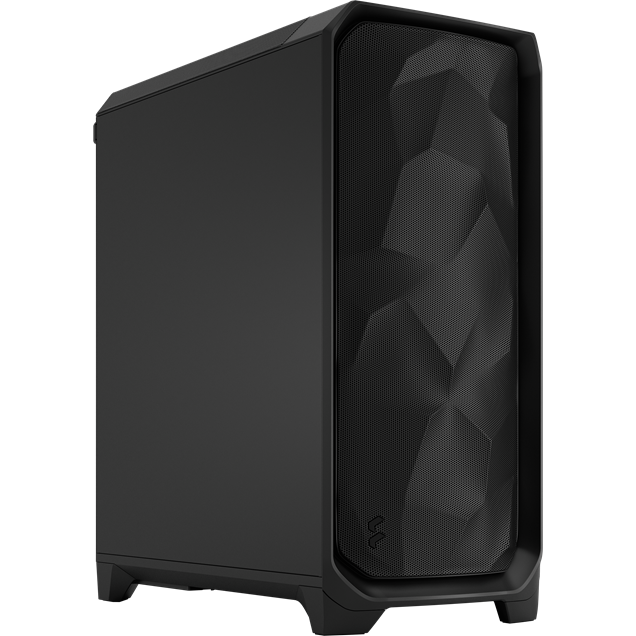

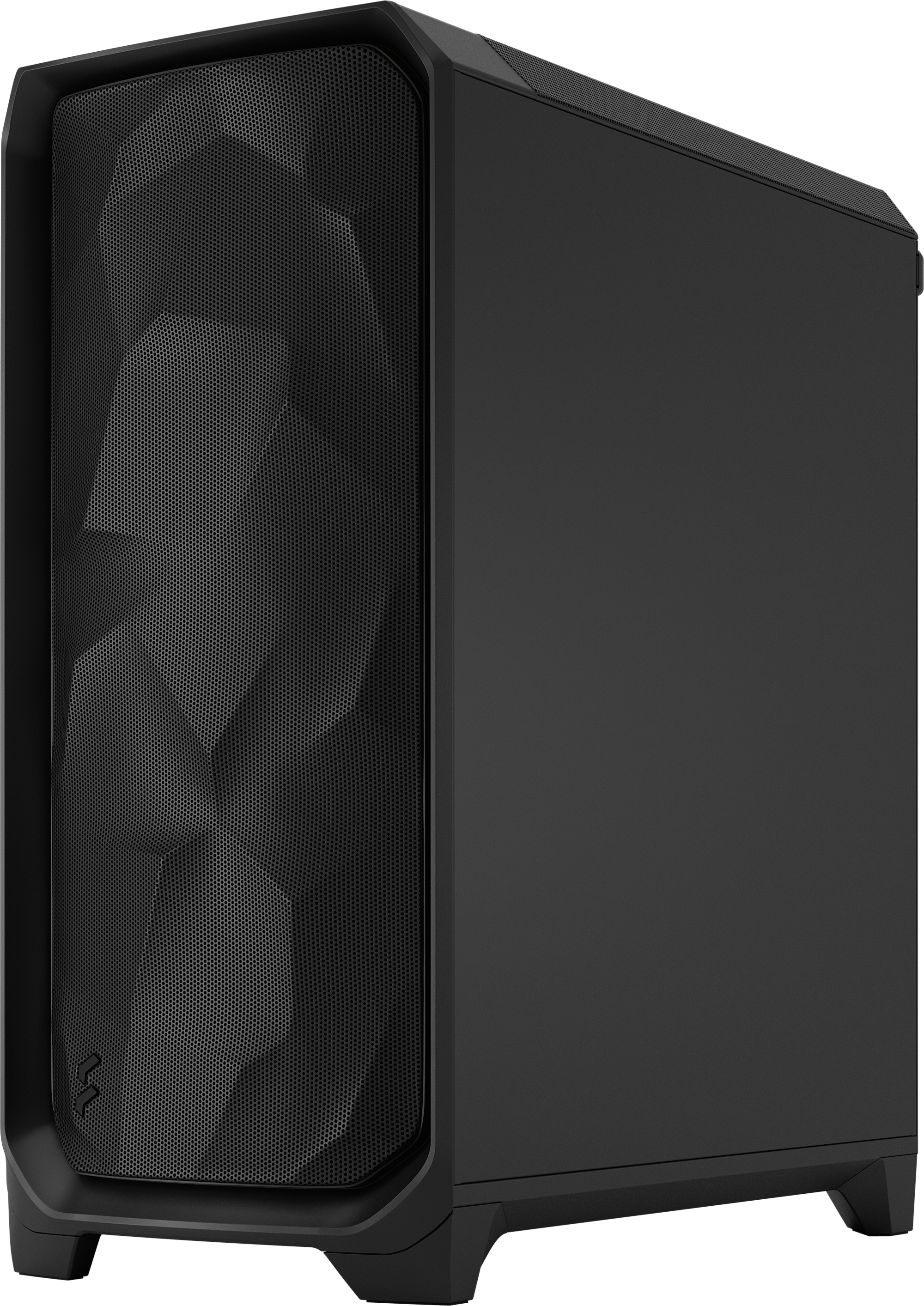

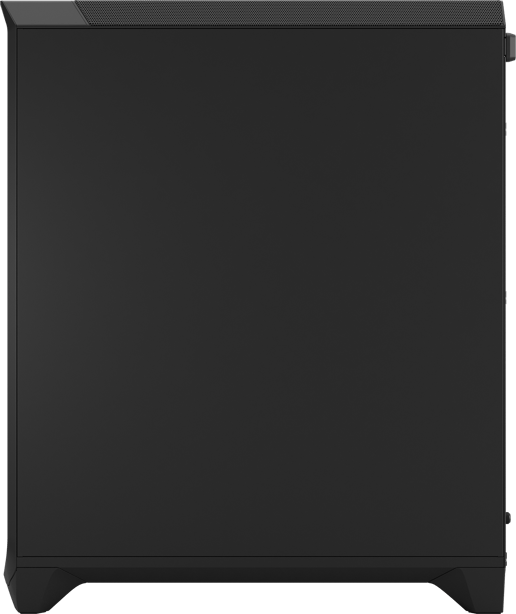

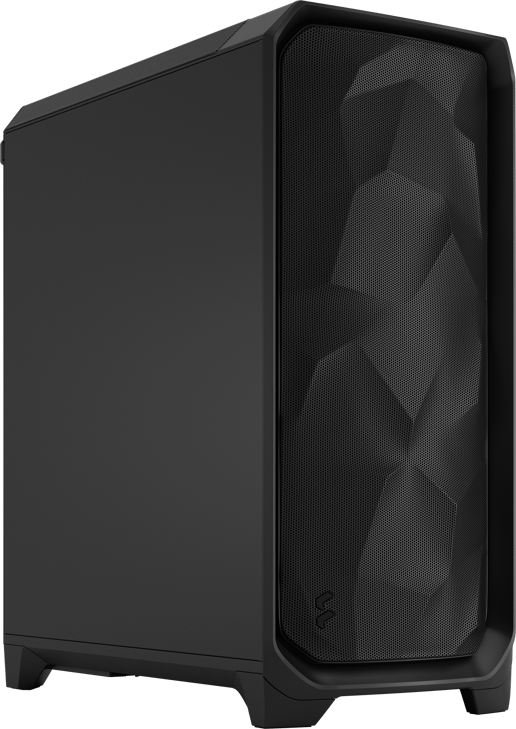

Fractal Meshify 3 Mid Tower Gaming Case - Black

Compare

Fractal Meshify 3 Mid Tower Gaming Case - Black

FD-C-MES3A-01

Key Features:

Max Motherboard Size: E-ATX
Solid Side
3 x 4-pin PWM Fan(s)
Front USB Type-C Port
6 x 2.5" / 2 x 3.5" Bay(s)

Fractal Meshify 3 Mid Tower Gaming Case - Black

FD-C-MES3A-01

£139.99 inc VAT

Add to Basket

Available for delivery from Tuesday 15th July

or Click & Collect from Tomorrow

Hurry, only 2 left!

CCL Code: CAS5563

Max Motherboard Size: E-ATX
Solid Side
3 x 4-pin PWM Fan(s)
Front USB Type-C Port
6 x 2.5" / 2 x 3.5" Bay(s)

Overview

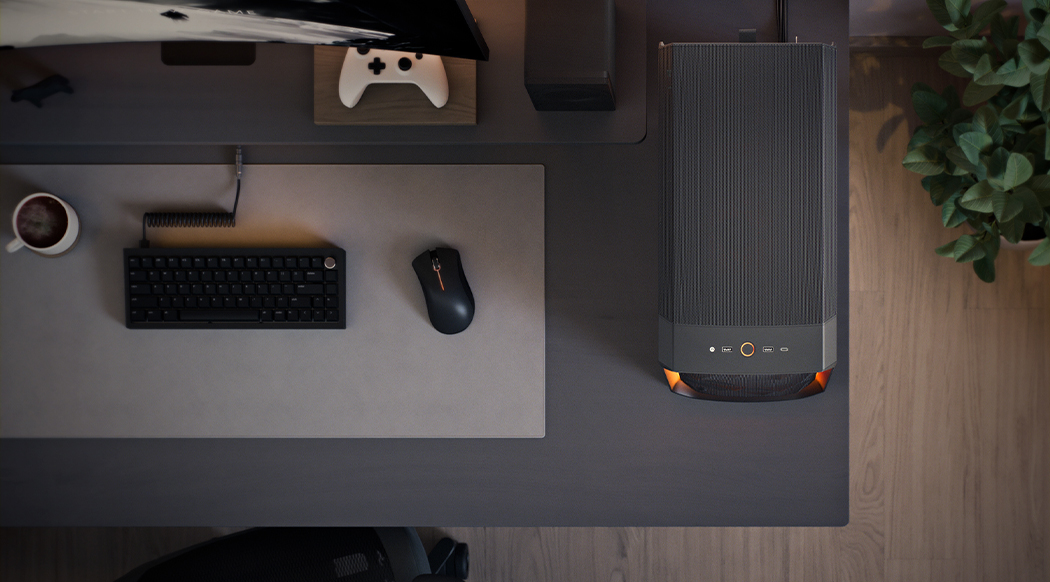

Meshify 3 is a performance PC case combining top-tier cooling with fluid, aerodynamic design.

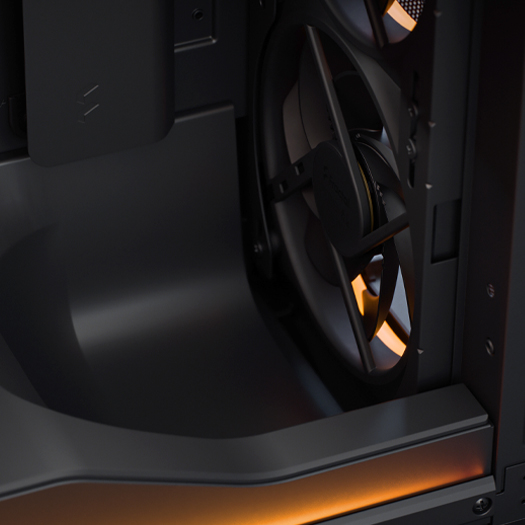

Advanced
airflow

Access performance engineering with ample ventilation and an air guide which directs airflow towards components to improve GPU cooling.

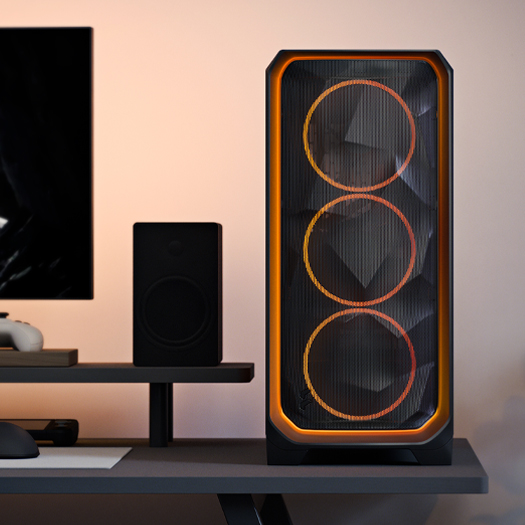

Evolved
design

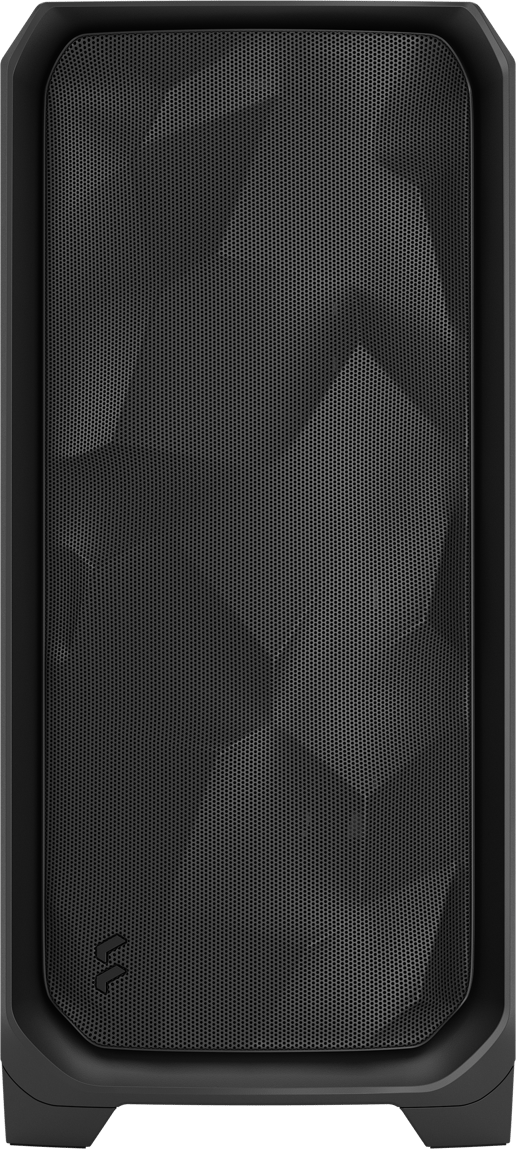

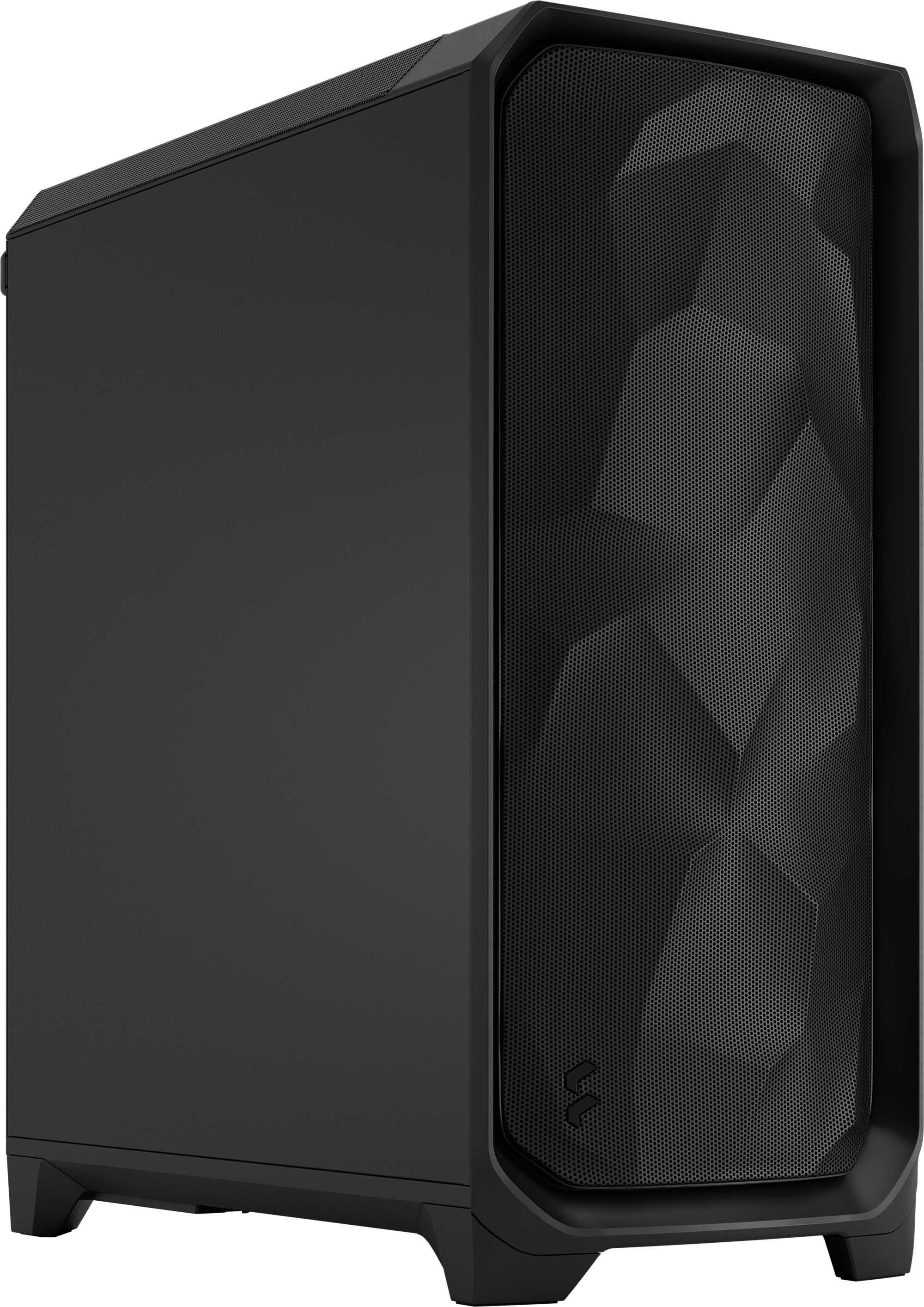

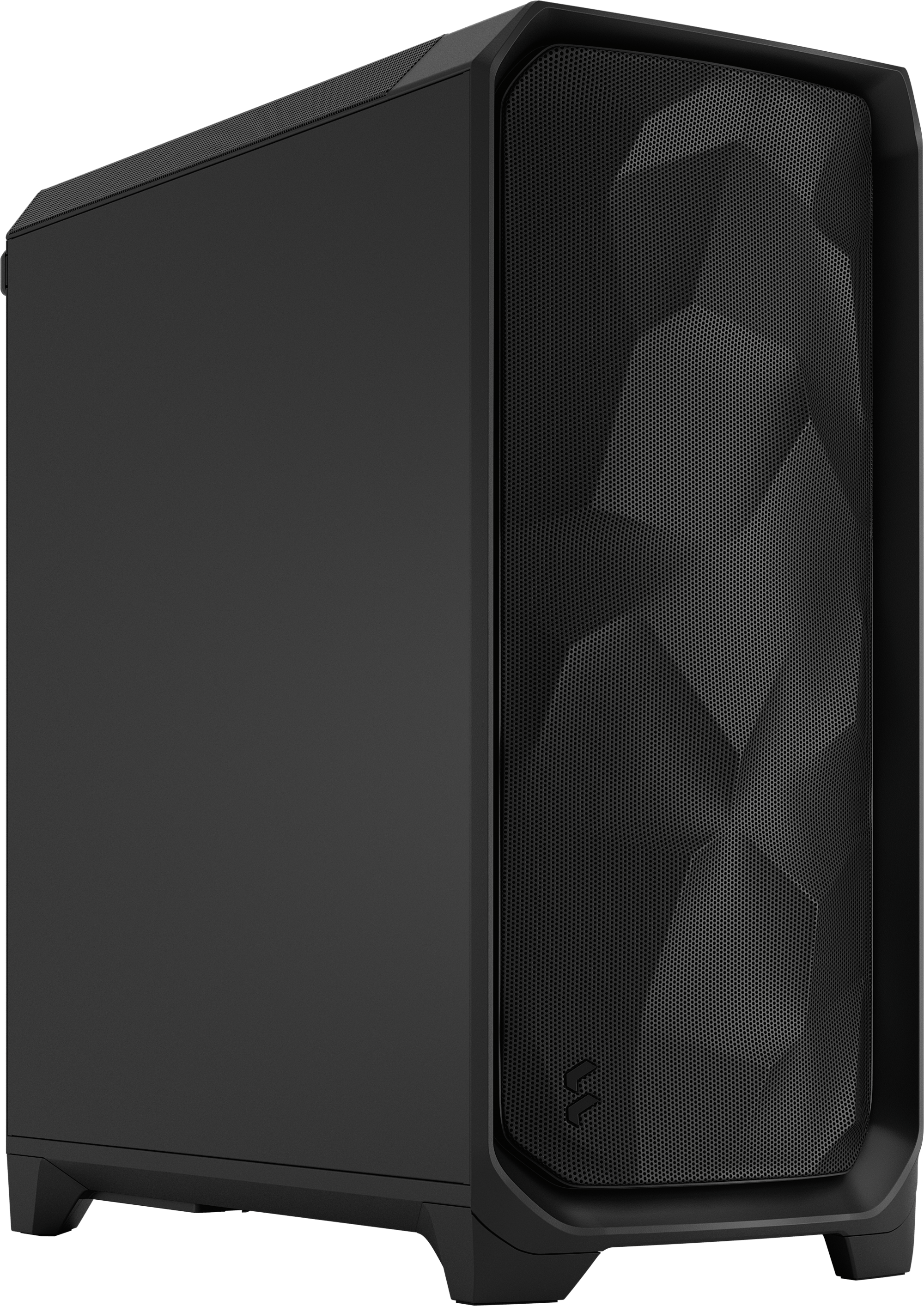

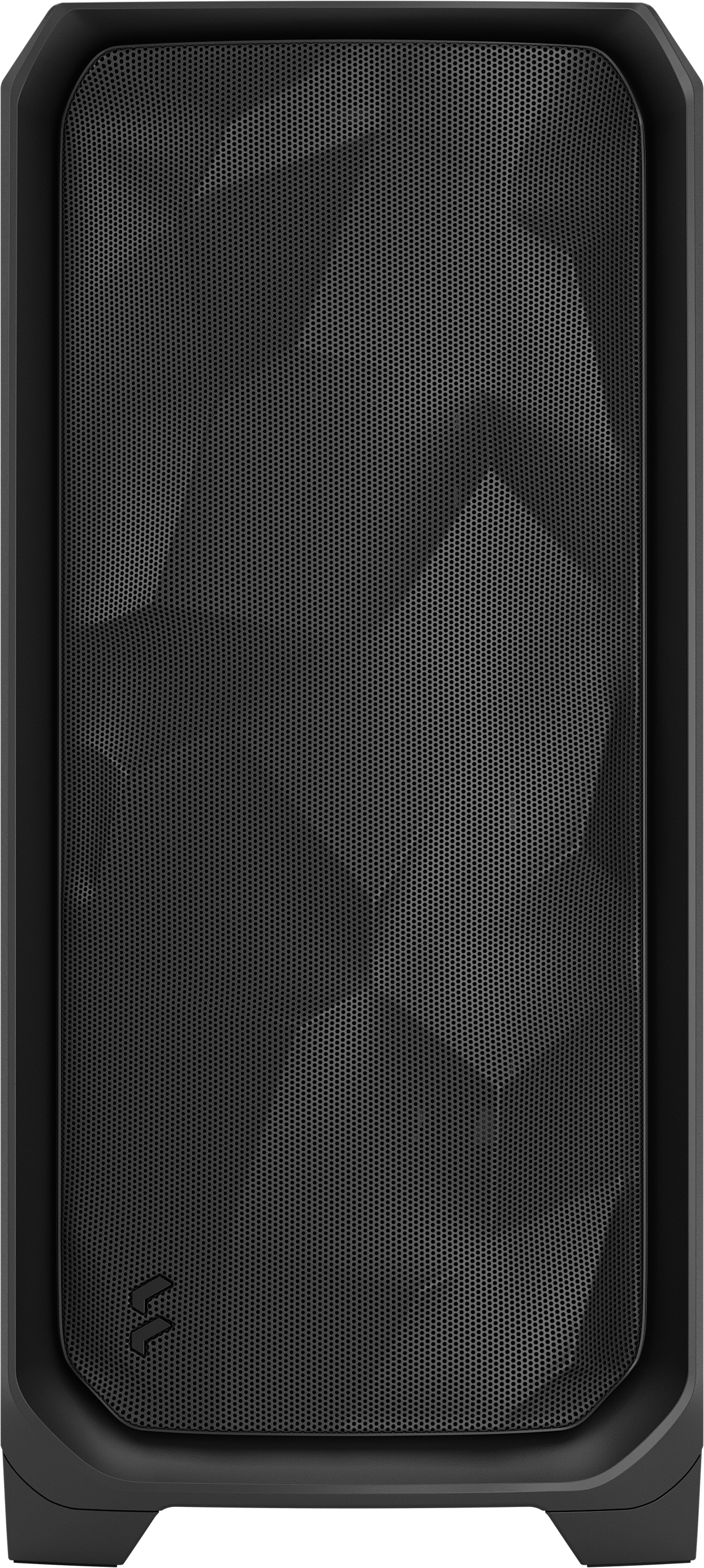

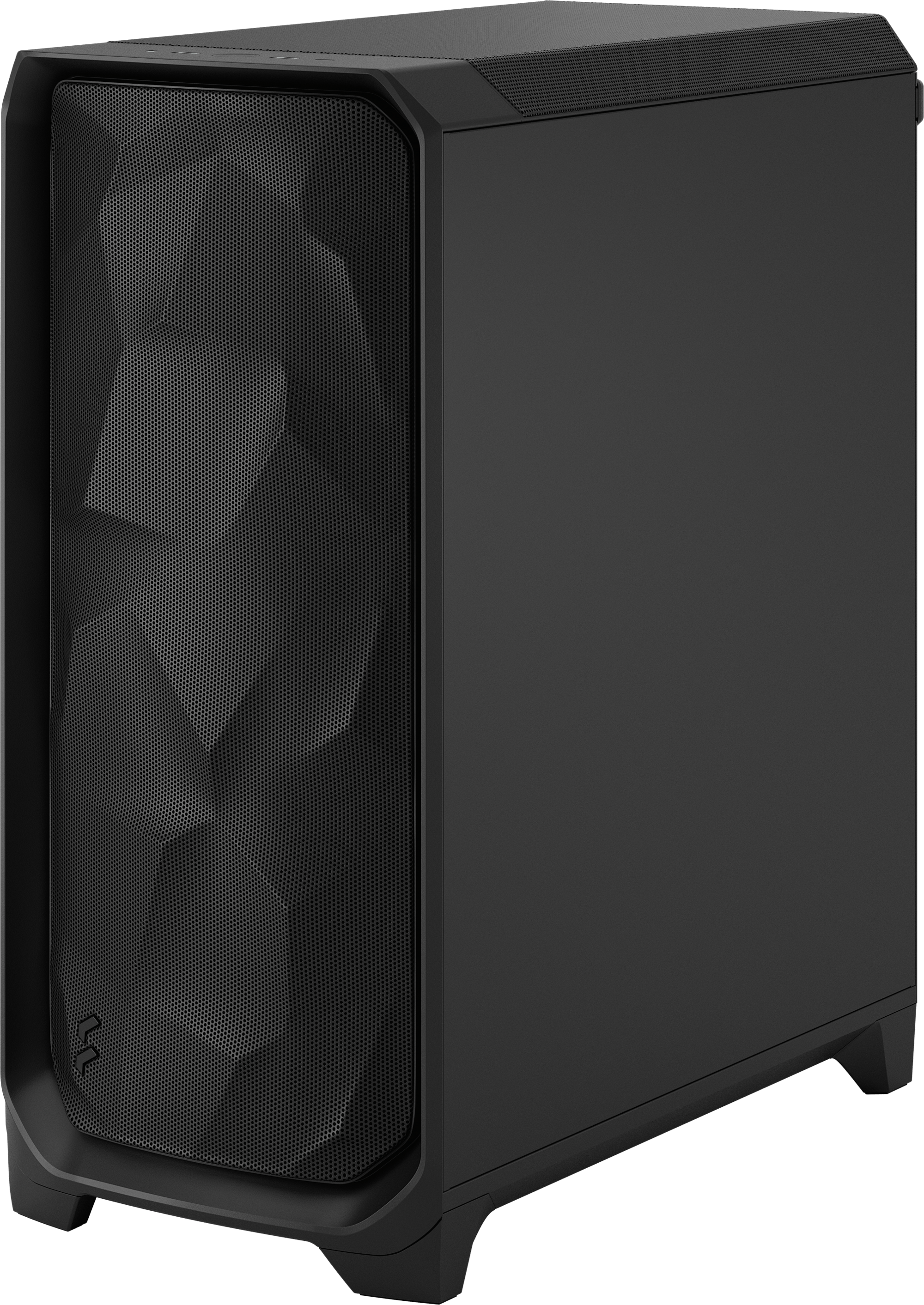

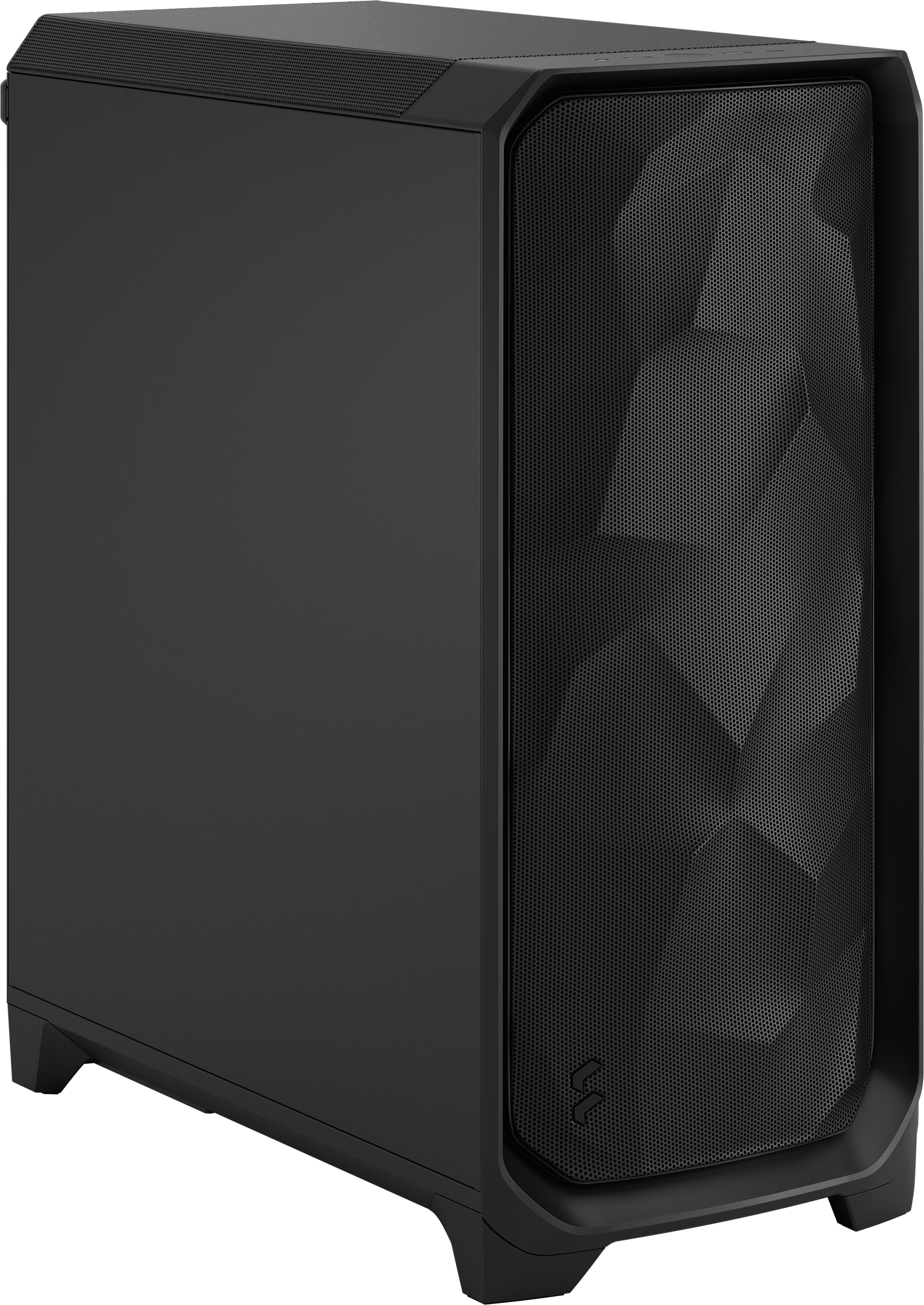

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.

AMBIENCE PRO RGB VERSION

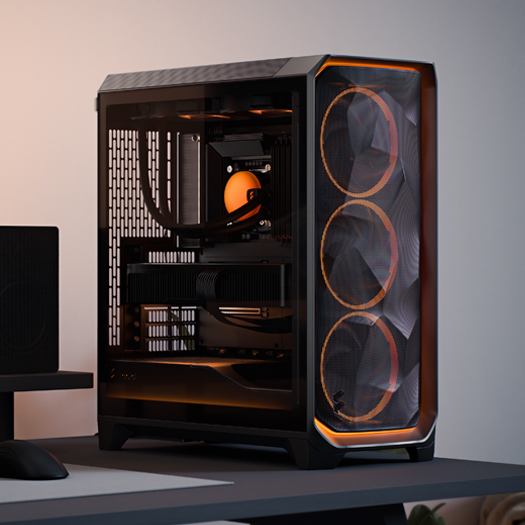

Enhanced
lighting

Create the right atmosphere with advanced ARGB Gen 2 ambient case lighting and fans, including an animated PC startup effect.

AMBIENCE PRO RGB VERSION

Tailored
experience

Customize your lighting and fans easily with Adjust Pro — a web browser-based configuration tool, accessed via the included Adjust Pro Hub.

Designed for
gaming

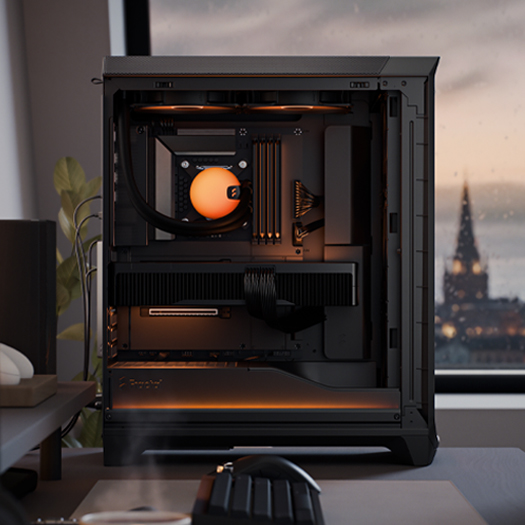

Create a powerful gaming system with space for graphics cards up to 349 mm in length and E-ATX (277 mm) motherboard compatibility.

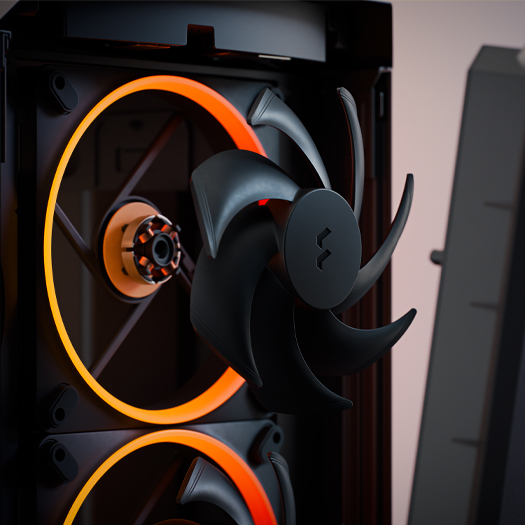

Powerful
fans included

Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.

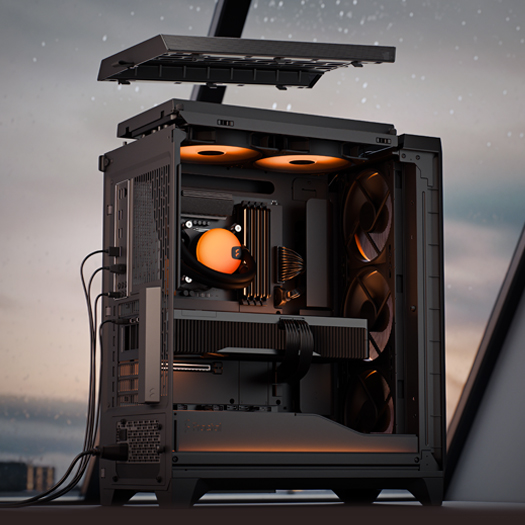

Cooler
compatible

Cool your build further with up to a 280 mm top radiator and 360 mm front radiator, with removable brackets for easy installation.

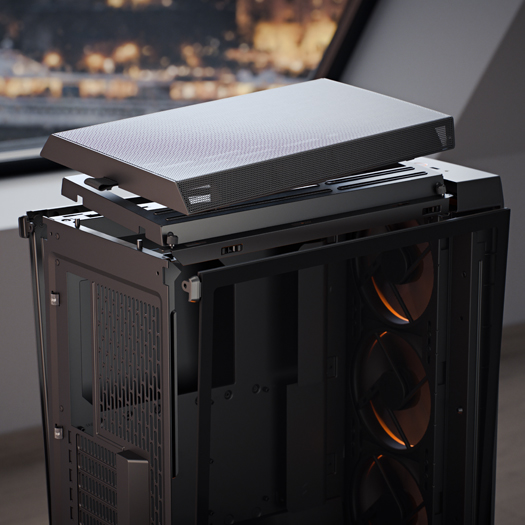

Easily
accessible

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.

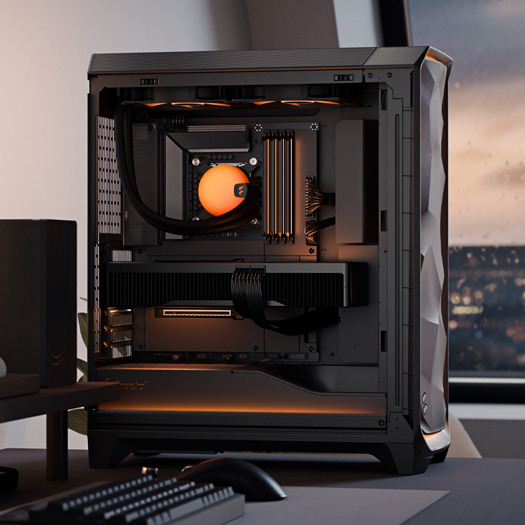

Clean
finish

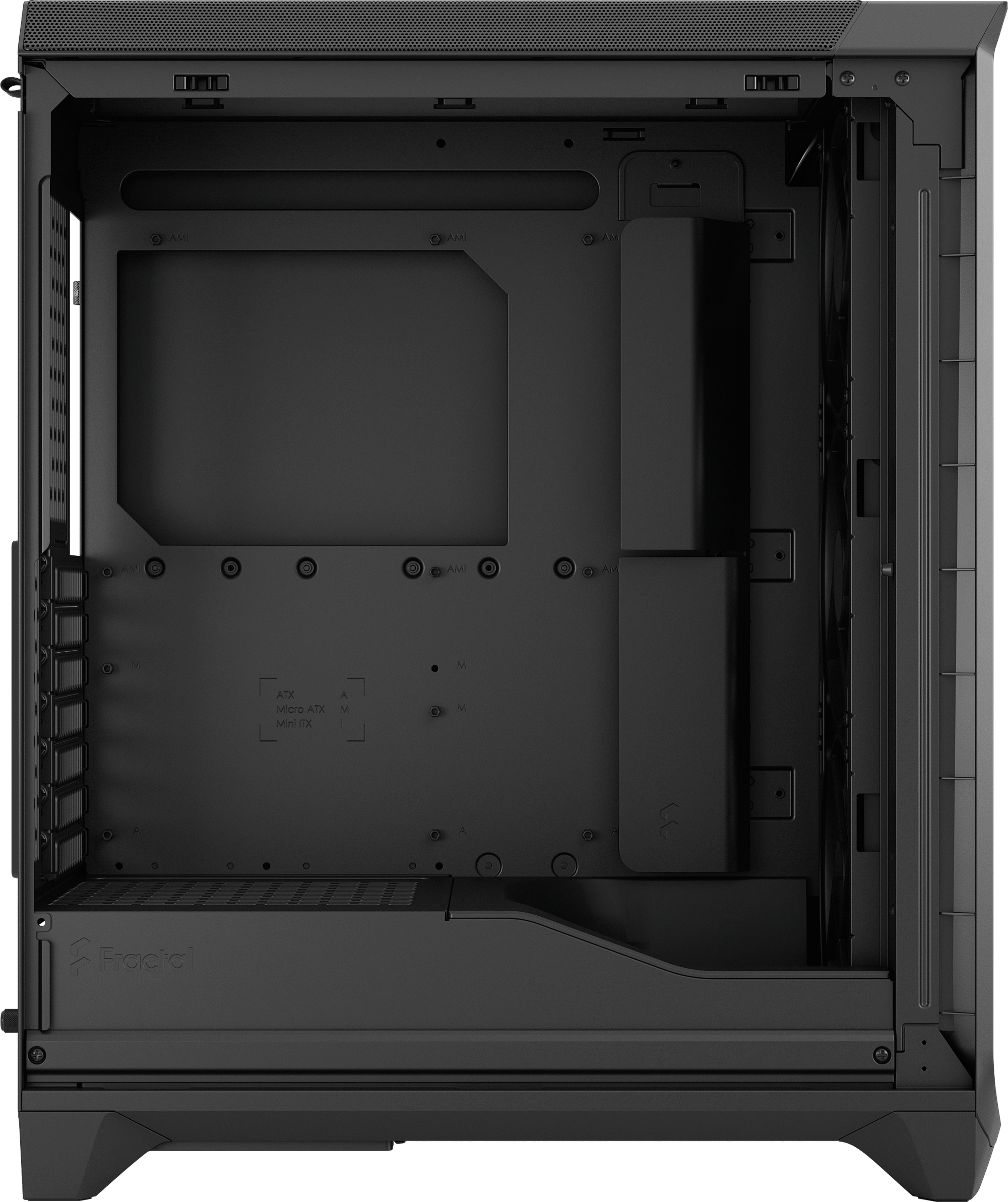

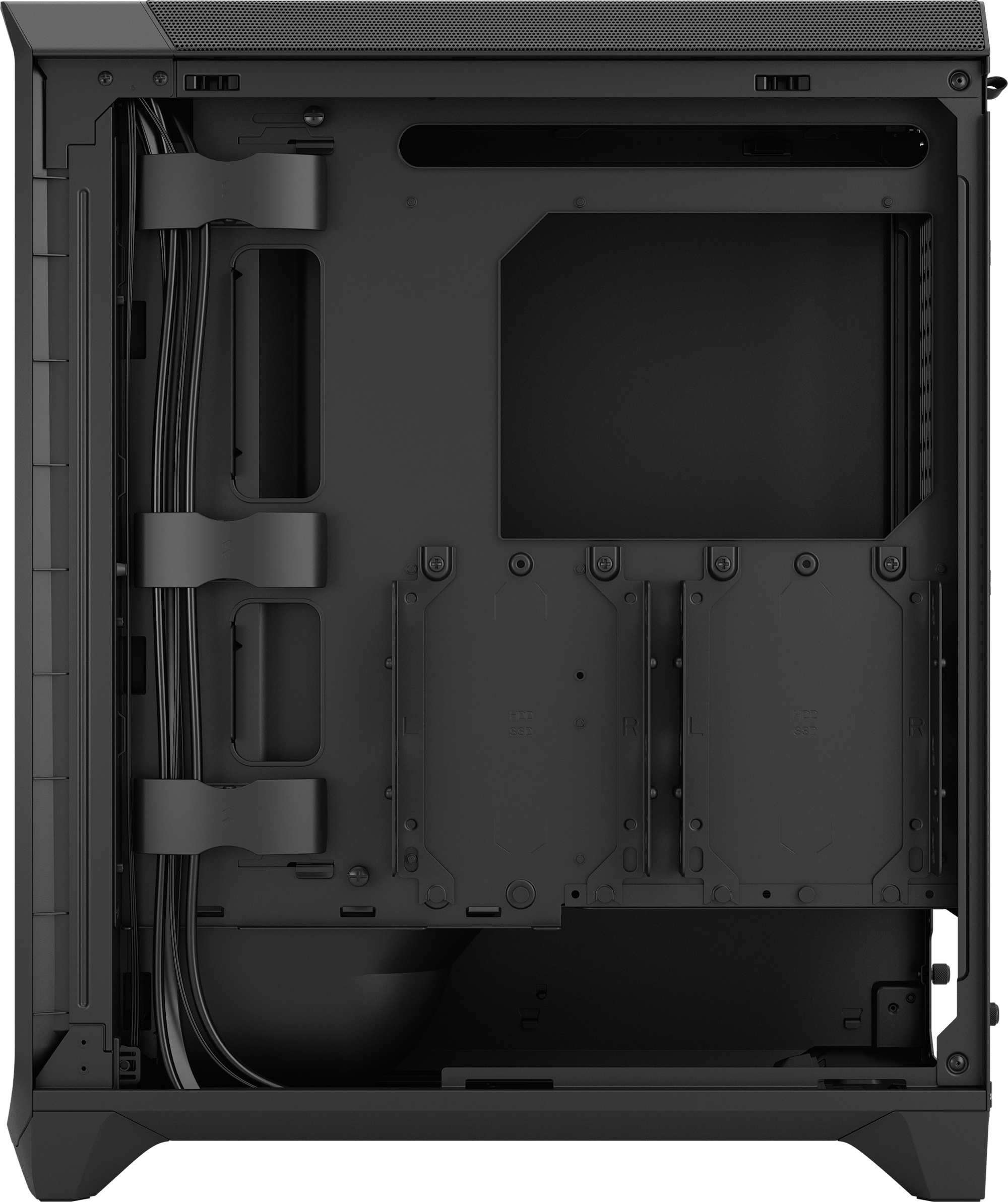

Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.

Accessible
I/O

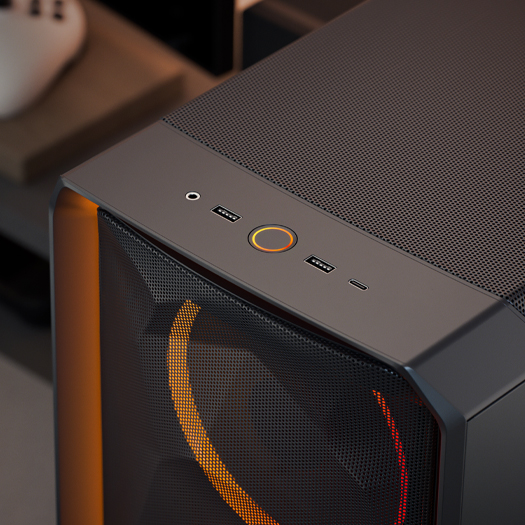

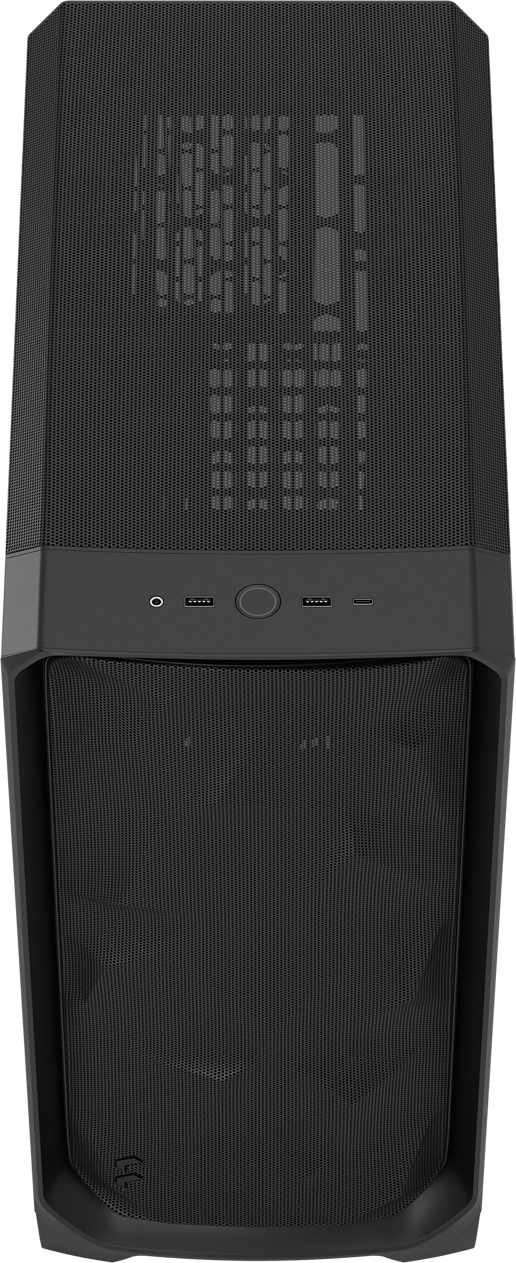

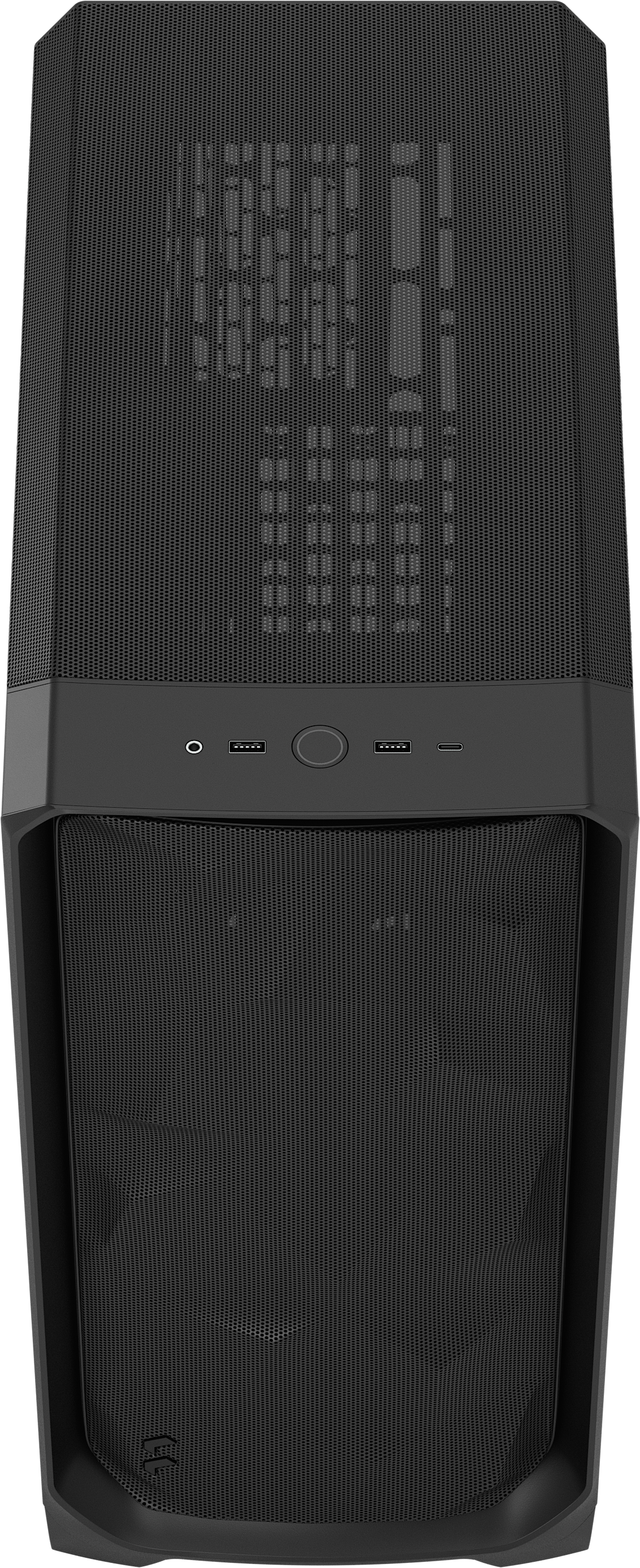

Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.

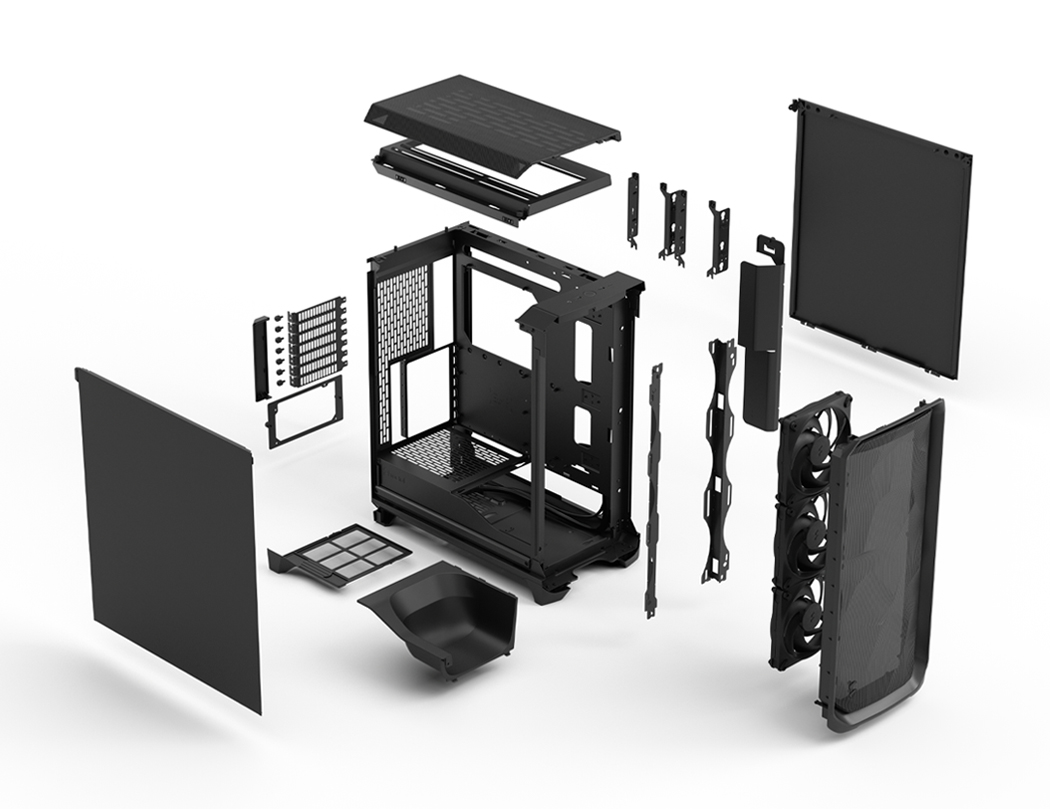

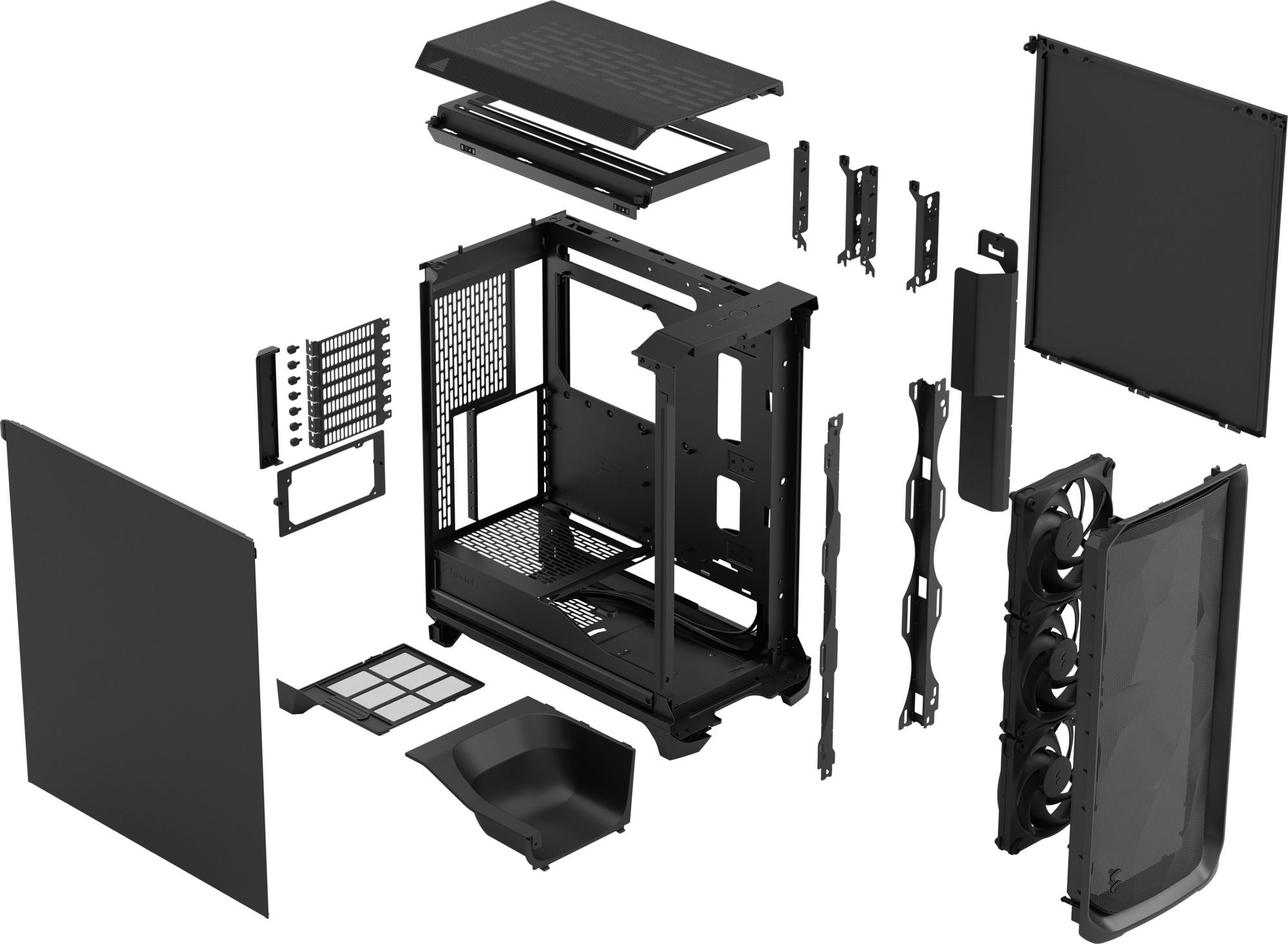

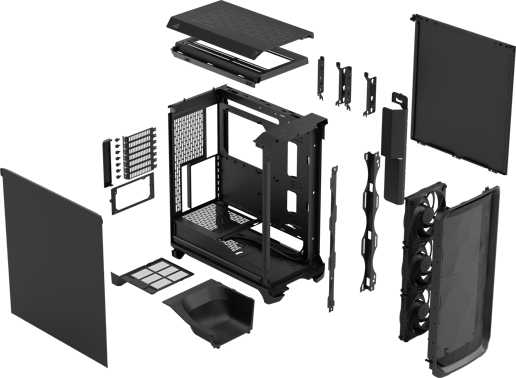

Removable Components

Specifications

User Controls

Power

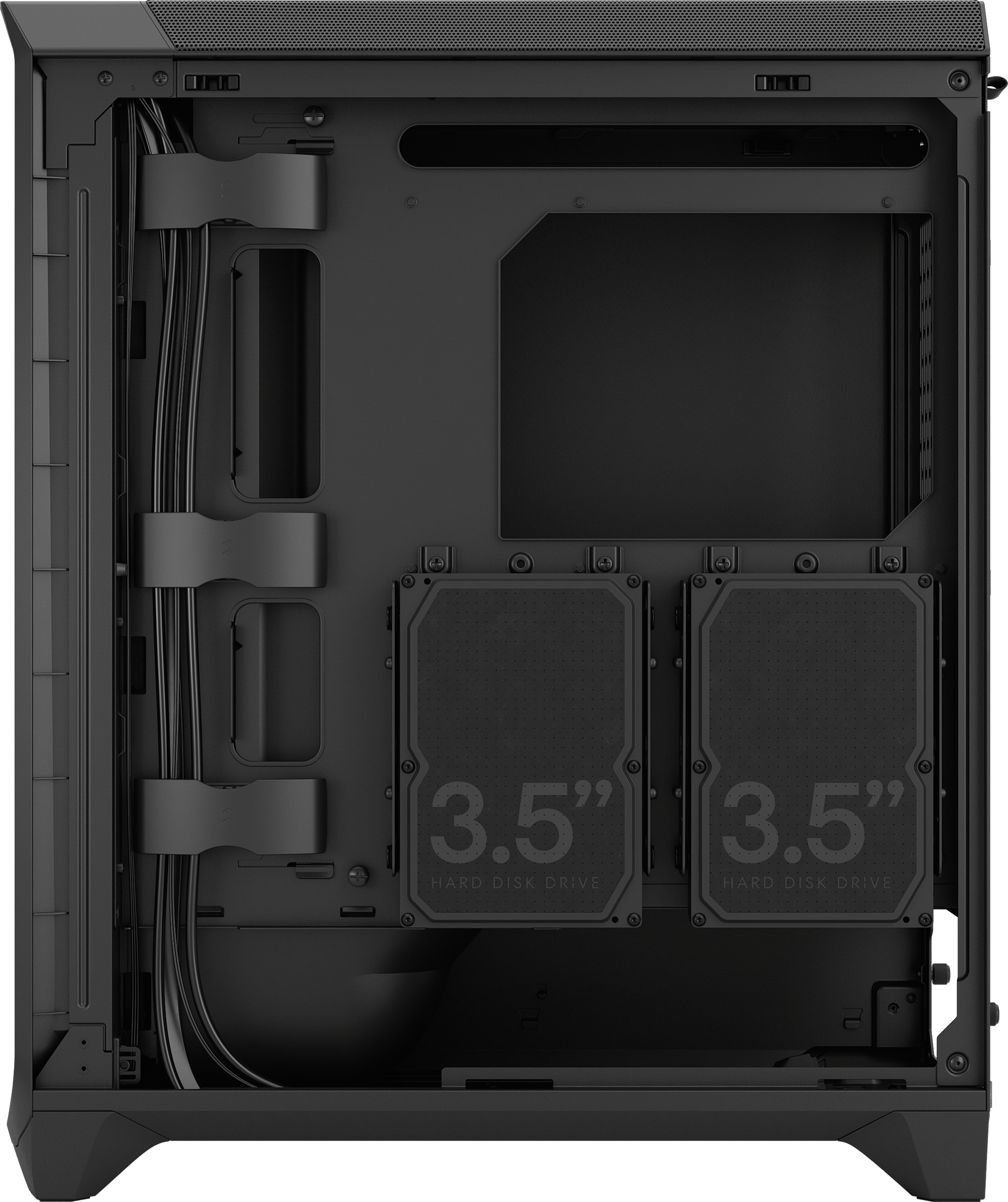

Storage

Internal Expansion Bays

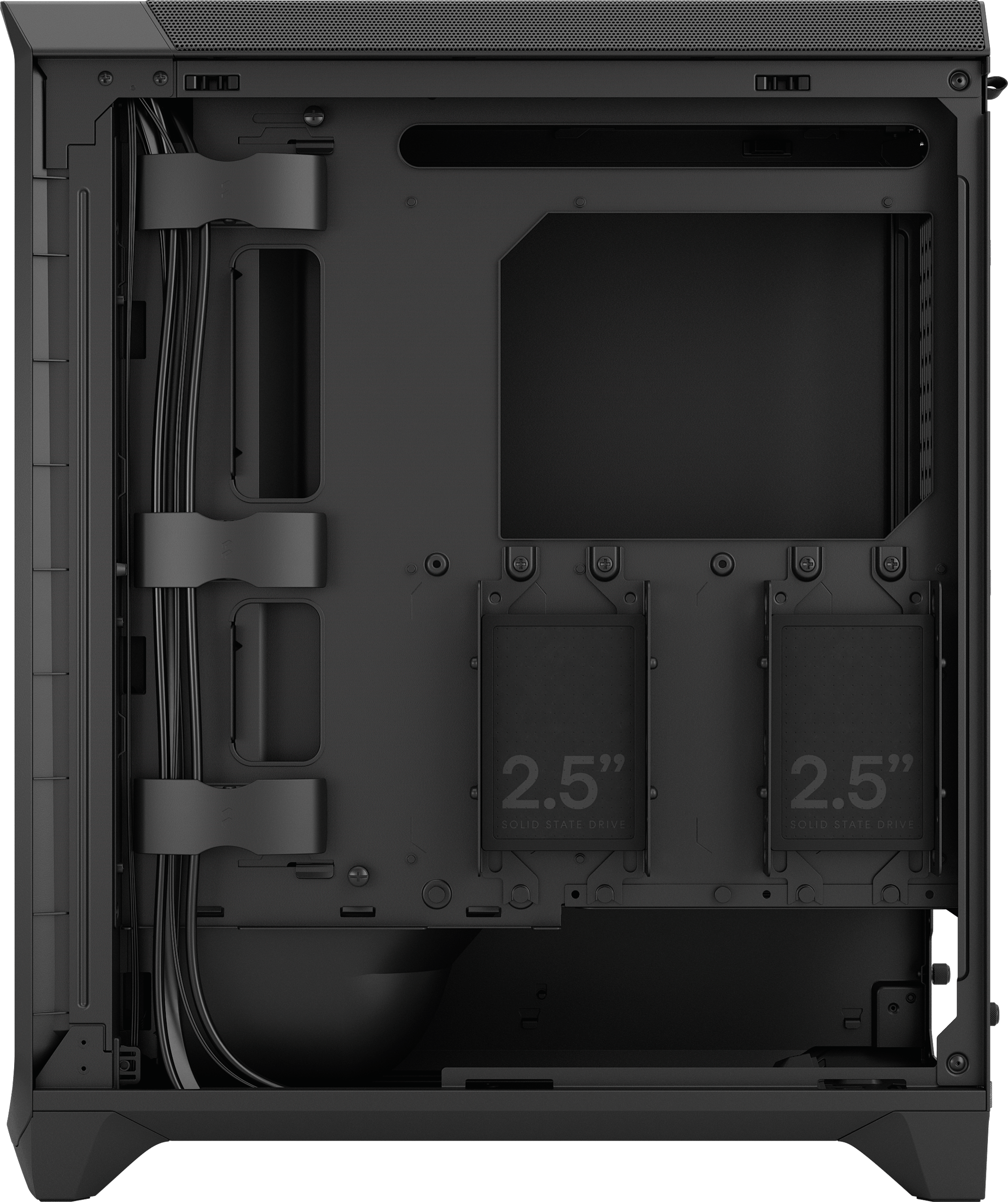

2 x 2.5"

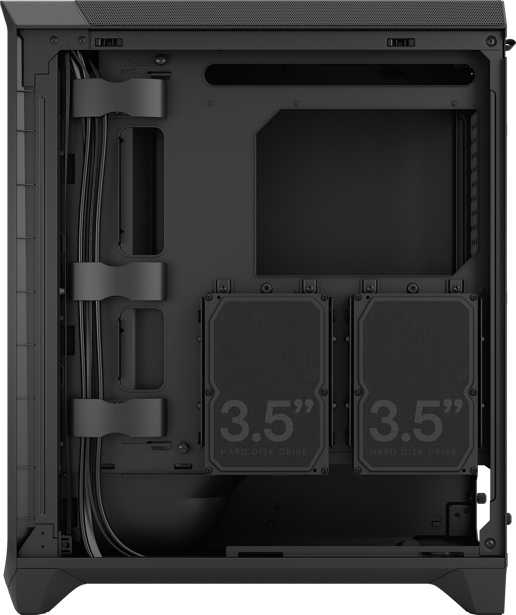

4 x 2.5" or 2 x 3.5"

Expansion

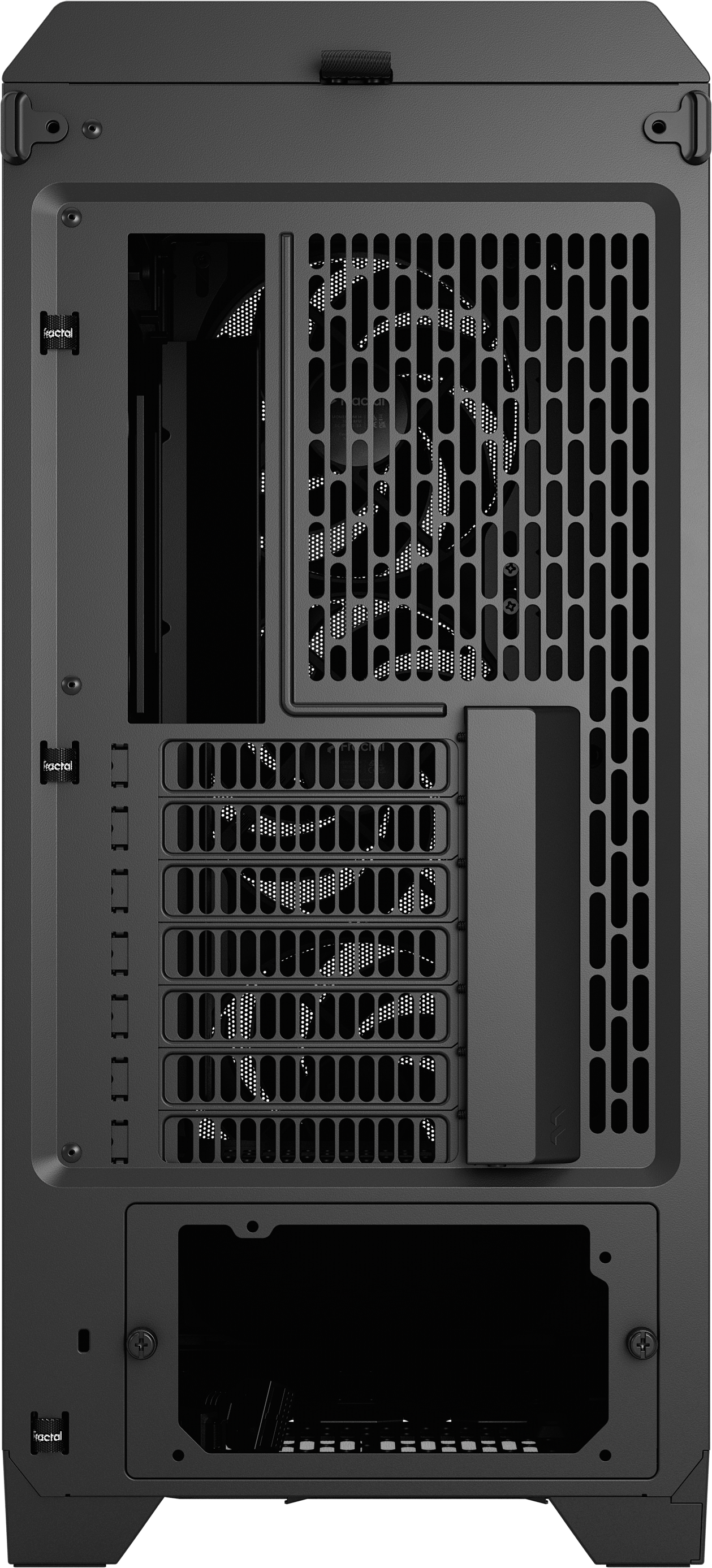

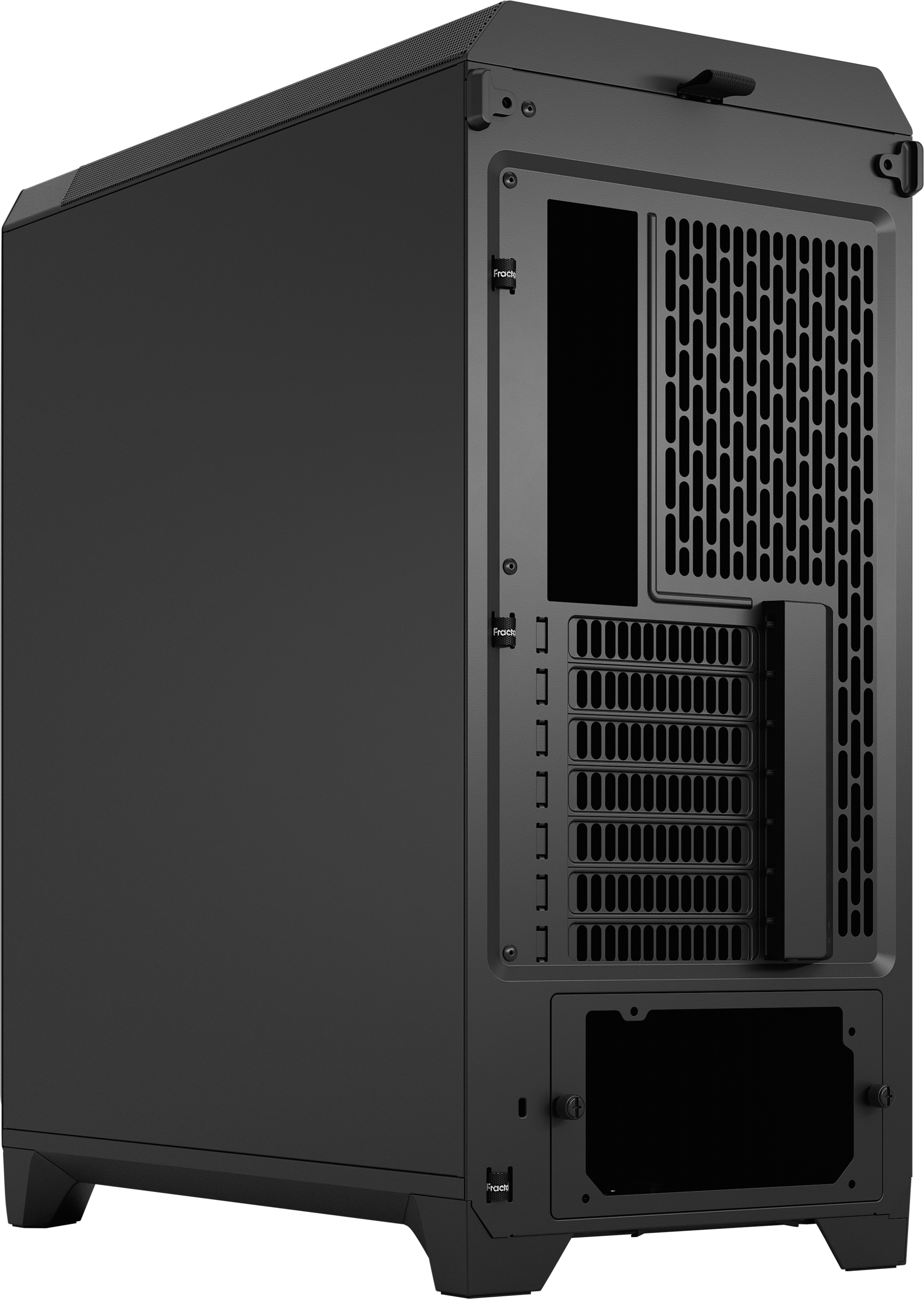

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	1 x USB-C 3.2 2 x USB 3.0
Headphone Ports	1 x 3.5mm COMBO Jack
Microphone In Port	Shared with Headphone

Electrical

Cooling System	Front: Supports 3 x 140mm or 120mm fans (3 x 140mm fans included) Top: Supports 2 x 140mm or 120mm fans Rear: Supports 1 x 120mm fan
Power Supply	ATX Power Supply supported

Warranty

2 Years

Physical

Form Factor	Mid Tower Case
Case Colour	Black
Material	Industrial Steel
Motherboard Compatibility	E-ATX ATX mATX Mini-ITX
In The Box	Case Accessory Box Manual Red Note
Width	229 mm
Depth	433 mm
Height	507 mm
Weight	8.7 kg

Key Features

Max Motherboard Width	277 mm
Max Motherboard Height	305 mm
Supports AIO Cooler	Yes
Main Colour	Black
Case Type	Tower
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Illuminated	No
L.E.D Fan	No LED
Max 3.5" Drives	2
Max 2.5" Drives	6
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	Yes
Cooler Height	173 mm
Built-in Card Reader	No
USB Type-C Support	Yes

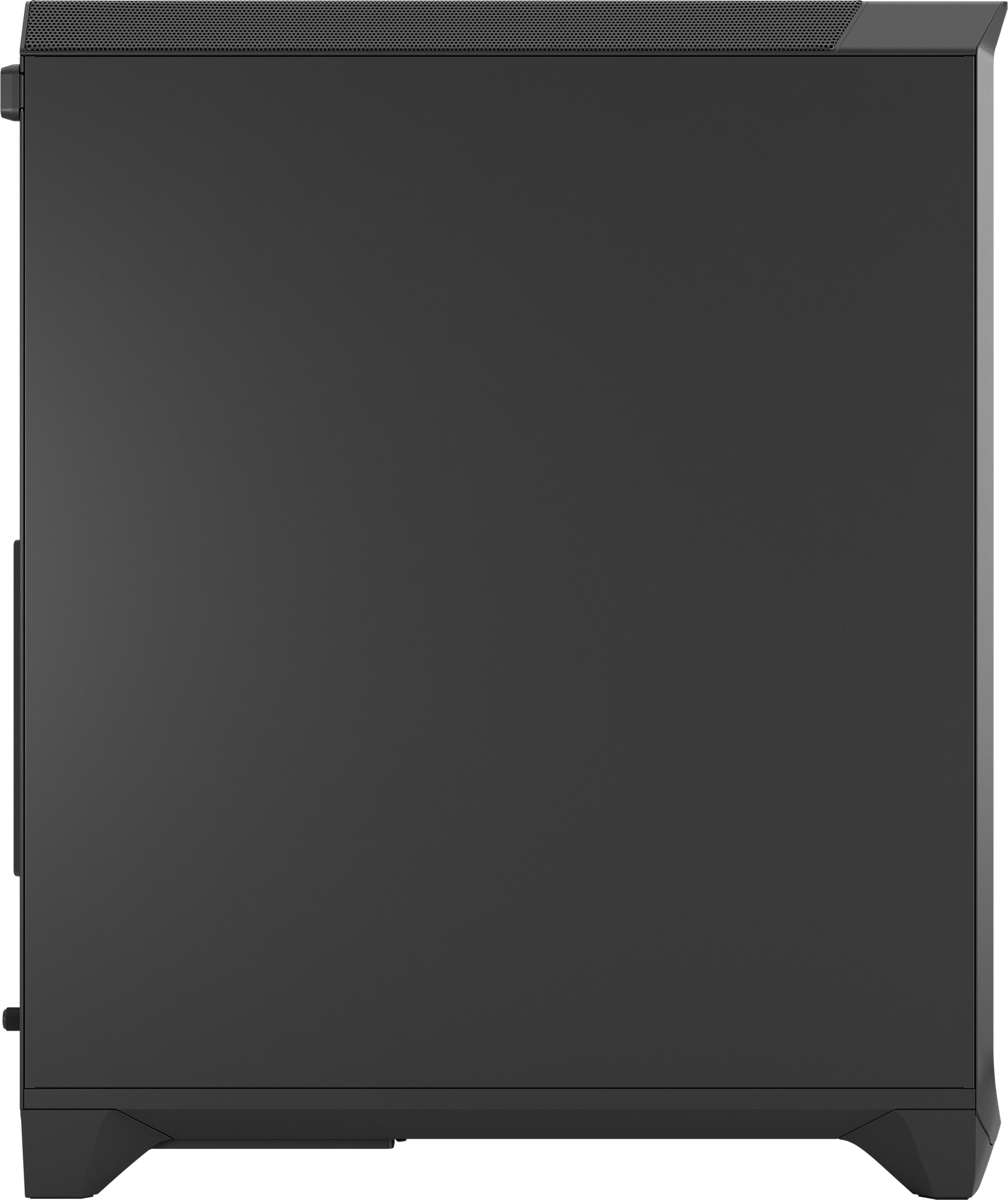

Side Panel Type	Solid
GPU Length	349 mm
PSU Depth	180 mm
Number of Fans	3 fan(s)
RGB LED Controller Included	No
LED Strip(s) Included	No
Fan Connector	4-pin PWM
Maximum Motherboard Size Supported	E-ATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	6
Power Requirement (auto)	9 W
USB3.0 ports	2
USB-C ports	1
Low profile expansion	No
Max Supported Radiator Length	360 mm
Create Your Own Gaming PC (CCL)	Yes
Back Connect Support	No
