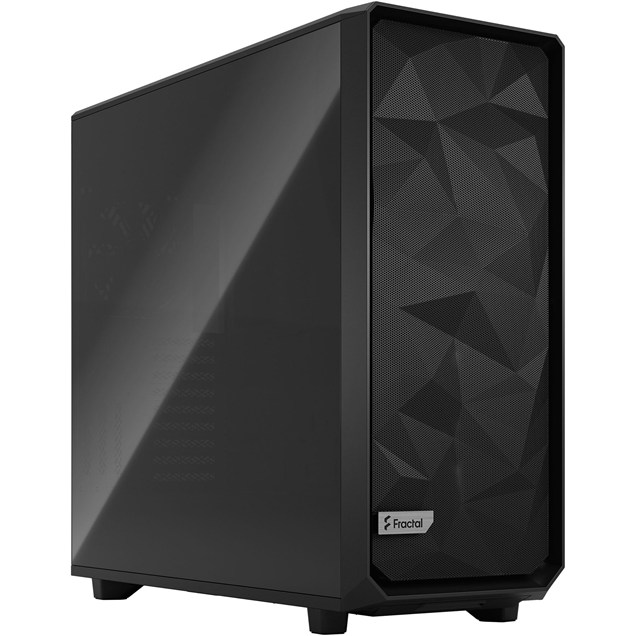

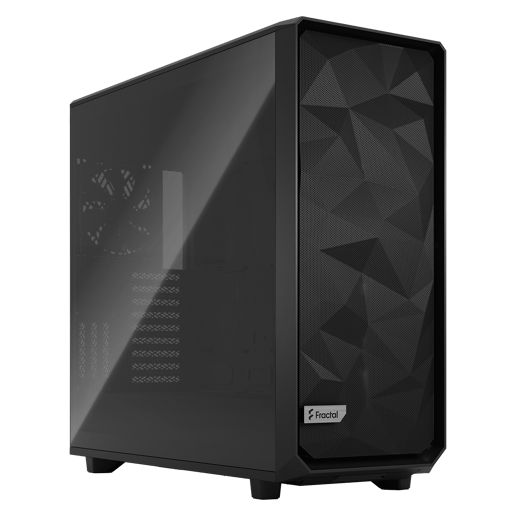

Fractal Design Meshify 2 XL Case - Black

CCL Code: CAS4186
Manufacturer Code: FD-C-MES2X-01
| Manufacturer: Fractal Design

A classic evolved

Key Features:

  • PSU not included
  • 2 x 2.5", 6 x 3.5" HDD Bay(s)
  • Max MB Size: E-ATX
  • Tempered Glass
  • Front USB Type-C Port


inc VAT

Hurry, only 1 left!

Buying in bulk or need help? Email our Business Team.

Buy now, spread the cost
with PayPal Credit.

- or -

Delivery Options

Tomorrow via DPD Sunday

Free Delivery by Monday 23rd May

Order within

Collection Options

Monday 23rd May from Local Collection Point

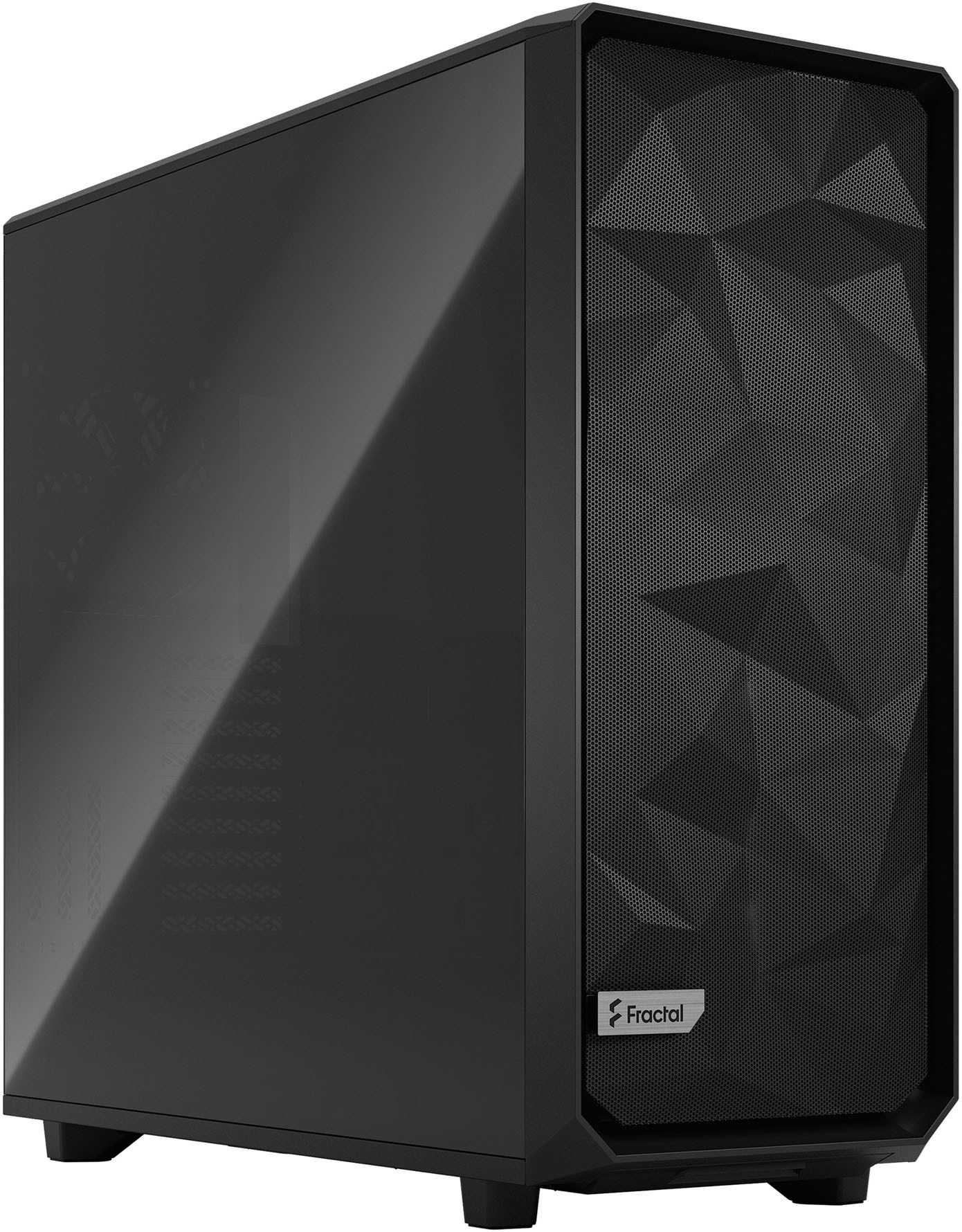

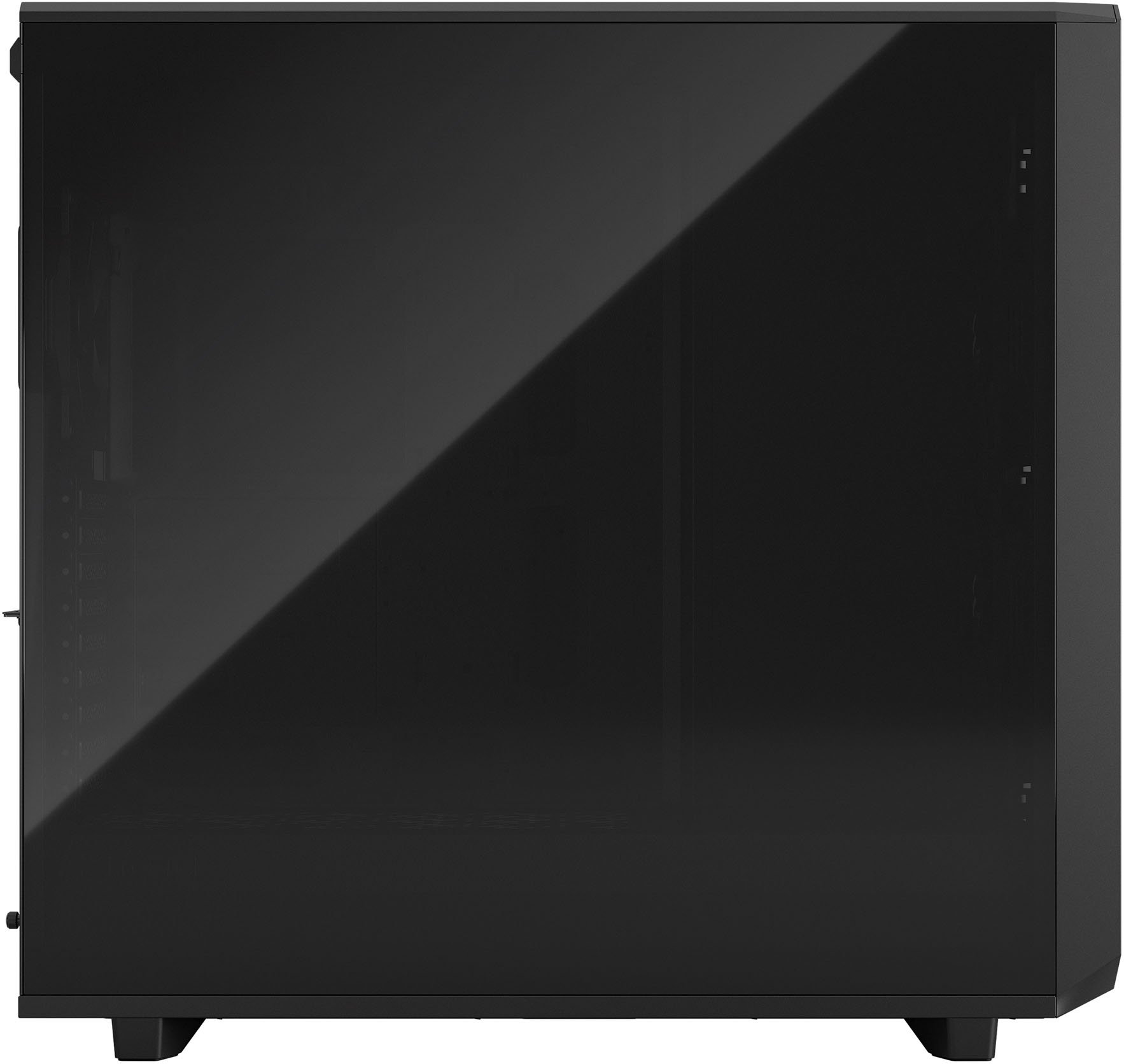

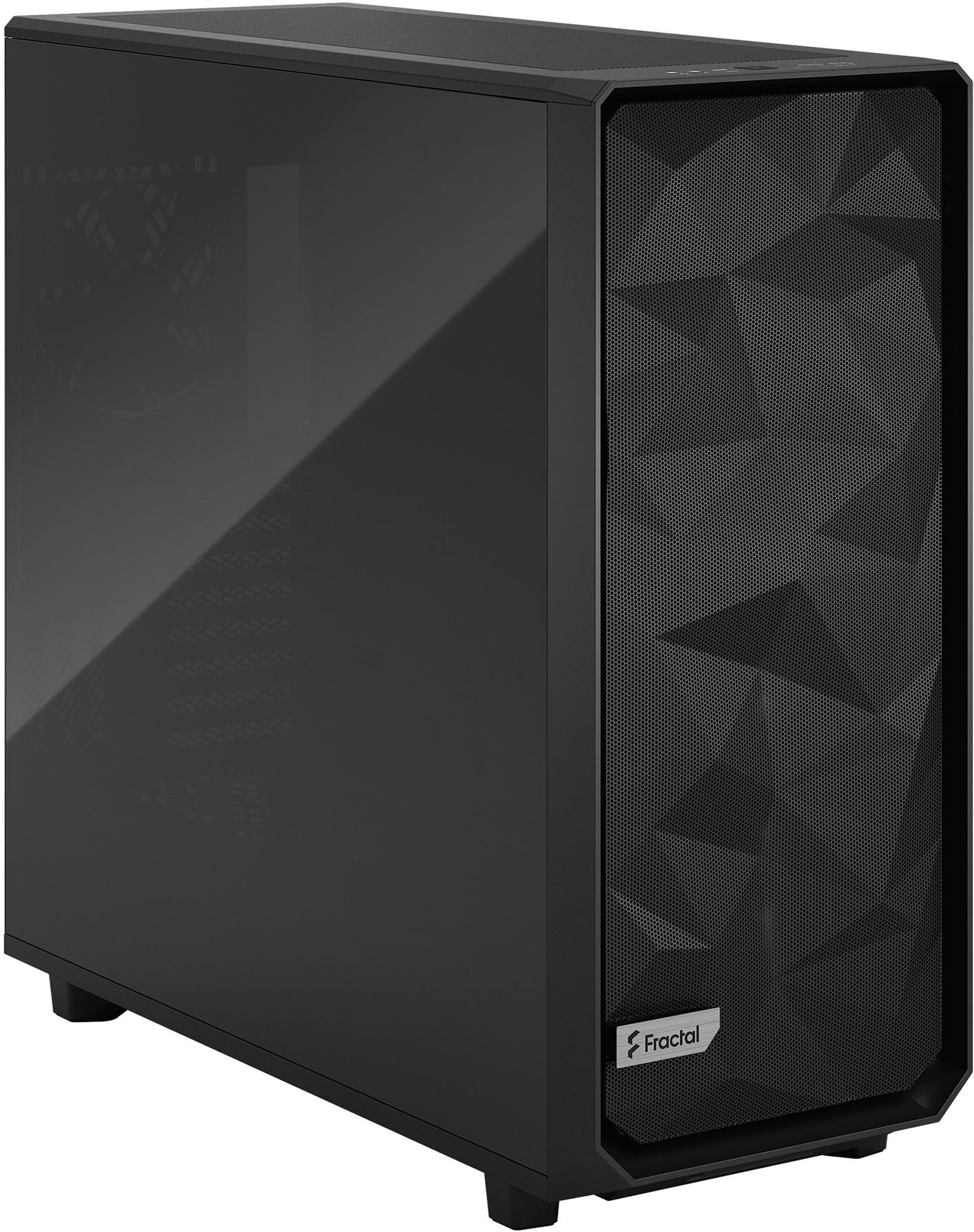

The Meshify 2 XL is a massive high-performance case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top granting excellent interior access, and a fully redesigned front complete with USB 3.1 Gen 2 Type-C. The enormous dual-layout interior supports full-sized E-ATX and SSI-EEB boards, gigantic storage arrays and radiators up to 480 mm to make cooling a breeze.

Extra Spacious

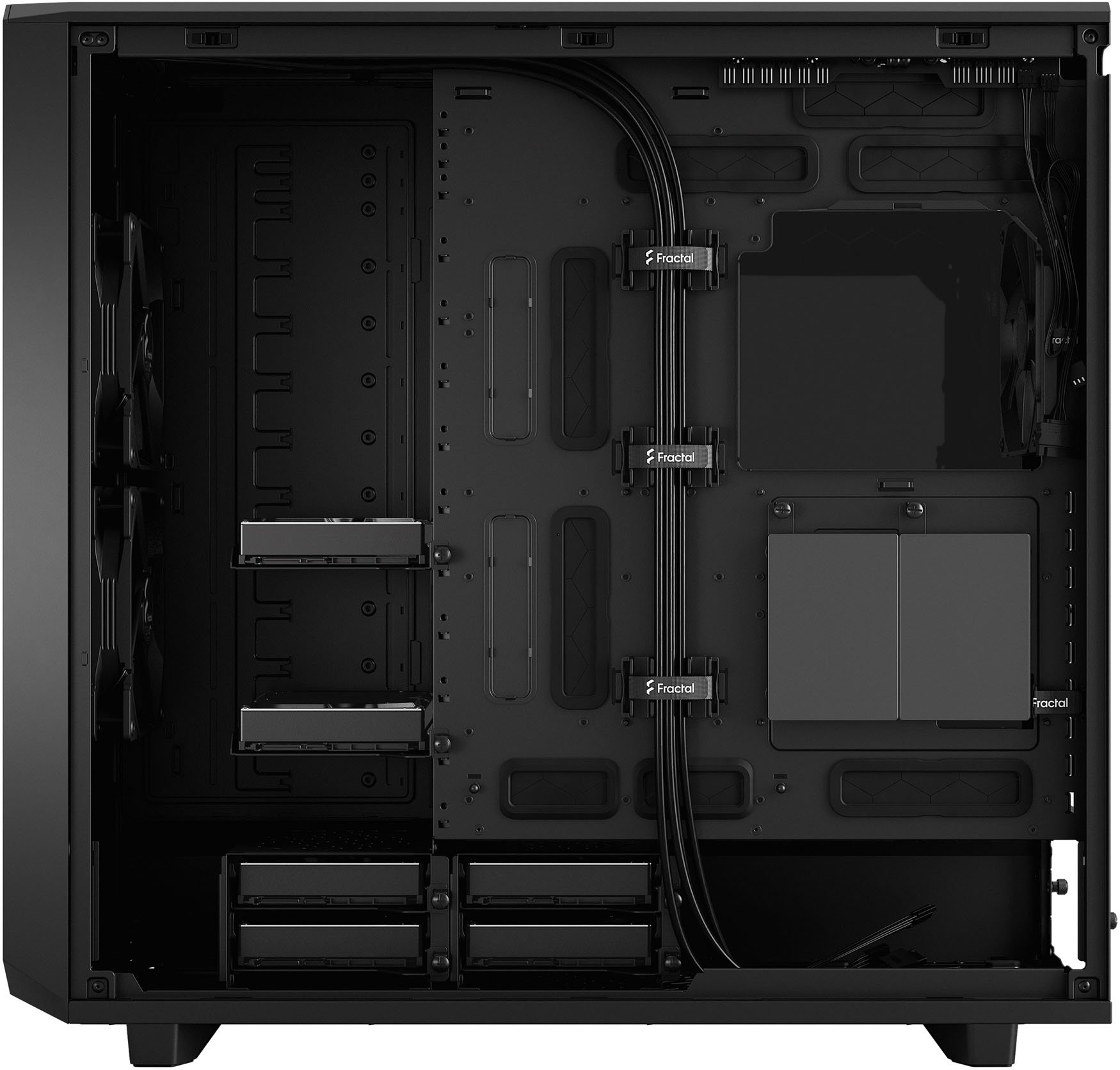

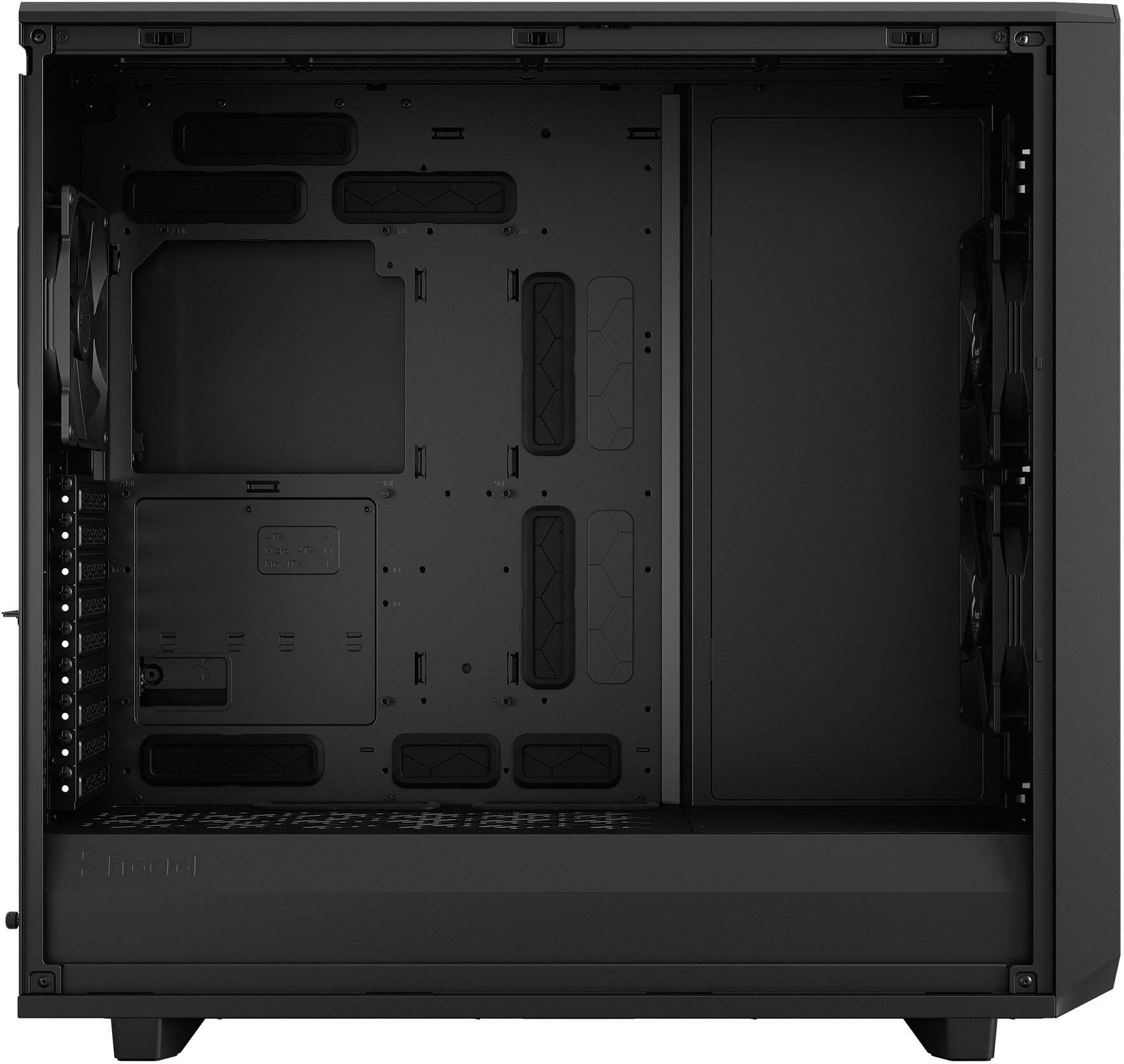

An expansive internal layout easily accommodates large motherboards up to E-ATX and SSI-EEB.

Superlative Storage

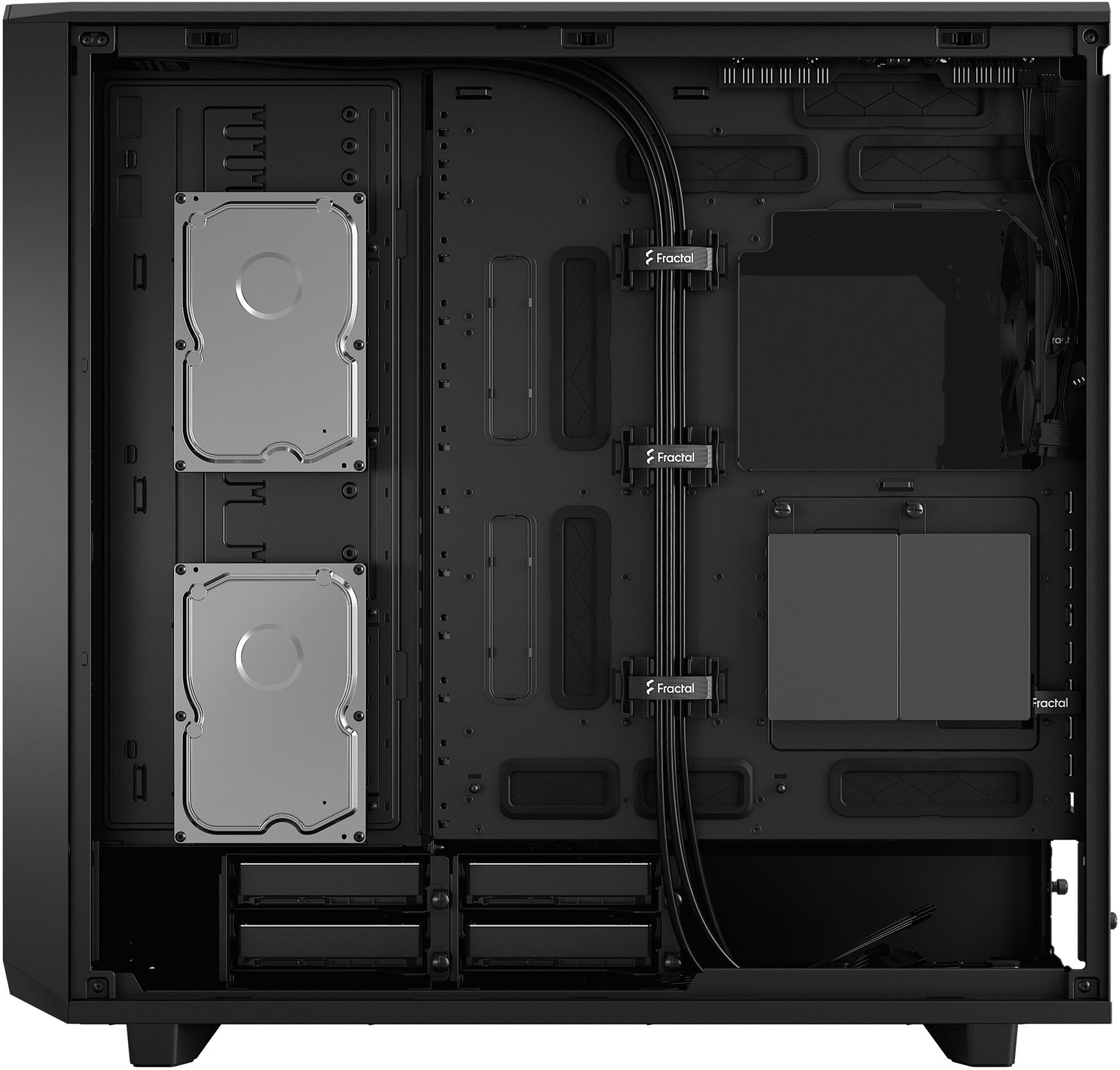

Optional accessories allow expansion up to 18 HDDs and 5 SSDs in Storage Layout. (6x HDD/SSD trays + 2 SSD brackets + 2 Multibrackets included)

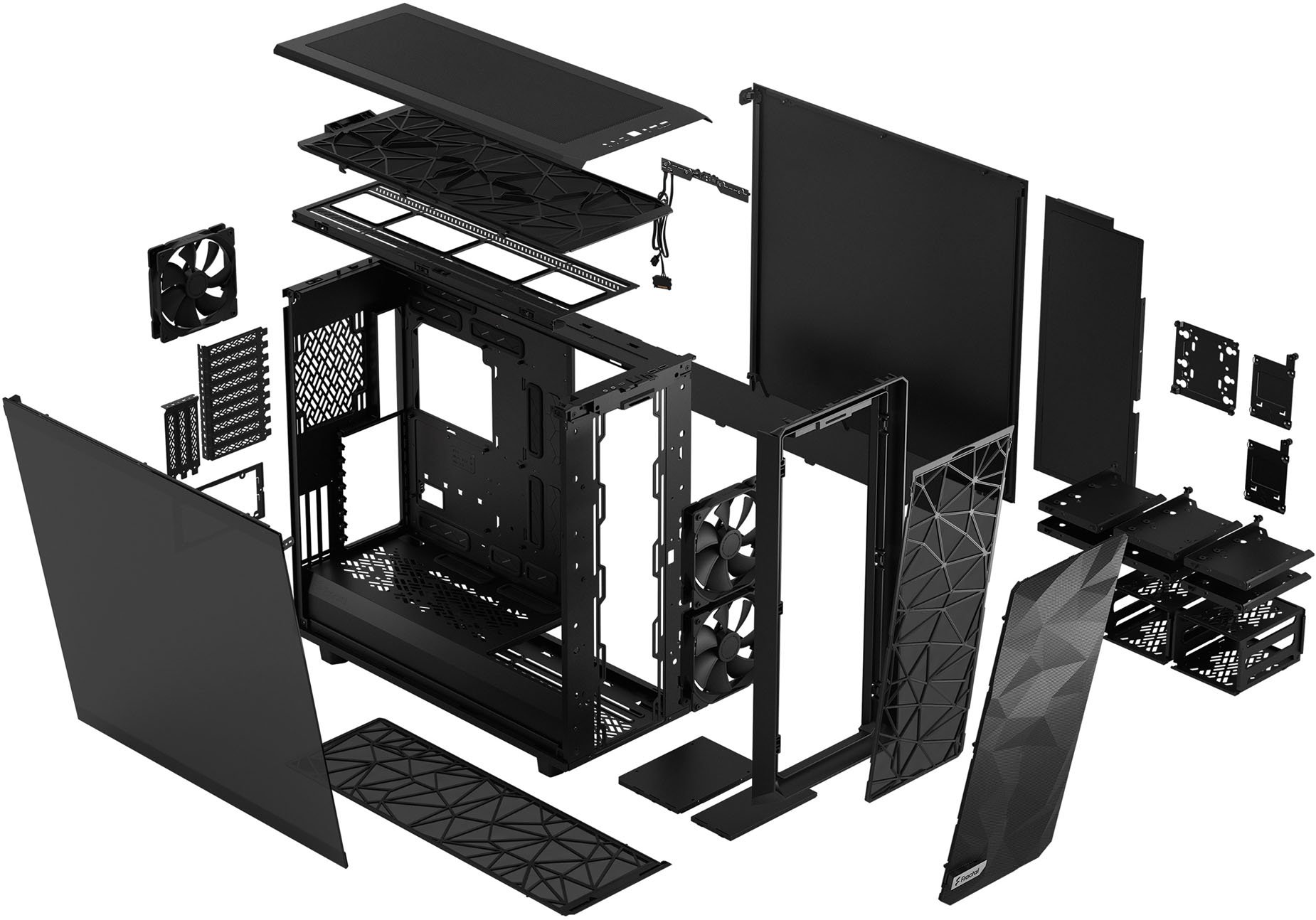

Flexible Dual-layout Design

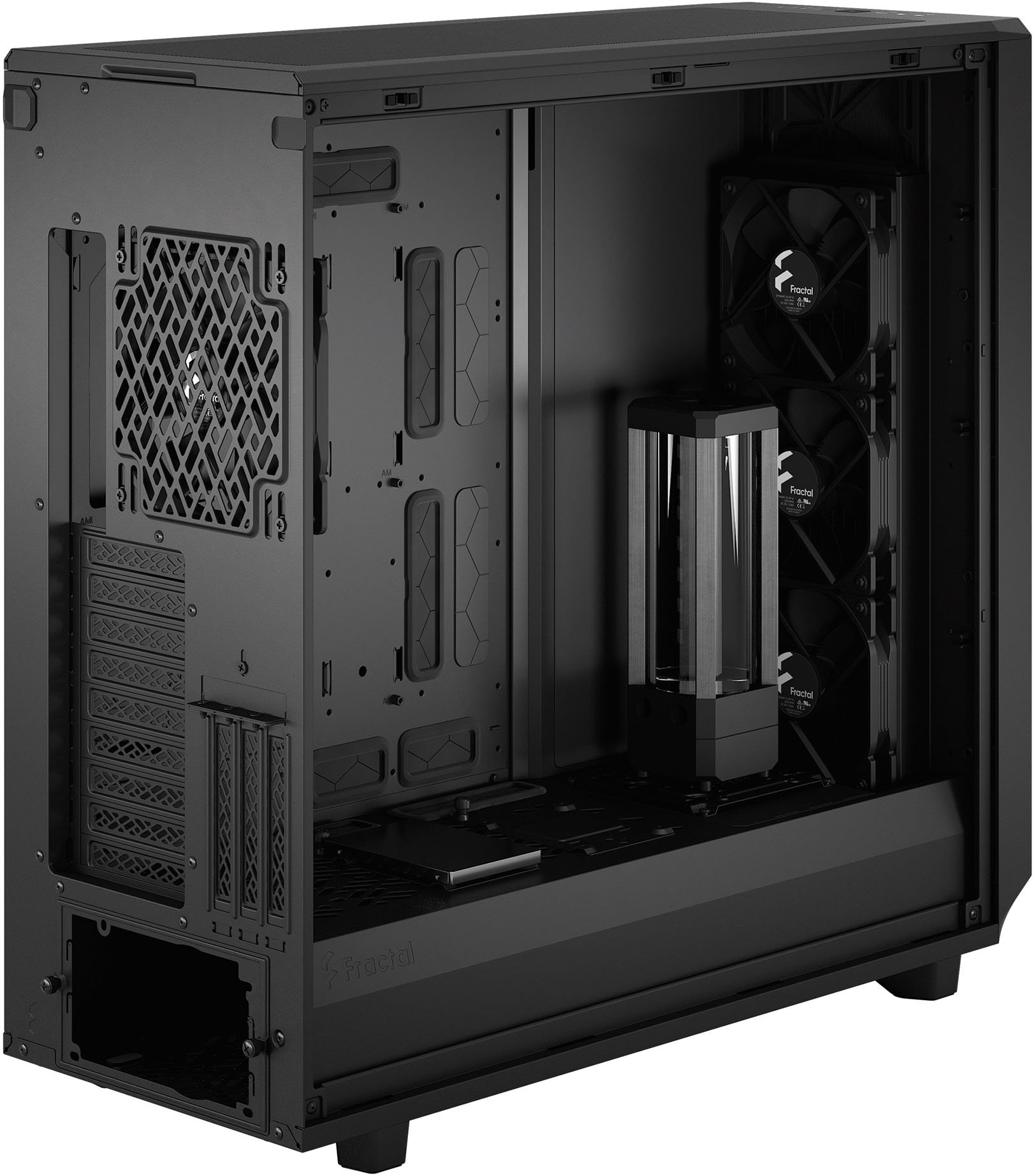

Convert to Open Layout andget more than enough room for your custom water loop with large reservoirs and radiators up to 480 mm.

Detachable Front Filter

The new front nylon filter can be easily removed from the hinged mesh panel for increased airflow.

Open and Interchangeable

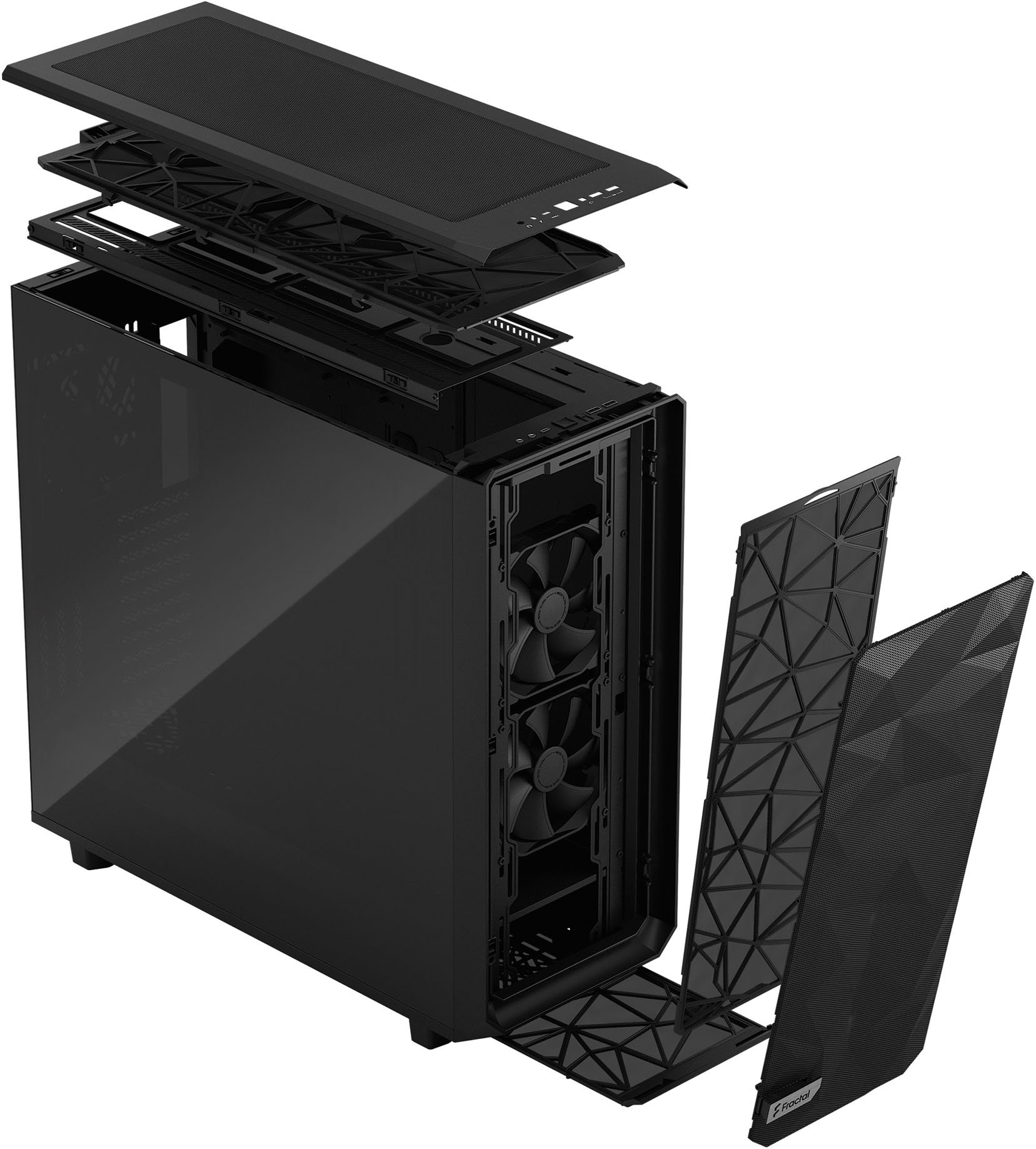

Remove the entire top to build and route with zero hindrance.

Easy Access From The Front

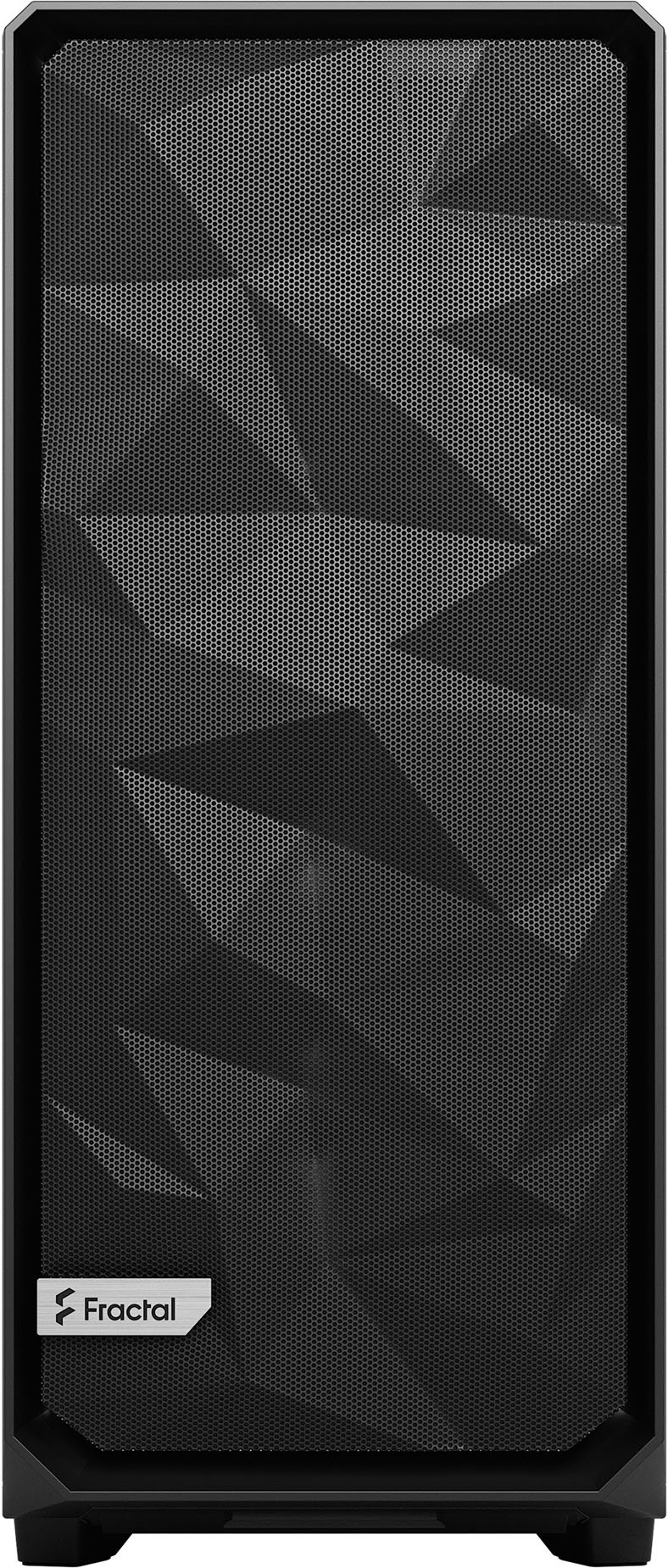

New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts.

Smooth Airflow

Three Dynamic X2 GP-14 fanscome preinstalled with room to expand up to a total of 9x 140 mm or 11x 120 mm fans.

Versatile Multibrackets

The included Multibrackets lets you convert any unused fan position to an HDD, SSD or pump mount.

Main Features

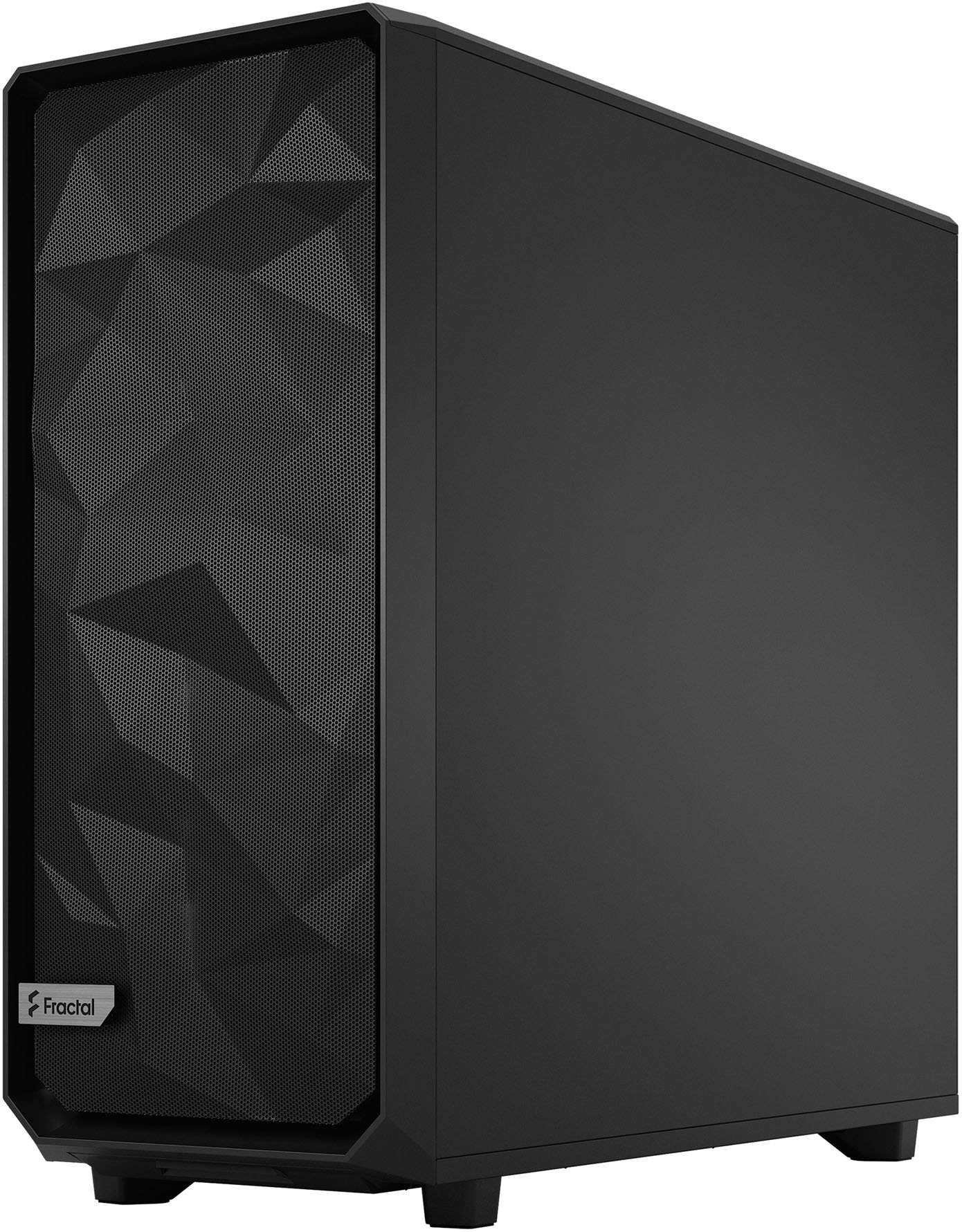

  • Iconic angular mesh design provides filtered airflow with a bold, stealth-inspired aesthetic
  • Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including E-ATX and SSI-EEB
  • Support for radiators up to 480/420 mm in front, 480/420 mm up top, or 280/240 mm in the base in the default Open Layout
  • Includes 6 HDD/SSD trays, 2 SSD brackets, and 2 universal Multibrackets for mounting up to 10 drives
  • Expandable to 16 trays and 5 SSD brackets with 2 Multibrackets installed in the top for a max of up to 23 drives in Storage Layout
  • New chassis design opens up to fully expose the case interior on three sides for totally unhindered installation and cable routing
  • New front nylon filter that can be removed for increased airflow
  • New front panel design with hinged removable mesh filter and tether-free bezel for easier access to front fan mounts

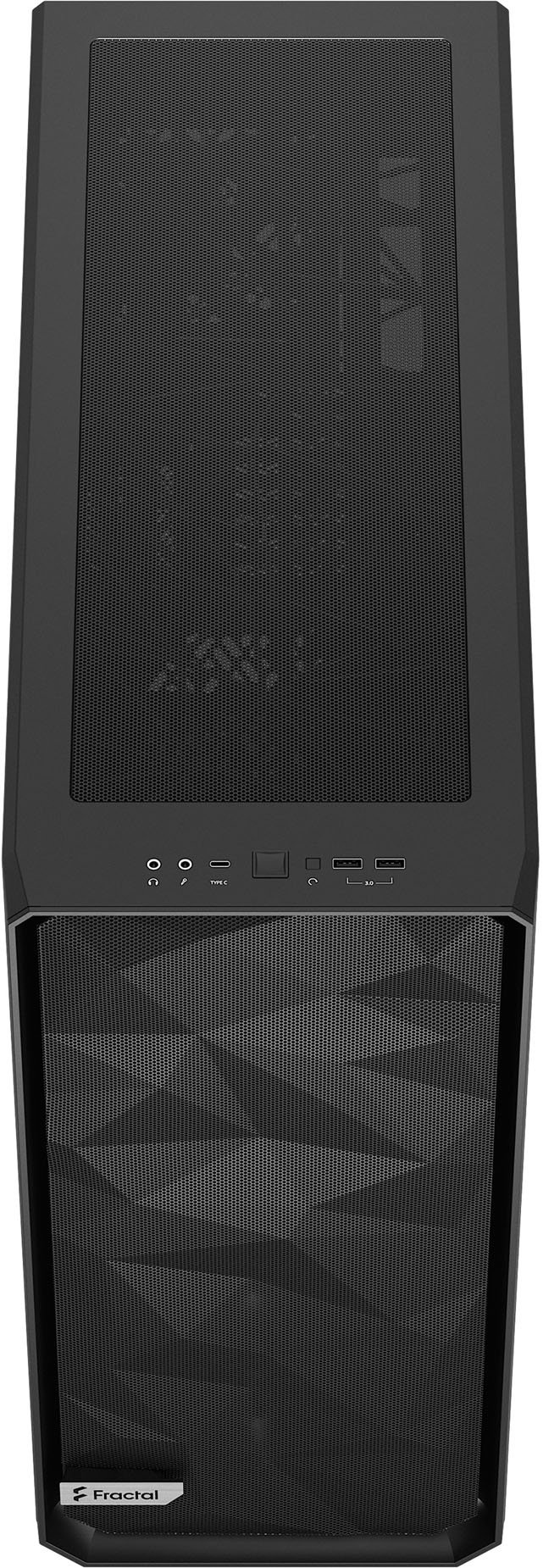

  • Three front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps
  • Ultra-slim Nexus+ 2 fan hub connects up to three PWM fans and six 3-pin fans directly in line with cable channels along the edge of the case
  • Outstanding cooling capacity with a total of eleven 120 or nine 140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans

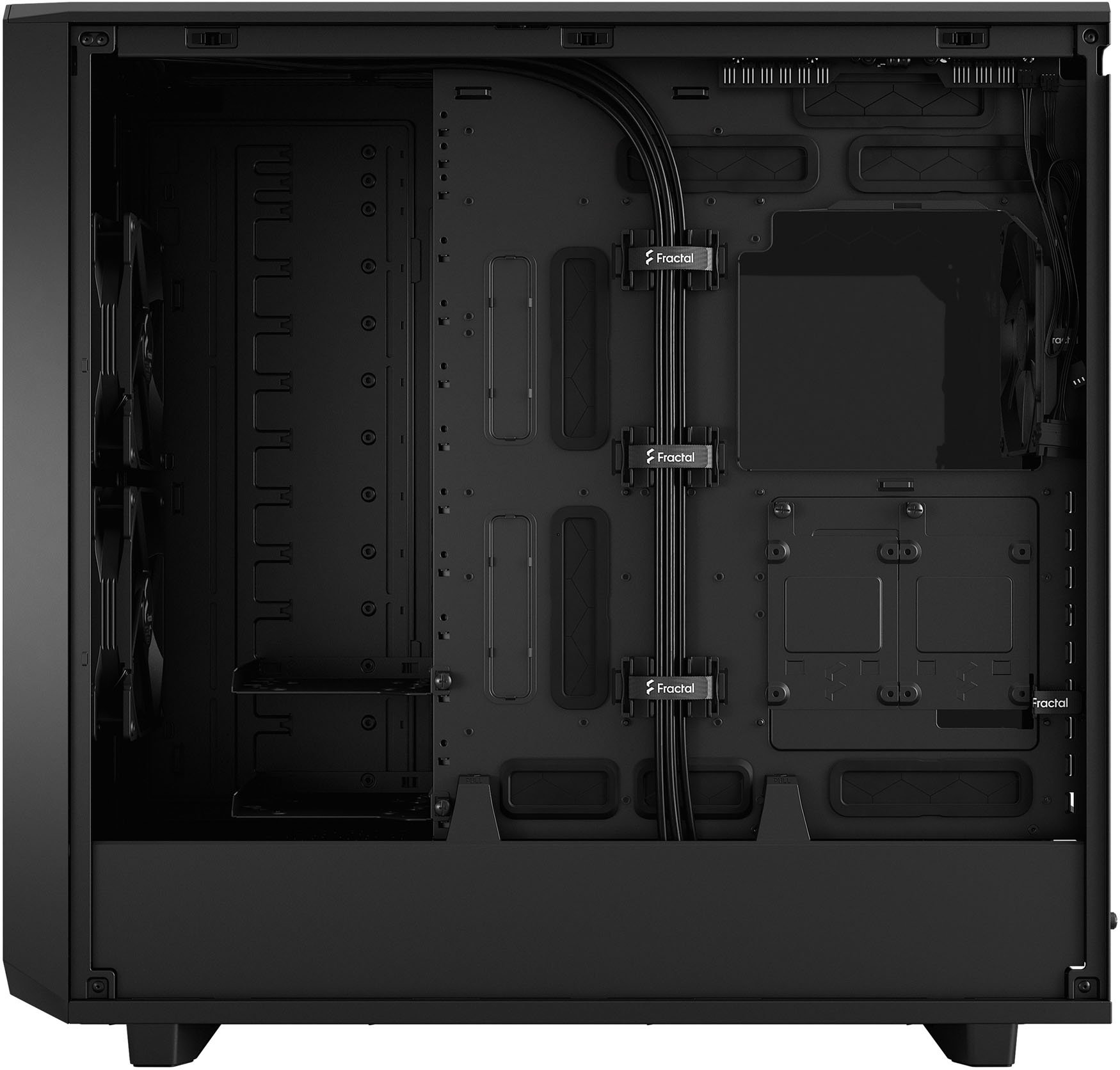

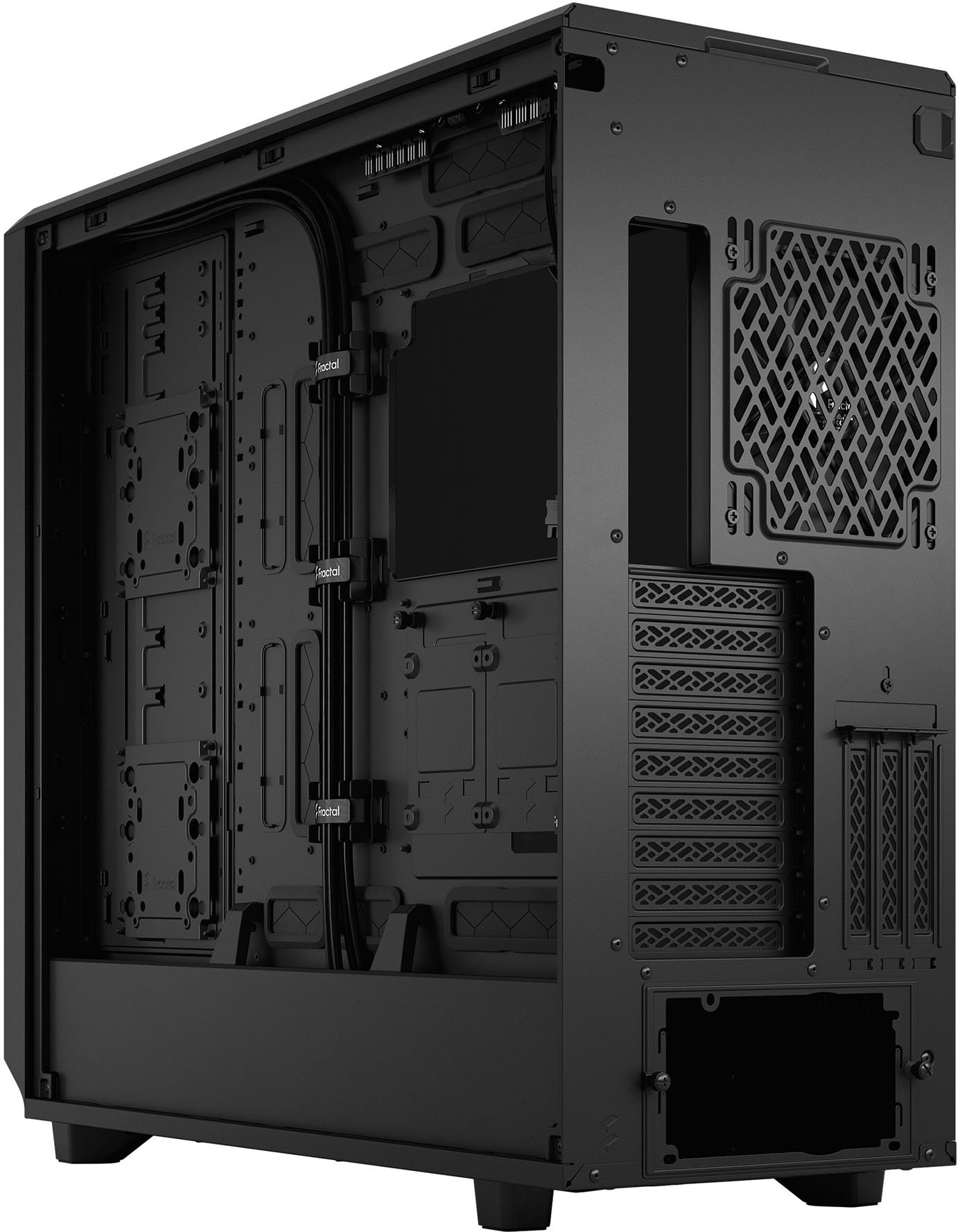

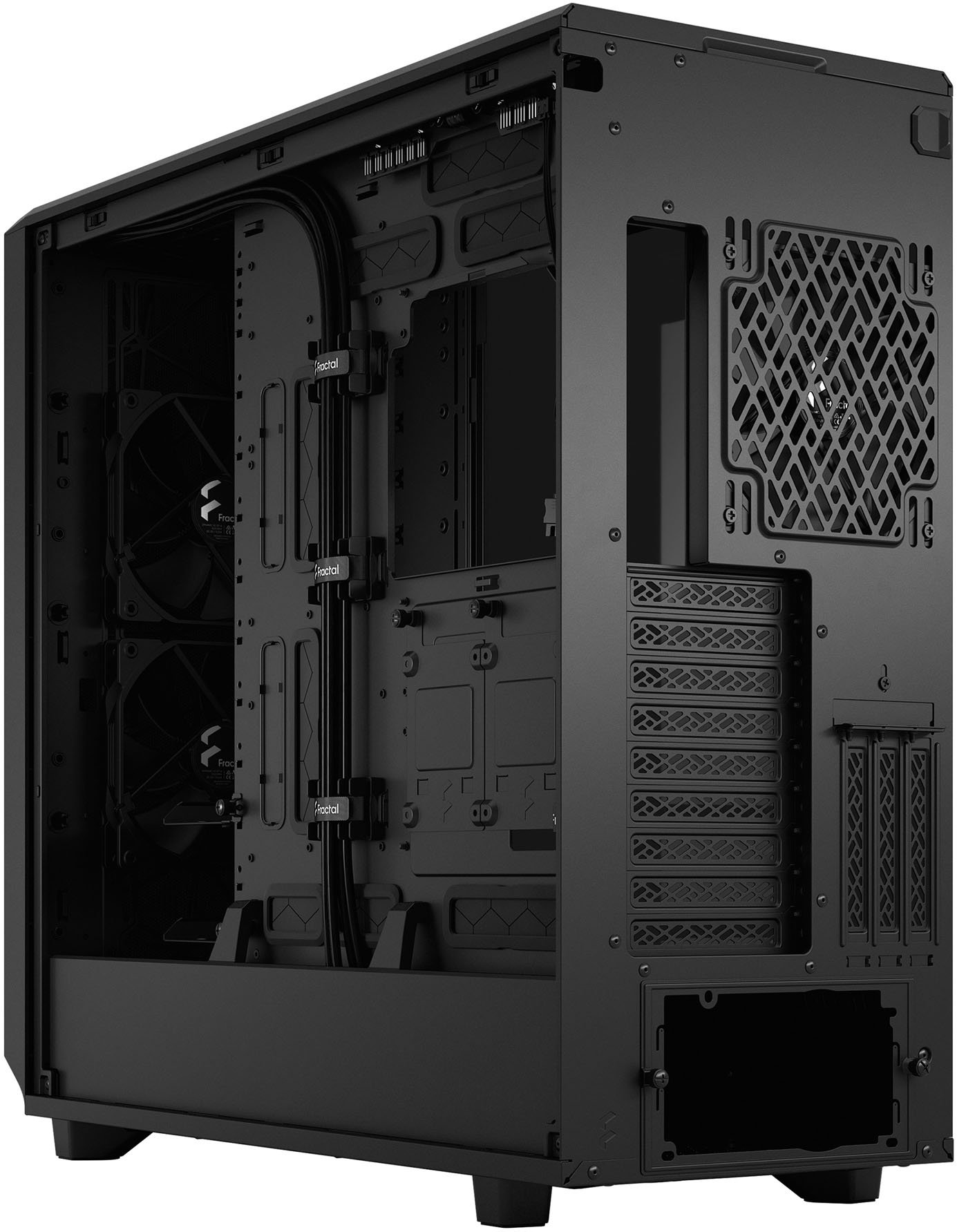

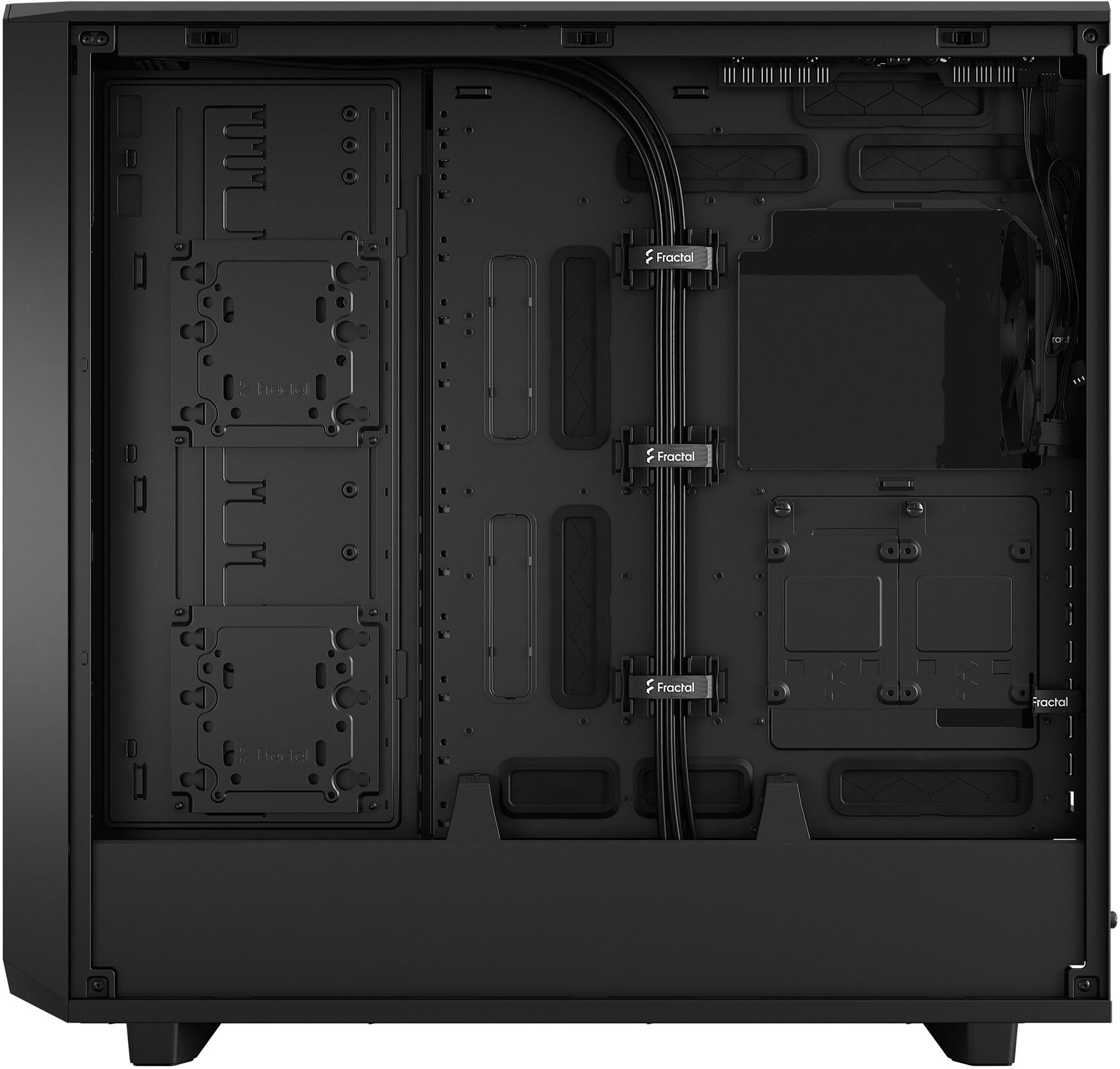

  • Detachable PSU cable shield and integrated cable guides with velcro straps further simplify cable management behind the board
  • Versatile Multibrackets that convert any unused fan position to an HDD, SSD or pump mount

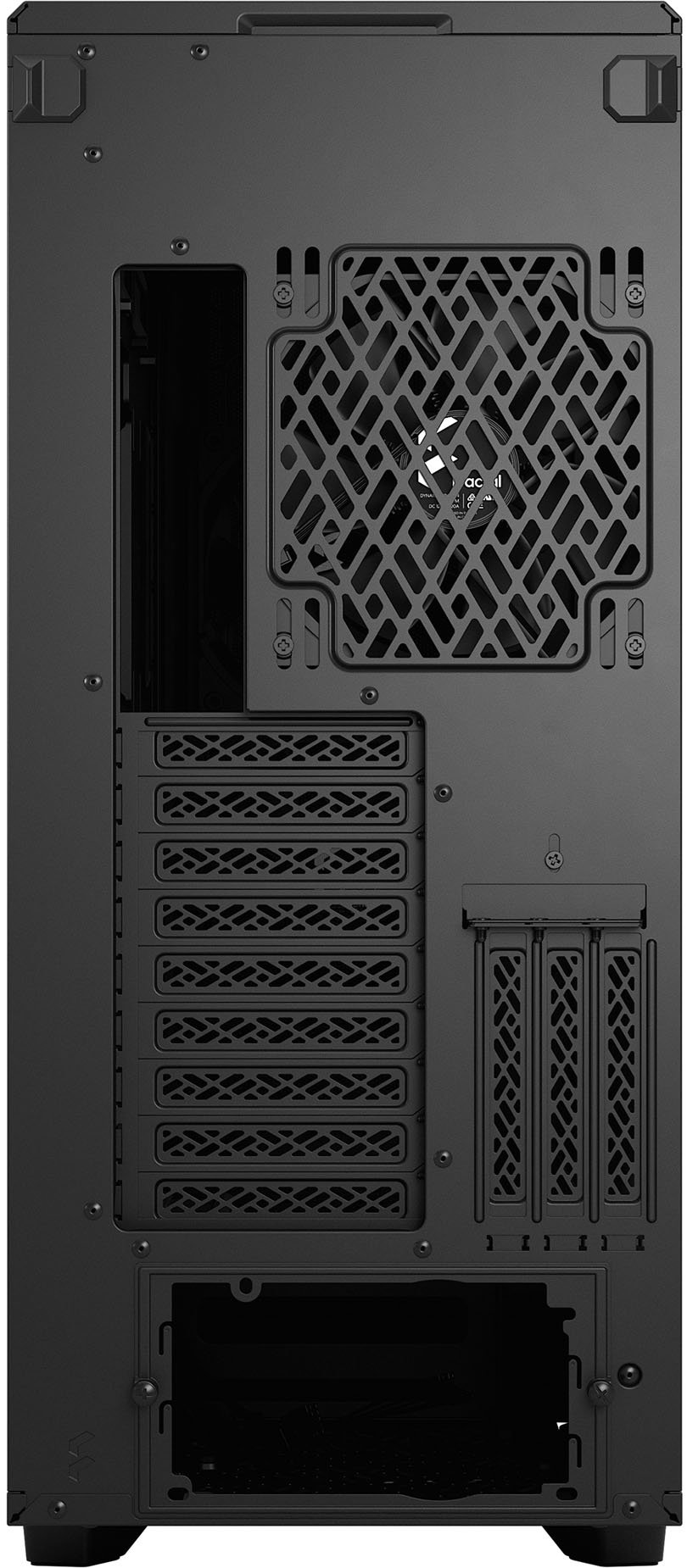

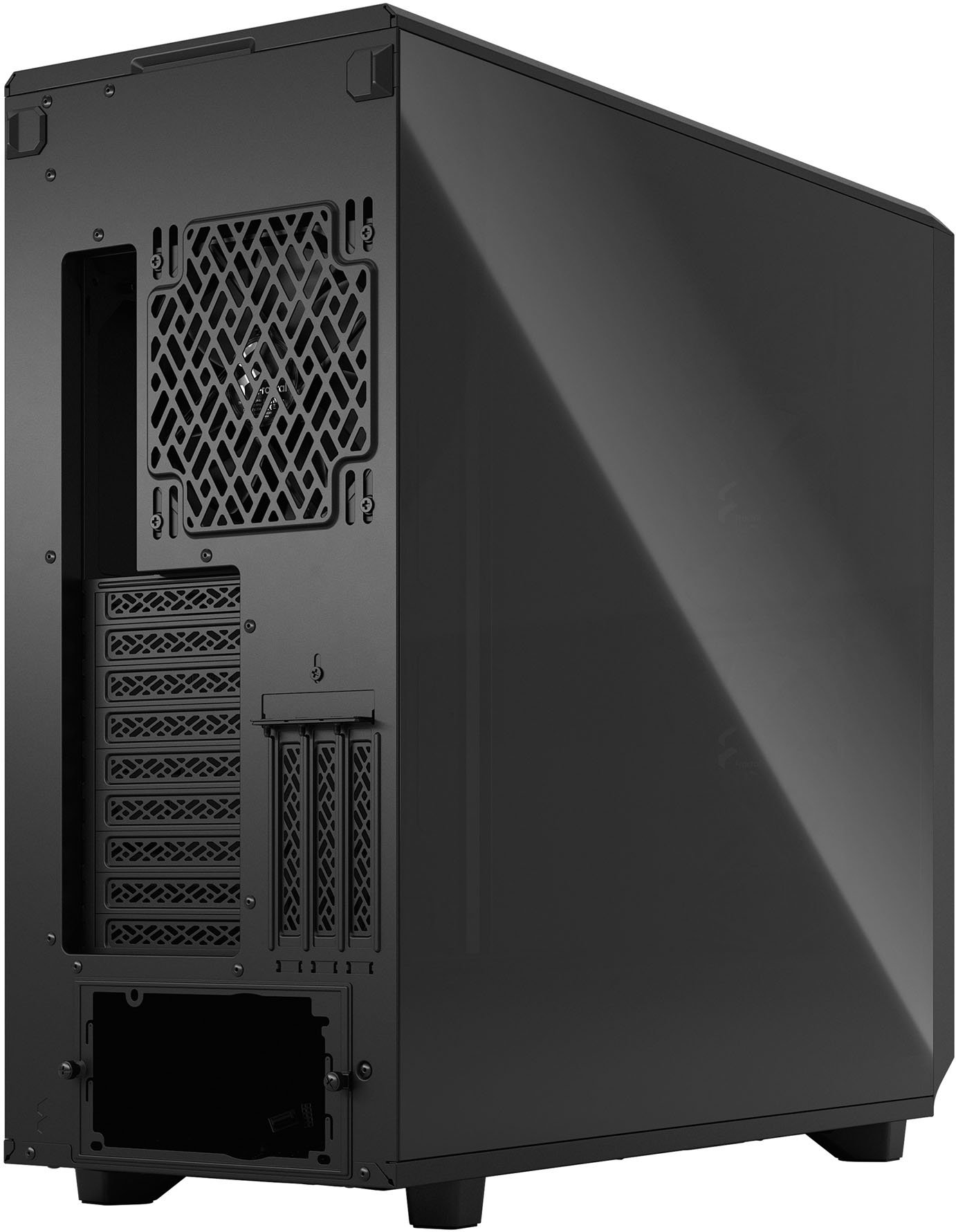

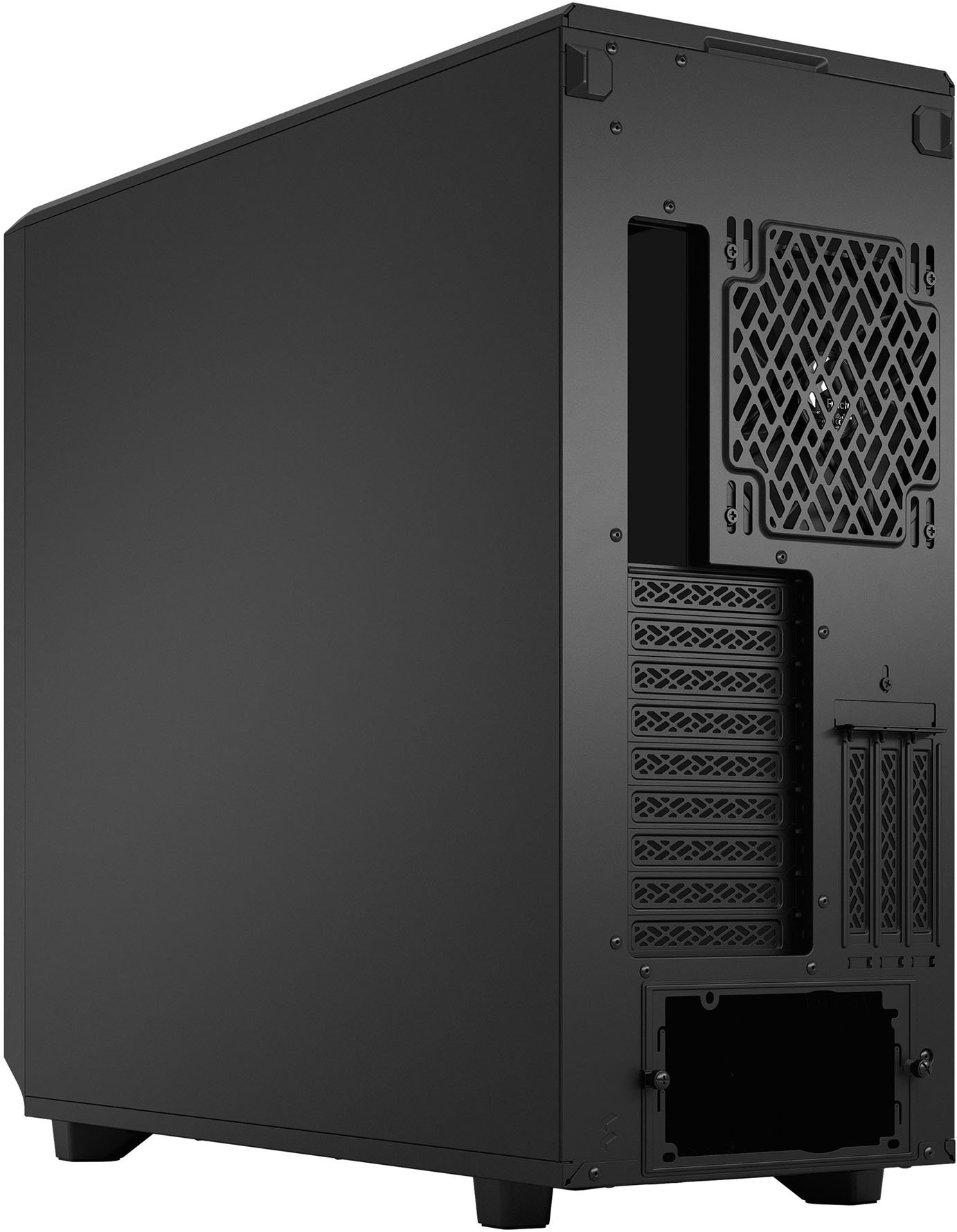

  • Bridgeless expansion slots ensure obstruction-free connections and allow for a more centered vertical GPU installation via the new Flex B-20 PCIe riser (sold separately)
  • Three vertical GPU slots for use with the Flex VRC-25 PCIe riser, available separately
  • Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access
  • Ventilated PSU shroud with two-part removable cover for optimal cable concealment and front radiator support
  • Tool-less, top-latching side panels allow quick access while preventing accidental drops

User Controls

User Controls Power


Internal Expansion Bays 2 x 2.5"
6 x 2.5"/3.5"


Expansion Slots 9 x Full Height
3 x Vertical


USB Ports 1 x USB 3.1 Type-C
2 x USB 3.0
Headphone Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack


Cooling System Front: Supports 3 x 140mm or 4 x 120mm fans (2 x 140mm fans included)
Top: Supports 3 x 140mm or 4 x 120mm fans
Rear: Supports 1 x 140mm or 120mm fan (140mm fan included)
Bottom: Supports 2 x 140mm or 120mm fans
Power Supply ATX Power Supply supported


Form Factor Full Tower
Case Colour Black with Dark Tint Tempered Glass
Material Steel
Tempered Glass
Motherboard Compatibility E-ATX
In The Box Meshify 2 XL Case
User Manual
Accessory Box
Screw Box
Width 240 mm
Depth 600 mm
Height 566 mm
Weight 14.1 kg


Warranty 2 Years

Key Features

Firewire No
Main Colour Black
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Full Tower
Power Supply Included No
80Plus Rated No
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
L.E.D Fan No LED
Internal 3.5" Bay 6
Internal 2.5" Bay 2
Micro-ATX Yes
Cooler Height 185 mm
Built-in Card Reader No
USB Type-C Support Yes
Front HDMI No
Side Panel Type Tempered Glass
GPU Length 359 mm
PSU Depth 250 mm
Front Audio Type Separate
Number of Fans 3 fan(s)
LED Controller Included No
LED Strip(s) Included No
Maximum Motherboard Size Supported E-ATX

Item Details

Manufacturer Fractal Design
Manufacturer Code FD-C-MES2X-01
EAN 7340172702559
Condition New

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer Fractal Design
Manufacturer Code FD-C-MES2X-01
