Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey

Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey

CCL Code: CAS4228

Sold out

Notify Me
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey
  • Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey

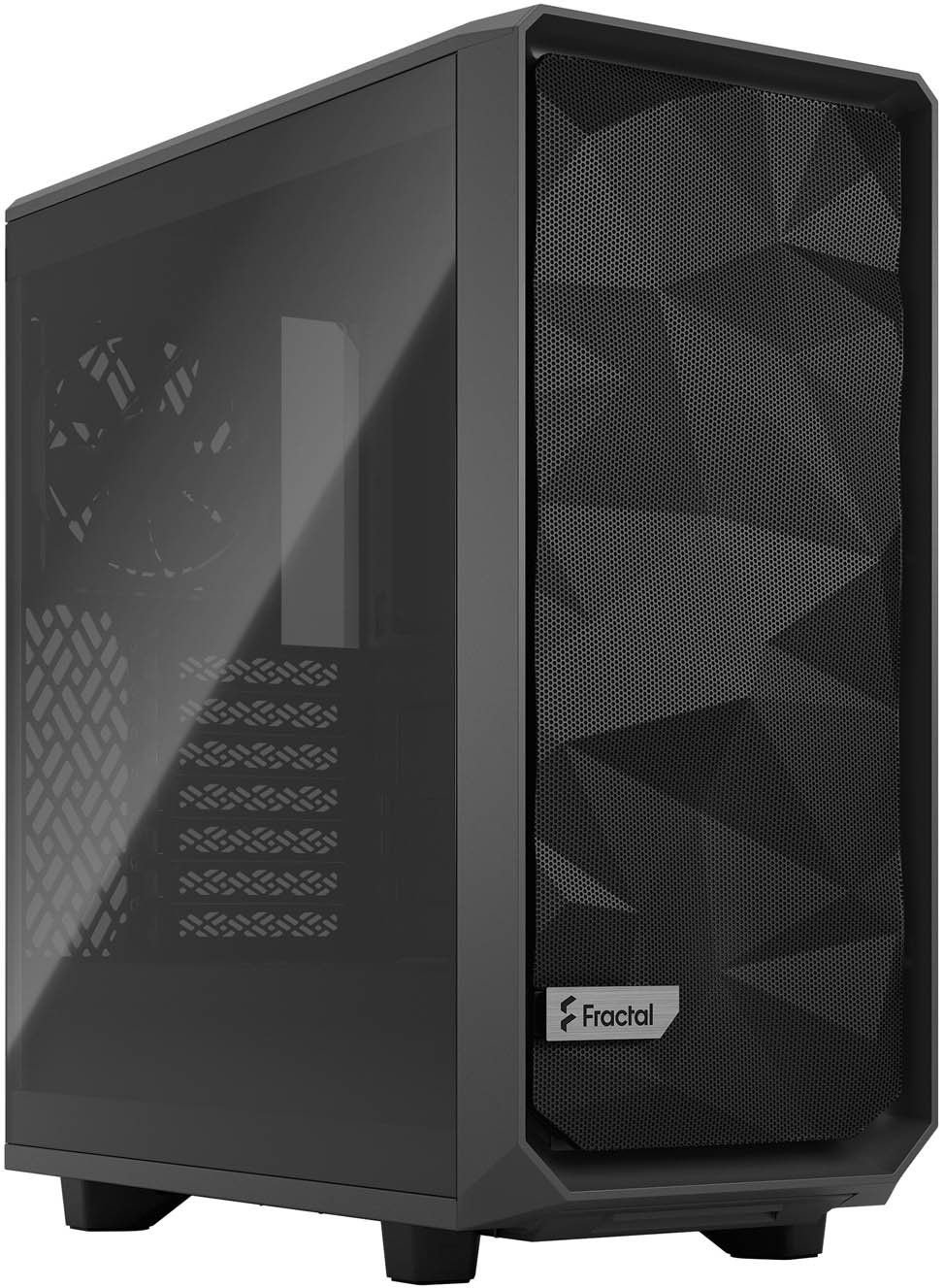

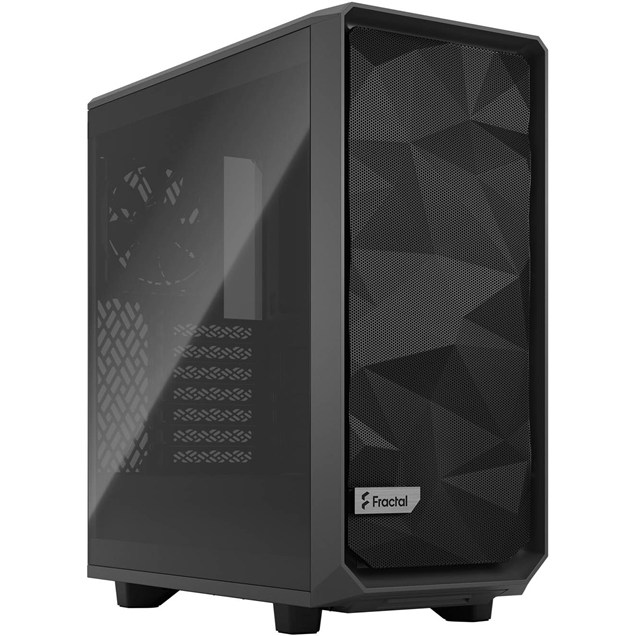

A classic evolved, with light-tint tempered glass side panel

Fractal Design Meshify 2 Compact Mid Tower Gaming Case - Grey

FD-C-MES2C-04

Key Features:

  • PSU not included
  • 0 x 5.25" External Bay(s)
  • 2 x 2.5" Drive(s) Max
  • 2 x 3.5" Drive(s) Max
  • Max MB Size: ATX
  • Tempered Glass
CCL Code: CAS4228

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me

Colour:

Overview

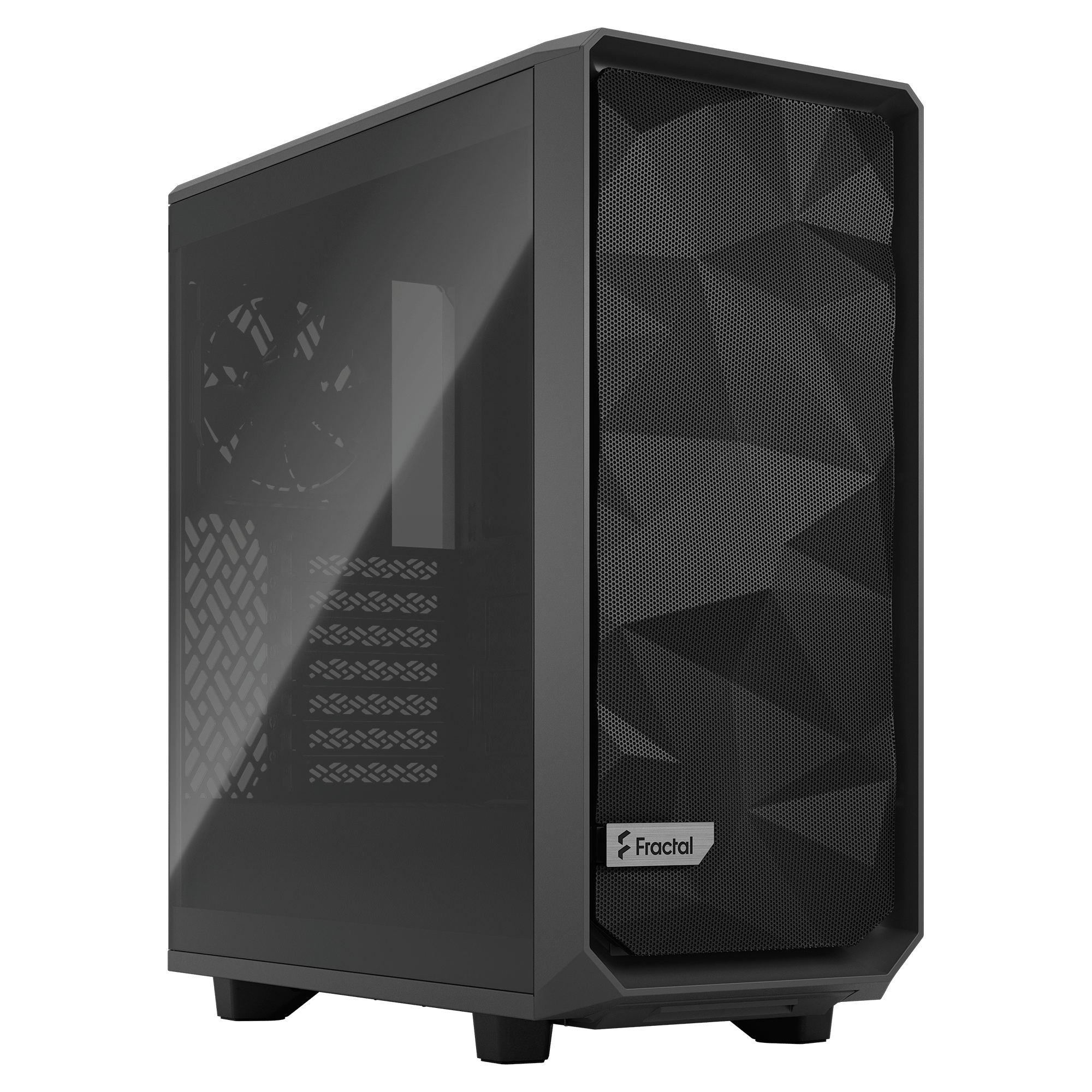

Meshify 2 Compact is a high-performing case with a bold, stealth-inspired aesthetic. Its striking exterior features bolt-free, flush tempered glass, a fully removable top panel granting excellent interior access, and a front USB 3.1 Type-C port. The front nylon filter can be removed for extra airflow, letting the mesh front deal with filtering. Intelligent space utilization enables the Meshify 2 Compact to boast the performance and capacity of larger cases despite its remarkably compact mid-tower size, and the filtered airflow design makes cooling a breeze.

Main Features

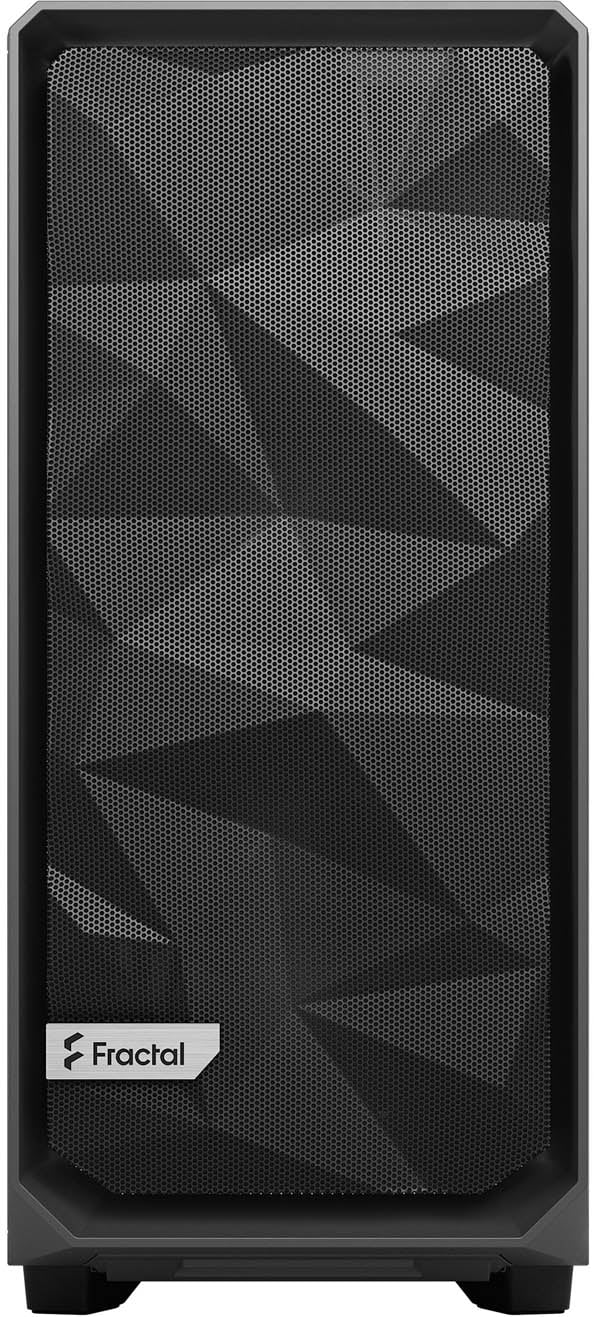

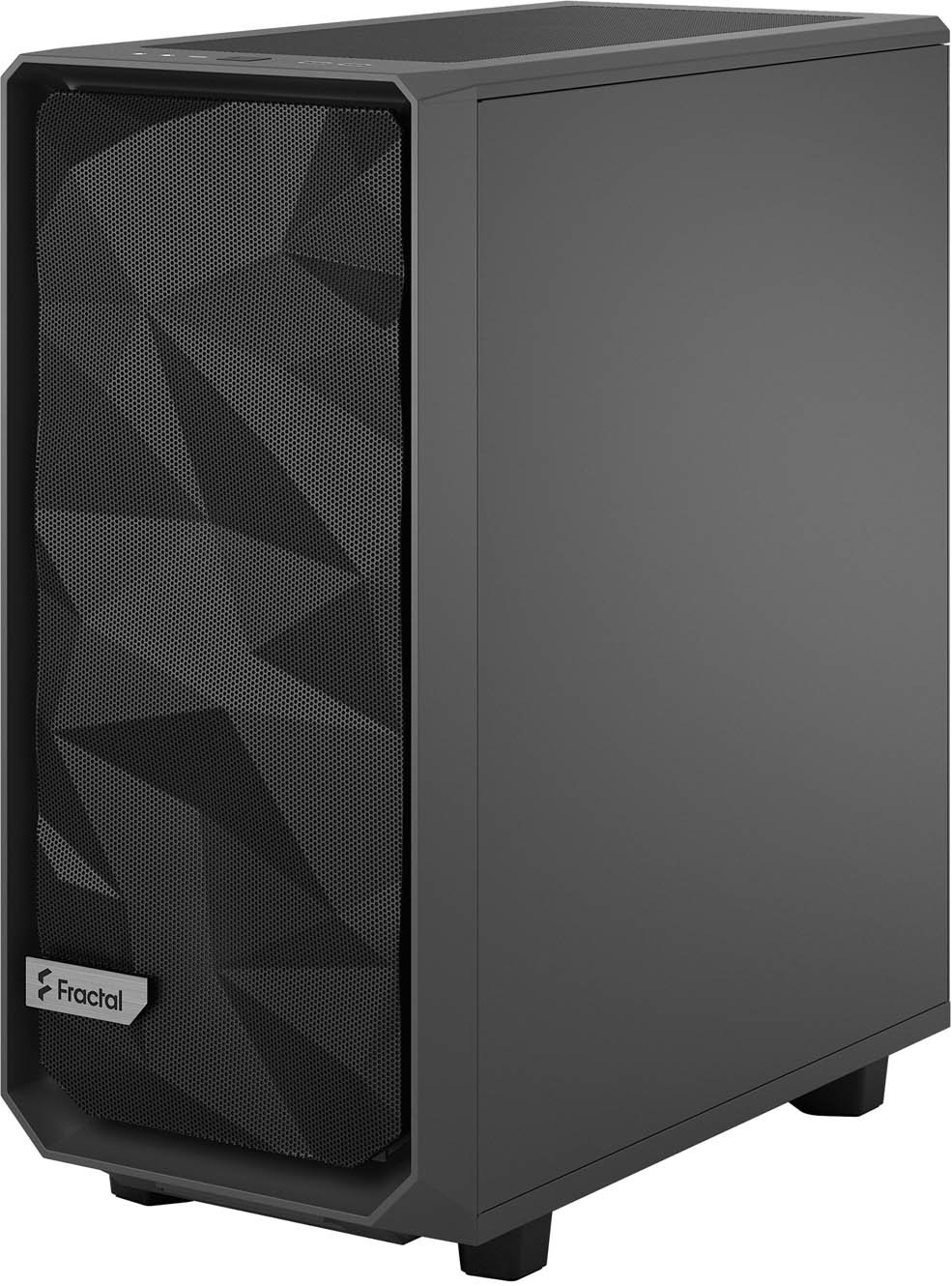

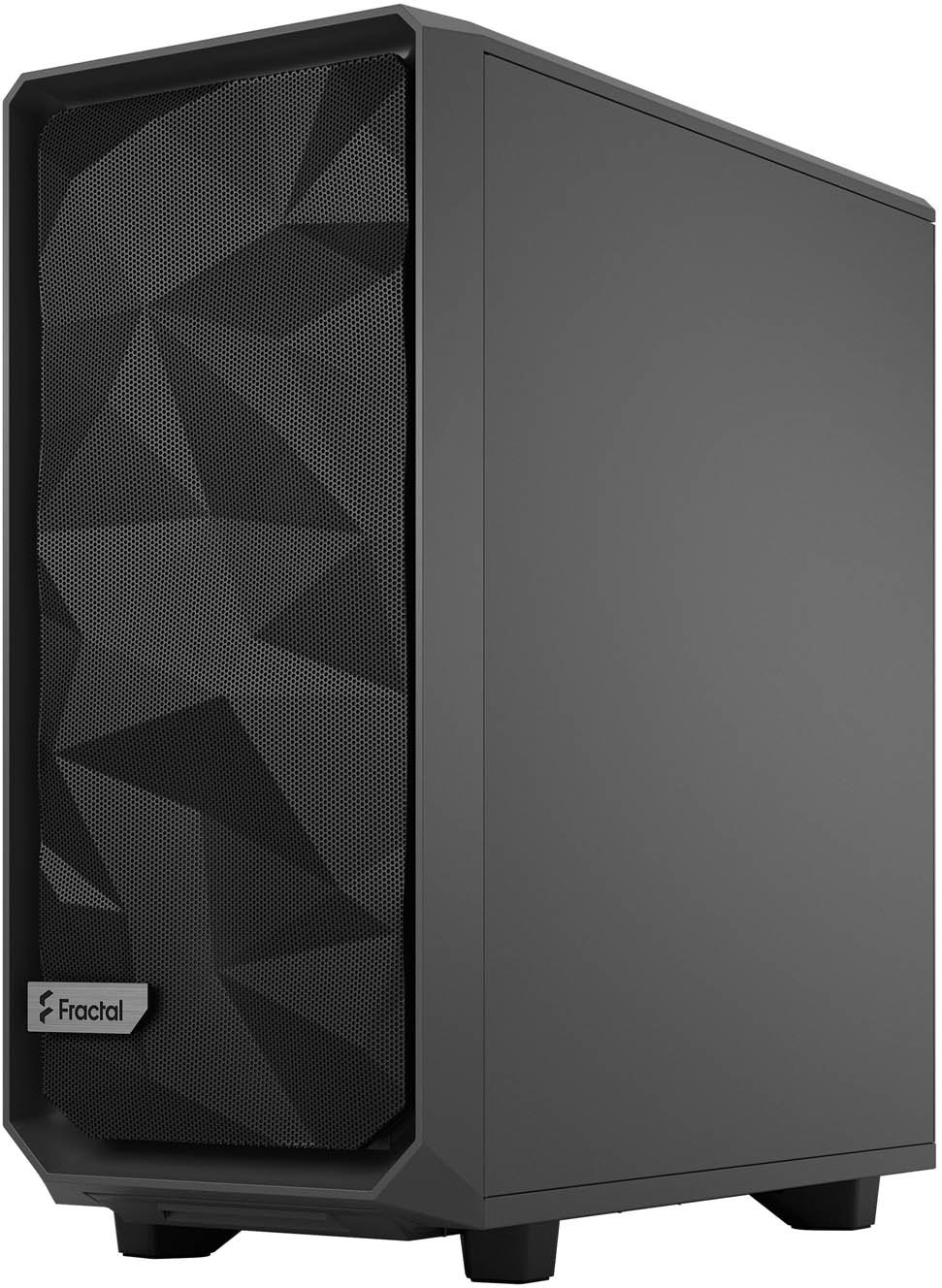

  • Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
  • Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
  • Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
  • Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases

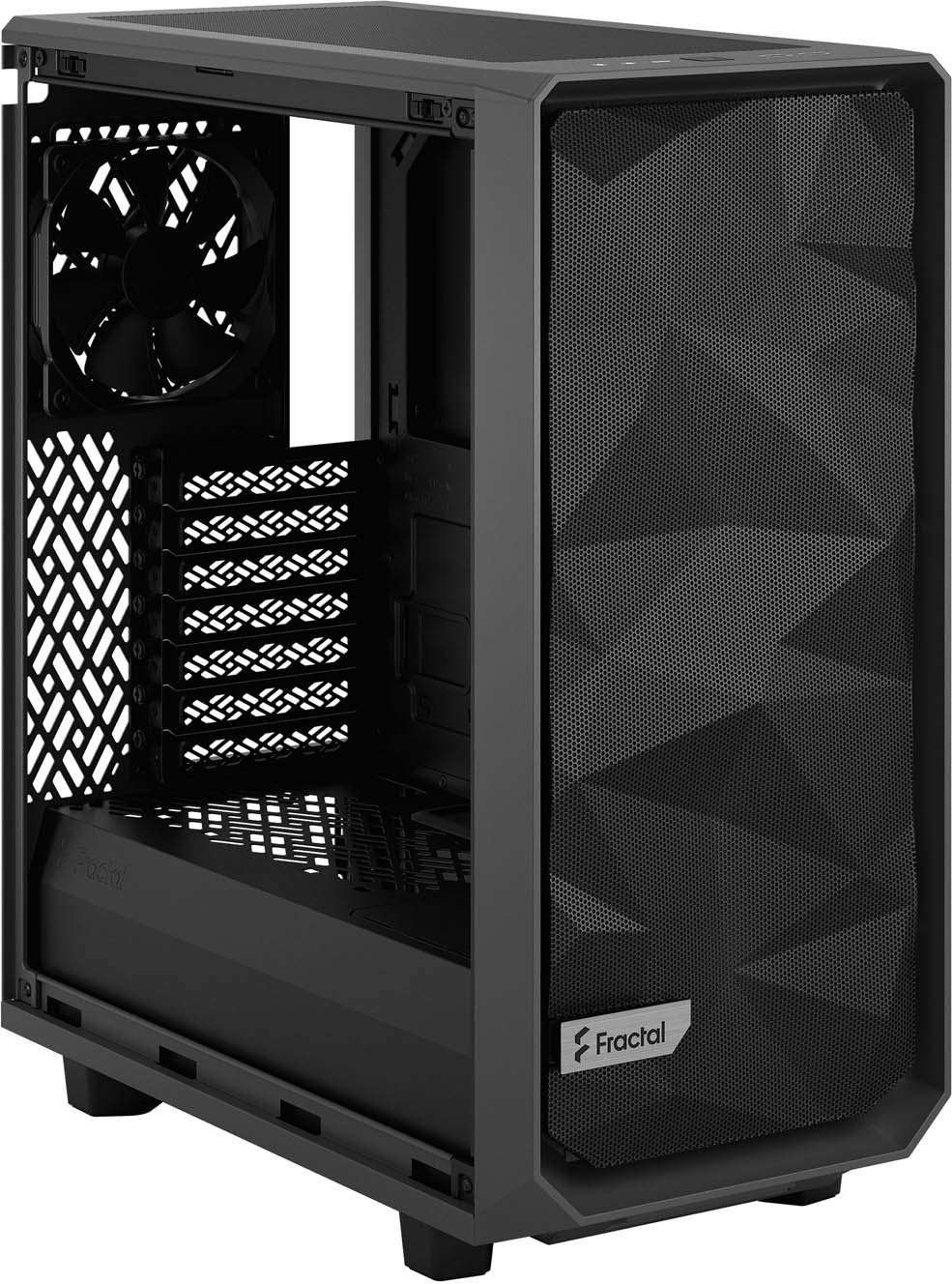

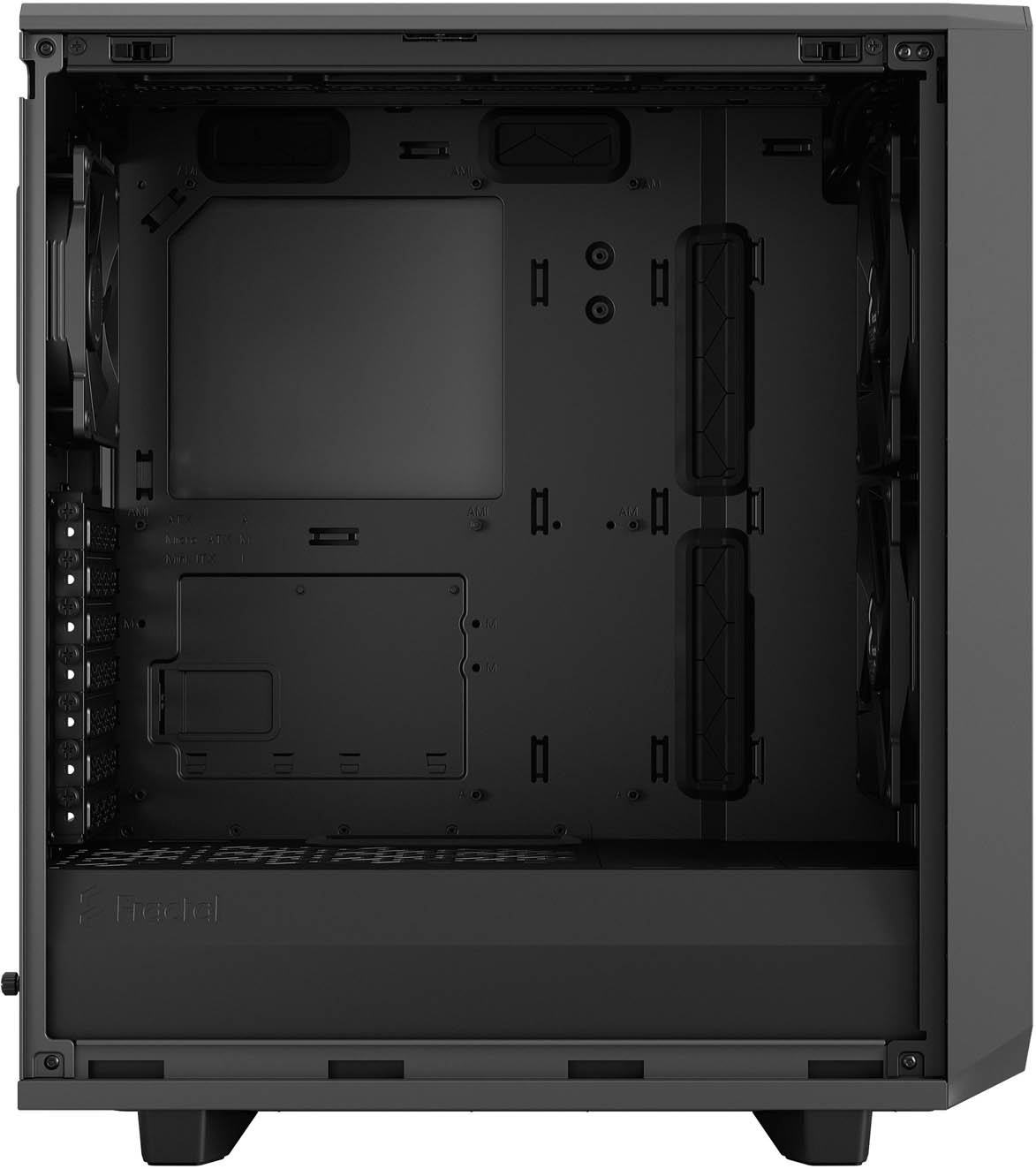

  • Open interior layout creates a smooth airflow path from front intake to rear exhaust

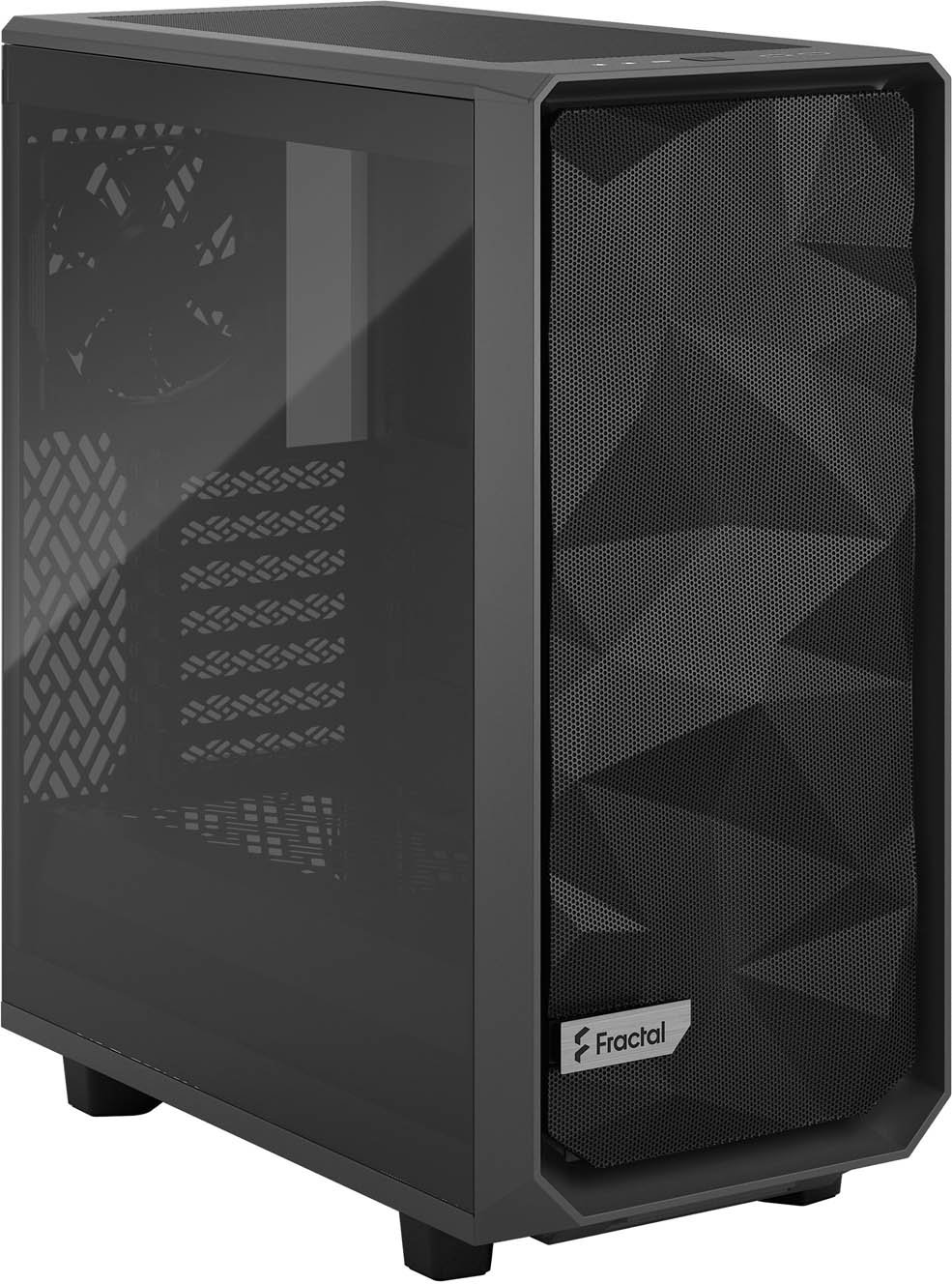

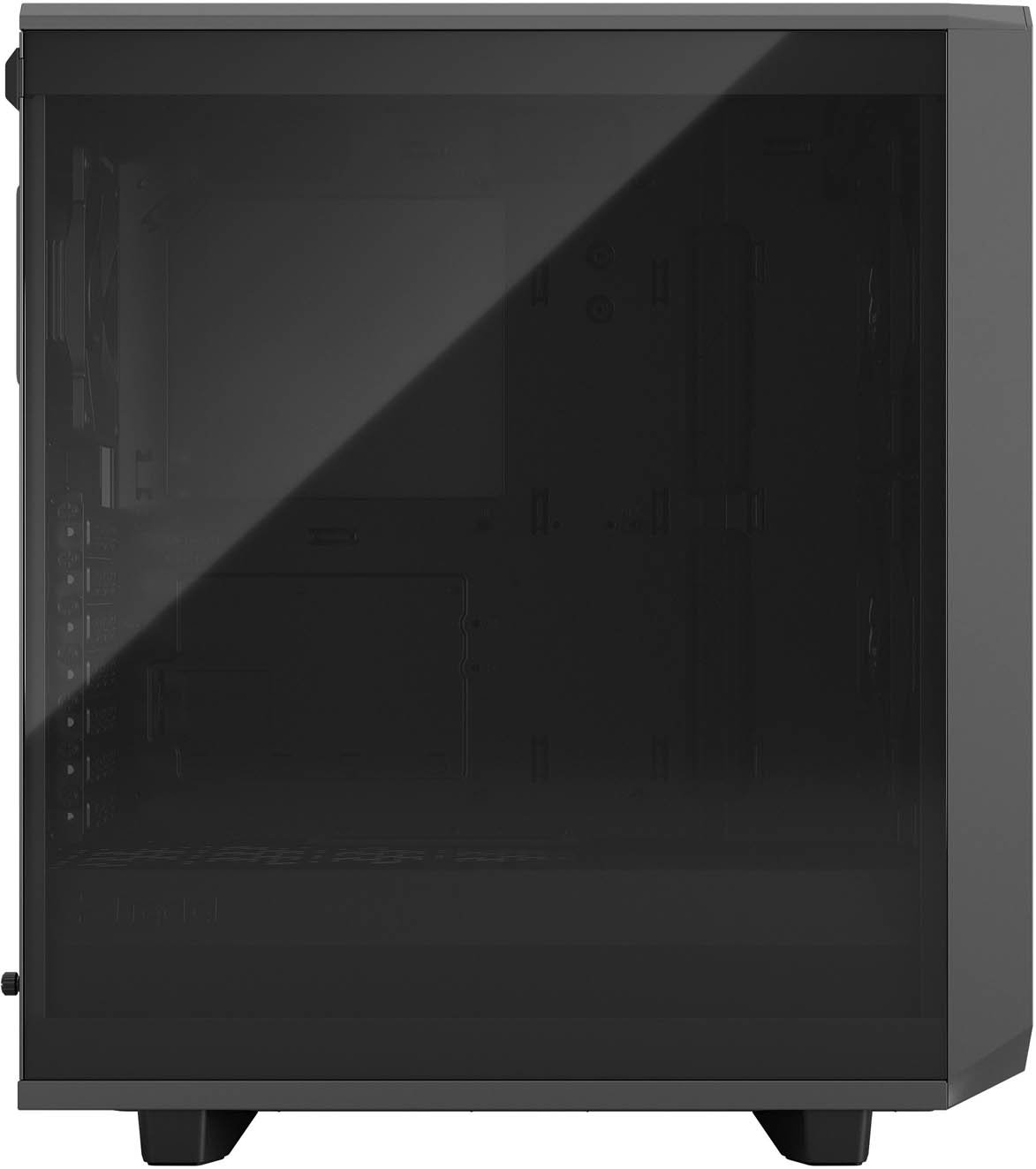

  • Seamlessly integrated TG panel with steel frame support and bolt-free top-latching mechanism

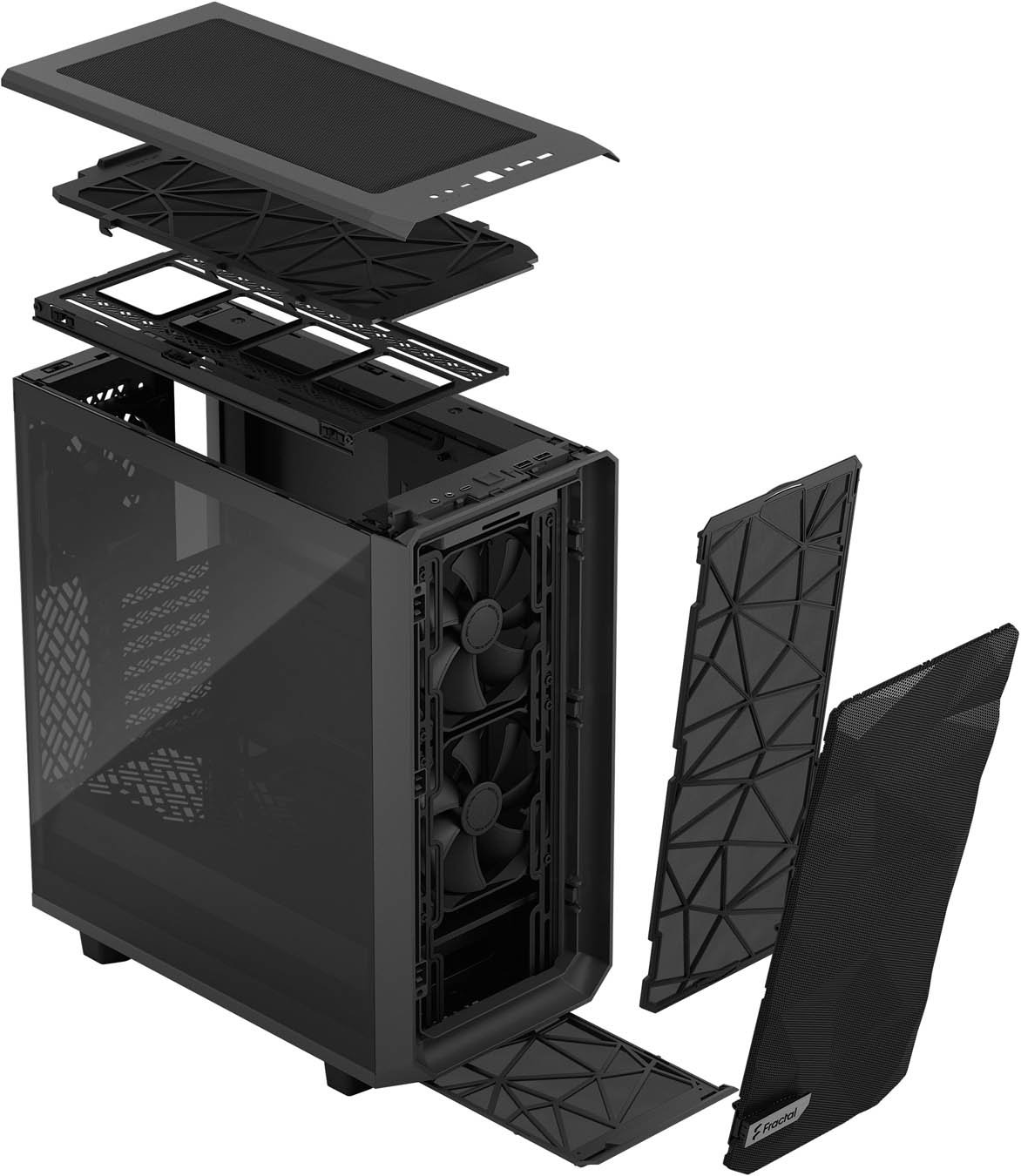

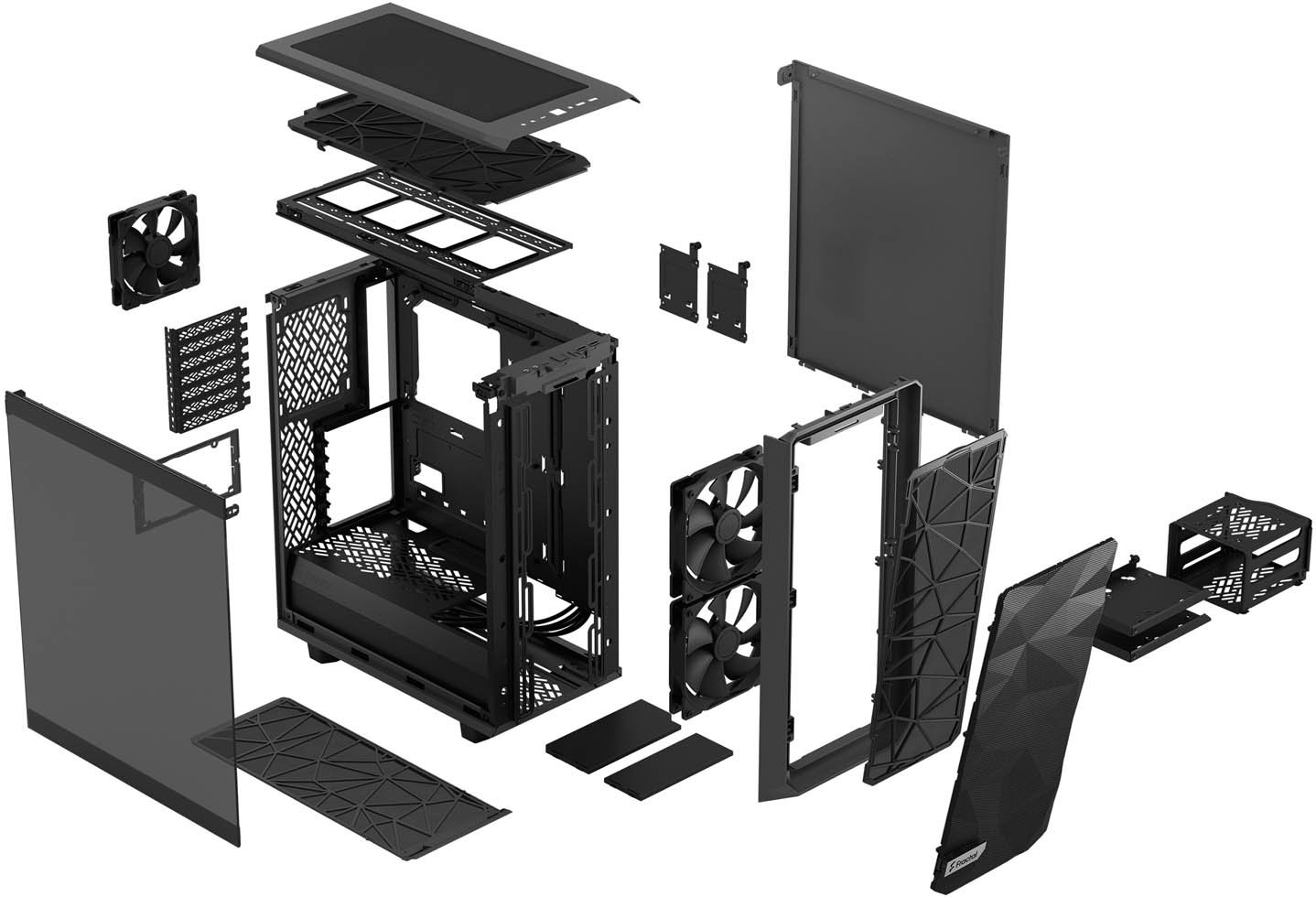

  • Fully removable top panel and top fan bracket opens to provide excellent interior access and easy cable routing

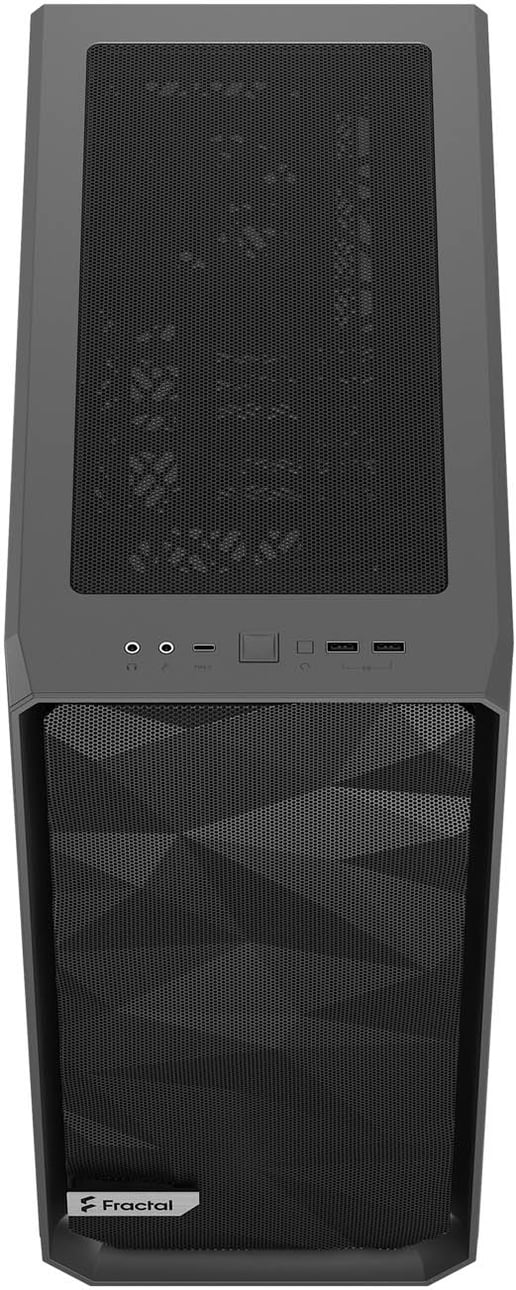

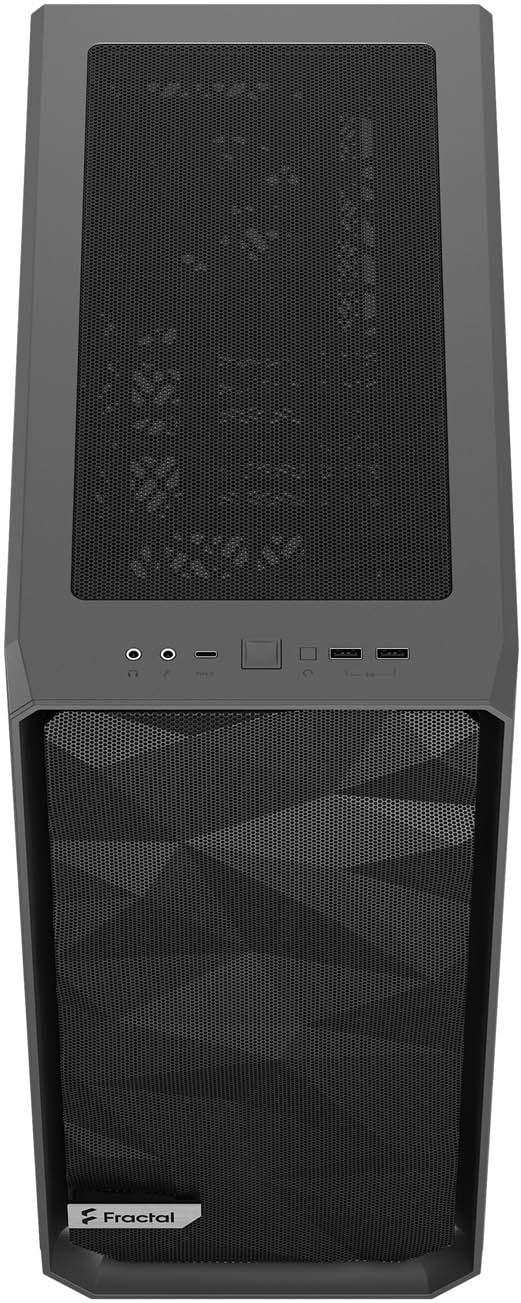

  • Three front USB ports including one USB 3.2 Gen 2 Type-C with fast charging and speeds up to 10Gbps
  • Robust cooling capacity with seven fan positions and support for up to 360/280 mm radiators
  • Flexible storage options supporting two 2.5"/3.5" drives and up to four SSDs (two SSD brackets included)
  • New front nylon filter that can be removed for increased airflow
  • Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access

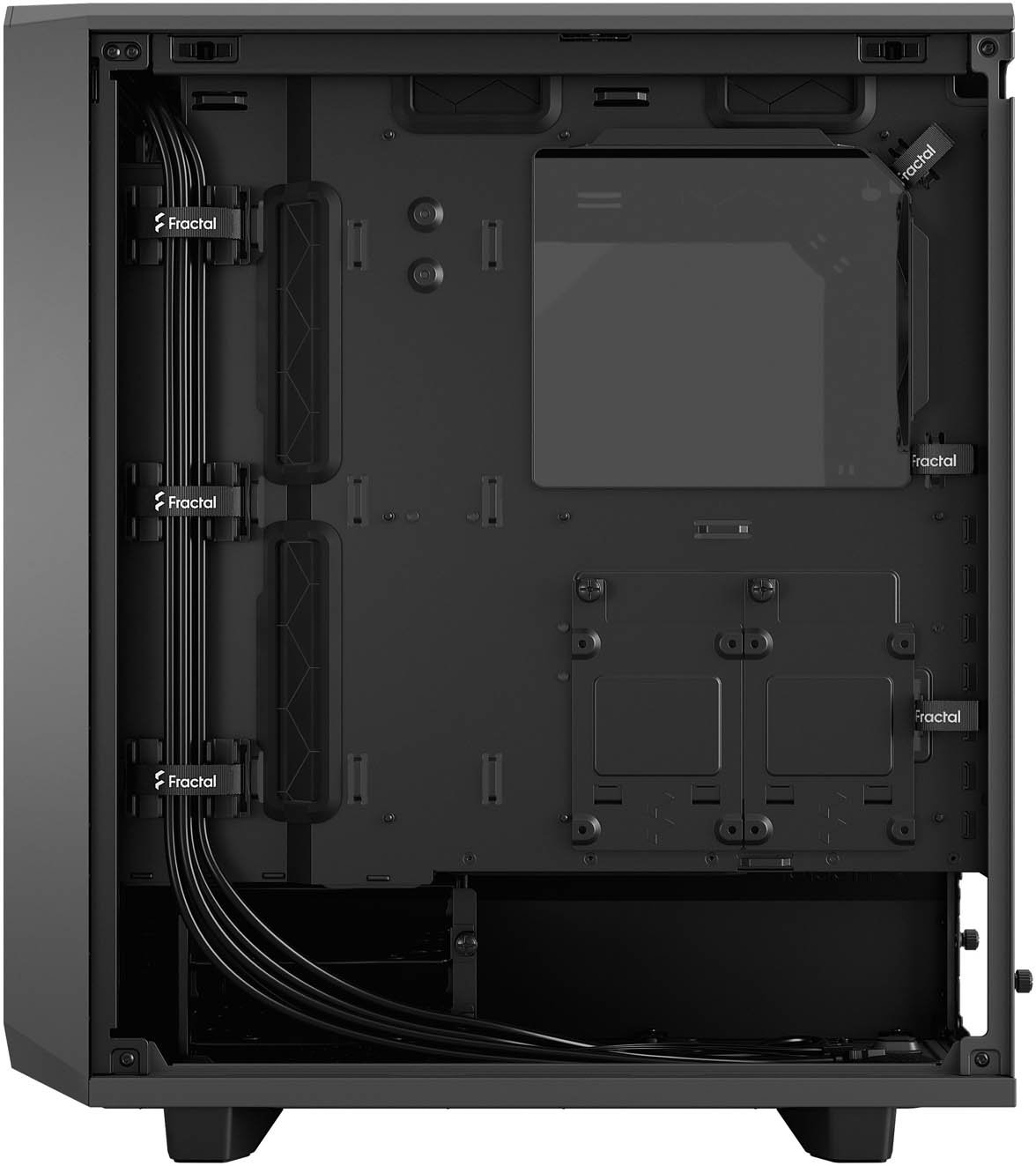

  • Improved cable routing with three integrated cable alignment clips and six velcro straps
  • Full length power supply shroud with two-part removable cover conceals drive cage and excess cabling for smooth airflow and a clean interior

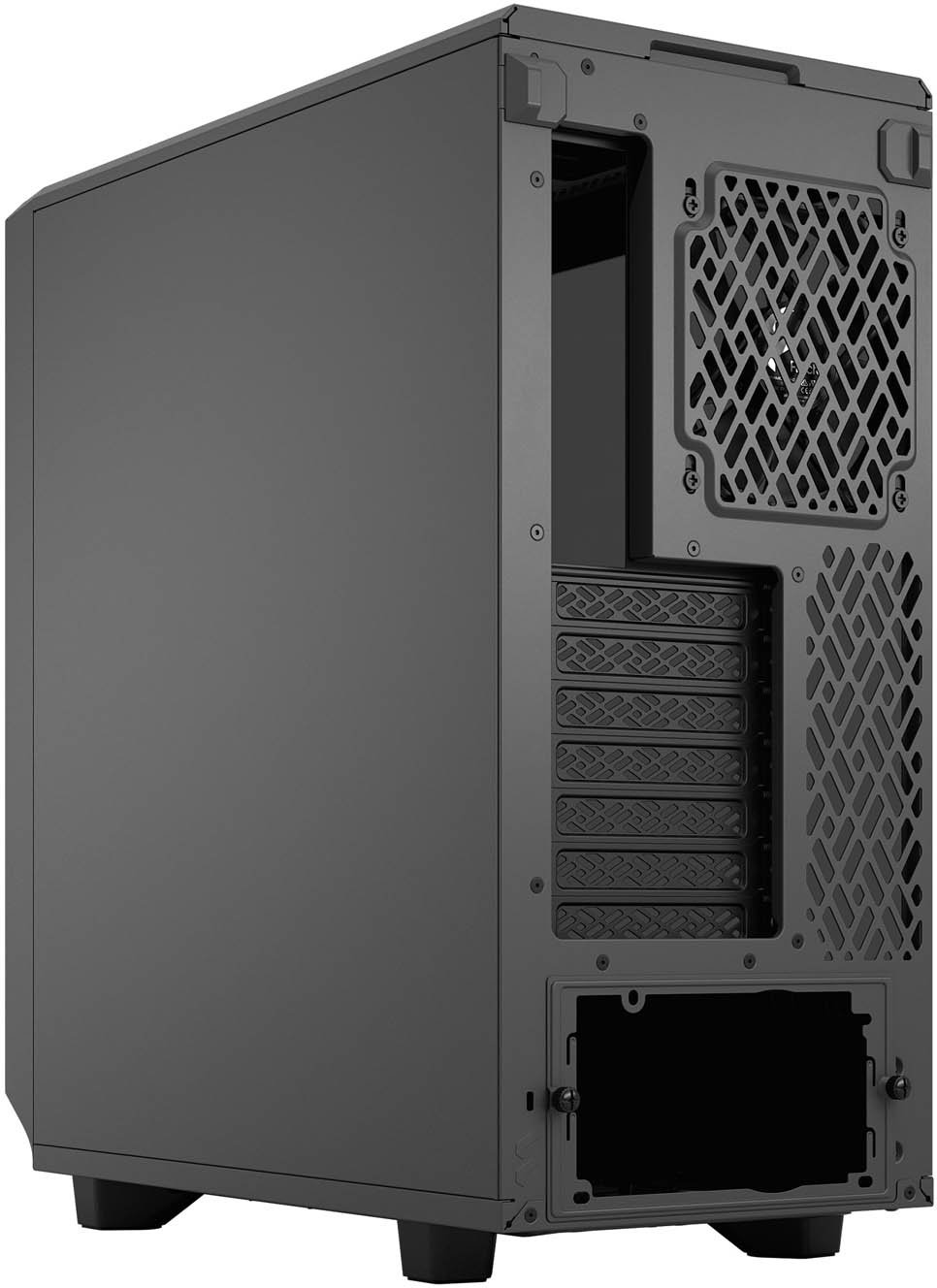

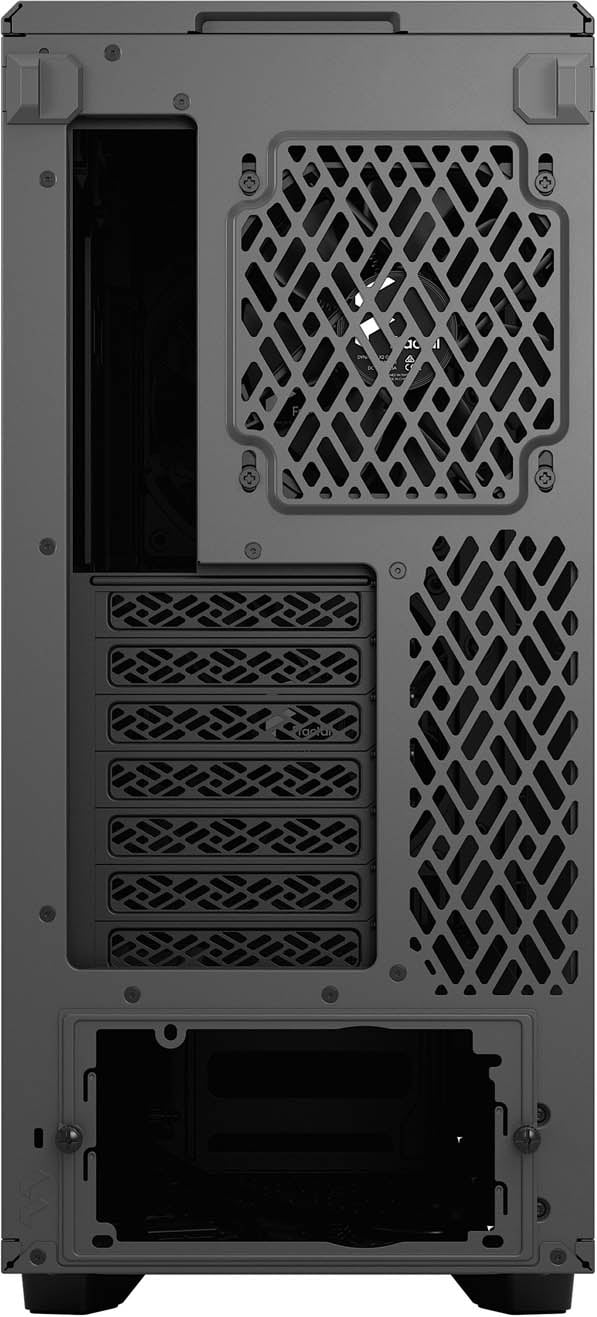

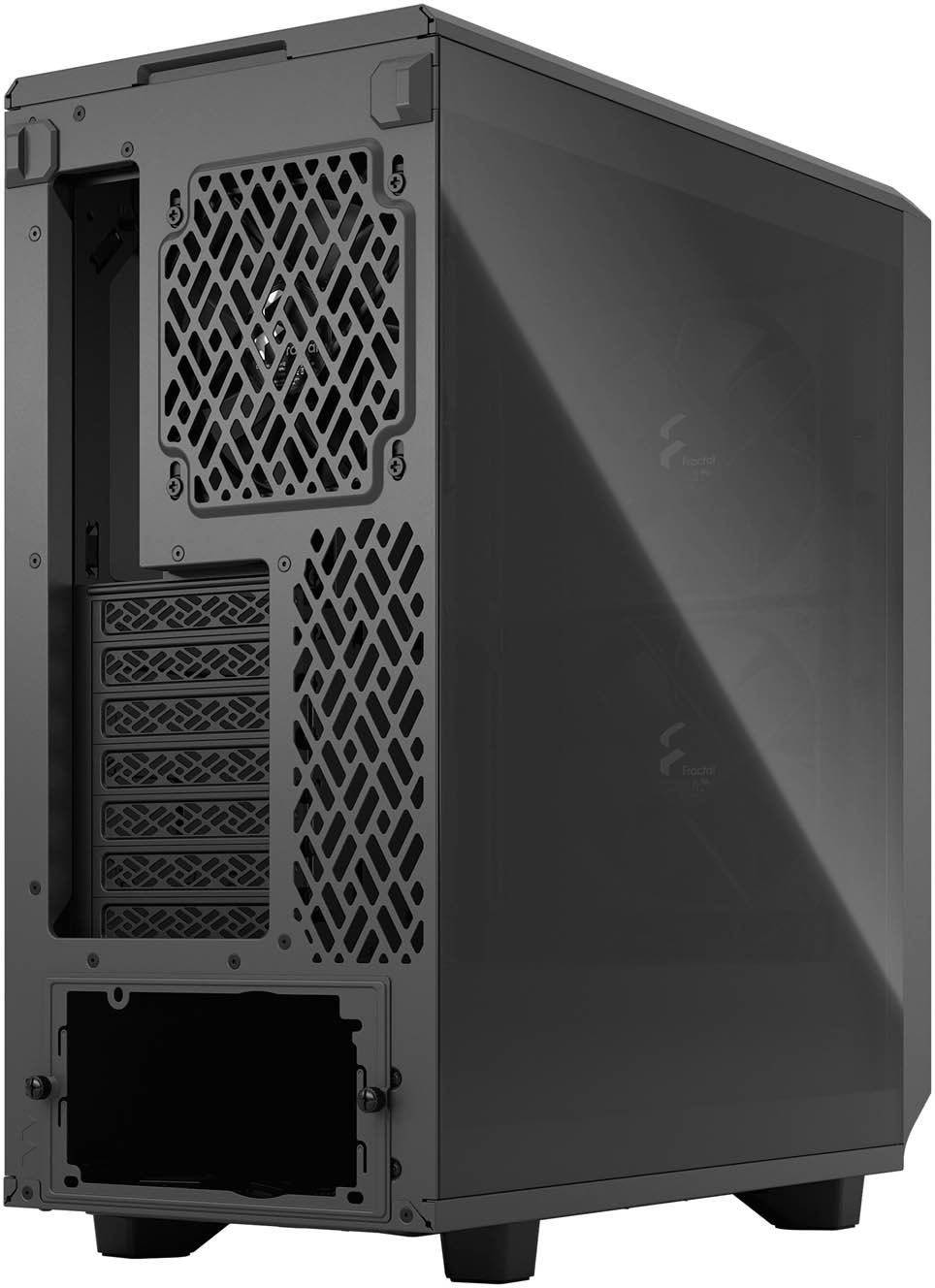

  • Seven bridgeless expansion slots ensure obstruction-free connections
Specifications

User Controls

User Controls Power
Reset

Storage

Internal Expansion Bays 2 x 2.5"
2 x 2.5"/3.5"

Expansion

Expansion Slots 7 x Full Height

Interfaces/Ports

USB Ports 1 x USB 3.1 Type-C
2 x USB 3.0
Headphone Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Electrical

Cooling System Front: Supports 2 x 140mm or 3 x 120mm fans (2 x 140mm fans included)
Top: Supports 2 x 140mm or 120mm fans
Rear: Supports 1 x 120mm fan (included)
Bottom: Supports 1 x 120mm fan (requires HDD cage removal)
Power Supply ATX Power Supply supported

Physical

Form Factor Mid Tower Case
Case Colour Grey with Light Tint Tempered Glass
Material Steel
Light Tint Tempered Glass
LED Status Indicators Power
Motherboard Compatibility ATX
MicroATX
Mini-ITX
In The Box Meshify 2 Compact Case
User Manual
Accessory Box
Width 210 mm
Depth 424 mm
Height 475 mm
Weight 8.1 kg

Warranty

Warranty 2 Years

Key Features

Firewire No
Laptop Size Range ins
Main Colour Grey
External Expansion Bays
Case Type Tower
USB 3.0 Support Yes
Case Form Factor Mid Tower
Power Supply Included No
Optimised for Gaming
Modular Cables
80Plus Rated No
Bag Size
PSU Form Factor ATX
Display Model in Showroom No
Illuminated No
e-SATA No
L.E.D Fan No LED
Bag Type
Laptop Size
Max 3.5" Drives 2
Max 2.5" Drives 2
ATX Yes
Micro-ATX Yes
ITX Yes
E-ATX No
XL-ATX
Mini PC
Cooler Height 169 mm
Built-in Card Reader No
USB Type-C Support Yes
Front HDMI No
Side Panel Type Tempered Glass
GPU Length 341 mm
PSU Depth 165 mm
Memory Speed MHz
Card Reader Type
Front Audio Type Separate
Number of Fans 3 fan(s)
LED Controller Included No
LED Strip(s) Included No
Fan Connector
Maximum Motherboard Size Supported ATX
RGB Software Type None
Total 2.5" + 3.5" drive bays 4
Power Requirement (auto) 9 W
USB3.0 ports 2
USB-C ports 1
Low profile expansion No
Config Business
Config Enterprise
Config Gaming Yes
Config Home Office
Config Lifestyle
Config Professionals Yes
Config Quiet
Config Rugged
Config Server Rack
Config Silence
Config Students Yes
Vinyl Position - Top No
Vinyl Position - Front No
Vinyl Position - Left Yes
Vinyl Position - Right Yes
Config Chillblast X
Max Supported Radiator Length mm

Item Details

Manufacturer Fractal Design
Manufacturer Code FD-C-MES2C-04
EAN 7340172702351
UPC 843276102357
Condition New
Warranty

Warranty Information

Warranty 2 Years

Manufacturer Information

Manufacturer Fractal Design
Manufacturer Code FD-C-MES2C-04
