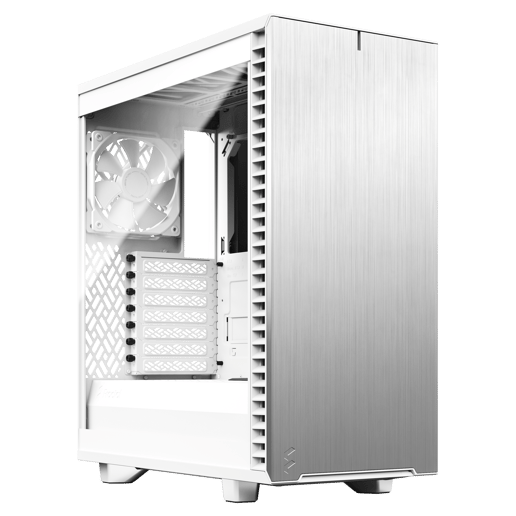

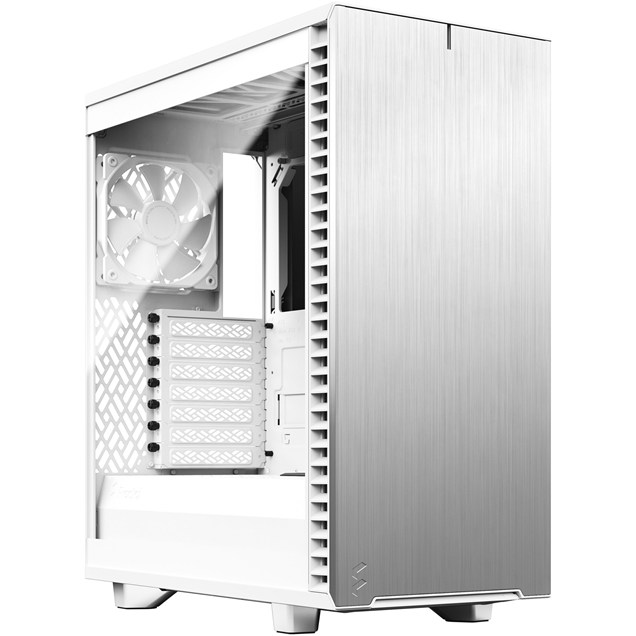

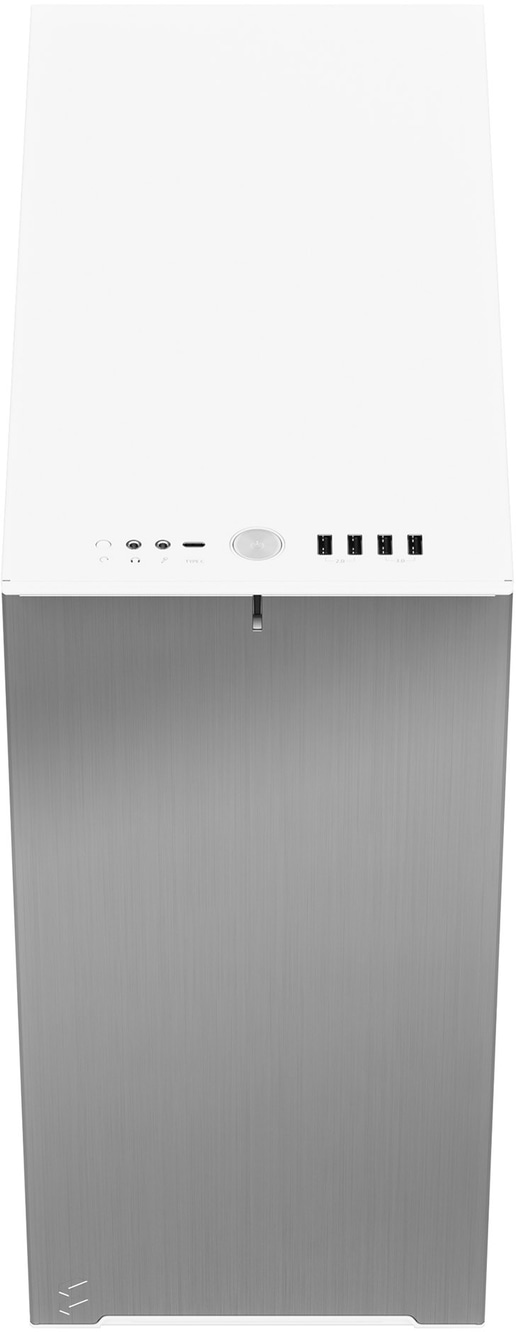

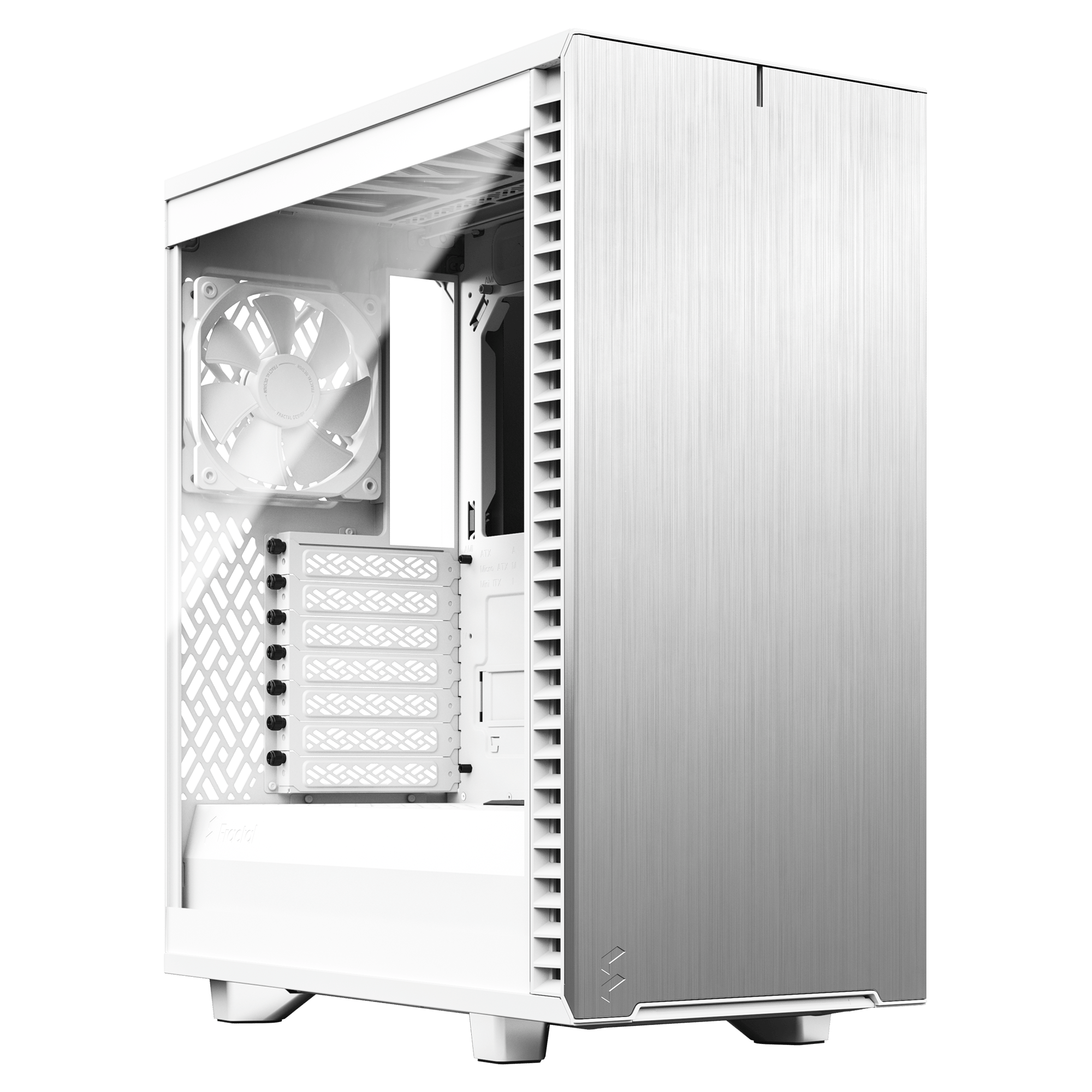

Fractal Define 7 Compact Mid Tower Gaming Case - White

Compare

Re-defining efficiency

Fractal Define 7 Compact Mid Tower Gaming Case - White

FD-C-DEF7C-04

Key Features:

Max Motherboard Size: ATX

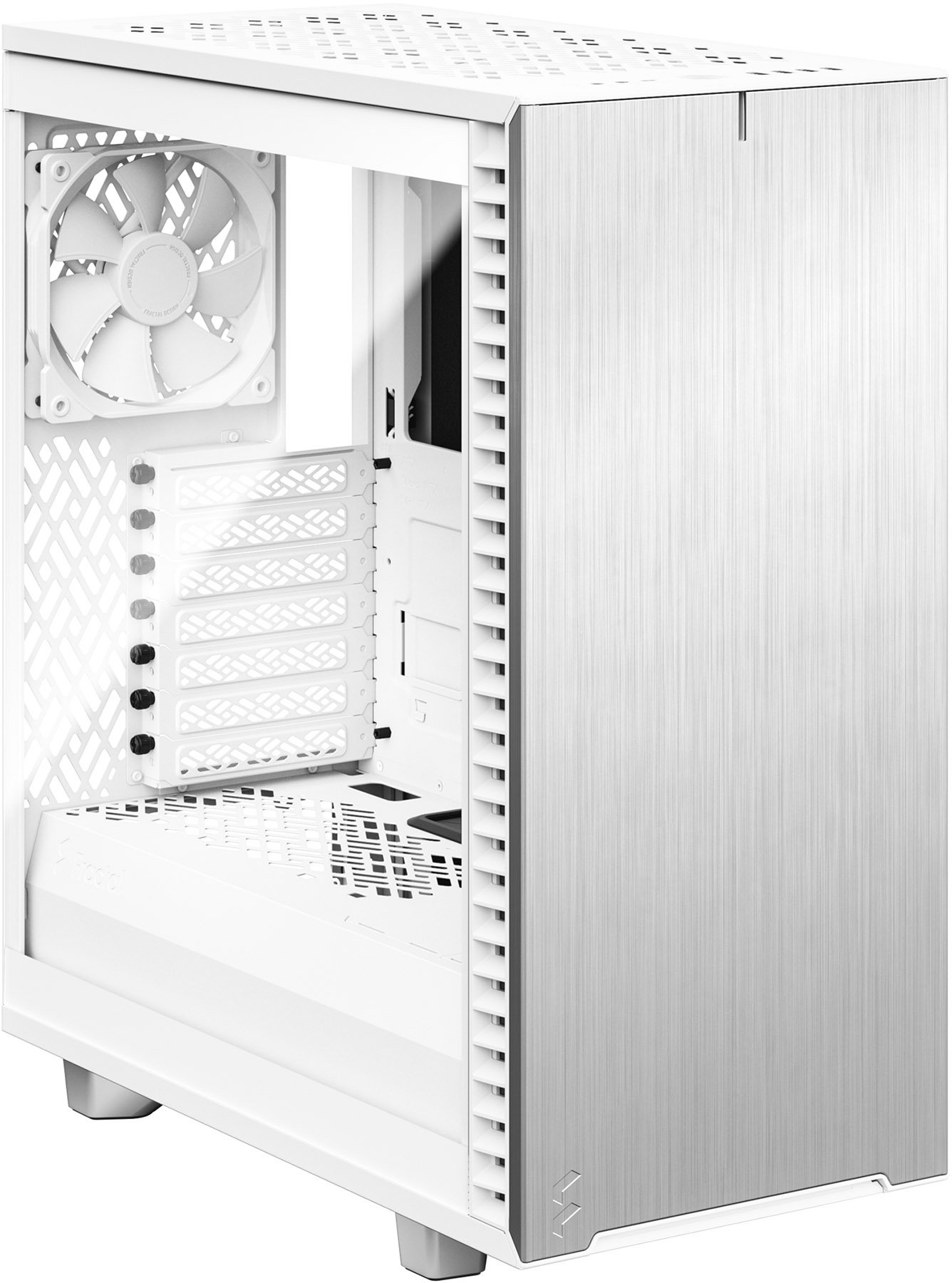

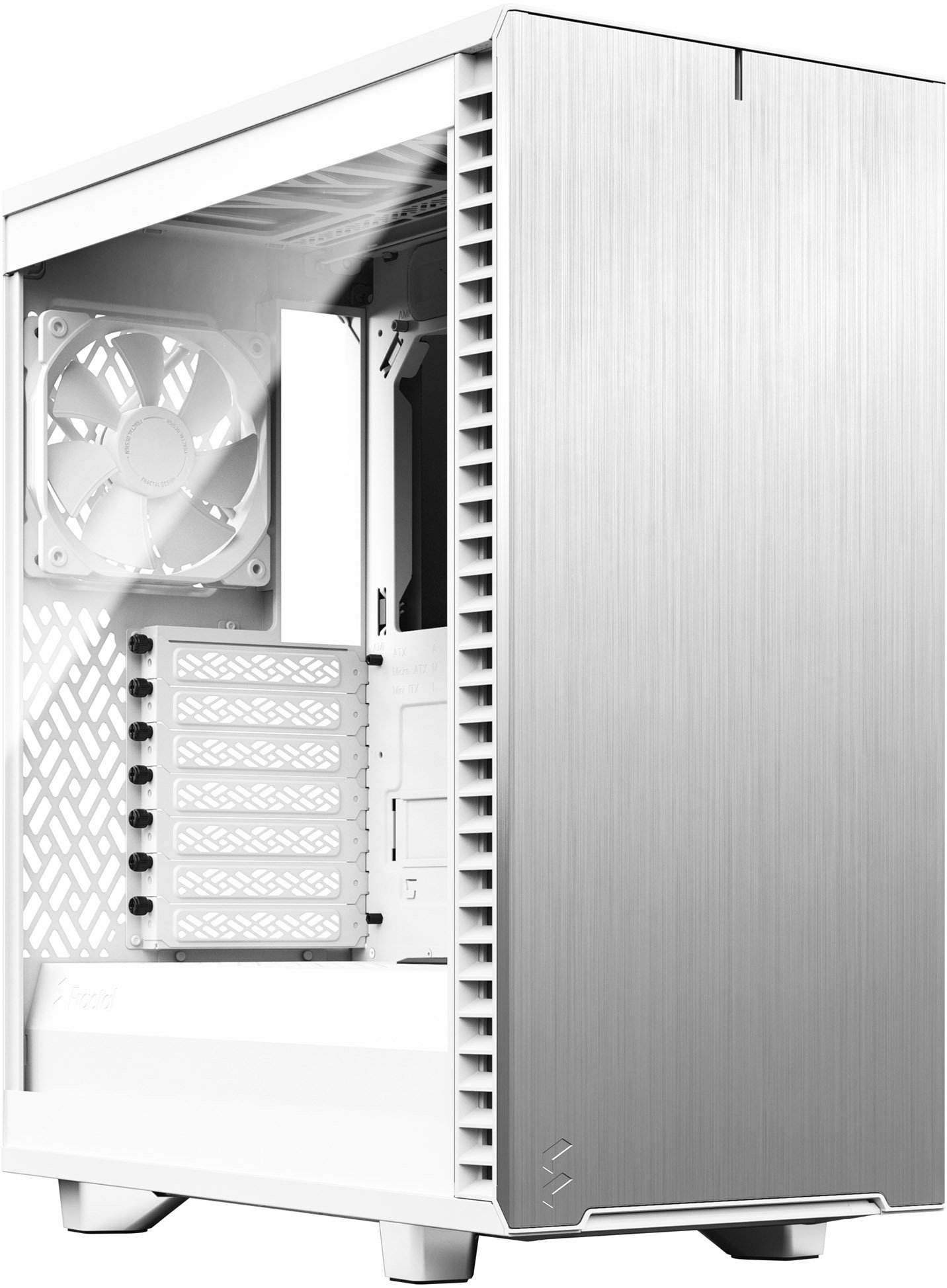

Tempered Glass Side
2 x 4-pin PWM Fan(s)
Front USB Type-C Port
2 x 2.5" / 2 x 3.5" Bay(s)

CCL Code: CAS4179

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

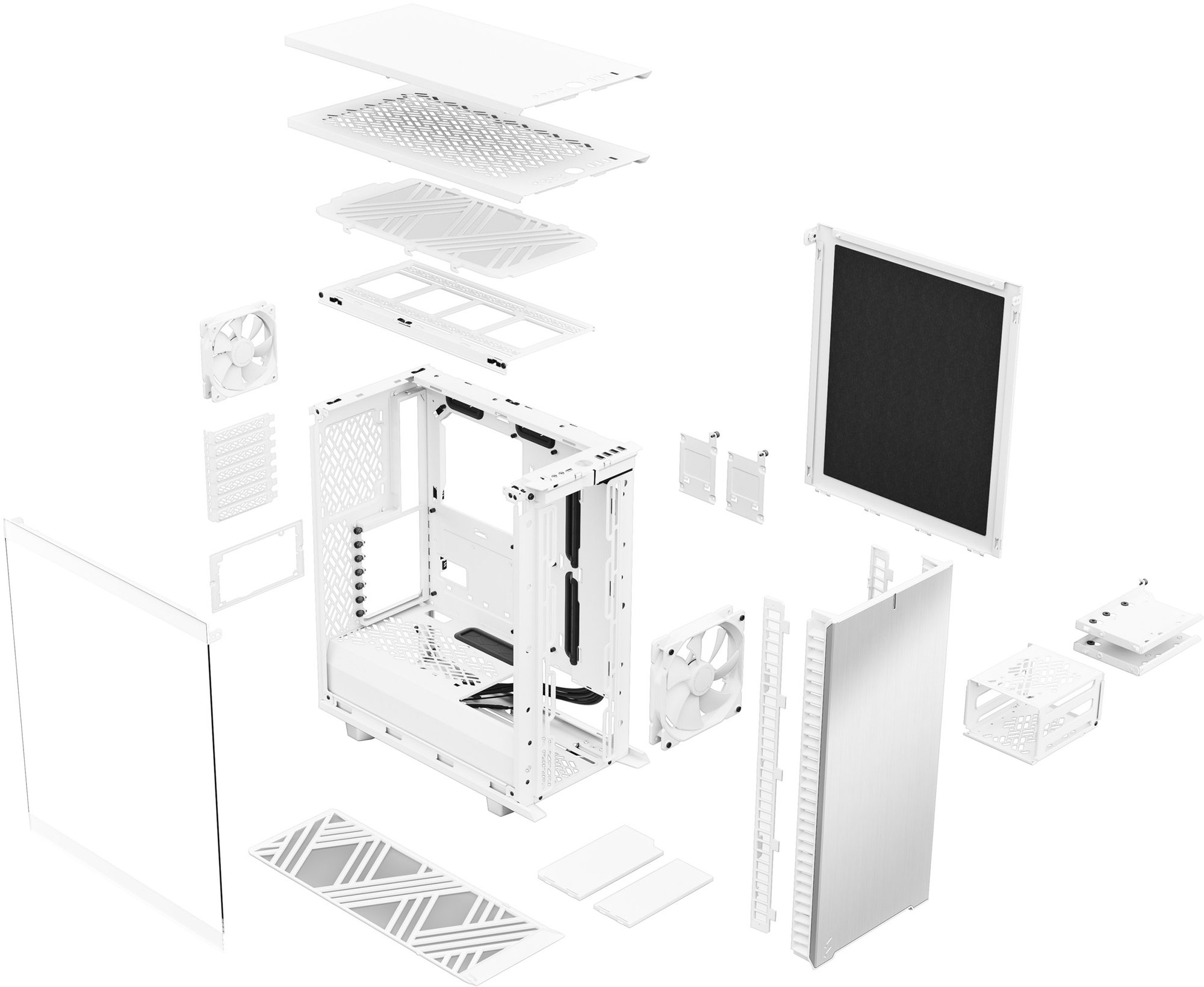

The new Define 7 Compact takes the strongest features of the contemporary 7 Series design and places them in a conveniently compact frame. Highly modular for its size, the Define 7 Compact is easily customizable to meet your exact needs – and the instantly removable top panel ensures an easy build, even with high-end components.

A cleaner look

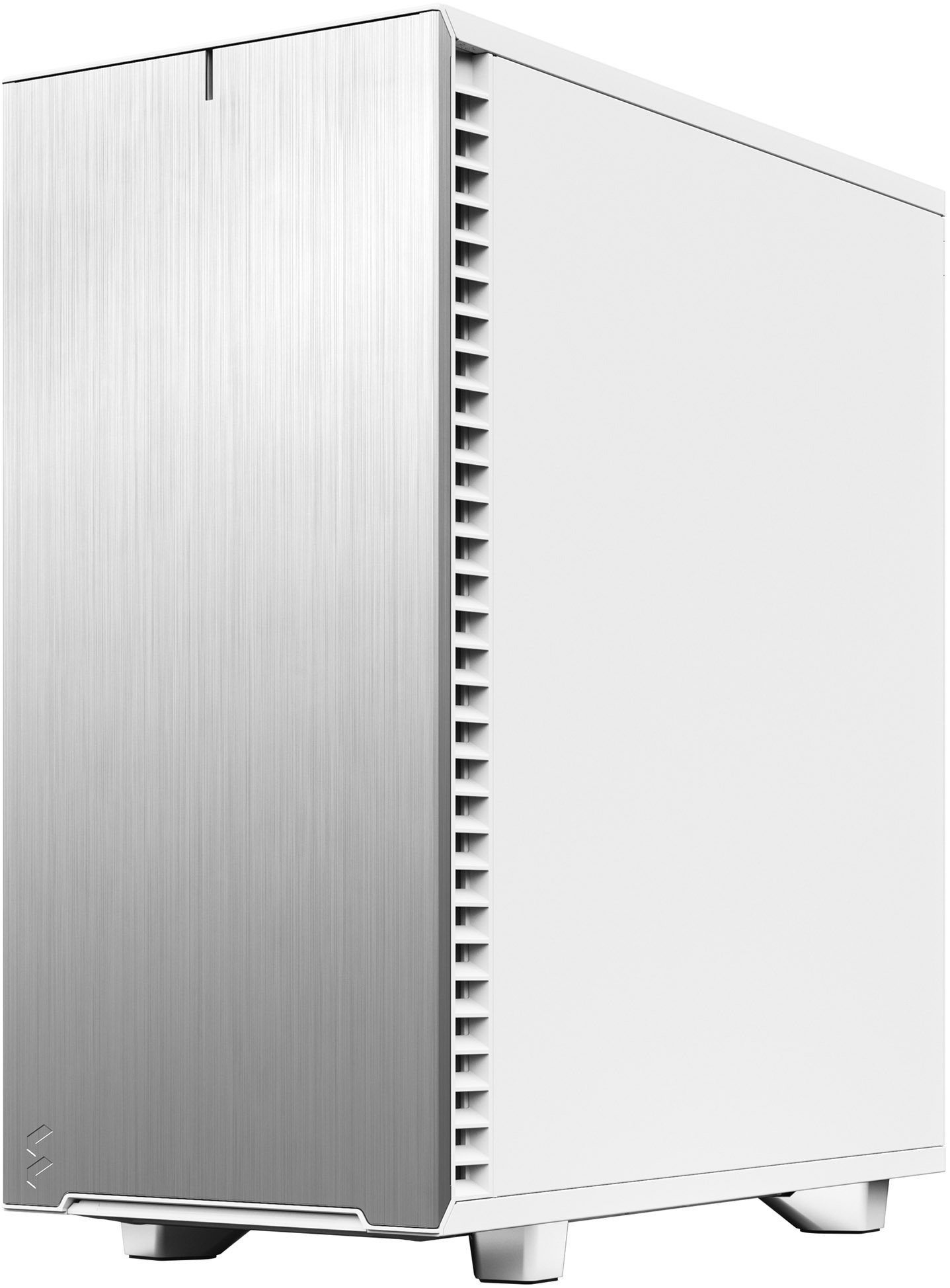

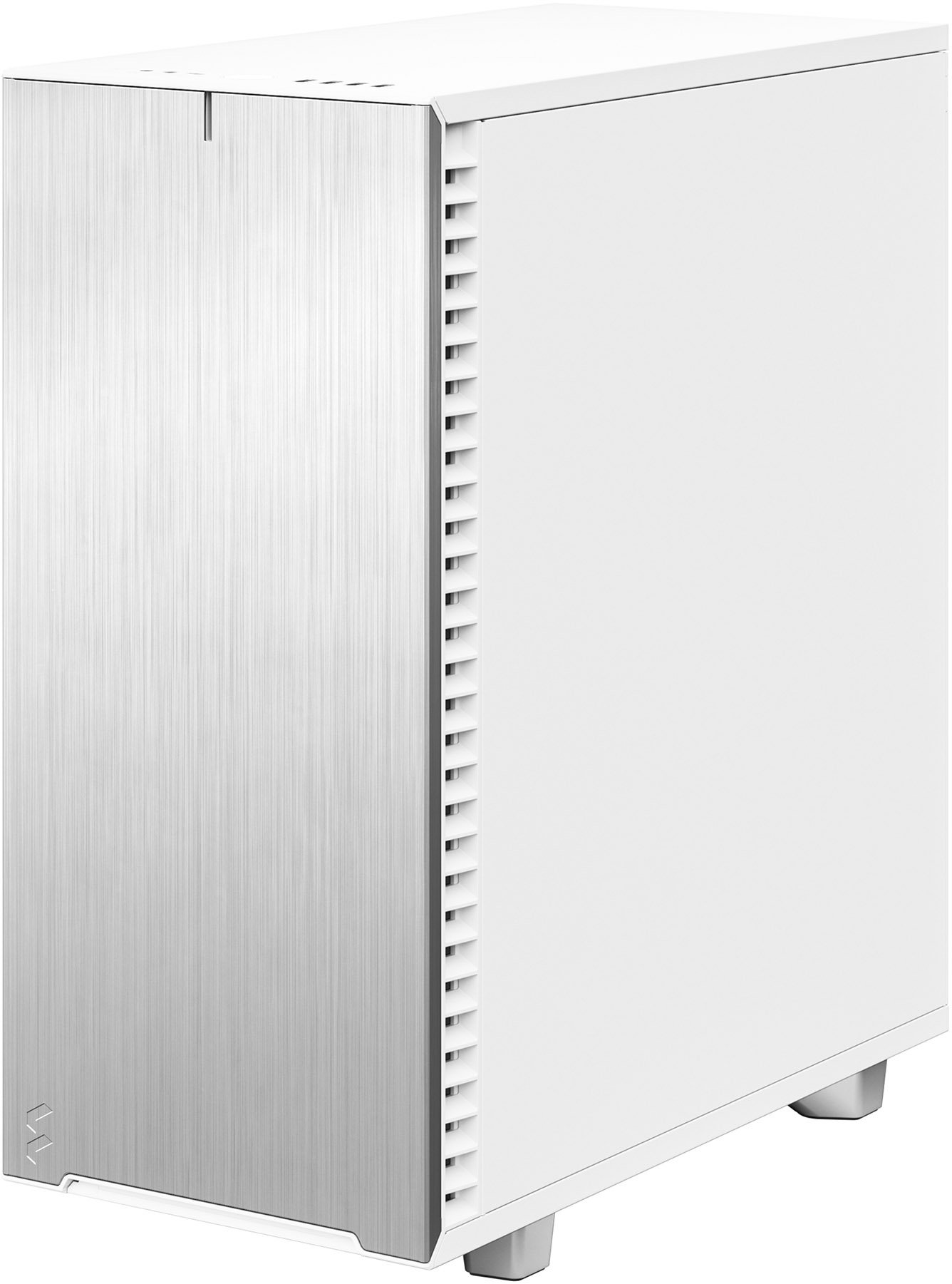

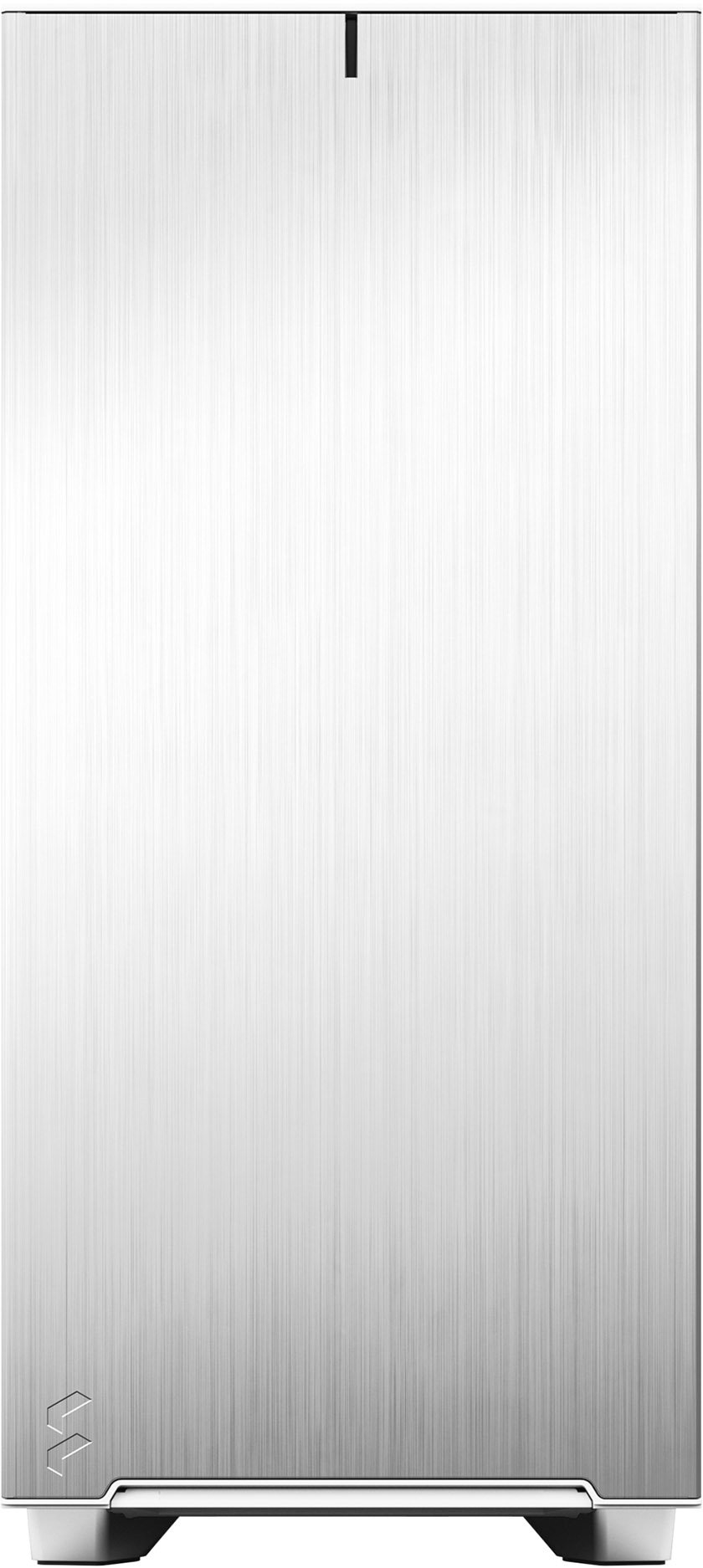

Brushed aluminum front and interchangeable side panels give a very clean look.

Compact yet spacious

The versatile layout of the Define 7 Compact allows you to maximise the potential of the small footprint with full-size ATX hardware to meet your exact needs. For example, you can easily fit GPUs up to 360 mm with a 240 mm radiator in the top – or up to 360/280 mm front radiators with GPUs under 305 mm.

Remarkably quiet

Solid construction with industrial high-density sound damping helps maintain whisper-quiet operation. Brushed aluminum front and top-latching side panels offer a clean sophisticated look, and top panel effortlessly swaps from solid steel to filtered ventilation.

Substantial cooling

Install up to 7x 120 mm or 4x 140 mm fans, and radiators up to 360 mm - 1x 120 mm and 1x 140 mm Dynamic X2 fans included. Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support.

Robust Front I/O

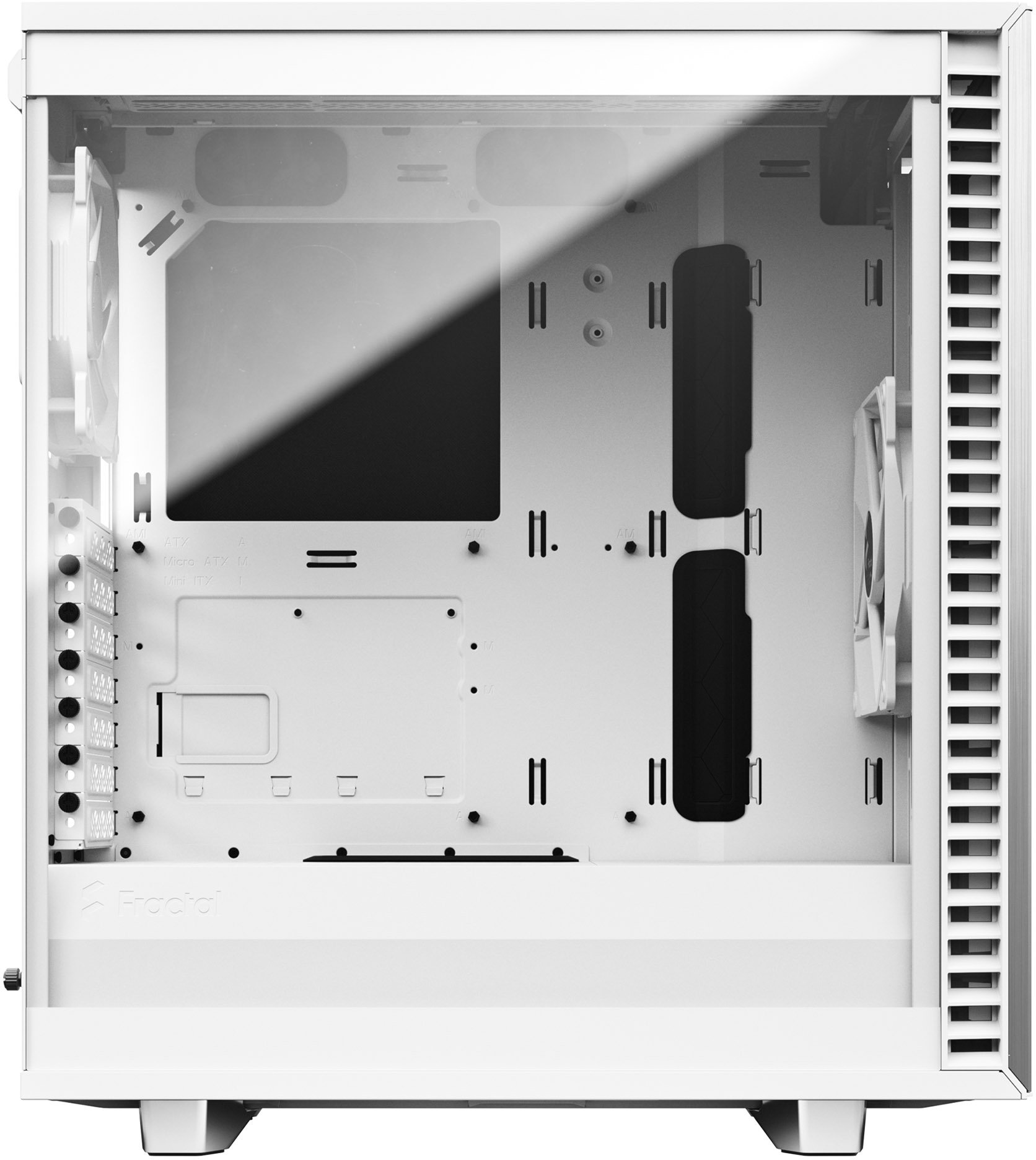

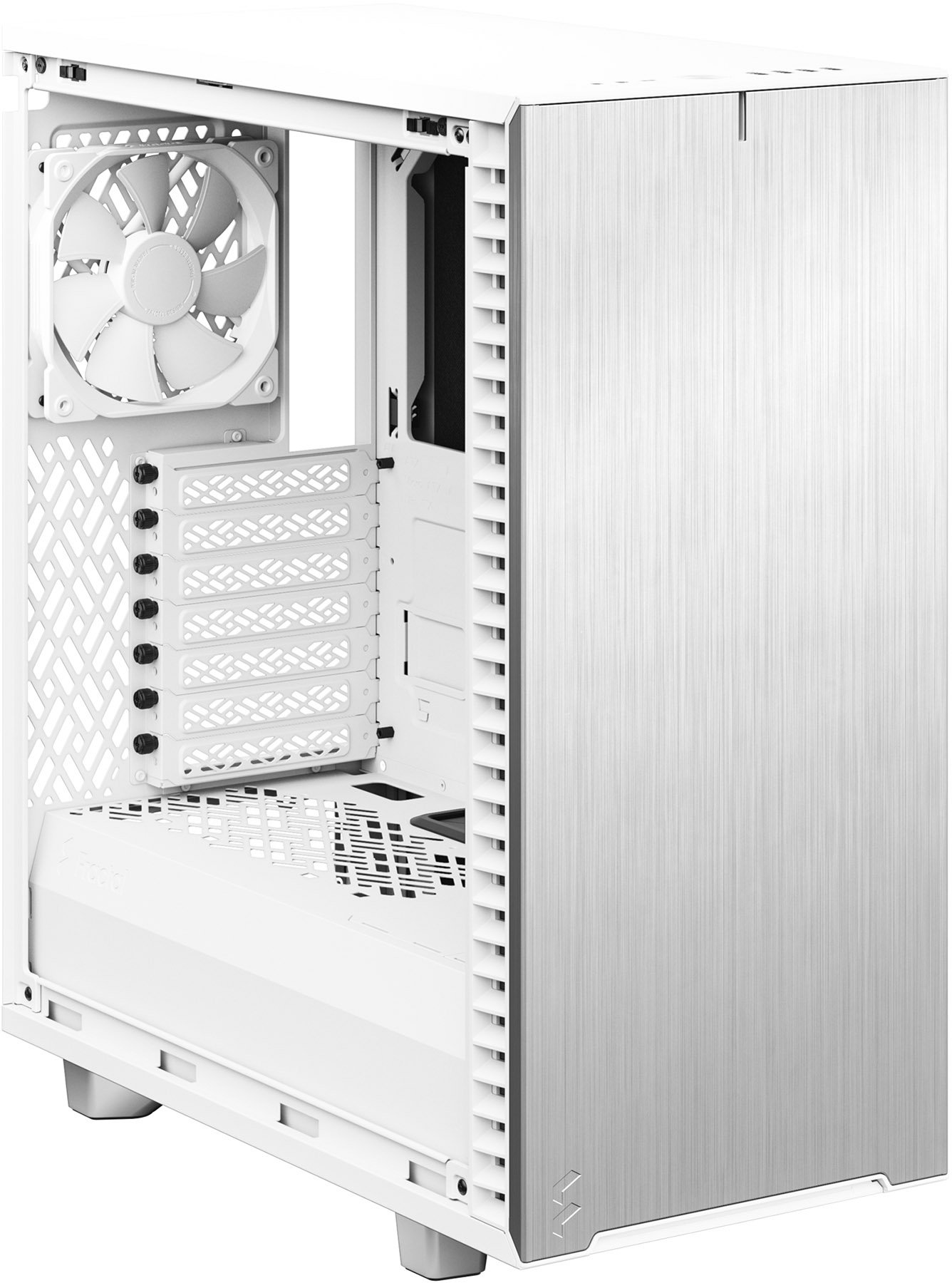

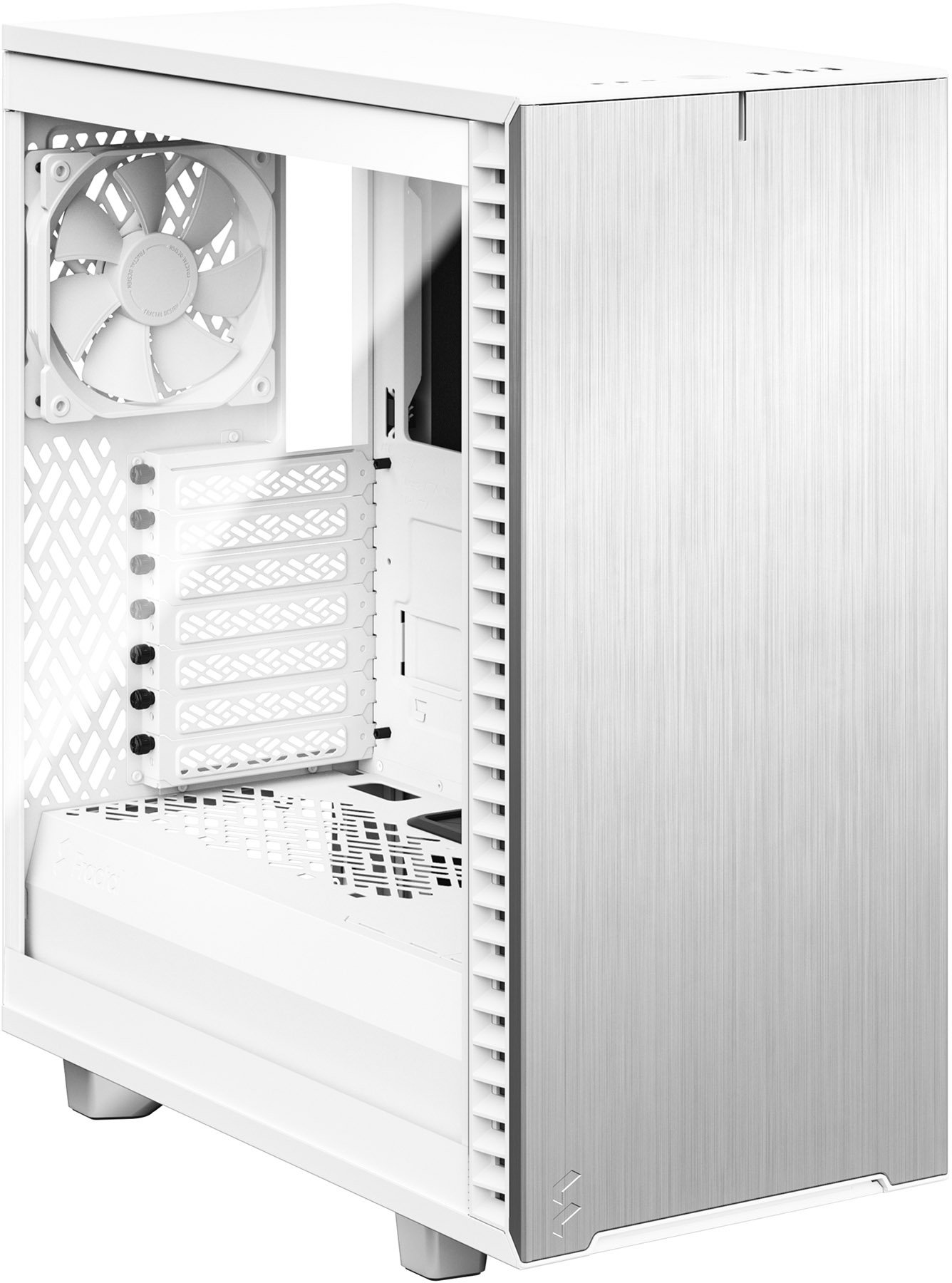

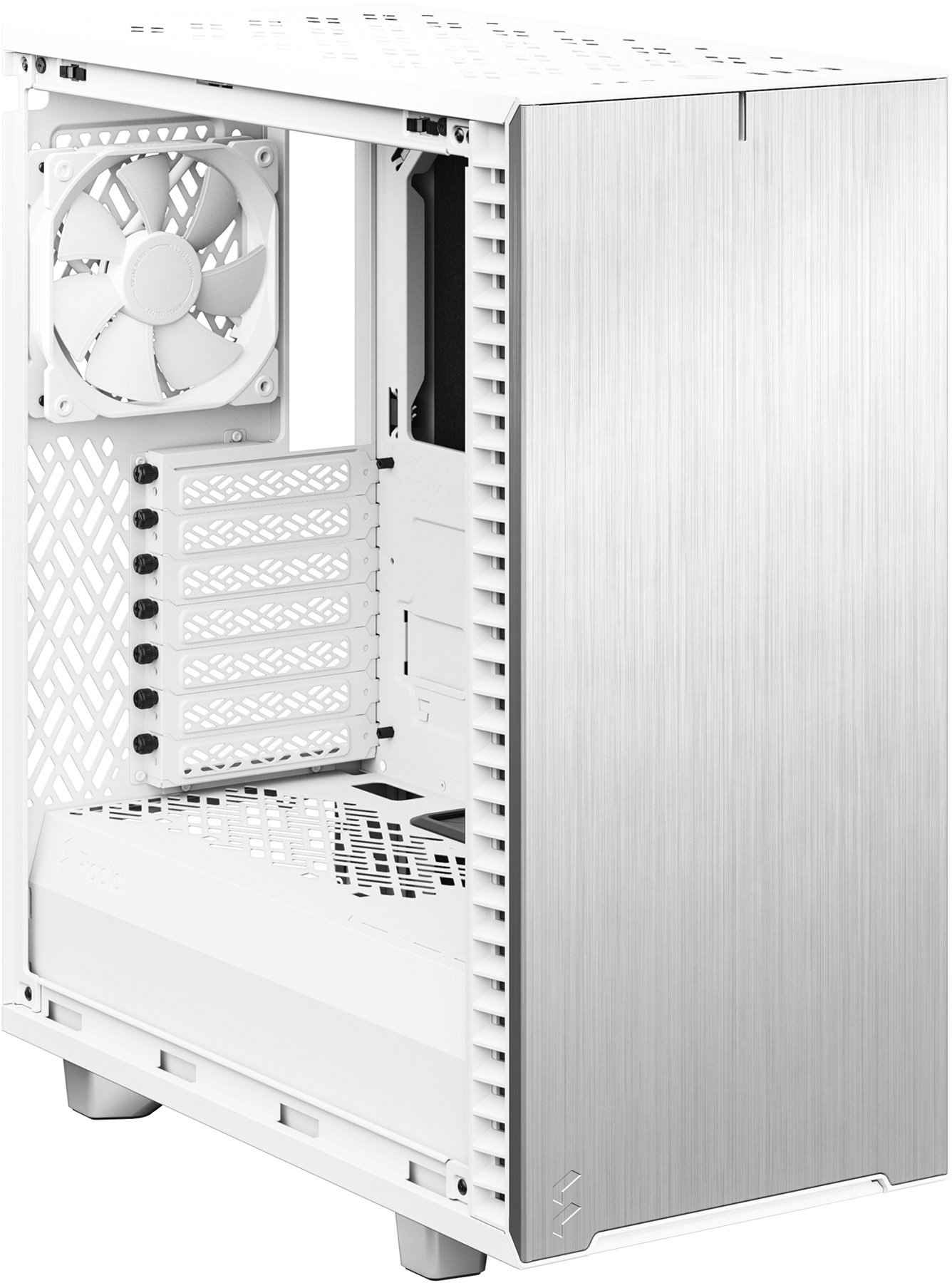

Easily mounted tempered glass side panel (TG versions only) lets you showcase your components.

Aspect fans

Five front USB ports including one USB Type-C with speeds up to 10 Gbps.

Concealed storage

You can fit two 2.5”/3.5” drives beneath the shroud and two SSDs behind the backplate.

More in store

A pair of SSDs are easily mounted straight on the PSU shroud.

Front, top and base

Easy-to-clean high airflow nylon filters.

Main Features

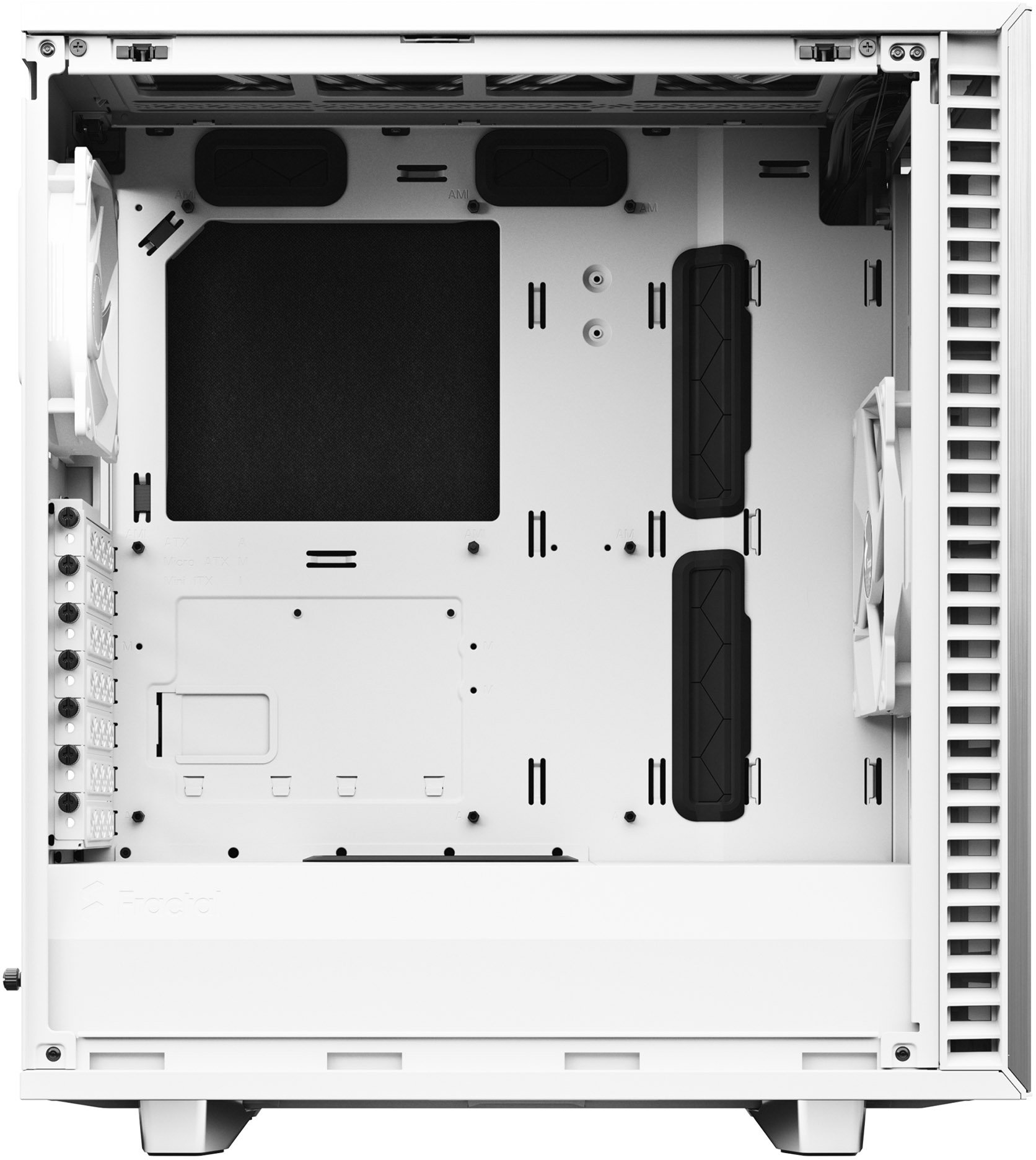

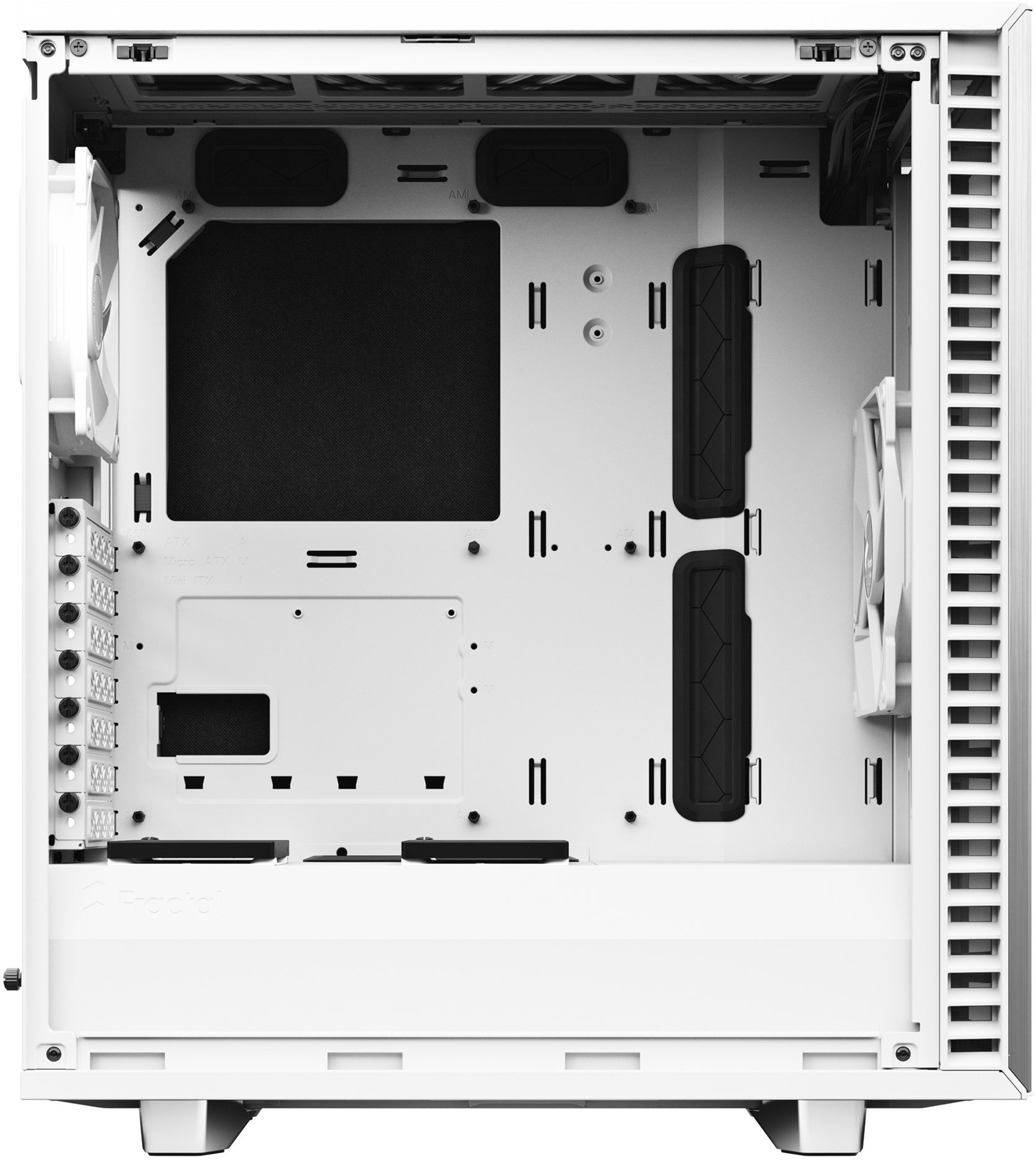

Compact yet spacious interior accommodates ATX, mATX and mITX motherboards
Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
Support for two 2.5"/3.5" drives plus up to four SSDs (two SSD brackets included)

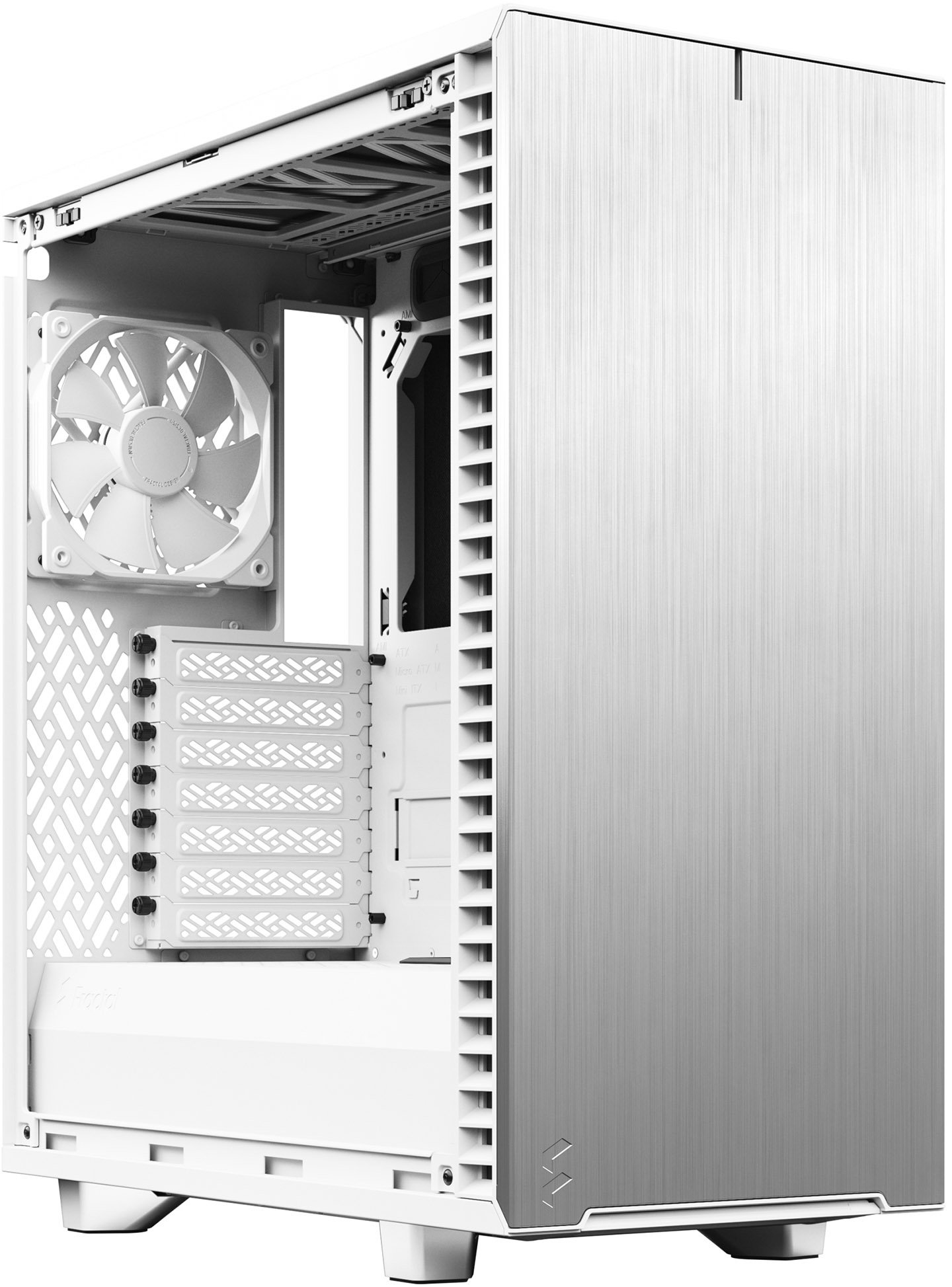

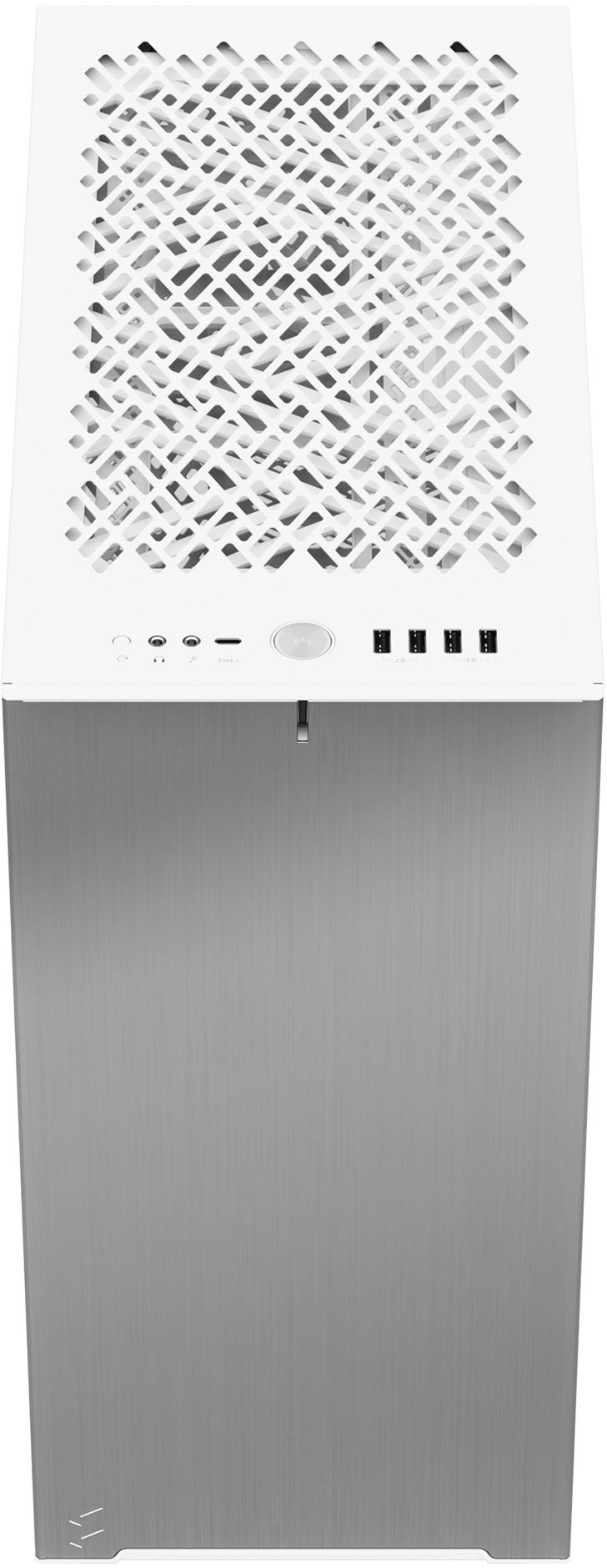

Top panel effortlessly swaps from solid steel to filtered ventilation

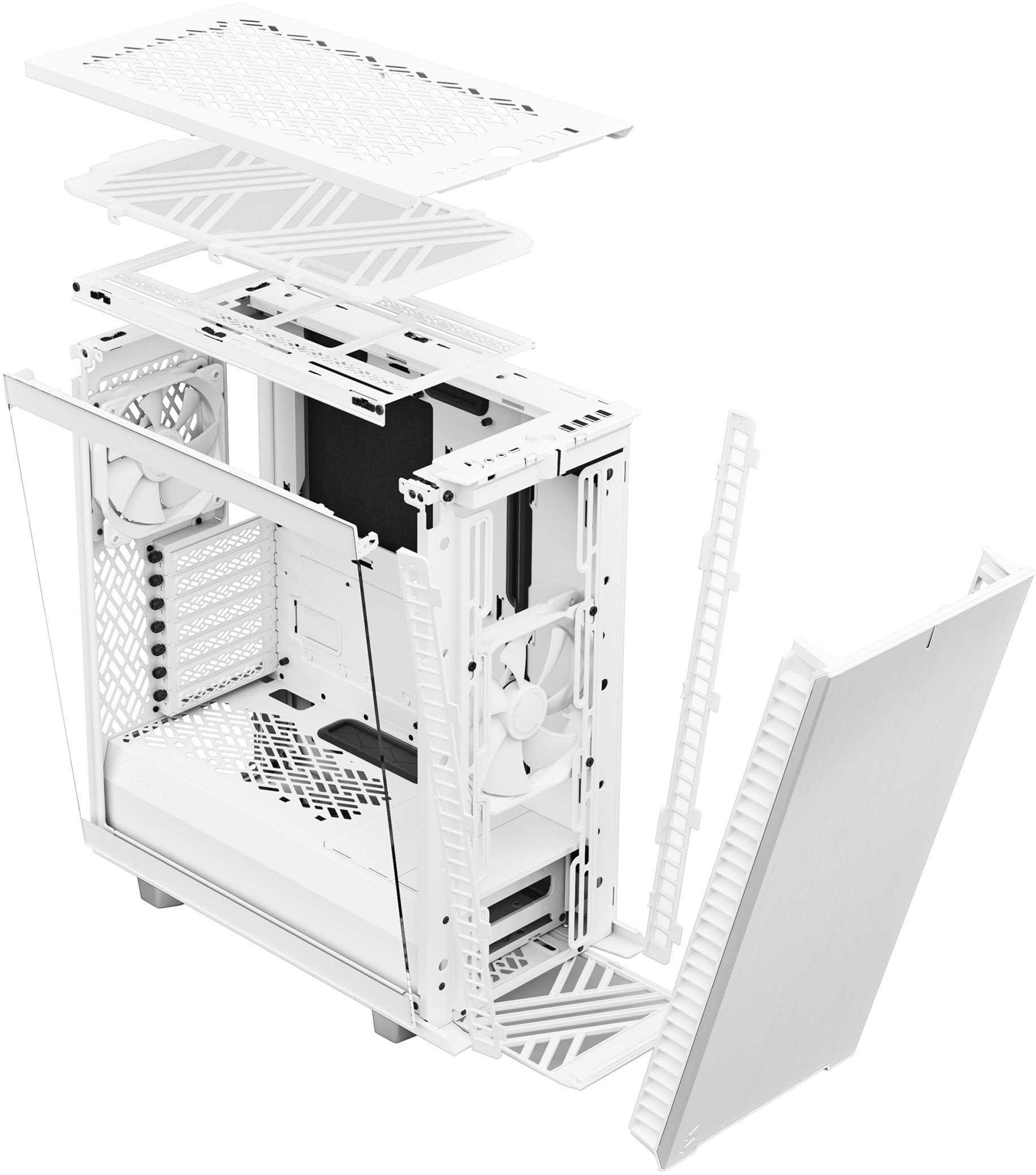

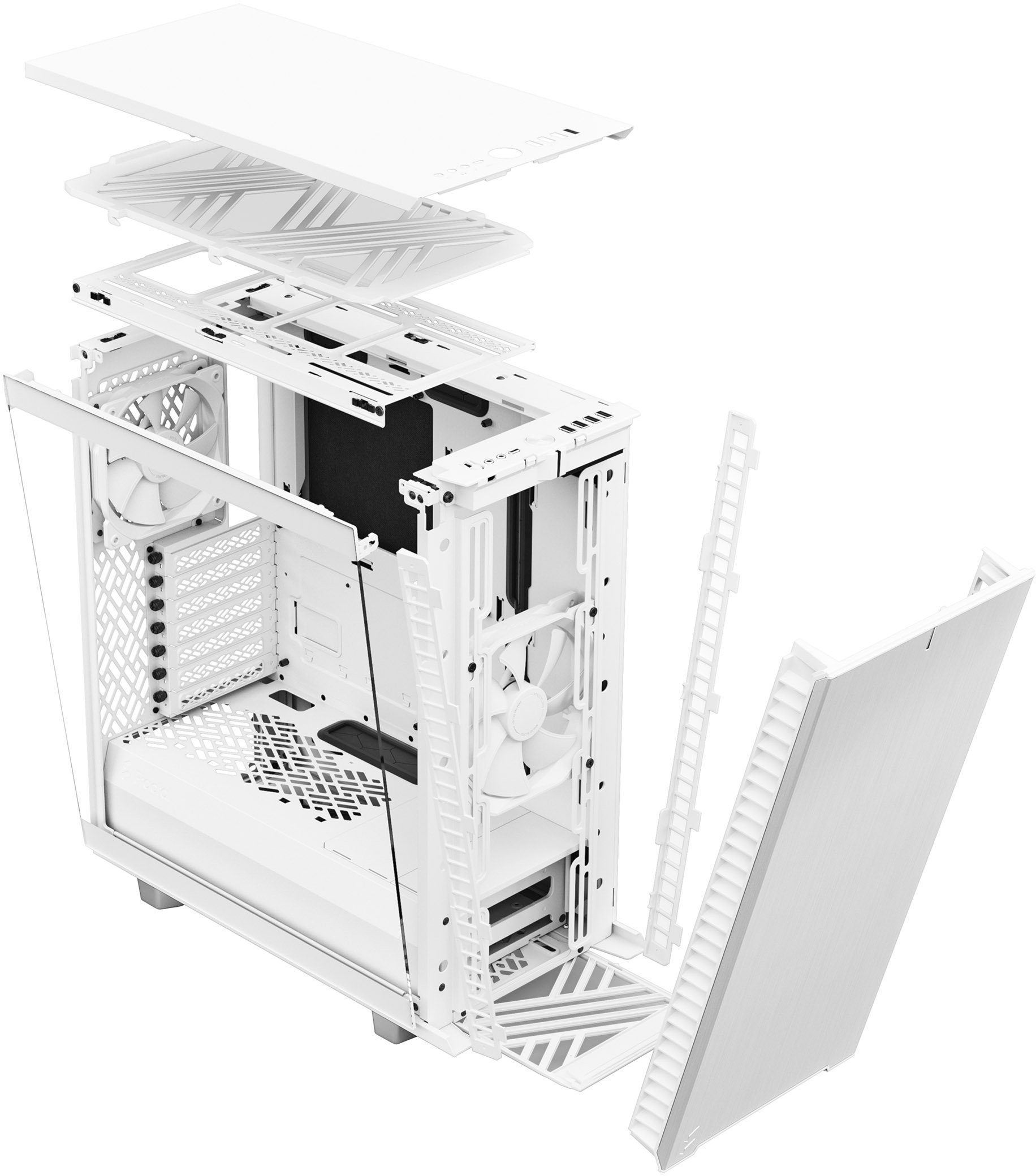

New removable top panel design opens up to fully expose the case interior for effortless installation and cable routing
Silence-optimized construction with industrial sound-damped front, top, and side panels

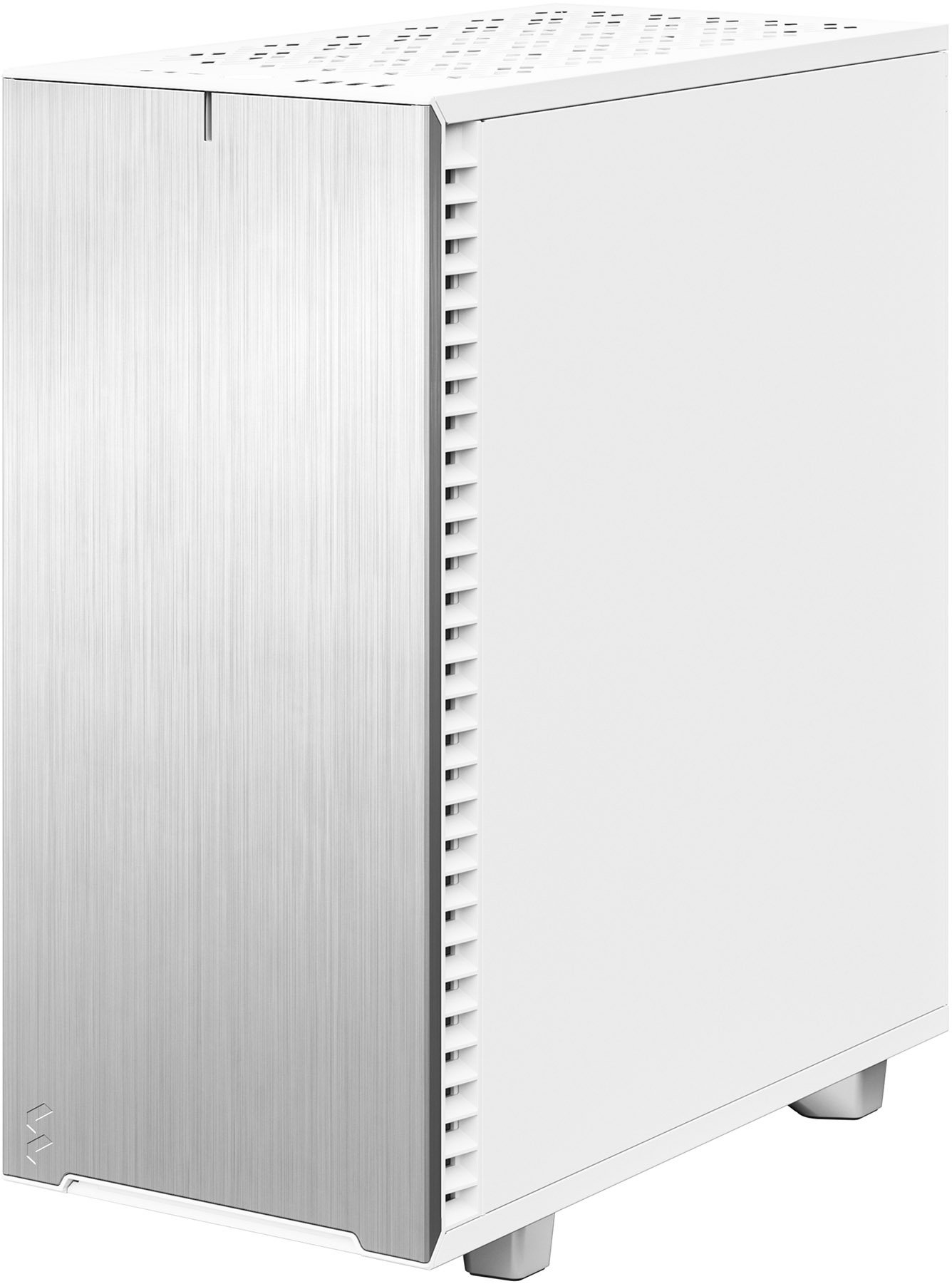

Brushed aluminum front and top-latching side panels offer a clean sophisticated look
Install up to 7 x 120 mm or 4 x 140 mm fans (1 x 120 mm and 1 x 140 mm Dynamic X2 fans included)

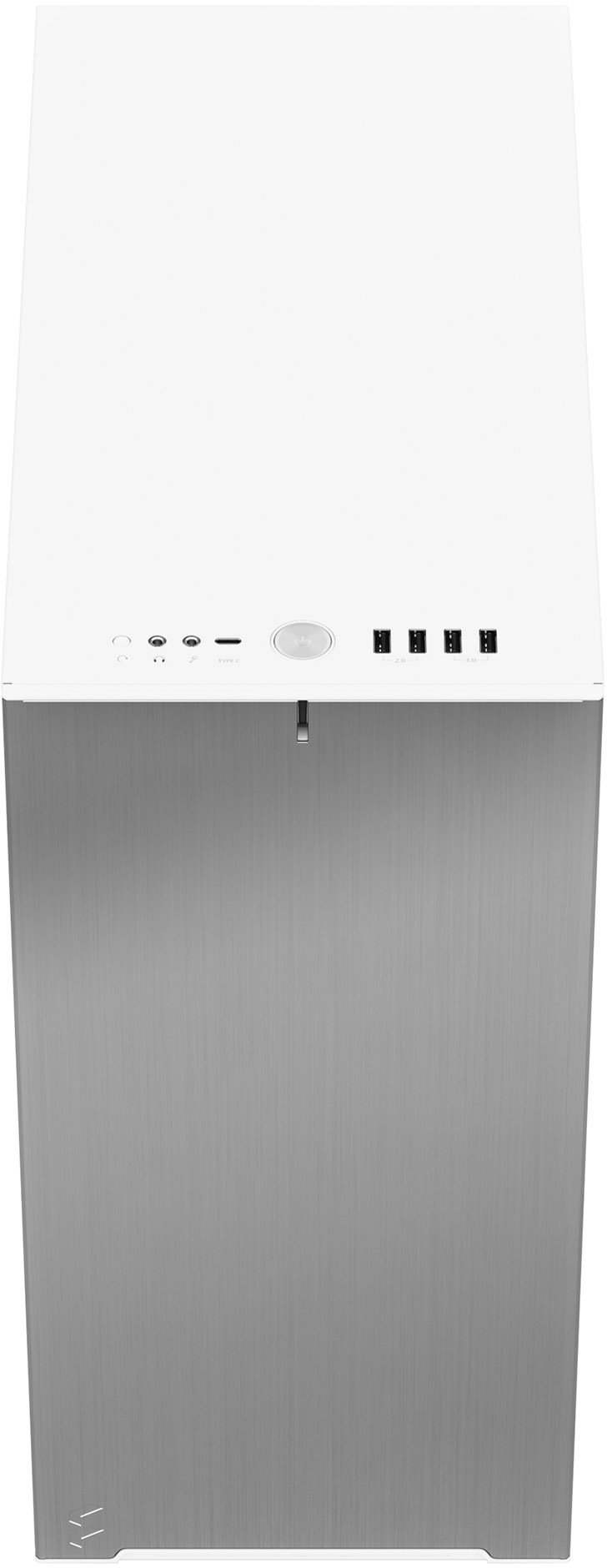

Five front USB ports including one USB 3.1 Gen 2 Type-C with fast charging support and speeds up to 10Gbps

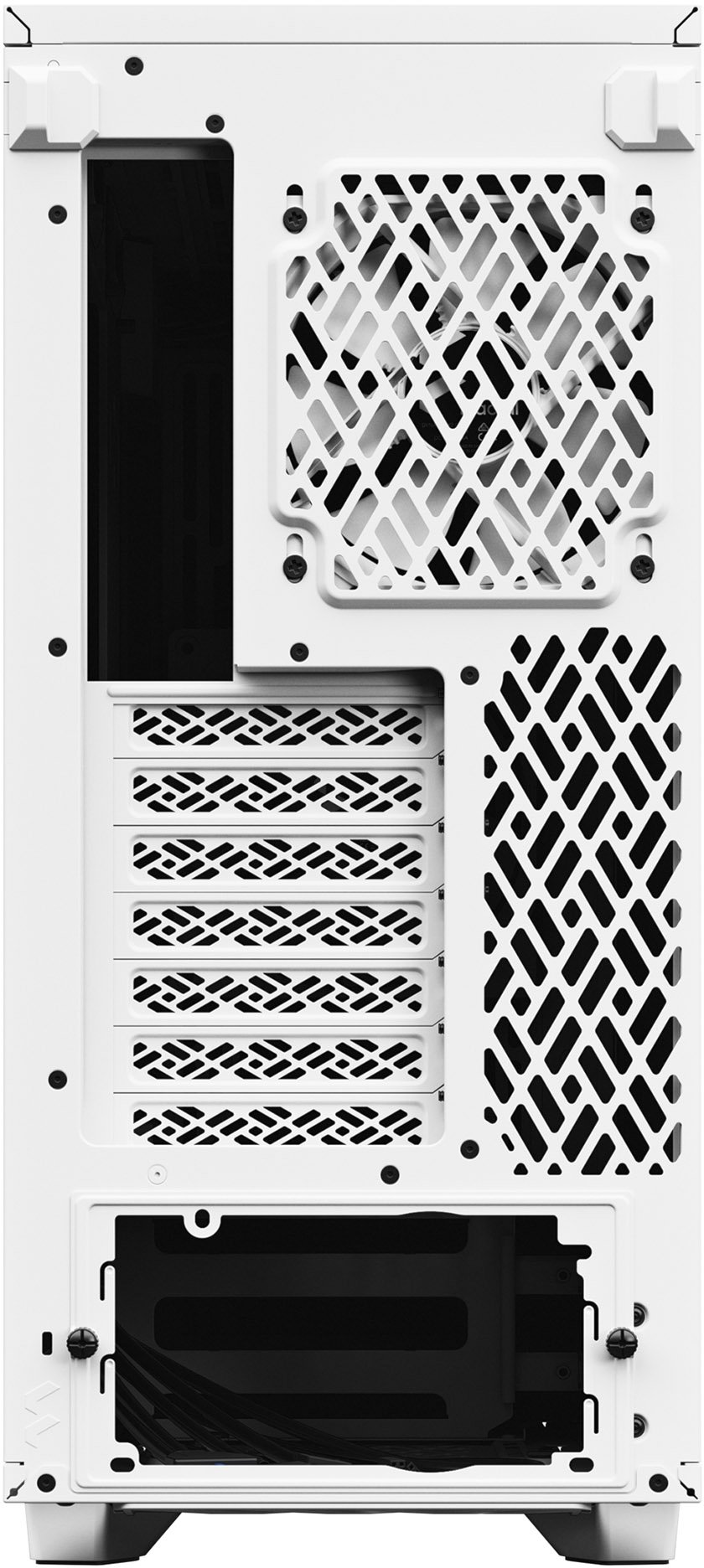

Bridgeless expansion slots ensure obstruction-free connections for easier installation and hookup
Ventilated PSU shroud with two-part removable cover for optimal coverage and front radiator support
Easy-to-clean high airflow nylon filters on the front, top and base with full PSU coverage and convenient front access

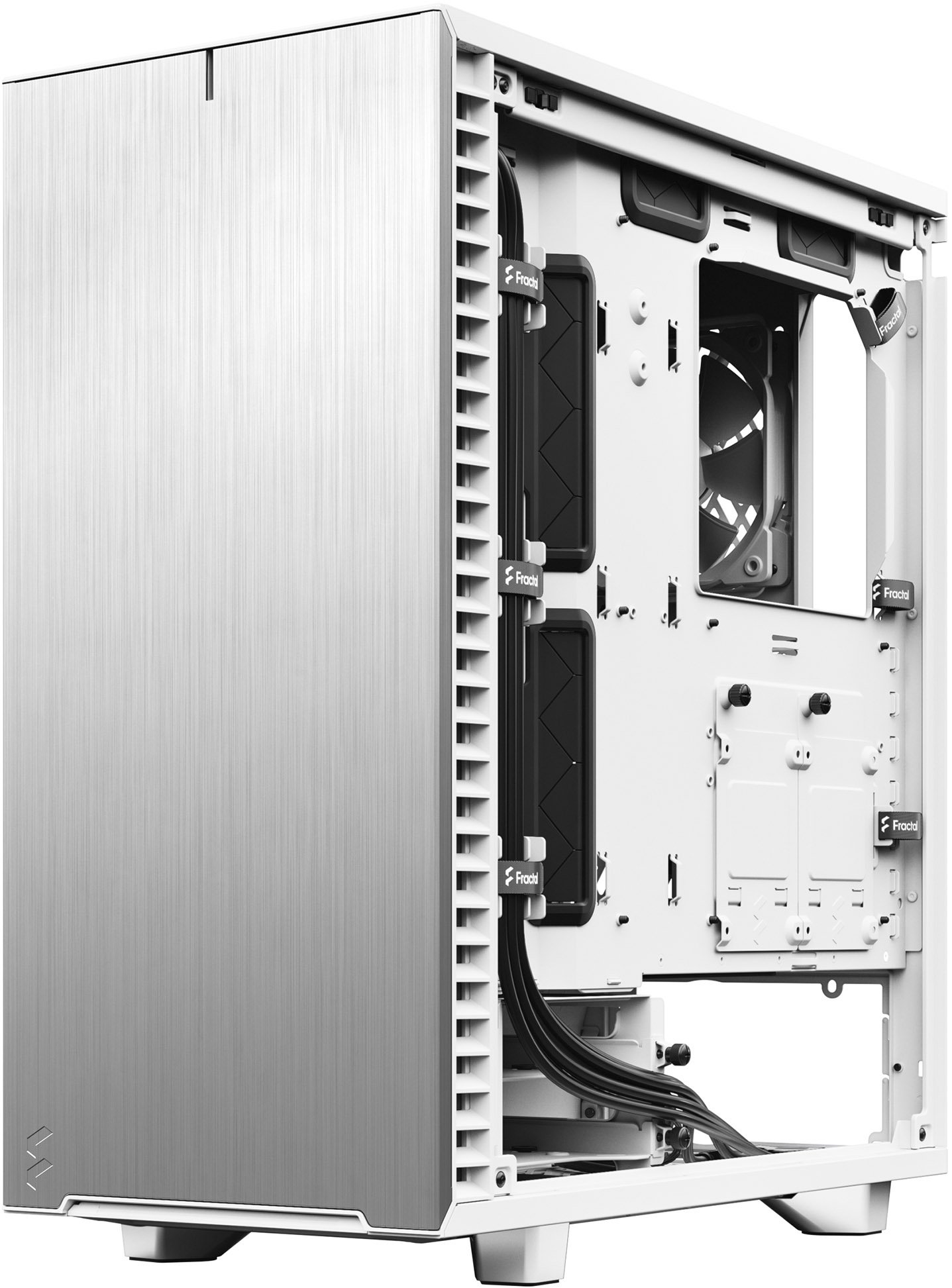

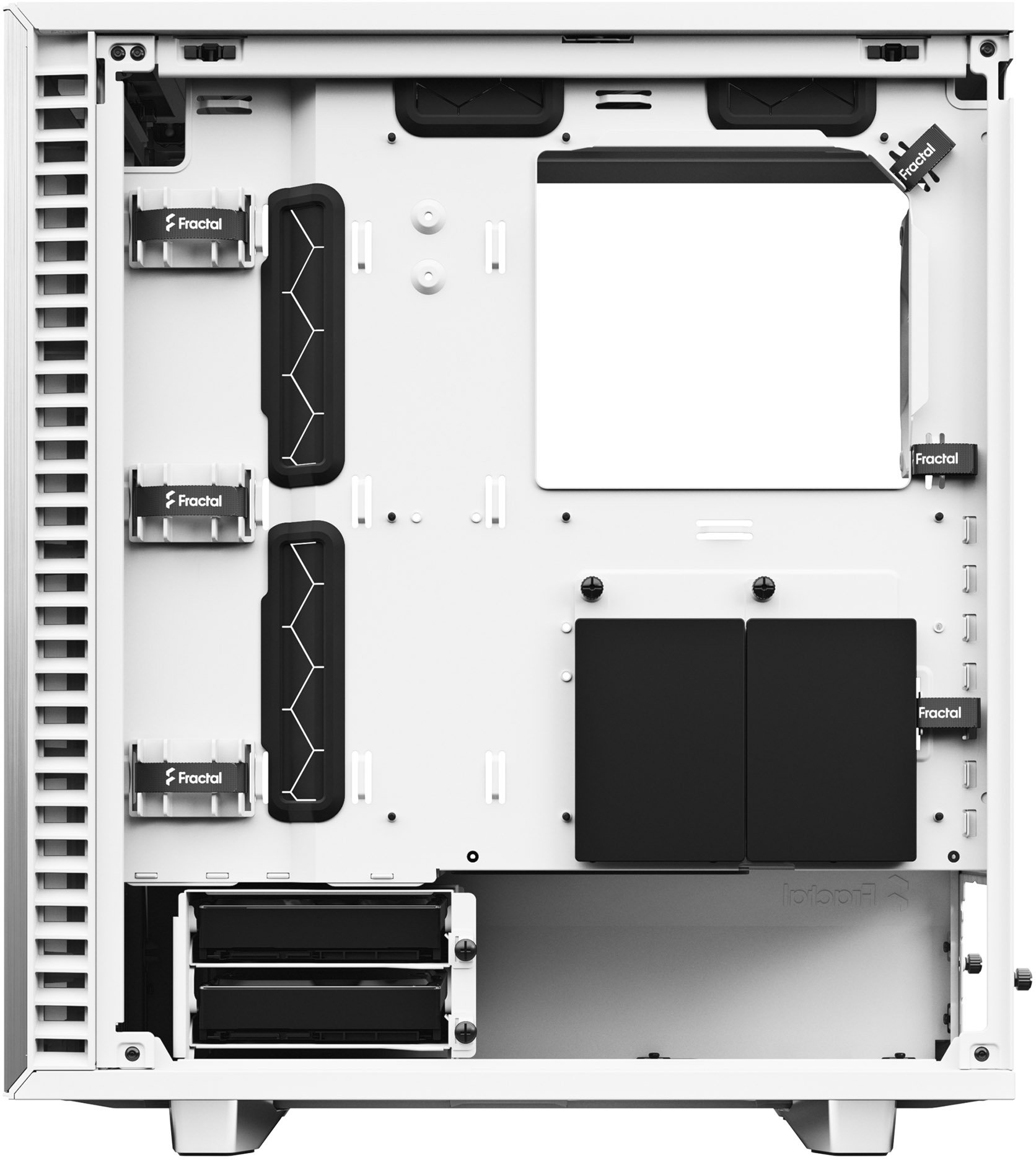

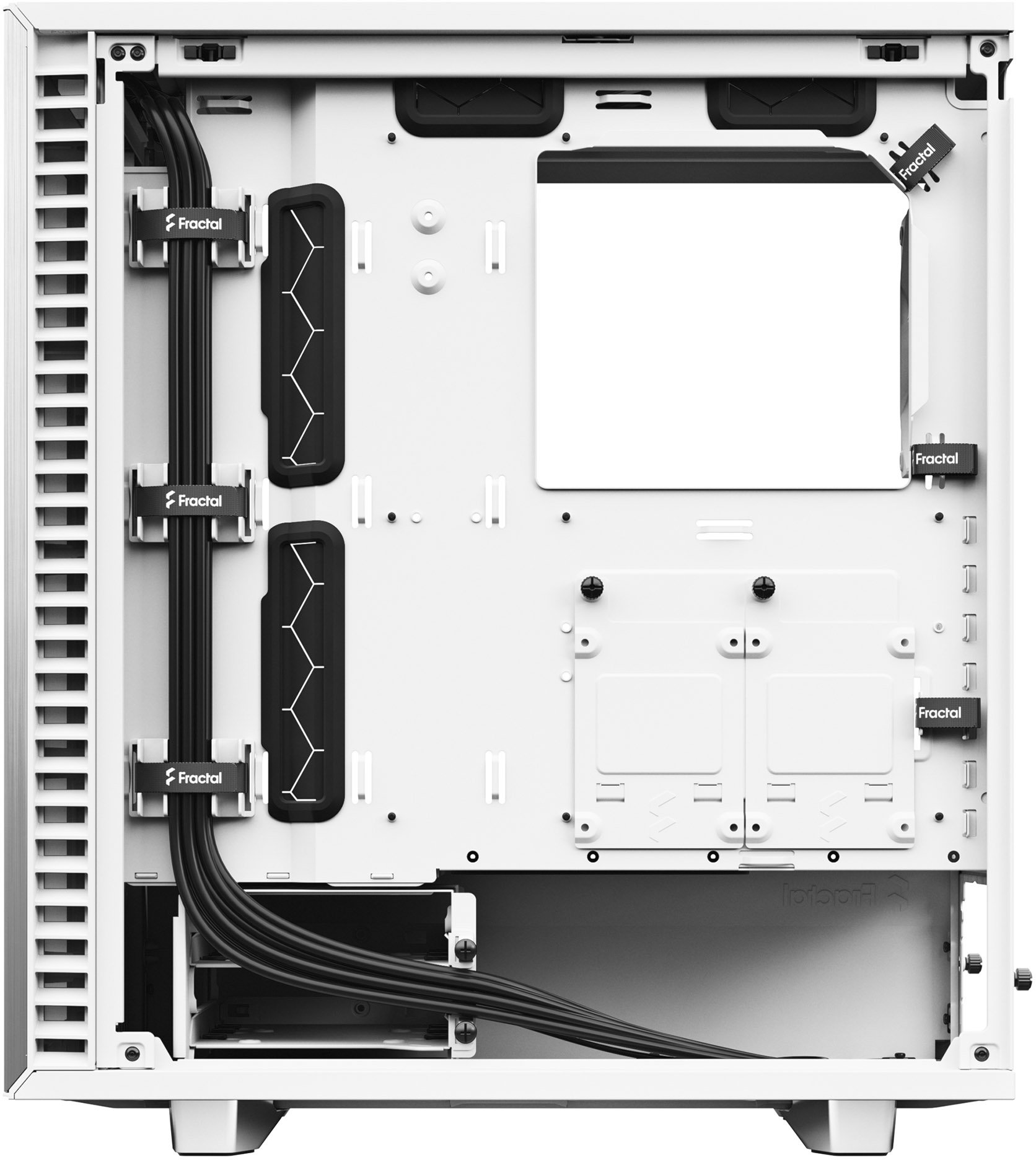

Integrated cable guides with Velcro straps further simplify cable management behind the board

Specifications

User Controls

Power
Reset

Storage

Internal Expansion Bays

2 x 2.5"
2 x 2.5"/3.5"

Expansion

Expansion Slots

7 x Full Height

Interfaces/Ports

USB Ports	1 x USB 3.1 Type-C 2 x USB 3.0 2 x USB 2.0
Headphone Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack

Electrical

Cooling System	Front: Supports 3 x 120mm or 2 x 140mm fans (1 x 140mm fan included) Top: Supports 2 x 120mm or 140mm fans Rear: Supports 1 x 120mm fan (included) Bottom: Supports 1 x 120mm fan (requires removal of HDD cage)
Power Supply	ATX Power Supply supported

Physical

Form Factor	Mid Tower Case
Case Colour	White with Light Tint Tempered Glass
Material	Steel Light Tint Tempered Glass
Motherboard Compatibility	ATX MicroATX Mini-ITX
In The Box	Define 7 Compact Accessory box User manual Ventilated top panel
Width	210 mm
Depth	427 mm
Height	474 mm
Weight	8.76 kg

Warranty

2 Years

Key Features

Firewire	No
Max Motherboard Width	244 mm
Max Motherboard Height	305 mm
Main Colour	White
Case Type	Tower
USB 3.0 Support	Yes
Case Form Factor	Mid Tower
Power Supply Included	No
Optimised for	Gaming
80Plus Rated	No
PSU Form Factor	ATX
Display Model in Showroom	No
Illuminated	No
e-SATA	No
L.E.D Fan	No LED
Max 3.5" Drives	2
Max 2.5" Drives	2
ATX	Yes
Micro-ATX	Yes
ITX	Yes
E-ATX	Yes
Cooler Height	169 mm
Built-in Card Reader	No
USB Type-C Support	Yes
Front HDMI	No
Side Panel Type	Tempered Glass
GPU Length	341 mm
PSU Depth	200 mm
Front Audio Type	Separate
Number of Fans	2 fan(s)
RGB LED Controller Included	No
LED Strip(s) Included	No
Fan Connector	4-pin PWM
Maximum Motherboard Size Supported	ATX
RGB Software Type	None
Total 2.5" + 3.5" drive bays	2
Power Requirement (auto)	6 W
USB2.0 ports	2
USB3.0 ports	2
USB-C ports	1
Low profile expansion	No
Vinyl Position - Top	Yes
Vinyl Position - Front	Yes
Vinyl Position - Left	Yes
Vinyl Position - Right	Yes
Max Supported Radiator Length	240 mm
Create Your Own Gaming PC (CCL)	Yes
Back Connect Support	No

Item Details

Manufacturer	Fractal
Manufacturer Code	FD-C-DEF7C-04
EAN	7340172702719
UPC	843276102715
Condition	New

Warranty

Warranty Information

Warranty

2 Years

Manufacturer Information

Manufacturer	Fractal
Manufacturer Code	FD-C-DEF7C-04
