Fibre optic cables use glass threads (fibres) to transmit data. These fibres transmit the data by using modulated light waves. Fibre cables are popular because they have a much greater bandwidth than the standard copper networking cables.

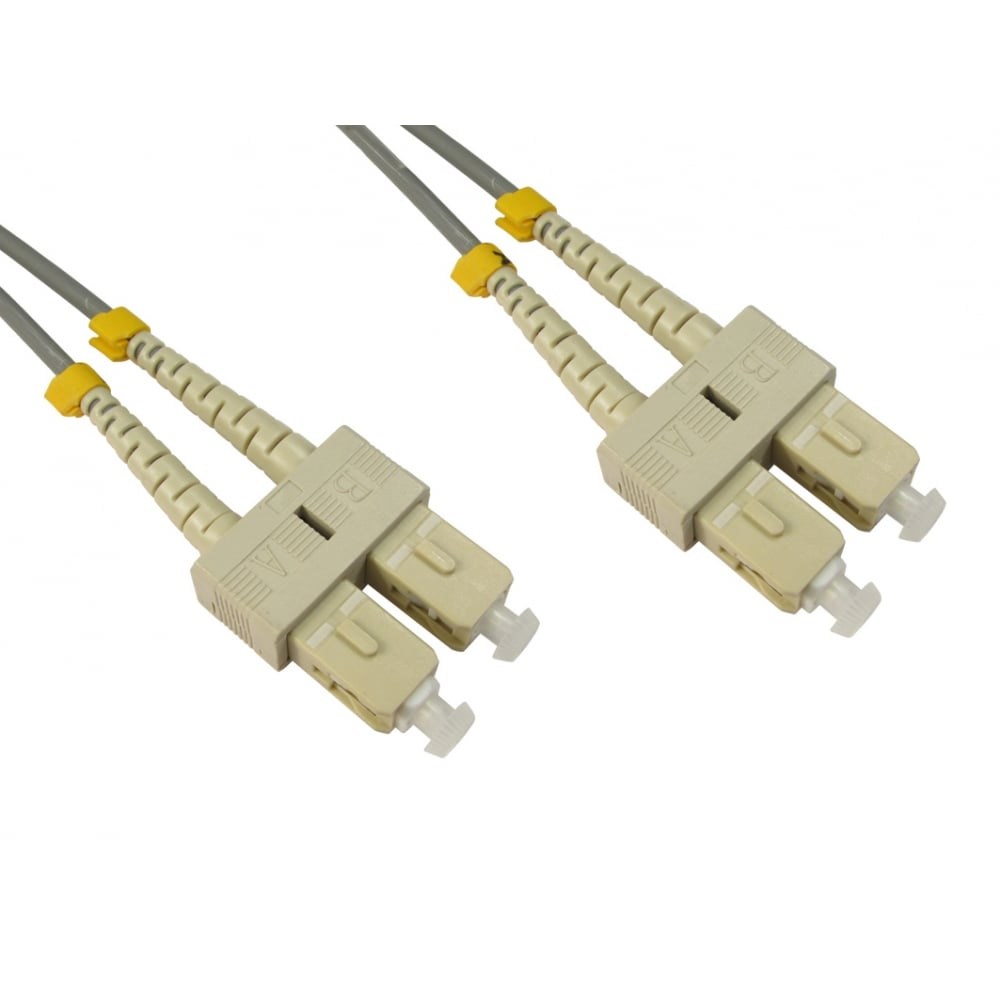

The cables have SC to SC connectors, grey low smoke zero halogen jacket and 62.5µm fibre core with 125µm cladding.
Main Features
- SC - SC Connectors
- 62.5nm core, 125nm cladding
- Duplex
- Multi-mode
- OM1
- Bandwidth: 160 / 500MHz
- Grey LSZH jacket
- Insertion Loss 0.3dB
- Diameter 3.0mm
- Bend radius: 60mm
- Operating temperature : -20 - 60 degrees C
