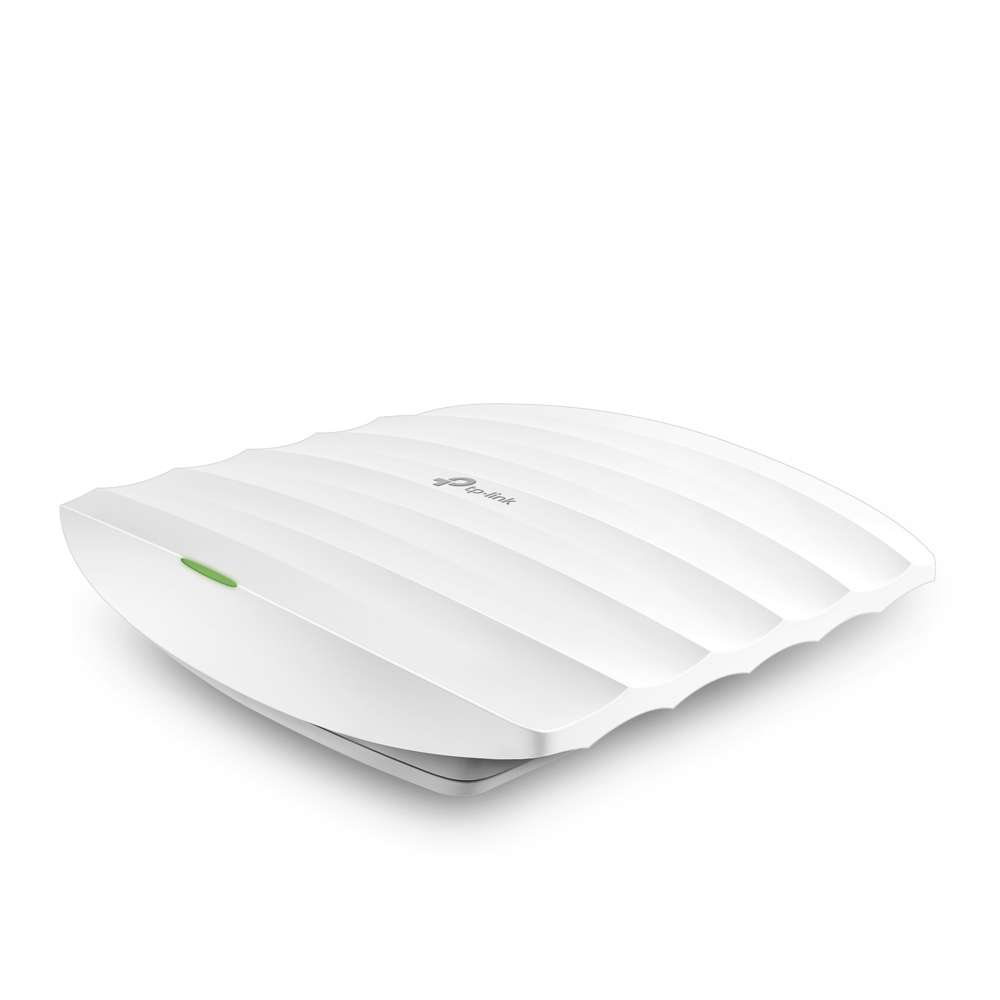

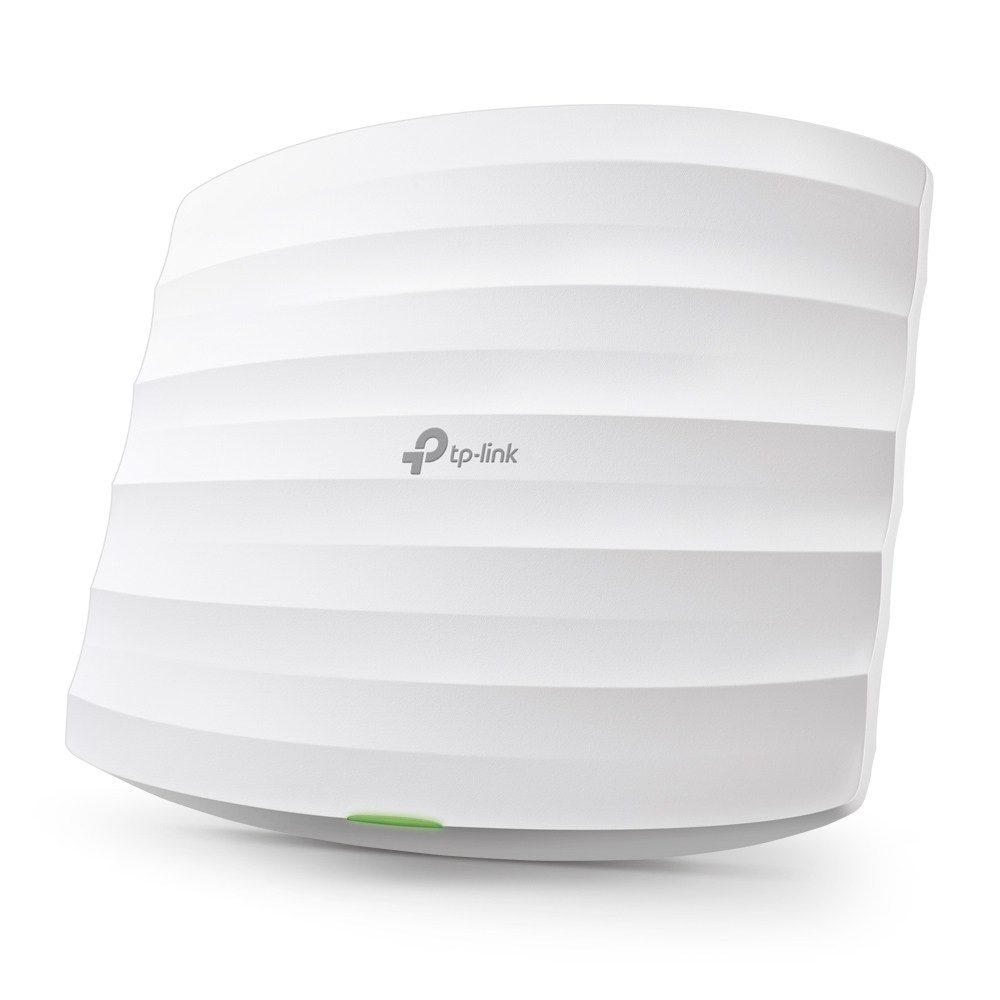

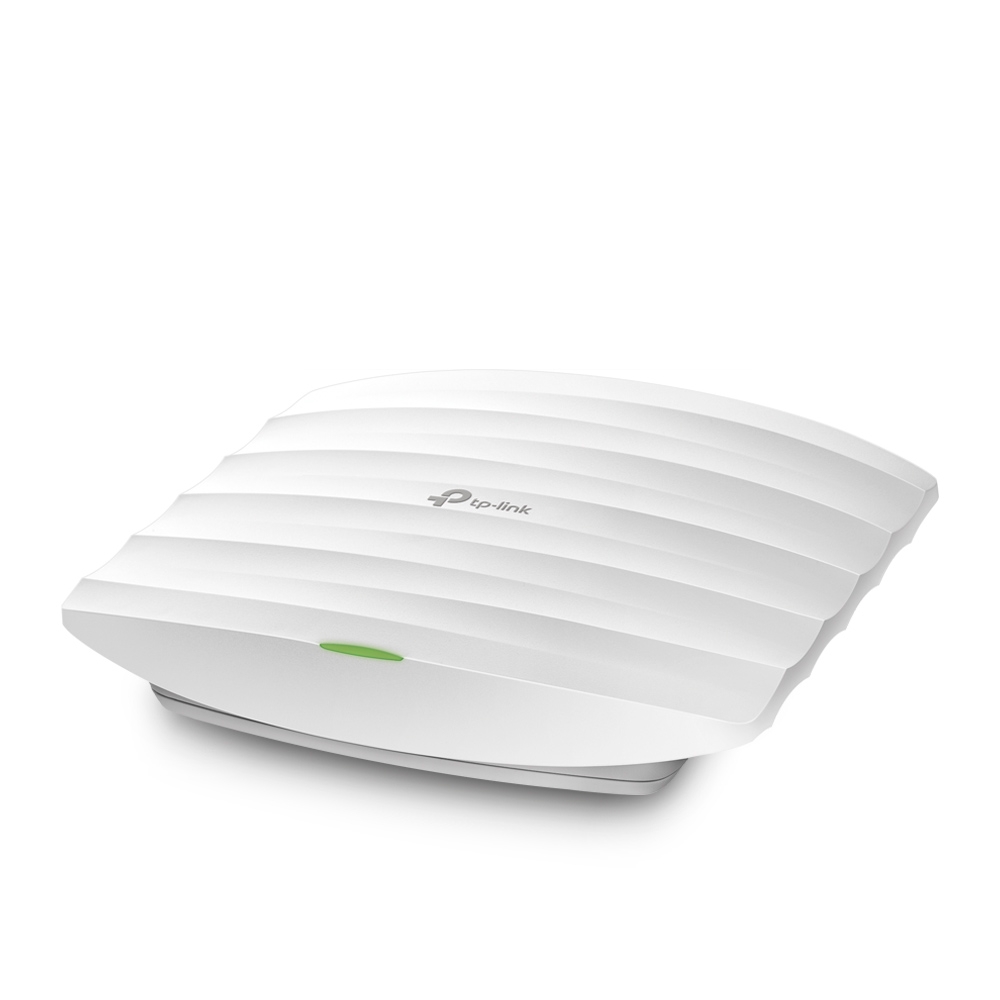

TP-Link EAP225 AC1350 Wireless MU-MIMO Gigabit Ceiling Mount Access Point
Available for delivery from Thursday 2nd July
Click & Collect from Friday 3rd July
Order within
You have 0 of these in your basket
Boost Your Business with Wireless AC
With AC1200 Wi-Fi and advanced 2x2 MIMO technology, the EAP225 access point is perfect for small offices, campuses and the restaurant and hospitality industries. Band-Steering greatly improves the performance of connected dual-band devices, and high-gain antennas create a powerful signal that can easily pass through walls.
Layer 3 management capabilities combine with EAP Controller software to allow IT staff to easily manage hundreds of EAPs across multiple sites. Administrators can easily implement rate limiting to reserve bandwidth, creating a better Wi-Fi experience for all client devices. Additionally, Guest Access and Captive Portal features control connections to your network via vouchers or a credential authentication page for greater management flexibility.
Product Specifications
- 2.4 GHz: 300 Mbps & 5 GHz: 867 Mbps
- 1x Gigabit Ethernet
- 802.3af PoE
Easy EAP Deployment
The EAP’s low profile chassis makes it easy to install on any wall or ceiling while blending in with existing décor. Power over Ethernet (PoE) increases the EAP’s flexibility for deployment with wired networks. Set up and configure your business network for faster performance without needing professional IT support or training.
EAP Controller Software
EAP Controller Software for Centralized Management Free EAP Controller Software makes it easy to set up and control hundreds of access points from a centralized location.
Easily monitor statistics, create a captive portal, manage traffic, map and run a free, customized site survey, upgrade and reboot your system and even scale your network. No added cost, special training or IT support needed.
Captive Portal
Captive portal improves network security while providing the administrative tools needed to create a secure and intuitive authentication experience for Wi-Fi guests.
Easily control connections to your network by using a voucher system and customized authentication page to provide a branded experience, advertise to customers or limit network access.
Load Balance
The Load Balance feature keeps your Wi-Fi running smoothly by distributing network traffic across multiple EAPs, so a single device is never burdened or overloaded with data. This level of redundancy provides a seamless and uninterrupted experience for customers and employees.
Dual Band Wi-Fi
Dual 2.4 GHz and 5 GHz bands deliver up to 1200 Mbps of Wi-Fi speed, allowing more devices to be connected to your wireless network at once. Send e-mails, stream in HD and share large files across your network without experiencing a drop in your network or standards of efficiency.
Lifetime Service and Industry-Leading Warranty
Need help setting up your TP-Link device? Our team is here 24/7 to provide no-cost technical support, including setup assistance, no matter when you purchased our product. Plus, our 2-year warranty gives you worry-free service.*
Features and Specifications
- Better Wi-Fi with 1200 Mbps combined speeds (300 Mbps on 2.4 GHz and 867 Mbps on 5 GHz bands)
- Multiple SSIDs for business segments
- Easily setup, manage and monitor hundreds of EAP's from a single connection
- Mountable chassis design make it easy to install on a wall or ceiling
- Convenient employee and guest authentication with captive portal
- Rate-limiting balacnes bandwith for all devices and clients
- Supports the 802.3af Power over Ethernet (PoE) standard for convenient installation
Network
- Network Speeds Supported: 10/100/1000 Mbps
Wireless LAN
- Frequency Band: 2.4GHz to 5 GHz
- Speed Options: 5GHz: 867Mbps • 2.4GHz: 300 Mbps
- Transmit Power: 27 dBm
- Encryption: 64/128/152-bit WEP
- Antenna Type: Internal Omni (2.4GHz 2 x 4dBi, 5GHz 2 x 4dBi)
- RF Network Standard: IEEE 802.11a/b/g/n/ac
Interfaces/Ports

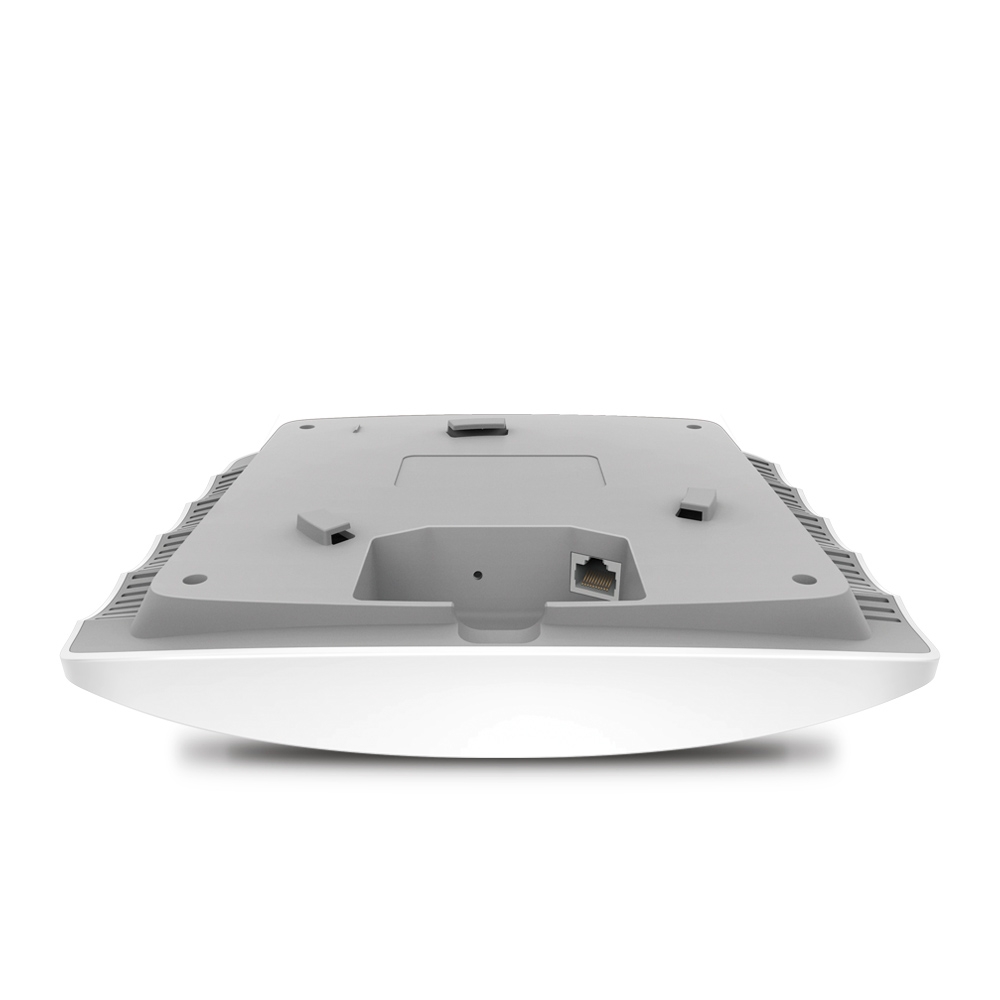

- LAN Ports: 1 x RJ-45
System
- Security: Kensington Lock Slot • Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support • 64/128/152-bit WEP / WPA / WPA2-Enterprise, • WPA-PSK / WPA2-PSK
- Management: EAP Controller Software, Email Alerts, LED ON/OFF Control, Management MAC Access Control, SNMP v1 v2c, System Logging Local/Remote Syslog, Telnet, Web-based Management HTTP/HTTPS, L3 Management, Multi-site Management
- Internet Services: Multiple SSIDs(Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Band Steering • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
System Requirements
- Operating Systems Supported: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Compliance
- Certifications: CE, FCC, RoHS
Electrical
- Power Adaptor Output Voltage: 12 V DC
- Power Consumption: 10 W
- Power Adaptor Type: External
- Power over Ethernet Supported: Yes
- Power over Ethernet (PoE) Standards: IEEE 802.3af
Environmental
- Operating Temperature: 0 to 40 °C
- Operating Humidity: 10 to 90 %
Physical
- Form Factor: Wireless Device

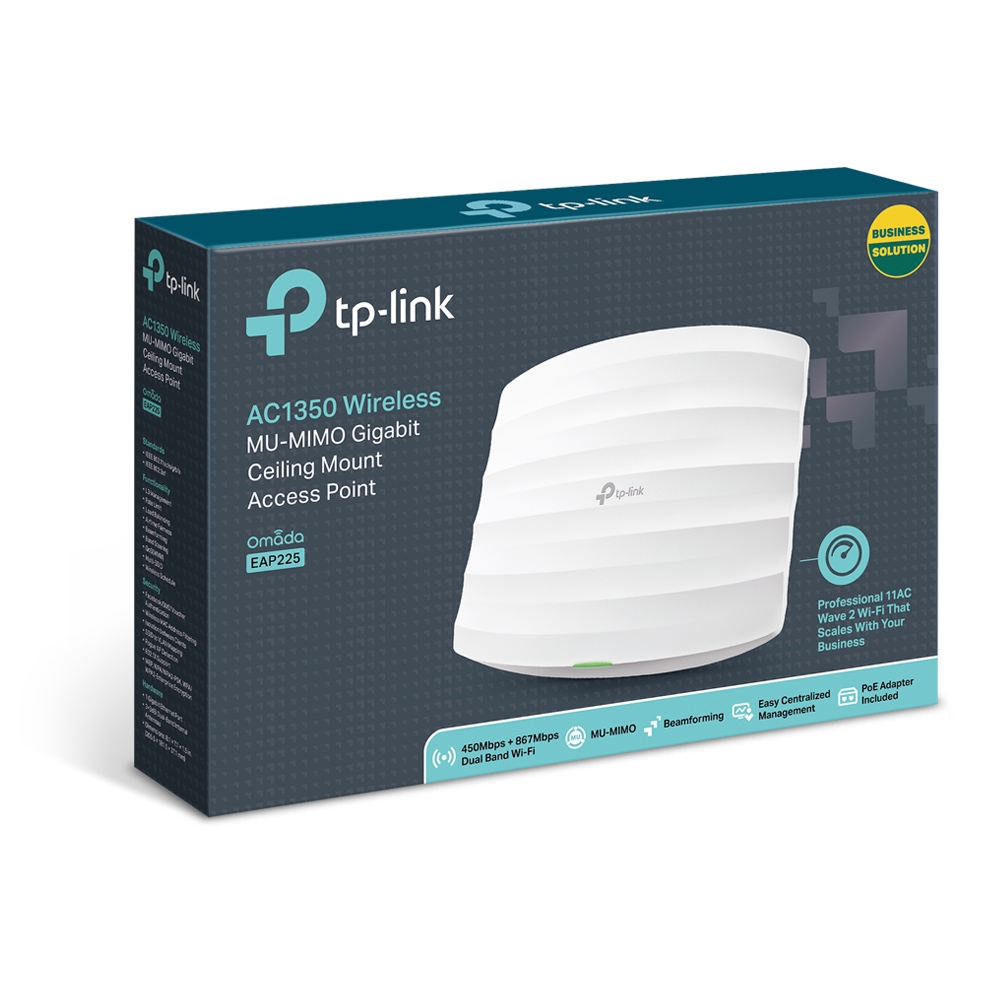

- In The Box: AC1200 Wireless Dual Band Gigabit Access Point EAP225 • Power Adapter • Mounting Kits • Installation Guide
- Width: 18.0 cm
- Depth: 18.0 cm
- Height: 4.75 cm
- Case Colour: White
Warranty
- Warranty: Three years warranty.
Identifiers
- Stock Code: NET2548
- Mfg Code: EAP225
Warranty
- Warranty: Three years warranty.
