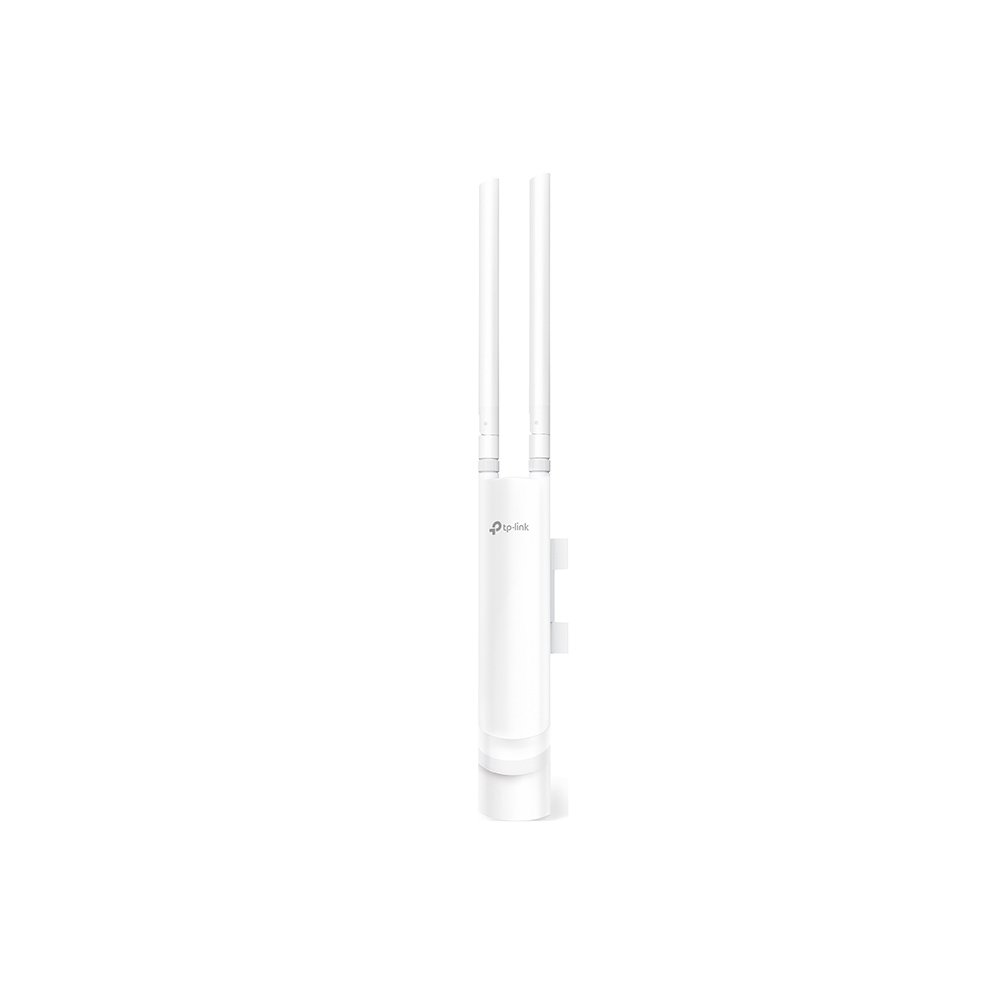

TP-Link AC1200 EAP225 867Mbps (5GHz) 300Mbps (2.4GHz) Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point (White) - V1.0
Gigabit Wi-Fi Speeds with MU-MIMO Technology
EAP225-Outdoor supports simultaneous dual band speed of up to 1200Mbps. Outfitted with the latest 802.11ac Wave 2 MU-MIMO technology, EAP225-Outdoor can communicate with multiple clients at the same time which making it ideal for high density environment.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Detachable Antennas
EAP225-Outdoor is designed with 2 Omni-directional detachable antennas, which means other antennas can also be attached for your specific demands.
Delicate Appearance Even Better for Indoor Applications
EAP225-Outdoor is just similar to a cellphone, with dimension: 8.5 × 1.8 × 1.1in. (215 × 46 × 27mm)
Multiple PoE Options for Easy Installation
EAP225-Outdoor supports both 802.3af PoE and Passive PoE power supply, can be either powered by a PoE switch or the provided PoE adapter.
Flexible Deployment

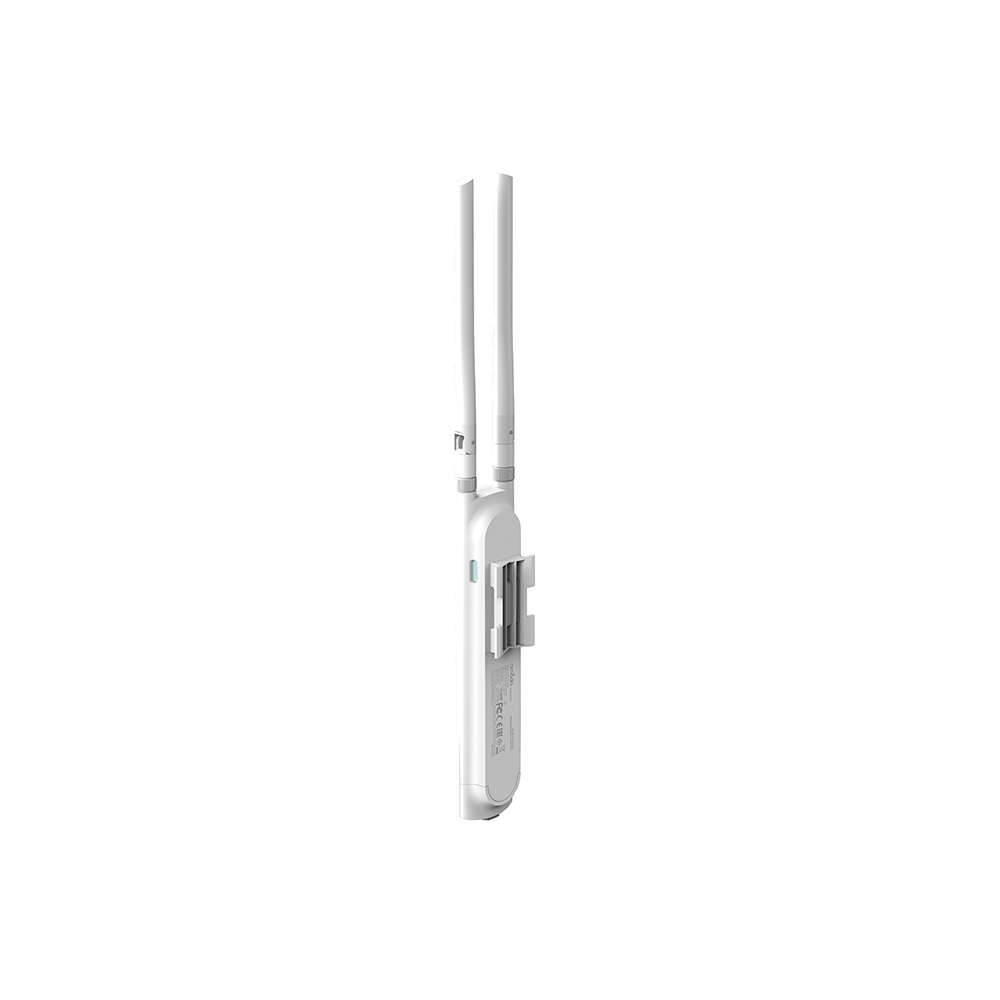

EAP225-Outdoor can be easily installed on a wall or to a pole with the mounting kits provided.
Wi-Fi That Goes the Distance
With high transmission power and high gain omnidirectional antennas, EAP225-Outdoor provides stable wireless coverage at a range up to 200m+* at 2.4GHz and 300m+* at 5GHz in outdoor settings.
Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against harsh outdoor condition.
Efficient Centralized Network Management
With Omada Controller software, small and medium-sized businesses can take command of hundreds of indoor and outdoor access points all from a single location. It’s network management as it should be - efficient and intuitive.
Network
- Network Speeds Supported: 10/100/1000 Mbps
Wireless LAN
- Frequency Band: 2.4GHz to 5 GHz
- Speed Options: 5GHz: 867Mbps • 2.4GHz: 300 Mbps
- Transmit Power: 20 dBm
- Encryption: 64/128/152-bit WEP
- Antenna Type: 2 Dual-Band Omni Antennas (2.4G: 3dBi, 5G: 4dBi)
- RF Network Standard: IEEE 802.11a/b/g/n/ac
Interfaces/Ports
- LAN Ports: 1 x RJ-45
System
- Security: Captive Portal Authentication • Access Control • Wireless Mac Address Filtering • Wireless Isolation Between Clients • SSID to VLAN Mapping • Rogue AP Detection • 802.1X Support
- Management: Omada Controller Software, Email Alerts, Management MAC Access Control, System Logging Local/Remote Syslog, Web-based Management, L3 Management, Multi-site Management, Management VLAN
- Internet Services: Multiple SSIDs(Up to 16 SSIDs, 8 for each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • MU-MIMO • Airtime Fairness • Beamforming • Band Steering • Load Balance • Rate Limit • Reboot Schedule • Wireless Schedule • Wireless Statistics based on SSID/AP/Client
System Requirements
- Operating Systems Supported: Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Electrical
- Power Adaptor Output Voltage: 24 V DC
- Power Consumption: 10 W
- Power Adaptor Type: External
- Power over Ethernet Supported: Yes
- Power over Ethernet (PoE) Standards: IEEE 802.3af
Environmental
- Operating Temperature: -30 to 70 °C
- Operating Humidity: 10 to 90 %
Physical
- Form Factor: Wireless Device
- In The Box: AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point • EAP225-Outdoor • Power Adapter • Mounting Kits • Installation Guide
- Width: 21.5 cm
- Depth: 4.6 cm
- Height: 2.7 cm
- Case Colour: White
Warranty
- Warranty: Three years warranty.
Identifiers
- Stock Code: NET2891
- Mfg Code: EAP225-OUTDOOR
