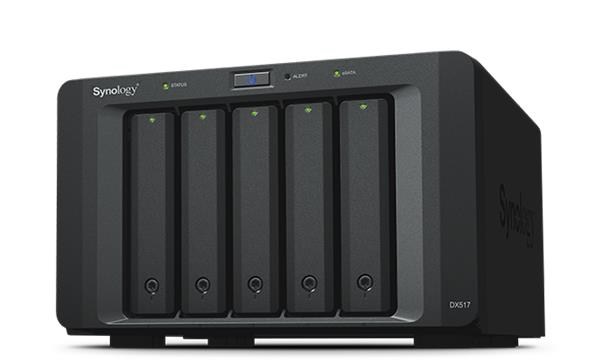

Synology DX517 5-Bay Desktop NAS Enclosure Expansion

Synology DX517 5-Bay Desktop NAS Enclosure Expansion

CCL Code: NAS0308

Discontinued

Synology DX517 5-Bay Desktop NAS Enclosure Expansion

DX517

Key Features:

  • Number of Bays: 5
  • Max Drive Capacity: 12TB
  • Accepts 2.5 & 3.5" Hard Drives
  • Desktop Form Factor
CCL Code: NAS0308

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Synology DX517 offers simple storage capacity expansion solution for your DiskStation through its intuitive plug-n-use design. DX517 allows you to instantly scale up to 5 additional hard drives, so that you can expand RAID volume online or deploy the drives as a dedicated local backup destination for your Diskstation. Synology DX517 is backed by Synology's 3-year limited warranty. Easily add 5 additional drive bays to Synology DiskStation1. Supporting both 2.5 and 3.5 SATA drives, DX517 is a flexible solution supporting on-the-fly volume expansion or serving as a local backup destination. Managed from DiskStation Manager on the host NAS, the additional bays in the DX517 are immediately ready to be used once connected. On-the-fly volume expansion ensures that storage and services on the host are not interrupted during volume expansion. The hot-swappable drive trays of DX517 allow easy drive installation and replacement without powering down the system. Screwless drive tray design reduces the time needed for system setup. Synology DX517 can be used as a dedicated local backup solution for the Synology DiskStation. When created as a separate volume, the DX517 provides a great backup solution to its local hard disks in case of system failure.

Main Features

  • Online volume expansion on the fly
  • Dedicated Local Backup Solution
  • Hot-swappable drive tray design
  • Synchronized system operation with DiskStation
Specifications

Physical

Case Colour Black
In The Box DX517 main unit x 1 • Quick Installation Guide x 1 • Accessory pack x 1 • Expansion cable: eSATA x 1 • AC power cord x 1
Width 24.8 cm
Depth 23.3 cm
Height 15.7 cm
Weight 3.91 kg
Warranty 3 years warranty
Form Factor Desktop
Pack Quantity 1

Storage

Number of Hard Disks 0
Number of Bays 5

Compatibility

Compatibility DS1517 • DS1517+ • DS1817 • DS1817+

Interfaces/Ports

USB Support None
USB 2.0/ USB3.0 No
SATA 1 x eSATA Port

Compliance

Certifications FCC Class B • CE Class B • BSMI Class B • RoHS

Electrical

Power Supply 200W
Electrical Voltage 100 to 240 V AC
Electrical Power Consumption 29.9 W
Electrical Frequency 50 to 60 Hz
System Fans 2 x (80mm x 80mm)

Environmental

Operating Temperature 5 to 40 °C
Noise Level (full operating mode) 21.5 dbA
Relative Humidity 5 to 95 %
Altitude (Operating) 2000 m

Key Features

Disk Form Factor 2.5" & 3.5"
PC Connection Type eSATA
HDD Connection SATA III
Enclosure Type Expansion Unit
Maximum Supported Drive Capacity 12 TB
Supports RAID 0 Yes
Supports RAID 1 Yes
Supports RAID 1+0 Yes
Supports RAID 5 Yes
Supports RAID 6 Yes
Supports JBOD Yes

Item Details

Manufacturer Synology
Manufacturer Code DX517
EAN 0846504002672
Condition New
Warranty

Manufacturer Information

Manufacturer Synology
Manufacturer Code DX517
