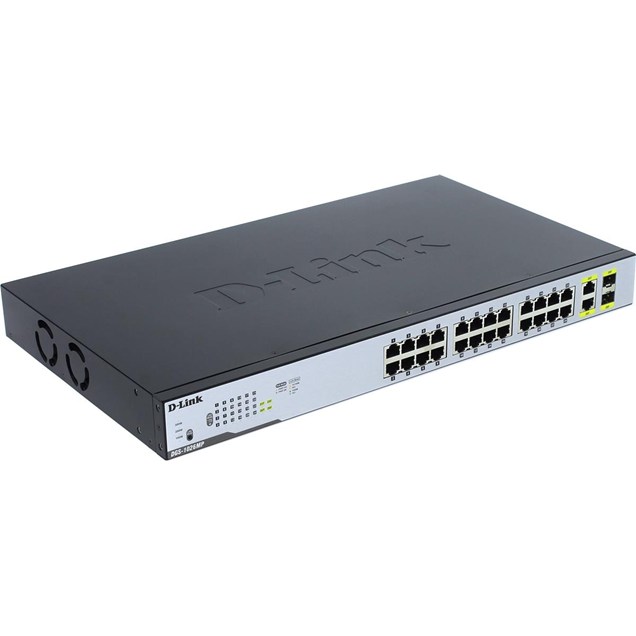

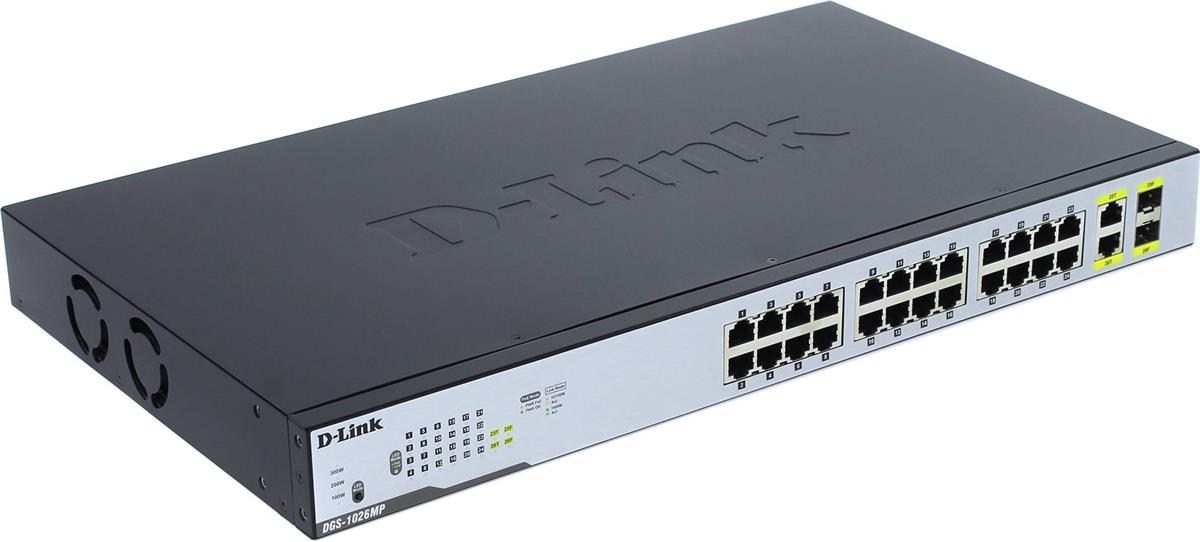

D-Link 26 Port Gigabit Max PoE Switch

D-Link 26 Port Gigabit Max PoE Switch

CCL Code: NET3197

Sold out

Notify Me

D-Link 26 Port Gigabit Max PoE Switch

DGS-1026MP

CCL Code: NET3197

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

The D-Link DGS-1026MP 26-Port Gigabit Max PoE Switch enables users to easily connect and power PoE-capable devices such as wireless access points (APs), IP cameras, and IP phones. The DGS-1026MP features 24 10/100/1000BASE-T ports that support the IEEE 802.3at PoE+ standard. Each of the 24 PoE ports can supply up to 30 W, with a total PoE budget of 370 W. The PoE usage LEDs further provide real-time feedback on the current PoE power usage on the network and helps plan out the PoE network budget, preventing PoE overloading problems. With 2 x Gigabit combo uplink ports, businesses have additional flexibility their network deployment, offering a choice for upstream or downstream server connections via a fibre or copper interface. To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE). This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required. The DGS-1026MP is a plug-and-play device that requires no configuration, so setup is simple and hassle-free. Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network.

Main Features

  • To help small businesses save on operating costs, the DGS-1026MP supports IEEE 802.3az Energy Efficient Ethernet (EEE)
  • This feature actively monitors network traffic and automatically puts ports that are not being used into hibernation, powering them on only when they are required
  • Simply connect the switch to the network and then connect multiple computers, share files and make VoIP calls across the network
Specifications

Memory

Buffer Memory 0.512 MB

Performance

MAC Addresses 8,000
Mean Time Between Failure (MTBF) 205975 Hours
Packet Forwarding Rate 38.69M pps
Stacking Bandwidth (Max) 52 Gbps

Interfaces/Ports

PoE Supported Yes
Power over Ethernet (PoE) 30 Watts per port
Power over Ethernet (PoE) Standards IEEE 802.3af • 802.3at
Number of Fixed Ports 24 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100/1000 Mbps
Number of Uplink Ports 2 port(s)
Uplink Port Connector RJ-45/SFP
Uplink Port Speed 10/100/1000 Mbps

Compliance

Emissions FCC Class A • CE • CCC • RoHS • VCCI • BSMI • RCM
Safety UL/CSA 60950-1 • EN 60950-1 IEC 60950-1

Electrical

AC Voltage Range 100 to 240 V AC
Power Consumption 444.1 W
Electrical Frequency 50 to 60 Hz
Power Adaptor Type External

Environmental

Heat Dissipation 1515 BTUs per Hour
Operating Temperature 0 to 50 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Switch
Case Colour Black
LED Status Indicators Power • PoE Power Budget • Activity/Link • Speed • Power Fail • Power OK
Width 44 cm
Depth 25 cm
Height 4.4 cm
Weight 3.1 kg

Key Features

Main Colour Black
LAN Port(s) Speed 10/100/1000

Warranty

Warranty 1 Year

Item Details

Manufacturer DLink
Manufacturer Code DGS-1026MP
EAN 0790069426667
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer DLink
Manufacturer Code DGS-1026MP
Reviews
No reviews have been received for this product yet
