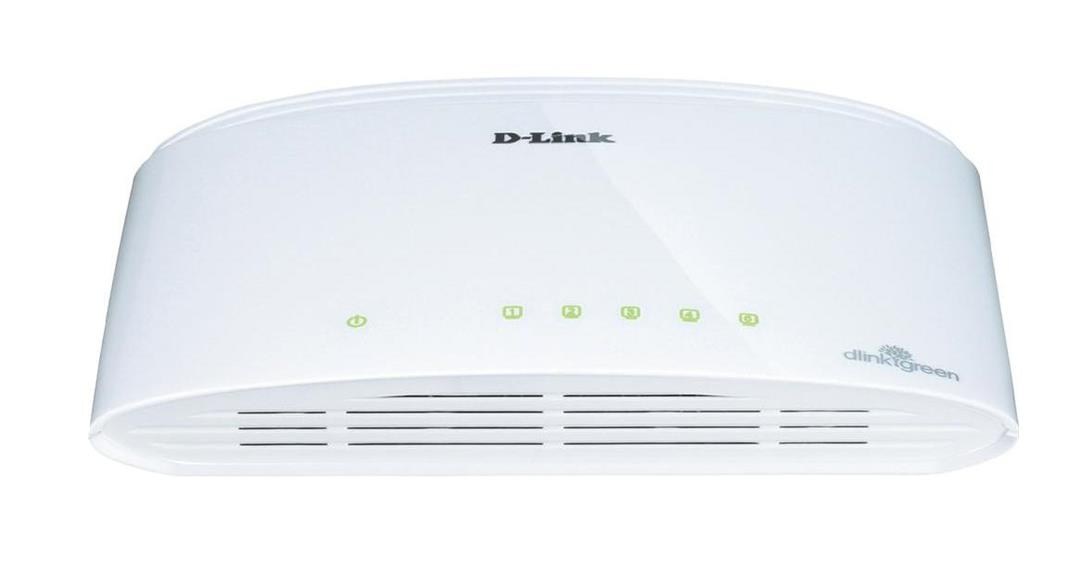

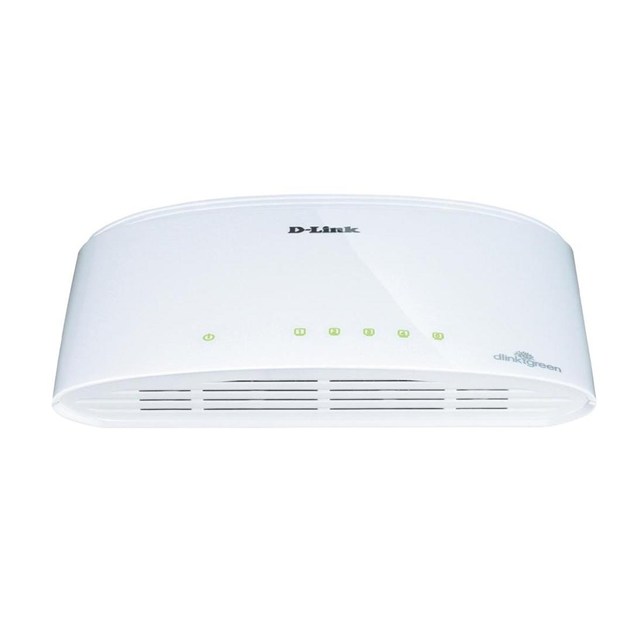

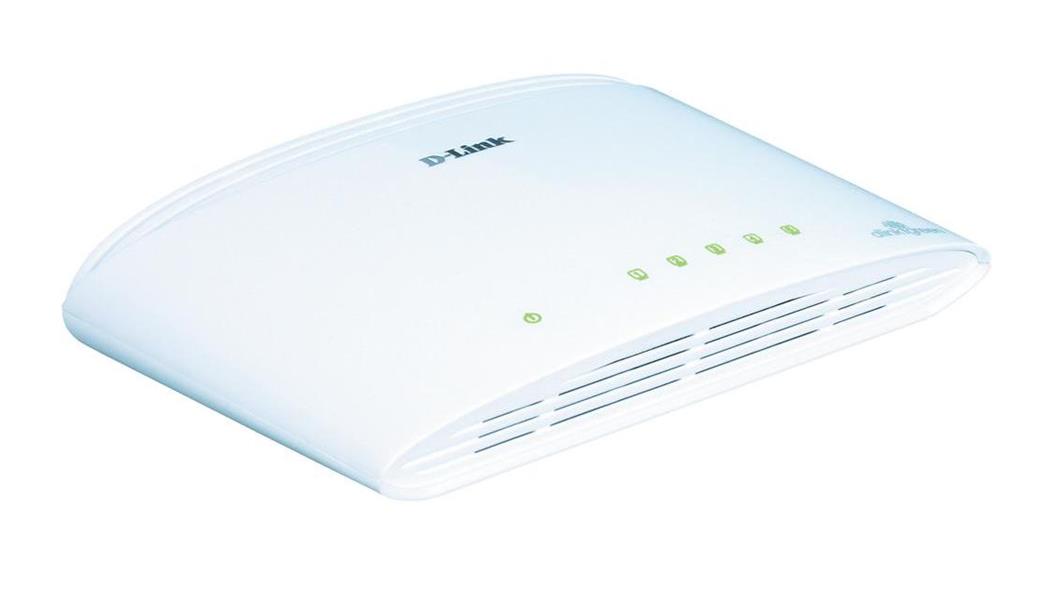

DLink DGS-1005D 5-Port Gigabit Desktop Switch

DLink DGS-1005D 5-Port Gigabit Desktop Switch

CCL Code: NET1066

Discontinued

DLink DGS-1005D 5-Port Gigabit Desktop Switch

DGS-1005D

Key Features:

  • 5 x Gigabit Ports
  • Switch Type: Unmanaged
  • Form Factor: Desktop
CCL Code: NET1066

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

The latest hardware revision of the switch (D1) introduces the first energy-saving features in the networking arena. By sensing whether attached devices are ON or OFF and estimating the cable length, the switch is able to adjust its power consumption, for a total saving of up to 27%. This desktop switch offers an economical way for the SOHO and small and medium business (SMB) to benefit from the increased bandwidth of Gigabit Ethernet. It provides 5 Gigabit ports for fast server deployment to meet increasing network load. With plugand- play installation and copper Gigabit ports capable of connecting to your existing Cat. 5 twisted-pair cable, this device instantly enhances your workgroup's performance without requiring you to install expensive fibre cables or to go through complex reconfiguration. 5 Gigabit ports provide an inexpensive alternative solution to fibre-optic. Using your existing low-cost Cat. 5 copper twisted-pair wires as the transmission media, these ports allow you to instantly upgrade your servers to Gigabit capability without requiring you to install new, expensive fibre cables. All ports support 10/100/1000Mbps network speed auto-sensing and full/half duplex auto-negotiation. The Gigabit ports provide dedicated bandwidths for your servers running at 2000Mbps full-duplex. This gives workstations bottleneck-free paths to simultaneously access server data.

Main Features

  • Power-saving feature, up to 27% less power consumption (Green Ethernet version only)
  • 5 Gigabit Ethernet ports
  • Plug-and-Play installation
  • Desktop size, no fan
Specifications

Memory

Buffer Memory 0.25 MB

Performance

MAC Addresses 8,000
Packet Forwarding Rate 1000 Mbps port: 1,488,100pps • 100 Mbps port: 148,810pps • 10 Mbps port: 14,880 pps
Topology Star

Interfaces/Ports

Network Speeds Supported 10/100/1000 MBps
Full Duplex Capabilities 10/100Mbps: Half/Full • Gigabit: Full
Number of Fixed Ports 5 port(s)
Fixed Port Speed 10/100/1000 Mbps
Fixed Ports/Connectors 5 x RJ-45

Compliance

Standards Compliance IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x Flow Control

Warranty

Warranty Limited 5-Year Warranty for as long as the original customer/end user owns the product, (excluding power supplies and fans). Power supplies and fans carry a limited 3-year warranty.

System

Certifications Emission (EMI): FCC Class A, CE Class A, VCCI Class A • Safety: CUL (UL 60950), LVD (EC 60950)

Electrical

Power Consumption 9 W
Power Adaptor Type External
Power Requirements 5VDC, 2.5A

Environmental

Operating Temperature 0 to 50 °C
Operating Humidity 5 to 95 %

Physical

Form Factor Desktop Unit
Case Colour Blue/Silver
LED Status Indicators Per port: 100Mbps speed, 1000Mbps speed, Link/Act • Per device: Power
Width 19.25 cm
Depth 11.85 cm
Height 3.2 cm

Key Features

PoE Supported No
Switch Type Unmanaged
Switch Form Factor Desktop
LAN Port(s) Speed 10/100/1000
Number of LAN Port(s) 5
PoE+ Supported No

Item Details

Manufacturer DLink
Manufacturer Code DGS-1005D
UPC 790069252679
Condition New
Warranty

Warranty Information

Warranty Limited 5-Year Warranty for as long as the original customer/end user owns the product, (excluding power supplies and fans). Power supplies and fans carry a limited 3-year warranty.

Manufacturer Information

Manufacturer DLink
Manufacturer Code DGS-1005D
Reviews
No reviews have been received for this product yet
