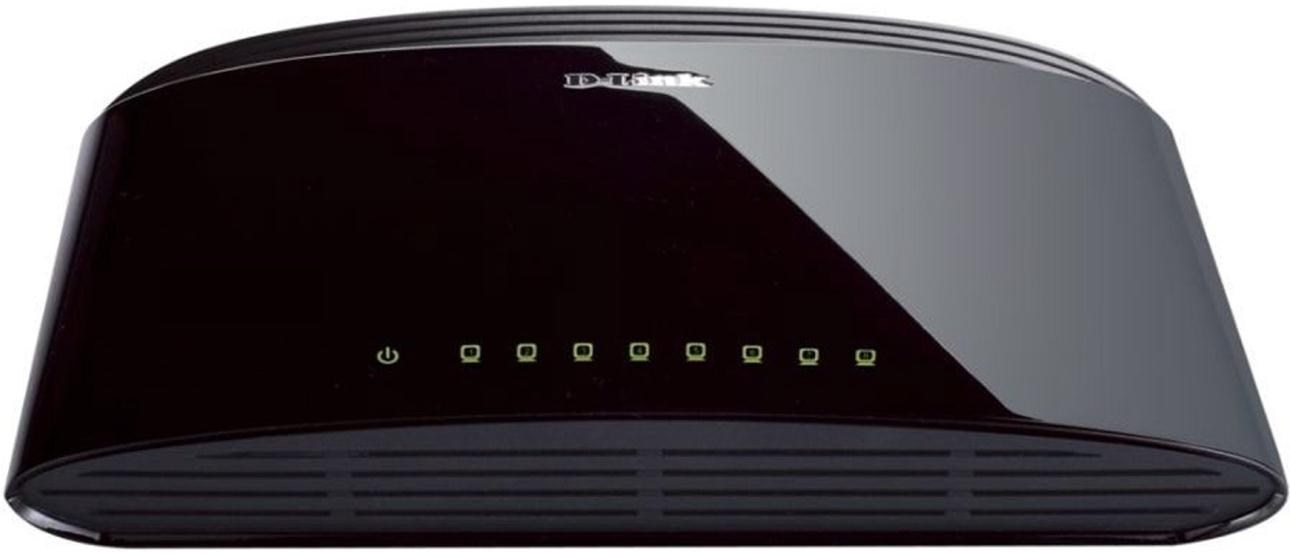

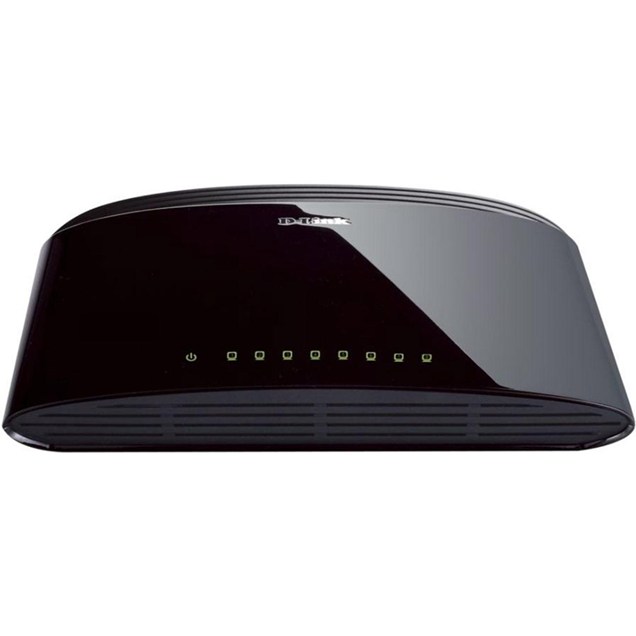

D-Link DES-108 8-port 10/100 Fast Ethernet Unmanaged Desktop Switch

D-Link DES-108 8-port 10/100 Fast Ethernet Unmanaged Desktop Switch

CCL Code: NET2996

£20.99 inc VAT

D-Link DES-108 8-port 10/100 Fast Ethernet Unmanaged Desktop Switch

DES-108/B

£20.99 inc VAT

Available for delivery from Friday 18th October

or Click & Collect from Friday 18th October

Buying in bulk? Contact our business team.

Key Features:

  • Rugged Metal Housing
  • IEEE 802.3x Flow Control
  • Supports Jumbo Frames
  • Supports 802.1p QoS
  • RoHS Compliant
  • Plug-and-Play installation
  • Slot for Kensington Security lock
CCL Code: NET2996
Overview

The DES-105/DES-108 Fast Ethernet Switches provide a quick, easy and economical way to add high speed networking to home offices, small and medium businesses. With data transfer speeds of up to 200 Mbps the DES-105/DES-108 are ideal for fast file transfers. They provide five or eight ports for easy expansion of your network for connecting printers,scanners,storage, and backup devices to any network. The DES-105/DES-108 are designed with durability and performance in mind. Their sturdy metal housing ensures the product can withstand extreme temperatures and can be placed in typical industrial environments such as factories, construction and mining. They help to dissipate heat and reduce stress on internal components. They are easy access, auto-sensing 10/100 front Ethernet ports with two LED indicators per port to quickly distinguish link status and speed. The DES-105/DES-108 switches also support Auto MDI/MDIX Crossover allowing each port to be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables. Support for IEEE 802.1p QoS is included, which organises and prioritises time-sensitive and important data for efficient delivery. QoS prioritises network traffic so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming media and VoIP calls. The DES-105/DES-108 are part of D-Link Green, D-Link's eco-friendly technology, providing energy savings, reduced power consumption, and a longer product lifespan without sacrificing operational performance or functionality. These switches support IEEE 802.3az Energy Efficient Ethernet (EEE) standard which detects when a connected computer is shut down or when there is no Ethernet traffic, in which case the switches will proceed to power down the idle port, saving a substantial amount of power. This helps businesses to save money by reducing their electricity bills with no compromise on performance.

Main Features

  • Inexpensive Fast Ethernet solution for businesses
  • Five/Eight 10/100 Mbps Fast Ethernet ports
  • Rugged Metal Housing
  • Auto MDI/MDIX cross over for all ports
  • Full/half-duplex for Ethernet/Fast Ethernet speeds
  • IEEE 802.3x Flow Control
  • Supports Jumbo Frames
  • Supports 802.1p QoS
  • RoHS Compliant
  • Plug-and-Play installation
  • Slot for Kensington Security lock
Specifications

Performance

MAC Addresses 1,000
Mean Time Between Failure (MTBF) 511,323 Hours
Network Latency Switching Fabric: 1.6 Gbps
Packet Forwarding Rate 14.8M pps
Port Bandwidth 10/100 (HD), 20/200 (FD) Mbps
Topology Star

Interfaces/Ports

Full Duplex Capabilities Half or Full on All Ports
Number of Fixed Ports 8 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100 Mbps
Fixed Ports/Connectors 8 x 10/100 Mbps Ethernet RJ45 prts

Compliance

Standards Compliance IEEE 802.3 10BASE-T Ethernet (twisted-pair copper) • IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) • ANSI/IEEE 802.3 NWay auto-negotiation • IEEE 802.3x flow control • IEEE 802.3az Energy-Efficient Ethernet (EEE)

System

Certifications VCCI Class B • cUL • CB
Ethernet Switching Features 10 BASE-T/100 BASE-TX
Protocols Supported CSMA/CD

Electrical

Power Consumption 4.5 W
Power Adaptor Type AC/DC

Environmental

Operating Temperature 0 to 50 °C
Operating Humidity 10 to 90 %

Physical

Form Factor Desktop Switch
Case Colour Black
LED Status Indicators Link/Activity • Power
Width 16.2 cm
Depth 10.2 cm
Height 2.8 cm
Weight 0.4 kg

Key Features

Main Colour Black
LAN Port(s) Speed 10/100

Warranty

Warranty 1 Year

Item Details

Manufacturer DLink
Manufacturer Code DES-108/B
EAN 0790069368196
UPC 790069368196
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer DLink
Manufacturer Code DES-108/B
Reviews
No reviews have been received for this product yet
Downloads

PDF Datasheets and Manuals

Document File type File size
D-Link DES-1008D pdf 0.82MB
