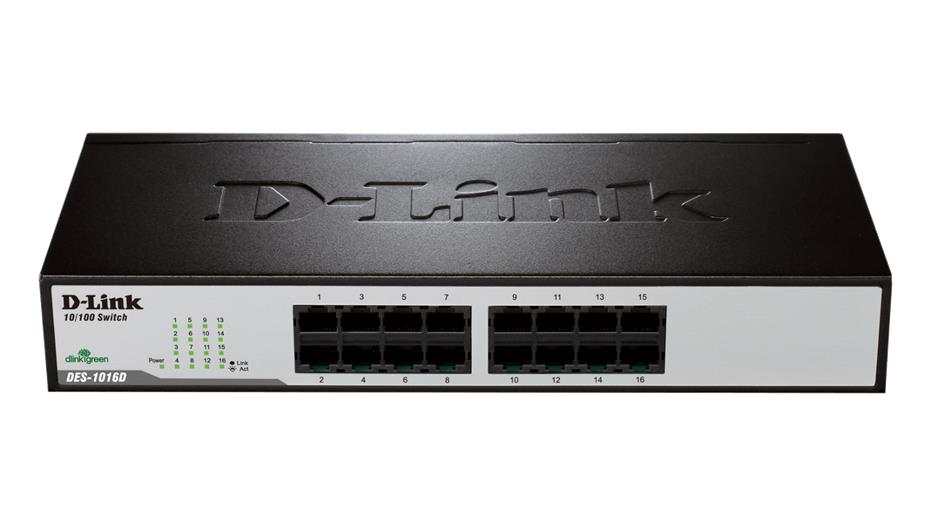

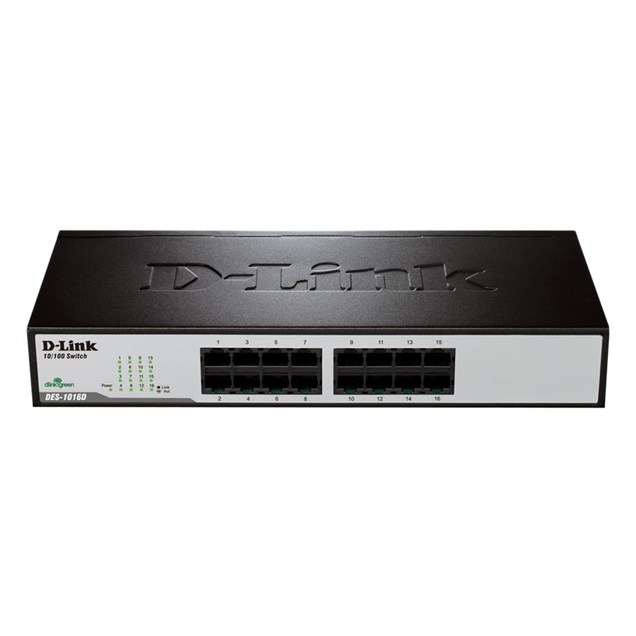

DLink DES-1016D 16-Port 100 Mbps Desktop Switch

DLink DES-1016D 16-Port 100 Mbps Desktop Switch

CCL Code: NET1380


DLink DES-1016D 16-Port 100 Mbps Desktop Switch


Key Features:

  • 16 x 100 Mbps Ports
  • Switch Type: Unmanaged
  • Form Factor: Desktop
CCL Code: NET1380


Sorry, this product has been discontinued. We have found some similar products below.


16 10/100Mbps Ports: Unmanaged Desktop Layer 2 Switch: This desktop switch is designed for small offices and larger workgroups. All ports auto-sense the network speed of the computers and hubs to run at either 10Mbps or 100Mbps. The ports also auto-negotiate between full and half duplex and support flow control. Expansion is easy through a MDI uplink port. You cascade several switches together through this port to get more ports. IEEE 802.3x Flow Control allows your servers to directly connect to this switch for fast, reliable data transfer.

Main Features

  • 16 10/100Mbps ports
  • Full/half duplex support for each port
  • MDI uplink port for easy expansion
  • Auto-learning of network configuration
  • Flow control in full duplex mode for protection against data loss
  • Back pressure in half duplex mode
  • RAM buffer dynamically allocated for each port


Buffer Memory 0.5 MB


MAC Addresses 8,000
Packet Forwarding Rate 100 Mbps port: 148,810pps • 10 Mbps port: 14,880 pps
Topology Star


Network Speeds Supported 10/100 MBps
Full Duplex Capabilities Half or Full on All Ports
Number of Fixed Ports 16 port(s)
Fixed Port Connector RJ-45
Fixed Port Speed 10/100 Mbps


Standards Compliance IEEE 802.3 10BASE-T Ethernet • IEEE 802.3u 100BASE-TX Fast Ethernet • ANSI/IEEE 802.3 NWay auto-negotiation


Certifications Emission (EMI): FCC Class A, CE Class A, VCCI Class A • Safety: CUL, CB
Ethernet Switching Features IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, ANSI/IEEE 802.3 NWay auto-negotiation

System Requirements

System Requirements FCC Class A; CE Class A; VCCI Class A; CUL; CB

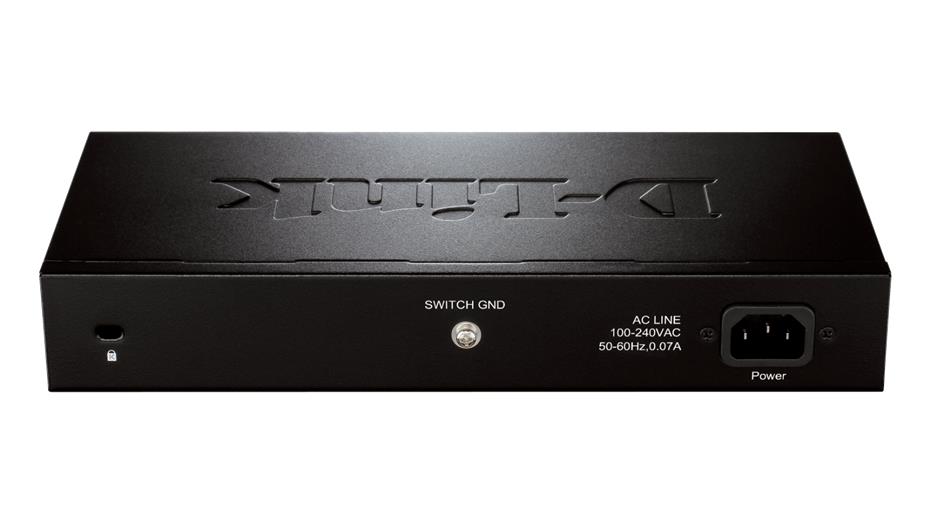

AC Voltage Range 100 to 240 V AC
Power Consumption 6 W
Electrical Frequency 50 to 60 Hz
Power Adaptor Type Internal


Operating Temperature 0 to 40 °C
Operating Humidity 5 to 90 %


Form Factor Desktop Unit
Case Colour Black / Metalic Grey
LED Status Indicators Per device: Power • Per port: Link/Activity, Full-duplex/Collision, 100Mbps speed
Width 28.0 cm
Depth 18.0 cm
Height 4.4 cm
Weight 2.8 kg

Key Features

PoE Supported No
Switch Type Unmanaged
Switch Form Factor Desktop
LAN Port(s) Speed 10/100
Number of LAN Port(s) 16


Warranty 1 Year

Item Details

Manufacturer DLink
Manufacturer Code DES-1016D/B
UPC 790069221262
Condition New

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer DLink
Manufacturer Code DES-1016D/B

Do you have you a question about the D-Link DES-1016D 16 Port 10/100Mbps Desktop Switch?

No reviews have been received for this product yet
