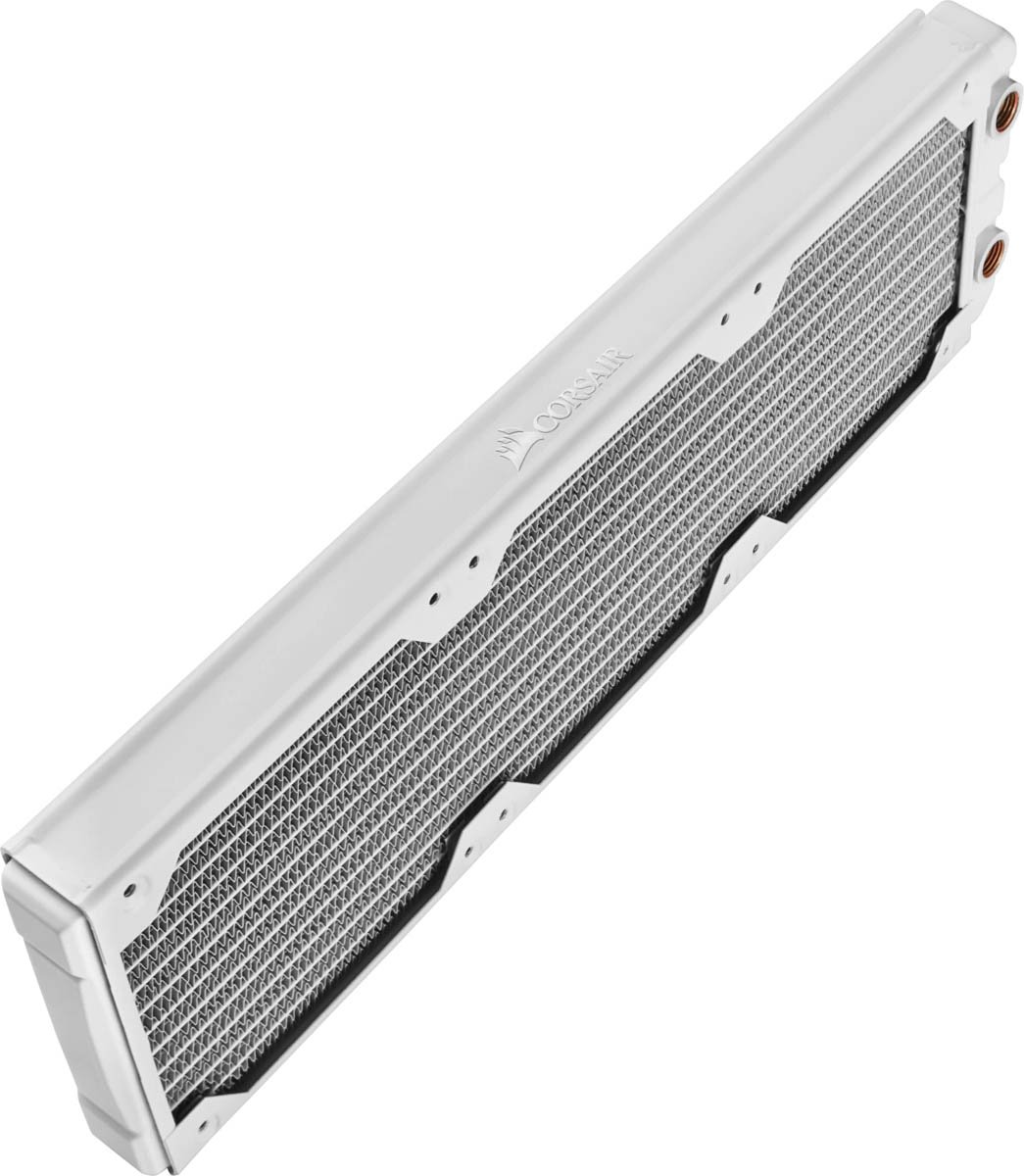

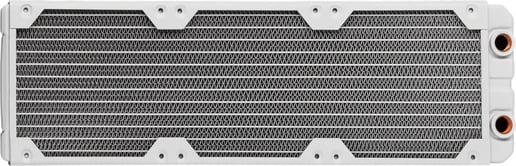

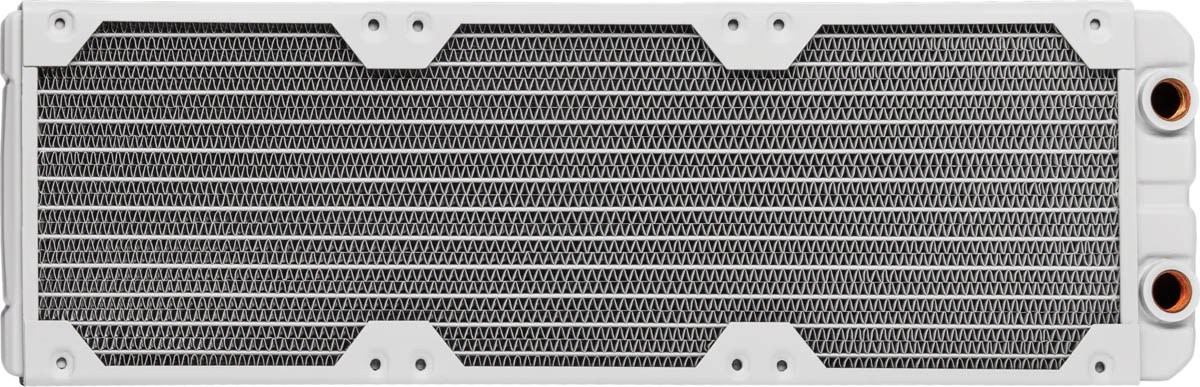

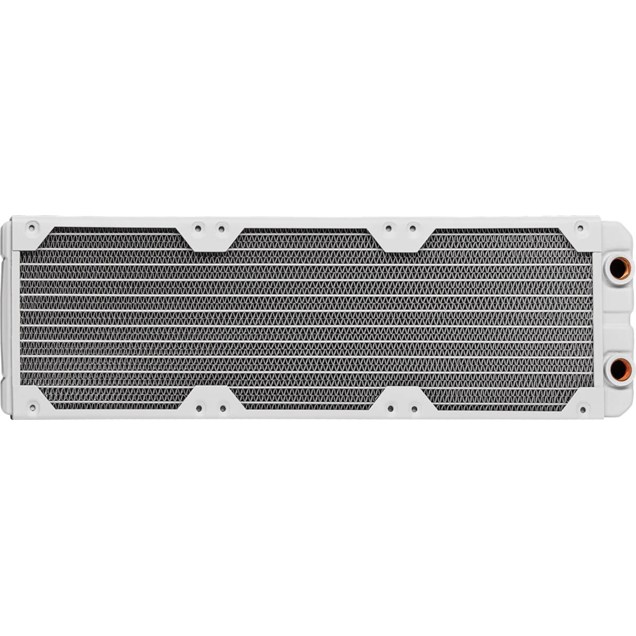

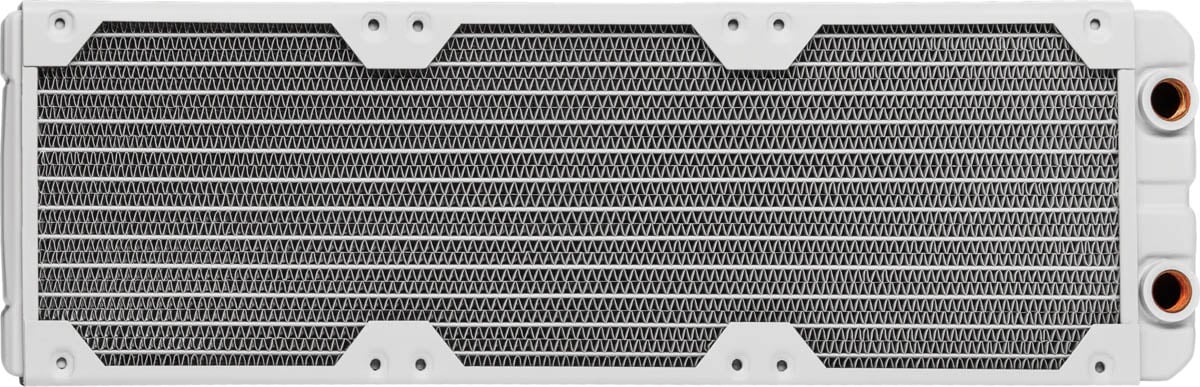

The CORSAIR Hydro X Series XR5 360mm Water Cooling Radiator delivers extreme performance, with a 30mm radiator thickness, premium copper core, and a pristine white finish.
EXTREME PERFORMANCE LIQUID COOLING
Triple 120mm fan mounts on either side are ready for your most ambitious custom cooling build.
HIGH SURFACE AREA
30mm Radiator thickness delivers easy installation and great cooling performance with low-noise fans and high-airflow fans.
MATTE WHITE COATING
Provides a flawless finish that matches the other white CORSAIR products in your setup.
PREMIUM COPPER CONSTRUCTION

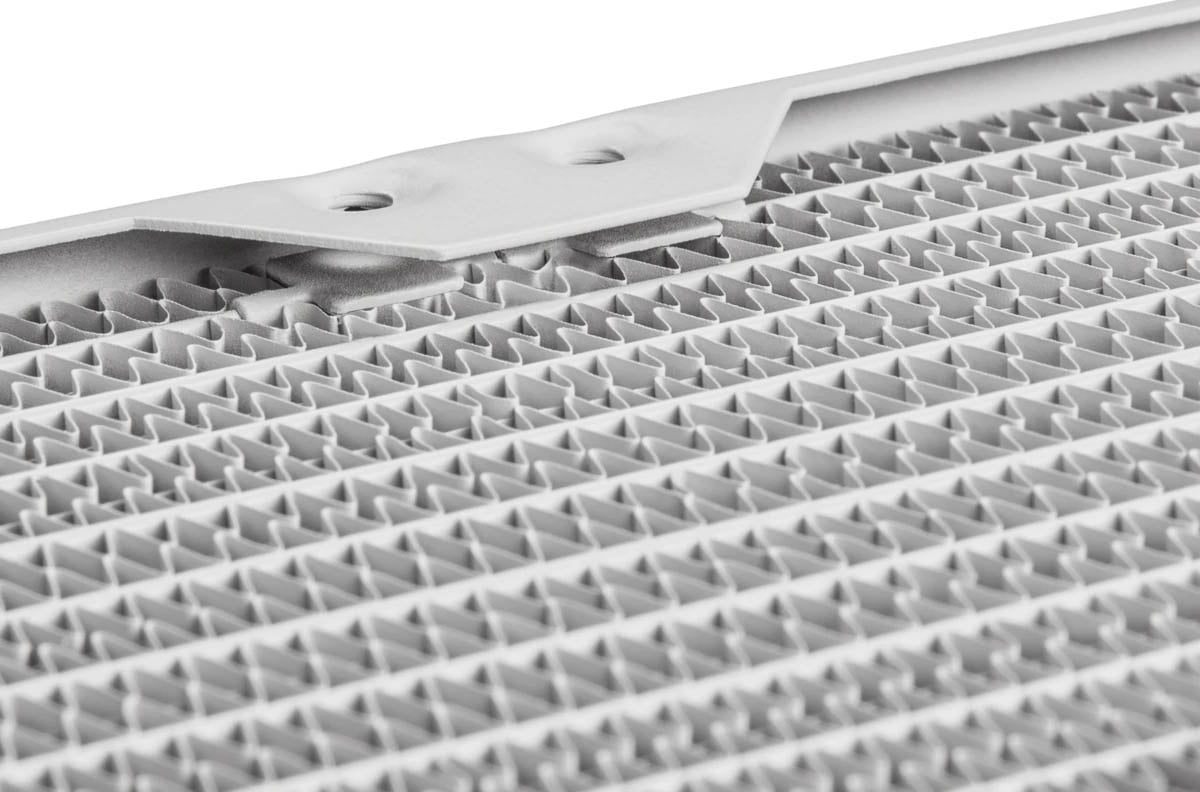

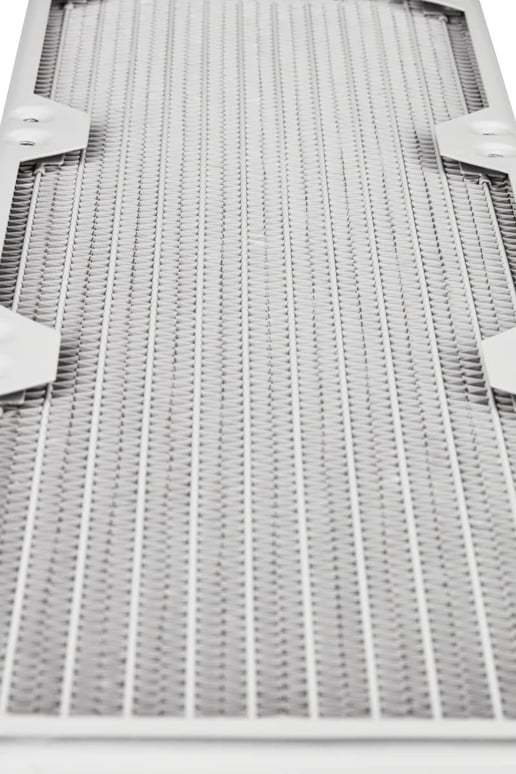

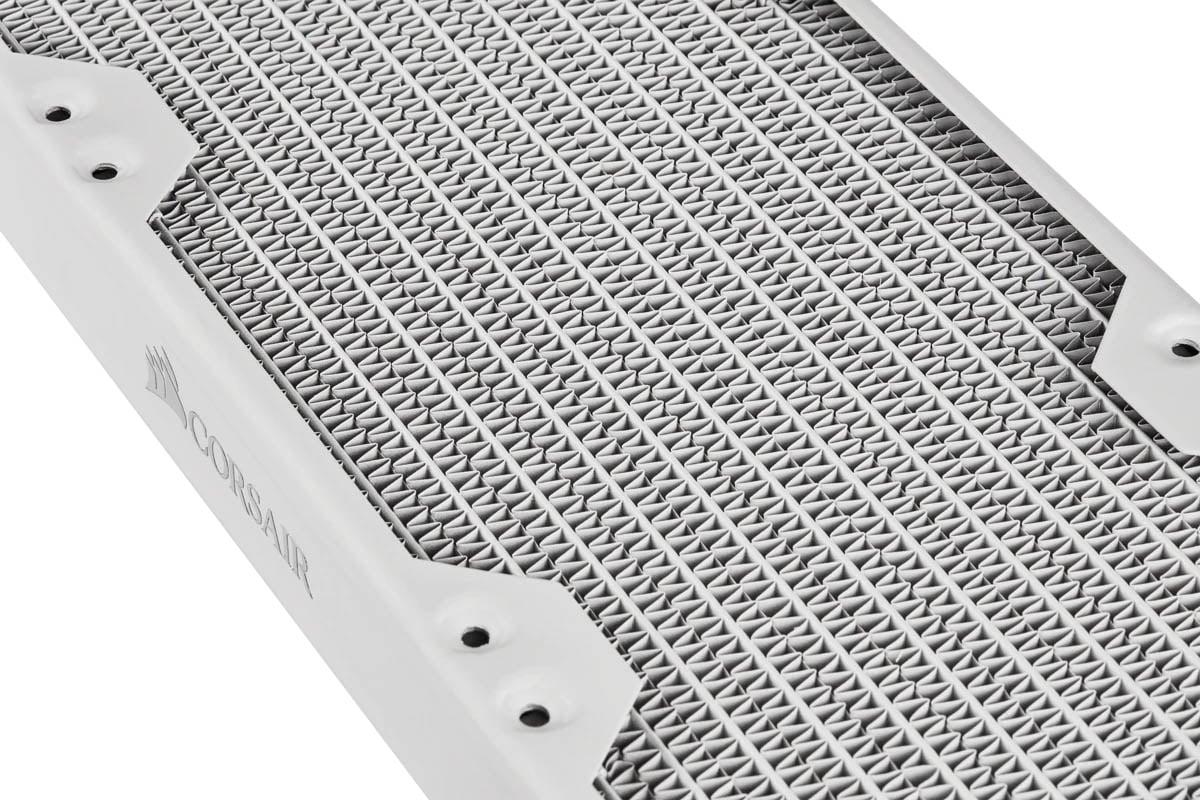

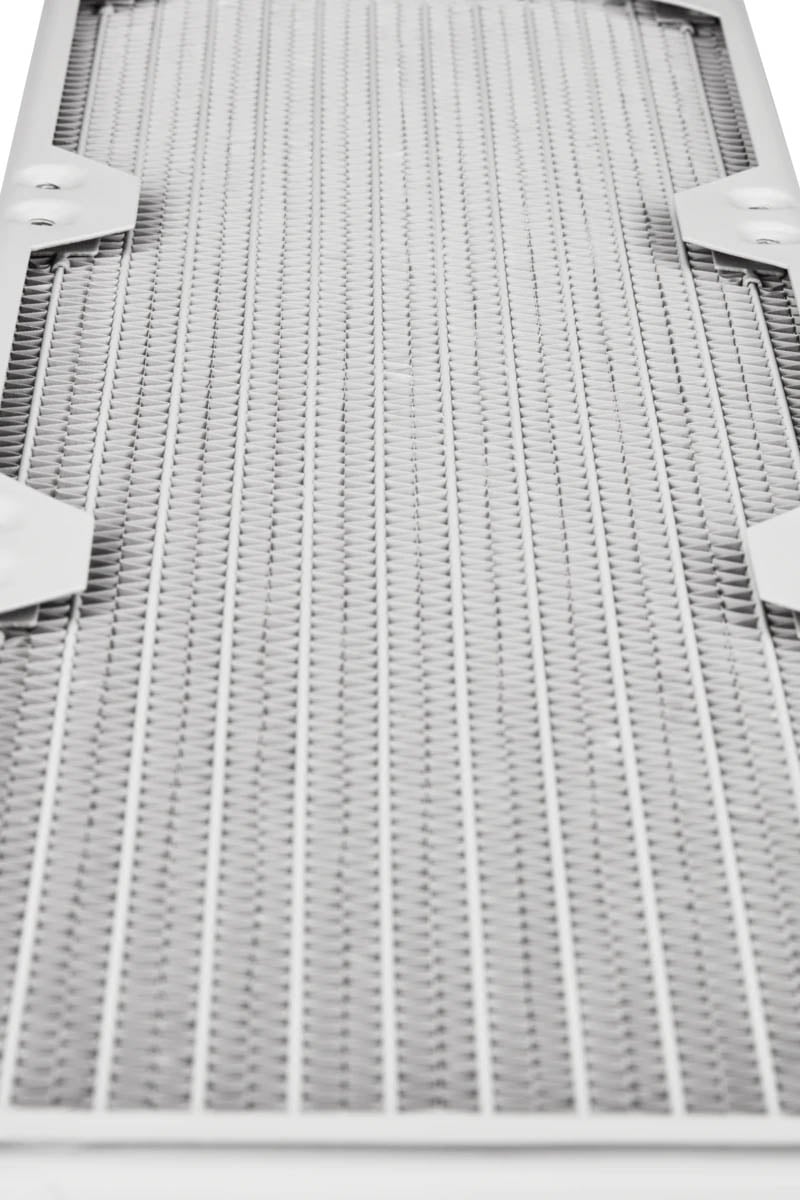

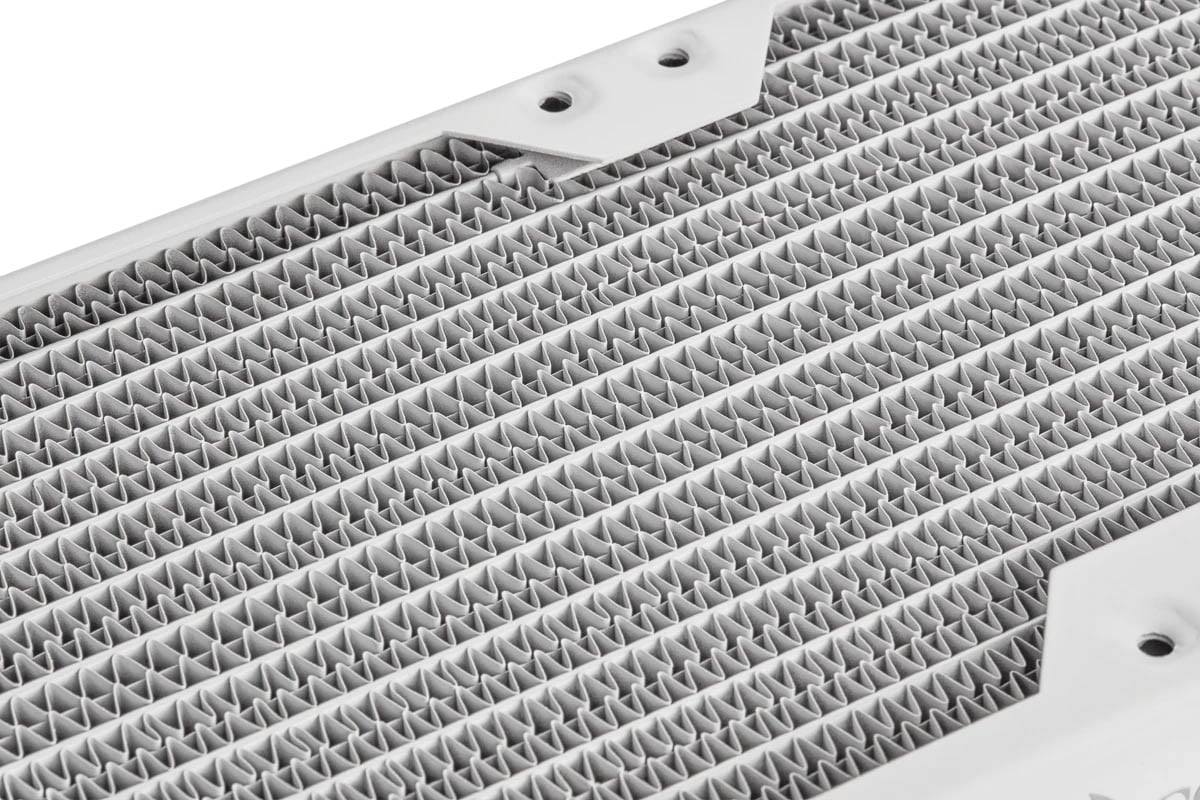

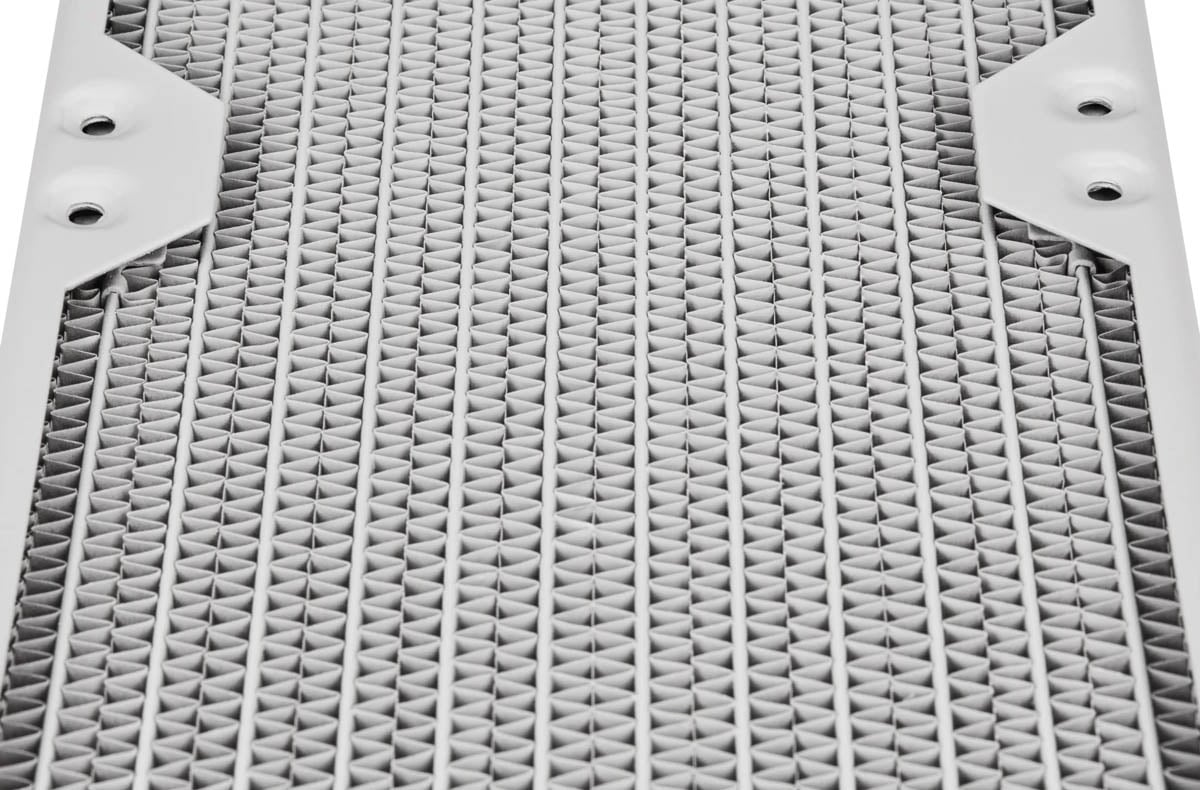

A premium copper radiator core and 25 micron-thick cooling fins provide a high thermal transfer rate optimized for CORSAIR's performance copper water blocks.

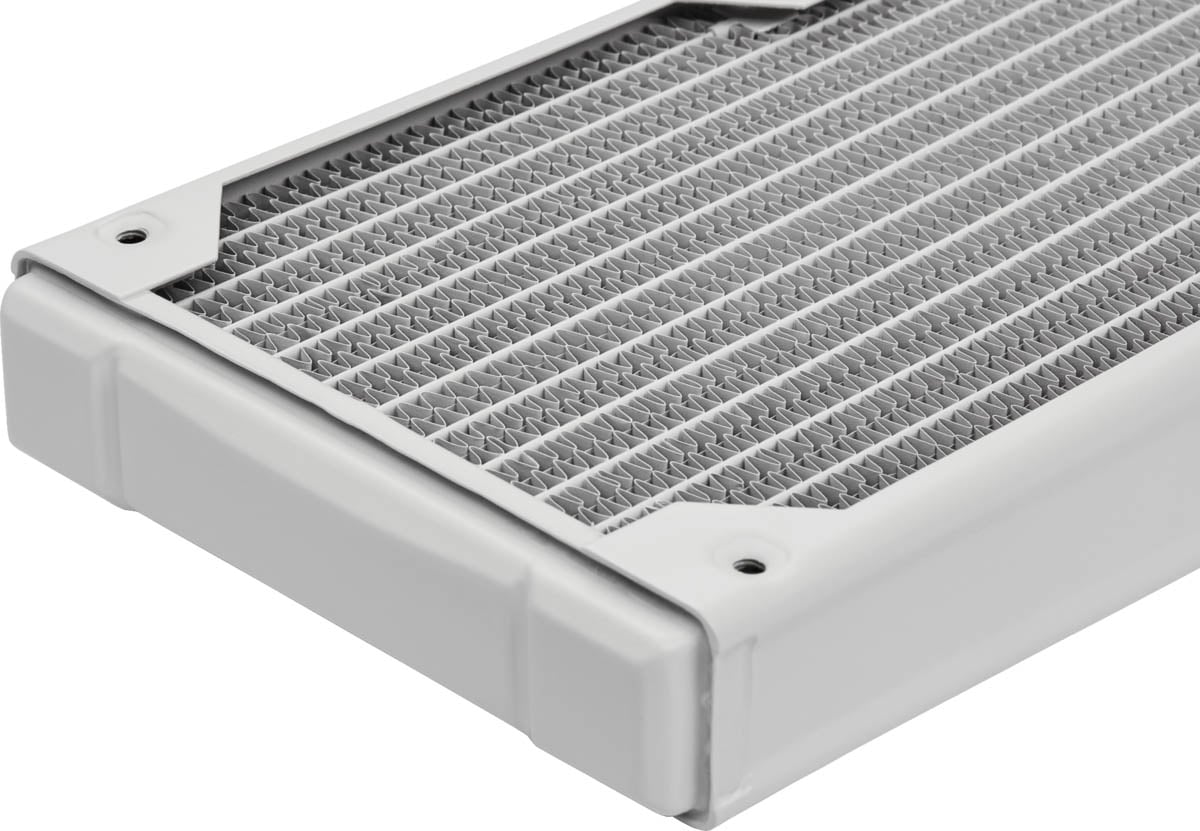

SCREW PROTECTION PLATES
Prevents too long or over-tightened screws from damaging the radiator.

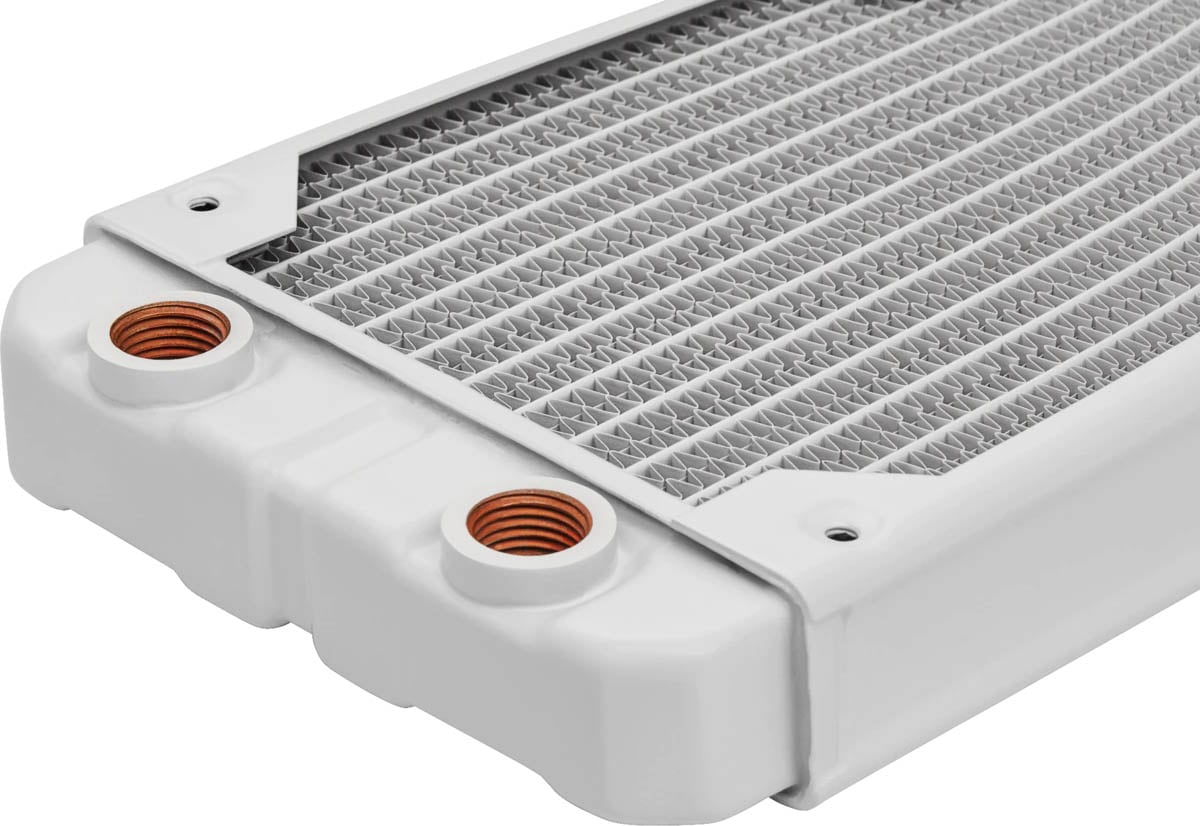

STANDARD G1/4” THREADS
All inlet/outlet ports provide universal fitting compatibility.
- Product Type: Radiator
- Warranty: Three years
- Material: Copper / Brass
- Port Thread: G1/4" BSPP
- Screw Thread: M4xP0.7
- Fin Spacing: 16 FPI 25 Micron Copper Fins
- Fan Size Compatibility: 120mm
- Operating Temperature: 60°C coolant temperature
- Color: WHITE
- Compatibility - Material: Only mix with other copper / brass products
- Radiator Dimensions: 396mm x 120mm x 30mm
- Radiator Thickness: 30mm
- Fan Quantity; 3
