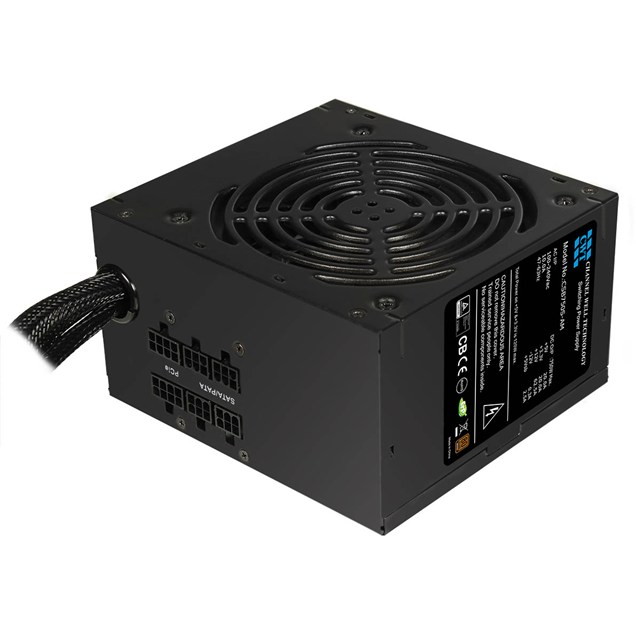

CWT CSB Series 750W Semi-Modular Power Supply 80 Plus Bronze

CWT CSB Series 750W Semi-Modular Power Supply 80 Plus Bronze

CCL Code: PSU1964

£56.42 inc VAT

CWT CSB Series 750W Semi-Modular Power Supply 80 Plus Bronze

CSB750S-AM

£56.42 inc VAT

Available for delivery from Wednesday 1st February

Buying in bulk? Contact our business team.

Key Features:

  • 4x Molex Connectors
  • 8x SATA Connectors
  • 4x PCIe Connectors (6+2-Pin)
  • 4+4-Pin CPU Power Connector
  • ATX Form Factor
CCL Code: PSU1964
Overview

The Channel Well Technology CSB-750w power supplies are the No1 choice for basic system builds and desktop PC computer upgrades, offering top reliability, low noise, and the perfect balance of cabling thanks to the semi-modular design. With a power configuration of 750W this power supply is perfect for any system, 80 Plus Bronze Certified, with up to 85% efficiency at 50% load, this power supply includes plenty of features making this a premium power supply.

Main Features

  • Semi-Modular - A Semi-Modular cable management design strikes a balance between attached or detachable cables ensures when building or upgrading it is made more efficiently and guaranteeing a clean looking PC.
  • 80 Plus Bronze Certification - 80 PLUS Bronze certified with 85% efficiency at 50% load and 82% efficiency at 20% & 100% load and a smart 120mm fan design allows for little or no detectable fan noise during regular operation.
  • Reliable and Compatibility - The CSB 750w has been built and tested to the highest of standards for trouble-free installation and smooth operation. Channel Well Technology are renowned for making high-power enthusiast power supplies because you need confidence and reliability that it will be mainstay in your chosen build.
  • All Black Look - The all black finish, black flat cables and black sleeved 20+4 and 8 Pin CPU connectors, black is the colour, with the all black finish, give your gaming PC a clean professional high-tec look.
  • Flat Black Cables - With the 20+4, 8 Pin CPU black sleeved and the modular flat black cables, PC builders can easily manage space creating a nice clean build with minimal fuss.
  • Warranty - The CWT CBS 750W PSU comes with 12 Months Warranty.
Specifications

Interfaces/Ports

SATA Connectors 8
CPU Connectors 1 x 4+4-pin EPS
PCI Connectors 4 x 6+2-pin PCIe
Motherboard Connectors 1 x 24-pin ATX
Molex Connectors 4
Floppy Connectors 1 x Floppy

Compliance

Standards 80 PLUS Bronze Certified
Safety OVP/UVP/OPP/SCP

Electrical

Voltage 100 ~ 240 V AC
Power 750 W
Frequency Range 47 ~ 62 Hz
Power Cord No

Environmental

Operating Temperature 0 ~ 40 °C

Physical

Form Factor ATX Power Supply
Case Colour Black
In The Box Power Supply
Modular Cables
Manual
Screws
Width 150 mm
Depth 140 mm
Height 86 mm
Weight 1.45 kg

Warranty

Warranty 1 Year

Key Features

Modular Cables Semi-Modular
80Plus Rated 80 Plus Bronze
PSU Form Factor ATX
PCI-E Connectors 4
Floppy Connector 1
Motherboard Power Connectors 4 + 4-Pin
PCI-E Pin Type 6+2-Pin
PSU Depth 140 mm
CPU Power Pins (male) 8
PCI-E Power Pins (male) 32

Item Details

Manufacturer CWT
Manufacturer Code CSB750S-AM
EAN 5055492409508
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer CWT
Manufacturer Code CSB750S-AM
