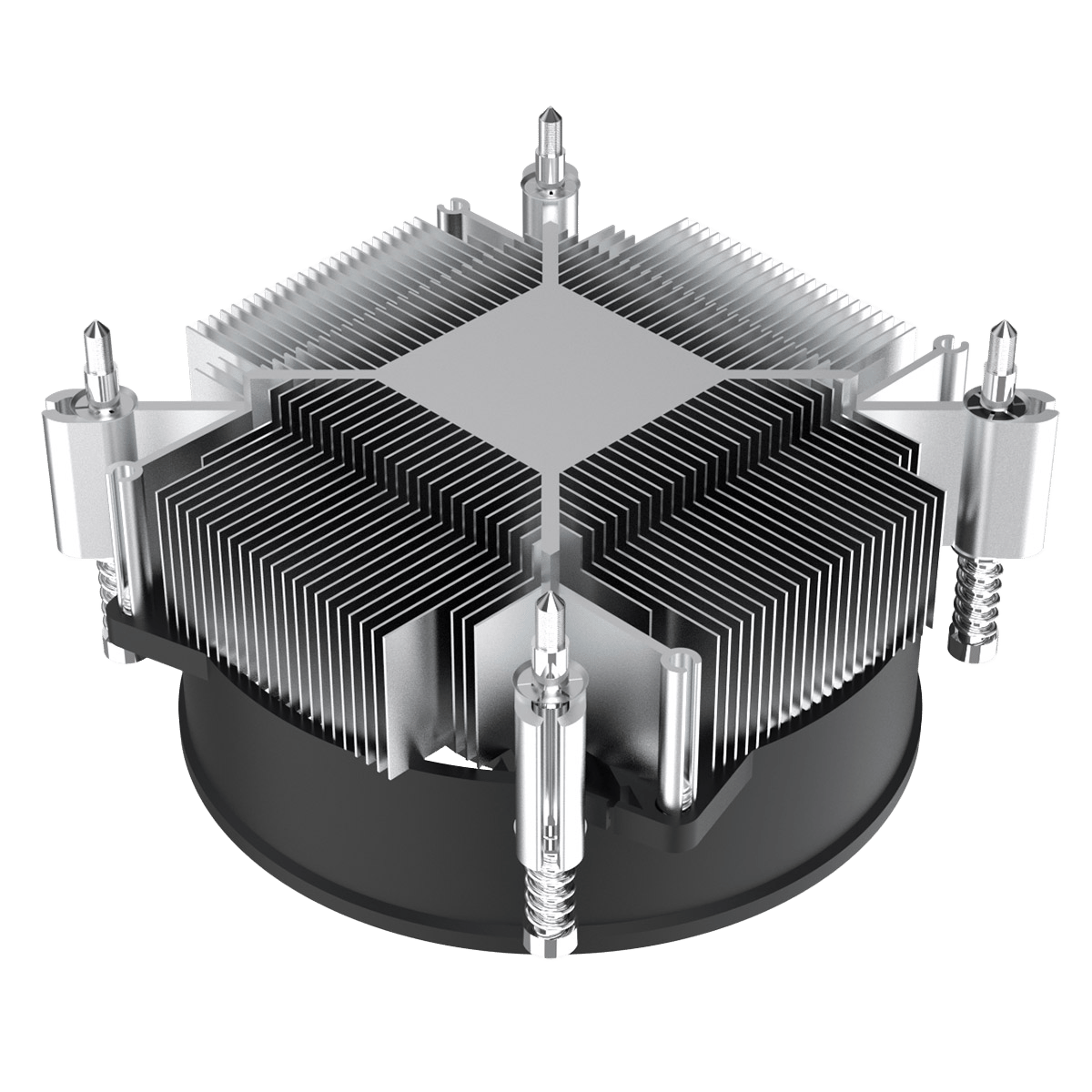

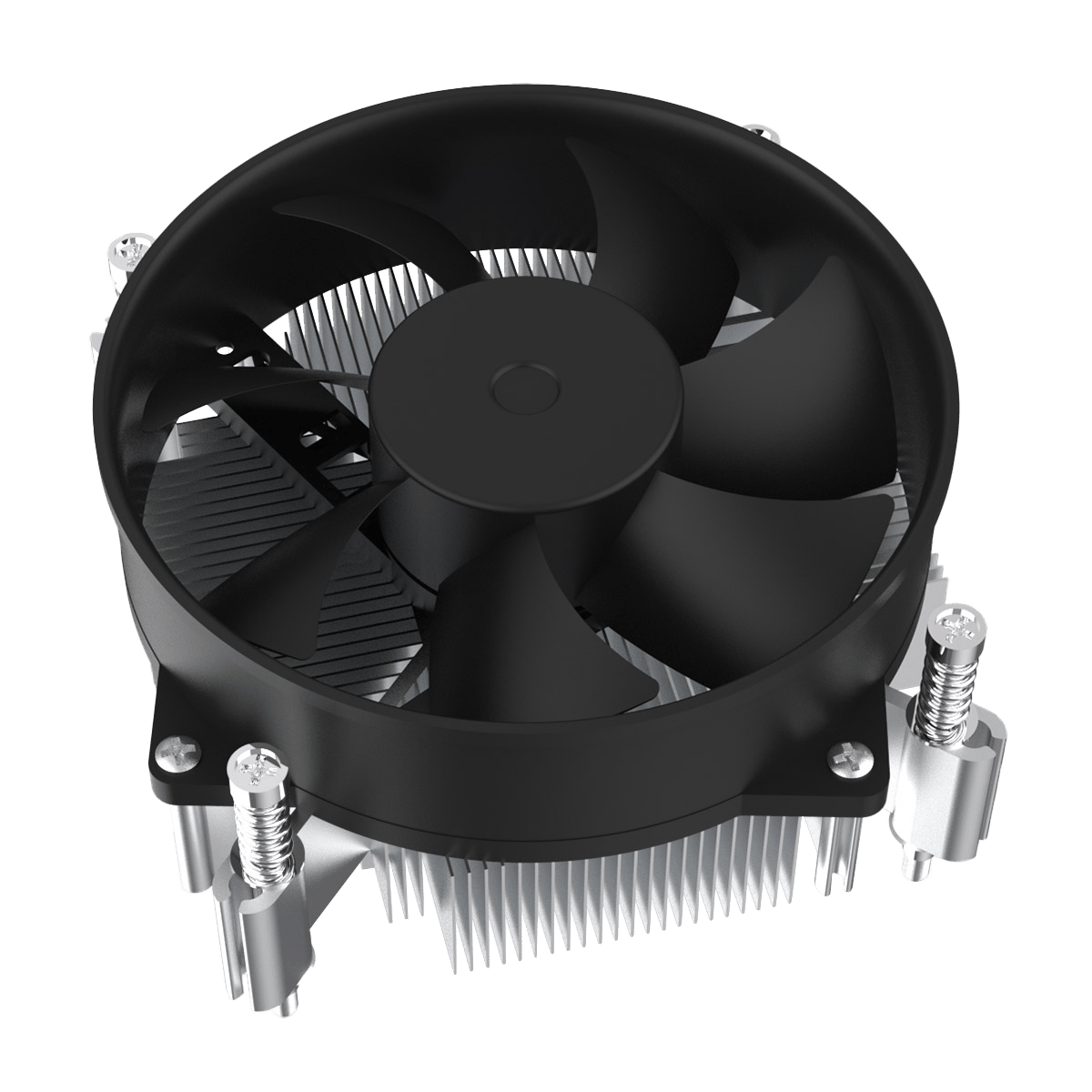

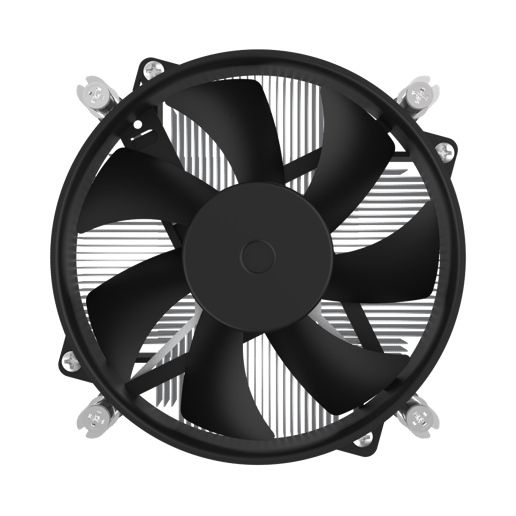

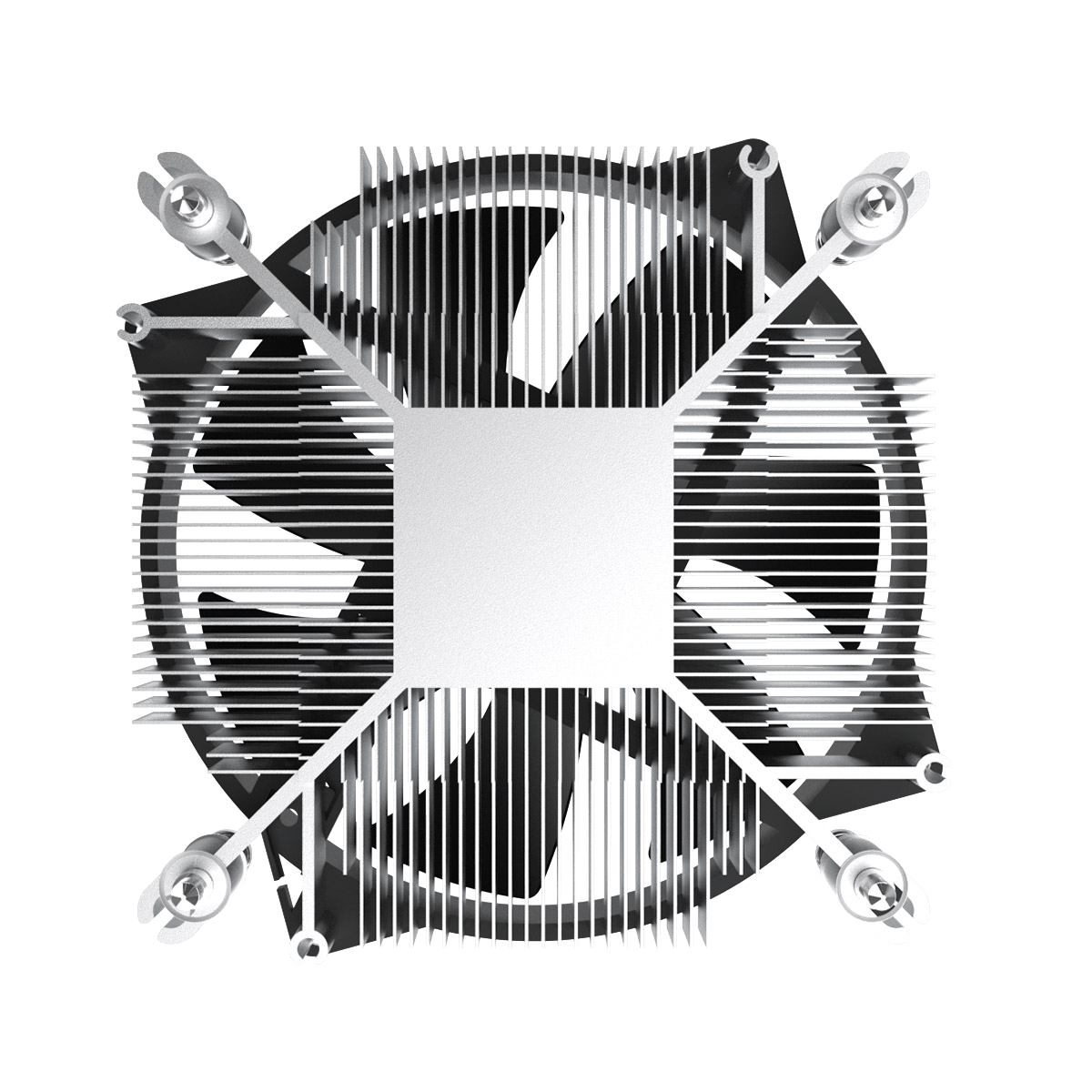

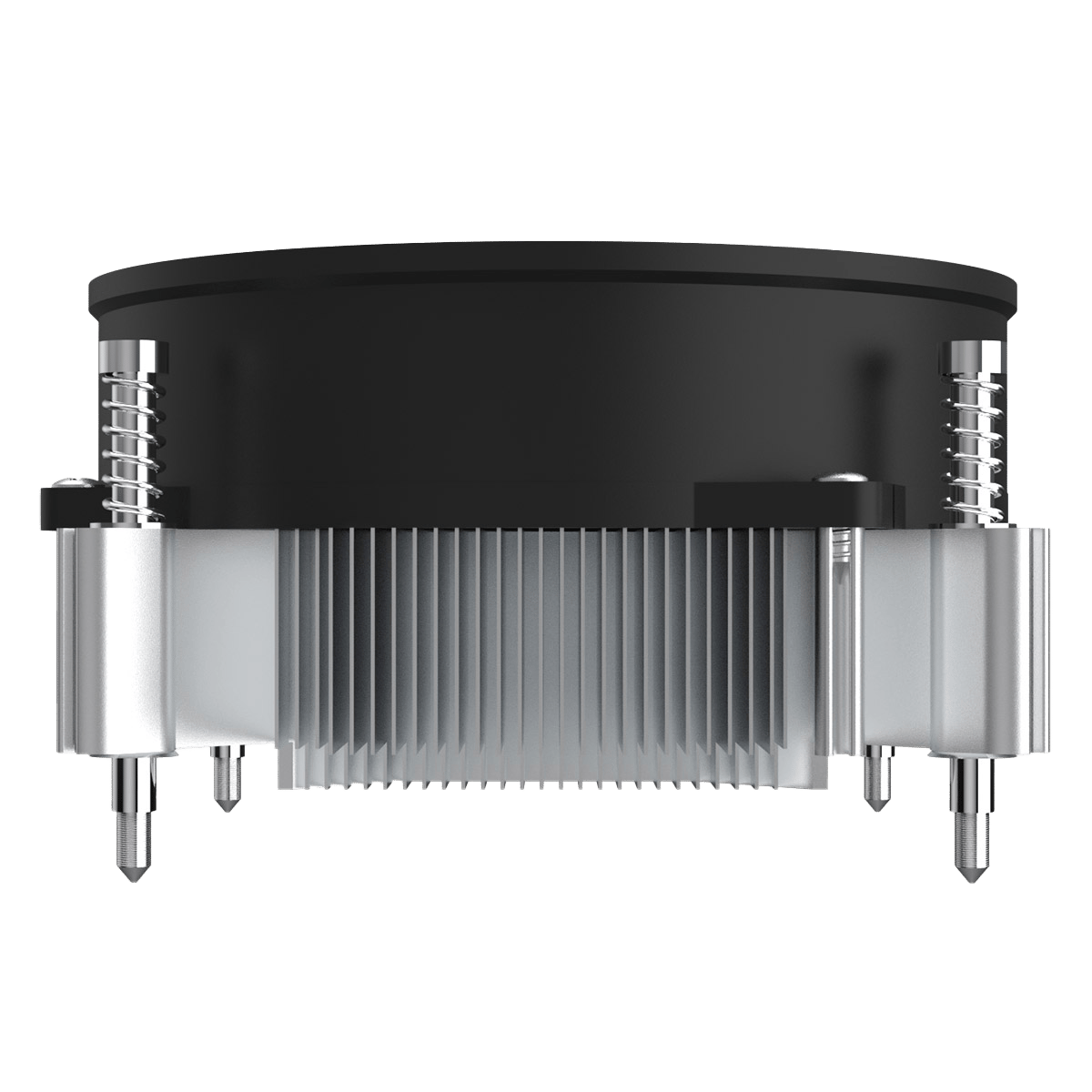

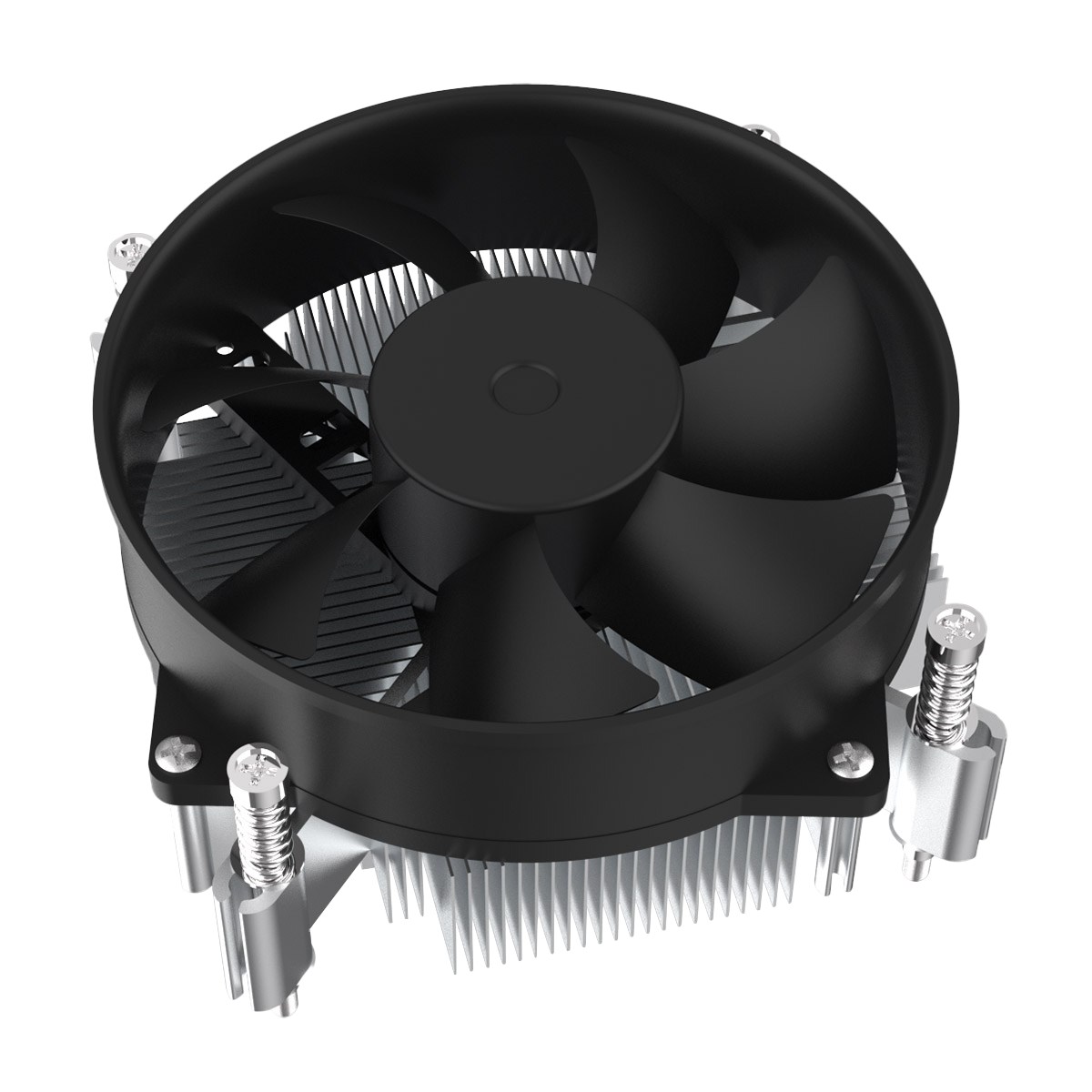

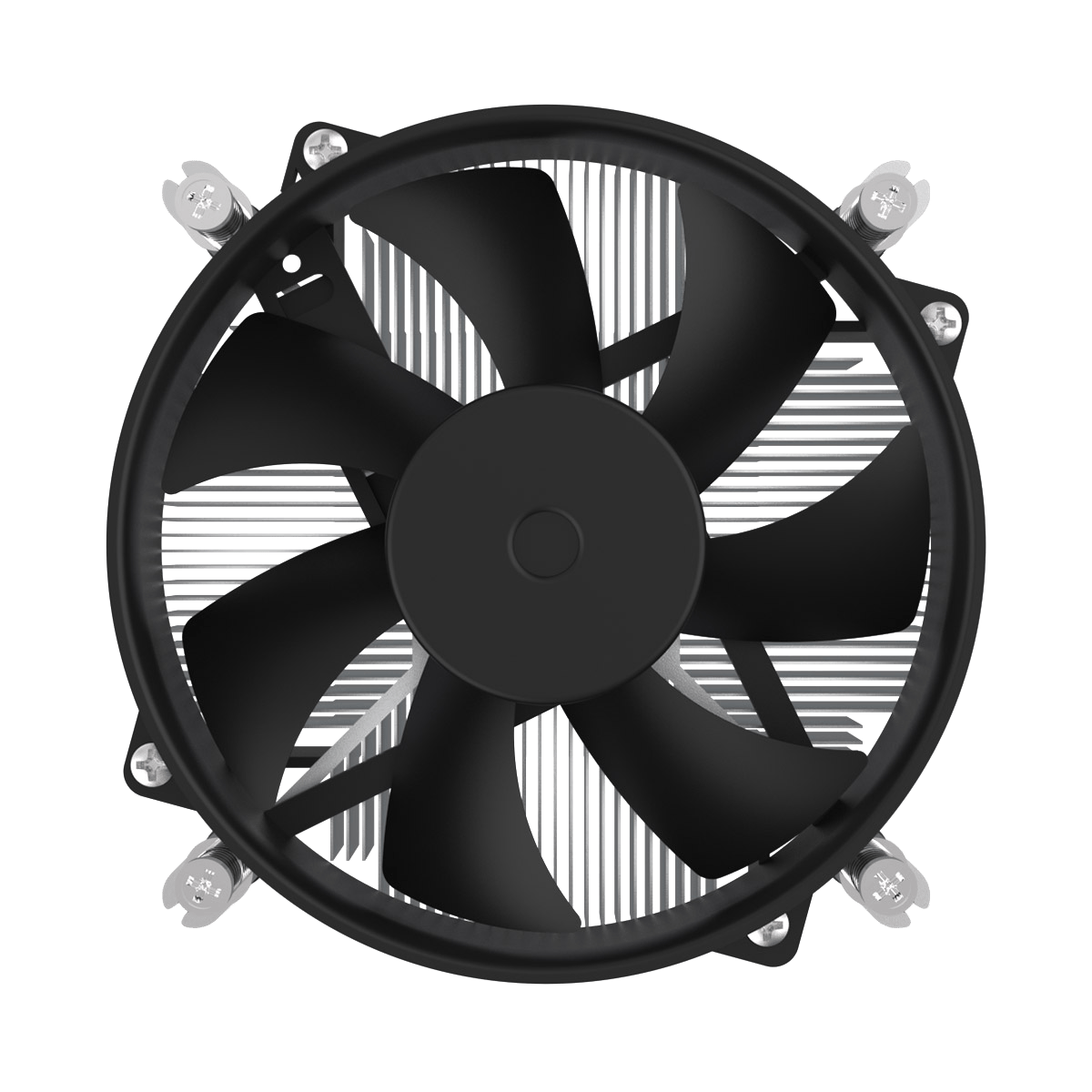

CiT Low Profile CPU Cooler With 92mm PWM Fan For Intel Platform
The CiT Low Profile CPU Cooler with 92mm PWM Fan is a compact and reliable cooling solution made for Intel platforms. Designed to fit into smaller computer cases where space can be tight, this cooler gives your CPU the airflow it needs without taking up too much room. The included 92mm PWM fan adjusts its speed automatically, so it can run quietly when your computer is doing light tasks, and spin faster to keep things cool when you’re gaming or working hard.
With its low-profile design, this cooler is perfect for small form factor builds, home office setups, or anyone who wants a neat and tidy PC without large bulky parts. Easy to install and built for stable performance, the CiT Low Profile Cooler is a great choice for keeping your Intel processor cool and running smoothly.
CPU Types
- Compatible CPU Types: Intel 1156 / 1366 / 1700
- CPU Installation Notes: Supports Intel sockets only
- CPU Supported: Intel CPUs up to 75W TDP
- Socket: LGA 1156 / 1366 / 1700
Fan
- Fan Diameter: 92mm
- Fan Bearing Type: Hydraulic Bearing
- Fan Speed: 900-2400 ñ10% RPM
- Bearing Type: Hydraulic Bearing
- Noise Level: 29.5 dBA (Max)
- Fan Noise Level: 29.5 dBA (Max)
- Static Pressure: 3.01 mm H2O
- Fan Operating Notes: PWM controlled, 4-pin connector
- Lifetime: 30,000 Hours (M.T.B.F)
- Cooling Capacity: 75W TDP
- Fan Air Pressure: 2.44 mm H2O
- Airflow: 40.79 CFM
Fan Speed Controller
- Connector: 4-Pin PWM
- Allowable Power: 1.5W
- Connector Type: PWM Fan Connector
- Voltage: Rated 12V / Starting 5V
- Current: 121mA
- Output Voltage: 12V
Cooler Installation
- Cooler Installation Notes: Compatible with Intel sockets only
Compliance
- Standards: CE Certified (common for coolers)*
- Certifications: CE / RoHS (likely, not specified)
Environmental
- Operating Temperature: 0-40øC (typical, not specified)
- Operating Humidity: 10-85% RH (non-condensing, typical)
Physical
- Form Factor: Low Profile
- Form Factor: CPU Air Cooler
- Case Colour: Black / Silver
- Base Material: Aluminium
- Heatsink Material: Aluminium
- Pack Quantity: 1
- In The Box: CPU Cooler
- Width: 95mm
- Depth: 95mm
- Height: 50mm
- Weight: 0.286 kg (Net)
- Fan Width: 92mm
- Fan Depth: 25mm
- Fan Height: 92mm
- Heatsink Width: 90mm
- Heatsink Height: 20mm
- Heatsink Depth: 90mm
Fan
- Air Flow: 40.79 CFM
Cooler Installation
- Cooling Capacity : 75W TDP
CPU Types
- Socket: Intel LGA 1156 / 1366 / 1700
Identifiers
- Stock Code: CLR3475
- Mfg Code: CIT-CPU-INTEL
