CPU

• CPU Family: AMD Ryzen 5
• Processor Number: 7600
• CPU Speed: 3.8 GHz
• L3 Cache: 32 MB
• Socket: AM5
• Architecture: Zen 4
• Technology: TSMC 5nm FinFET
• Number of Cores: 6 cores
• Number of Threads: 12 threads

Memory

• Description: Kingston FURY Beast
• Memory Size (Total): 32768 MB
• Memory Type: DDR5
• Memory Speed: 5600 MHz
• Number of Modules: 2 modules
• Error Correction: No
• Voltage: 1.25 V
• Pin Configuration: 288 pin

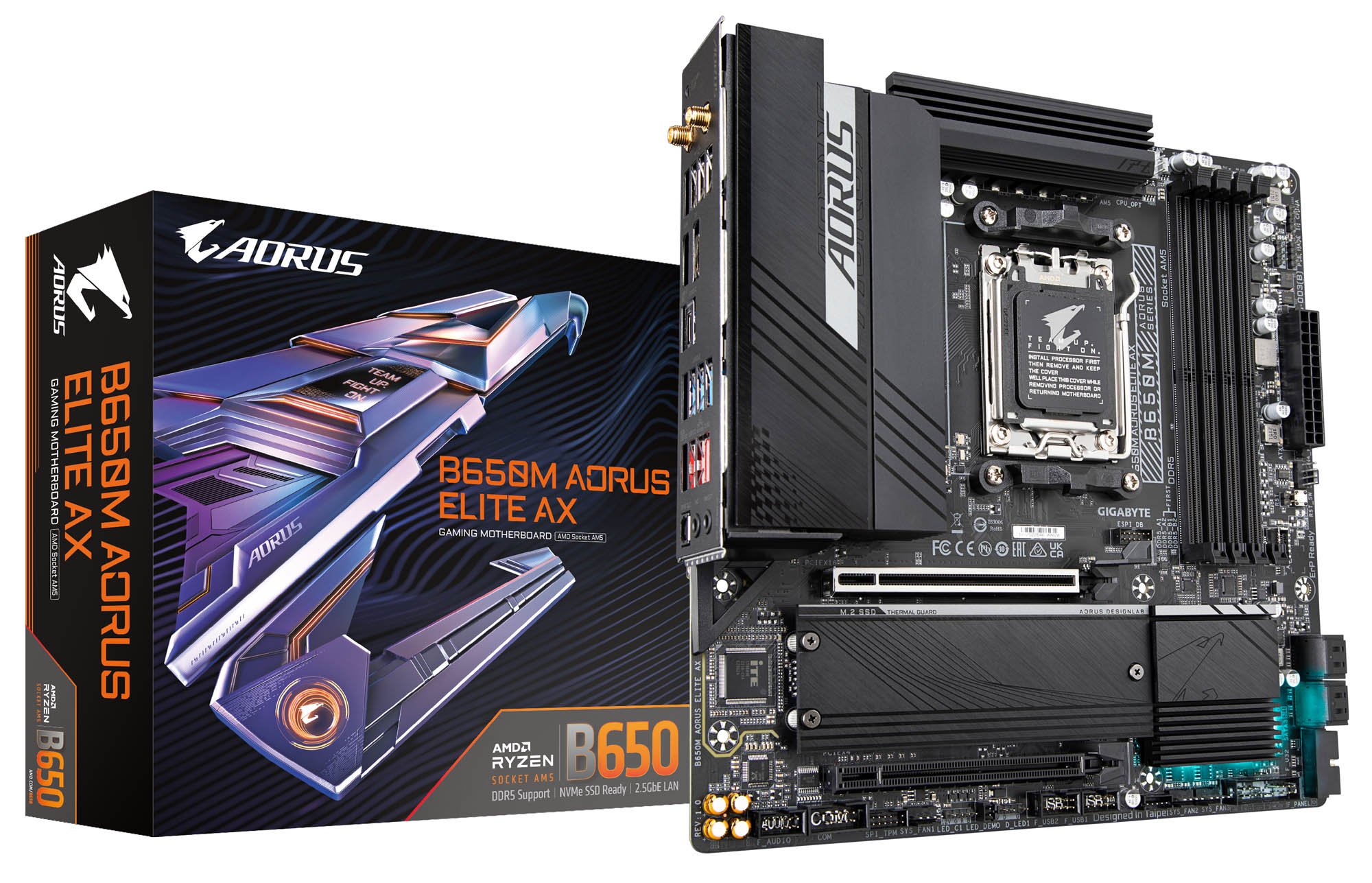

Motherboard

• Integrated Sound: Realtek
• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Form Factor: MicroATX Motherboard
• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.2 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)
• Serial Connectors: 1 x COM header
• Cooling Fan Support: 1 x CPU fan header
• 1 x Water Cooling CPU fan header
• 3 x System fan headers
• 1 x System fan/Water Cooling pump header
• TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2280/25110 (PCIe Gen5)
• 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
  2 x 3-pin ARGB LED header
• 2 x 4-pin RGB LED header
• 1 x CPU Cooler LED header
• Number of PCI Express Slots: 2 x PCI Express 4.0 x16 slots (@ x16, x4)
• Maximum RAM: 128 GB
• Memory Bus Speed: Up to 6600 (OC) MHz
• Memory Type: DDR5
• Memory Slot: 4 x DIMM
• Operating Systems Supported: Microsoft Windows 11 64-bit
• BIOS: 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Warranty

• Warranty: 3 Years
• Parts: 3 Years
• Labour: 3 Years

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.1
• 2 x USB 3.1
• 5 x USB 3.0
• 4 x USB 2.0
• VGA Port: No
• DVI Port: No
• HDMI Port: Yes
• DisplayPorts: Yes
• Ethernet Connectors (RJ-45): 1 x RJ-45
• Audio Line Out Ports: 1 x 3.5mm Jack

CPU Cooler

• Description: Be Quiet Pure Rock Slim 2 Air Tower CPU Cooler
• Fan Bearing Type: Rifle
• Fan Speed: Up to 2000 RPM
• Fan Noise Level: 13.1 ~ 25.4 dBA
• Width: 97 mm
• Depth: 82 mm
• Height: 135 mm

Identifiers

• Stock Code: MBB-ZEN4-CONF
• Mfg Code: CCL-MBB-ZEN4-CONF
