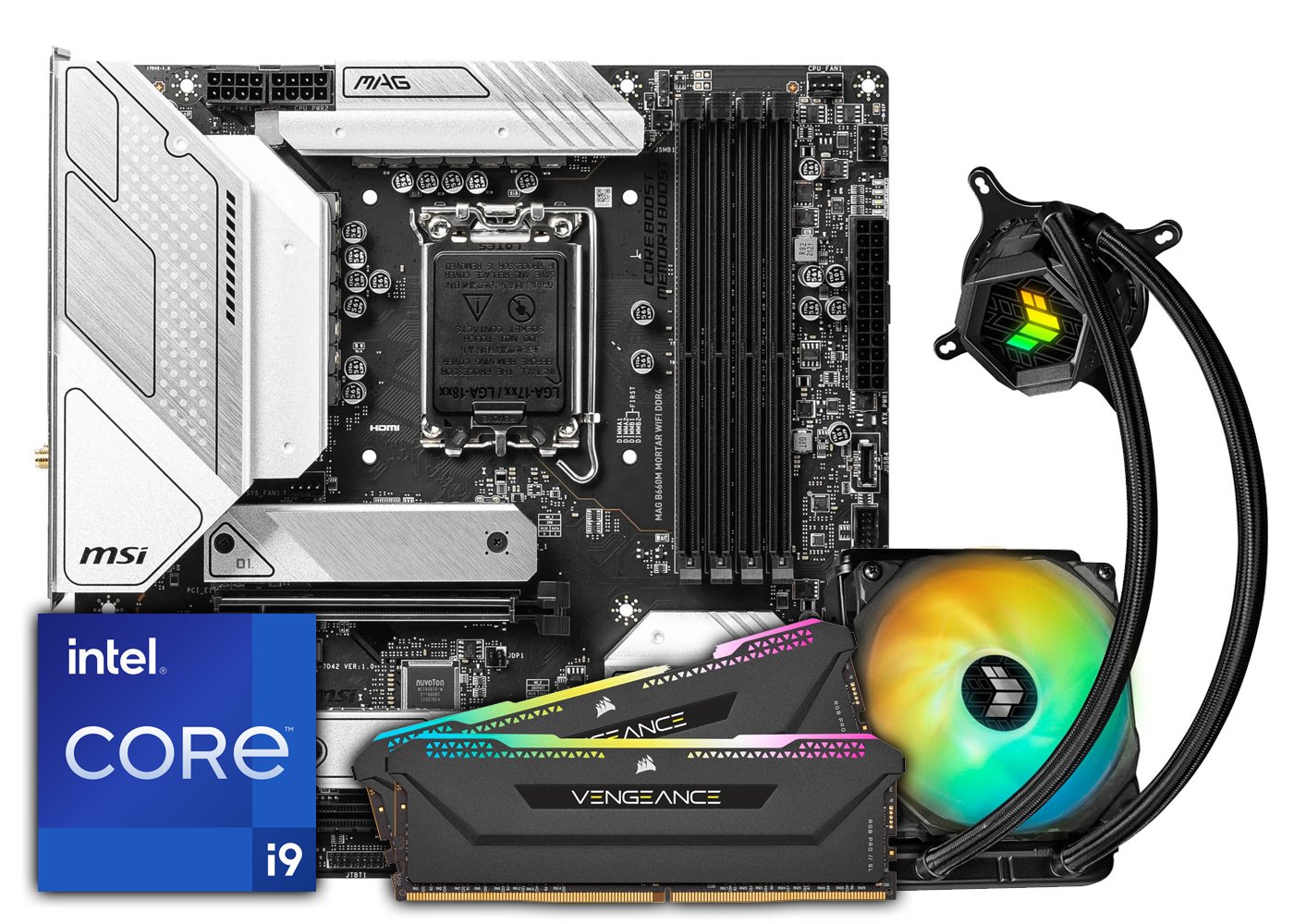

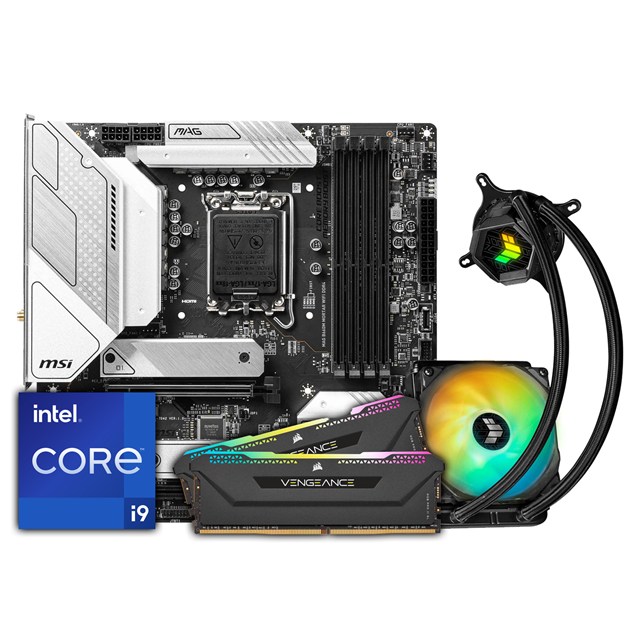

CCL Intel Core i9 Gamma Motherboard Bundle for Gaming
Ready to build your own gaming system? This CCL-built motherboard bundle provides the central components needed to get you started.
Featuring a Intel Core i9-12900F processor with 16 cores (8 performance cores and 8 efficiency cores), HyperThreading for 24 threads, and a 5.1GHz boost clock, you get the performance you need to frag at your best. You don't have to worry about noise or heat either, as it's kept cool by a ASUS TUF Gaming LC 120mm liquid cooler. 16GB of DDR4 memory at 3,200MHz is provided as two sticks for dual channel performance whilst also leaving two slots free to upgrade later, and this is all installed into a MSI MAG B660M MORTAR WIFI Micro ATX motherboard, which provides eight rear USB ports (1 x 3.1 Type-C, 3 x 3.1 and 4 x USB 2.0), along with a M.2 PCIe Gen4 slot for super-fast storage plus excellent connectivity with 2.5Gb Ethernet, Wi-Fi 6 and Bluetooth 5.2.
Built by our System Build team here and tested to ensure rock-solid stability, a 3-Year Warranty is included so you can have peace of mind on all the parts that make up this bundle.
Please note:
1. As this bundle is designed for gaming, where a discrete graphics card is in use, the installed processor does not have any integrated graphics capability. You will need to install a discrete graphics card to get a video output from this bundle.
2. The included cooler will be shipped separately to the bundle so that it is not damaged in transit, and will need installing to the bundle before use. This cooler needs a 120mm fan mounting point in your case that is suitable for a radiator, so please check to ensure your case can support the cooler.
3. The motherboard used in this bundle requires 2 x 8-pin EPS connections from your PSU - please check your power supply to ensure you have these connectors.

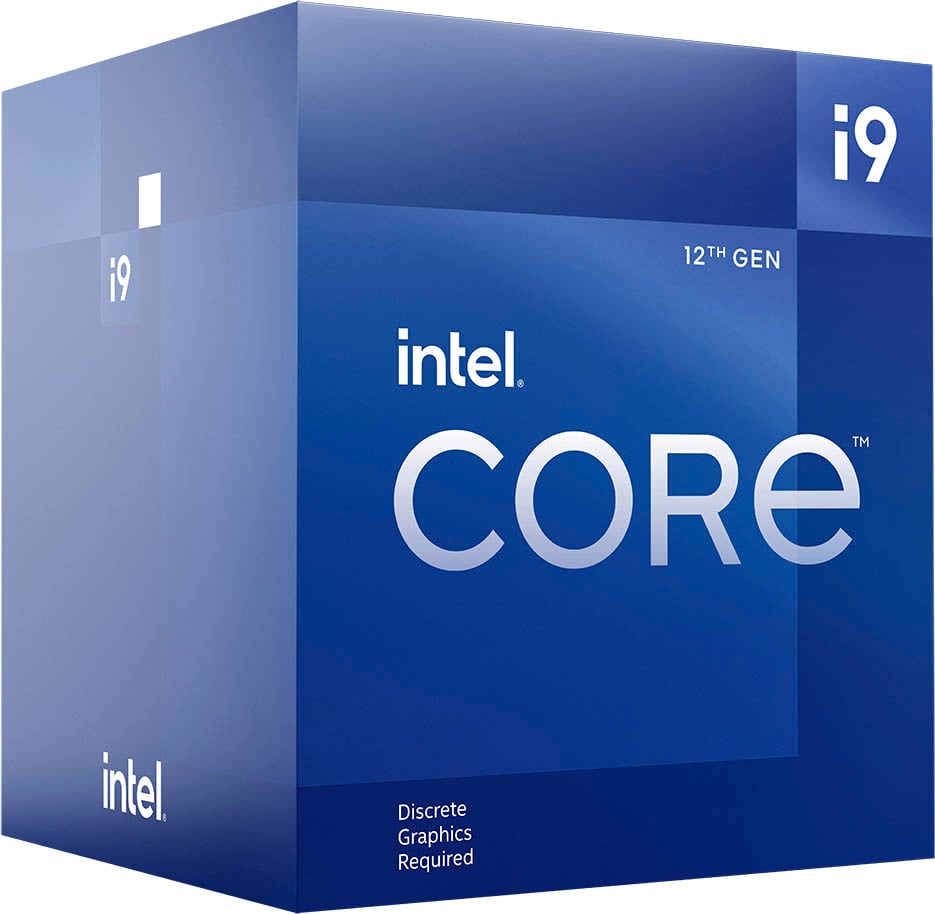

CPU
- CPU Family: Intel Core i9
- Processor Number: 12900F
- CPU Speed: 2.4 GHz
- L3 Cache: 30 MB
- Socket: LGA1700
- Architecture: Alder Lake-S
- Technology: Intel 7
- Number of Cores: 16 Cores (8P + 8E)
- Number of Threads: 24 threads

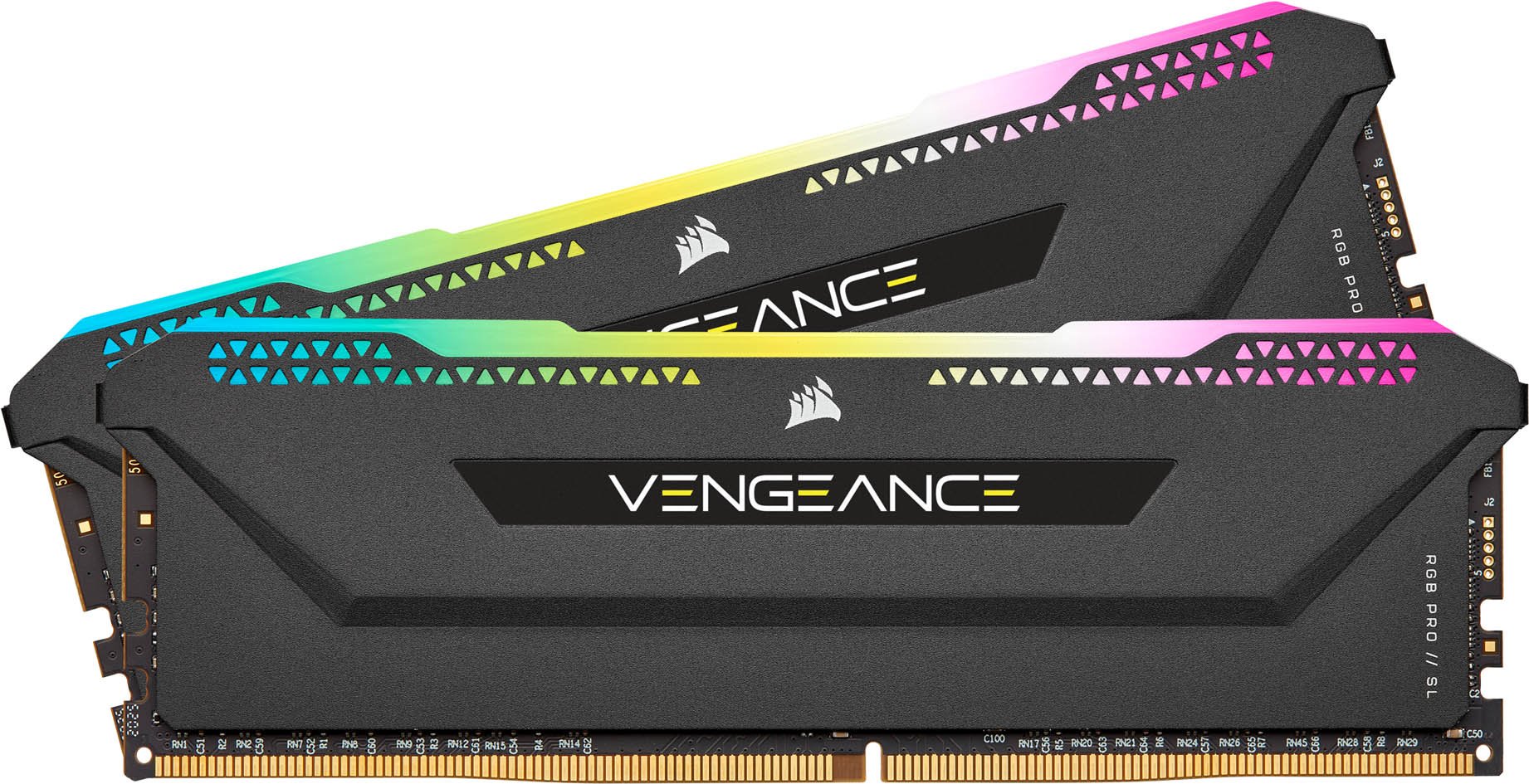

Memory
- Description: Corsair Vengeance RGB PRO SL
- Memory Size (Total): 16384 MB
- Memory Type: DDR4
- Memory Speed: 3200 MHz
- Number of Modules: 2 modules
- Error Correction: No
- Voltage: 1.35 V
- Pin Configuration: 288 pin

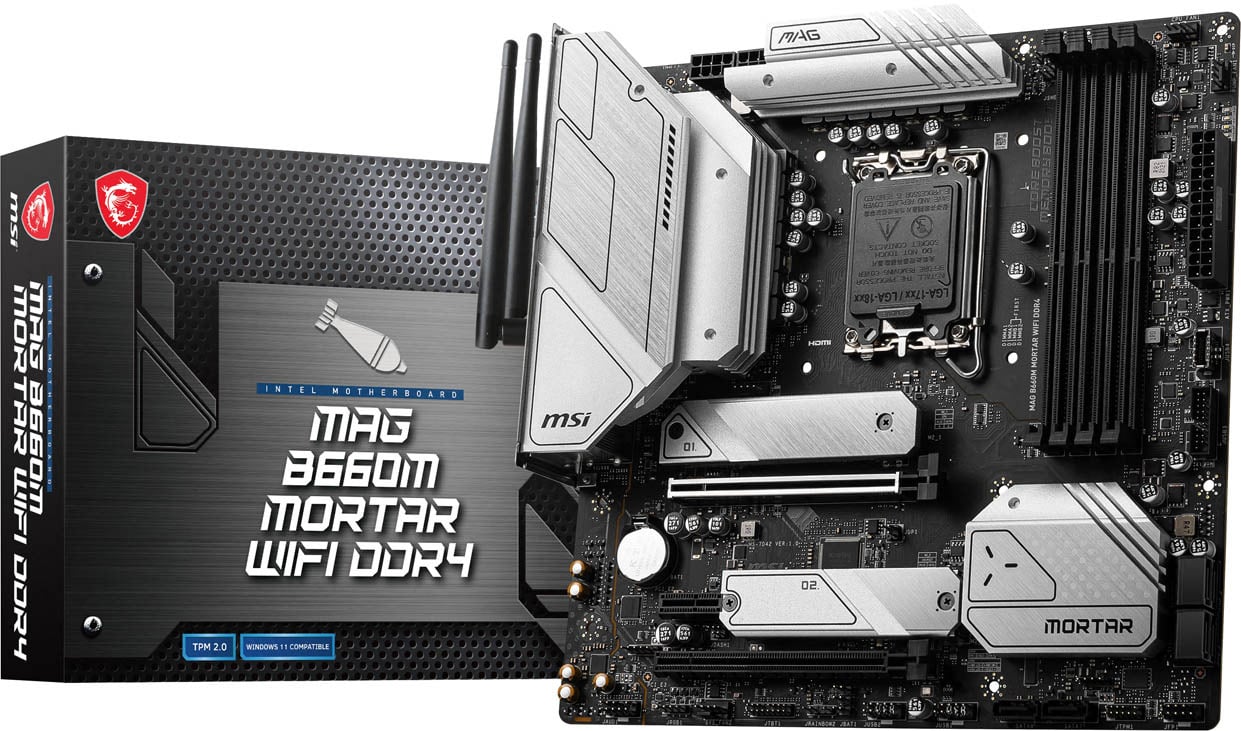

Motherboard
- Integrated Sound: Realtek ALC1200
- Integrated Network: Realtek 8125GB
- Network Speeds Supported: Up to 2.5 Gbps
- Form Factor: MicroATX Motherboard
- SATA Connectors: 6 x SATA III
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
- Cooling Fan Support: 1 x CPU fan header
- 1 x Water Pump fan header
- 2 x System fan headers
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4 or SATA)
- 2 x 3-pin ARGB LED headers
- 1 x 4-pin RGB LED header
- 1 x Tuning Controller header
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 1 x PCI Express 3.0 x16 slot (@ x4)
- 1 x PCI Express 3.0 x1 slot
- Maximum RAM: 128 GB
- Memory Bus Speed: Up to 4800+ MHz
- Memory Type: DDR4
- Memory Slot: 4 x DIMM
- Operating Systems Supported: Microsoft Windows 11 or 10 64-bit
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 3 x USB 3.1
- 4 x USB 2.0
- VGA Port: No
- DVI Port: No
- HDMI Port: Yes
- DisplayPorts: Yes
- Ethernet Connectors (RJ-45): 1 x RJ-45
- Audio Line Out Ports: 3 x 3.5mm Jacks

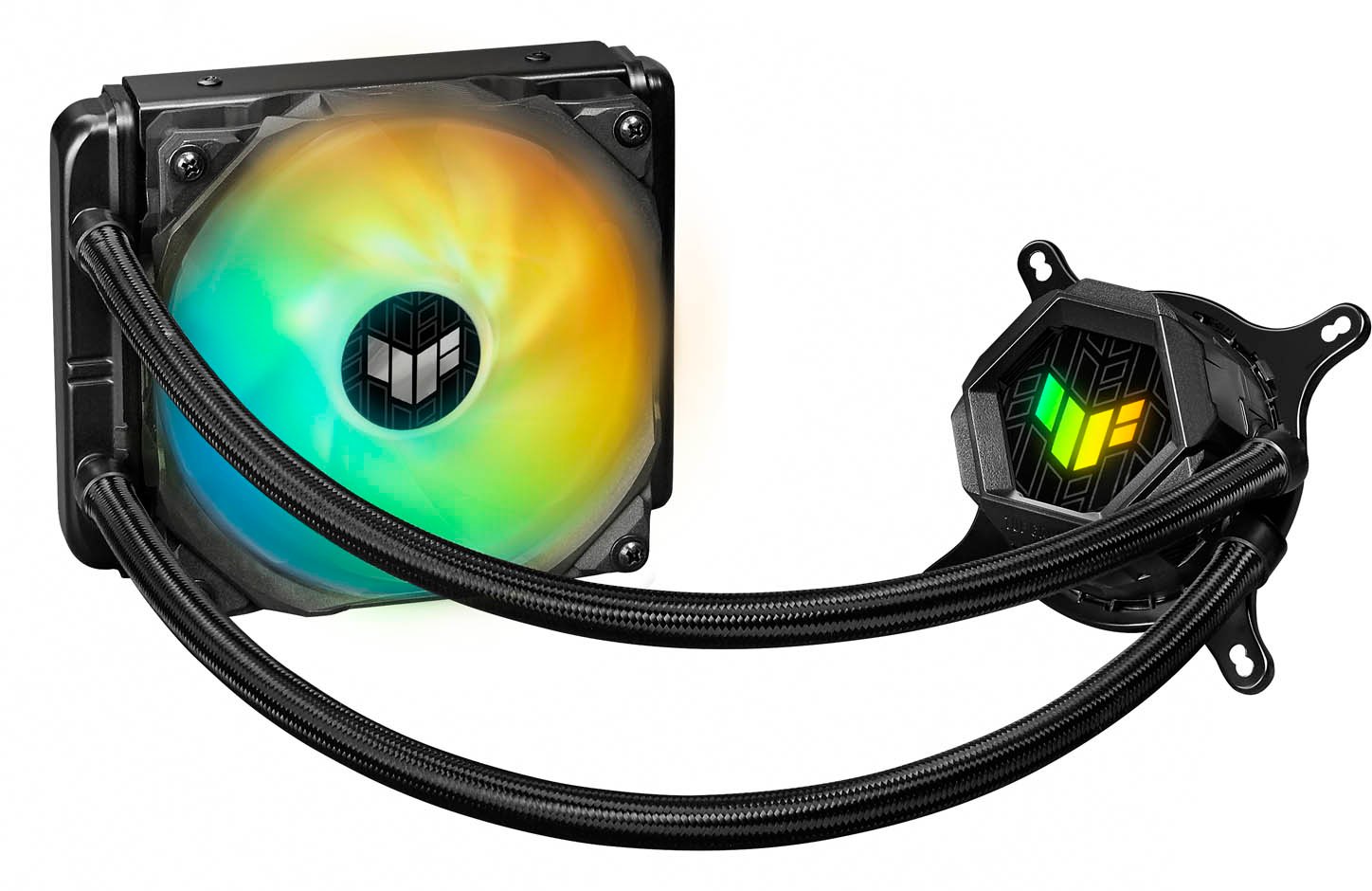

CPU Cooler
- Description: ASUS TUF Gaming LC 120 ARGB 120mm Liquid CPU Cooler
- Fan Speed: 800 ~ 2000 RPM
- Fan Noise Level: 29 dBA
- Airflow: 67 CFM
- Width: 80 mm
- Depth: 80 mm
- Height: 45 mm
Identifiers
- Stock Code: MBB-GMI-I9F1
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
