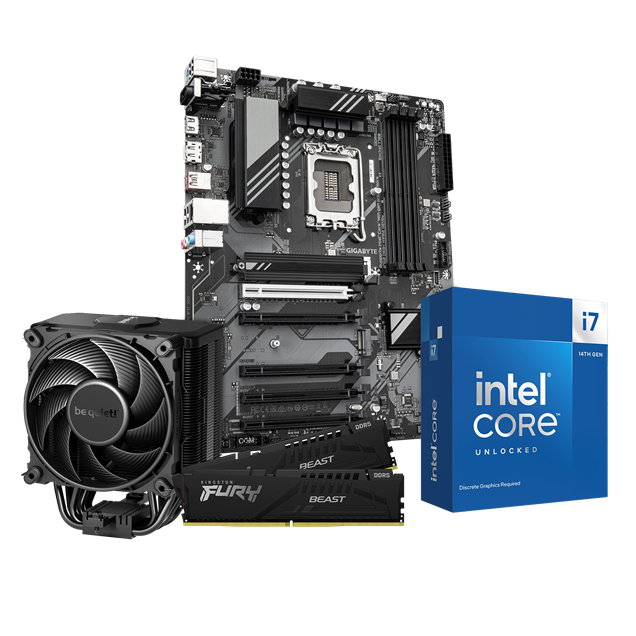

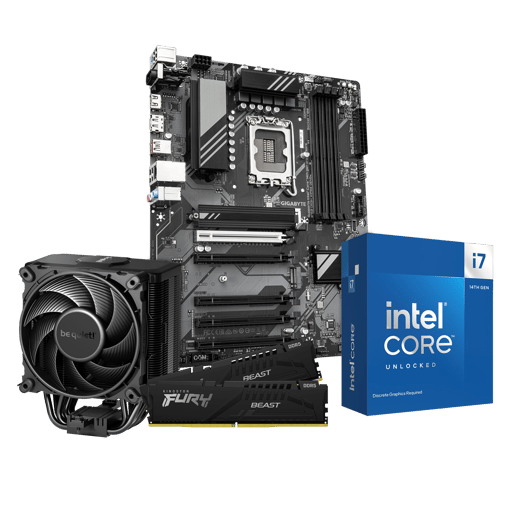

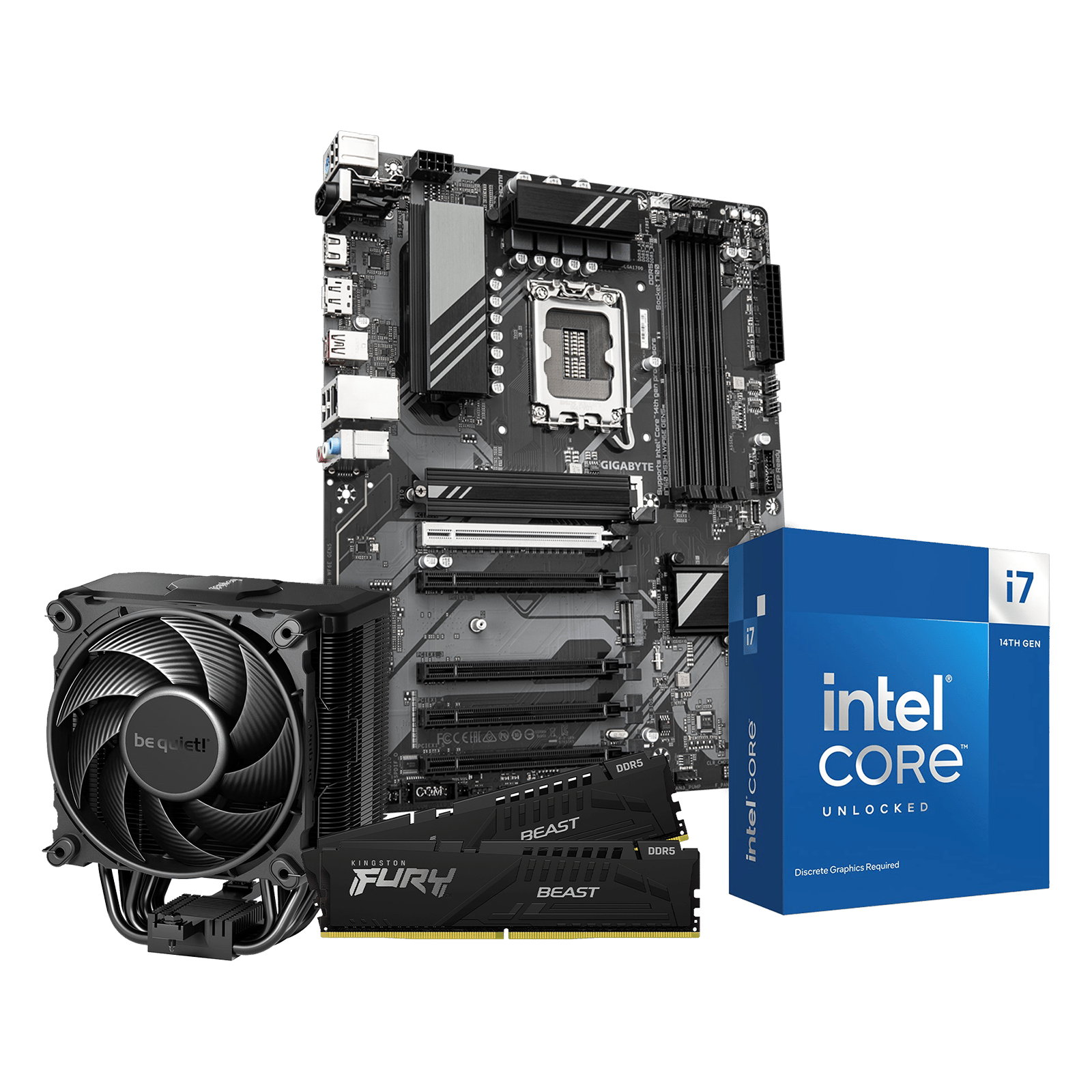

CCL Intel Gaming Motherboard Bundle
CCL Intel Gaming Motherboard Bundle
Motherboard bundle for 1080p & 1440p gaming (with a suitable GPU)
Build a fast, responsive gaming PC with our Intel Gaming Motherboard Bundle. Professionally assembled and tested, this core platform is designed to deliver smooth gameplay and multitasking — just add a suitable graphics card for excellent 1080p or 1440p performance.
This isn’t just a box of parts; it’s a performance-ready foundation. Our team pairs an Intel Core processor, a feature-rich B760 motherboard, high-speed DDR5 memory and robust cooling for seamless compatibility and reliability out of the box.
Great 1080p or 1440p starter platform
Ideal for first-time builders or console switchers, this Intel-based bundle is designed to avoid bottlenecks and scale with your choice of GPU — from smooth 1080p play to high-refresh 1440p gaming.
Stress-free upgrading
Skip the compatibility guesswork. Your motherboard bundle arrives pre-tested and ready to install, so you can spend less time building and more time gaming. Our professional team handles the assembly and testing for a reliable, high-performing core from day one.
Build with confidence
Every Intel Gaming Motherboard Bundle is backed by a comprehensive three-year collect and return warranty, so you can buy with confidence.
CPU
- Architecture: Raptor Lake
- Technology: Intel 7
- Number of Cores: 20 (8P+12E)
- Number of Threads: 28

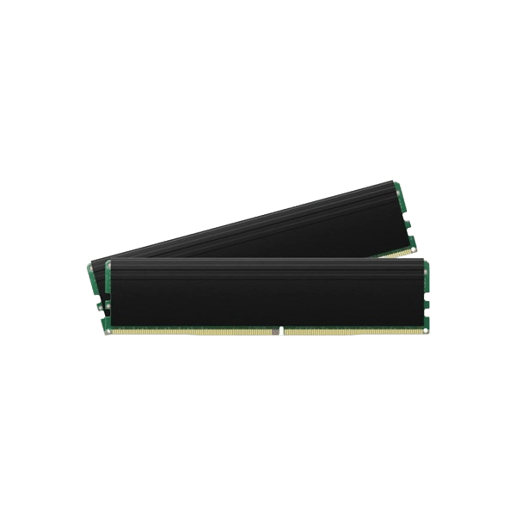

Memory
- Description: Our Choice - Black
- Memory Size (Total): 32768 MB
- Memory Type: DDR5
- Memory Speed: 5200 MT/s
- Number of Modules: 2
- Error Correction: No
- Voltage: 1.35 V
- Pin Configuration: 288 pin

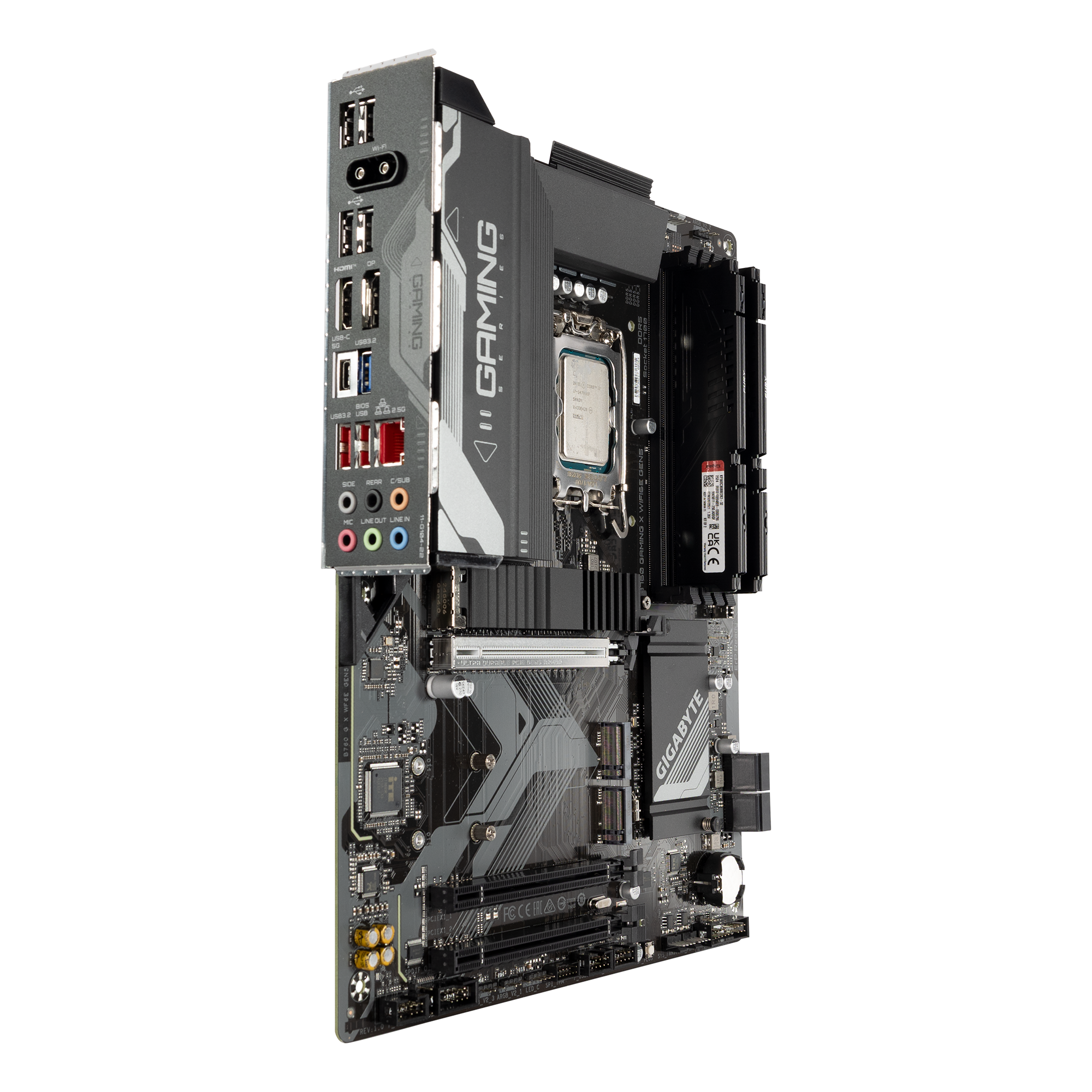

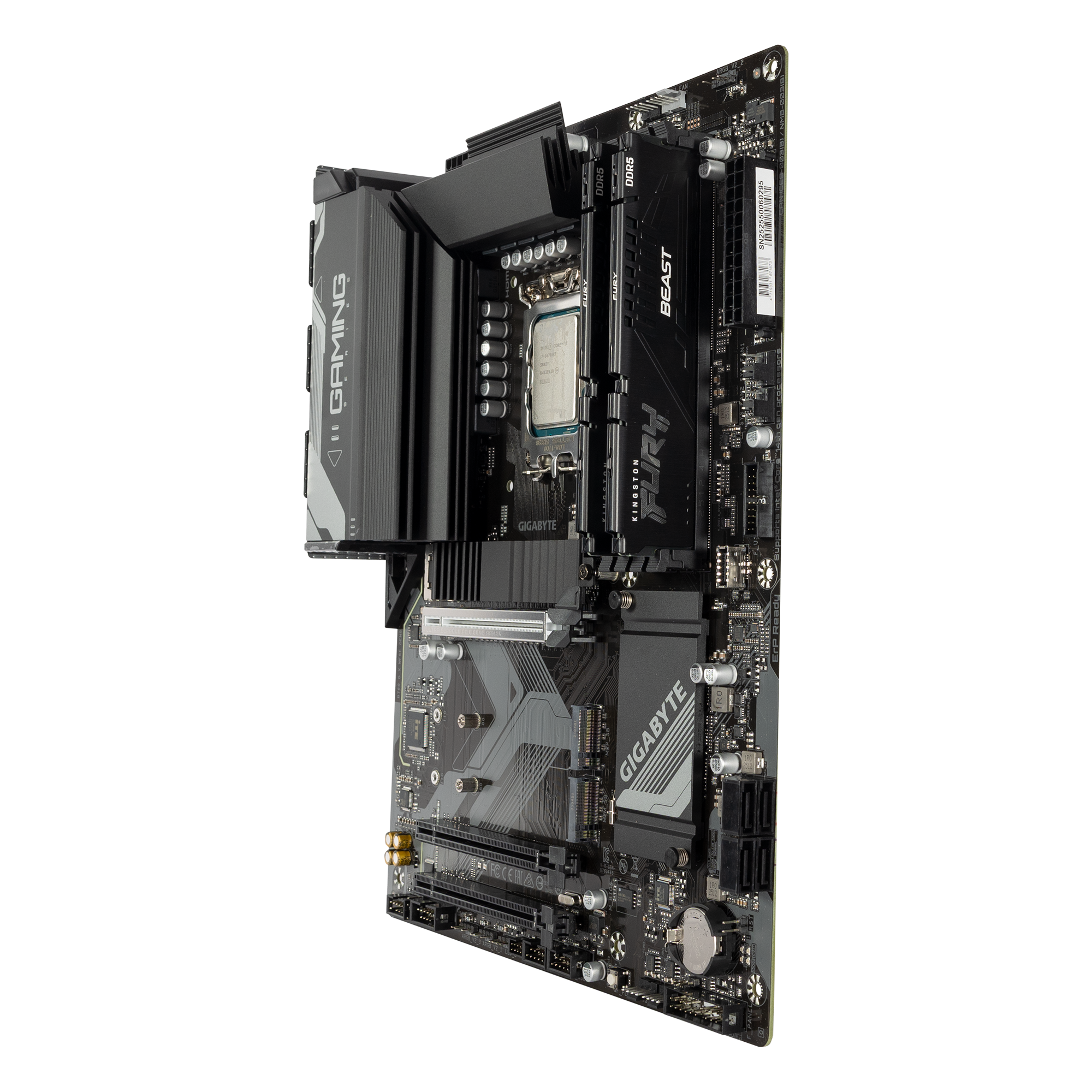

Motherboard
- Integrated Sound: Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1 channel, S/PDIF Out
- Integrated Network: Realtek GbE LAN (1 Gbps)
- Network Speeds Supported: 10/100/1000 Mbps (wired), Wi-Fi 6E AX210 up to 2400 Mbps (160 MHz)
- Form Factor: ATX, 30.5 cm x 24.4 cm
- SATA Connectors: 4 x SATA 6Gb/s (RAID 0/1/5/10 support)
- S/PDIF Connectors: 1 x S/PDIF Out header
- USB Connectors: 1 x USB-C (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
- Firewire Connectors: None
- Parallel Connectors: None
- Serial Connectors: 1 x serial port header (internal)
- Infrared Connectors: None
- SCSI Connectors: None
- Auxiliary Audio Support: Supported via Realtek Audio CODEC
- MIDI/Joystick Connector: None
- Cooling Fan Support: 1 x CPU fan, 1 x CPU fan/water pump, 3 x system fans, 1 x system fan/water pump
- Chassis Intrusion Connector: 1 x chassis intrusion connector
- Wireless Connector: 2 x antenna connectors (rear panel, for Wi-Fi 6E)
- Speaker: Supported via audio header
- TPM Header: 1 x TPM header (for GC-TPM2.0 SPI module)
- Power Connector Port: 1 x 24-pin ATX main, 1 x 8-pin ATX 12V
- Other Connectors: Front panel, front audio, RGB/ARGB headers, reset jumper, clear CMOS jumper, Q-Flash Plus button
- Number of PCI Slots: 0 (no legacy PCI slots)
- Number of PCI Express Slots: 5 total (1 x16, 4 x1)
- PCI Express X16 Slots: 1 x PCIe 5.0 x16 (reinforced, GPU slot)
- PCI Express Slot Type: PCIe 5.0 x16, PCIe 3.0 x1
- Maximum RAM: 256 GB
- Memory Bus Speed: Up to DDR5-7600 (OC)
- Memory Type: DDR5, Dual Channel, up to 256GB
- Memory Slot: 4 x DDR5 DIMM slots
- Operating Systems Supported: Windows 11 64-bit, Windows 10 64-bit
- BIOS: AMI UEFI BIOS, 128 Mbit flash, Q-Flash & Q-Flash Plus
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2 combo port
- Keyboard Port: Integrated in PS/2 combo port
- Mouse Port: Integrated in PS/2 combo port
- USB Ports: 1 x USB-C (USB 3.2 Gen 2x2), 1 x USB-A (USB 3.2 Gen 2), 4 x USB 2.0
- VGA Port: No
- DVI Port: No
- HDMI Port: Yes
- DisplayPorts: Yes
- Ethernet Connectors (RJ-45): 1 x RJ-45 (Realtek GbE LAN, 1Gbps)
- Audio Line Out Ports: 3 x audio jacks (configurable for 2/4/5.1/7.1-channel audio)
- Parallel Ports: None
- Serial Ports: 1 x Serial port header (internal)
- Firewire Ports: None
- eSATA Ports: None

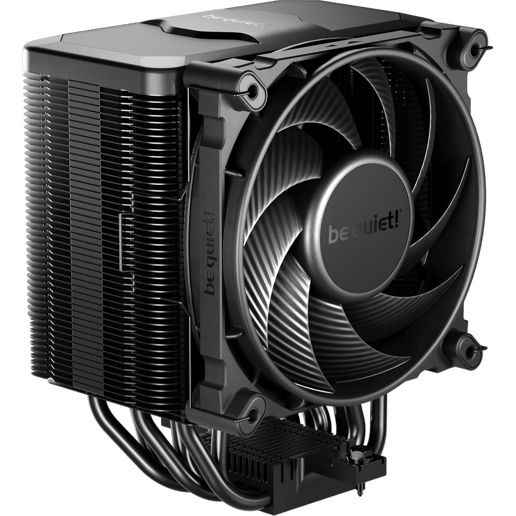

CPU Cooler
- Description: Be Quiet Dark Rock 5 CPU Cooler
- Fan Speed: 2100 RPM max
- Fan Noise Level: 11.9 ~ 29.8 dB(A)
- Airflow: 55.0 CFM max
- Width: 136 mm
- Depth: 101 mm
- Height: 161 mm
Identifiers
- Stock Code: CCL-GAM-MBB-GUG
- Mfg Code: CCL-GAM-MBB-GUG
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
