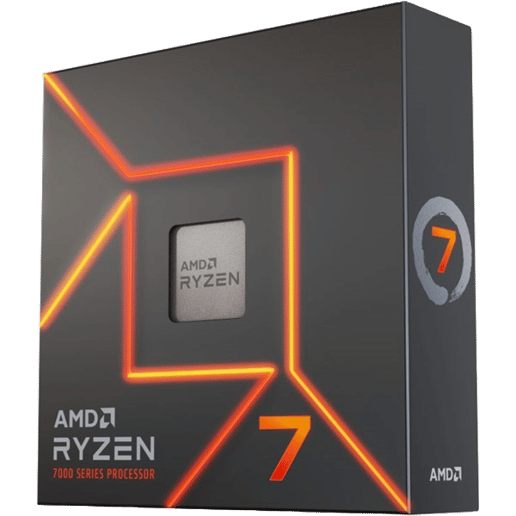

CPU

• CPU Family: AMD Ryzen 7
• Processor Number: 7700X
• CPU Speed: 4.5 GHz
• L3 Cache: 32 MB
• Socket: AM5
• Architecture: Zen 4
• Technology: TSMC 5nm FinFet
• Number of Cores: 8 cores
• Number of Threads: 16 threads

Memory

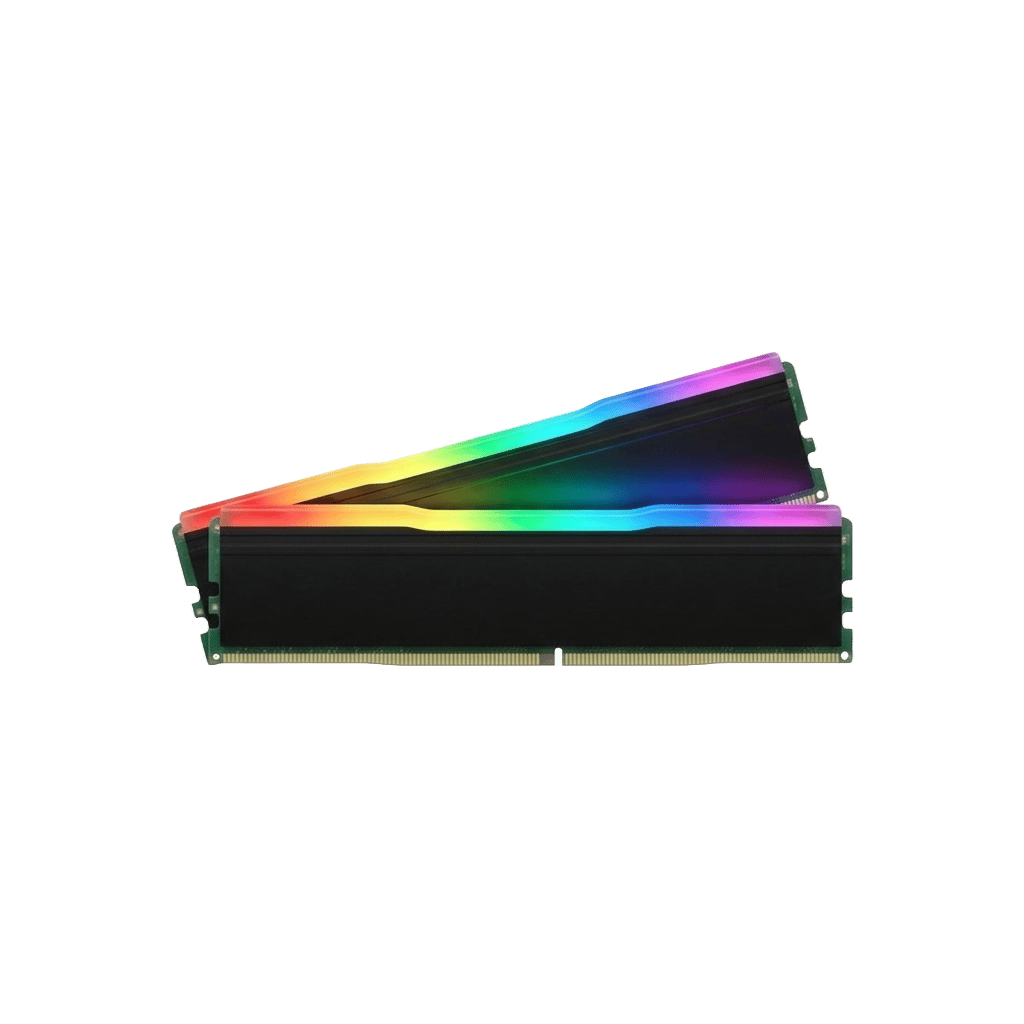

• Description: Our Choice - ARGB Black
• Memory Size (Total): 32768 MB
• Memory Type: DDR5
• Memory Speed: 5200 MT/s
• Number of Modules: 2
• Error Correction: No
• Voltage: 1.35 V
• Pin Configuration: 288 pin

Motherboard

• Integrated Sound: Realtek
• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Form Factor: mATX Motherboard
• SATA Connectors: 4 x SATA III
• S/PDIF Connectors: 1 x S/PDIF Out header
• USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)
• Serial Connectors: 1x COM header
• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU OPT fan header
• 3 x Chassis fan headers
• Speaker: 1 x Speaker header
• TPM Header: 1 x SPI TPM header
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• 1 x 4-pin EPS
• Other Connectors: 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen5)
• 1 x M.2 slot, Key M, Type 2242/2260/2280 (PCIe Gen4)
• 3 x 3-pin ARGB LED headers
• 1 x 4-pin RGB LED header
• Number of PCI Express Slots: 3 x PCI Express 4.0 x16 slots (@ x16/x1/x1)
• Maximum RAM: 192 GB
• Memory Bus Speed: Up to 7600 MHz
• Memory Type: DDR5
• Memory Slot: 4 DIMM
• Operating Systems Supported: Microsoft Windows 11

Warranty

• Warranty: 3 Years
• Parts: 3 Years
• Labour: 3 Years

Rear Panel I/O Ports

• Keyboard/Mouse Combo Port: 1 x PS/2
• USB Ports: 2 x USB 3.1
• 2 x USB 3.0
• 4 x USB 2.0
• VGA Port: Yes
• DVI Port: No
• HDMI Port: Yes
• DisplayPorts: Yes
• Ethernet Connectors (RJ-45): 1 x RJ-45
• Audio Line Out Ports: 1 x 3.5mm Jack

CPU Cooler

• Description: GameMax Ice Force ARGB CPU Cooler in Black
• Fan Speed: 800 ~ 1600 RPM
• Airflow: 44.35 CFM Max
• Width: 120 mm
• Depth: 92 mm
• Height: 154 mm

Identifiers

• Stock Code: CCL-CRE-MBB-AM5
• Mfg Code: CCL-CRE-MBB-AM5
