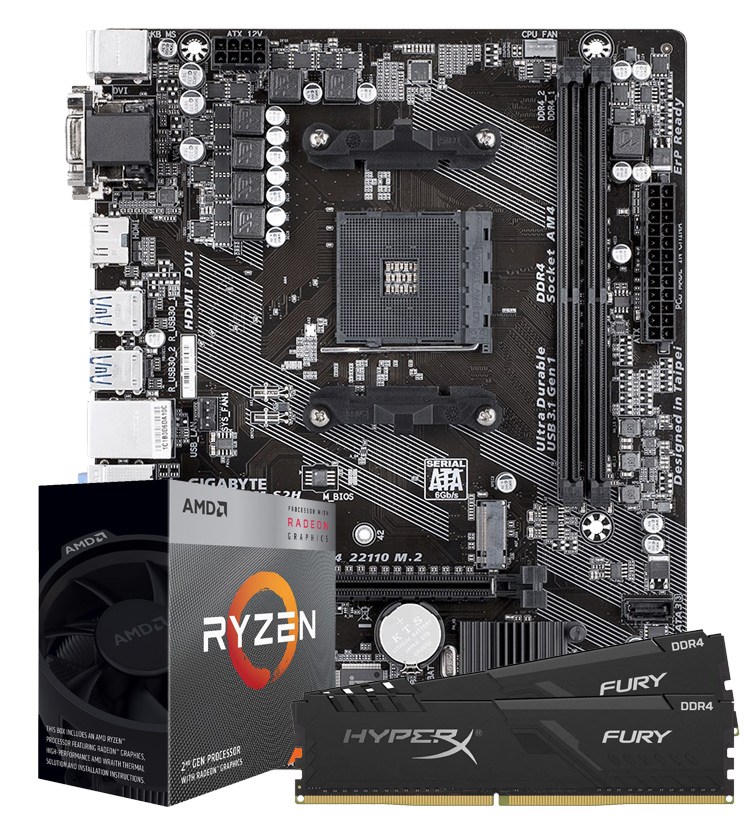

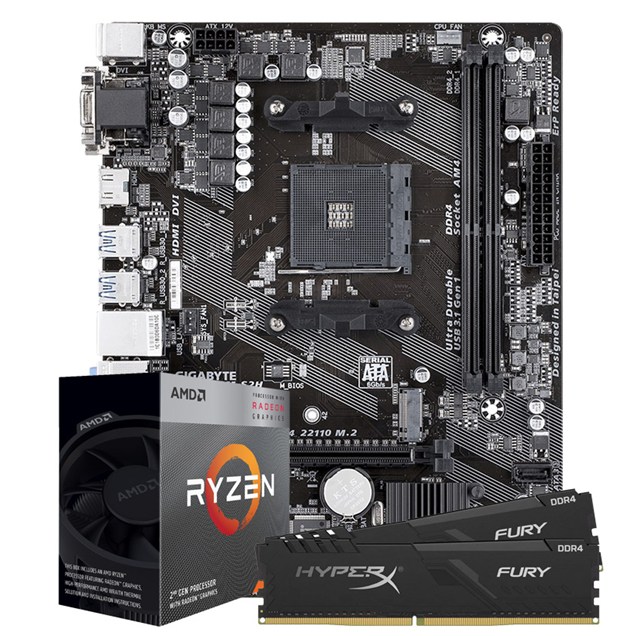

CCL Alpha Standard AMD Motherboard Bundle
Designed to get you started with building a home or office system, our CCL Alpha Standard Motherboard Bundle provides the central components needed to get you started.
The Alpha Standard AMD bundle features the latest Zen+ AMD Ryzen 3 3200G, a 3.6GHz Quad Core processor. With four threads and with built-in Radeon Vega RX 8 graphics, this is the perfect processor for home, office work or eSports gaming. 8GB of DDR4 fast 2,666MHz memory is provided as in dual channel format (2x 4GB sticks) for improved responsiveness and graphical performance, and this is all installed into a Gigabyte A320M-S2H Micro ATX motherboard, which provides four rear USB 3.0 ports, HDMI, VGA and DVI outputs, and a M.2 PCIe slot for super-fast storage.
Built by our System Build team here and tested to ensure rock-solid stabilty, a 3-Year Warranty is included so you can have peace of mind on all the parts that make up this Alpha Standard bundle.
CPU
- CPU Family: AMD Ryzen 3
- Processor Number: 3200G
- CPU Speed: 3.6 GHz
- L3 Cache: 4 MB
- Socket: AM4
- Architecture: Zen+
- Technology: 12 nm
- Number of Cores: 4 cores
- Number of Threads: 4 threads

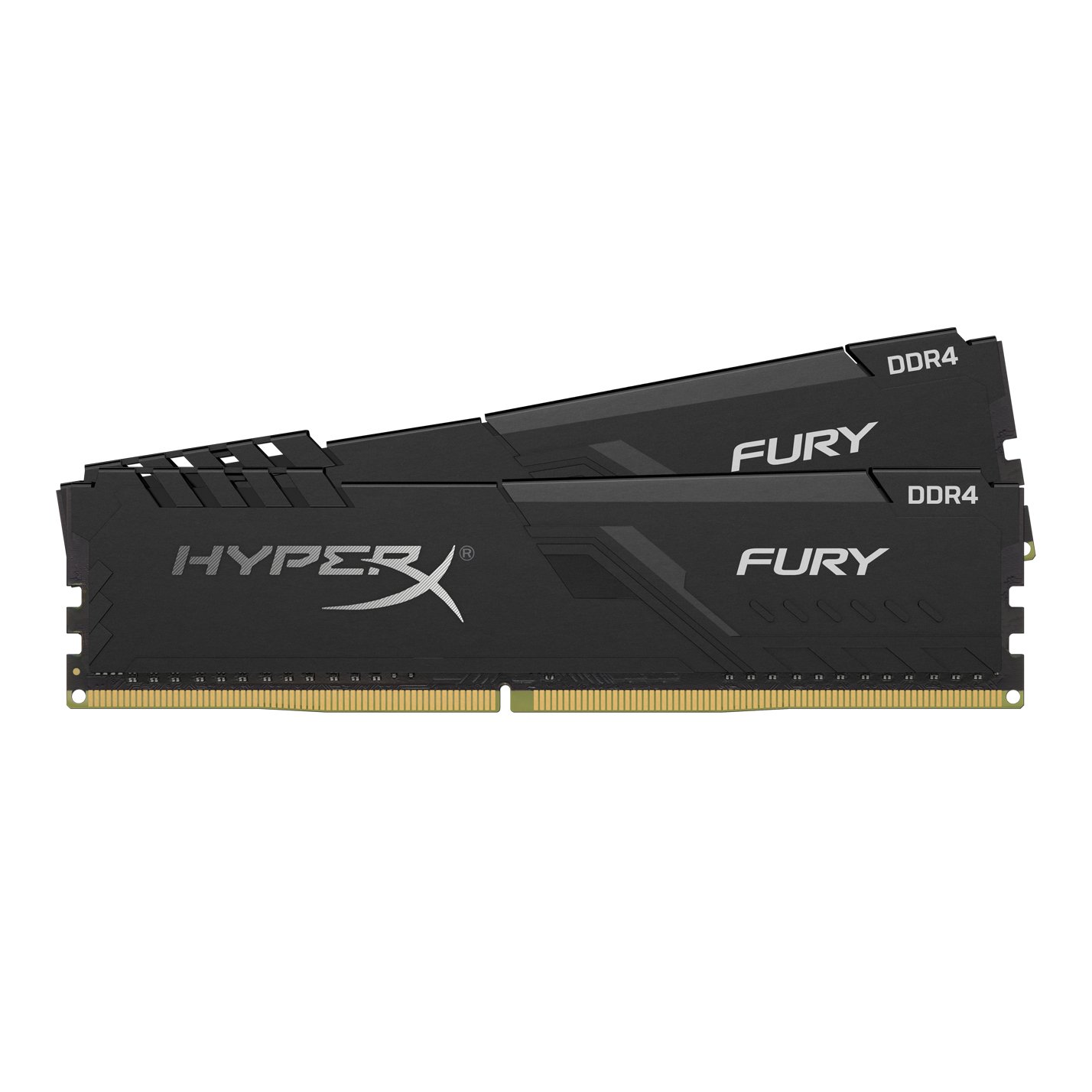

Memory
- Description: HyperX FURY
- Memory Size (Total): 8192 MB
- Memory Type: DDR4
- Memory Speed: 2666 MHz
- Number of Modules: 2 modules
- Error Correction: No
- Voltage: 1.2 V
- Pin Configuration: 288 pin

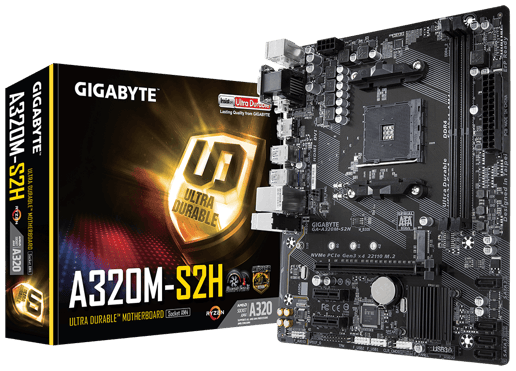

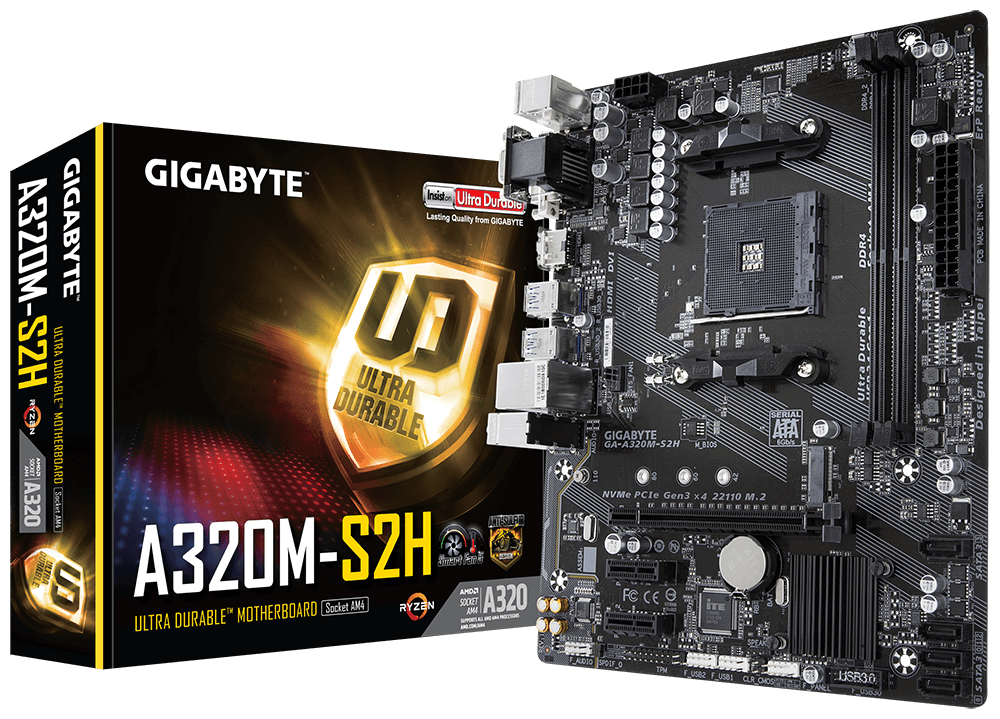

Motherboard
- Integrated Sound: Realtek® ALC887
- Integrated Network: Realtek® GbE
- Network Speeds Supported: 10/100/1000 Mbps
- Form Factor: Micro ATX Motherboard
- SATA Connectors: 4 x SATA III
- S/PDIF Connectors: 1 x S/PDIF Out
- USB Connectors: 1 x USB 3.0
- 2 x USB 2.0
- Cooling Fan Support: 1 x CPU Fan
- 1 x System Fan
- Chassis Intrusion Connector: 1 x Chassis Intrusion
- Speaker: 1 x Speaker
- TPM Header: 1 x TPM
- Power Connector Port: 1 x 20+4-pin ATX
- 1 x 4+4-pin EPS
- Other Connectors: 1 x M.2, Socket 3, M Key (Type 2242/2260/2280/22110)
- Number of PCI Express Slots: 1 x PCI Express 3.0 x16
- 2 x PCI Express 2.0 x1
- Maximum RAM: 32 GB
- Memory Bus Speed: 3200(O.C.) / 2933(O.C.) / 2667* / 2400 / 2133 MHz
- Memory Type: DDR4
- Memory Slot: 2 x DIMM
- Operating Systems Supported: Microsoft® Windows® 10 64-bit
- BIOS: 1 x 128 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x Combo port
- Keyboard Port: N/A
- Mouse Port: N/A
- USB Ports: 4 x USB 3.0
- 2 x USB 2.0
- VGA Port: Yes
- DVI Port: Yes
- HDMI Port: Yes
- DisplayPorts: No
- Ethernet Connectors (RJ-45): 1 x RJ-45
- Audio Line Out Ports: 1 x 3.5mm Jack
Identifiers
- Stock Code: MBB-AMD-ALPHASTN
Warranty
- Warranty: 3 Years
- Parts: 3 Years
- Labour: 3 Years
