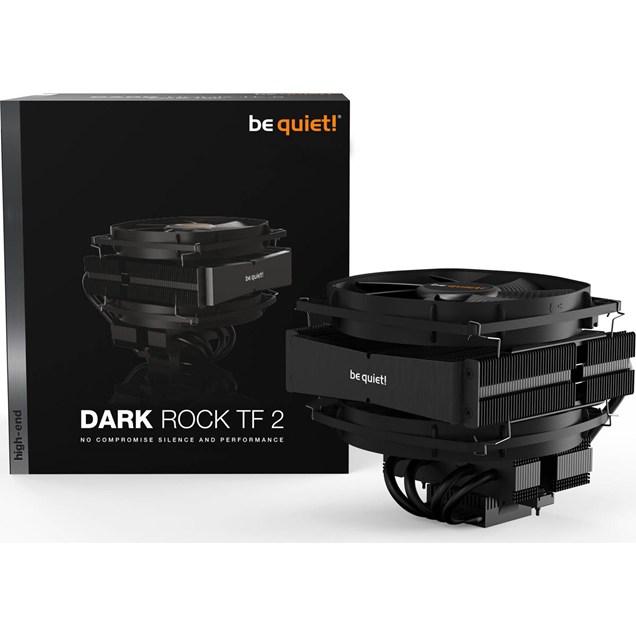

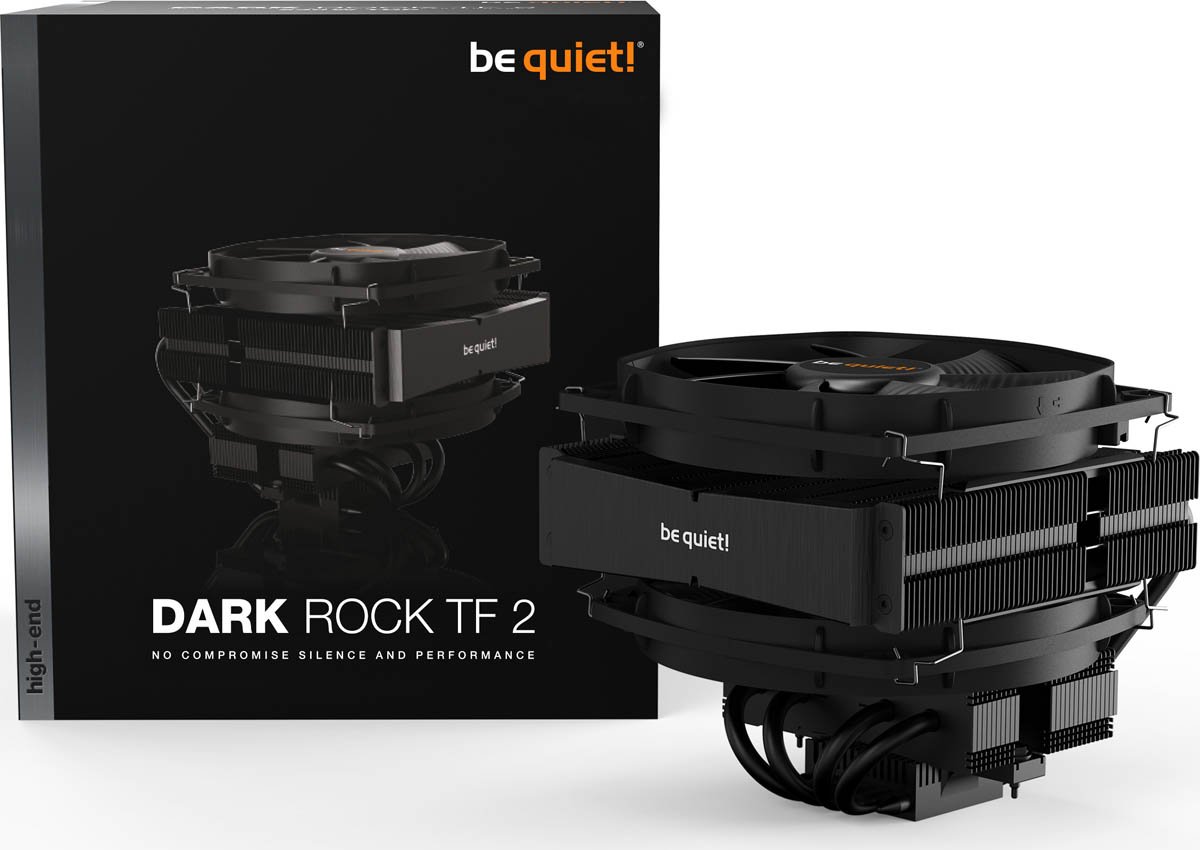

be quiet! Dark Rock TF 2 CPU Cooler

be quiet! Dark Rock TF 2 CPU Cooler

CCL Code: CLR2332

Discontinued

be quiet! Dark Rock TF 2 CPU Cooler

BK031

Key Features:

  • Air Cooler
  • 2 x 13.5cm Fan(s)
  • Up to 1400RPM
  • Intel 115x 1200 1700
  • AMD AM4 AM5
CCL Code: CLR2332

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Dark Rock TF 2 offers extreme cooling performance for the CPU and surrounding components as well as virtually inaudible operation.

EXTREME COOLING PERFORMANCE

Achieving an incredible performance-to-noise ratio

Thanks to its double-tower layout, this cooler is a true cooling marvel with 230W TDP – just perfect for the extreme conditions found in gaming PCs with overclocked CPUs that require a top flow cooler. Its design provides ideal cooling, not only for the CPU, but also for surrounding components.

VIRTUALLY INAUDIBLE OPERATION

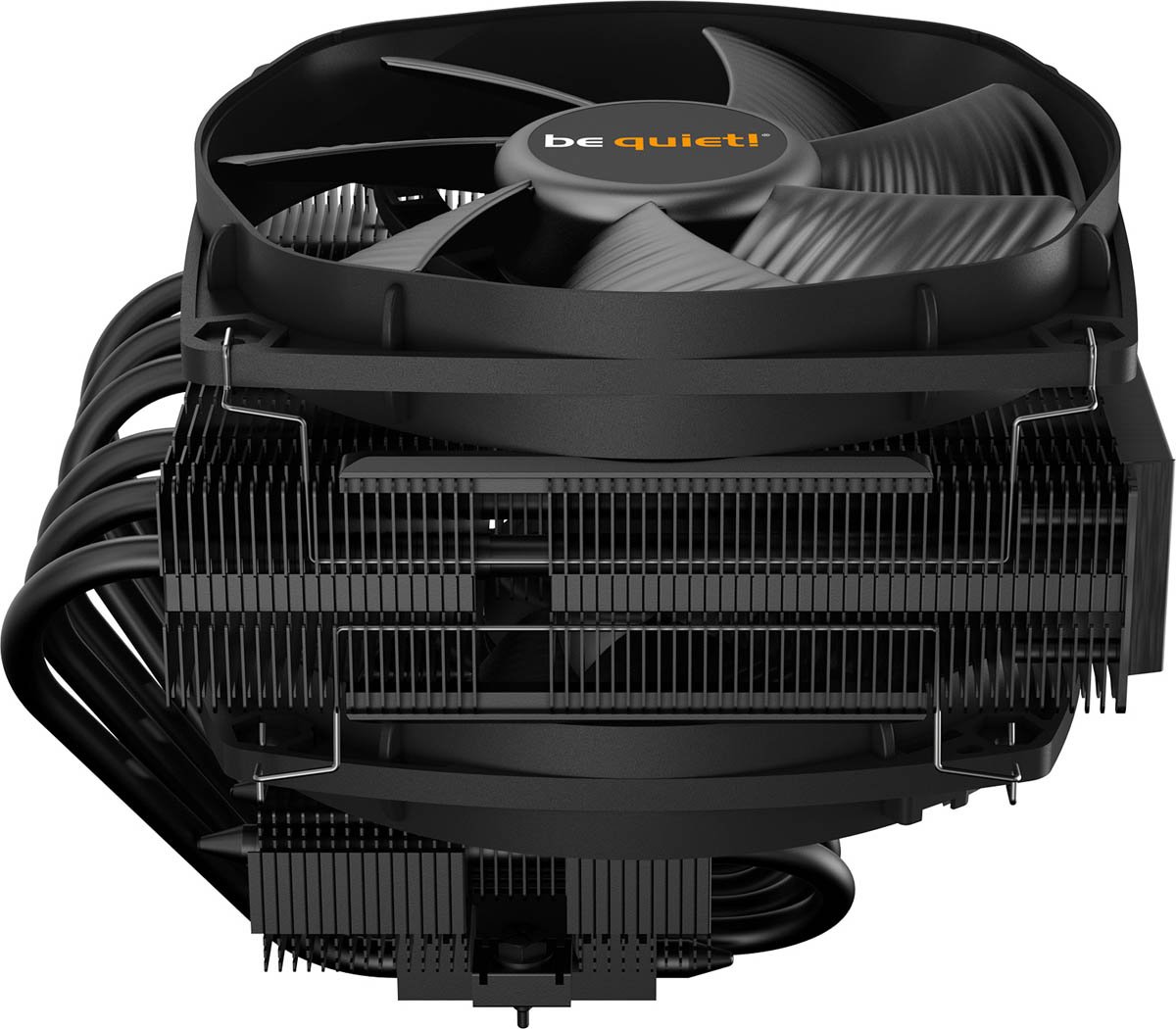

Cooled by Silent Wings

With a funnel shaped Silent Wings 3 135mm as the upper fan, Dark Rock TF 2 provides highest cooling performance. A second Silent Wings fan takes care of airflow inbetween the two heat sinks. Both fans feature advanced fluid-dynamic bearings, smooth six-pole motors and up to nine airflow-optimized fan blades. The noise is a meager 27.1dB(A) even at 100% PWM fan speed. Anti-vibration rubber inserts on the cooling fins of the heat sink further dampen noise.

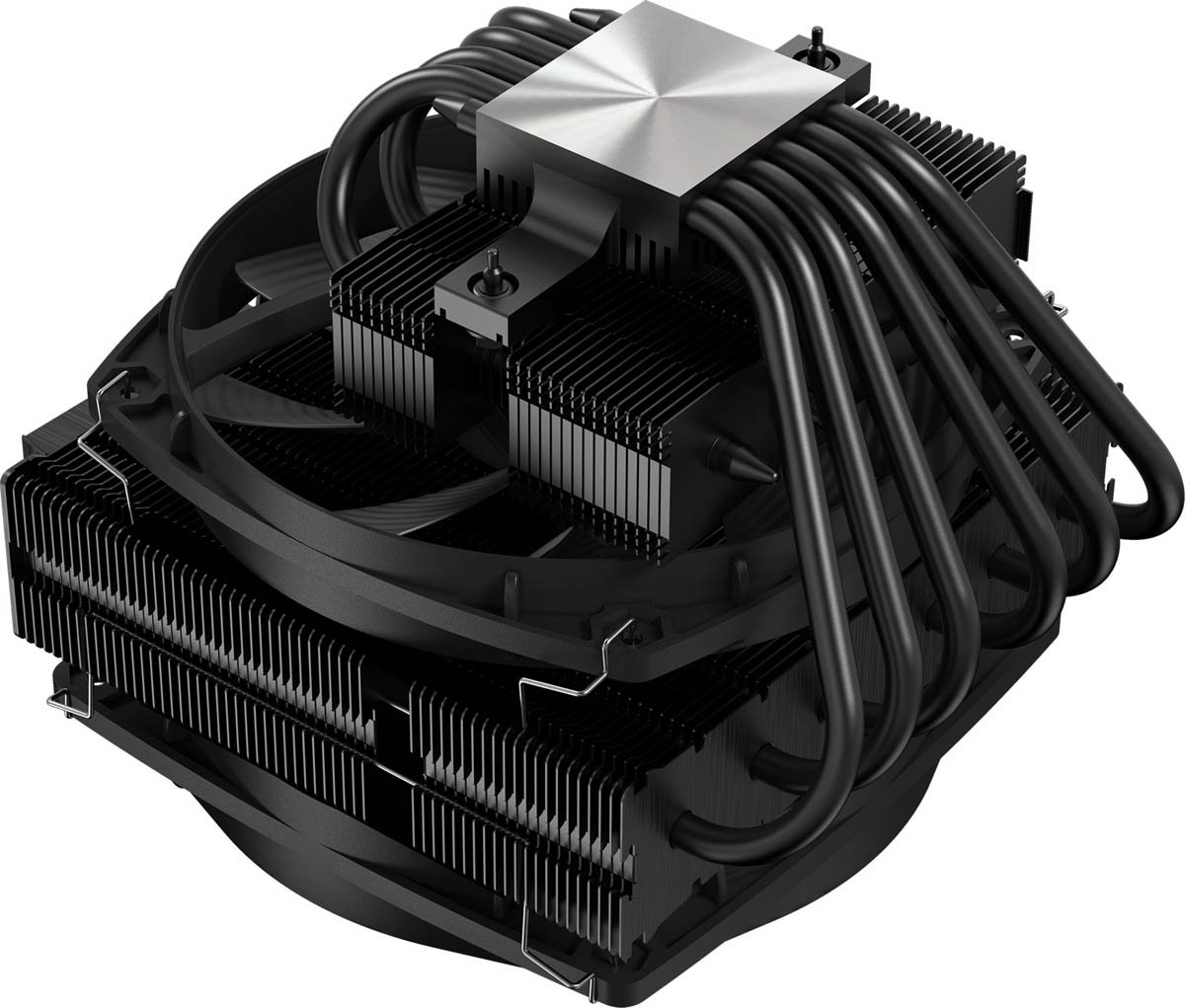

HIGH-PERFORMANCE HEAT PIPES

Ensuring perfect heat transfer

Dark Rock TF 2 has six high-performance copper heat pipes. They carry heat to the optimum locations on the cooling fins. The special black coating with ceramic particles enables a perfect transfer of heat.

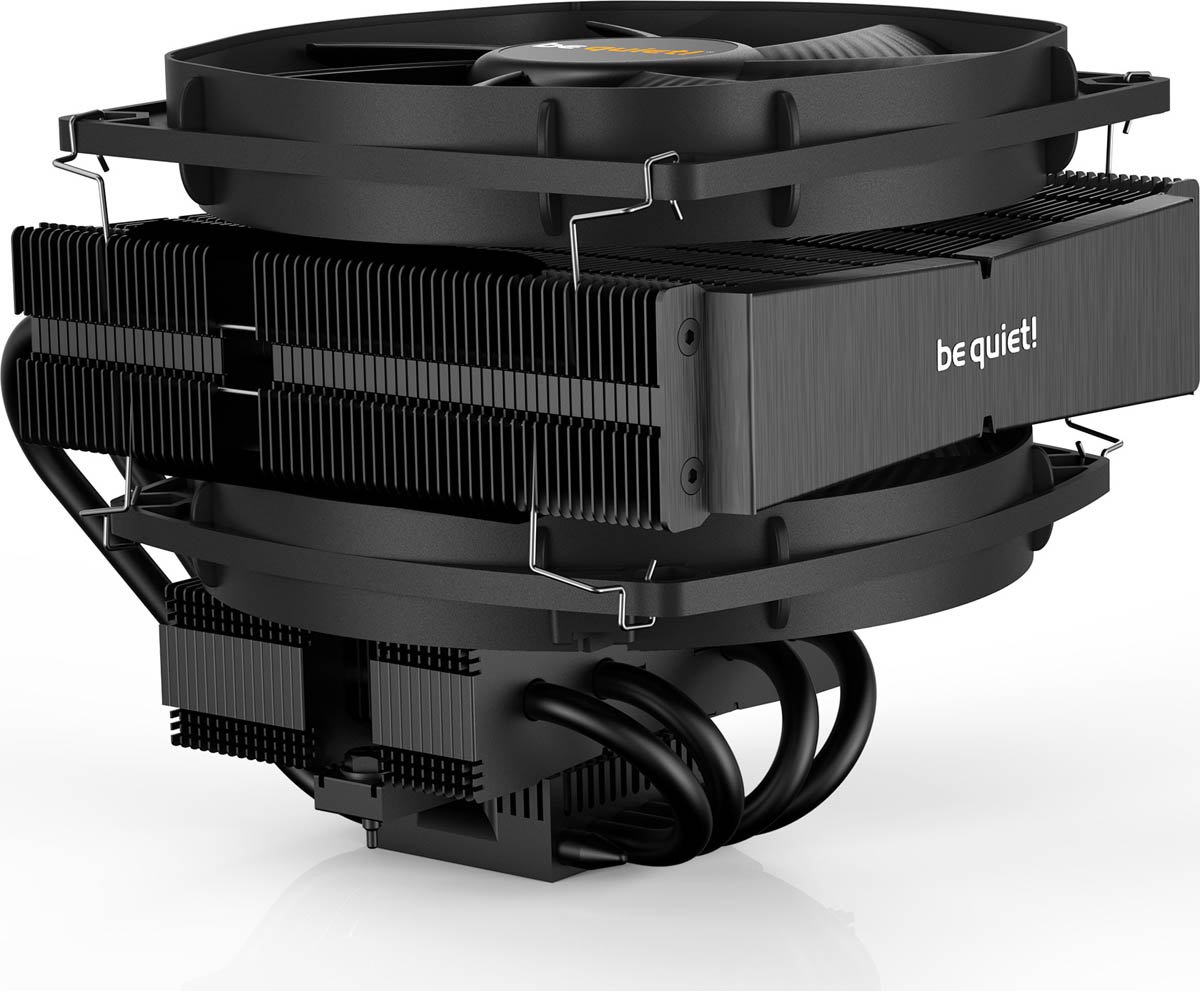

INGENIOUS AND SPACE-SAVING DESIGN

Powerful cooling for your components

Dark Rock TF 2 contains two aluminum heat sinks that are arranged to save space for memory with a height of 49mm. It provides two fans out of the box, but a single fan assembly is also possible, offering further space savings and even quieter operation.

BRUSHED ALUMINUM COVER

For an unmistakable beefy look

The all-black design combined with the brushed aluminum cover gives this high-end cooler a touch of elegance and makes it look great in any system.

Main Features

  • Extremely high cooling performance with 230W TDP
  • Two heat sinks with anti-vibration rubber inserts
  • Six high-performance 6mm heat pipes
  • Silent Wings 3 135mm with funnel shaped air-inlet and a Silent Wings 135mm for virtually inaudible operation of max. 27.1dB(A)
  • Optimized mounting system makes for an easy installation
  • Special black coating with ceramic particles enables perfect heat transfer
  • Brushed aluminum top cover for elegant look
  • Three-year manufacturer's warranty
  • Product conception, design and quality control in Germany
Specifications

CPU Types

Socket AMD: AM4 / AM3(+)
Intel: 1200 / 2066 / 1150 / 1151 / 1155 / 2011(-3) Square ILM

Fan

Fan Bearing Type Fluid Dynamic
Fan Speed Up to 1400 RPM
Noise Level 11.1 ~ 27.1 dB(A)
Lifetime 300,000 houors
Cooling Capacity 230 W TDP

Fan Speed Controller

Connector 4-pin PWM
Allowable Power 2.4 ~ 4.8 W
Current 0.2 ~ 0.4 A

Physical

Form Factor CPU Cooler
Case Colour Black
Cable Length 220 mm
Base Material Copper
Heatsink Material Aluminium

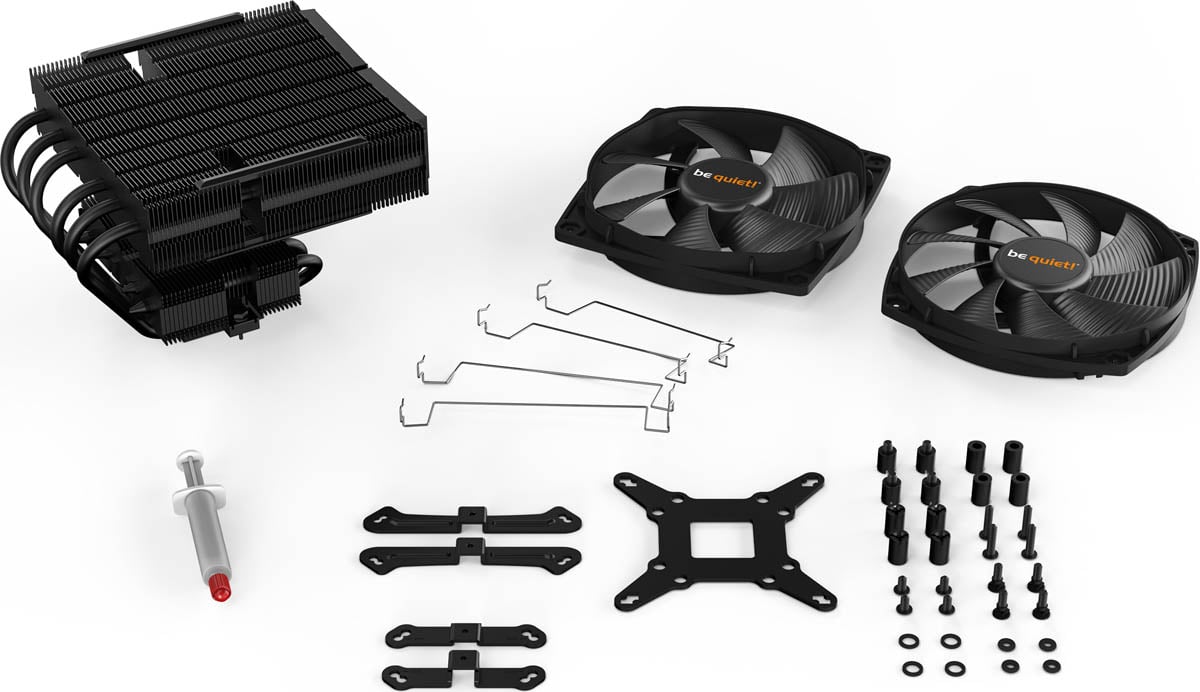

In The Box Cooler
2 x 135mm Fans
Thermal Grease
Mounting Set
User Manual
Width 140 mm
Depth 163 mm
Height 134 mm
Weight 0.945 kg
Fan Width 13.5 cm
Fan Depth 135 mm
Fan Height 22 ~ 25 mm

Warranty

Warranty 3 Years

Key Features

Main Colour Black
Compatible with Socket AM3 Yes
Heatpipe Technology Yes
Includes Fan Yes
Socket 2066/2011 Yes
Socket 115x Yes
Socket AM2(+)/AM3(+) No
Display Model in Showroom No
L.E.D Fan No LED
Socket FM2/FM1 No
Liquid Cooler No
Compatible with Socket 1150 Yes
Watercooler No
Compatible with Socket 1151 Yes
Socket AM5/AM4 Yes
Cooler Height 134 mm
Socket SP3/TR4/sTRX4/sWRX80 No
Compatible with Socket 2066 Yes
Number of Fans 2 fan(s)
Radiator Size N/A mm
Socket 1200 Yes
RGB Software Type None
Socket 1700 Yes
Power Requirement (auto) 5 W
Cooler count 1
Our Cooling Rating (TDP) 230 W
Socket SP6/sTR5 No
Create Your Own Gaming PC (CCL) Yes
Socket 1851 No
Bundle Config - Home (CB) No

Item Details

Manufacturer Be Quiet!
Manufacturer Code BK031
EAN 4260052188705
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Be Quiet!
Manufacturer Code BK031
Reviews
5.0 / 5 2 reviews

Richard Elliott

November 2022

Exactly what I was after! Needed a low profile cooler to fit a case and keep a ryzen 5900x cool. It does exactly that! Temps max out at 75 when running Prime95. It was easy to install and the included fans are virtually whisper quiet

Mr Adam Douglas

November 2021

Cools my ryzen 5600x well, never goes above 60c even in SFF case. Lives up to Be Quiets name, cost about same as equivalent Nocuta but comes with 2 fans instead of 1. Easy to install, would recommend for NR200 builds

Downloads

PDF Datasheets and Manuals

Document File type File size
Data Sheet pdf
Manual pdf
