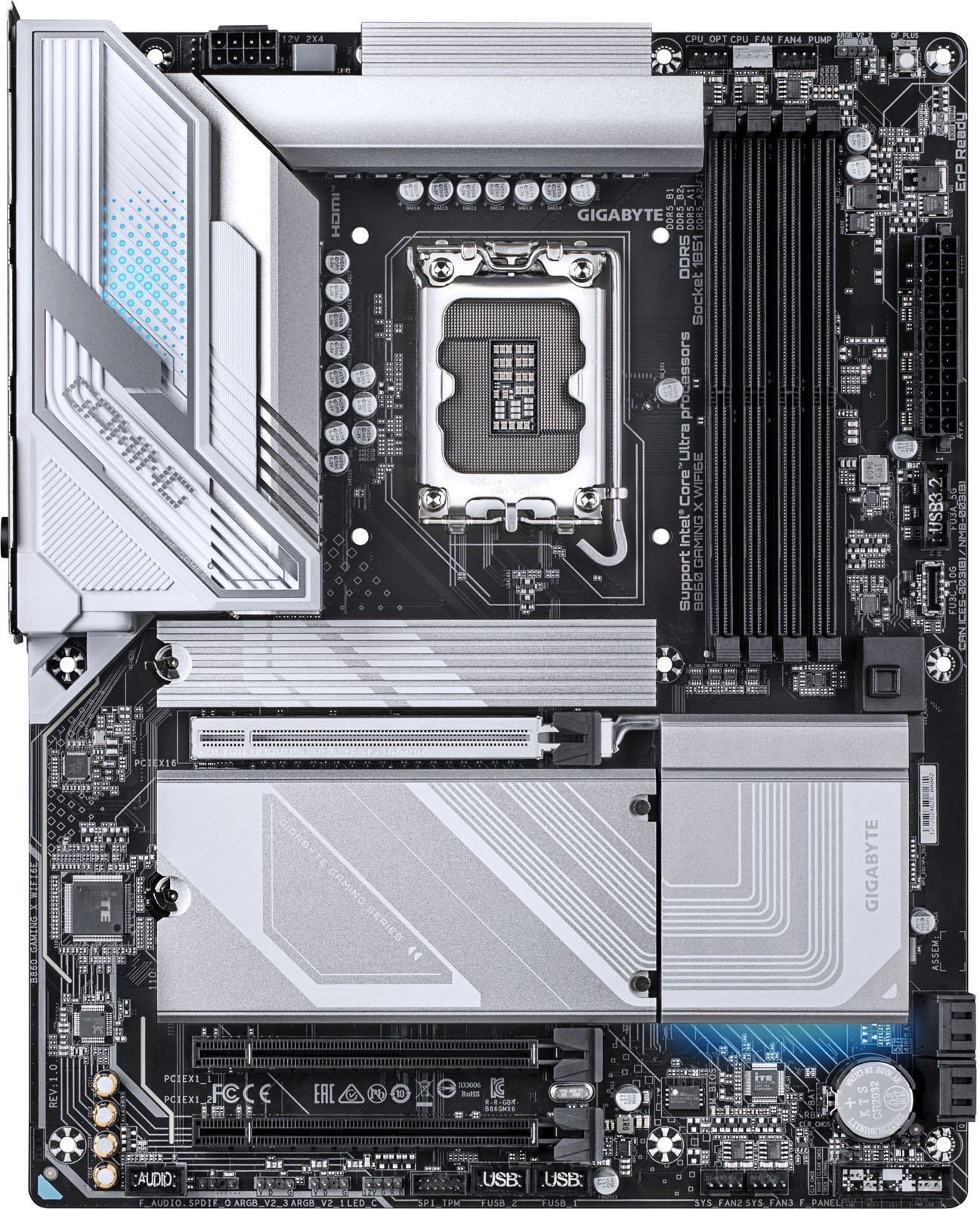

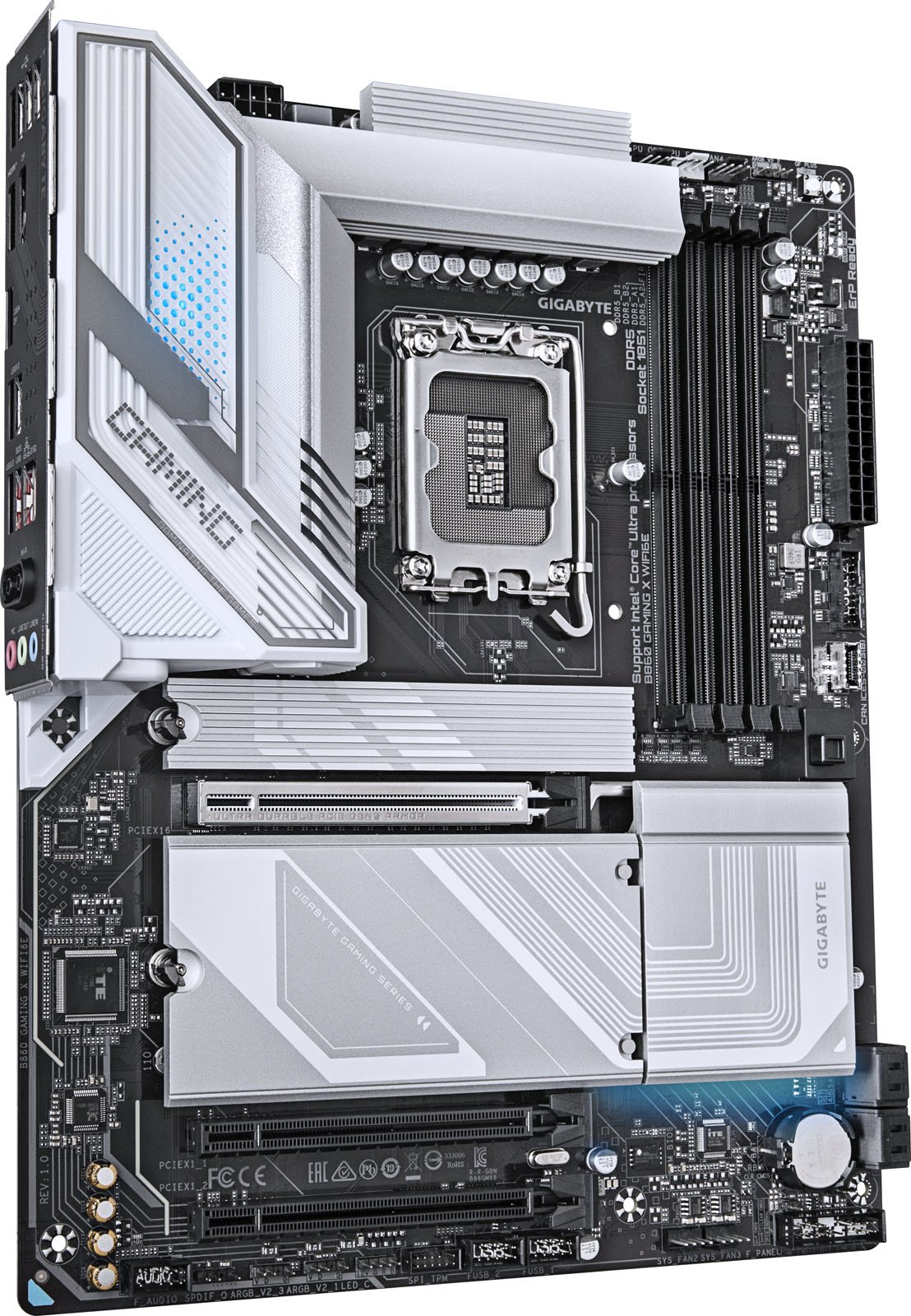

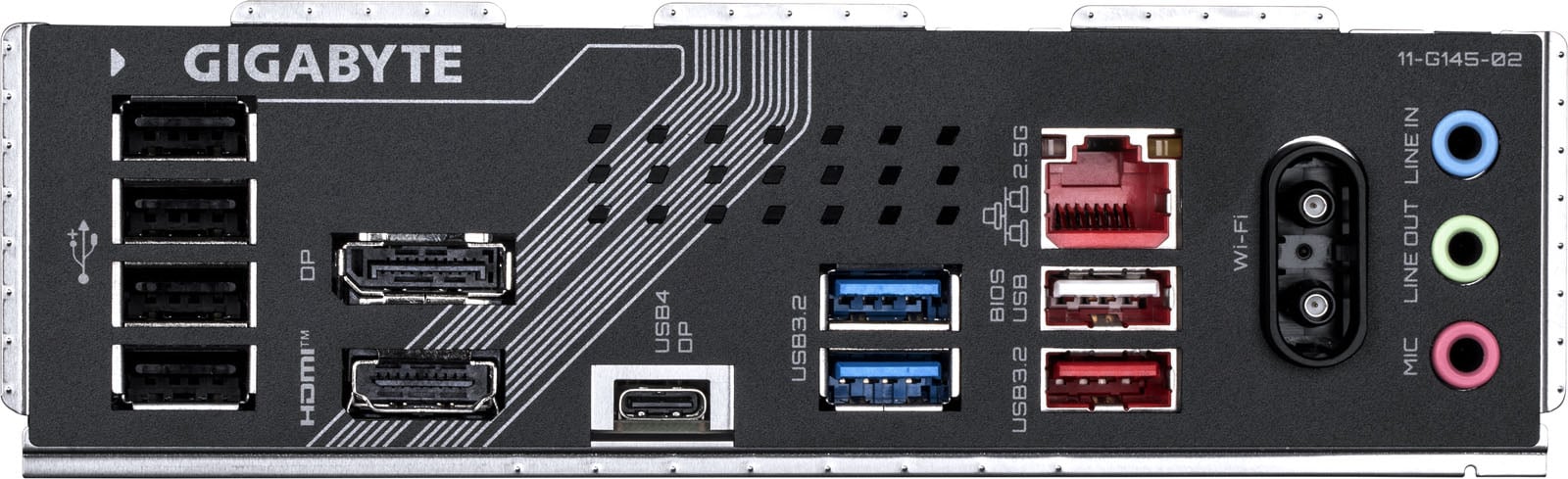

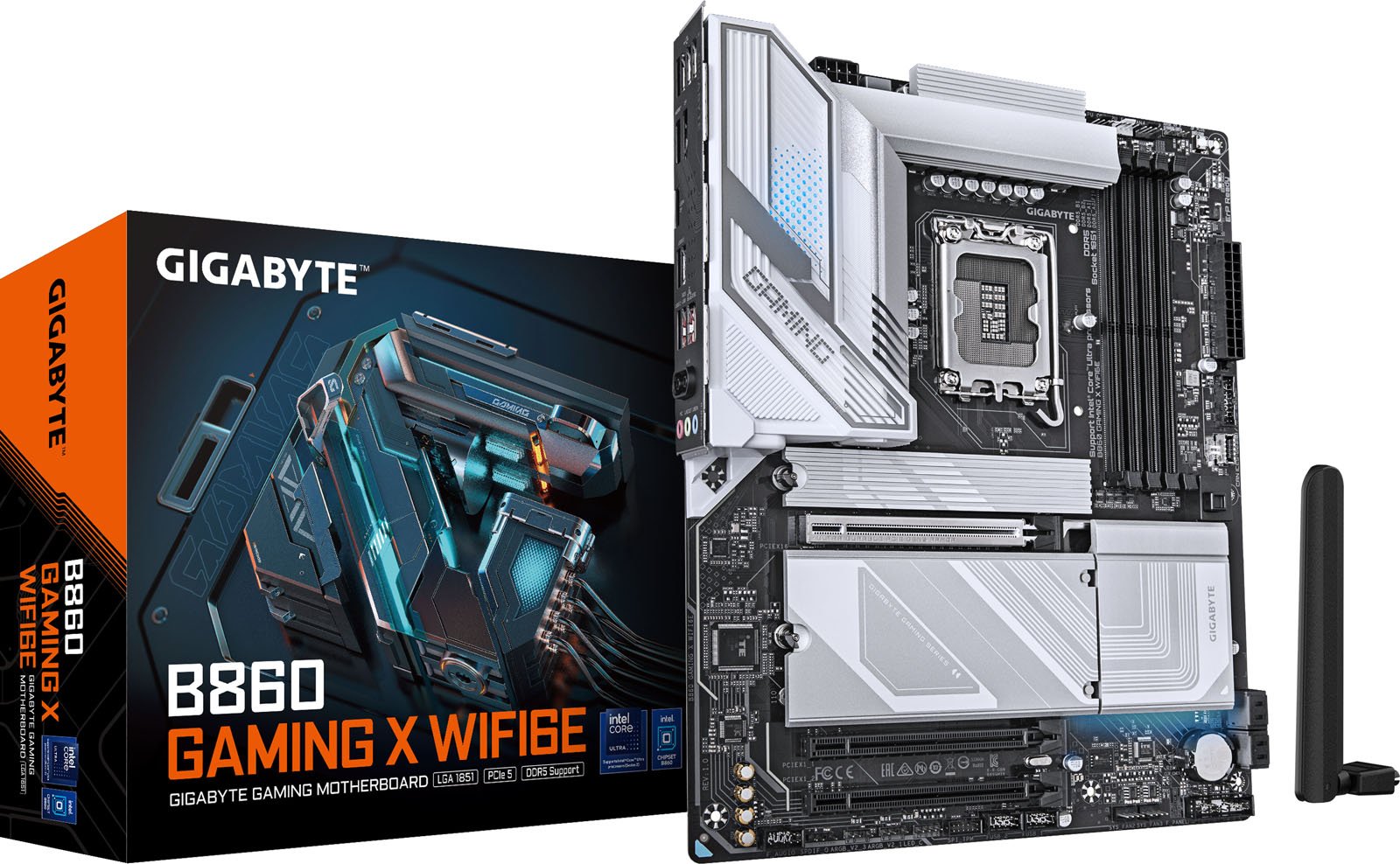

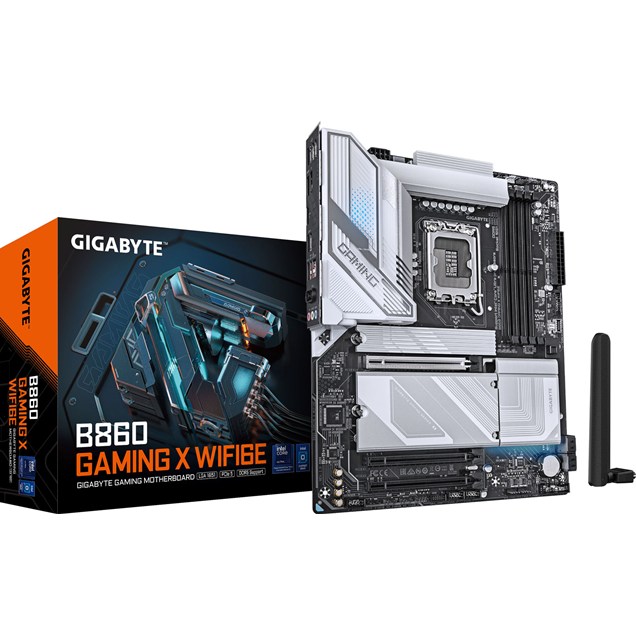

Gigabyte B860 GAMING X WIFI6E ATX Motherboard for Intel LGA1851 CPUs

Compare

Gigabyte B860 GAMING X WIFI6E ATX Motherboard for Intel LGA1851 CPUs

Name: Gigabyte B860 GAMING X WIFI6E ATX Motherboard for Intel LGA1851 CPUs
Brand: Gigabyte
SKU: MBD3827
Price: 199.99 GBP
Availability: InStock

B860 GAMING X WIFI6E

£199.99 inc VAT

Available for delivery from Tuesday 25th March

or Click & Collect from Monday 24th March

5 In Stock Now

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
Intel B860 Chipset
Socket 1851
DDR5 (Max: 256GB / 4 slots)
3 x M.2 & 9 x USB & 4 x SATA
HDMI and Display Port

CCL Code: MBD3827

Overview

Gigabyte B860 GAMING X WIFI6E Intel Socket 1851 ATX Motherboard

Specifications

Wireless Communications

Bluetooth

Yes

Key Features

Socket	LGA1851
Installed Processors (Max)	0 (1)
Integrated Graphics Supported	Yes
Maximum RAM	256 GB
RAID Supported	Yes
RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Number of PCI Express Slots	3 slot(s)
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	9 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	Yes
DisplayPort Connection	Yes
Memory Type	DDR5
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4+4-Pin
Motherboard Chipset	Intel B860
Thunderbolt	No
Motherboard Model	Gigabyte B860 GAMING X WIFI6E
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	6400 MT/s
Max Memory Speed Supported (overclocked)	9066 MT/s
CPU Power Pins (female)	8
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	2
No. of front USB3.0 ports supported	1
Back Connect Support	No
