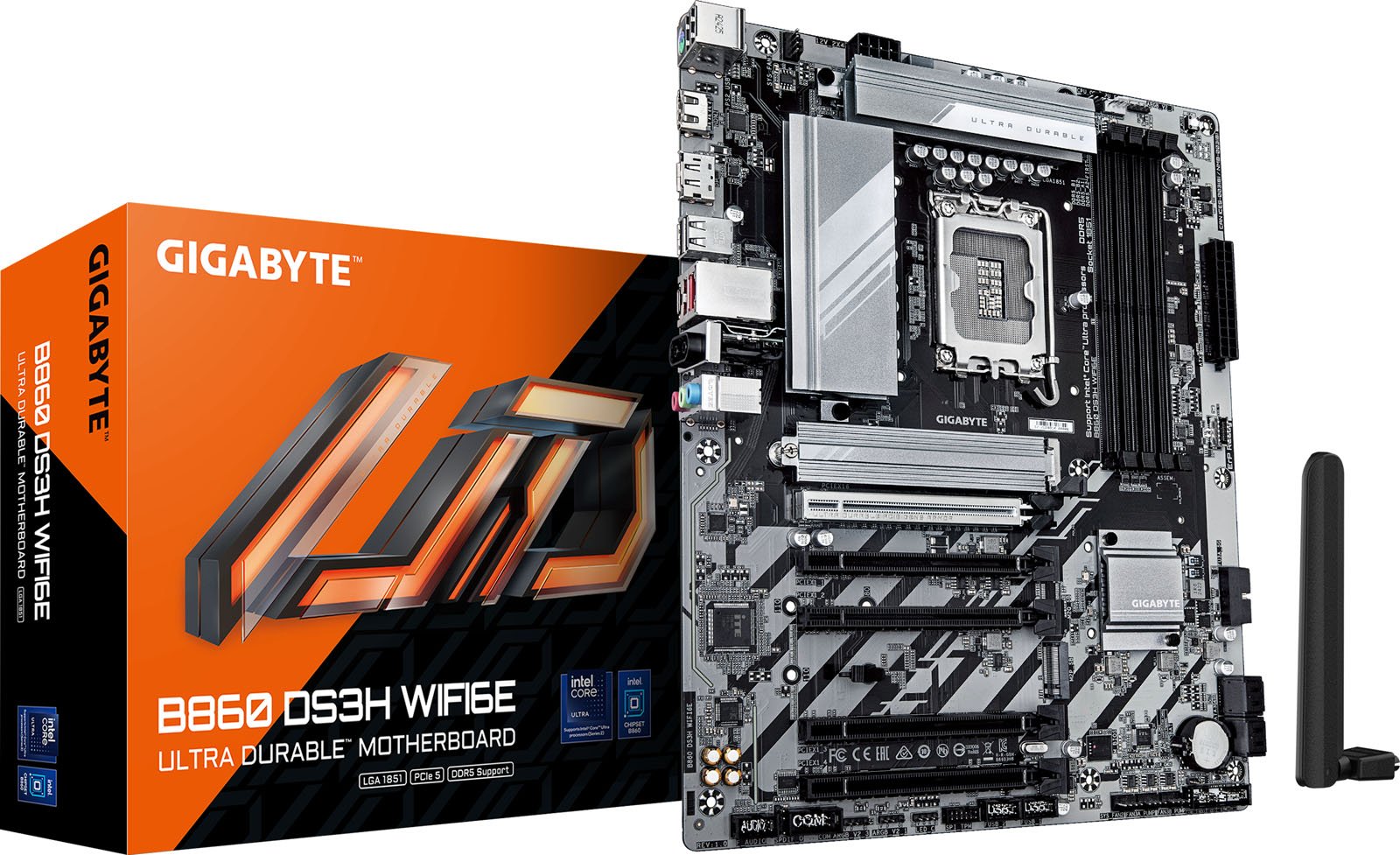

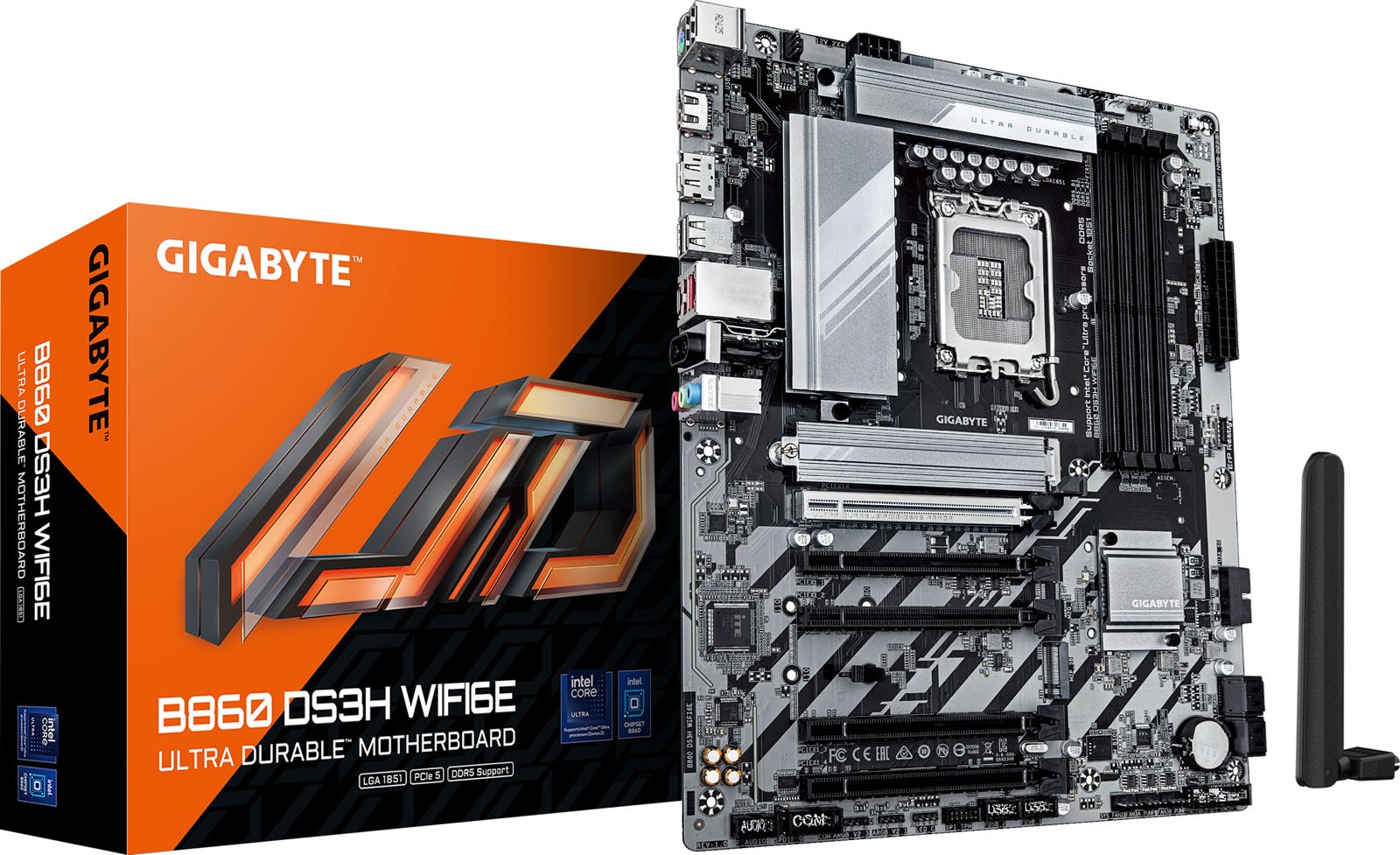

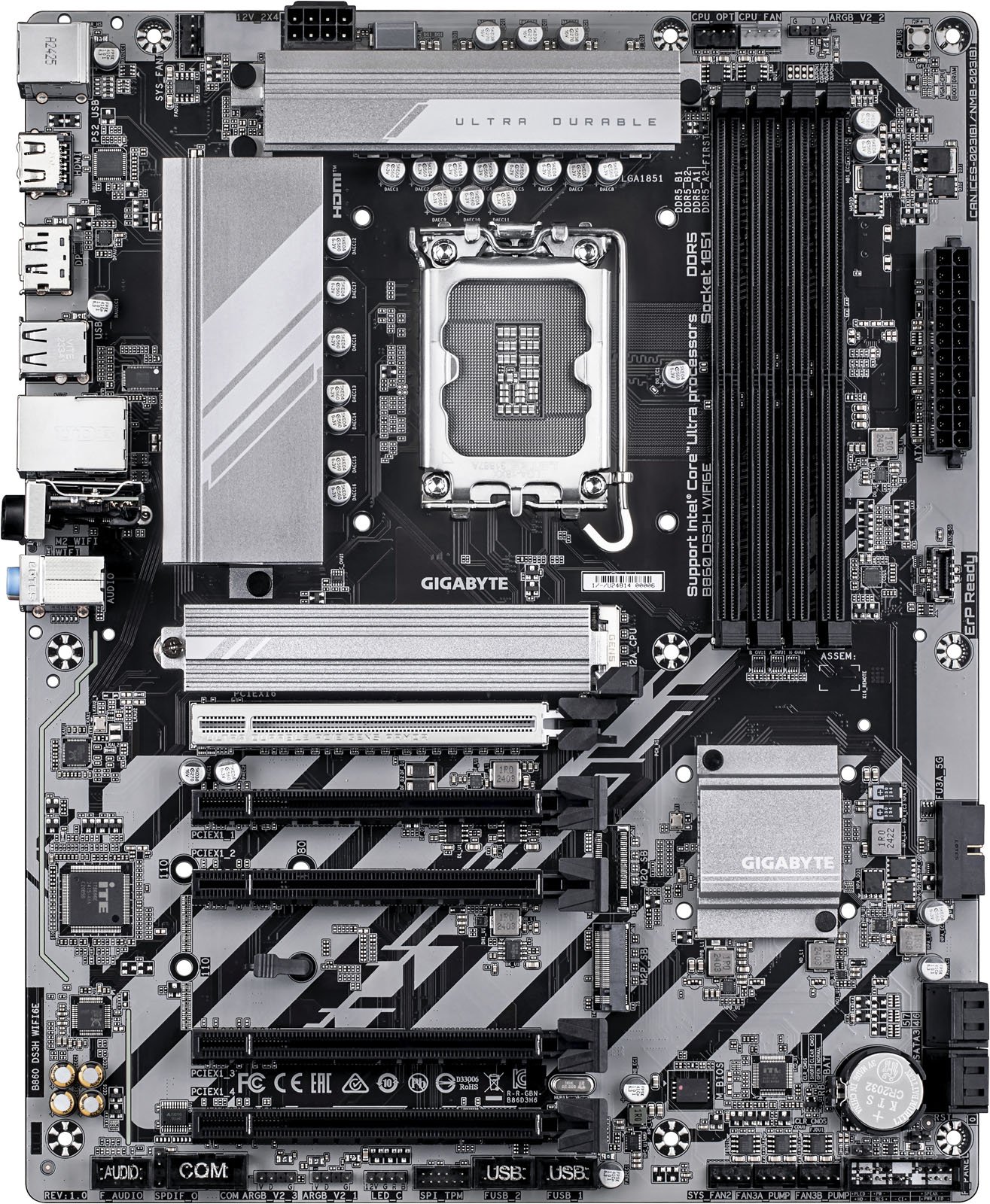

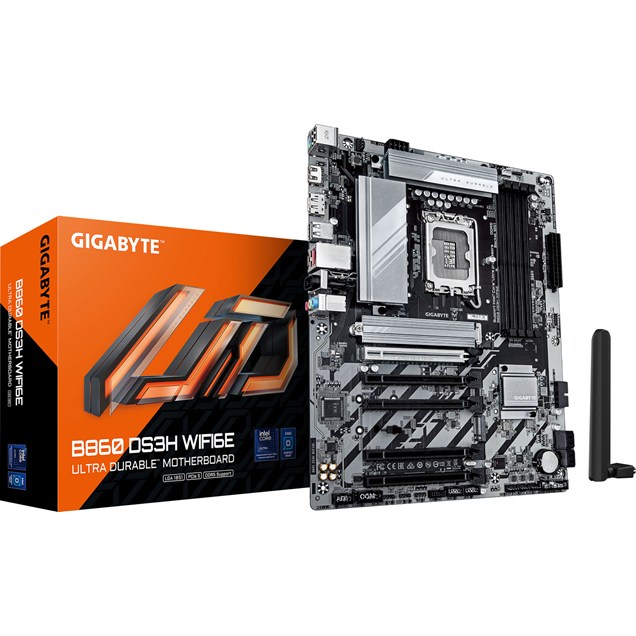

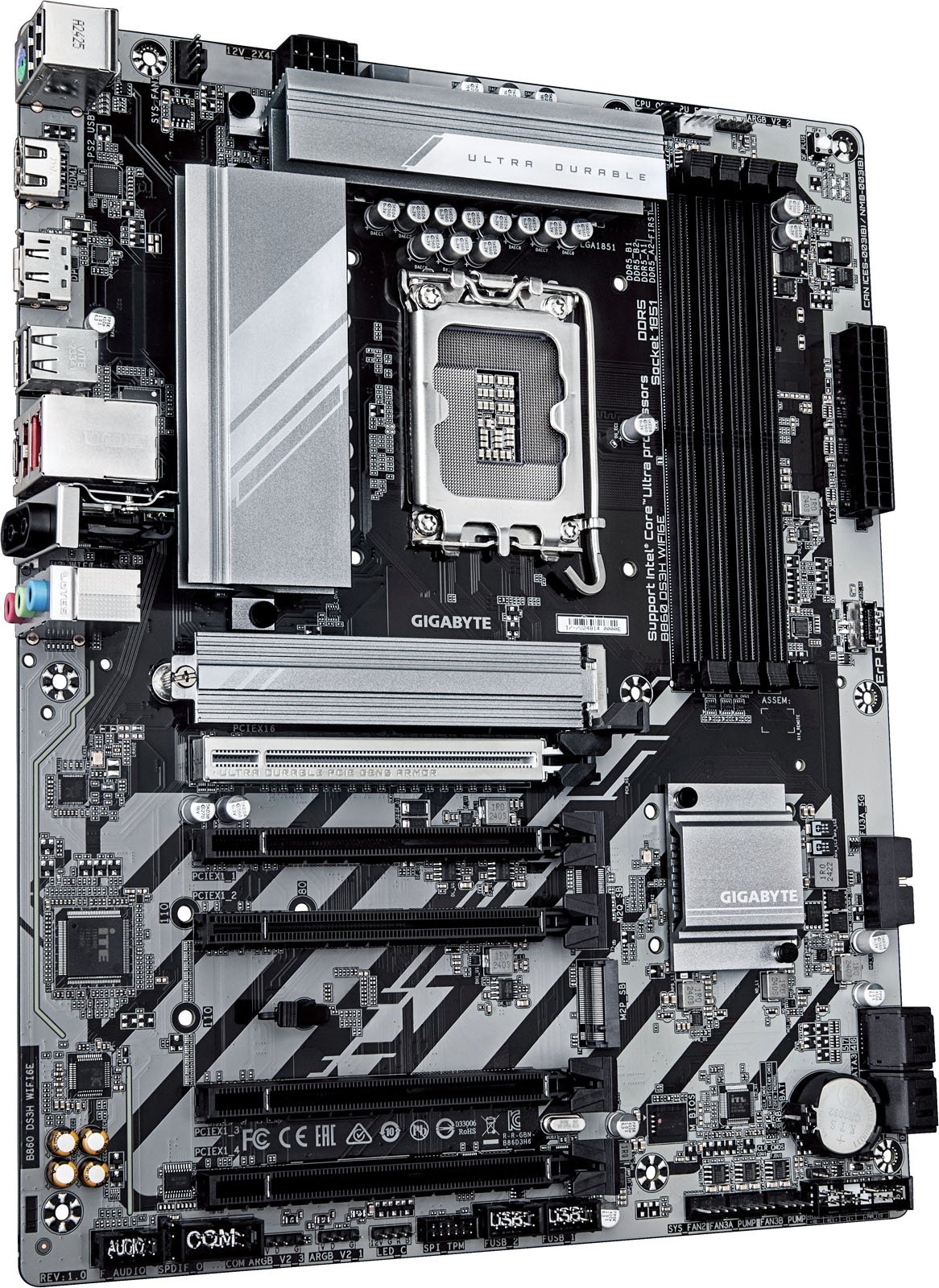

Gigabyte B860 DS3H WIFI6E ATX Motherboard for Intel LGA1851 CPUs
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel Core Ultra Processors
- 64-bit Support: Yes
- Socket: LGA1851
Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 1 x USB 3.1
- 4 x USB 2.0
- DisplayPorts: 1 x DisplayPort 2.1
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 9066 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: Intel B860
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 5, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU fan/Water Cooling pump header
- 2 x System fan headers
- 2 x System fan/Water Cooling pump headers
- S/PDIF Connectors: 1 x S/PDIF Out header
- Serial Connectors: 1 x COM header
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, Key M, Type 2280/2580/22110/25110 (PCIe Gen5)
- 1 x M.2 slot, Socket 3, Key M, Type 2280/2580/22110/25110 (PCIe Gen4)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 4 x PCI Express 4.0 x16 slots (@ x1/x1/x1/x1)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes - Wi-Fi 6E
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3829
- Mfg Code: B860 DS3H WIFI6E
Warranty
- Warranty: 3 Years
