CPU

• Installed Processors (Max): 0 (1)
• Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series
• (Go to GIGABYTE's website for the latest CPU support list.)
• Socket: AMD Socket AM5
• Hyperthreading Architecture: Dual Channel memory architecture

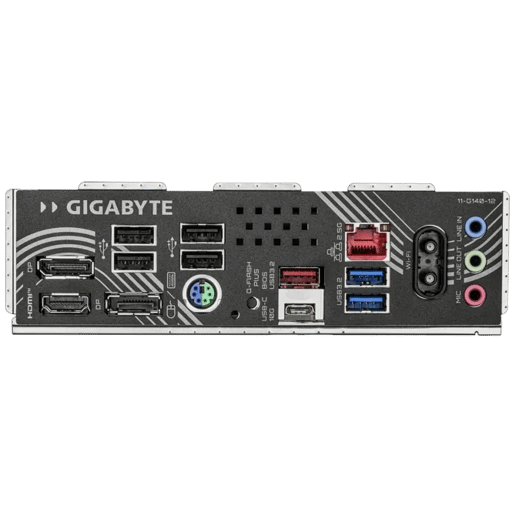

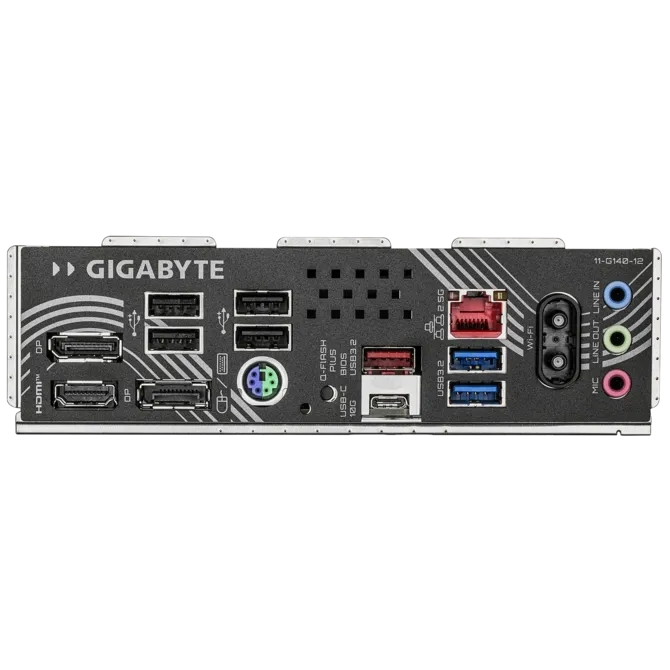

Rear Panel I/O Ports

• USB Ports: CPU:
• - 1 x USB Type-C port on the back panel, with USB 3.2 Gen 2 support - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
• CPU+USB 2.0 Hub:
• - 4 x USB 2.0/1.1 ports on the back panel
• Chipset:
• - 1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header) - 4 x USB 2.0/1.1 ports available through the internal USB headers
• DisplayPorts: 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz
• * Support for DisplayPort 1.4 version.
• HDMI Port: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
• * Support for HDMI 2.1 version and HDCP 2.3, and HDR.
• ** Support for native HDMI 2.1 TMDS compatible ports.
• Antenna Connectors: 2 x antenna connectors (2T2R)

Internal I/O Connectors

• SATA Connectors: 4 x SATA 6Gb/s connectors

Memory

• Memory Bus Speed: Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules
• Memory Type: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPOT) and Extreme Memory Profile (XMP) memory modules

Physical

• Colour: Black

Motherboard

• Northbridge: AMD B850
• RAID Supported: RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
• * RAID 5 is only available on AMD RyzenT 9000 Series Processors.
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

Rear Panel I/O Ports

• Keyboard/Mouse Combo Port: 1x
• RJ-45 Ports: 1x
• Audio Line Out Ports: 3 x audio jacks

Internal I/O Connectors

• Cooling Fan Support: 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• TPM Header: 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• Power Connector Port: 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• Other Connectors: Internal I/O Connectors
• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 1 x system fan header
• 1 x system fan/water cooling pump header
• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header
• 4 x SATA 6Gb/s connectors
• 2 x M.2 Socket 3 connectors
• 1 x front panel header
• 1 x front panel audio header
• 1 x USB Type-C© header with USB 3.2 Gen 2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers
• 1 x Trusted Platform Module header (for GC-TPM2.0 SPI / GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 modules only)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper
• Back Panel Connectors

Expansion

• Number of PCI Express Slots: 4x
• PCI Express X16 Slots: 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
• * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
• - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)
• PCI Express Slot Type: Storage:
• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
• AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
• 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
• AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
• AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs

Memory

• Maximum RAM: 256 GB
• Memory Bus Speed Minimum: 4400 MT/s
• Memory Bus Speed Maximum: 8200 MT/s (O.C)
• Memory Slot: 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

Graphics Device

• Integrated Graphics Supported: Integrated Graphics Processor with AMD Radeon Graphics support:

Sound

• Integrated Sound: Realtek Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
• * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

Network

• Integrated Network: Realtek Wi-Fi 6E RTL8852CE
• - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
• - BLUETOOTH 5.3
• - Support for 11ax 160MHz wireless standard
• Bluetooth Version: 5.3

System Requirements

• Operating Systems Supported: Windows 11 64-bit
• Windows 10 64-bit

System

• BIOS: 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Special Features: Support for GIGABYTE Control Center (GCC)
• Q-Flash
• Q-Flash Plus
• Smart Backup
• Jumpers: 1x CMOS

Physical

• Form Factor: Micro ATX Form Factor
• Width: 244 mm
• Length: 244 mm

Identifiers

• Stock Code: MBD3989

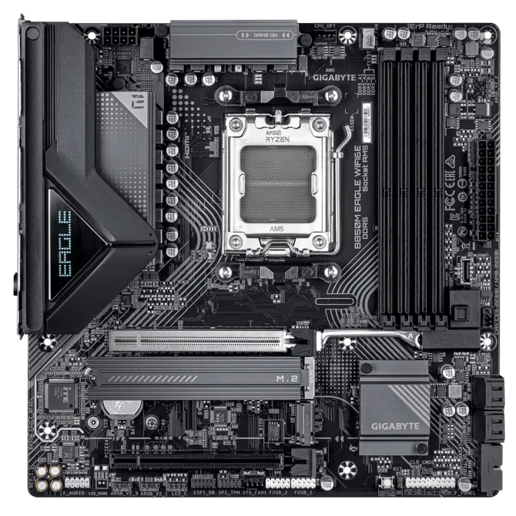

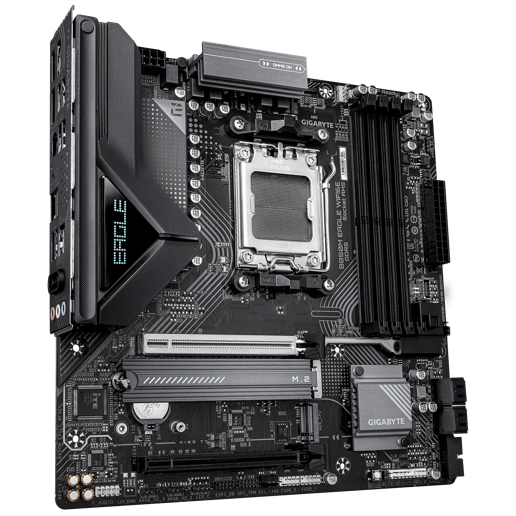

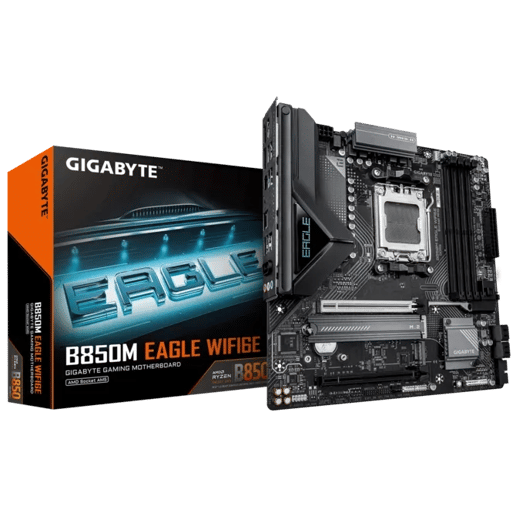

• Mfg Code: B850M EAGLE WIFI6E
