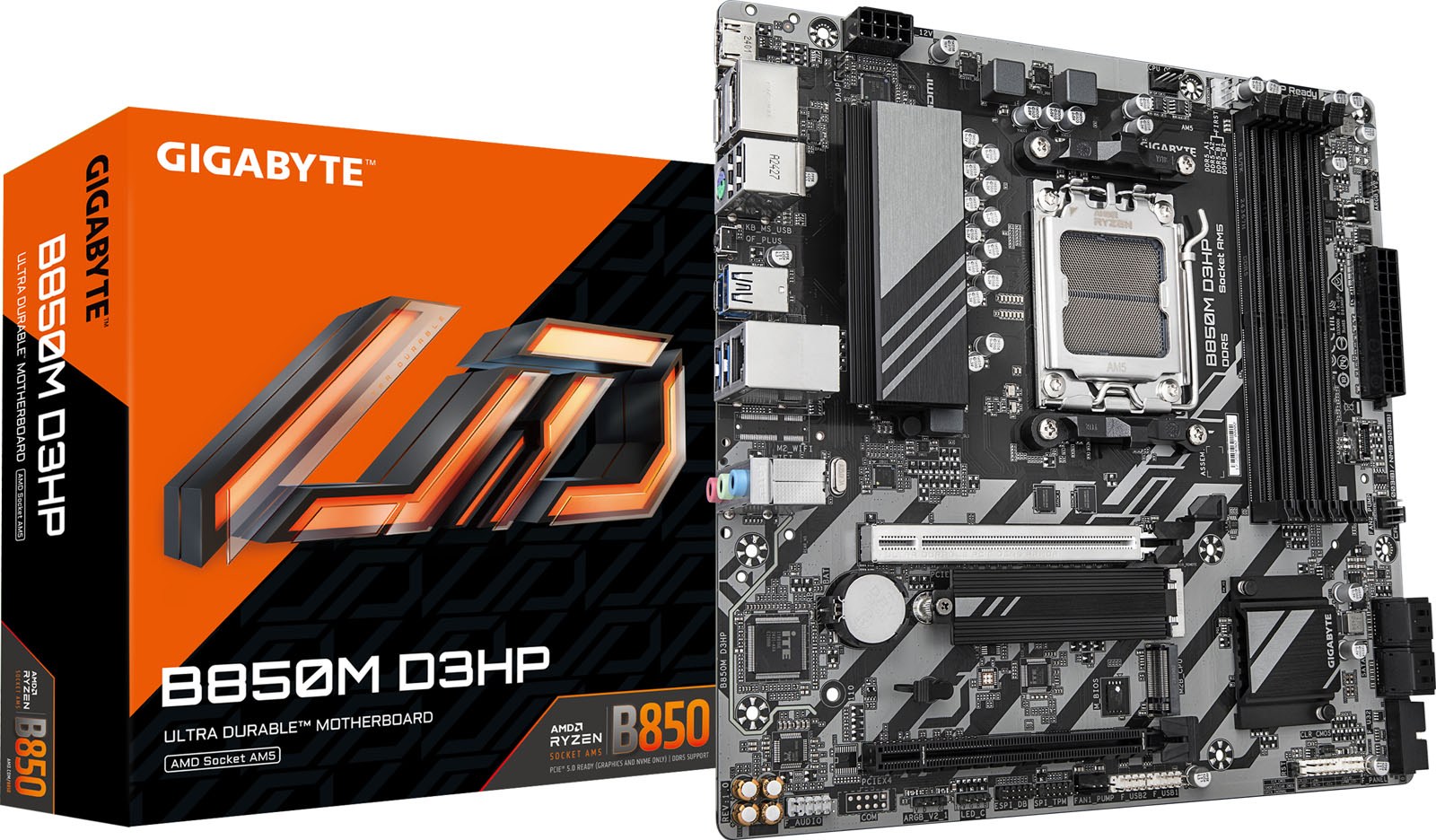

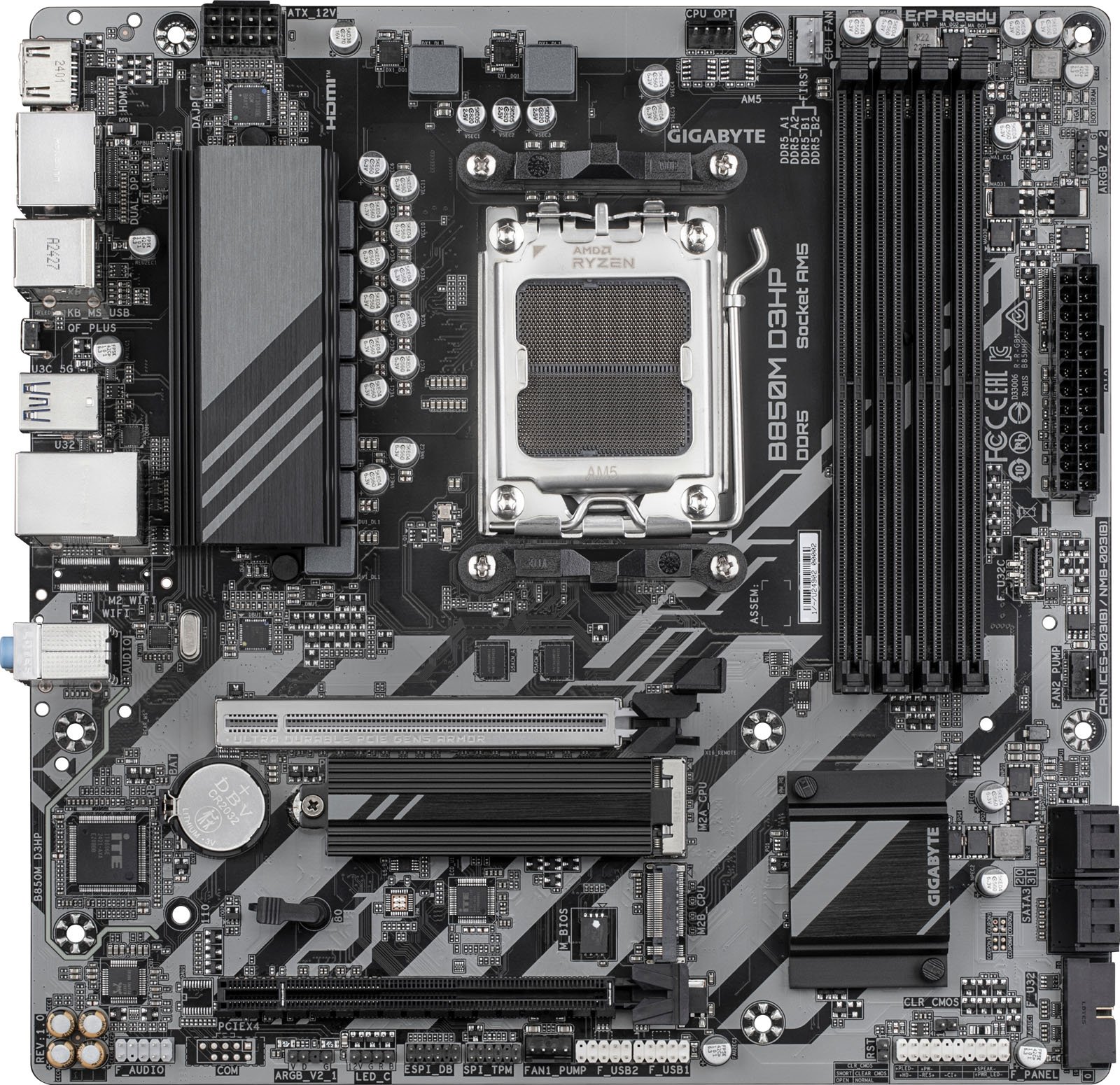

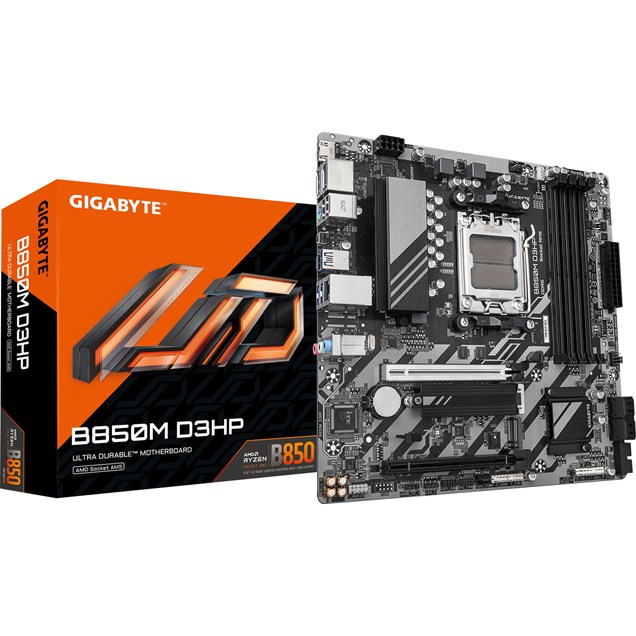

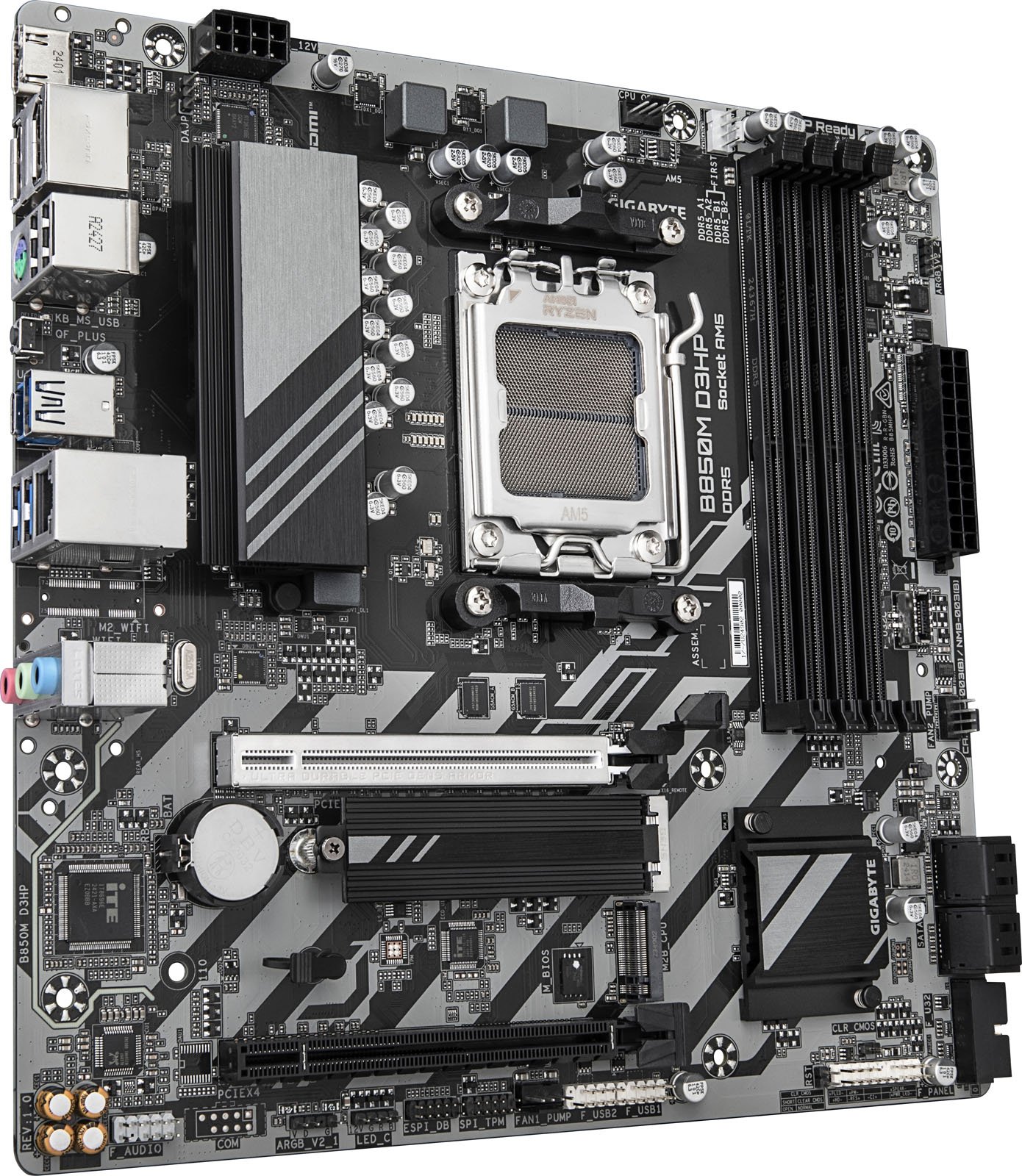

Gigabyte B850M D3HP mATX Motherboard for AMD AM5 CPUs
X3D Turbo Mode
X3D Turbo Mode's unique optimization parameters allow even Ryzen™ 9000 X3D gaming Performance enhance & Ryzen™ 9000 non-X3D processors to achieve similar gaming performance levels as their Ryzen™ X3D counterparts. Experience smoother gameplay, higher frame rates, and reduced latency with GIGABYTE's BIOS innovation- X3D Turbo Mode.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 9000 / 8000 / 7000 Series Processors
- 64-bit Support: Yes
- Socket: AM5

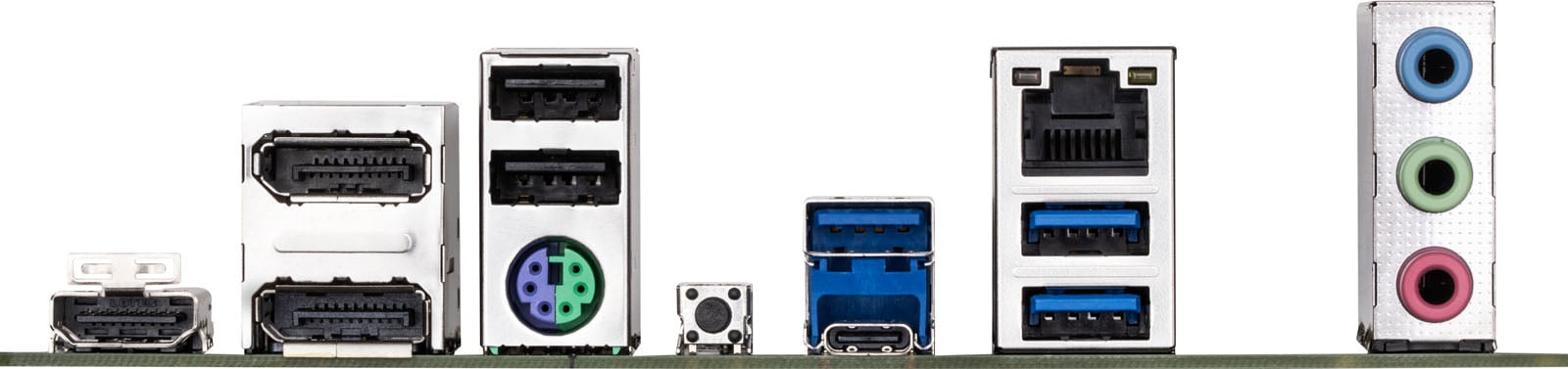

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.0
- 3 x USB 3.0
- 2 x USB 2.0
- DisplayPorts: 2 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports) - 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B850
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU fan/AIO pump header
- 1 x System fan header
- 1 x System fan/AIO pump header
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2580/2280 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4)
- 2 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 3.0 x16 slot (@ x4)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: No
- Bluetooth: No
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: mATX Motherboard
- Width: 244 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3825
- Mfg Code: B850M D3HP
