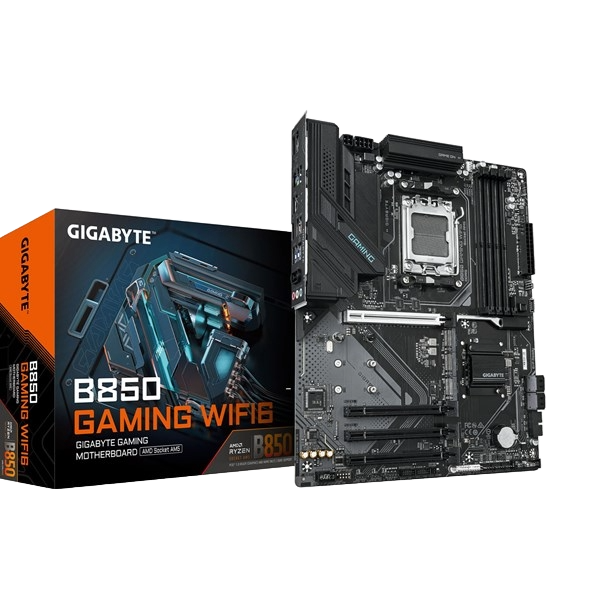

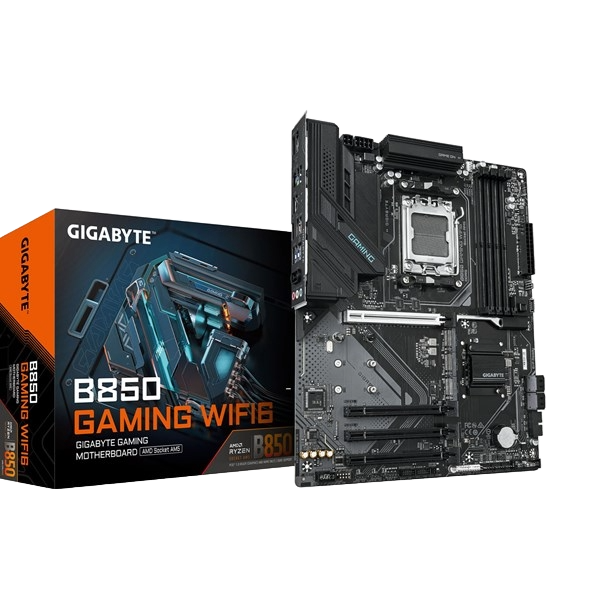

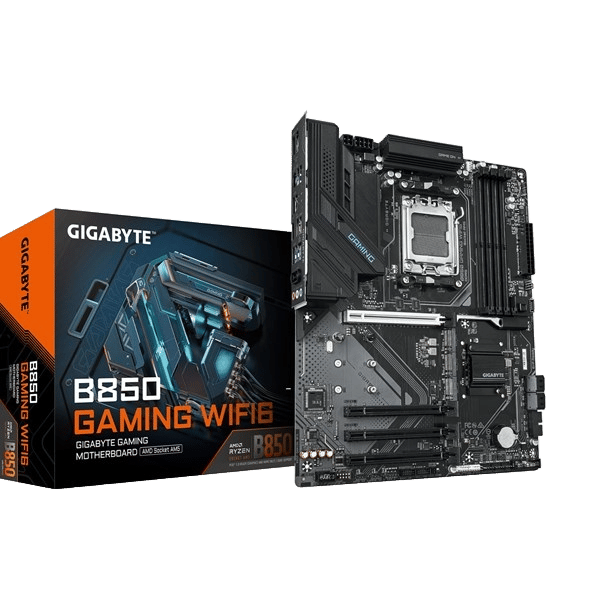

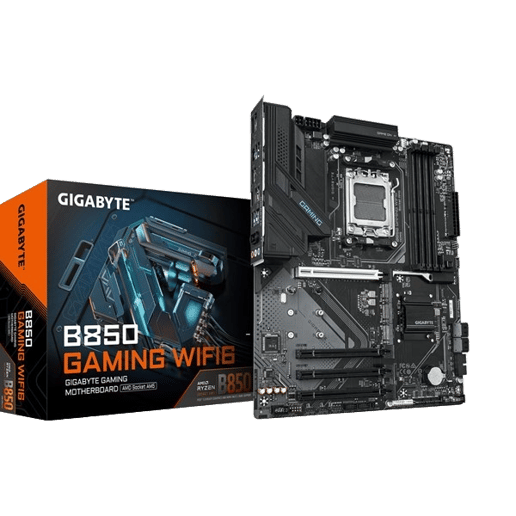

Gigabyte B850 GAMING WIFI6 ATX Motherboard for AMD AM5 CPUs
SAVE £35
Available for delivery from Tomorrow
Click & Collect from Today
In stock
Order within
You have 0 of these in your basket

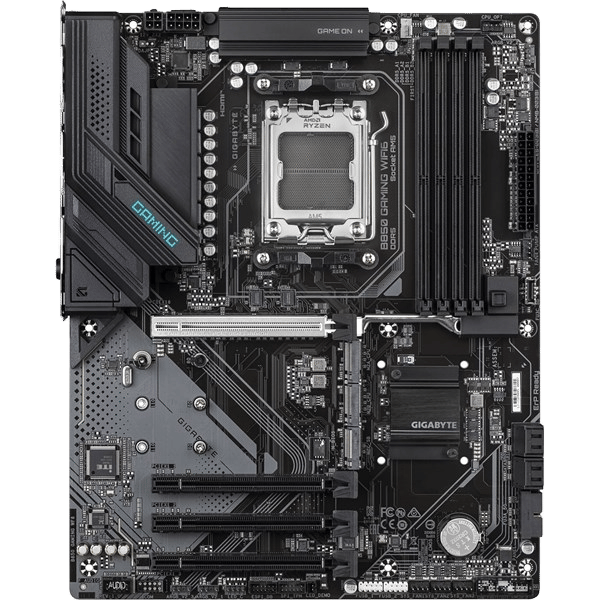

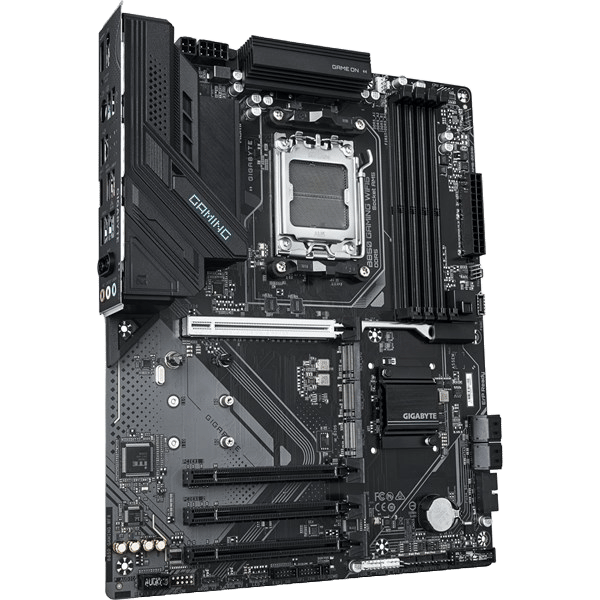

Gigabyte B850 GAMING WIFI6 Motherboard (AM5)
The ideal AM5 motherboard for AMD Ryzen users, the Gigabyte B850 GAMING WIFI6 is an excellent mid-range choice for your PC's foundation. Built around a solid 6+2+2 phase digital VRM design and packed with thoughtful touches like tool-free M.2 installation, Wi-Fi 6, and DDR5 overclocking support up to 8200MT/s, it's a board that makes building and upgrading an effortless and enjoyable experience.
adf295ce-28b9-4b35-910f-7b5c259cbdbf.jpg)
X3D Turbo Mode
This is a real standout feature for gamers. With a single click in the BIOS, X3D Turbo Mode applies unique optimisation parameters that can boost gaming frame rates by up to 18%. It even helps non-X3D Ryzen 9000 processors perform closer to their X3D counterparts — an amazing bit of BIOS wizardry that makes a real, tangible difference in games.
DDR5 overclocking up to 8200 MT/s with AMD EXPO support
The B850 GAMING WIFI6 fully supports AMD EXPO memory profiles, making it dead simple to get the most out of your DDR5 kit with minimal fuss. For enthusiasts who want to go further, the board supports custom SPD profiles, fast performance simulation and memory speeds all the way up to 8200MT/s — great news if you're pairing it with something like the Kingston FURY Beast DDR5.
3858baac-db3b-42c9-972a-3c76307e02c2.jpg)
PCIe 5.0 support for GPU and storage
You get a full-length PCIe 5.0 x16 slot for your graphics card and a PCIe 5.0 M.2 slot for your primary SSD, meaning this board is genuinely future-proofed for the next generation of components. Blazing fast GPU bandwidth and storage speeds are fully catered for right out of the box.
Wi-Fi 6 and Smart Fan 6 for smooth, cool gaming
Onboard Wi-Fi 6 (802.11ax) delivers wireless speeds up to 2.4Gbps alongside Bluetooth 5.3, keeping your connection stable and lag-free during online play. Meanwhile, Smart Fan 6 gives you full control over all six fan headers with customisable curves, dual graph modes and a fan stop feature for whisper-quiet operation during lighter loads — so your rig stays cool and composed even during long gaming sessions.
Gigabyte B850 GAMING WF6 AMD Socket AM5 ATX Motherboard
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 9000 / 8000 / 7000 Series Proessors
- 64-bit Support: Yes
- Socket: AM5

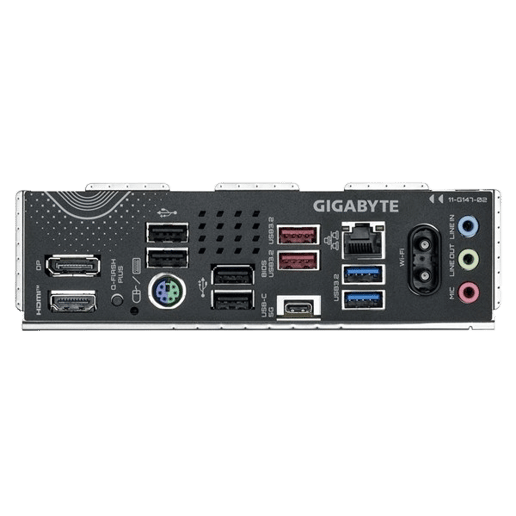

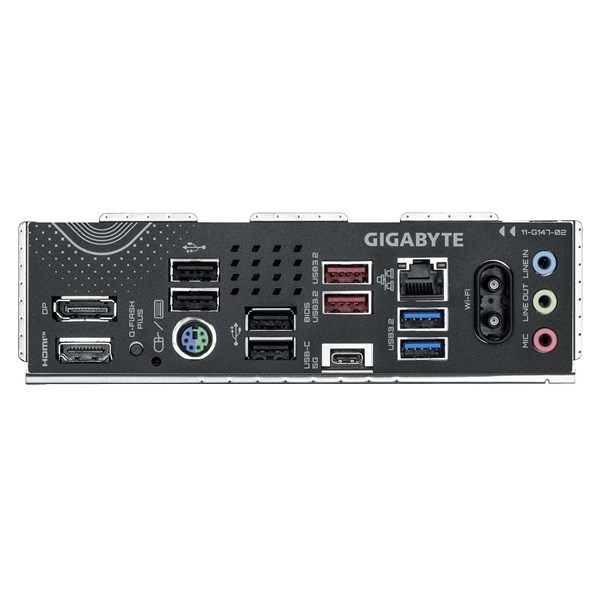

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.1
- 2 x USB 3.0
- 4 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B850
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU fan/AIO pump header
- 3 x System fan headers
- 1 x System fan/AIO pump header
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- 1 x 4-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4 x2)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 3 x PCI Express 3.0 x16 slots (@ x1/x1/x1)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Reaktek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: Yes (Wi-Fi 6E)
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3821
- Mfg Code: B850 GAMING WF6
Warranty
- Warranty: 3 Years
