The B850 GAMING PLUS WIFI motherboard supports AMD Ryzen 9000 / 8000 / 7000 Series processors.
- Form Factor: ATX
- Socket Type: AM5
- Chipset: AMD B850

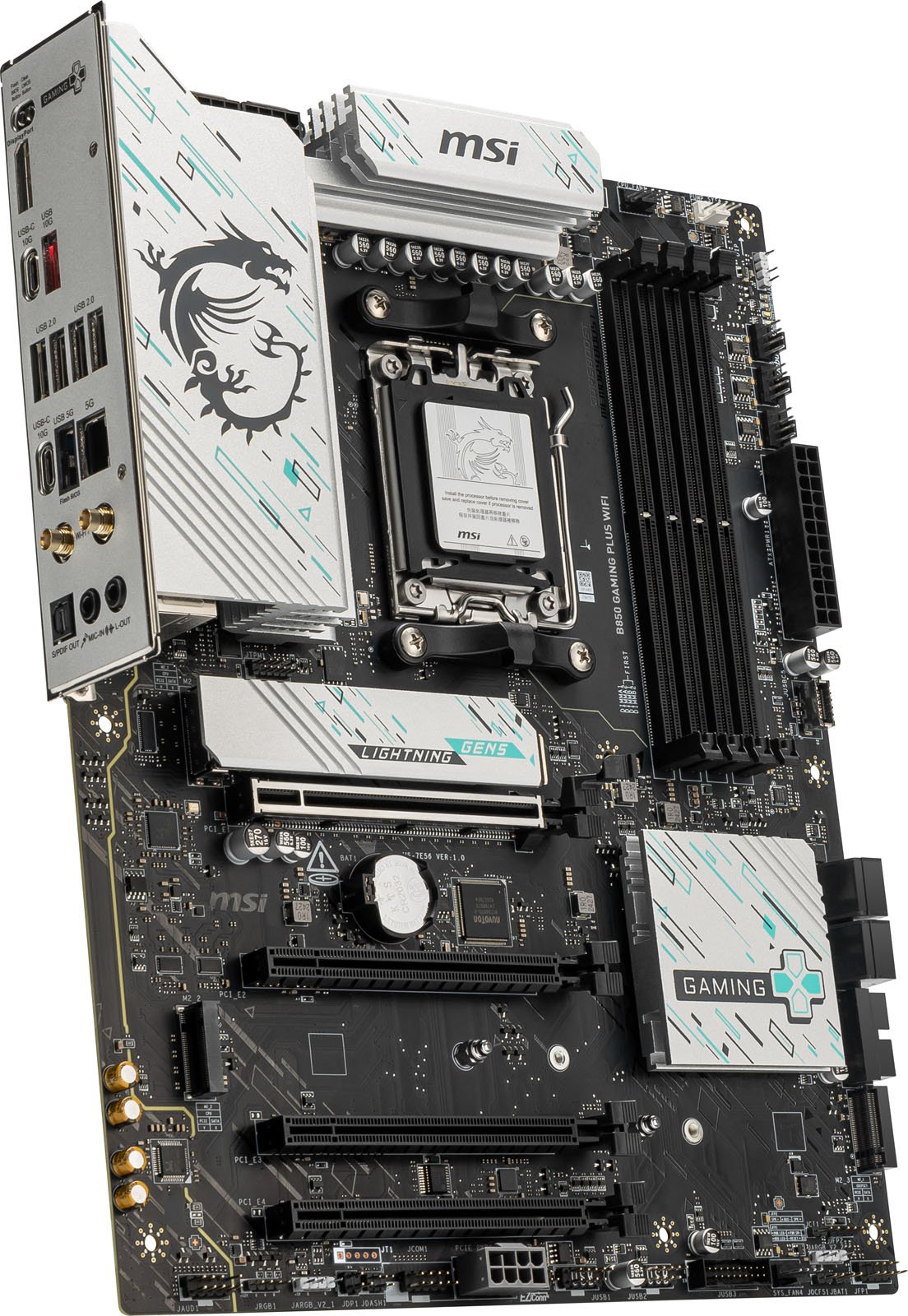

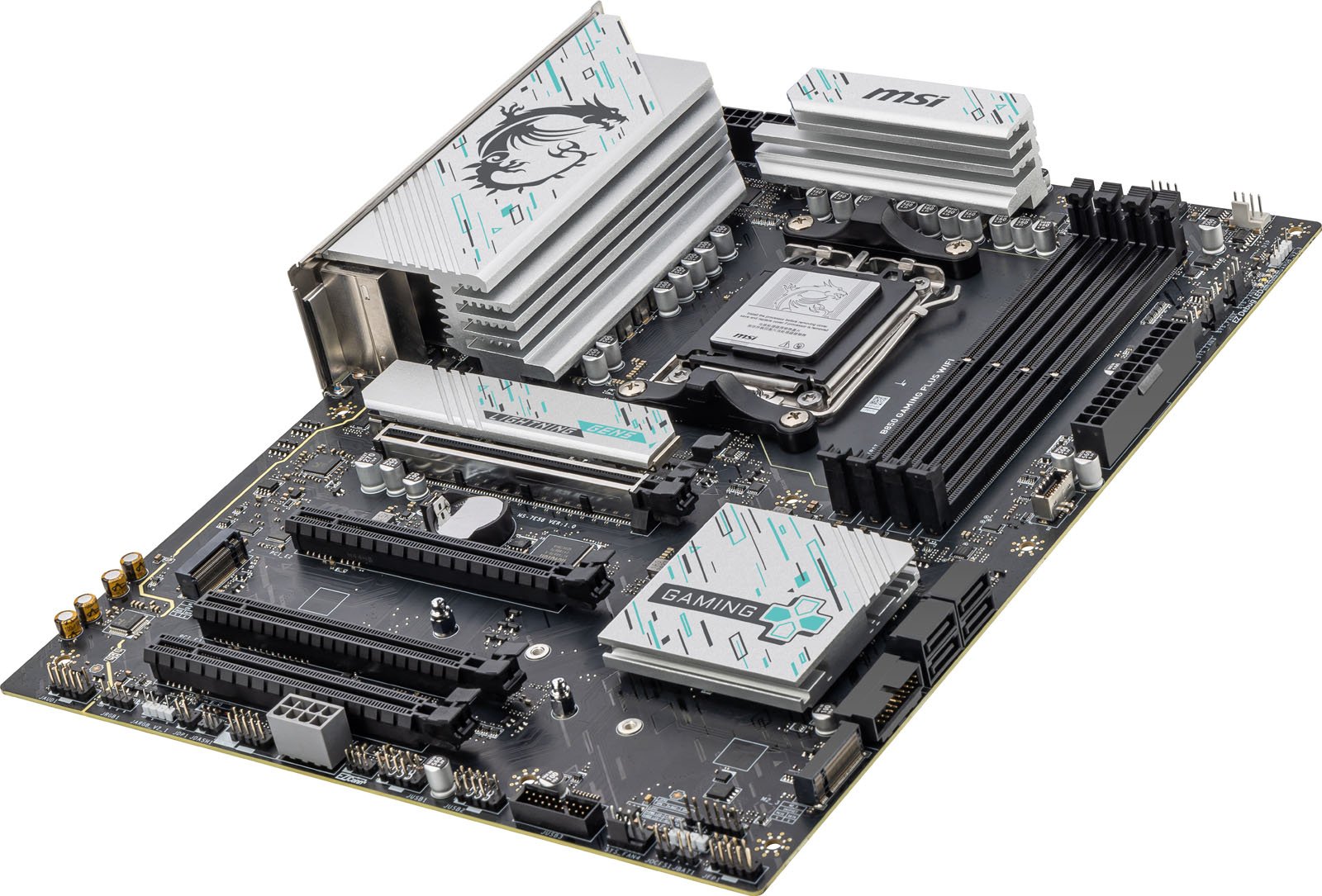

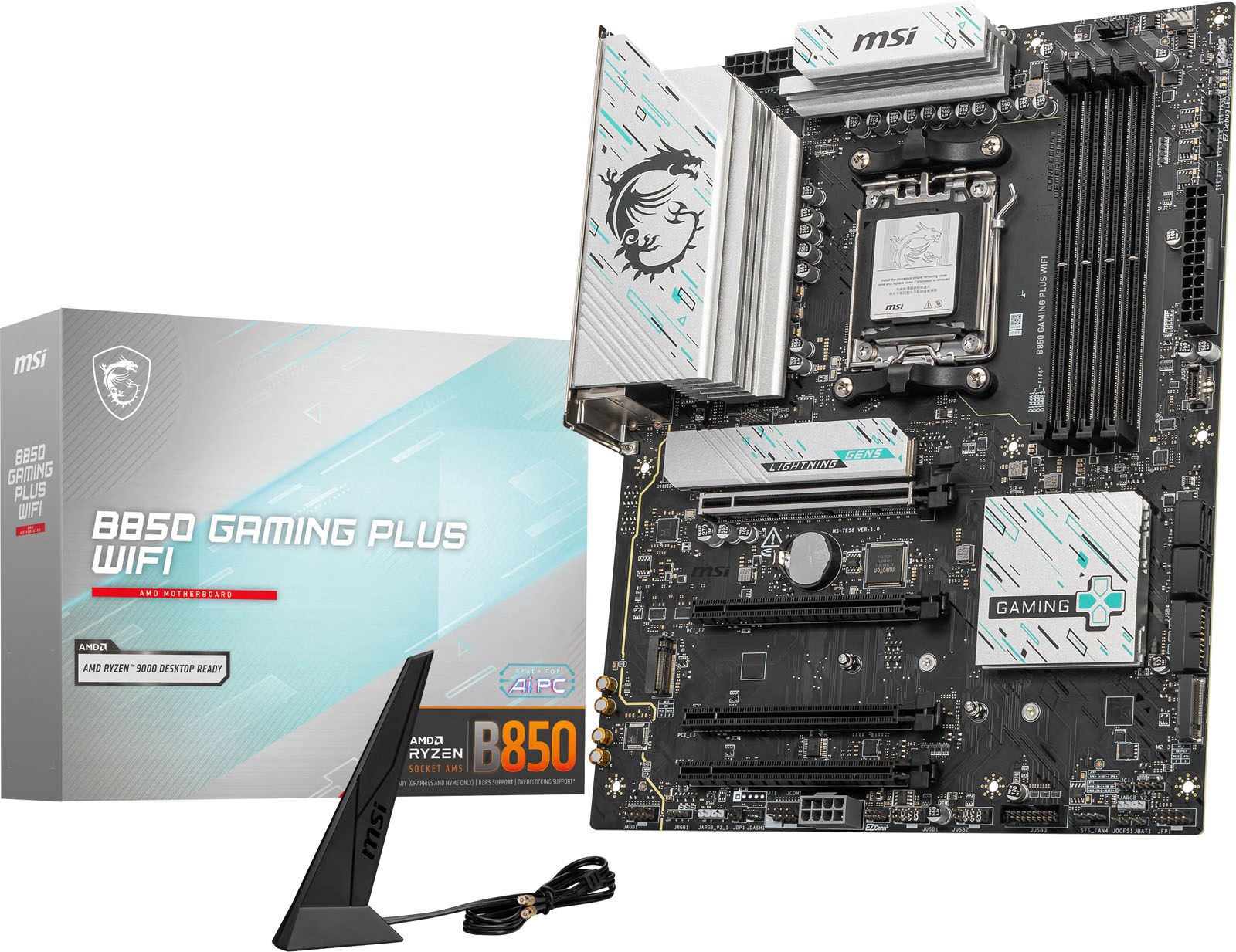

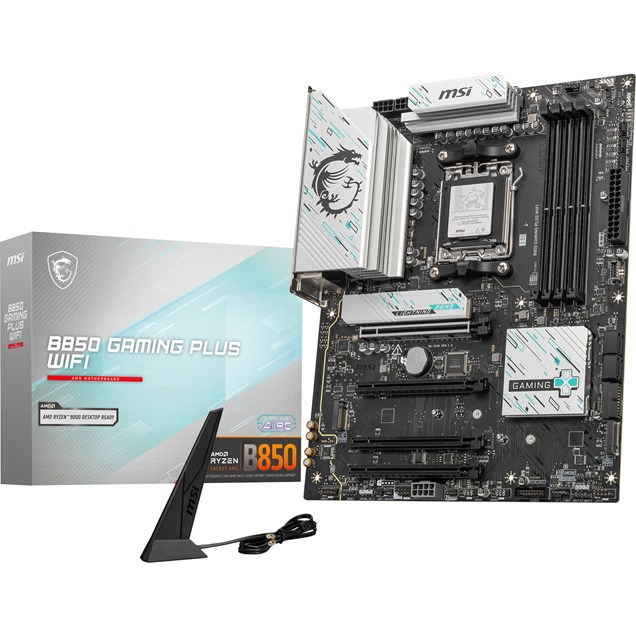

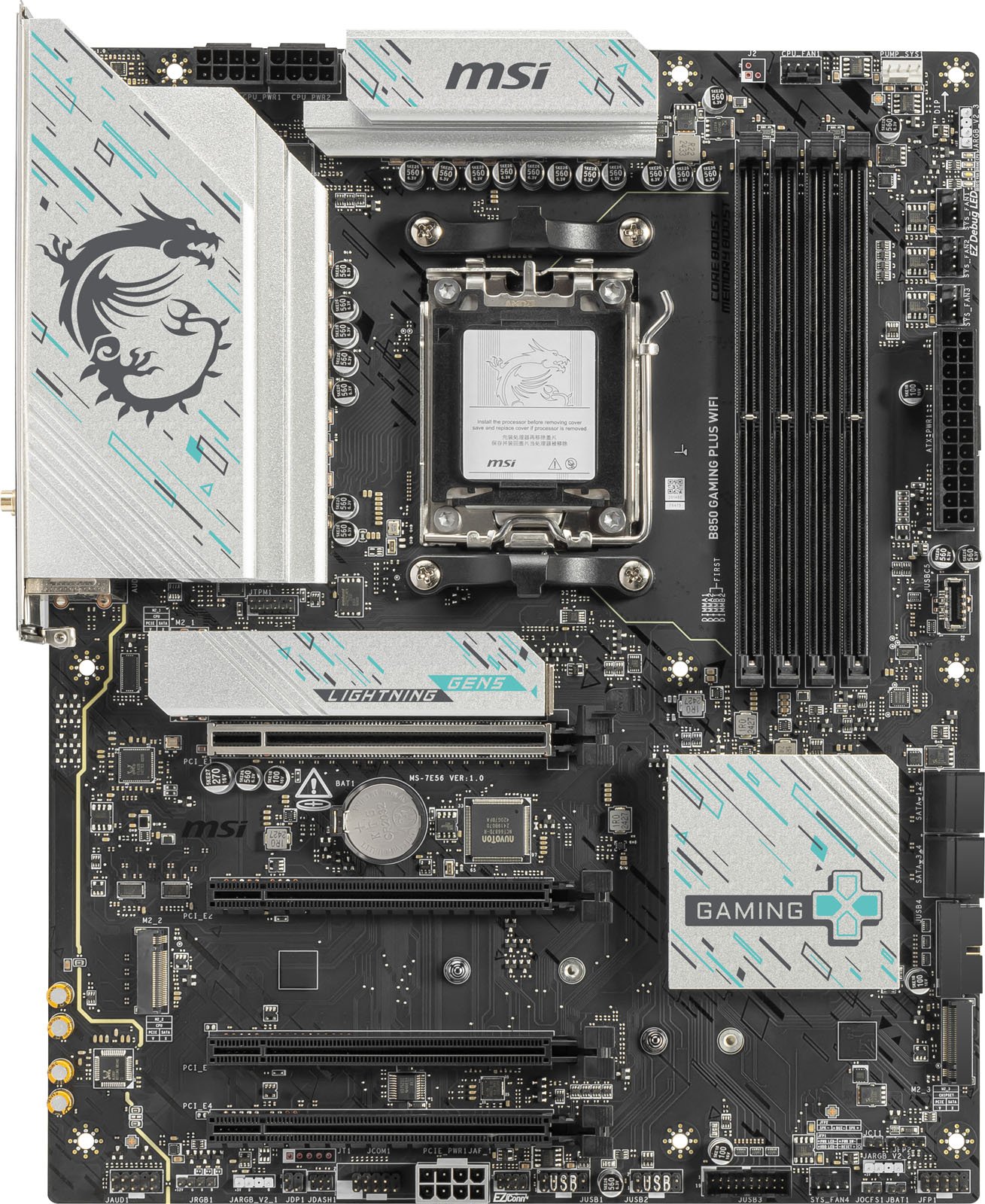

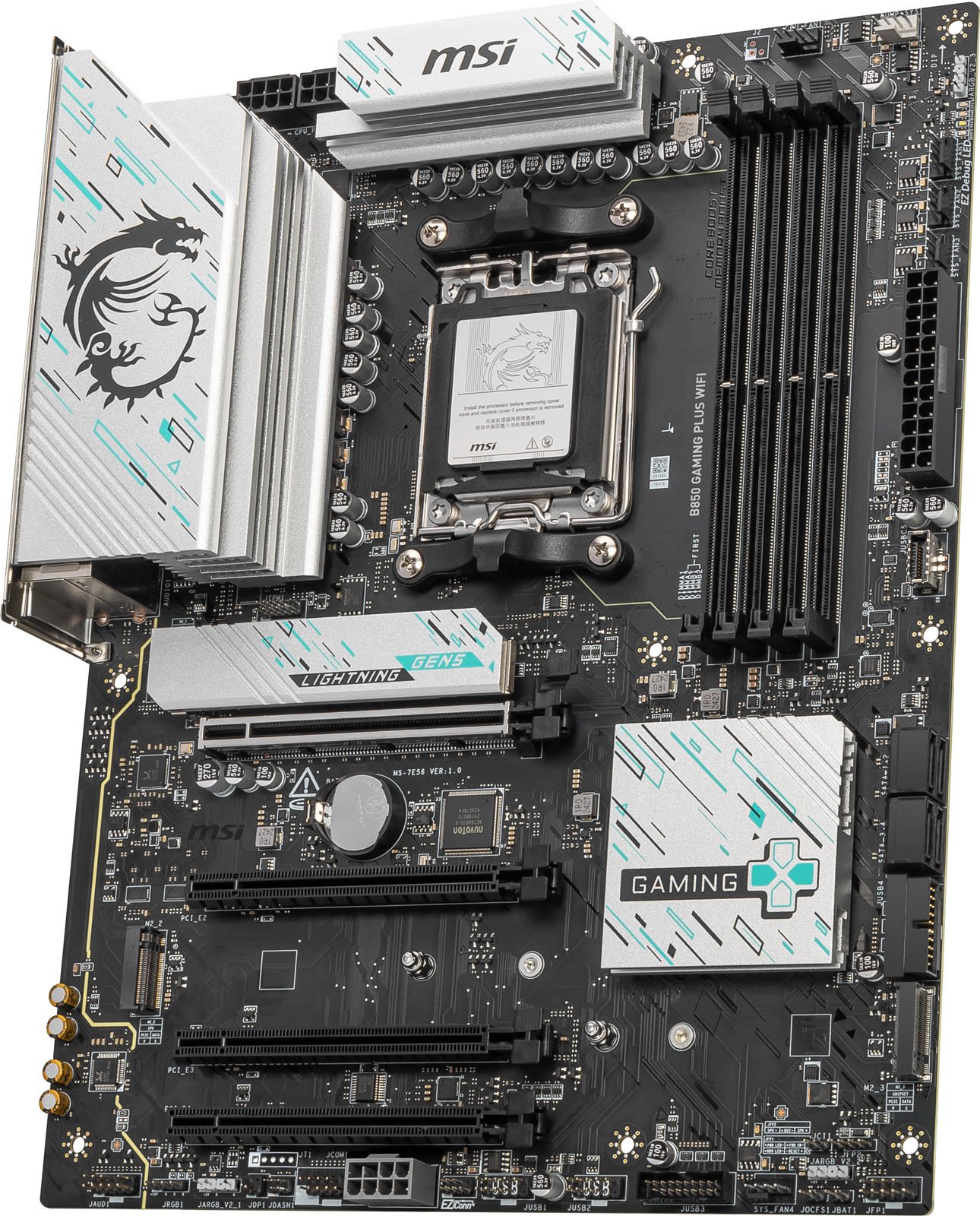

MSI B850 GAMING PLUS WIFI ATX Motherboard for AMD AM5 CPUs
£159.99
B850 GAMING PLUS WIFI
MSI B850 GAMING PLUS WIFI ATX Motherboard for AMD AM5 CPUs
FORM FACTOR: ATX
SOCKET: AM5
STORAGE: 3 X M.2, 4 X SATA
WI-FI: BUILT-IN
USB: 8 PORT(S)
£159.99 INC VAT
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 2 left!
Order within
You have 0 of these in your basket
QTY
1
Need Help?
CCL Code: MBD3810
Win the Competition
The B850 GAMING PLUS WIFI is a gaming oriented ATX motherboard that is contructed with a 12 Duet Rail Power System and the latest AMD B850 chipset which supports AMD Ryzen 9000 / 8000 / 7000 series desktop processors, featuring PCIe 5.0, 5G LAN, Wi-Fi 7 and DDR5 that balances both value and premium hardware.
Supports AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
Ultra Power - 12 Duet Rail Power System with P-PAK
With exclusive Core Boost technology, dual 8 pin power connectors and EZ OC Tuning functions, the B850 GAMING PLUS WIFI is able to sustain heavy CPU power loads to support system-demanding game settings:
- Digital PWM IC
- 12 Duet Rail Power System (P-PAK)
- 2 Phase SOC Power
- 1 Phase MISC Power
Frozr Design
Frozr Guard: Extended Heatsink design, 7W/mK MOSFET thermal pads, extra choke thermal pads and EZ M.2 Shield Frozr II for improved thermal dissipation.
Frozr Sync: Connect and synchronize cooling with strategically placed pin-headers - including CPU fan header (2A), Combo fan (3A, supports both pump fan and system fan) and system fans.
Frozr Control: Manage speeds and temperature for all fans of your system in MSI Center with Cooling Wizard and Frozr AI Cooling.
4 x DDR5 Dual Channel (8200+ MT/s OC)*
Memory Boost: A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance.
High-Efficiency Mode: Enabling High-Efficiency-Mode in the MSI BIOS increases memory bandwidth and reduces latency. Four different modes allow users to find out the optimal configuration based on the quality of their memory modules.
EXPO Profiles in the MSI BIOS are MSI OC LAB optimized and can be easily enabled with auto power settings for optimized memory speed and stability.
*1DPC 1R Max. overclocking frequency 8200+ MT/s, supports AMD EXPO.
Fortified PCIe 5.0 x16 Slot
MSI PCI Express Steel Armor slots are secured to the motherboard with extra solder points to support the weight of heavy graphics cards. When every advantage in games counts, Steel Armor also shields the point of contact from electromagnetic interference.
- 1 x PCIe 5.0/4.0/3.0 x16 slot (with Steel Armor*)
- 1 x PCIe 4.0/3.0 x16 slot
- 2 x PCIe 3.0 x1 slots
*MSI Surface Mount Technology (SMT) solder welding improves signal clarity.
Gen5 M.2 Connector
The B850 GAMING PLUS WIFI motherboard features MSI's M.2 slots:
- 1 x Gen5 x4 128Gbps slot (with EZ M.2 Shield Frozr II)
- 1 x Gen4 x4 64Gbps slot
- 1 x Gen4 x2 32Gbps slot
EZ DIY
The DIY Friendly designs optimize the assemble process and experience.
EZ M.2 Shield Frozr II: MSI patented Shield Frozr cover features a tool-free design so users don't have to worry about lost screws or overtightening.
EZ M.2 Clip II: Install or remove the SSD with a simple push of the latch, without using any screws.
EZ PCIe Clip II: Allows for easy removal of the graphics card by pressing the tail-like lock with one finger, even in the cramped case spaces.
EZ Antenna: MSI's latest Wi-Fi antenna not only boasts a beautiful appearance but also features a magnetic design, making it easier to adjust the antenna's placement.
High-speed Connectivity
5G LAN: A Realtek 5Gbps LAN controller delivers a premium network gaming experience.
Wi-Fi 7: Features the full-speed Wi-Fi 7 solution (ultra-low latency, high-bandwidth) & Bluetooth 5.4 technology.
USB 10Gbps Type-C: Connect to devices and transfer files at high bandwidth rates.
HD Audio: 7.1-Channel High Definition Audio with Audio Boost.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 9000 / 8000 / 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

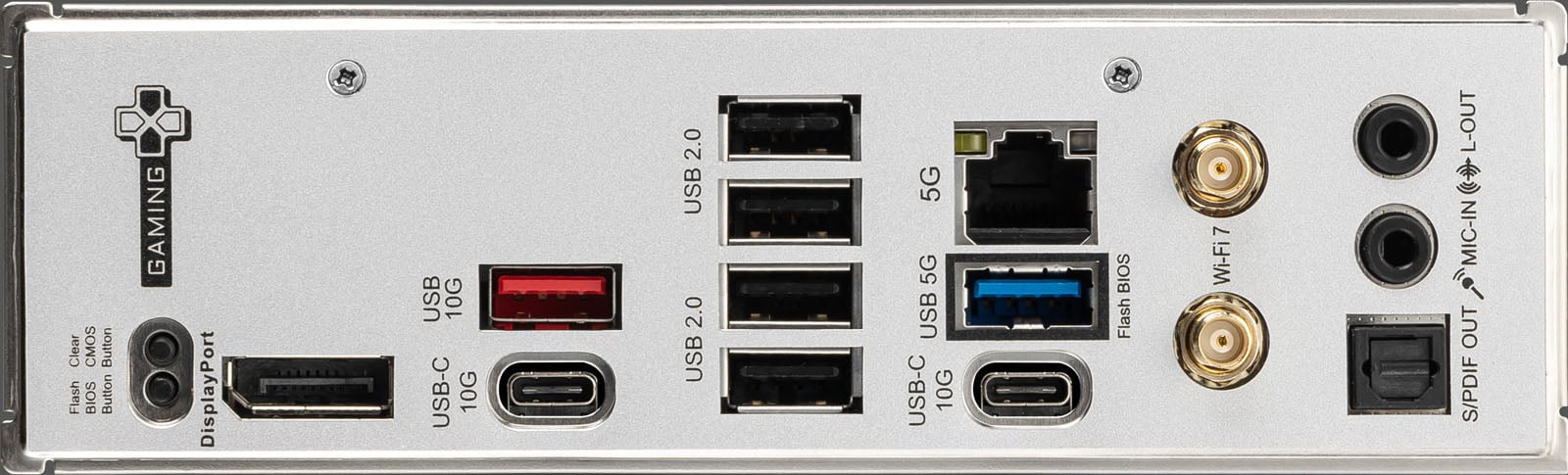

Rear Panel I/O Ports
- USB Ports: 2 x USB-C 3.1
- 1 x USB 3.1
- 1 x USB 3.0
- 3 x USB 2.0
- DisplayPorts: 1 x DisplayPort
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 2 x USB 3.0 headers (supports 4 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B850
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- S/PDIF Port: 1 x S/PDIF Optical Out
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Combo fan header
- 4 x System fan headers
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- 1 x 8-pin PCIe
- Other Connectors: 1 x M.2 slot, Type 2260/2280 (PCIe Gen5)
- 1 x M.2 slot, Type 2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Type 2260/2280 (PCIe Gen4 x2)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 1 x PCI Express 4.0 x16 slot (@ x4)
- 2 x PCI Express 3.0 x16 slots (@ x1/x1)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek 8126VB
- Network Speeds Supported: Up to 5 Gbps
- Wireless LAN: Yes (Wi-Fi 7)
- Wireless Network Speed: Up to 5.8 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.4
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard

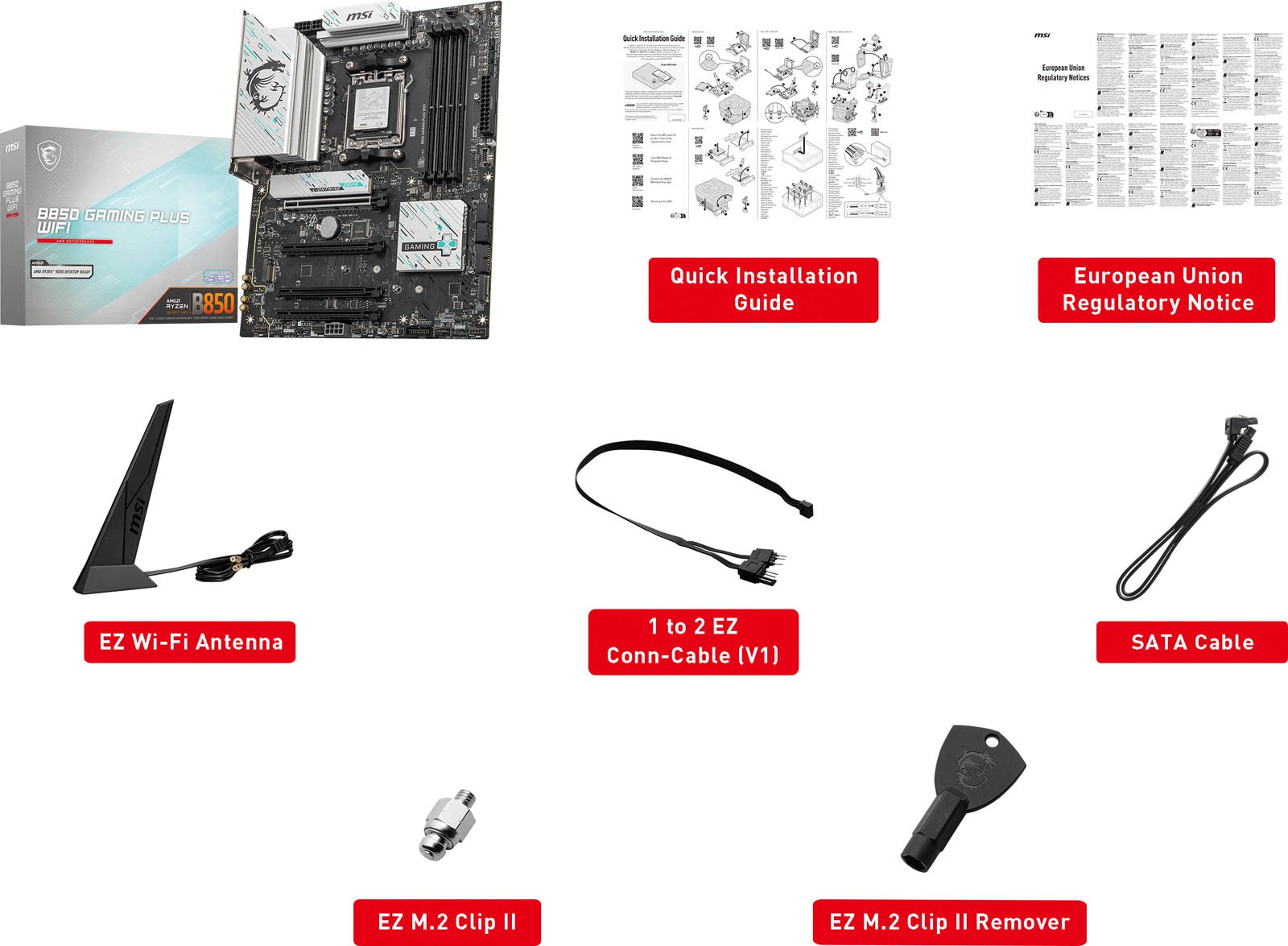

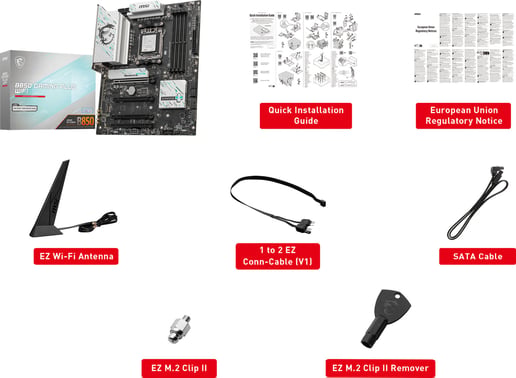

- In The Box: Motherboard
- Quick Installation Guide
- EU Regulatory Notice
- EZ Wi-Fi Antenna
- 1 to 2 EZ Conn-Cable (V1)
- SATA Cable
- EZ M.2 Clip II
- EZ M.2 Clip II Remover
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3810
- Mfg Code: B850 GAMING PLUS WIFI
Warranty
- Warranty: 3 Years
