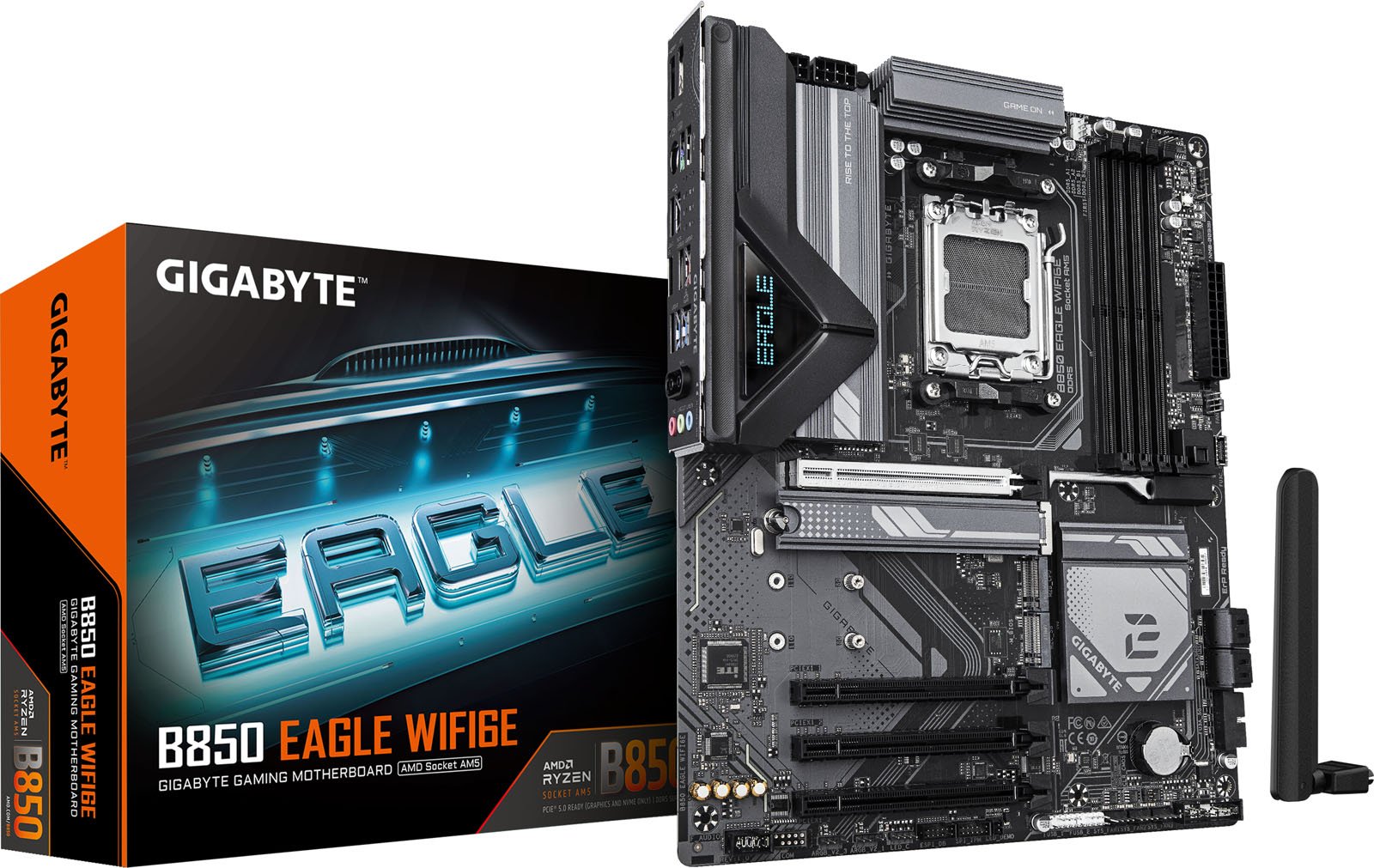

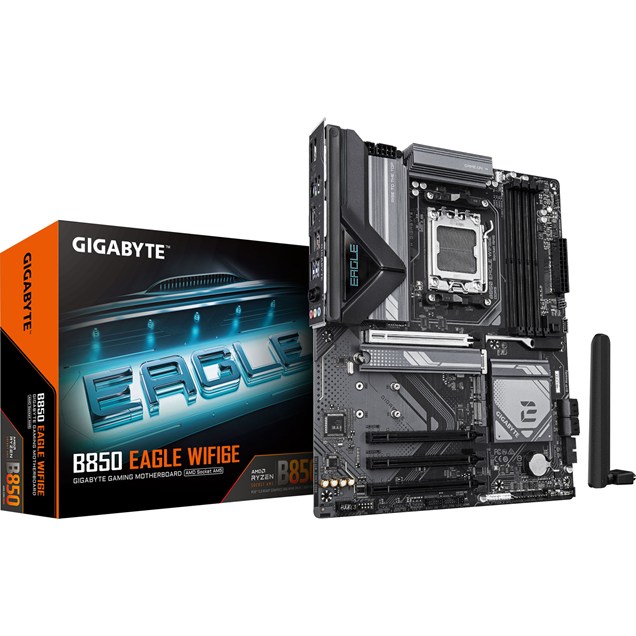

Gigabyte B850 EAGLE WIFI6E ATX Motherboard for AMD Socket AM5 CPUs
SAVE £14
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 3 left!
Order within
You have 0 of these in your basket
The Gigabyte B850 EAGLE Wi-Fi 6E swoops in to dominate, engineered to fuel your gaming rig with relentless power. Built on the B850 chipset and primed for AMD Ryzen 9000 Series Processors, this ATX beast strikes with blistering speeds and razor-sharp multitasking, keeping you ahead of the competition. Soar through online battles with Wi-Fi 6 delivering lag-free performance, while advanced thermal tech keeps your system as cool as a predator riding the wind. Unleash a storm of colour with RGB Fusion 2.0, and let AI-driven enhancements sharpen your system’s instincts, ensuring rock-solid stability and game-winning power.
Smart and Safe Overclocking
AI SNATCH simplifies overclocking with a user-friendly interface that automatically calibrates performance settings. Built-in safeguards, such as over-temperature and over-current protections, keep your components secure while you gain extra speed. This approach lets you push your system confidently, enjoying enhanced performance without worry.
Enhanced AI Processing – Up to 8% Improvement
At the heart of AI SNATCH is improved AI performance, offering up to an 8% increase. This acceleration sharpens decision-making and speeds up data tasks, from language processing to reinforcement learning. The result is a system that responds more quickly and runs smoother throughout your daily computing tasks.
One-Click Acceleration
With a single click, your CPU and DDR5 memory performance can be boosted by up to 9%. The smart interface quickly adjusts key settings, allowing for faster app launches, improved multitasking, and overall snappier performance that enhances both gaming and work experiences.
Up to 9% Better Performance Per Watt
Improved power management under AI SNATCH leads to up to a 9% boost in CP/Per Watt performance. This refined control reduces energy consumption while maintaining high processing speeds, resulting in a cooler, more sustainable setup. Experience a system that delivers extra performance alongside reduced power usage for round-the-clock reliability.
Digital Twin VRM Design
This board uses a Digital Twin Power Design which delivers consistent power and helps to maintain system stability when overclocking your CPU. With 60A DrMOS modules, these fully digital controllers offer incredible precision and reliability for the most important and energy-sensitive component in your PC, allowing enthusiasts to get the absolute maximum performance from AMD Ryzen™ processors
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 9000 / 8000 / 7000 Series Processors
- 64-bit Support: Yes
- Socket: AM5
Rear Panel I/O Ports
- USB Ports: 2 x USB 3.1
- 1 x USB-C 3.0
- 2 x USB 3.0
- 4 x USB 2.0
- DisplayPorts: 1 x DisplayPort 1.4
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 8200 MT/s
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B850
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU fan/AIO pump header
- 3 x System fan headers
- 1 x System fan/AIO pump header
- TPM Header: 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- 1 x 4-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen5)
- 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Key M, Type 2280/22110 (PCIe Gen4 x2)
- 3 x 3-pin ARGB headers
- 1 x 4-pin RGB header
Expansion
- Number of PCI Express Slots: 1 x PCI Express 5.0 x16 slot
- 3 x PCI Express 3.0 x16 slots (@ x1/x1/x1)
Memory
- Maximum RAM: 256 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: Yes (Wi-Fi 6E)
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- 1 x Reset
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3820
- Mfg Code: B850 EAGLE WIFI6E
Warranty
- Warranty: 3 Years
