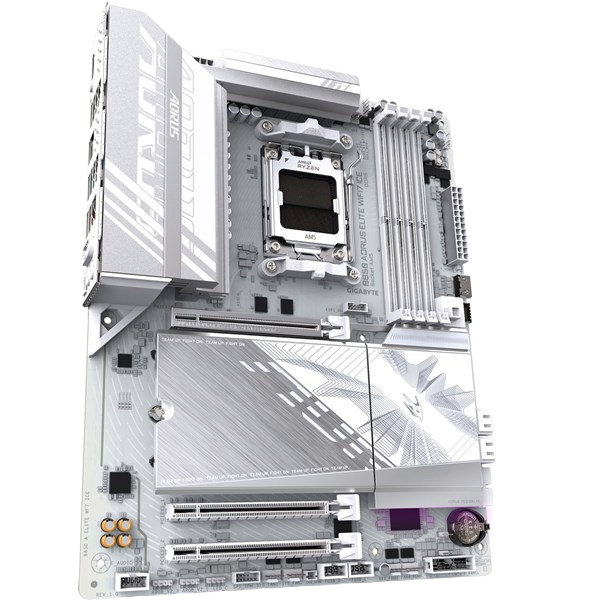

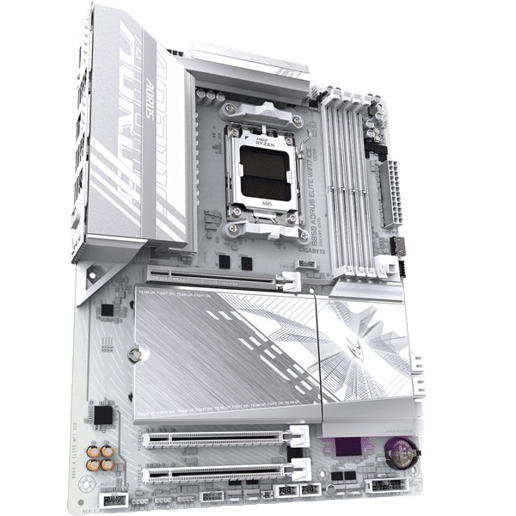

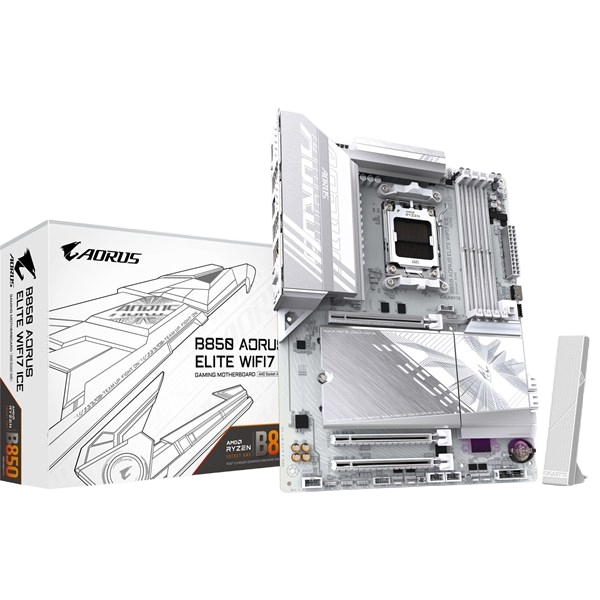

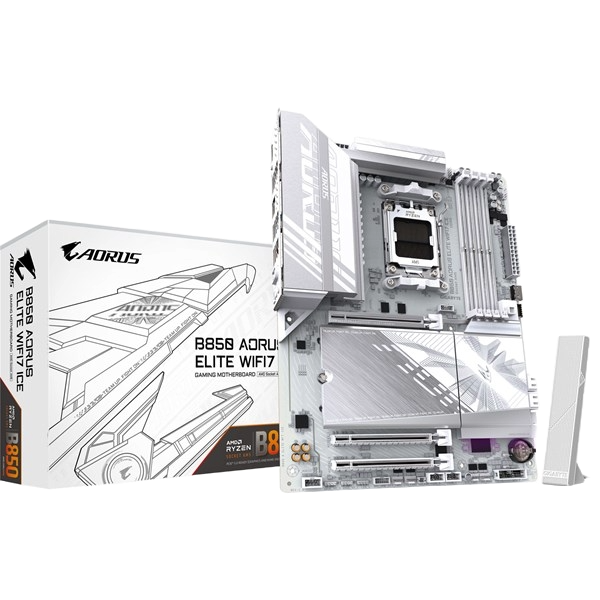

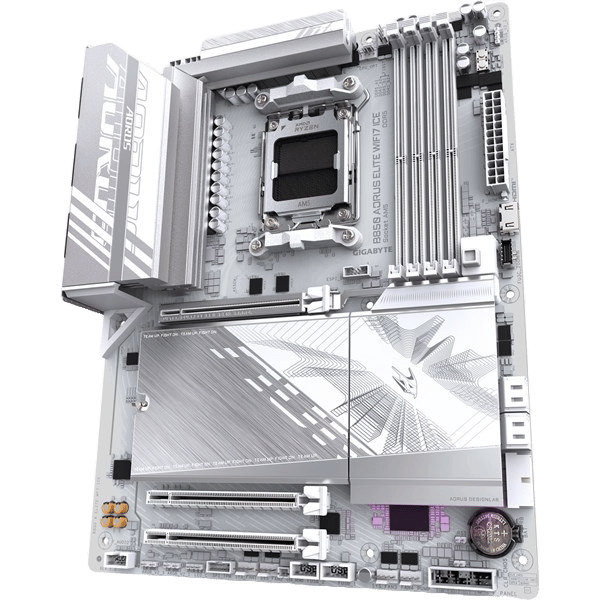

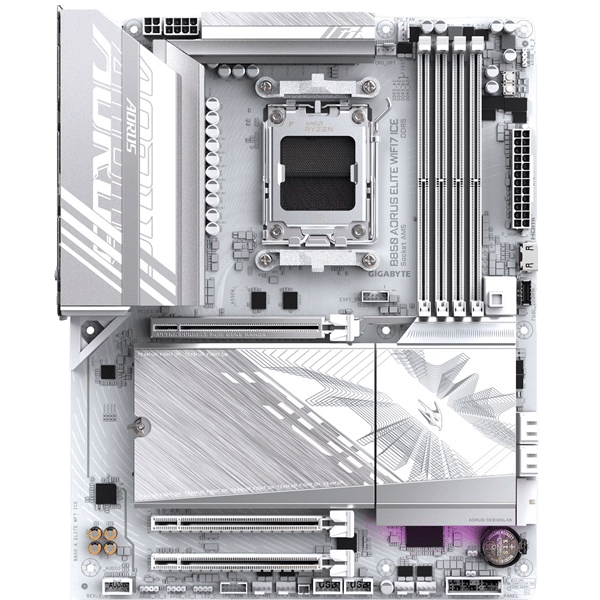

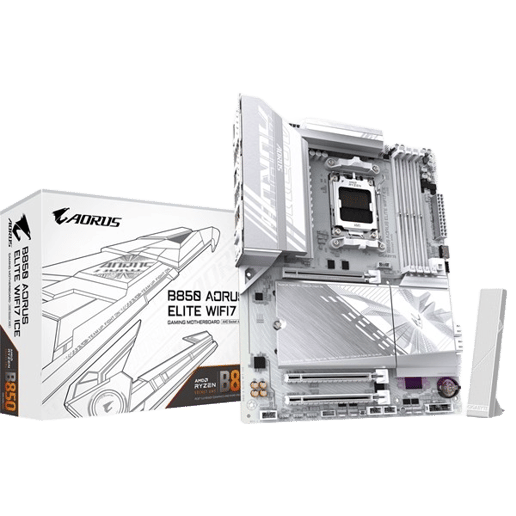

Gigabyte B850 AORUS ELITE WIFI7 ICE ATX Motherboard for AMD AM5 CPUs

Gigabyte B850 AORUS ELITE WIFI7 ICE ATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3818

Sold out

Notify Me

Gigabyte B850 AORUS ELITE WIFI7 ICE ATX Motherboard for AMD AM5 CPUs

B850 AORUS ELITE WIFI7 ICE

Key Features:

  • ATX Form Factor
  • AMD B850 Chipset
  • Socket AM5
  • DDR5 (Max: 256GB / 4 slots)
  • 3 x M.2 & 12 x USB & 4 x SATA
  • Display Port
CCL Code: MBD3818

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Gigabyte B850 AORUS ELITE WIFI7 ICE AMD Socket AM5 ATX Motherboard

Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors Ryzen 9000 / 8000 / 7000 Series Processors
64-bit Support Yes
Socket AM5

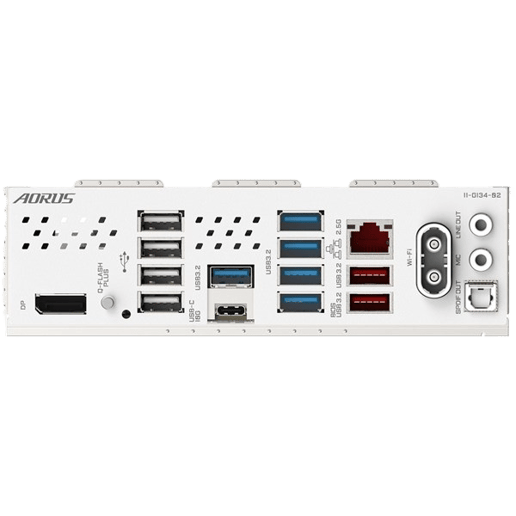

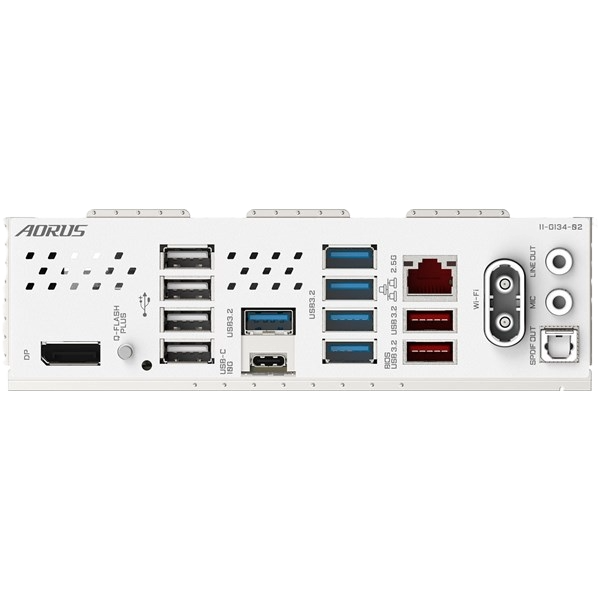

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
2 x USB 3.1
5 x USB 3.0
4 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
RJ-45 Ports 1 x RJ-45
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors 4 x SATA
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/AIO pump header
3 x System fan headers
1 x System fan/AIO pump header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
1 x 4-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen5)
2 x M.2 slots, Key M, Type 2280/2580/22110/25110 (PCIe Gen4)
3 x 3-pin ARGB headers
1 x 4-pin RGB header

Memory

Memory Bus Speed Up to 8200 MT/s
Memory Type DDR5
Maximum RAM 256 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B850
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 7)
Bluetooth Yes
Bluetooth Version 5.4

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
1 x Reset
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 12 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection No
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
Motherboard Chipset AMD B850
Thunderbolt No
Motherboard Model Gigabyte B850 AORUS ELITE WIFI7 ICE
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 8200 MT/s
CPU Power Pins (female) 12
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Back Connect Support No

Item Details

Manufacturer Gigabyte
Manufacturer Code B850 AORUS ELITE WIFI7 ICE
EAN 4719331866099
UPC 889523045947
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B850 AORUS ELITE WIFI7 ICE
