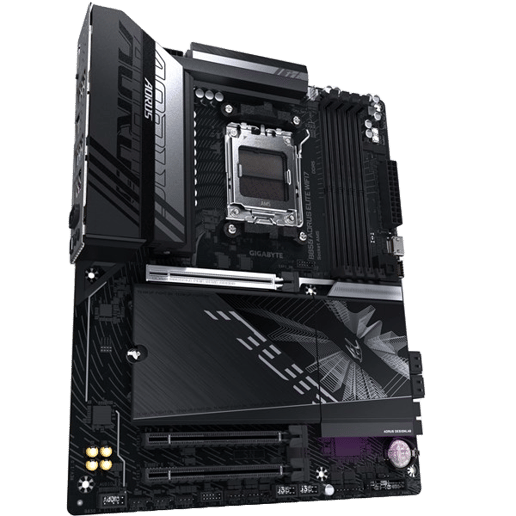

Gigabyte B850 AORUS ELITE WIFI7 ATX Motherboard for AMD AM5 CPUs

Compare

Gigabyte B850 AORUS ELITE WIFI7 ATX Motherboard for AMD AM5 CPUs

Name: Gigabyte B850 AORUS ELITE WIFI7 ATX Motherboard for AMD AM5 CPUs
Brand: Gigabyte
SKU: MBD3817
Price: 219.99 GBP
Availability: InStock

B850 AORUS ELITE WIFI7

£219.99 inc VAT

Available for delivery from Wednesday 26th March

or Click & Collect from Tomorrow

10+ In Stock Now

Buying in bulk? Contact our business team.

Add to Basket

Key Features:

ATX Form Factor
AMD B850 Chipset
Socket AM5
DDR5 (Max: 256GB / 4 slots)
3 x M.2 & 12 x USB & 4 x SATA
Display Port

CCL Code: MBD3817

Overview

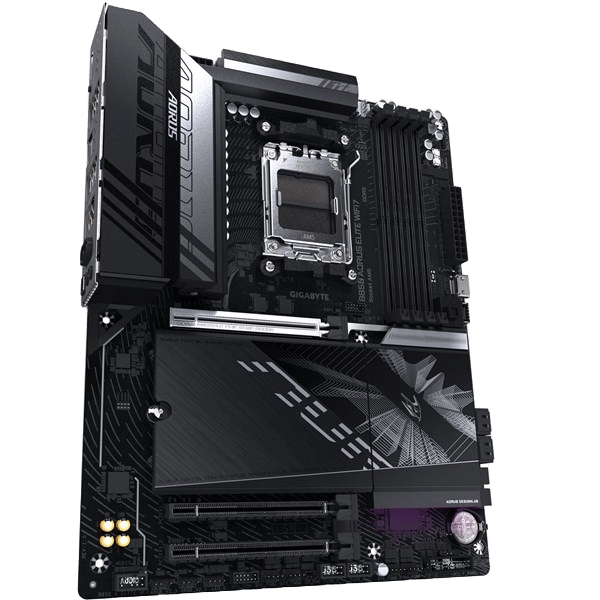

Gigabyte B850 AORUS ELITE WIFI7 AMD Socket AM5 ATX Motherboard

Specifications

CPU

CPU Socket	Socket AM5
CPU Brand	AMD
Installed Processors (Max)	0 (1)
Supported Processor Manufacturer	AMD
Supported Processors	Ryzen 9000 / 8000 / 7000 Series Processors
64-bit Support	Yes
Socket	AM5

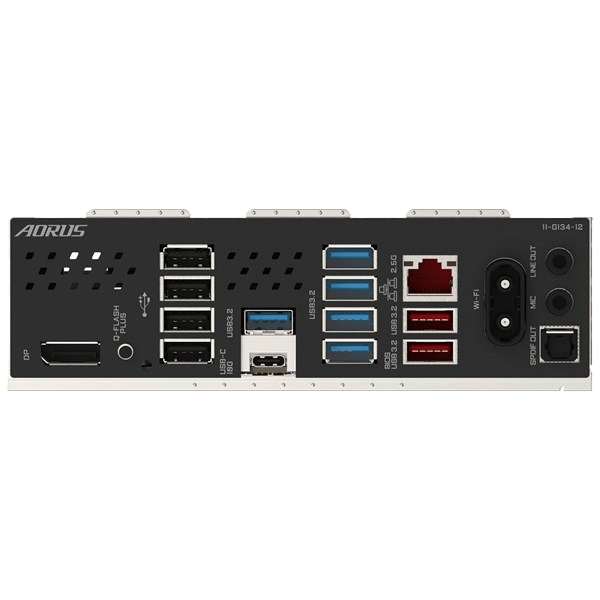

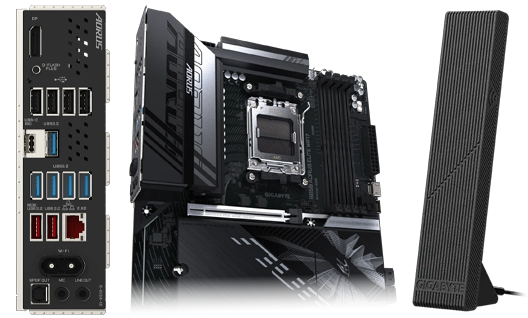

Rear Panel I/O Ports

USB Ports	1 x USB-C 3.1 2 x USB 3.1 5 x USB 3.0 4 x USB 2.0
DisplayPorts	1 x DisplayPort 1.4
RJ-45 Ports	1 x RJ-45
Audio Line Out Ports	1 x 3.5mm Jack
Microphone In Port	1 x 3.5mm Jack
S/PDIF Port	1 x S/PDIF Optical Out
Antenna Connector(s)	2 x SMA Antenna

Internal I/O Connectors

SATA Connectors	4 x SATA
USB Connectors	1 x USB-C 3.2 header (supports 1 port) 1 x USB 3.0 header (supports 2 ports) 2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors	1 x Front Panel 1 x Front Audio
Cooling Fan Support	1 x CPU fan header 1 x CPU fan/AIO pump header 3 x System fan headers 1 x System fan/AIO pump header
TPM Header	1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
Power Connector Port	1 x 24-pin ATX 1 x 8-pin EPS 1 x 4-pin EPS
Other Connectors	1 x M.2 slot, Key M, Type 2280/2580/22110/25110 (PCIe Gen5) 2 x M.2 slots, Key M, Type 2280/2580/22110/25110 (PCIe Gen4) 3 x 3-pin ARGB headers 1 x 4-pin RGB header

Memory

Memory Bus Speed	Up to 8200 MT/s
Memory Type	DDR5
Maximum RAM	256 GB
Memory Slot	4 x DIMM

Motherboard

Northbridge	AMD B850
RAID Supported	Yes
RAID Format	RAID 0, 1, 10
SATA Supported	Yes

Expansion

Number of PCI Express Slots

1 x PCI Express 5.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics Supported

Yes

Warranty

3 Years

Sound

Integrated Sound

Realtek

Network

Integrated Network	Realtek
Network Speeds Supported	Up to 2.5 Gbps
Wireless LAN	Yes (Wi-Fi 7)
Bluetooth	Yes
Bluetooth Version	5.4

System Requirements

Operating Systems Supported

Microsoft Windows 11

System

Jumpers	1 x Clear CMOS 1 x Reset
Software Included (may be trial or restricted)	Yes
Drivers	Yes

Physical

Form Factor	ATX Motherboard
Width	244 mm
Length	305 mm

Key Features

RDIMM Memory Supported	No
RDIMM Memory Required	No
Wireless Network	Yes
Motherboard Width	244 mm
Motherboard Height	305 mm
Main Colour	Black
Memory Channel	Dual
On-board Audio Type	7.1
Number of SATA Ports	4 port(s)
Number of USB Ports	12 port(s)
USB 3.0 Support	Yes
Multi GPU Support	No
VGA Connection	No
DVI Connection	No
HDMI Connection	No
DisplayPort Connection	Yes
Motherboard Form Factor	ATX
Motherboard (EPS) Power Connectors	4-Pin + 8-Pin
Motherboard Chipset	AMD B850
Thunderbolt	No
Motherboard Model	Gigabyte B850 AORUS ELITE WIFI7
USB 3.1 Support	Yes
Internal USB3.0 Header	Yes
M.2 Support	Yes
On-board RGB Control	Gigabyte RGB Fusion
RGB Header Type	3-Pin ARGB
Addressable RGB	Yes
Internal USB Type-C Header	Yes
Power Requirement (auto)	70 W
Max Memory Speed Supported (Non-overclocked)	5200 MT/s
Max Memory Speed Supported (overclocked)	8200 MT/s
CPU Power Pins (female)	12
Total M.2 Slots	3
Maximum NVMe M.2 ports	3
SATA ports	4
No. of front USB2.0 ports supported	4
No. of front USB3.0 ports supported	2
No. of front USB-C ports supported	1
Back Connect Support	No
