CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: AMD
• Supported Processors: Ryzen 9000 / 8000 / 7000 Series Processors
• 64-bit Support: Yes
• Socket: AM5

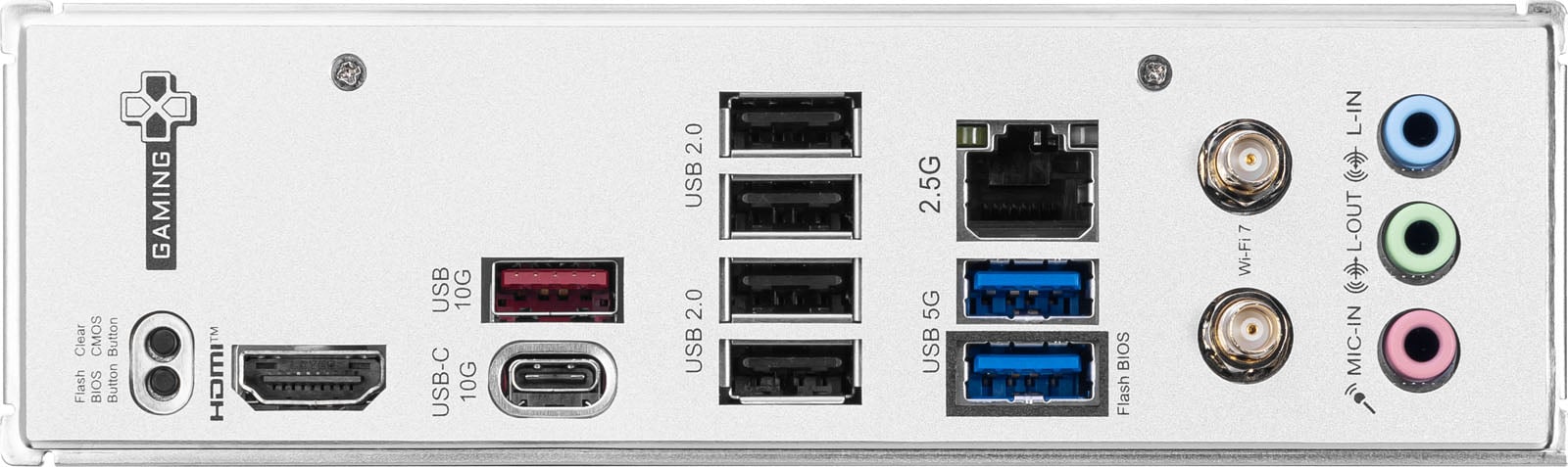

Rear Panel I/O Ports

• USB Ports: 1 x USB-C 3.1
• 1 x USB 3.1
• 2 x USB 3.0
• 4 x USB 2.0
• HDMI Port: 1 x HDMI 22.1

Internal I/O Connectors

• SATA Connectors: 4 x SATA III
• USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
• 1 x USB 3.0 header (supports 2 ports)
• 2 x USB 2.0 headers (supports 4 ports)

Memory

• Memory Bus Speed: Up to 8000 MT/s
• Memory Type: DDR5

Motherboard

• Northbridge: AMD B840
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1 x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• Microphone In Port: 1 x 3.5mm Jack
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 1 x Combo fan header
• 4 x System fan headers
• Serial Connectors: 1 x COM header
• Chassis Intrusion Connector: 1 x Chassis Intrusion header
• TPM Header: 1 x TPM header
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• Other Connectors: 1 x M.2 slot, Type 2260/2280 (PCIe Gen4)
• 1 x M.2 slot, Type 2260/2280/22110 (PCIe Gen4)
• 2 x 3-pin ARGB headers
• 1 x 4-pin RGB header

Expansion

• Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
• 4 x PCI Express 3.0 x16 slots (@ x1/x4/x1/x1)

Memory

• Maximum RAM: 256 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes

Sound

• Integrated Sound: Realtek ALC897

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek 8125BG
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes (Wi-Fi 7)
• Bluetooth: Yes
• Bluetooth Version: 5.4

System Requirements

• Operating Systems Supported: Microsoft Windows 11

System

• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: ATX Motherboard

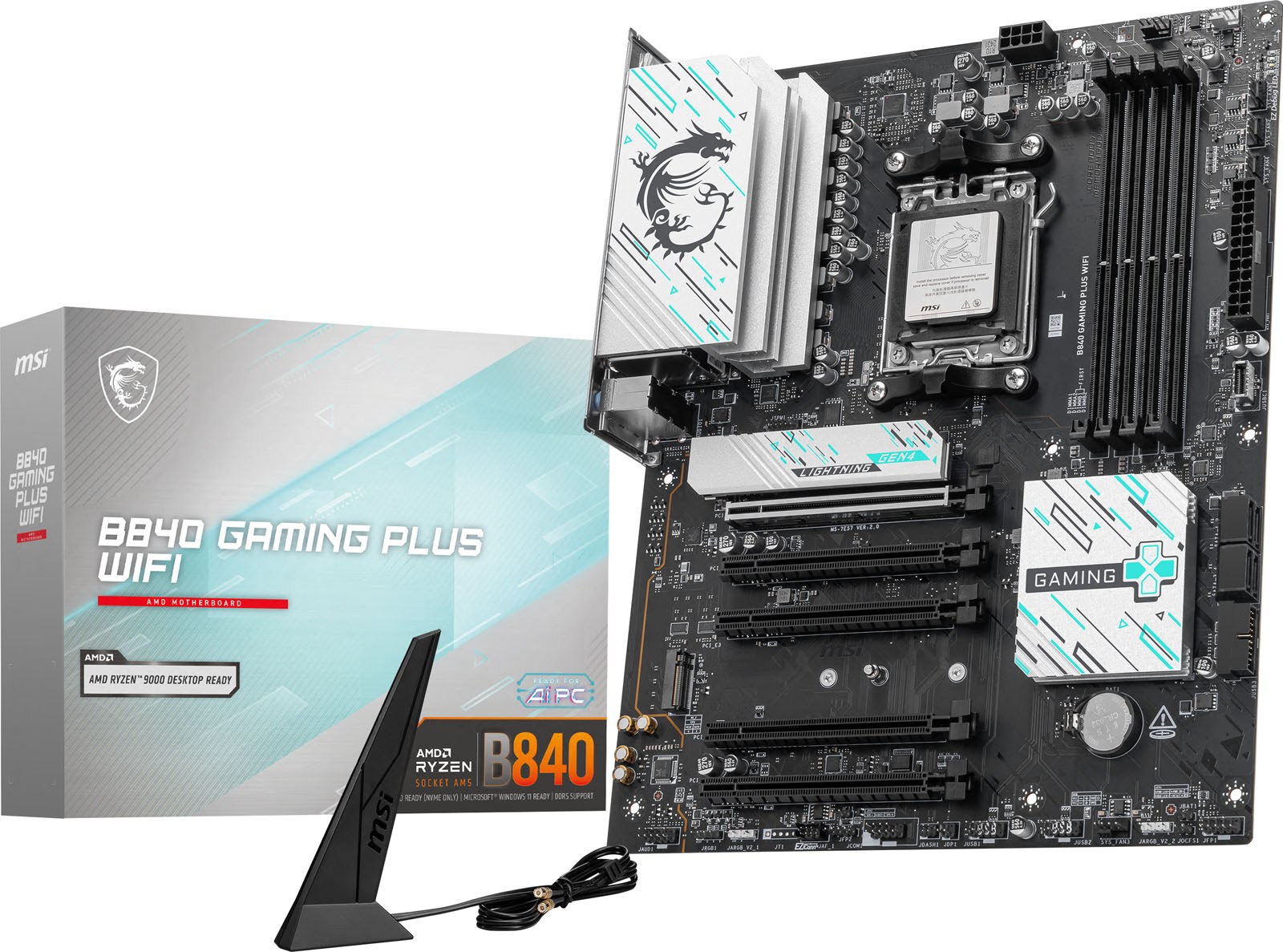

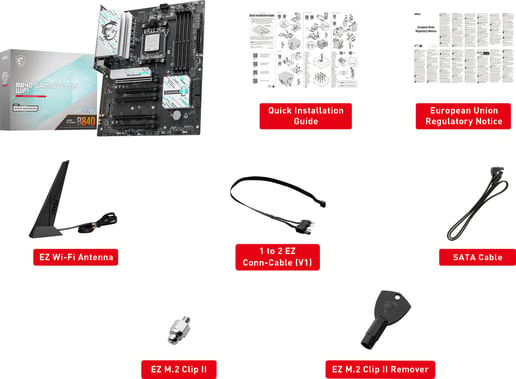

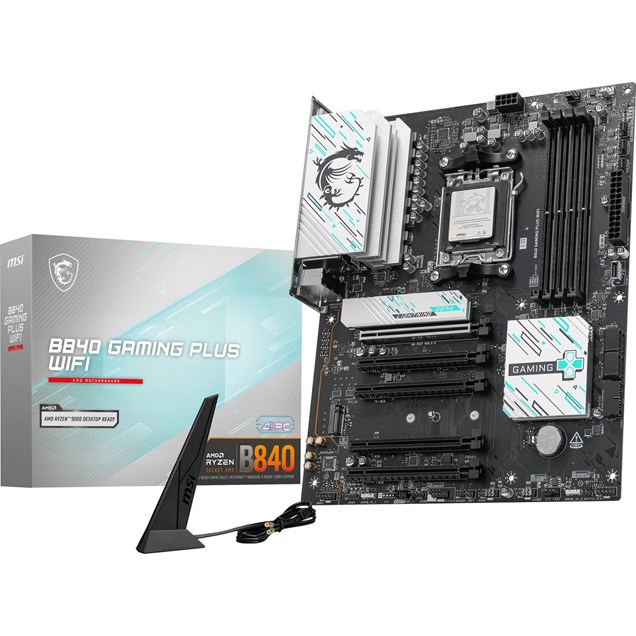

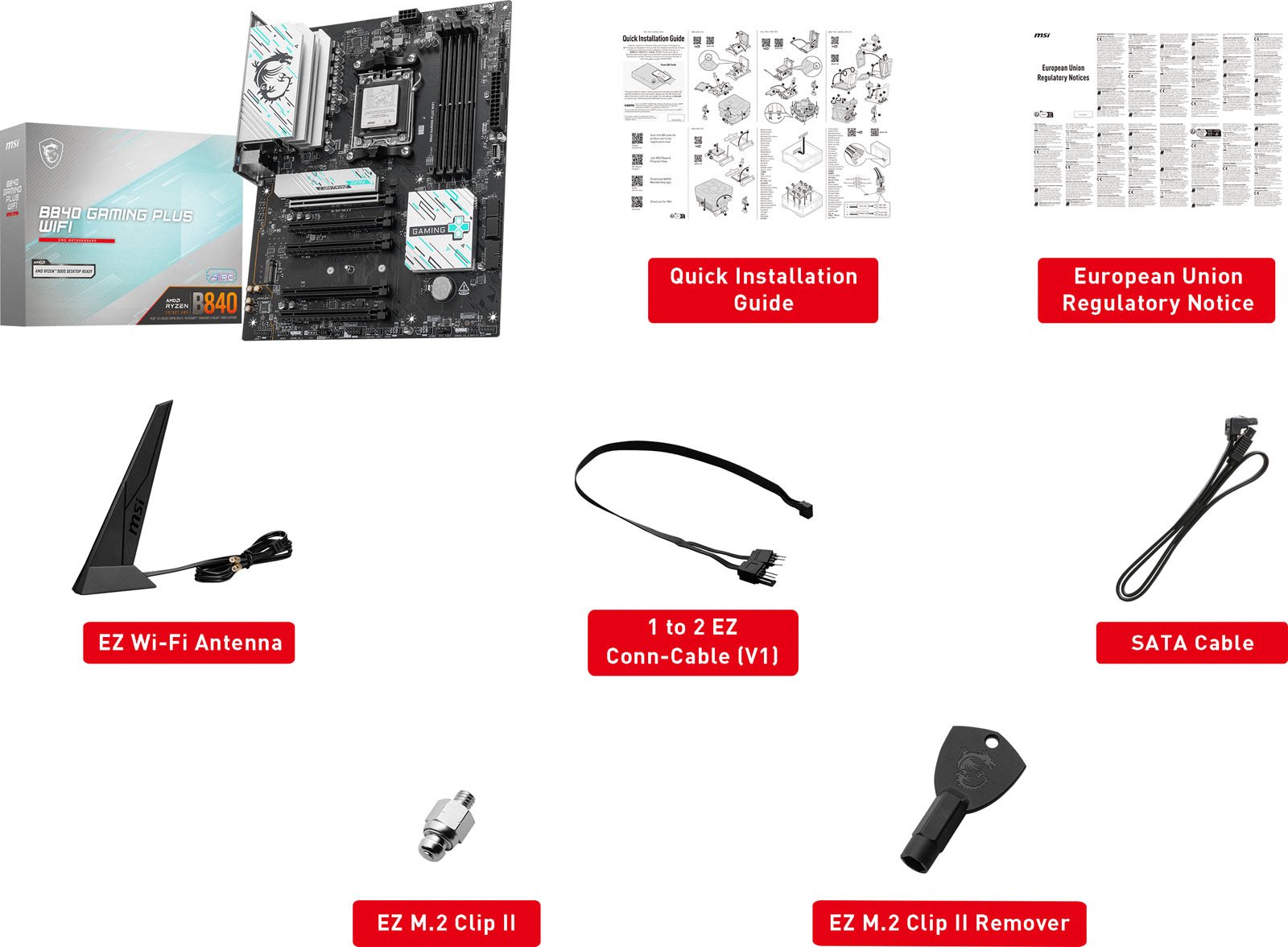

• In The Box: Motherboard
• Quick Installation Guide
• EU Regulatory Notice
• EZ Wi-Fi Antenna
• 1 to 2 EZ Conn-Cable (V1)
• SATA Cable
• EZ M.2 Clip II
• EZ M.2 Clip II Remover
• Width: 244 mm
• Length: 305 mm

Identifiers

• Stock Code: MBD3812
• Mfg Code: B840 GAMING PLUS WIFI
