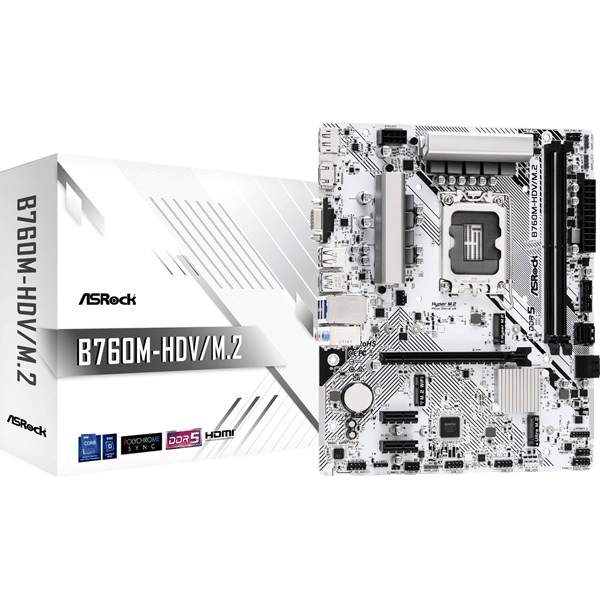

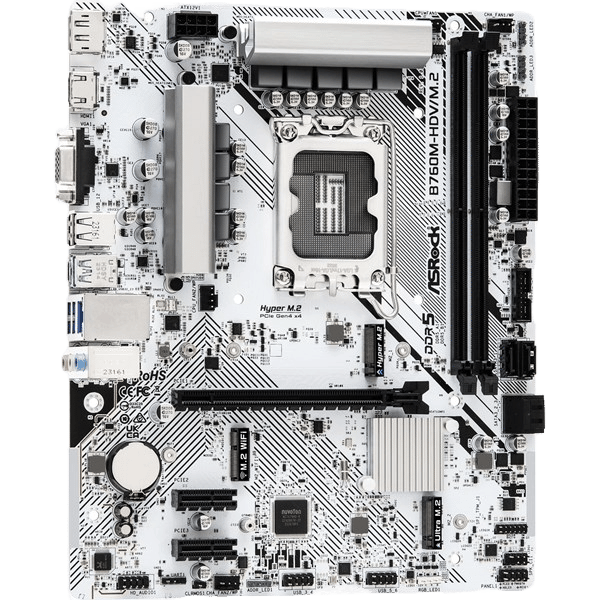

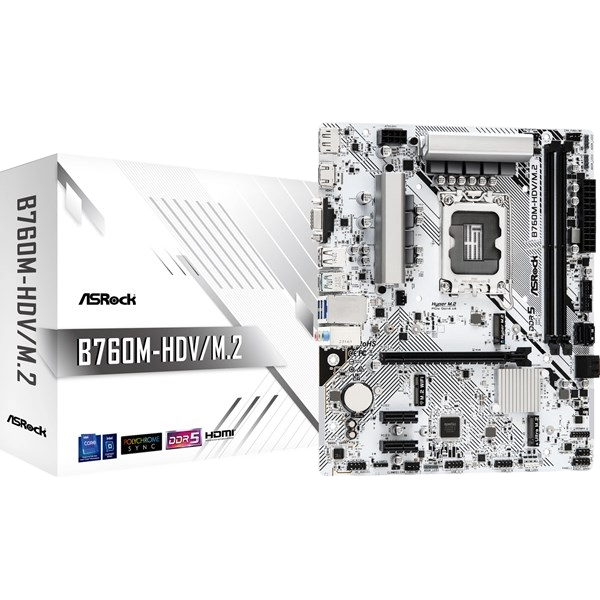

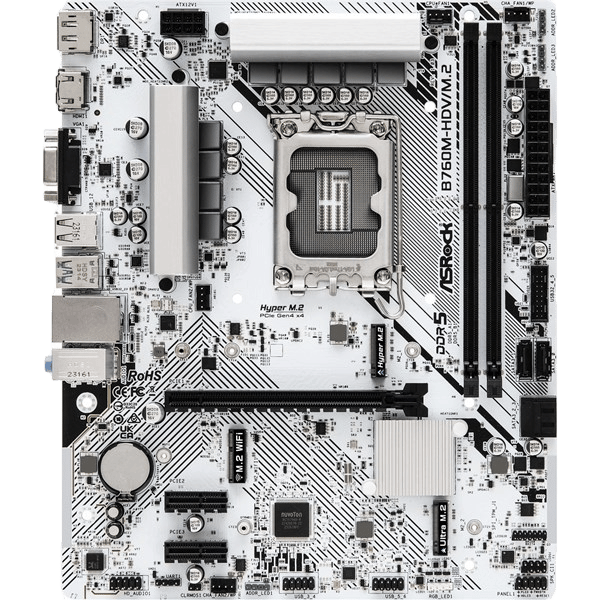

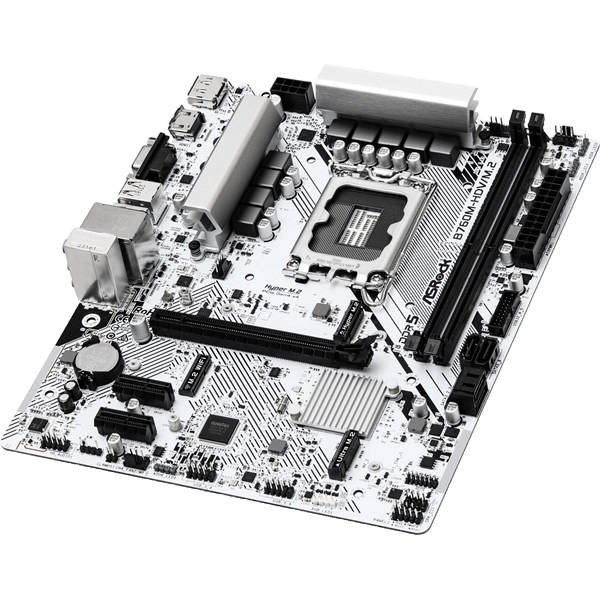

ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs

ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3609

£103.87 inc VAT

  • ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs
  • ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs
  • ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs
  • ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs
  • ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs
  • ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs
  • ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs

Save 5% when you buy 3 or more eligible different items*

ASRock B760M-HDV/M.2 mATX Motherboard for Intel LGA1700 CPUs

B760M-HDV/M.2

£103.87 inc VAT

Available for delivery from Tomorrow

or Click & Collect from Tomorrow

Hurry, only 3 left!

Order within

Buying in bulk? Contact our business team.

Key Features:

  • mATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 96GB / 2 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI, Display Port and VGA
CCL Code: MBD3609
Overview

7+1+1 Power Phase Design

Featuring sturdy components and completely smooth power delivery to the CPU, offering enhanced performance for gamers.

DDR5 XMP & EXPO Support

Derived from the “built for stable and reliable” designing concept, ASRock does not compromise on any details. This motherboards is built with high quality components, enthusiasts are able to enjoy the boost of DDR5 memory overclocking performance by enabling the pre-tested profiles. Make sure the memory modules are Intel® XMP/AMD EXPO™ capable and overclocking can be made so affordable, satisfying and absolutely no sweat at all.

* There are certain risks involved with memory overclocking and may affect your system’s stability. Please realize that overclocking should be done at your own risk and expense. EXPO/XMP profile support may vary by different system configuration, memory modules and motherboard models. Please refer to Memory QVL for the completed support list.

POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

High Speed M.2 Solution(PCIe Gen4 x4)

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

Main Features

  • Supports 14th, 13th & 12th Gen Intel Core Processors (LGA1700)
  • 7+1+1 Power Phase
  • Supports DDR5 7200MHz (OC)
  • 1 PCIe 4.0 x16, 2 PCIe 3.0 x1, 1 M.2 Key E for WiFi
  • Graphics Output Options: HDMI, DisplayPort, D-Sub
  • Realtek ALC897 7.1 CH HD Audio Codec
  • 4 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Ultra M.2 (PCIe Gen3 x4)
  • 1 USB 3.2 Gen1 Type-C (Rear), 5 USB 3.2 Gen1 Type-A (3 Rear, 2 Front), 6 USB 2.0 (2 Rear, 4 Front)
  • Dragon 2.5G LAN
  • Supports ASRock Auto Driver Installer
Promotions

Get 5% off PC Components, Peripherals and selected Monitors when you buy three or more*

USE CODE: UPGRADE5 at checkout

For a limited time only, buy at least three different PC components or Peripherals from different qualifying categories and get 5% off those items when you use code UPGRADE5 at checkout. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU CoolersCases, MonitorsKeyboards, Mice, HeadsetsLaptop Cases and Bags.


Promotional Period: From 3rd June 2024 till 30th June 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Discount will apply to three or more items bought from separate categories (e.g. one processor, one motherboard and one keyboard). It will not apply to multiples from categories (e.g. three graphics cards).

Discount will be applied to the items in your basket when you enter the promo code UPGRADE5 at the checkout stage - please double-check your basket to ensure the offer applies correctly when prompted to add a discount code.

Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period: until till June 30th 2024.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 14th, 13th & 12th Gen Intel Core Processors
64-bit Support Yes
Socket LGA1700

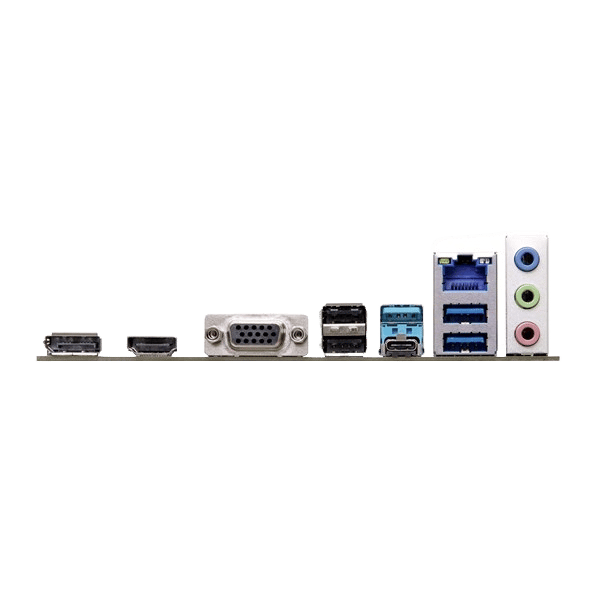

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.0
3 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
VGA Port 1 x D-Sub
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Speaker 1 x Speaker header
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Pump fan header
2 x Chassis/Water Pump fan headers
Chassis Intrusion Connector 1 x Chassis Intrusion header
TPM Header 1 x SPI TPM header
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Key M, Type 2260/2280 (PCIe Gen4)
1 x M.2 slot, Key M, Type 2280 (PCIe Gen3)
1 x M.2 slot, Key E, Type 2230 for WiFi
3 x 3-pin ARGB LED headers

Memory

Memory Bus Speed Up to 7200 MHz
Memory Type DDR5
Maximum RAM 96 GB
Memory Slot 2 x DIMM

Motherboard

Northbridge Intel B760
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x1 slots

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek ALC897

Network

Integrated Network Dragon RTL8125BG
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard

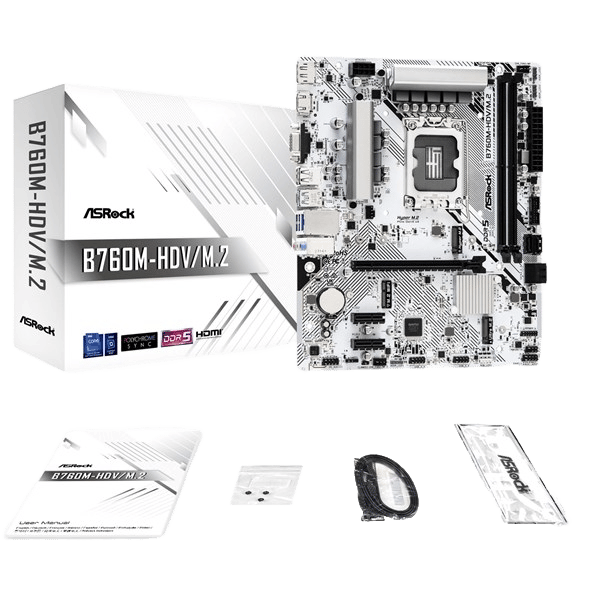

In The Box Motherboard
User Manual
I/O Shield
2 x SATA Cables
3 x M.2 Screws
Width 201 mm
Length 244 mm

Key Features

RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network No
Motherboard Width 201 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection Yes
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset Intel B760
Thunderbolt No
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control ASRock RGB LED
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header No
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5600 MT/s
Max Memory Speed Supported (overclocked) 7200 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2

Item Details

Manufacturer ASRock
Manufacturer Code B760M-HDV/M.2
EAN 4710483943485
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer ASRock
Manufacturer Code B760M-HDV/M.2
Reviews
No reviews have been received for this product yet
