CPU

• Installed Processors (Max): 0 (1)
• Supported Processor Manufacturer: Intel
• Supported Processors: 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
• 64-bit Support: Yes
• Socket: LGA1700

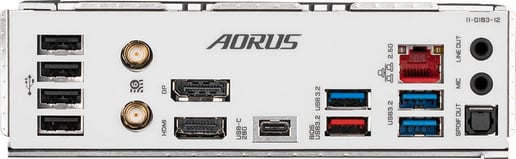

Rear Panel I/O Ports

• USB Ports: 1x USB-C 3.2 Gen2x2
• 1x USB 3.2 Gen2
• 3x USB 3.2 Gen1
• 4x USB 2.0
• DisplayPorts: 1 x DisplayPort 1.2
• HDMI Port: 1 x HDMI 2.0

Internal I/O Connectors

• SATA Connectors: SATA 6GBs
• USB Connectors: 1x USB-C 3.2 Gen2
• 1x USB 3.2 Gen1
• 2x USB 2.0

Memory

• Memory Bus Speed: Up to 7600+ MHz
• Memory Type: DDR5

Motherboard

• Northbridge: Intel LGA 1700
• RAID Supported: Yes
• RAID Format: RAID 0, 1, 5, 10
• SATA Supported: Yes

Rear Panel I/O Ports

• RJ-45 Ports: 1x RJ-45
• Audio Line In Ports: 1 x 3.5mm Jack
• Audio Line Out Ports: 1 x 3.5mm Jack
• S/PDIF Port: 1 x S/PDIF Optical Out
• Antenna Connector(s): 2 x SMA Antenna

Internal I/O Connectors

• Front Panel Connectors: 1 x Front Panel
• 1 x Front Audio
• Cooling Fan Support: 1 x CPU fan header
• 3 x System fan headers
• Thunderbolt Port(s): 2 x Thunderbolt AiC headers
• TPM Header: 1 x TPM (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• Power Connector Port: 1 x 24-pin ATX
• 1 x 8-pin EPS
• 1 x 4-pin EPS
• Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2280 (PCIe Gen4)
• 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
• 2 x 3-pin ARGB LED headers
• 2 x 4-pin RGB LED headers

Expansion

• Number of PCI Express Slots: 2 x PCI Express 4.0 x16 slots (@ x16/x4)

Memory

• Maximum RAM: 128 GB
• Memory Slot: 4 x DIMM

Graphics Device

• Integrated Graphics Supported: Yes (CPU dependant)

Sound

• Integrated Sound: Realtek

Warranty

• Warranty: 3 Years

Network

• Integrated Network: Realtek
• Network Speeds Supported: Up to 2.5 Gbps
• Wireless LAN: Yes (Wi-Fi 6E)
• Wireless Network Speed: Up to 2.4 Gbps
• Bluetooth: Yes
• Bluetooth Version: 5.2

System Requirements

• Operating Systems Supported: Microsoft Windows 11 64-bit

System

• BIOS: 1 x 256 Mbit flash
• Use of licensed AMI UEFI BIOS
• PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
• Jumpers: 1 x Clear CMOS
• Software Included: Yes
• Drivers: Yes

Physical

• Form Factor: MicroATX Motherboard
• Width: 244 mm
• Length: 244 mm

Identifiers

• Stock Code: MBD3451XC2
• Mfg Code: B760M AORUS ELITE AX
