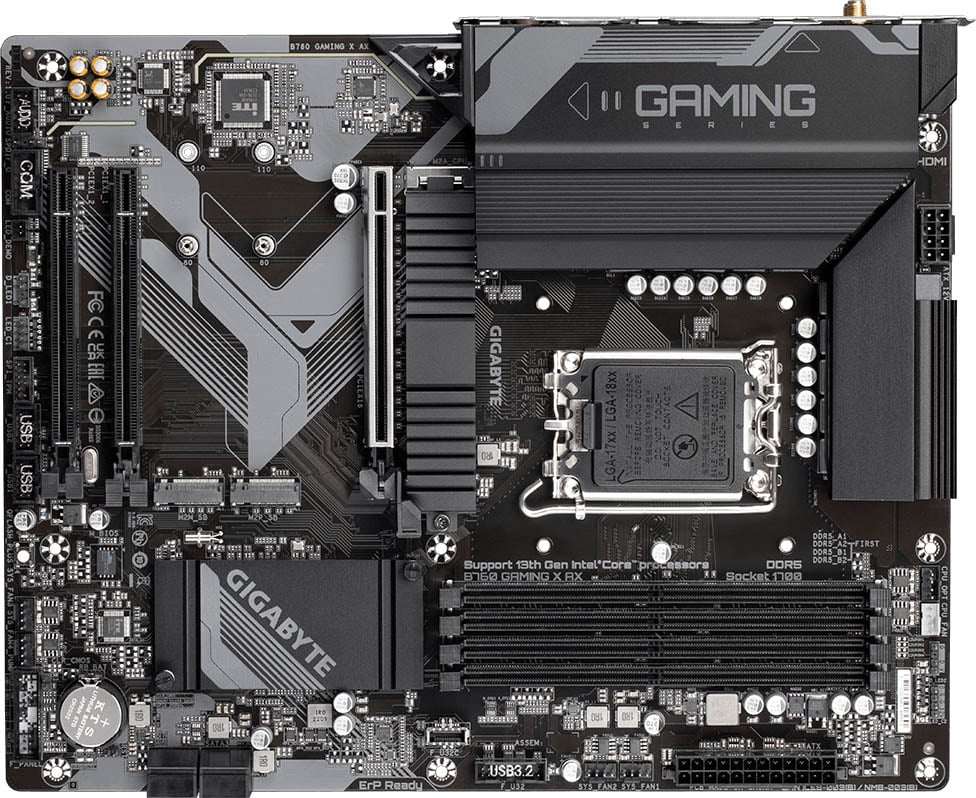

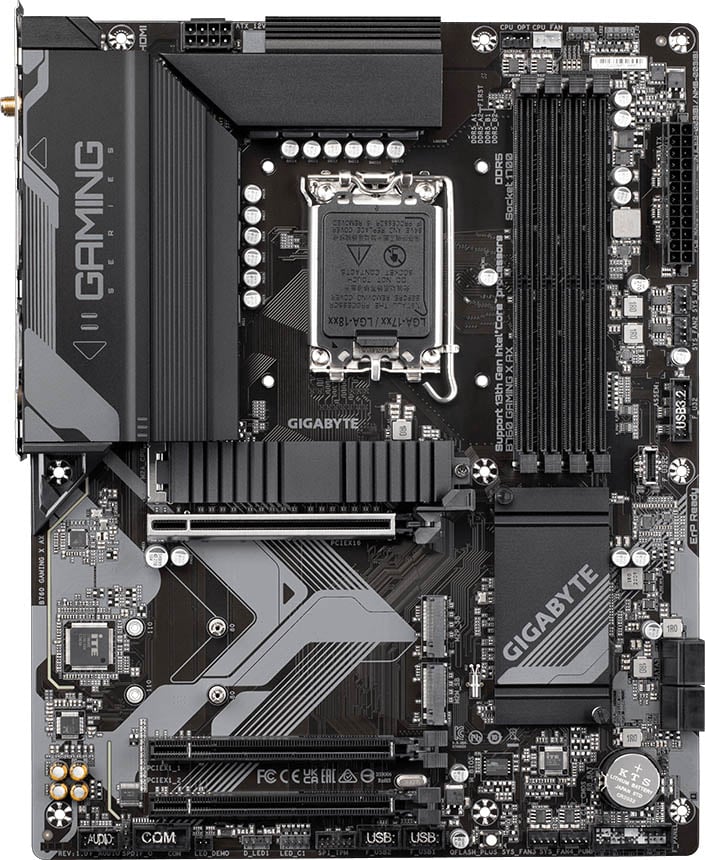

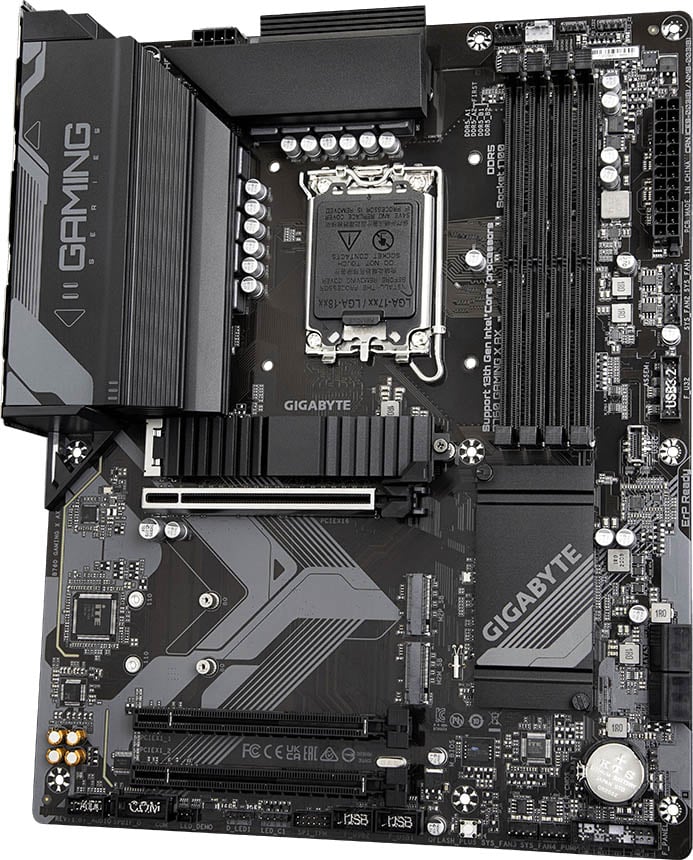

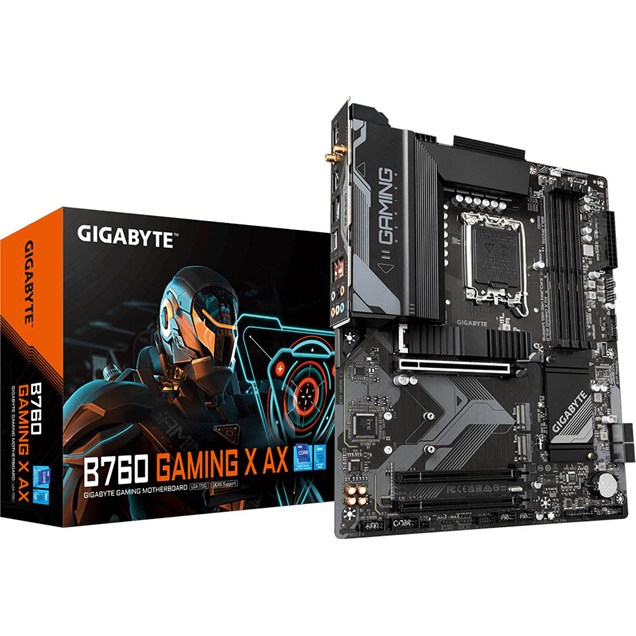

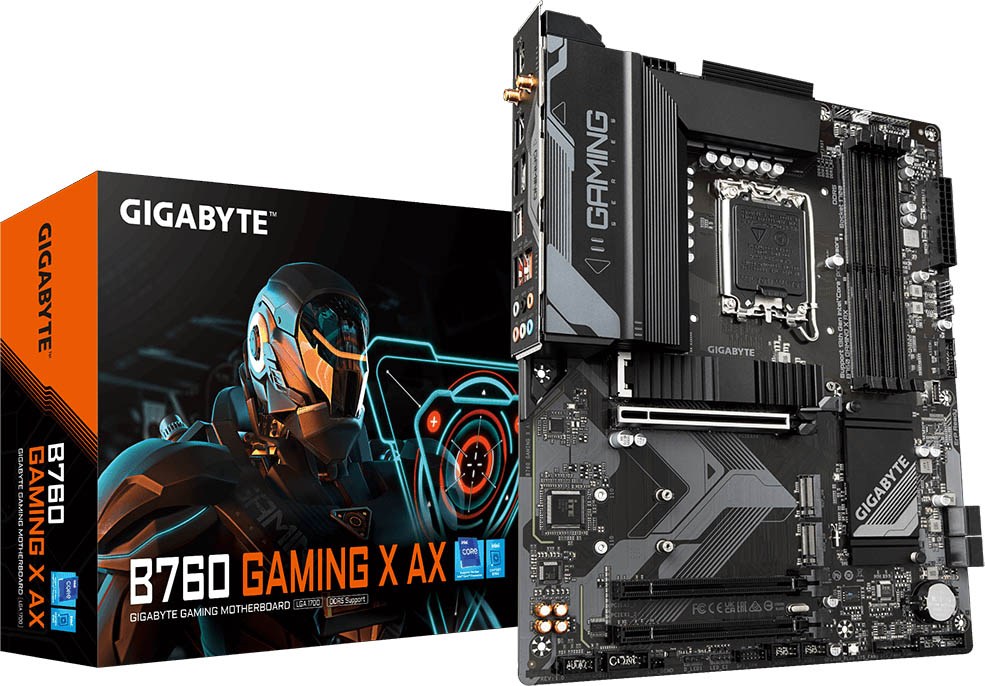

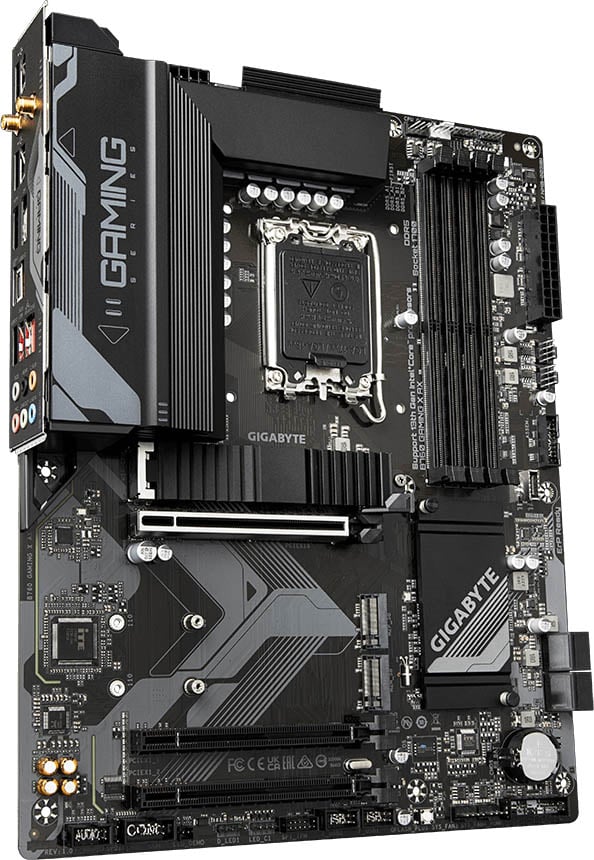

Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs

Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3445

£179.99 inc VAT

  • Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs
  • Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs

Get 5% off when you buy 3 or more different components*

Gigabyte B760 GAMING X AX ATX Motherboard for Intel LGA1700 CPUs

B760 GAMING X AX

£179.99 inc VAT

Available for delivery from Friday 10th May

Buying in bulk? Contact our business team.

Key Features:

  • Socket 1700
  • Intel B760 Chipset
  • 4 x SATA & 8 x USB Ports
  • DDR5 (max 128GB, 4 slots)
  • HDMI and Display Port
  • ATX Form Factor
CCL Code: MBD3445
Overview

Gigabyte B760 GAMING X AX Motherboard

Promotions

Get 5% off components when you buy three or more*

For a limited time, buy at least three different components worth £30 or more from different qualifying categories and get 5% off those items. *Terms & Conditions apply.

Qualifying categories are Processors, Motherboards, Desktop Memory, Solid State Drives, Hard Disk Drives, Power SuppliesCPU Coolers, and Cases.


Promotional Period: From 3rd May 2024 till 7th May 2024.

Terms and Conditions

Cannot be combined with any other offer. UK residents only. Offer available on products in qualifying categories. Some items may not be included, such as new product launches - please check the item to ensure the promotion applies. Minimum value of each item must £30 or greater. Discount will apply to three or more items bought from separate categories (e.g. one CPU, one motherboard) in one basket. It will not apply to multiples from categories (e.g. two CPUs). Discount will be applied to the three or more items in your basket - please double-check your basket to ensure the offer applies correctly. Offer does NOT apply to systems that have such components. CCL reserve the right to end this offer at any time. Offer may not be substituted, exchanged, sold, or redeemed for cash or other goods or services. Offer only available on orders placed on CCLonline.com - offer is not available via telephone or our eBay or Amazon stores.

Promotional Period:From 8PM April 27th, 2023 till 2AM April 28th 2023.

Specifications

CPU

CPU Socket Socket 1700
CPU Brand Intel
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer Intel
Supported Processors 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors
64-bit Support Yes
Socket LGA1700

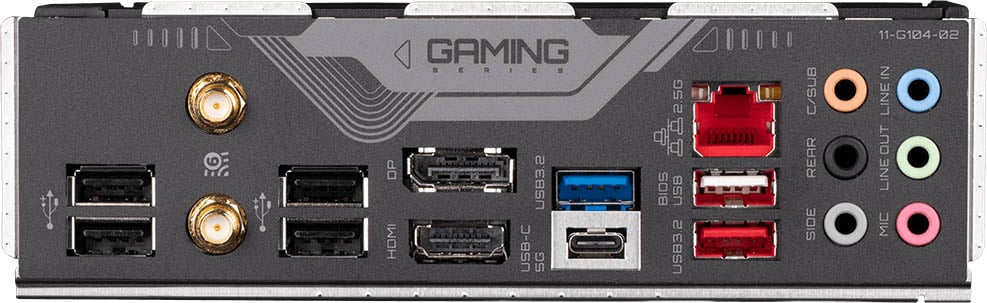

Rear Panel I/O Ports

USB Ports 1x USB-C 3.2 Gen1
1x USB 3.2 Gen2
1x USB 3.2 Gen1
5x USB 2.0
DisplayPorts 1 x DisplayPort 1.2
1 x HDMI 2.0
HDMI Port 1 x HDMI 2.0
RJ-45 Ports 1x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 4 x 3.5mm Jacks
Microphone In Port 1 x 3.5mm Jack
Antenna Connector(s) 2 x SMA Antenna

Internal I/O Connectors

SATA Connectors SATA 6GBs
USB Connectors 1x USB-C 3.2 Gen2
1x USB 3.2 Gen1
2x USB 2.0
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU fan/Water Cooling pump header
3 x System fan headers
1 x System fan/Water Cooling pump header
S/PDIF Connectors 1 x S/PDIF Out header
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 3 x M.2 slots, Socket 3, M Key, Type 2280/22110 (PCIe Gen4)
2 x 3-pin ARGB LED headers
2 x 4-pin RGB LED headers

Memory

Memory Bus Speed Up to 7600+ MHz
Memory Type DDR5
Maximum RAM 128 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge Intel LGA 1700
RAID Supported Yes
RAID Format RAID 0, 1, 5, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
2 x PCI Express 3.0 x16 slots (@ x1/x1)

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Yes (Wi-Fi 6)
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.2

System Requirements

Operating Systems Supported Microsoft Windows 11 64-bit

System

BIOS 1 x 256 Mbit flash
Use of licensed AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor ATX Motherboard
Width 244 mm
Length 305 mm

Key Features

Firewire
IDE/EIDE Supported
SCSI/SAS Supported
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
Chipset Manufacturer Intel
Number of PCI Slots slot(s)
Number of PCI-X Slots slot(s)
Main Colour
Socket(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 8 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Wake on LAN
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model Gigabyte B760 GAMING X AX
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
Cooler Height mm
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
Memory Speed 7600 MHz
Skip Audio Test
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Radiator Size mm
Microsoft Processor List
Power Requirement (auto) 70 W
Cooler count
Max Memory Speed Supported (Non-overclocked) 4800 MHz
Max Memory Speed Supported (overclocked) 7600 MHz
CPU Power Pins (female) 8
PCI Express Power Pins (female)
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
PCI-e slots 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Graphics

Graphics Chipset

Item Details

Manufacturer Gigabyte
Manufacturer Code B760 GAMING X AX
EAN 4719331851774
UPC 889523035849
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B760 GAMING X AX
Reviews
5.0 / 5 1 review

Peter

March 2023

Great quality and instructions out the box. Can't really fault the product. Recommended if it's what you need!
