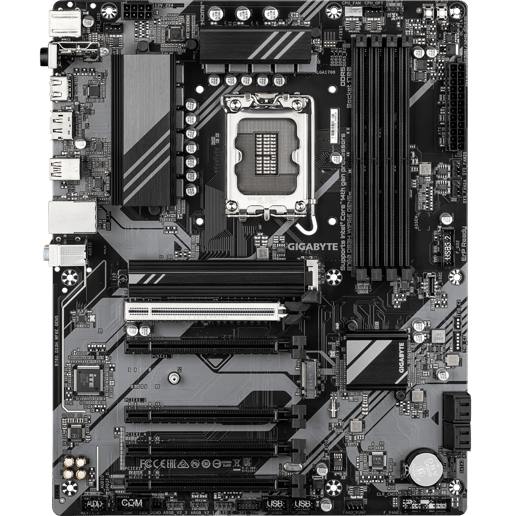

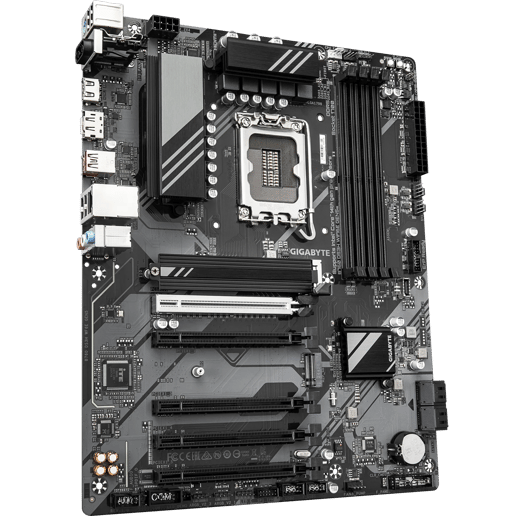

Gigabyte B760 DS3H WIFI6E GEN5 ATX Motherboard for Intel Socket 1700 CPUs
Available for delivery from Tomorrow
Click & Collect from Today
Hurry, only 1 left!
Order within
You have 0 of these in your basket
Please note that this is a C Grade clearance item. C Grade items may have missing accessories or show signs of cosmetic wear. See below for details of this specific item. The price has been reduced to reflect this.
All C Grade items are working and have been fully tested.
This item is supplied with a Warranty: Standard Gigabyte warranty (varies by region, typically 3 years) warranty.
The Gigabyte B760 DS3H WIFI6E GEN5 is a modern motherboard built for Intel’s latest 12th, 13th, and 14th generation processors. This board gives you everything you need to build a fast and reliable computer for gaming, schoolwork, or everyday use. It supports DDR5 memory, which is the newest type of RAM that makes your system run smoother and faster. With a strong design and built-in cooling features, it helps your computer stay stable even when you’re working or playing for long hours.
One of the biggest highlights is its Wi-Fi 6E support, which means you can connect to the newest wireless networks with faster speeds and less lag. It also comes with PCIe 5.0 support for your graphics card, making sure you’re ready for powerful GPUs now and in the future. The board includes two M.2 slots for super-fast SSD storage and multiple USB ports, including a high-speed USB-C, so you can easily plug in all your devices. Whether you’re building your first PC or upgrading to something newer, the B760 DS3H WIFI6E GEN5 gives you the right mix of speed, stability, and modern features at a great value.
CPU
- Installed Processors (Max): Intel 14th/13th/12th Gen Core, Pentium Gold, Celeron (LGA1700)
- CPU Family: Intel 14th Gen, 13th Gen, 12th Gen Core, Pentium Gold, Celeron
Rear Panel I/O Ports
- Audio Line Out Ports: 3 x audio jacks (Line out configurable for 2/4/5.1/7.1-channel)
CPU
- Processor Number: Depends on installed CPU (see Intel CPU support list)
Rear Panel I/O Ports
- Microphone In Port: Shared 3.5mm audio jack (rear panel, reconfigurable)
CPU
- CPU Speed: Based on installed CPU (supports Intel CPUs up to their rated speed)
- L1 Cache: Depends on installed CPU
- L2 Cache: Depends on installed CPU
- L3 Cache: Depends on installed CPU
- Supported Processor Manufacturer: Intel
- Supported Processors: Intel 14th / 13th / 12th Gen Core, Pentium Gold, Celeron
- Socket: LGA1700
- Hyperthreading Architecture: Supported (depends on CPU)
Physical
- Form Factor: ATX
CPU
- 64-bit Support: Yes
- Socket: Yes
- Maximum CPU Speed: CPU dependent (motherboard supports full speeds of 14th/13th/12th Gen Intel CPUs)
- Maximum Bus Speed: DDR5 up to 7600 MT/s (OC)
- Front Side Bus: N/A (modern Intel CPUs use DMI and memory controller on CPU)

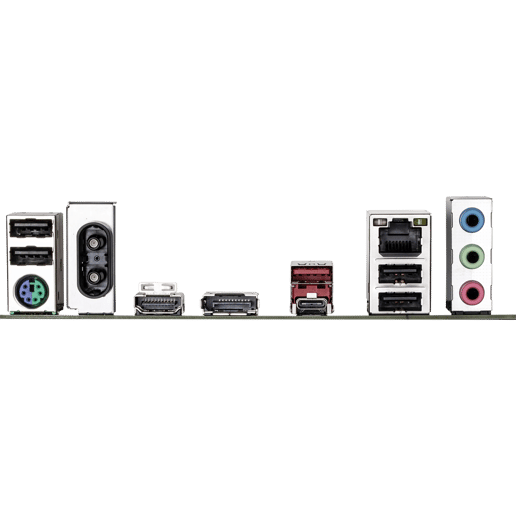

Rear Panel I/O Ports
- USB Ports: 1 x USB-C (USB 3.2 Gen 2x2), 1 x USB-A (USB 3.2 Gen 2), 4 x USB 2.0
- Infrared Port: None
- DisplayPorts: 1 x DisplayPort 1.2 (4096x2304 @ 60Hz)
- HDMI Port: 1 x HDMI 2.1 (4096x2160 @ 60Hz)
- VGA Port: None
- eSATA Ports: None
- Antenna Connectors: 2 x antenna connectors (rear, Wi-Fi 6E AX210 module)
Internal I/O Connectors
- SATA Connectors: 4 x SATA 6Gb/s (RAID 0/1/5/10 support)
- USB Connectors: 1 x USB-C (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
- Speaker: Supported via audio header
Memory
- Memory Bus Speed: Up to DDR5-7600 (OC)
- Memory Type: DDR5, Dual Channel, up to 256GB
Compliance
- Certifications: CE, FCC, RCM, BSMI, KC, VCCI (standard Gigabyte compliance)
Electrical
- Power Requirements: ATX power supply required
- Power Connector: 1 x 24-pin ATX main, 1 x 8-pin ATX 12V
Physical
- Colour: Black PCB with silver/grey accents
Motherboard
- Chipset Manufacturer: Intel
- Northbridge: Intel B760 Express Chipset
- Southbridge: Intel B760 Express Chipset
- Input/Output Controller: iTE I/O Controller Chip
- RAID Supported: Yes - RAID 0, 1, 5, 10 (SATA devices)
- RAID Format: RAID 0, RAID 1, RAID 5, RAID 10
- RAID Controllers: Integrated Intel B760 chipset RAID controller
- IDE/EIDE Supported: None
- IDE Controllers: None
- EIDE Controllers: None
- SCSI/SAS Supported: None
- SCSI Channels: None
- SCSI Controllers: None
- SATA Supported: Yes - 4 x SATA 6Gb/s
- SATA Controllers: Intel B760 chipset
- Firewire Supported: None
- Firewire Controller: None
Rear Panel I/O Ports
- Parallel Ports: None
- Keyboard/Mouse Combo Port: 1 x PS/2 combo port
- Serial Ports: 1 x Serial port header (internal)
- USB Port(s): Rear: 1 x USB-C (Gen 2x2), 1 x USB-A (Gen 2), 4 x USB 2.0; Internal: 1 x USB-C (Gen 1), 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports)
- Keyboard Port: Integrated in PS/2 combo port
- Mouse Port: Integrated in PS/2 combo port
- Infrared Port(s): None
- RJ-45 Ports: 1 x RJ-45 (Realtek GbE LAN, 1Gbps)
- RJ-11 Ports: None
- DisplayPort(s): 1 x DisplayPort 1.2 (4096x2304 @ 60Hz)
- HDMI Port(s): 1 x HDMI 2.1 (4096x2160 @ 60Hz)
- VGA Port(s): None
- Digital Port: HDMI, DisplayPort
- eSATA Port(s): None
- Serial ATA Ports: 4 x SATA 6Gb/s (RAID 0/1/5/10)
- Audio Line In Ports: Shared 3.5mm audio jacks (rear, reconfigurable)
- Audio Line Out Ports: 3 x audio jacks (configurable for 2/4/5.1/7.1-channel audio)
- Microphone In Port: Shared 3.5mm audio jack (rear, reconfigurable)
- S/PDIF Port: 1 x S/PDIF Out header (internal)
- TV Out: None
- Firewire Ports: None
- MIDI/Joystick Port (Rear): None
- Graphics Card Port: 1 x PCIe 5.0 x16 slot (reinforced, EZ-Latch)
- Antenna Connector(s): 2 x antenna connectors (rear, for Wi-Fi 6E)
Internal I/O Connectors
- Floppy Channels: None
- Front Panel Connectors: 1 x front panel header
- Cooling Fan Support: 1 x CPU fan, 1 x CPU fan/water pump, 3 x system fans, 1 x system fan/water pump
- Auxiliary Audio Support: Supported via Realtek Audio CODEC
- MIDI/Joystick Connector: None
- IDE Connectors: None
- SATA Connector(s): 4 x SATA 6Gb/s
- S/PDIF Connectors: 1 x S/PDIF Out header
- USB Connector(s): 1 x USB-C (Gen 1), 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers
- Thunderbolt Port(s): None
- Firewire Connectors: None
- RJ-45 Connectors: 1 x RJ-45 LAN port (rear)
- Parallel Connectors: None
- Serial Connectors: 1 x serial port header (internal)
- Infrared Connectors: None
- SCSI Connectors: None
- EIDE Connectors: None
- Chassis Intrusion Connector: 1 x chassis intrusion connector
- Wireless Connector: 2 x antenna connectors (rear panel, for Wi-Fi 6E)
- Speaker(s): Supported via audio header
- TPM Header: 1 x TPM header (for GC-TPM2.0 SPI module)
- Power Connector Port: 1 x 24-pin ATX main, 1 x 8-pin ATX 12V
- Other Connectors: Front panel, front audio, RGB/ARGB headers, reset jumper, clear CMOS jumper, Q-Flash Plus button
Expansion
- ISA: None
- Number of AGP Slots: None
- AGP Slot Type: None
- Number of PCI Slots: 0 (no legacy PCI slots)
- PCI Slot Type: None (no legacy PCI slots)
- Number of PCI-X Slots: None
- PCI-X Slot Type: None
- Number of PCI Express Slots: 5 total (1 x16, 4 x1)
- PCI Express 4.0 Slot Type: 2 x PCIe 4.0 x4/x2 M.2 slots (storage only, not GPU)
- PCI Express 3.0 Slot Type: 4 x PCIe 3.0 x1 slots
- PCI Express 2.0 Slot Type: None
- PCI Express X16 Slots: 1 x PCIe 5.0 x16 (reinforced, GPU slot)
- PCI Express Slot Type: PCIe 5.0 x16, PCIe 3.0 x1
- Other Expansion Slots: None
Memory
- Maximum RAM: 256 GB
- Memory Type(s): DDR5 (non-ECC unbuffered, ECC supported in non-ECC mode)
- Memory Bus Speed Range: 4000 MT/s - 7600 MT/s (OC)
- Memory Bus Speed Minimum: 4000 MT/s
- Memory Bus Speed Maximum: 7600 MT/s (OC)
- Memory Bus Speeds Supported: DDR5 4000 / 4800 / 5200 / 5400 / 5600 / 5800 / 6000 / 6200 / 6400 / 6600 / 6800 / 7000 / 7200 / 7400 / 7600 (OC)
- Memory Expansion Options: 4 x DIMM sockets, up to 256 GB
- Memory Slot: 4 x DDR5 DIMM slots
Storage
- Embedded Storage Capacity: None
Graphics Device
- Integrated Graphics Supported: Yes (depends on installed Intel CPU with integrated GPU)
Sound
- Integrated Sound: Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1 channel, S/PDIF Out
Graphics Device
- Graphics Chipset Manufacturer: Intel (integrated in CPU)
- Graphics Chipset Model Name: Intel UHD Graphics (depends on CPU)
- Graphics Chipset Model Number: CPU dependent (e.g. Intel UHD 770 / UHD 730 etc.)
- Graphics Memory: Shared system memory
- Graphics Memory Type: DDR5 (shared from system memory)
Sound
- Integrated Sound: Realtek Audio CODEC, HD Audio, 2/4/5.1/7.1 channel, S/PDIF Out
Warranty
- Warranty: Standard Gigabyte warranty (varies by region, typically 3 years)
Network
- Integrated Network: Realtek GbE LAN (1 Gbps)
- Network Speeds Supported: 10/100/1000 Mbps (wired), Wi-Fi 6E AX210 up to 2400 Mbps (160 MHz)
- Wireless LAN: Intel Wi-Fi 6E AX210 (2.4 / 5 / 6 GHz)
- Wireless Network Speed: Up to 2400 Mbps (160 MHz channel, Wi-Fi 6E)
- Bluetooth: Yes
- Bluetooth Version: Bluetooth 5.3
- Bluetooth Range (Max): Up to 10 meters (Bluetooth 5.3, environment dependent)
Modem
- Modem: None
System Requirements
- Operating Systems Supported: Windows 11 64-bit, Windows 10 64-bit
System
- BIOS: AMI UEFI BIOS, 128 Mbit flash, Q-Flash & Q-Flash Plus
- Special Features: Q-Flash Plus, Smart Fan 6, RGB Fusion, PCIe EZ-Latch, M.2 Thermal Guard
- Jumpers: Reset jumper, Clear CMOS jumper
- Software Included: Norton Internet Security (OEM), LAN Bandwidth Management Software
- Drivers: Included on support DVD/online from Gigabyte website
- Overclocking Features: Memory overclocking supported via XMP; CPU overclocking not supported (B760 chipset)
- SLi/Crossfire Features: Not supported
Compliance
- Certification(s): CE, FCC, RCM, BSMI, KC, VCCI
Electrical
- Power Requirement(s): Standard ATX power supply
- Power Connector(s): 1 x 24-pin ATX, 1 x 8-pin ATX 12V
- Power Management: ACPI 5.0, power-saving features integrated
Environmental
- Operating Temperature: 0øC - 80øC (typical motherboard operating range)
- Operating Humidity: 10% - 90% non-condensing
Physical
- Form Factor: ATX, 30.5 cm x 24.4 cm

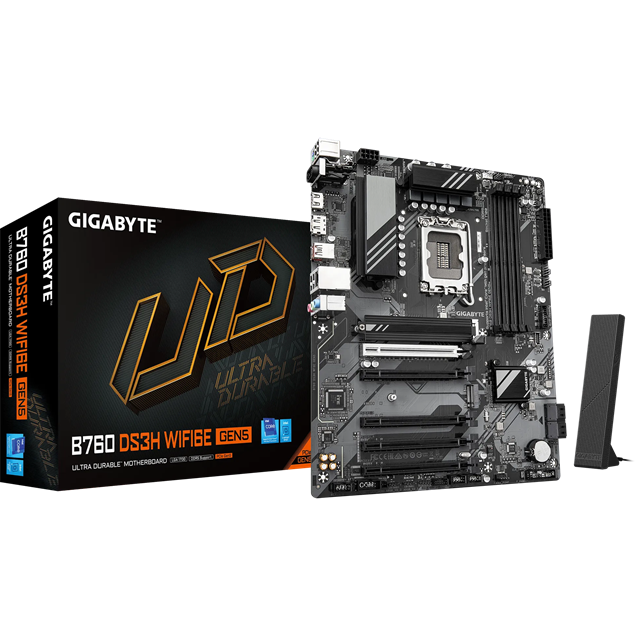

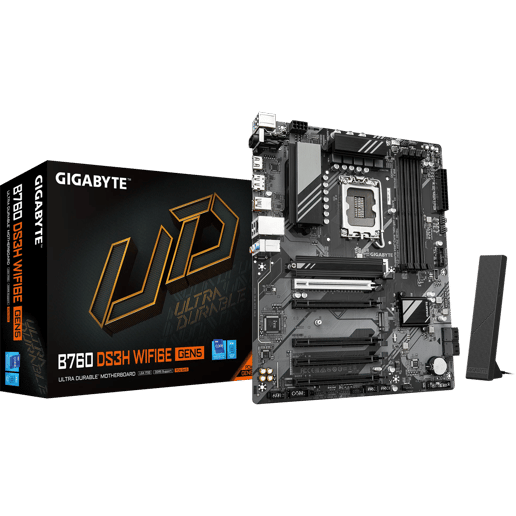

- In The Box: Motherboard, antennas, SATA cables, I/O shield, driver DVD, manual
- Width: 24.4 cm
- Length: 30.5 cm
- Weight: Approx. 1.0 kg (board only)
- Colour(s): Black PCB with silver/grey accents
Attributes
- PCMCIA Slots: None
Identifiers
- Stock Code: MBD3958XC3
- Mfg Code: B760 DS3H WIFI 6E GEN5
Warranty
- Warranty: Standard Gigabyte warranty (varies by region, typically 3 years)
