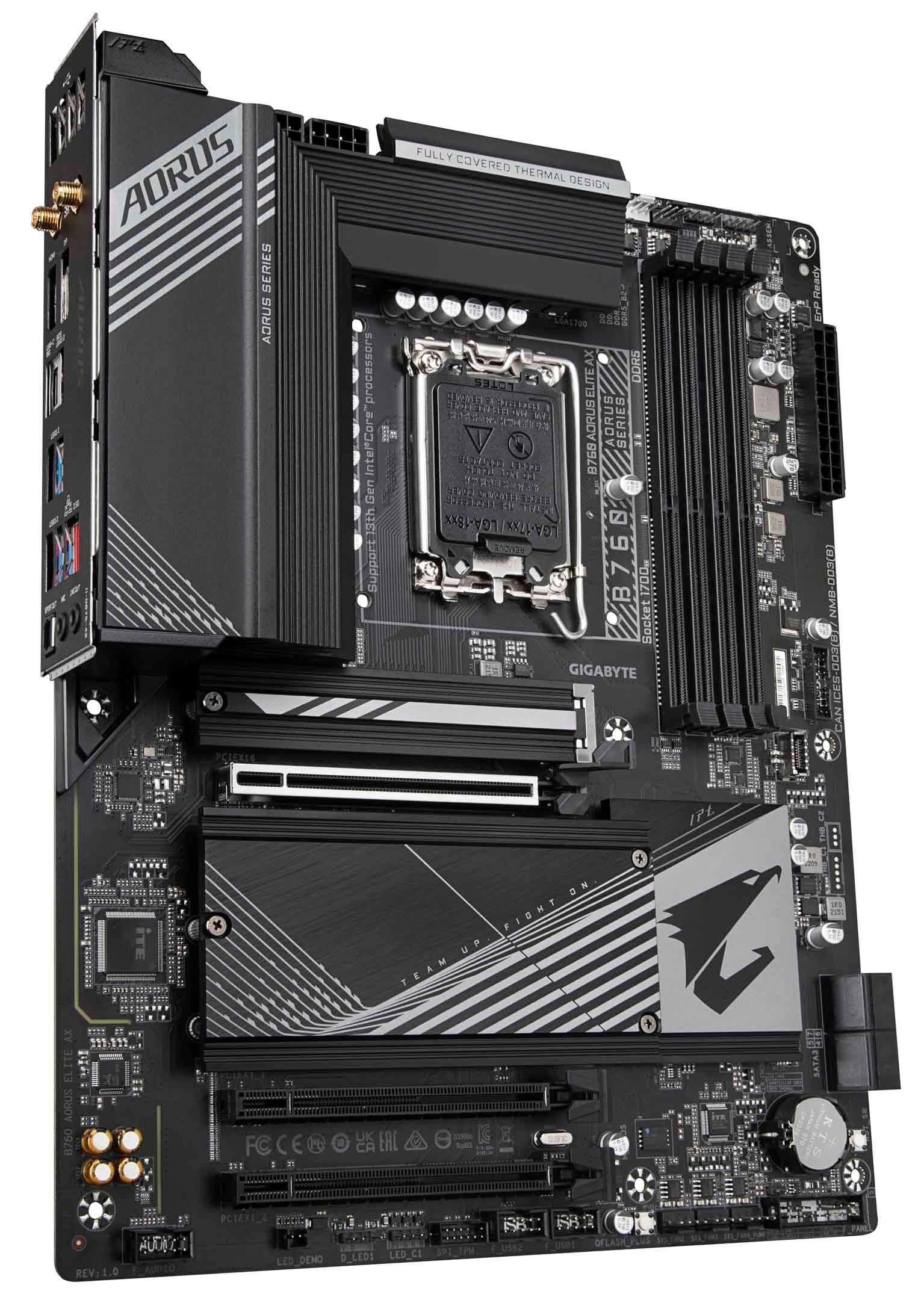

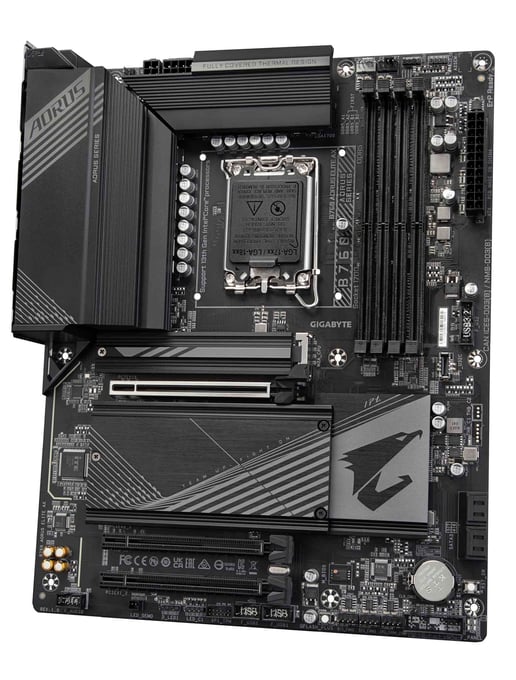

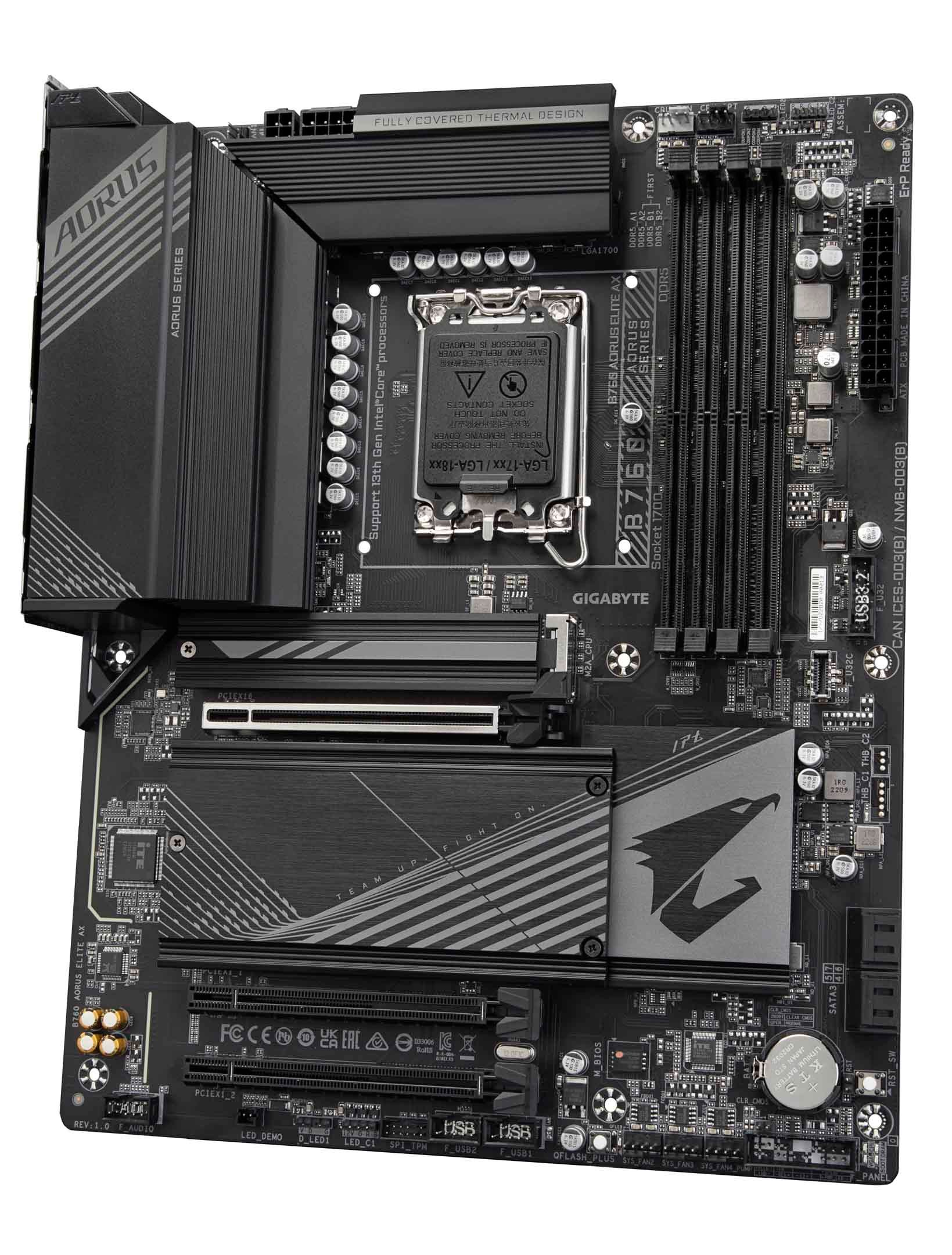

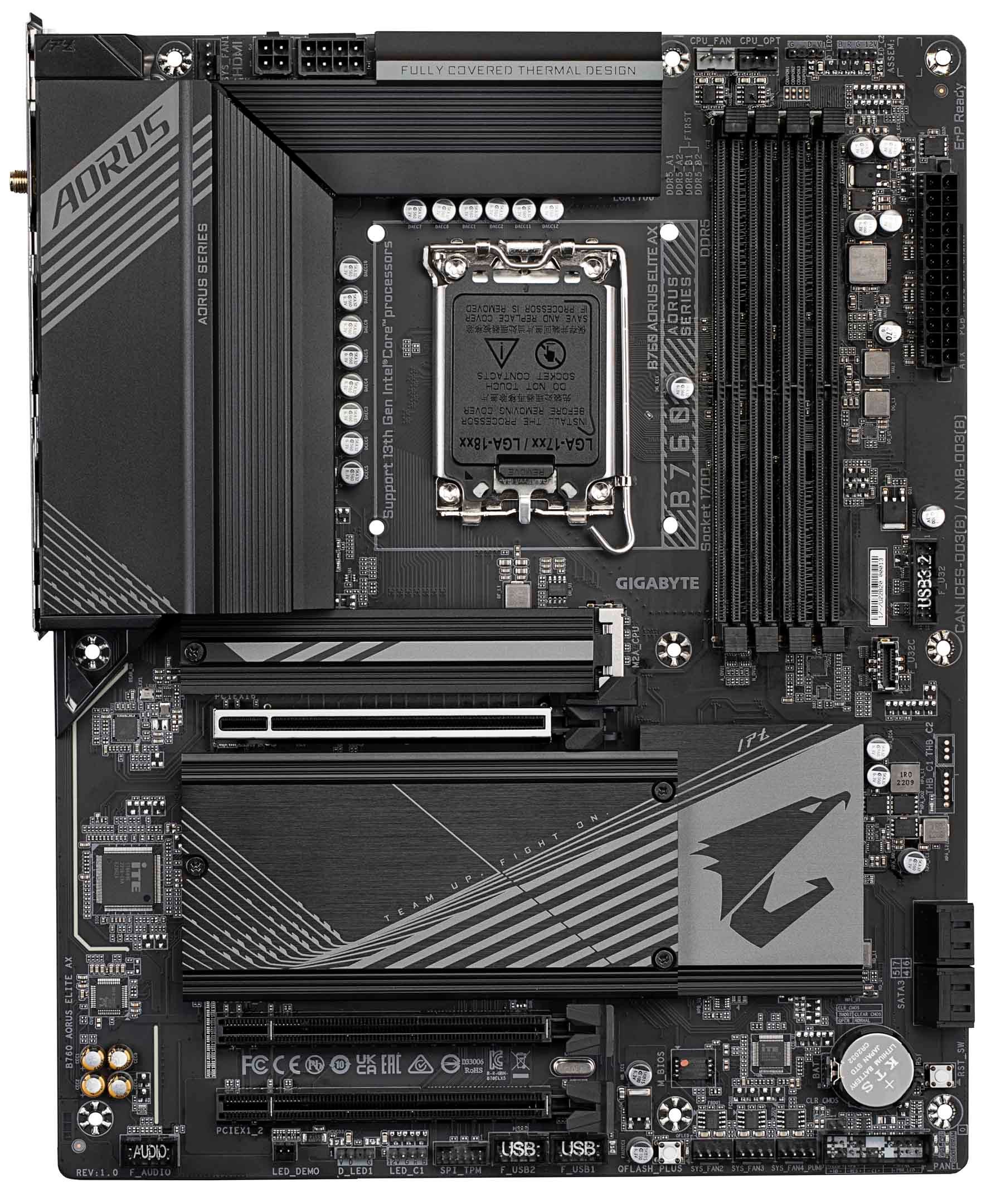

Gigabyte B760 AORUS ELITE AX ATX Motherboard for Intel LGA1700 CPUs

Gigabyte B760 AORUS ELITE AX ATX Motherboard for Intel LGA1700 CPUs

CCL Code: MBD3443

£222.99 inc VAT

Gigabyte B760 AORUS ELITE AX ATX Motherboard for Intel LGA1700 CPUs

B760 AORUS ELITE AX

£222.99 inc VAT

Available for delivery from Friday 3rd May

Buying in bulk? Contact our business team.

Key Features:

  • ATX Form Factor
  • Intel B760 Chipset
  • Socket 1700
  • DDR5 (Max: 128GB / 4 slots)
  • 3 x M.2 & 10 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3443
Overview

Gigabyte B760 AORUS ELITE AX Motherboard

Specifications

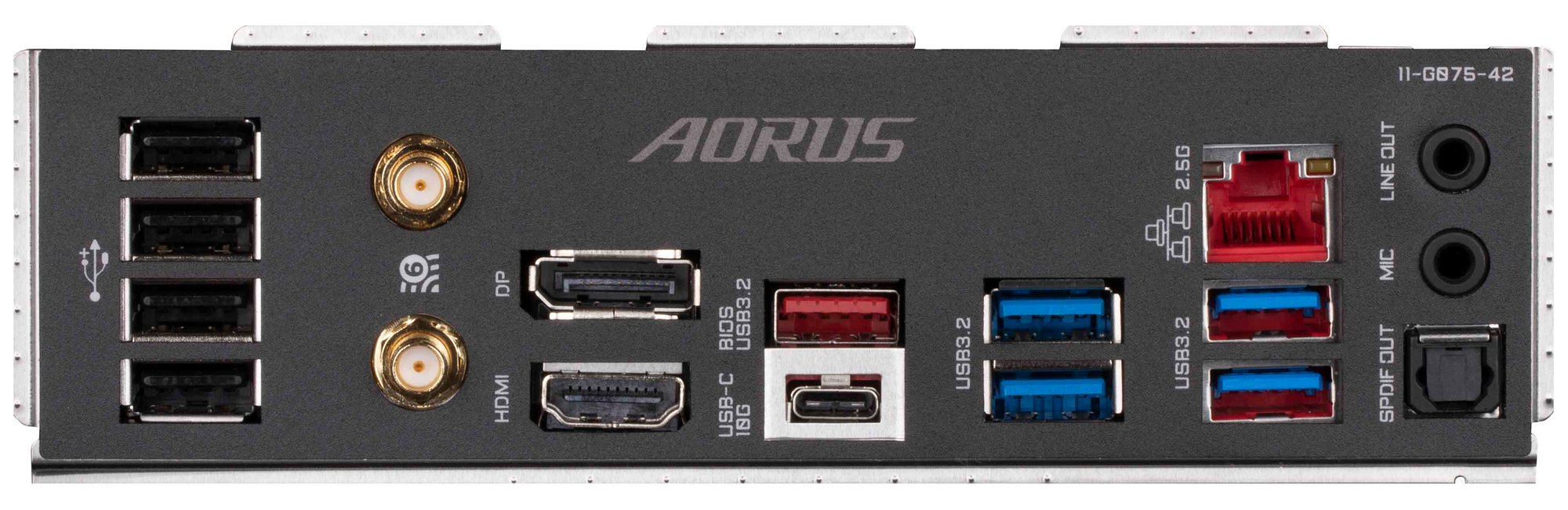

Rear Panel I/O Ports

USB Ports 1x USB-C 3.2 Gen2
1x USB 3.2 Gen2
1x USB 3.2 Gen1
1x USB 2.0
RJ-45 Ports 1x RJ-45
Audio Line Out Ports 1 x Optical S/PDIF Out Connector
2 x Audio Jacks

Internal I/O Connectors

SATA Connectors 4x SATA 6GBs
USB Connectors 1x USB-C 3.2 Gen2
1x USB 3.2 Gen1
1x USB 2.0

Memory

Memory Type DDR5

Motherboard

Northbridge Intel LGA 1700

Key Features

Form Factor ATX
Socket LGA1700
Installed Processors (Max) 0 (1)
Integrated Graphics Supported Yes
Maximum RAM 128 GB
RAID Supported Yes
SATA Supported Yes
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 305 mm
mSATA Supported No
U.2 Supported No
Chipset Manufacturer Intel
Supported Processor Manufacturer Intel
Number of PCI Express Slots 3 slot(s)
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 10 port(s)
SATA III Support Yes
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor ATX
Motherboard (EPS) Power Connectors 4-Pin + 8-Pin
Motherboard Chipset Intel B760
Thunderbolt No
Motherboard Model Gigabyte B760 AORUS ELITE AX
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
Memory Speed 7600 MHz
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 70 W
Max Memory Speed Supported (Non-overclocked) 4800 MHz
Max Memory Speed Supported (overclocked) 7600 MHz
CPU Power Pins (female) 12
Total M.2 Slots 3
Maximum NVMe M.2 ports 3
PCI-e slots 3
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1

Wireless Communications

Bluetooth Yes

CPU

CPU Socket Socket 1700
CPU Brand Intel

Warranty

Warranty 1 Year

Item Details

Manufacturer Gigabyte
Manufacturer Code B760 AORUS ELITE AX
EAN 4719331851750
UPC 889523035924
Condition New
Warranty

Warranty Information

Warranty 1 Year

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B760 AORUS ELITE AX
Reviews
No reviews have been received for this product yet
