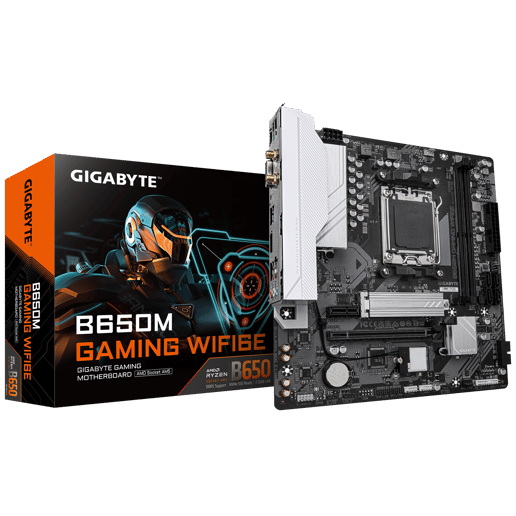

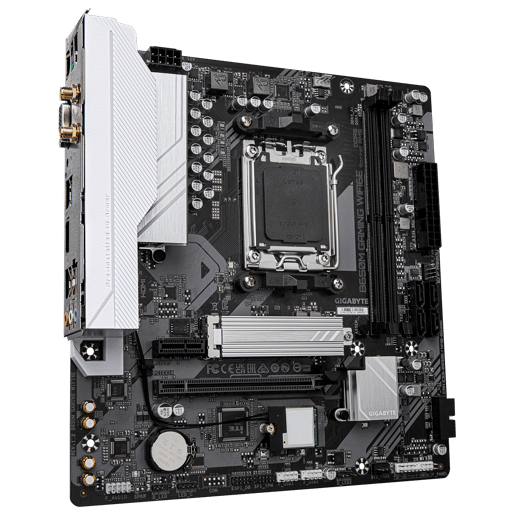

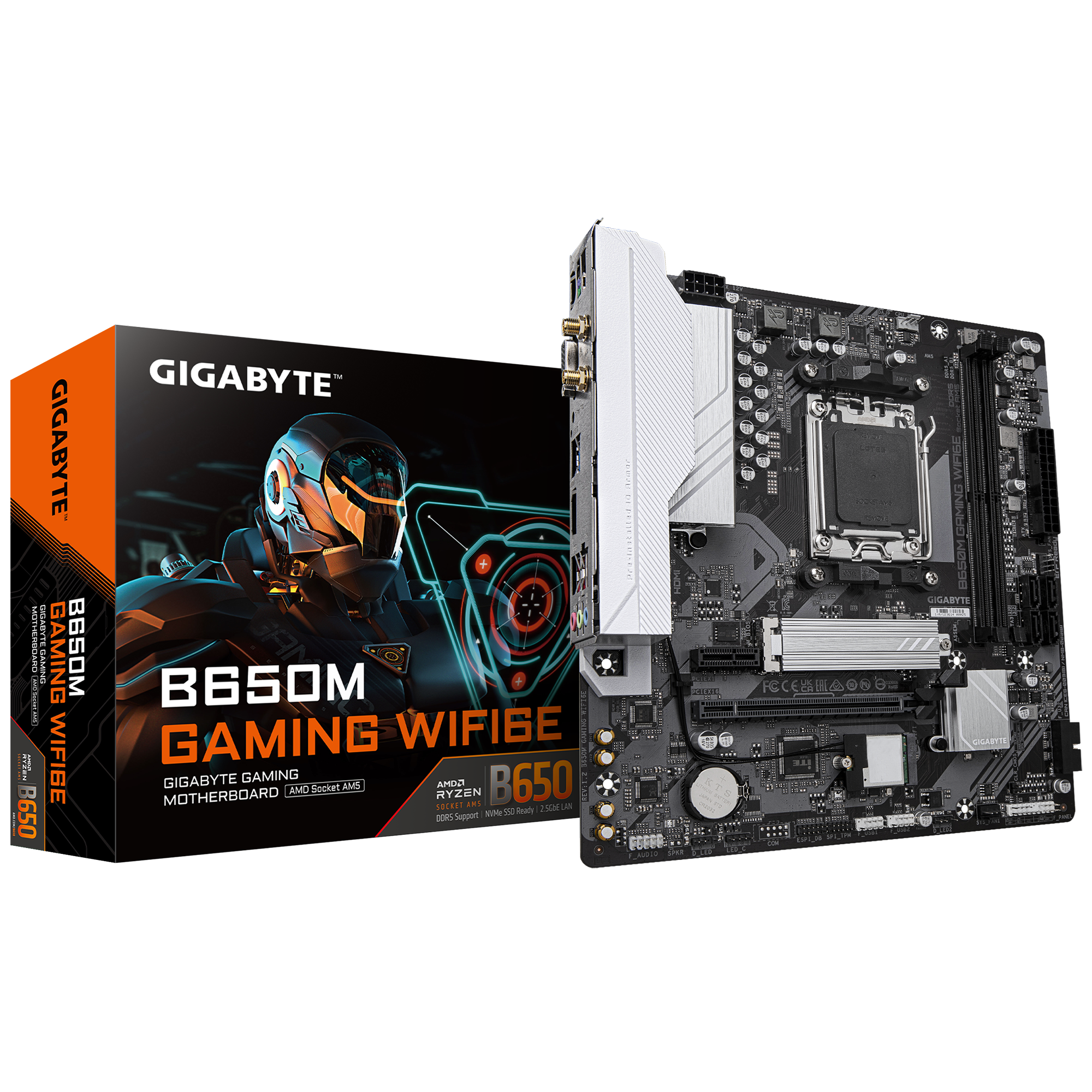

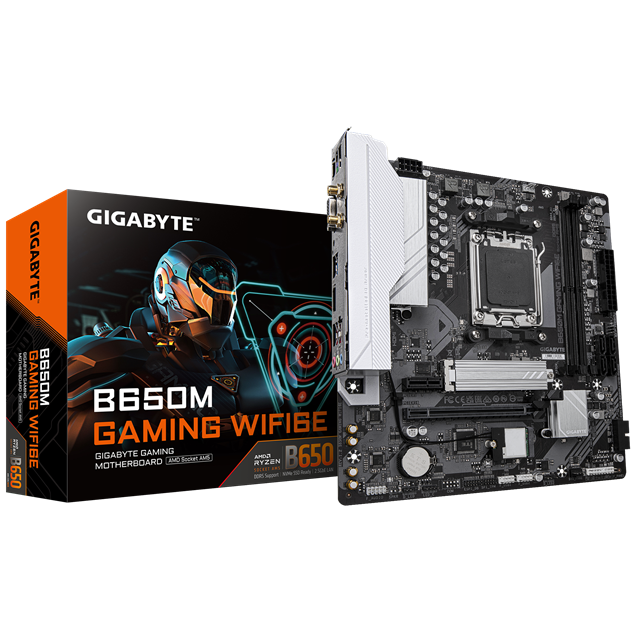

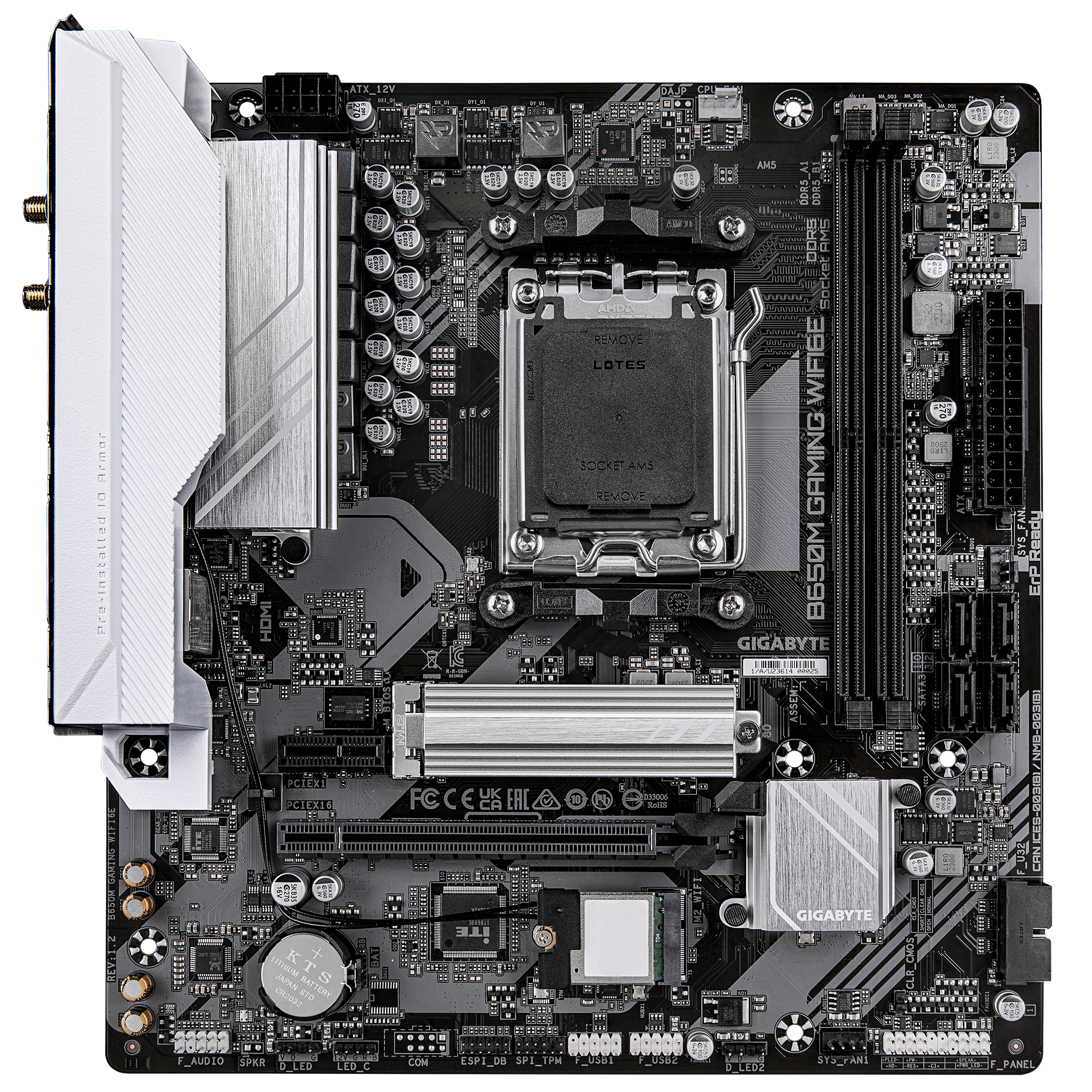

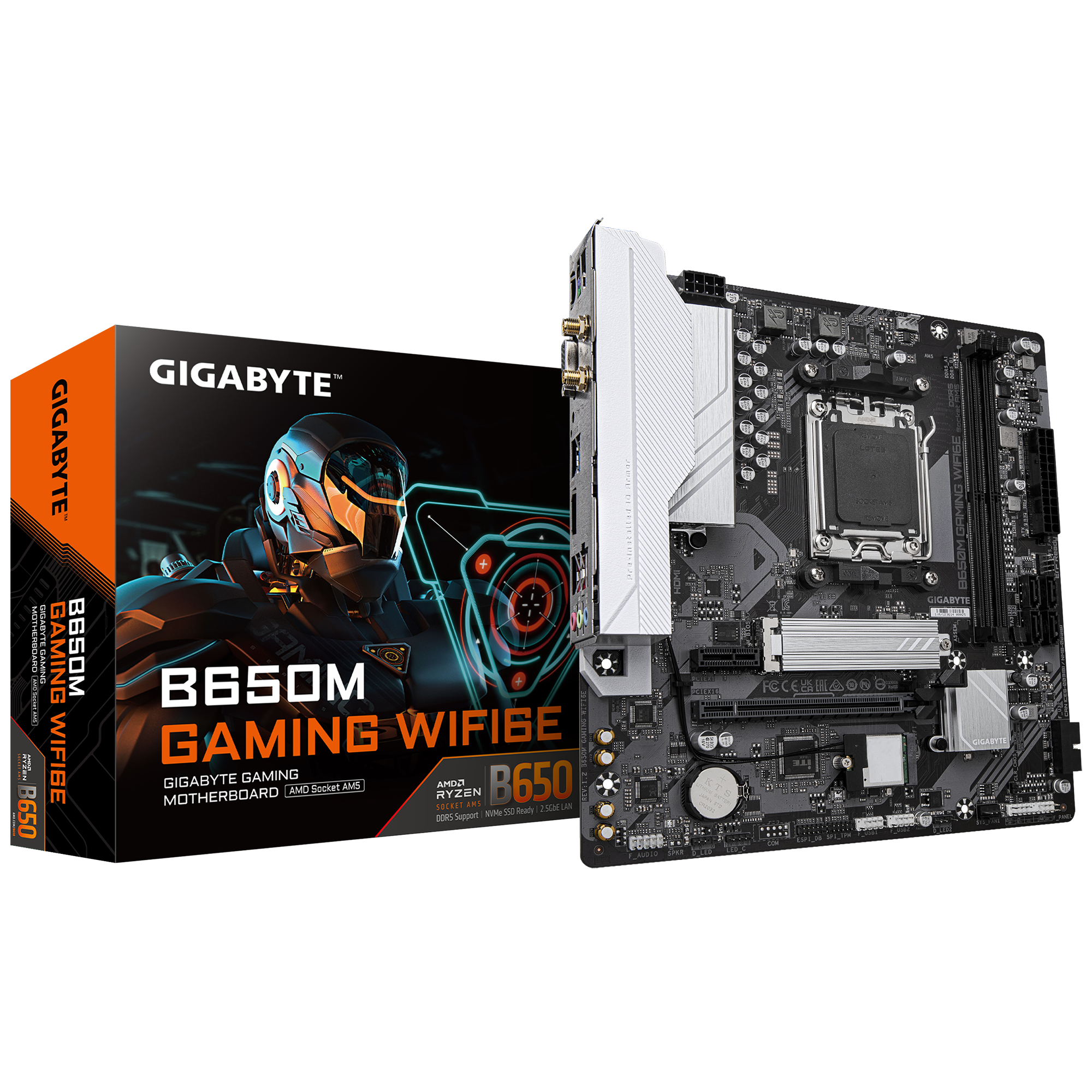

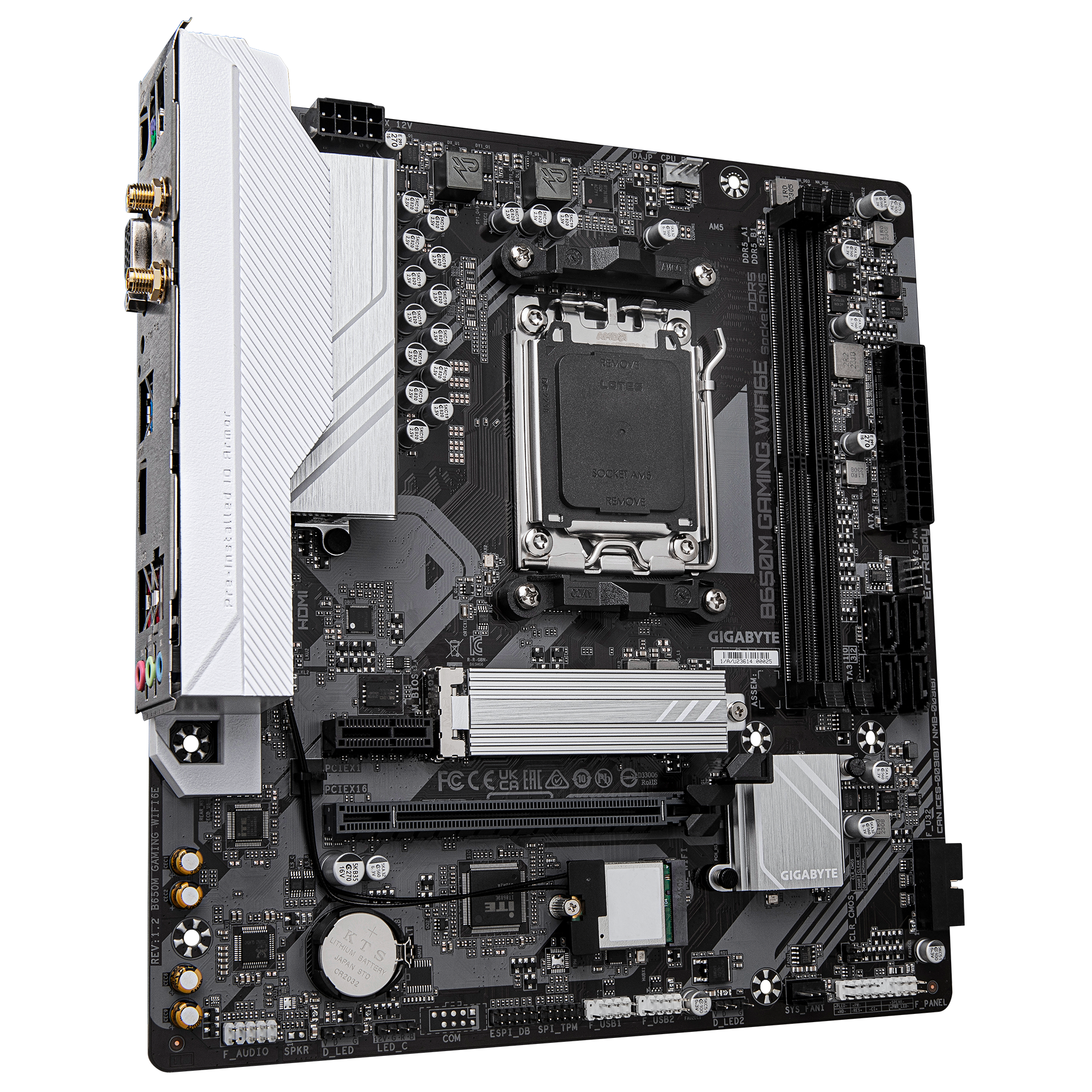

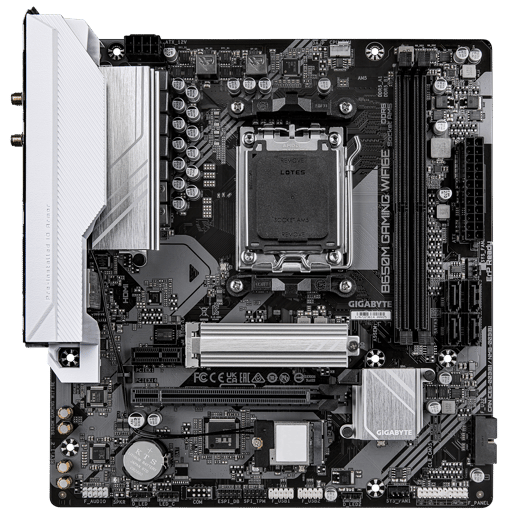

Gigabyte B650M GAMING WIFI6E
AM5 Platform with DDR5 Support for Next-Gen Performance
Built on the AMD B650 chipset, this motherboard supports Ryzen 7000, 8000, and 9000 series CPUs, alongside DDR5 memory up to 6400MHz (OC). With a 5+2+2 phase digital VRM, it delivers stable power for everyday gaming and multitasking workloads.
Fast Connectivity with WiFi 6E & 2.5Gb LAN
Equipped with WiFi 6E (6GHz band) and 2.5Gb Ethernet, it provides faster, lower-latency networking for gaming and streaming. Bluetooth 5.3 support and multiple USB ports add further flexibility for modern setups.
741be171-8403-41b6-994d-fb1fc28c3795.png)
PCIe 4.0 Storage & User-Friendly Features
Includes a PCIe 4.0 x4 M.2 slot for high-speed NVMe SSDs and a PCIe 4.0 x16 slot for GPUs. Features like EZ-Latch (quick-release GPU slot), Q-Flash Plus (BIOS update without CPU), and Smart Fan 6 make building and maintaining your system easier.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD RyzenT 7000 / RyzenT 8000 / RyzenT 9000 Series Processors
- Socket: AM5
- 64-bit Support: Yes
- Maximum Bus Speed: Up to 6400 MHz

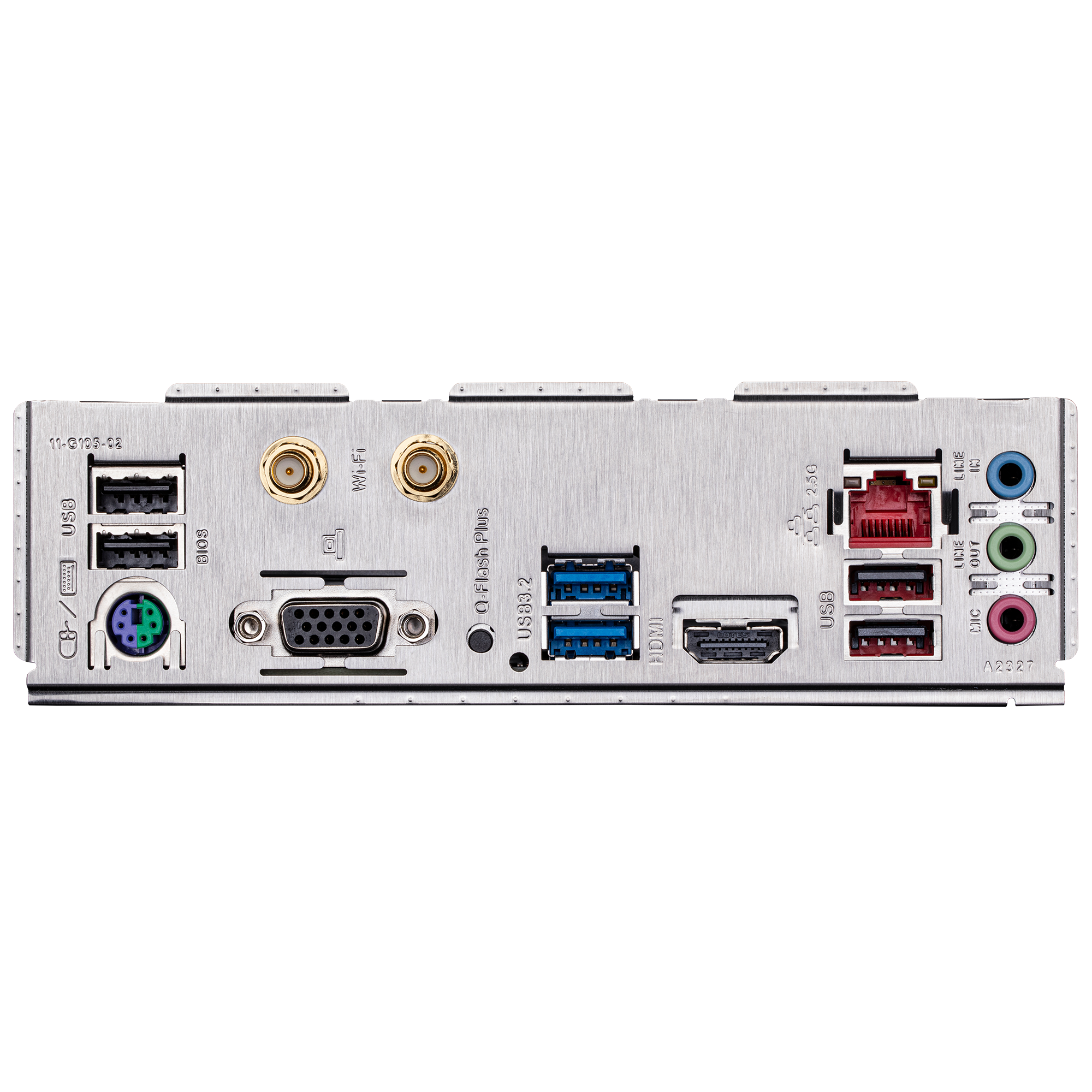

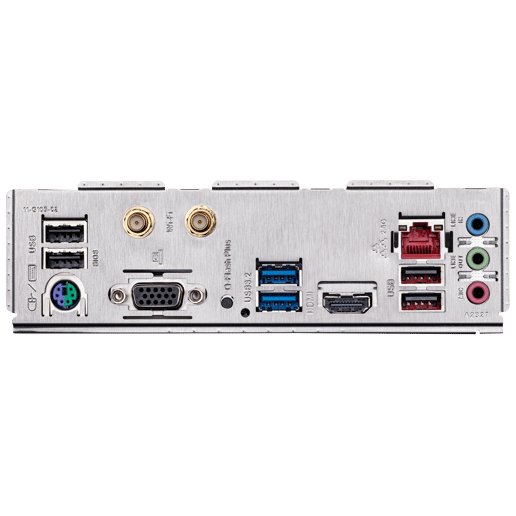

Rear Panel I/O Ports
- USB Ports: CPU: 2 x USB 3.2 Gen 1 ports on the back panel / 1 x USB 2.0/1.1 port on the back panel --- Chipset: 2 x USB 3.2 Gen 1 ports available through the internal USB header / 5 x USB 2.0/1.1 ports (3 ports on the back panel, 2 ports available through the internal USB header) --- Chipset+USB 2.0 Hub: 2 x USB 2.0/1.1 ports available through the internal USB header
- HDMI Port: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Internal I/O Connectors
- SATA Connectors: 4 x SATA 6Gb/s connectors
Memory
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B650
- RAID Supported: Yes
- RAID Format: 0 / 1 / 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2 keyboard/mouse port
- USB Port(s): 4 x USB 2.0/1.1 ports / 2 x USB 3.2 Gen 1 ports
- RJ-45 Ports: 1x
- Audio Line In Ports: 3 x audio jacks
Internal I/O Connectors
- Cooling Fan Support: 1x CPU fan header / 2 x system fan headers
- SATA Connector(s): 4 x SATA 6Gb/s connectors
- Wireless Connector: Realtek© Wi-Fi 6E RTL8852CE
- Power Connector Port: 1 x 24-pin ATX main power connector / 1 x 8-pin ATX 12V power connector
- Other Connectors: 1 x CPU fan header / 2 x system fan headers / 2 x addressable LED strip headers / 1 x RGB LED strip header / 1 x M.2 Socket 3 connector / 4 x SATA 6Gb/s connectors / 1 x front panel header / 1 x front panel audio header / 1 x USB 3.2 Gen 1 header / 2 x USB 2.0/1.1 headers / 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) / 1 x Clear CMOS jumper
Expansion
- PCI Express 4.0 Slot Type: x16
- PCI Express 3.0 Slot Type: x1
- PCI Express Slot Type: PCIe 4.0 x16 / 3.0 x1
Memory
- Maximum RAM: Supporting up to 128 GB (64 GB single DIMM capacity) of system memory
- Memory Type(s): DDR5 DIMM
- Memory Slot: 2 x DDR5 DIMM sockets
Graphics Device
- Integrated Graphics Supported: Integrated Graphics Processor with AMD RadeonT Graphics support
Network
- Wireless Network Speed: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
- Bluetooth Version: BLUETOOTH 5.3
System Requirements
- Operating Systems Supported: Windows 11 64-bit / Windows 10 64-bit
System
- BIOS: 1 x 256 Mbit flash / Use of licensed AMI UEFI BIOS / PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
- Jumpers: 1 x Clear CMOS jumper
- Overclocking Features: Yes
Physical
- Form Factor: Micro ATX Form Factor
- Width: 240 mm
- Length: 22.5 mm
- Colour(s): Black
Identifiers
- Stock Code: MBD3976
- Mfg Code: B650M GAMING WIFI6E
