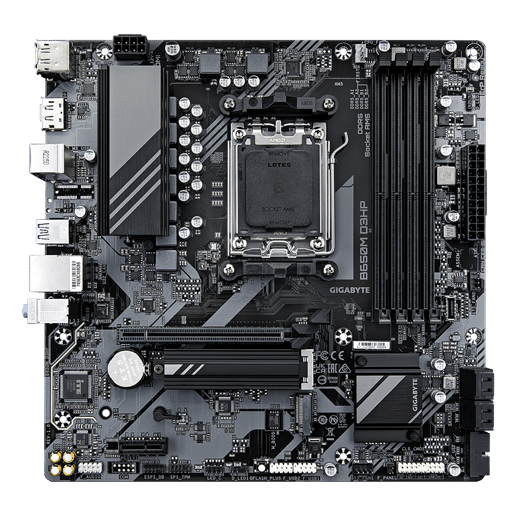

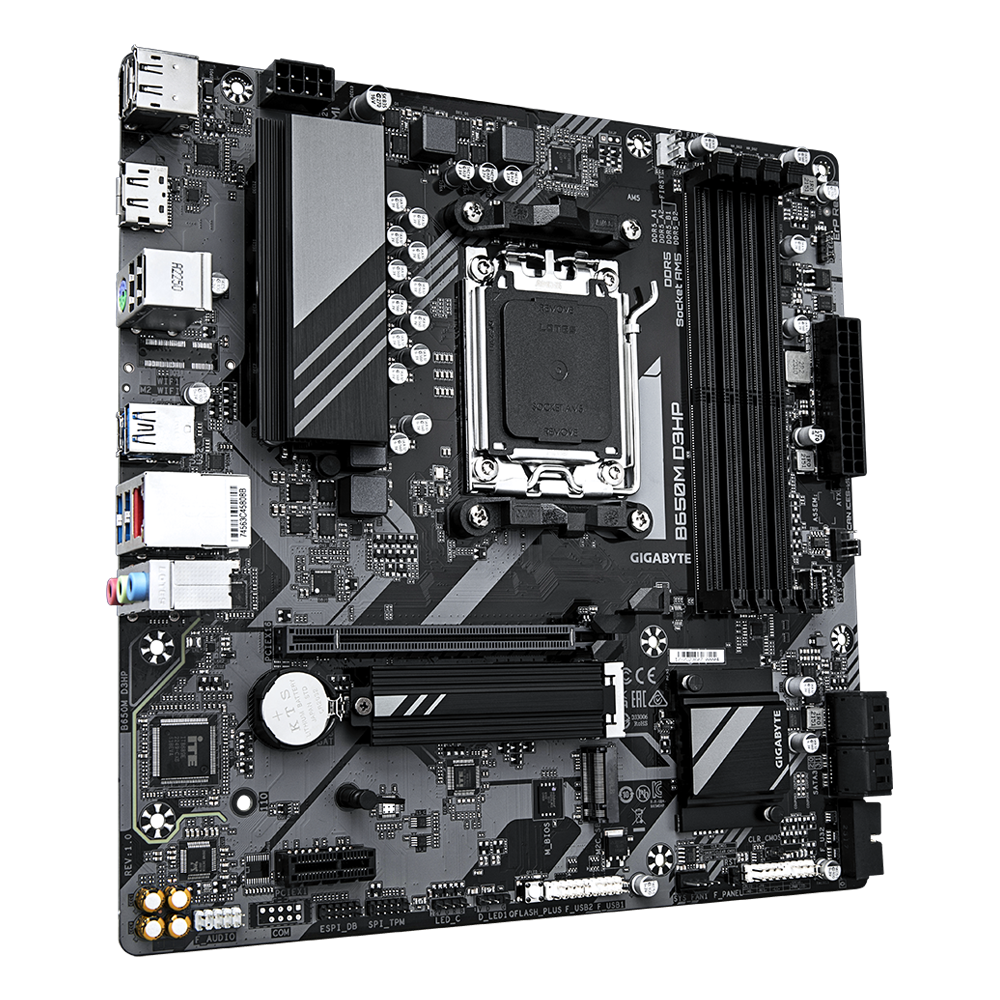

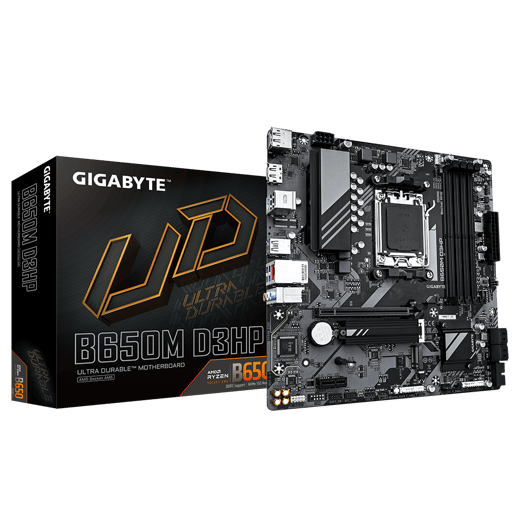

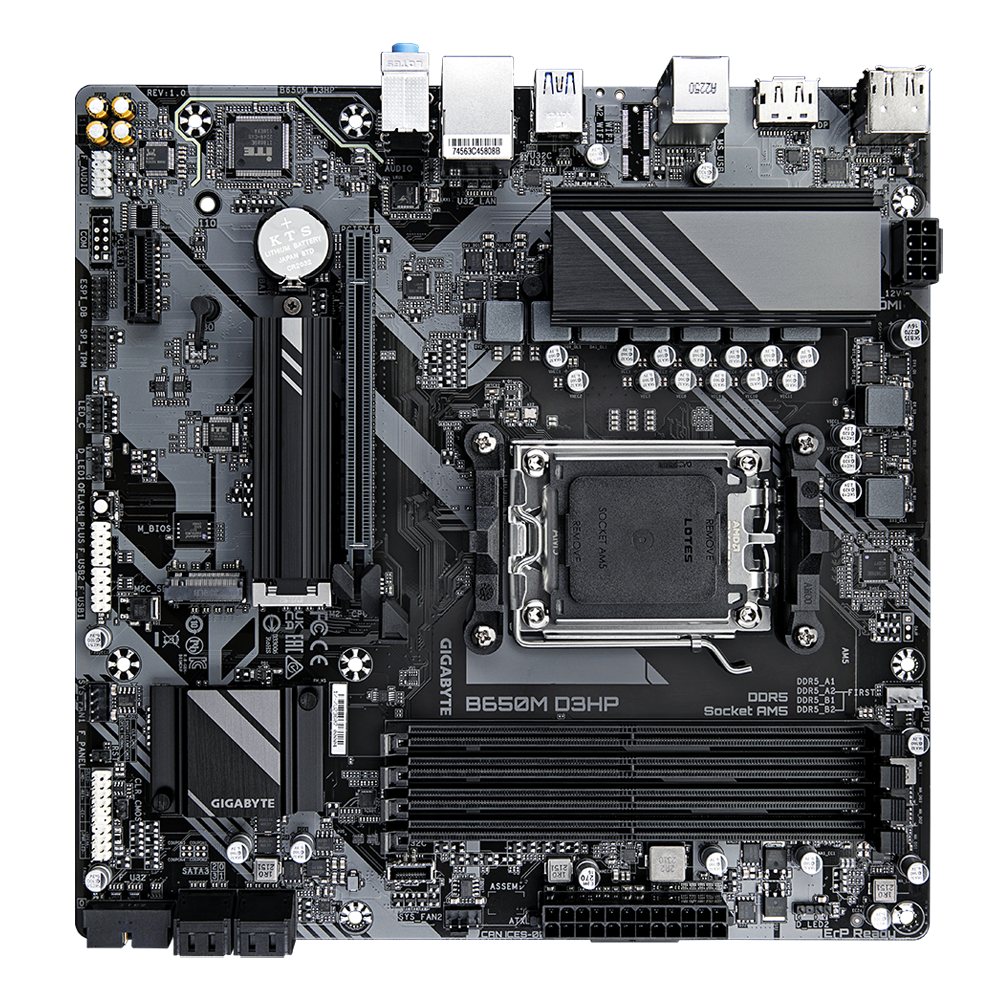

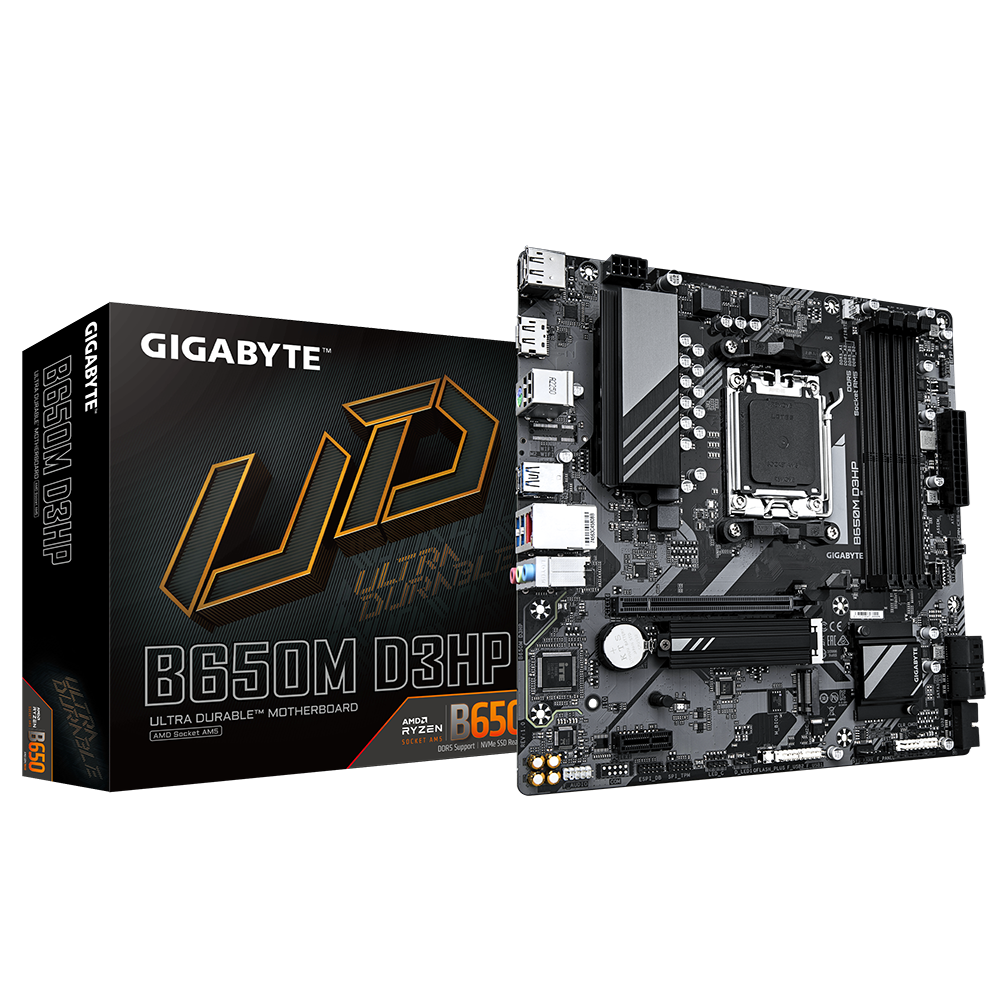

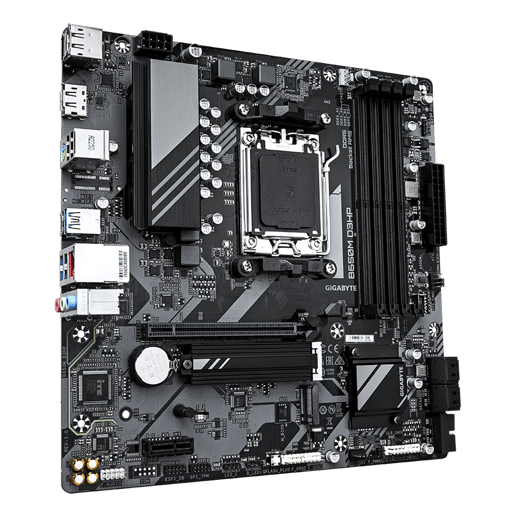

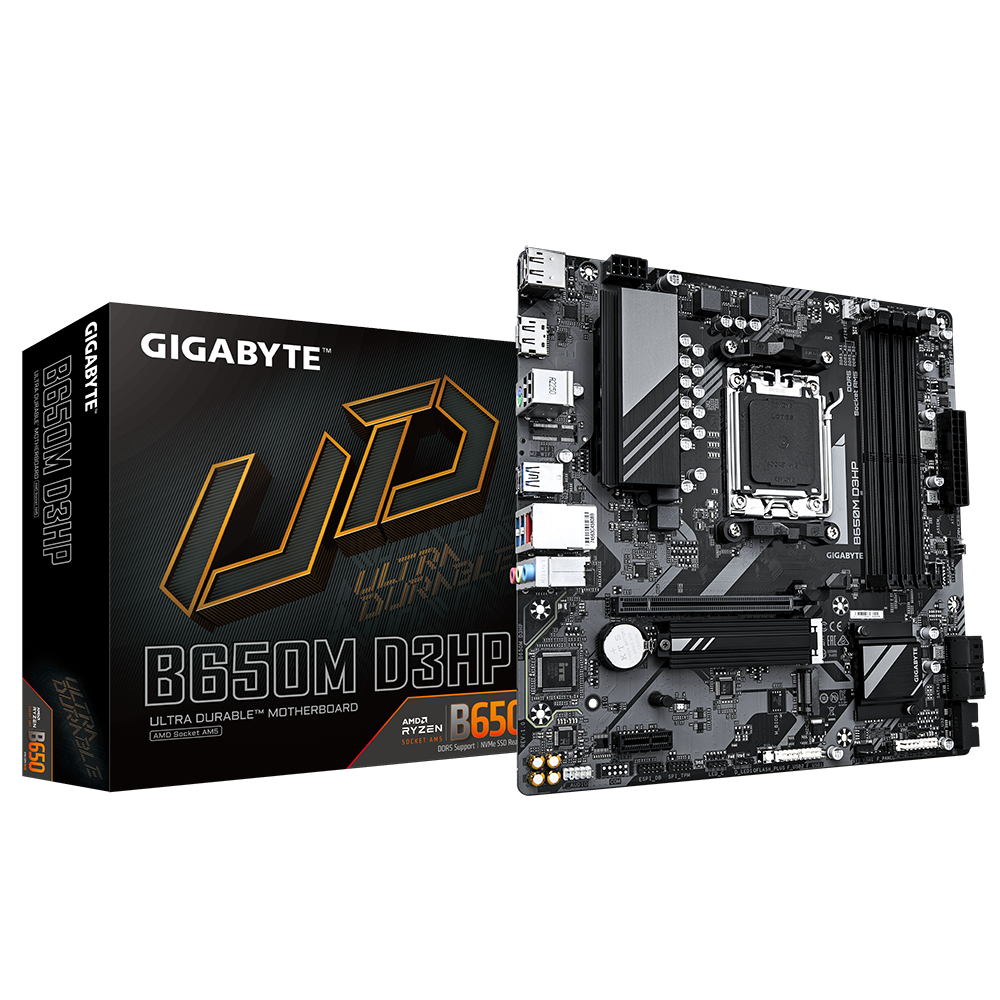

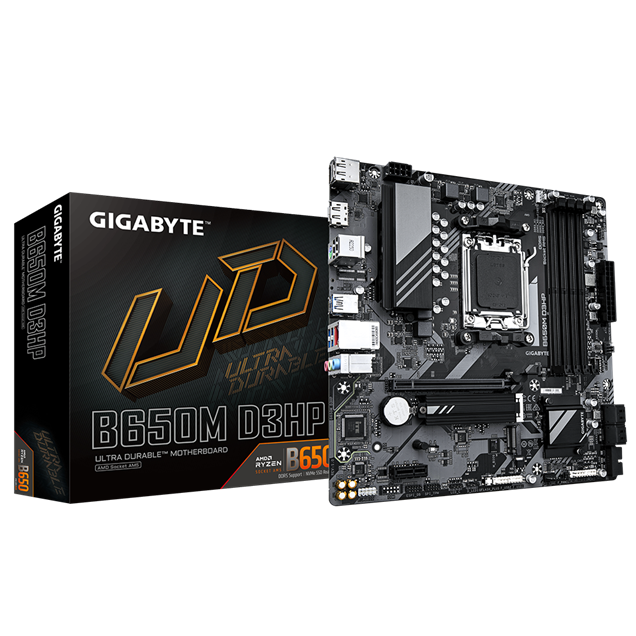

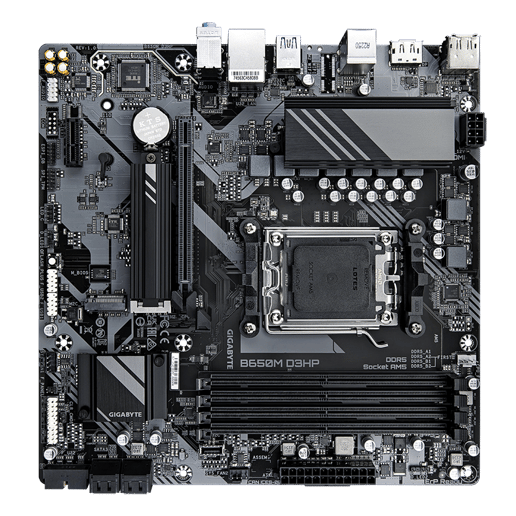

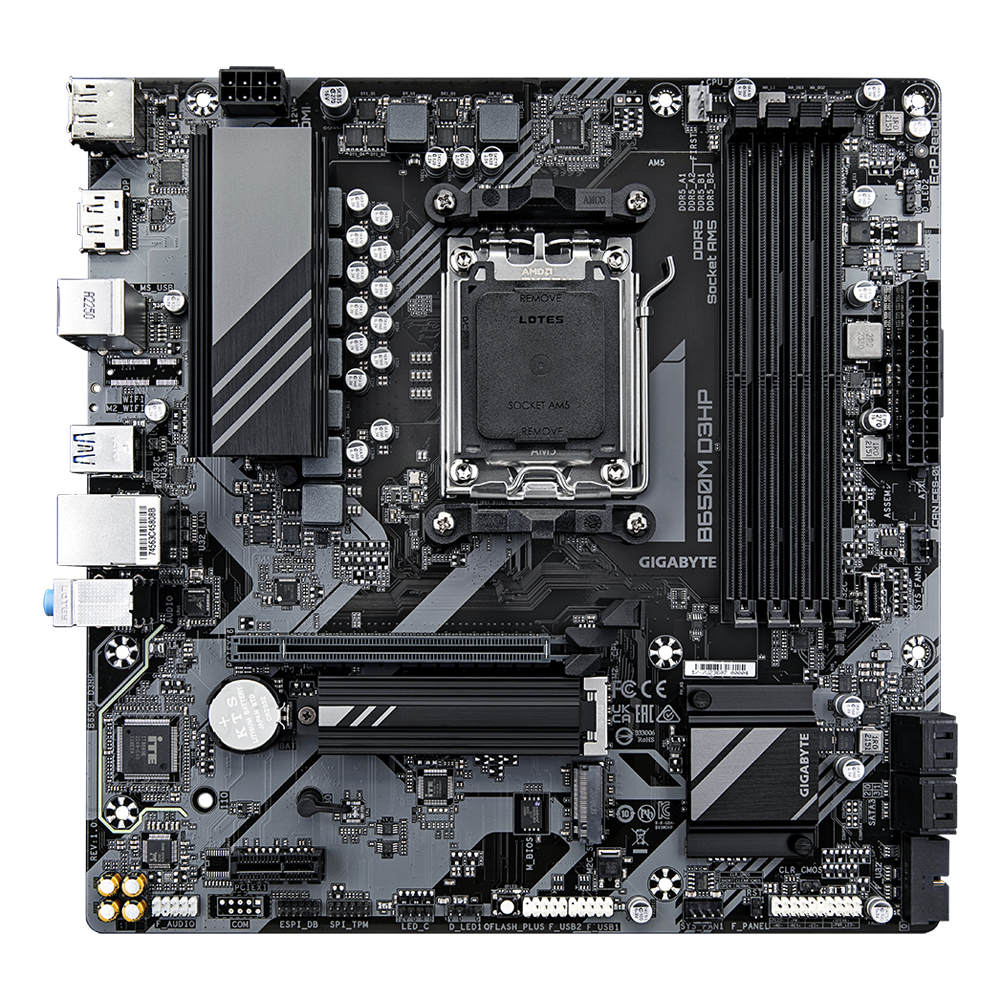

Gigabyte B650M D3HP mATX Motherboard for AMD AM5 CPUs

Gigabyte B650M D3HP mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3679

Sold out

Notify Me

Gigabyte B650M D3HP mATX Motherboard for AMD AM5 CPUs

B650M D3HP

Key Features:

  • mATX Form Factor
  • AMD B650 Chipset
  • Socket AM5
  • DDR5 (Max: 192GB / 4 slots)
  • 2 x M.2 & 6 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3679

Sold out

Sorry, we don't have any stock of this product. Please click 'Notify Me' and we will let you know when the item is available.

Notify Me
Overview

Durable Performance

GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.

Future Connectivity

The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.

Easy Friendly

Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.

Main Features

  • AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors
  • Unparalleled Performance: 5+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 4*SMD DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • SuperSpeed Storage: PCIe 4.0 x4 M.2 Connector
  • EZ-Latch: PCIe x16 Slot with Quick Release Design
  • Fast Networks: 2.5GbE LAN
  • Extended Connectivity: 2*DP, HDMI
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000 / Ryzen 8000 Series Processors
64-bit Support Yes
Socket AM5

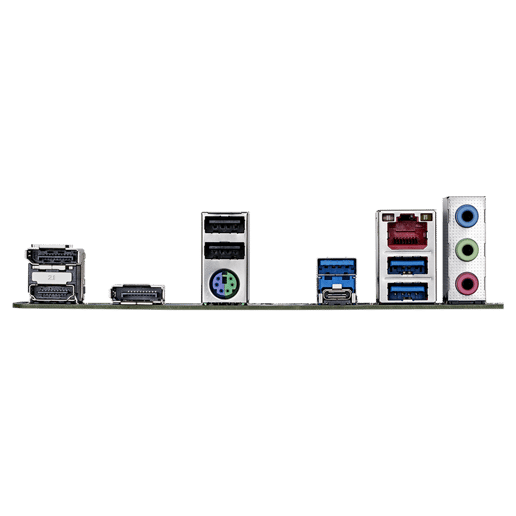

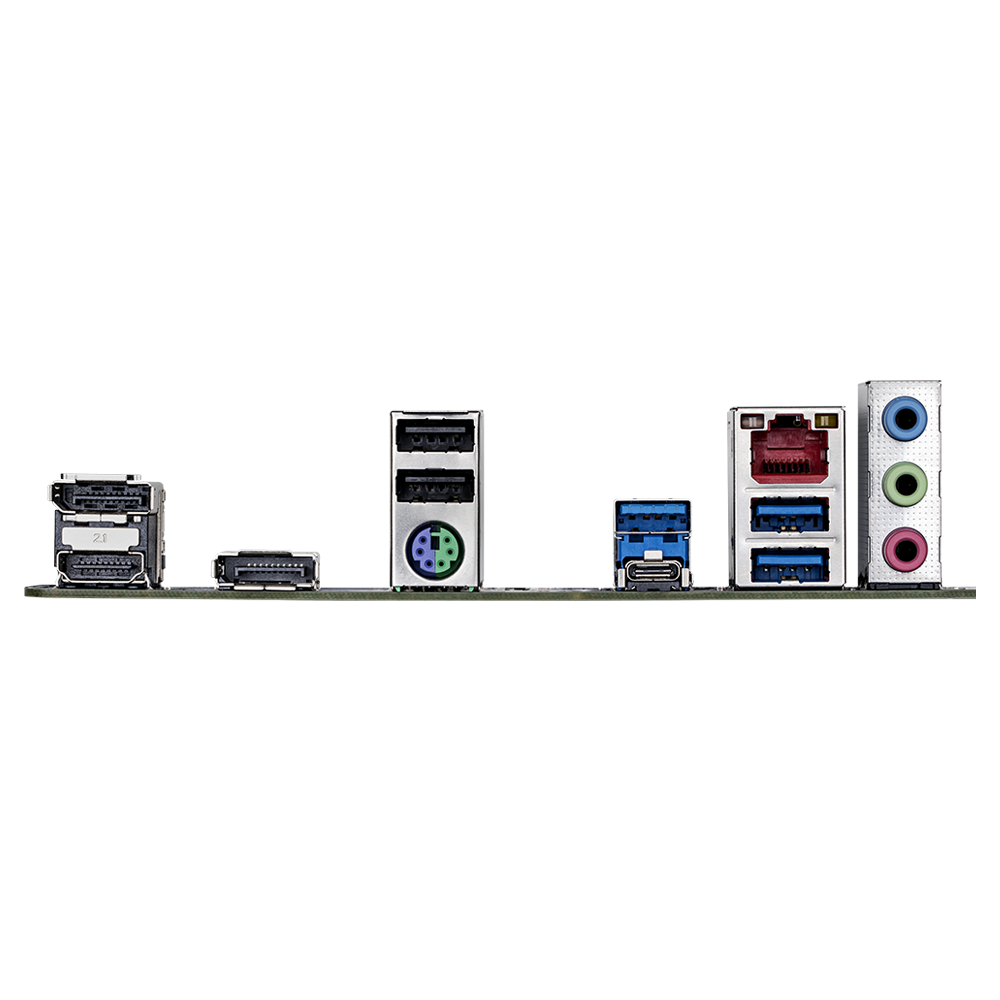

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.0
3 x USB 3.0
2 x USB 2.0
DisplayPorts 2 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
Keyboard/Mouse Combo Port 1 x PS/2
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
Microphone In Port 1 x 3.5mm Jack

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.0 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
2 x System fan headers
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot, Socket 3, M Key, Type 2580 (PCIe Gen4)
1 x M.2 slot, Socket 3, M Key, Type 22110/2280 (PCIe Gen4)
2 x 3-pin ARGB LED headers
1 x 4-pin RGB LED header

Memory

Memory Bus Speed Up to 7600 MT/s
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 1 x PCI Express 4.0 x16 slot
1 x PCI Express 3.0 x1 slot

Graphics Device

Integrated Graphics Supported Yes

Sound

Integrated Sound Realtek

Warranty

Warranty 3 Years

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN No
Bluetooth No

System Requirements

Operating Systems Supported Microsoft Windows 11

System

Jumpers 1 x Clear CMOS
Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
Width 244 mm
Length 244 mm

Key Features

SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
Wireless Network No
Motherboard Width 244 mm
Motherboard Height 244 mm
Main Colour Black
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 6 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 4+4-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model Gigabyte B650M D3HP
USB 3.1 Support No
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB
Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 7600 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2

Item Details

Manufacturer Gigabyte
Manufacturer Code B650M D3HP
EAN 4719331857851
UPC 889523039083
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B650M D3HP
