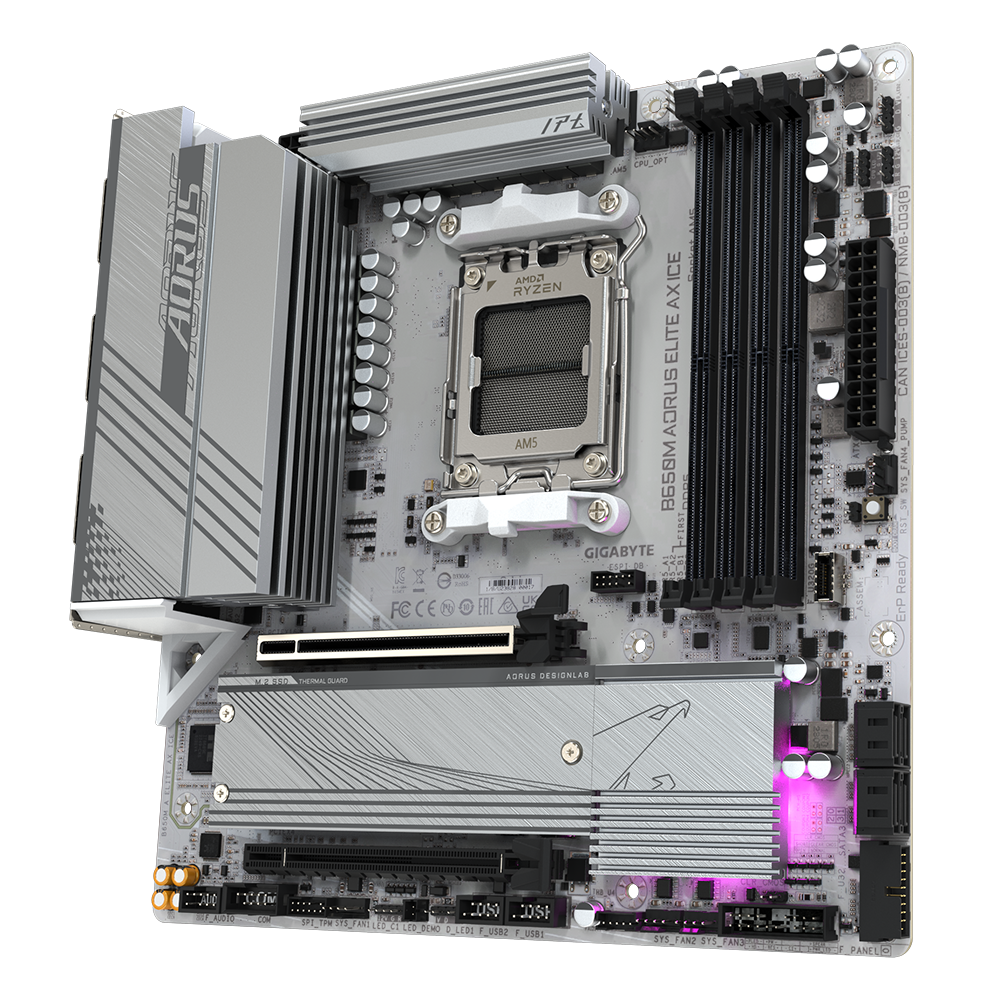

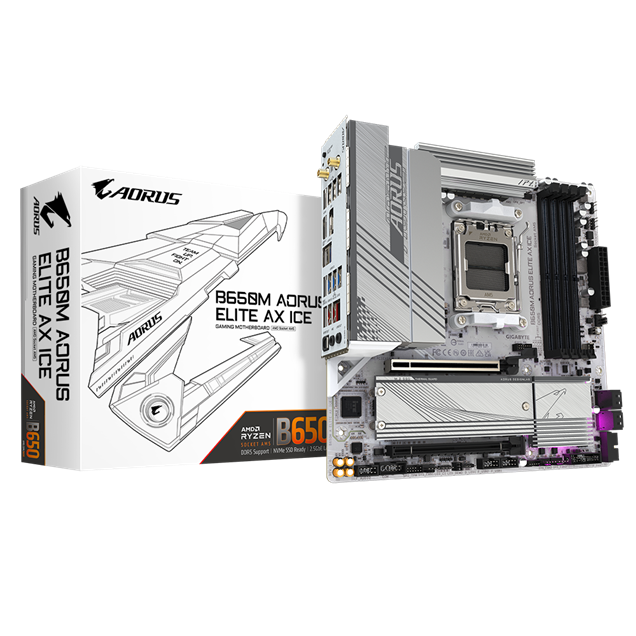

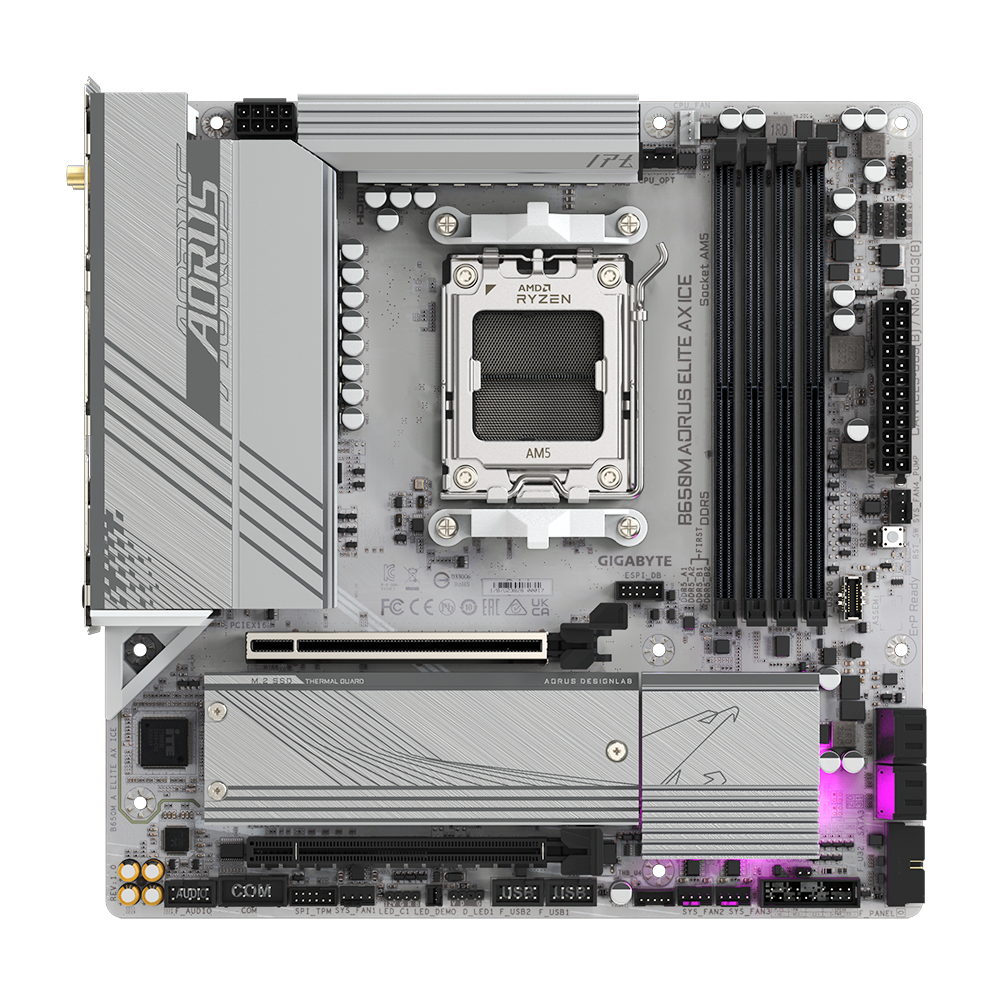

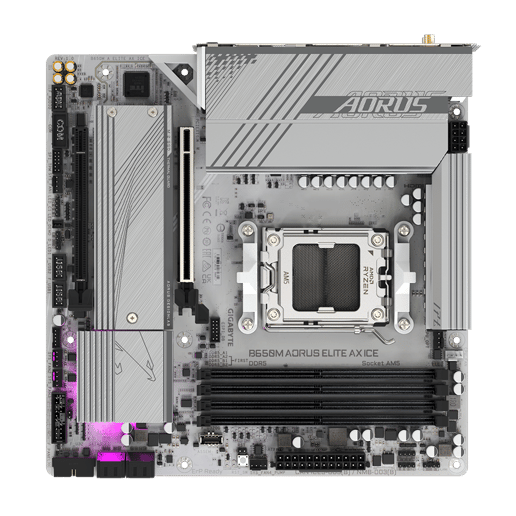

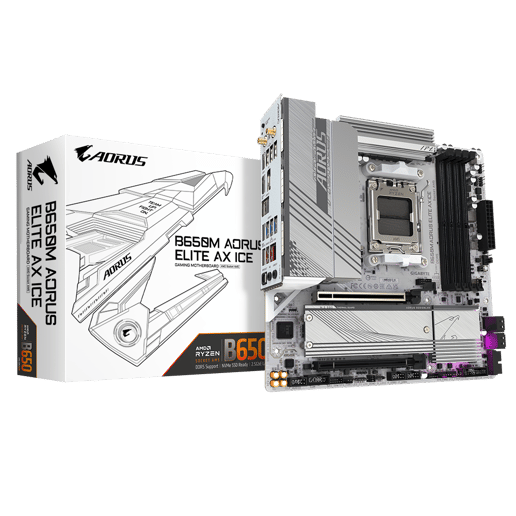

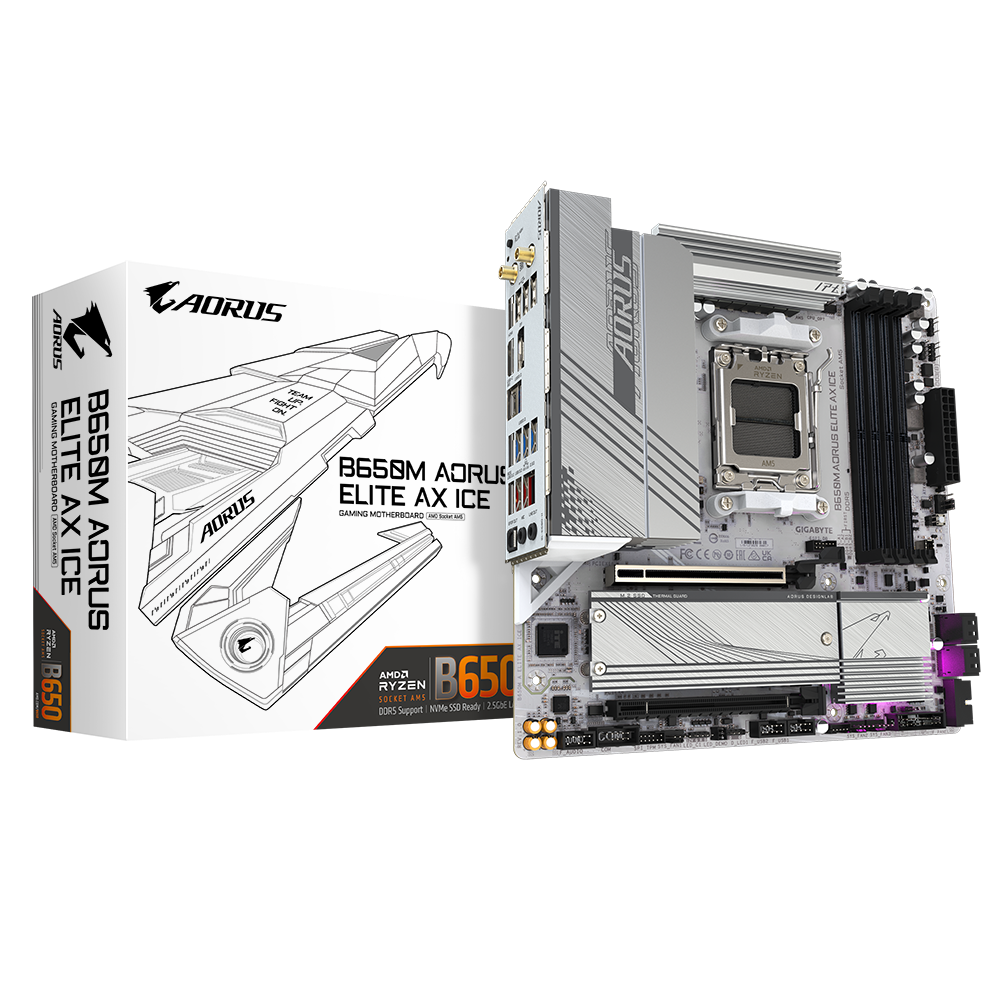

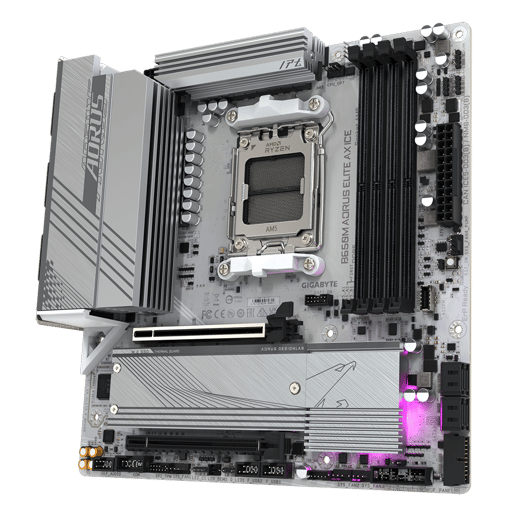

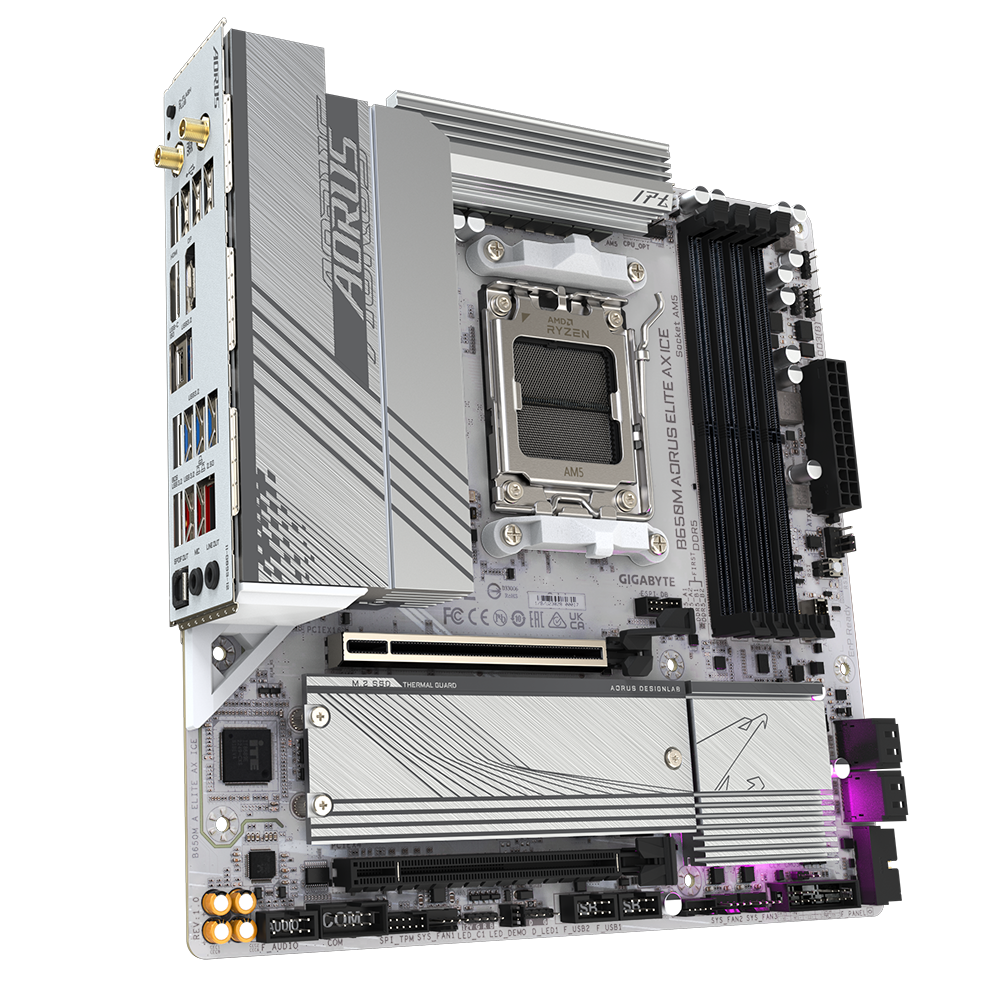

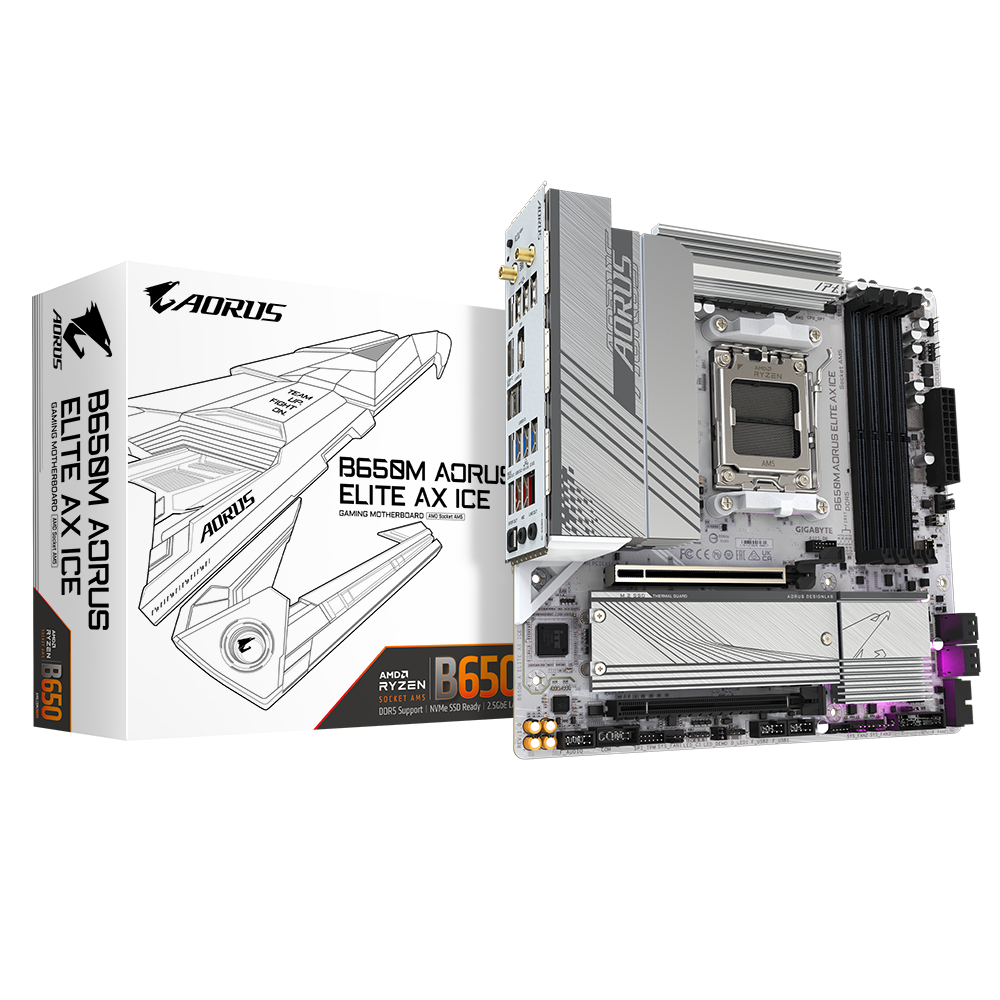

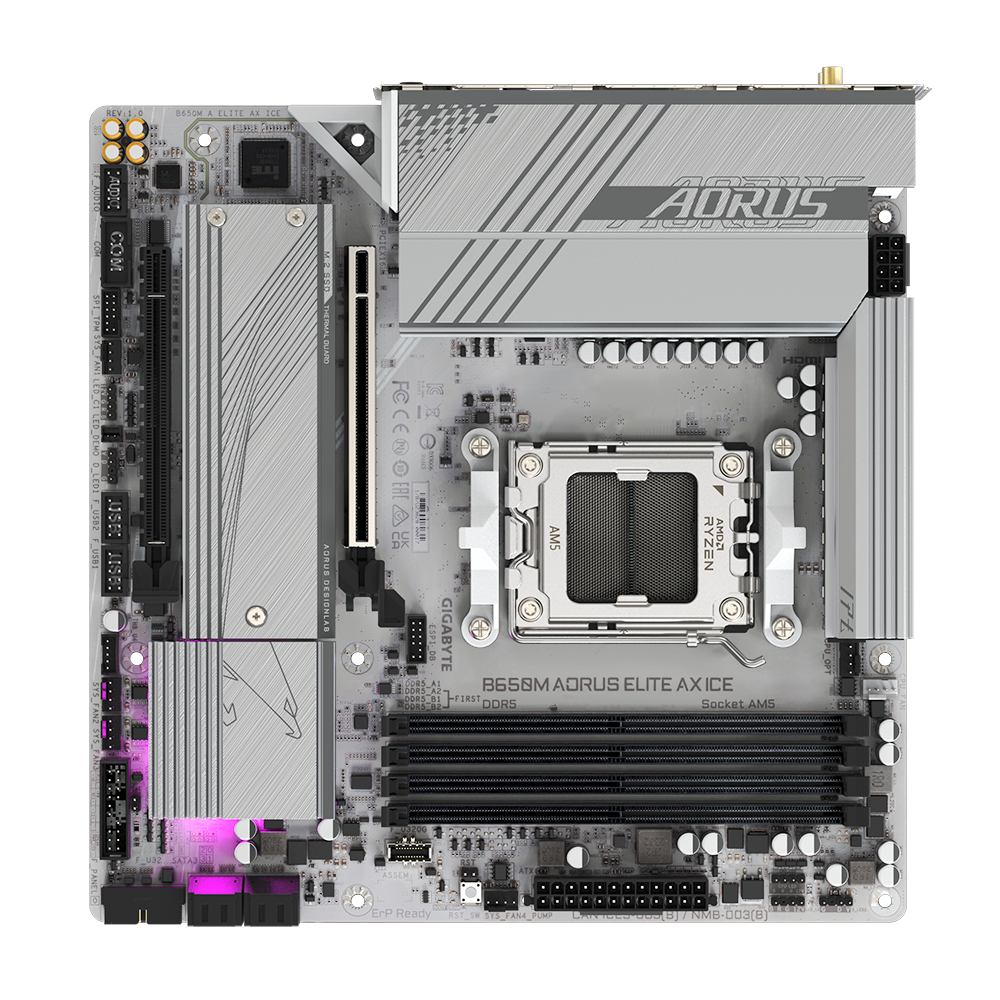

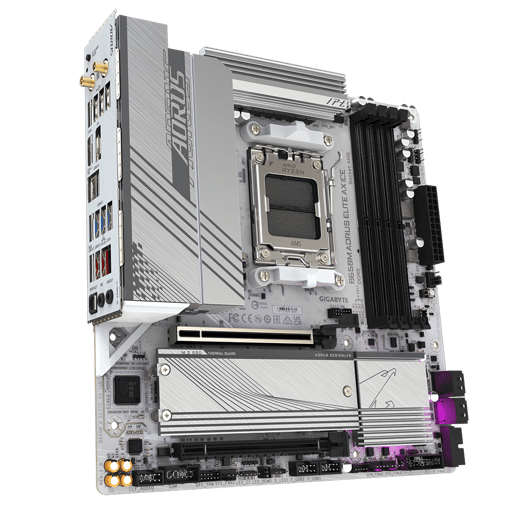

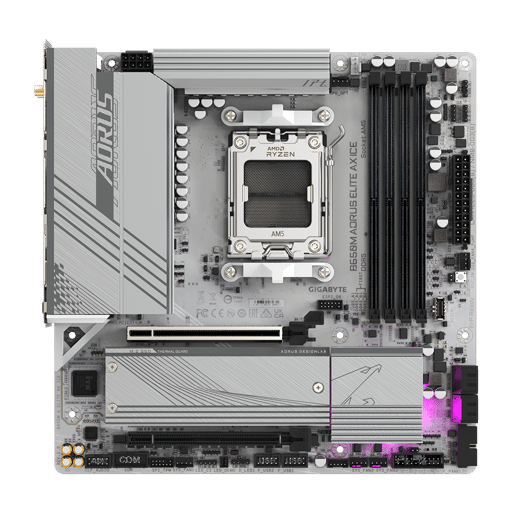

Gigabyte B650M AORUS ELITE AX ICE mATX Motherboard for AMD AM5 CPUs

Gigabyte B650M AORUS ELITE AX ICE mATX Motherboard for AMD AM5 CPUs

CCL Code: MBD3572

Discontinued

Gigabyte B650M AORUS ELITE AX ICE mATX Motherboard for AMD AM5 CPUs

B650M AORUS ELITE AX ICE

Key Features:

  • mATX Form Factor
  • AMD B650 Chipset
  • Socket AM5
  • DDR5 (Max: 192GB / 4 slots)
  • 2 x M.2 & 12 x USB & 4 x SATA
  • HDMI and Display Port
CCL Code: MBD3572

Discontinued

Sorry, this product has been discontinued. We have found some similar products below.

Overview

Gigabyte B650M AORUS ELITE AX ICE Motherboard

Main Features

  • AMD Socket AM5: Supports AMD Ryzen 7000 Series Processors
  • Unparalleled Performance: Twin 12+2+2 Phases Digital VRM Solution
  • Dual Channel DDR5: 4x DIMMs with AMD EXPO & Intel XMP Memory Module Support
  • Superfast Storage: 1x PCIe 5.0 x4 and 1x PCIe 4.0 x4 M.2 Connector
  • EZ-Latch: PCIe x16 Slot & M.2 Connectors with Quick Release & Screwless Design
  • Fast Networks: 2.5GbE LAN & Wi-Fi 6E
  • Extended Connectivity: HDMI, DP, Front USB-C 20Gb/s, Rear USB-C 10Gb/s
  • Smart Fan 6: Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
  • Q-Flash Plus: Update BIOS Without Installing the CPU, Memory and Graphics Card
Specifications

CPU

CPU Socket Socket AM5
CPU Brand AMD
Installed Processors (Max) 0 (1)
Supported Processor Manufacturer AMD
Supported Processors AMD Ryzen 7000 Series Processors
64-bit Support Yes
Socket AM5

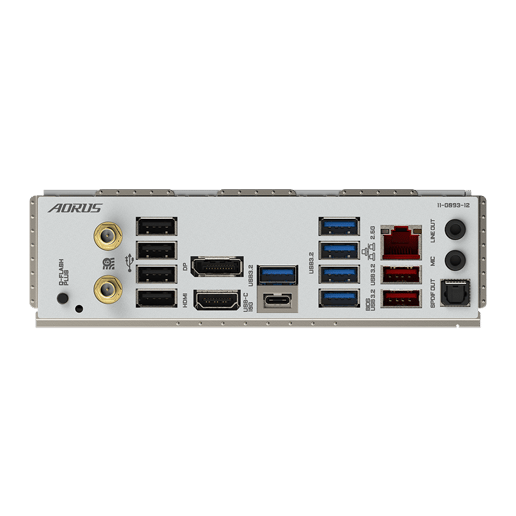

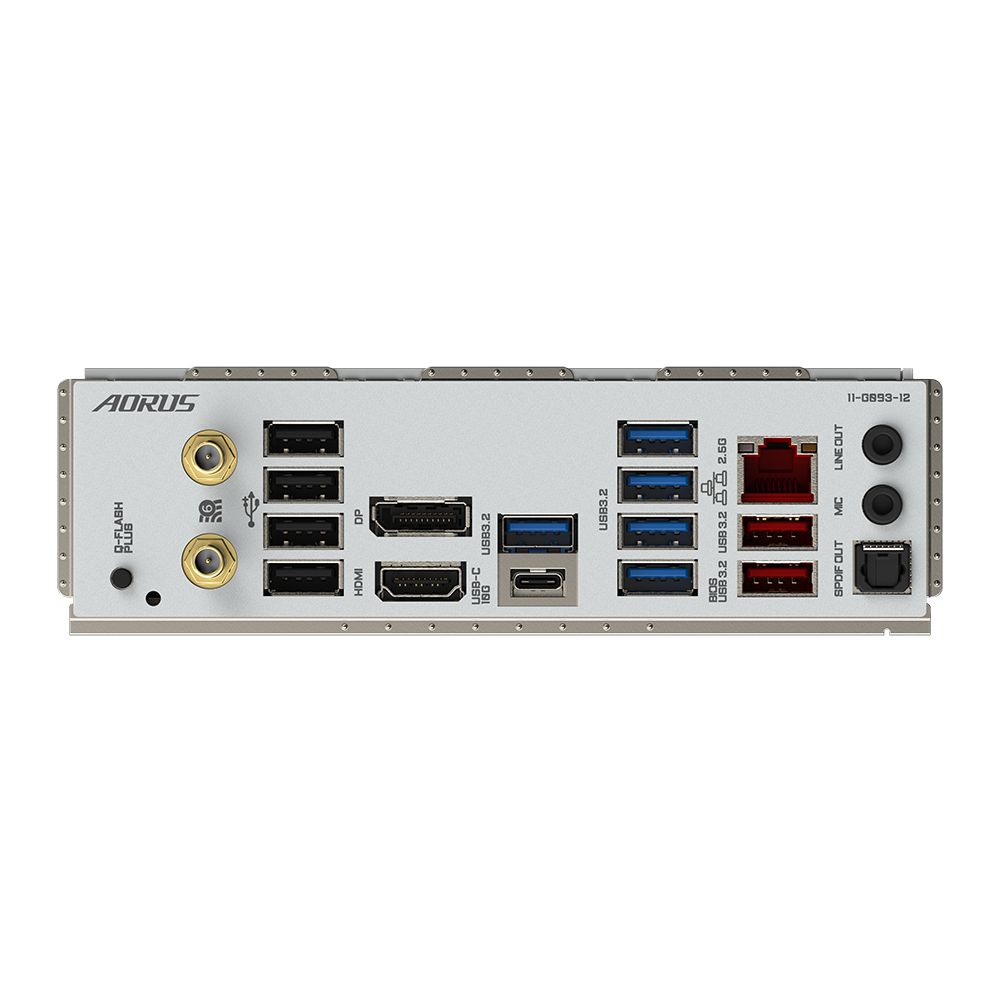

Rear Panel I/O Ports

USB Ports 1 x USB-C 3.1
2 x USB 3.1
5 x USB 3.0
2 x USB 2.0
DisplayPorts 1 x DisplayPort 1.4
HDMI Port 1 x HDMI 2.1
RJ-45 Ports 1 x RJ-45
Audio Line In Ports 1 x 3.5mm Jack
Audio Line Out Ports 1 x 3.5mm Jack
S/PDIF Port 1 x S/PDIF Optical Out
Antenna Connector(s) 2 x SMA Antennas

Internal I/O Connectors

SATA Connectors 4 x SATA III
USB Connectors 1 x USB-C 3.2 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Front Panel Connectors 1 x Front Panel
1 x Front Audio
Cooling Fan Support 1 x CPU fan header
1 x CPU/Water Cooling Pump fan header
3 x System fan headers
1 x System/Water Cooling Pump fan header
Thunderbolt Port(s) 1 x Thunderbolt header
Serial Connectors 1 x COM header
TPM Header 1 x TPM header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
Power Connector Port 1 x 24-pin ATX
1 x 8-pin EPS
Other Connectors 1 x M.2 slot. Socket 3, M Key, Type 2280/25110 (PCI Gen5)
1 x M.2 slot. Socket 3, M Key, Type 2280/25110 (PCI Gen4)

Memory

Memory Bus Speed Up to 8000 MHz
Memory Type DDR5
Maximum RAM 192 GB
Memory Slot 4 x DIMM

Motherboard

Northbridge AMD B650
RAID Supported Yes
RAID Format RAID 0, 1, 10
SATA Supported Yes

Expansion

Number of PCI Express Slots 2 x PCI Express 4.0 x16 slots (@ x16/x4)

Graphics Device

Integrated Graphics Supported Yes

Warranty

Warranty 3 Years

Sound

Integrated Sound Realtek

Network

Integrated Network Realtek
Network Speeds Supported Up to 2.5 Gbps
Wireless LAN Wi-Fi 6E
Wireless Network Speed Up to 2.4 Gbps
Bluetooth Yes
Bluetooth Version 5.3

System

Software Included (may be trial or restricted) Yes
Drivers Yes

Physical

Form Factor mATX Motherboard
Width 244 mm
Length 244 mm

Key Features

Addressable RGB Yes
Internal USB Type-C Header Yes
Power Requirement (auto) 60 W
Max Memory Speed Supported (Non-overclocked) 5200 MT/s
Max Memory Speed Supported (overclocked) 8000 MT/s
CPU Power Pins (female) 8
Total M.2 Slots 2
Maximum NVMe M.2 ports 2
SATA ports 4
No. of front USB2.0 ports supported 4
No. of front USB3.0 ports supported 2
No. of front USB-C ports supported 1
RDIMM Memory Supported No
RDIMM Memory Required No
Wireless Network Yes
Motherboard Width 244 mm
Motherboard Height 244 mm
mSATA Supported No
U.2 Supported No
Main Colour White
Memory Channel Dual
On-board Audio Type 7.1
Number of SATA Ports 4 port(s)
Number of USB Ports 12 port(s)
USB 3.0 Support Yes
Multi GPU Support No
VGA Connection No
DVI Connection No
HDMI Connection Yes
DisplayPort Connection Yes
Motherboard Form Factor mATX
Motherboard (EPS) Power Connectors 8-Pin
Motherboard Chipset AMD B650
Thunderbolt No
Motherboard Model Gigabyte B650M AORUS ELITE AX ICE
WiFi Speed 2400 Mbps
USB 3.1 Support Yes
Internal USB3.0 Header Yes
M.2 Support Yes
On-board RGB Control Gigabyte RGB Fusion
RGB Header Type 3-Pin ARGB

Item Details

Manufacturer Gigabyte
Manufacturer Code B650M AORUS ELITE AX ICE
EAN 4719331859336
UPC 889523040348
Condition New
Warranty

Warranty Information

Warranty 3 Years

Manufacturer Information

Manufacturer Gigabyte
Manufacturer Code B650M AORUS ELITE AX ICE
