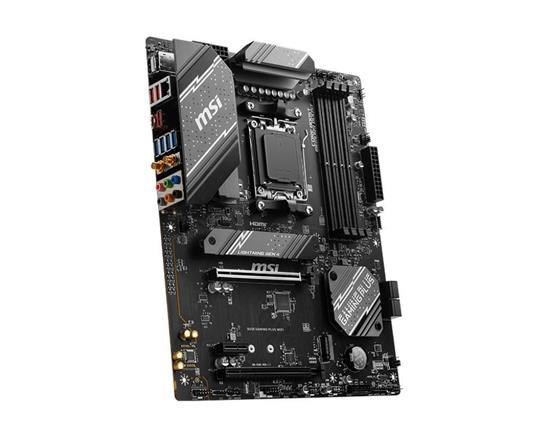

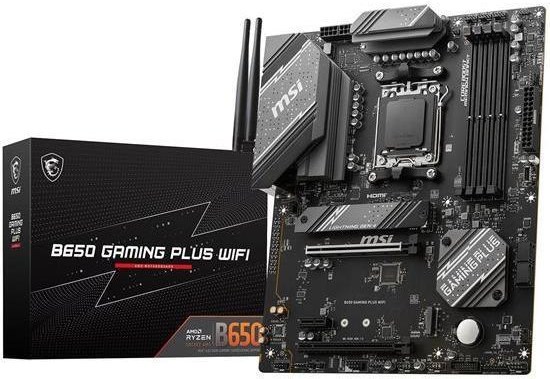

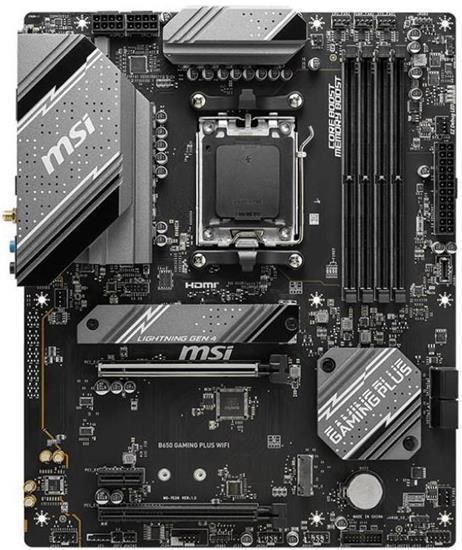

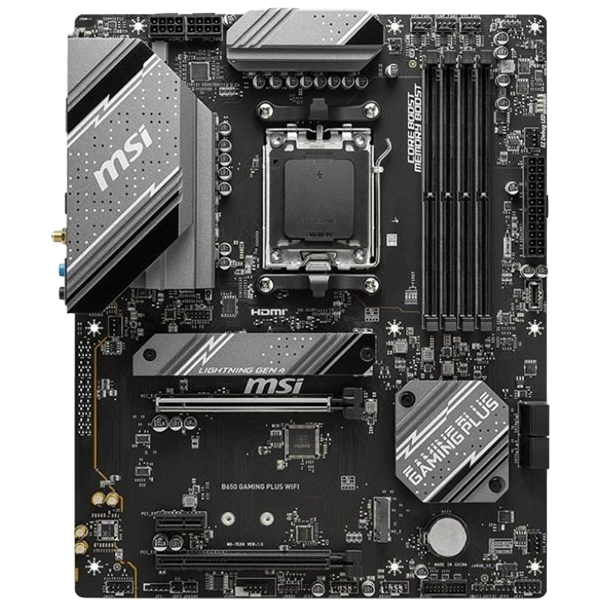

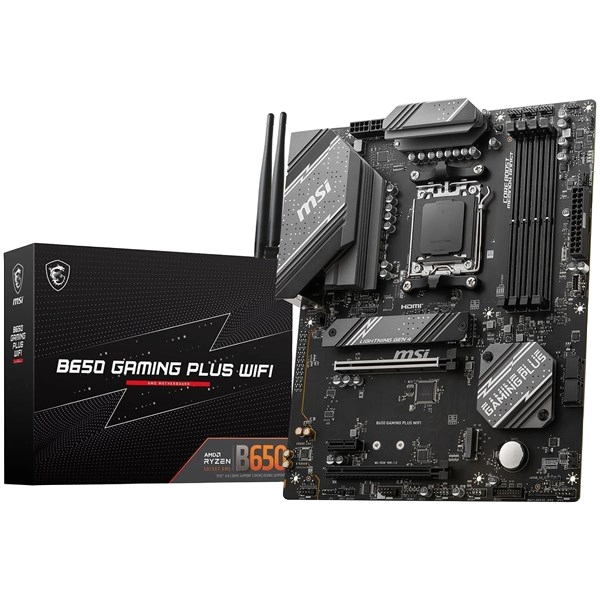

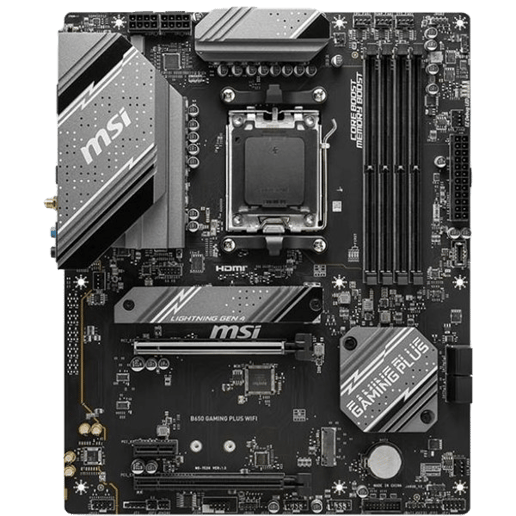

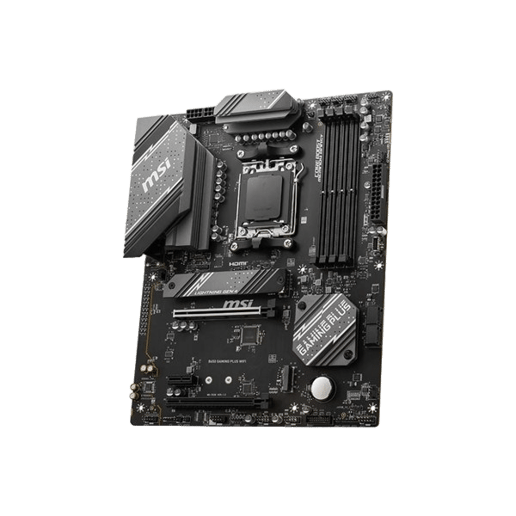

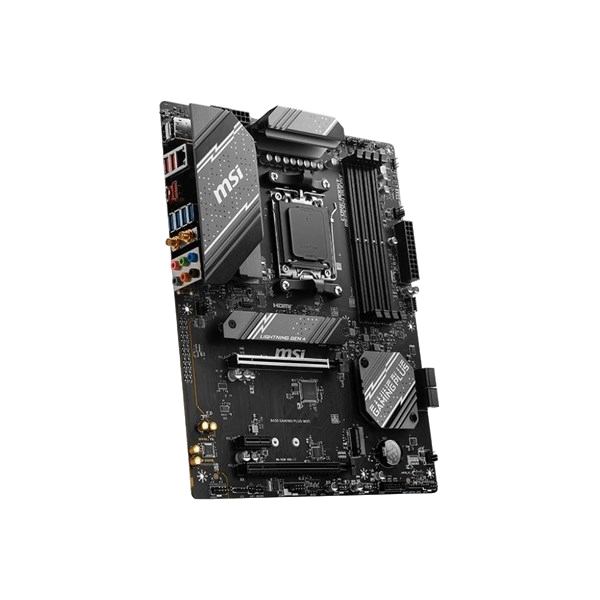

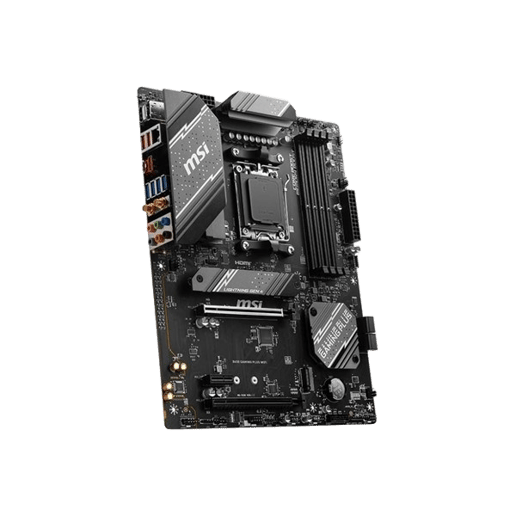

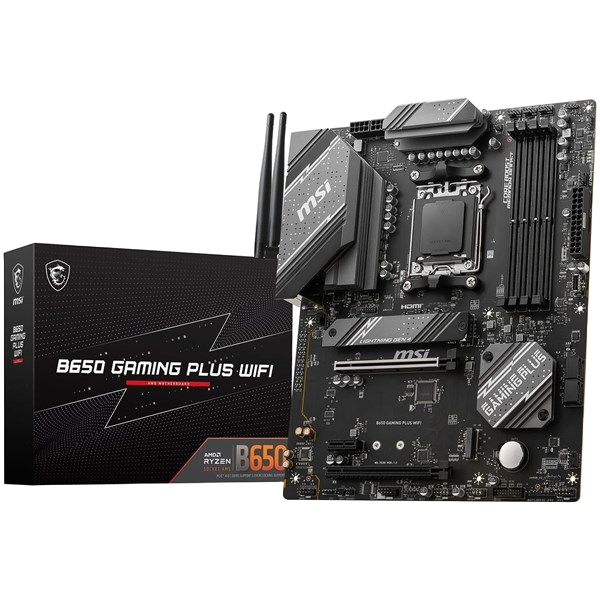

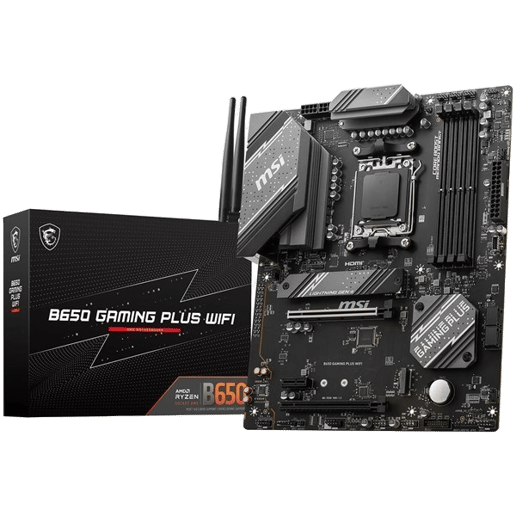

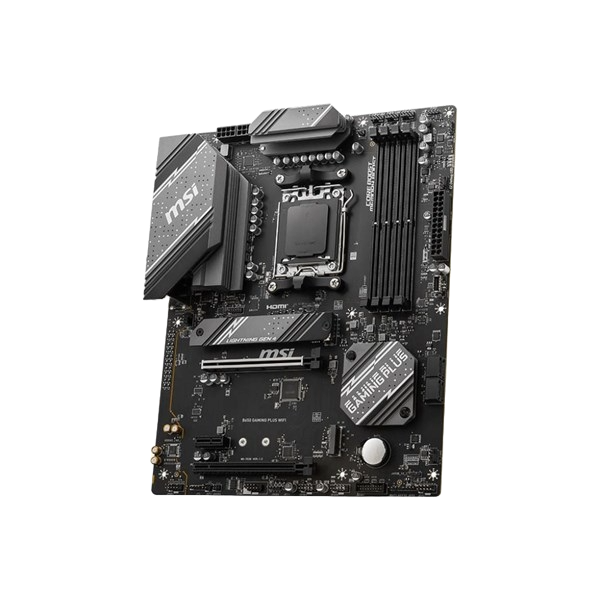

MSI B650 GAMING PLUS WIFI ATX Motherboard for AMD AM5 CPUs
MSI B650 Gaming Plus WiFi AM5 ATX Motherboard
Unleash your gaming potential with the cutting-edge MSI B650 motherboard. Designed to empower you with unparalleled connectivity, tools, and overall performance, this motherboard is your key to dominating the gaming arena. Immerse yourself in superior cooling capabilities, robust power solutions, and seamless wireless connectivity that this reliable motherboard brings to the table. With support for the latest DDR5 memory and a whopping 192GB memory capacity, you'll effortlessly conquer the gaming universe in style.
Cooling & Power Solutions
Crafted with a plethora of cooling and power solutions, the B650 Gaming Plus Wi-Fi motherboard guarantees consistent performance, regardless of the task at hand. Take advantage of the extended heatsink and heavy-plated VRM heatsink for optimal heat dissipation, perfectly complemented by the chipset heatsink, thermal pads, choke pads, and M.2 Shield Frozr. This powerhouse is tailor-made for gamers who thrive in intense in-game scenarios.
Never compromise on power – the 12+2+1 power design, featuring dual power connectors and the exclusive Core Boost technology, ensures peak performance. The meticulously engineered PCB design of the B650 Gaming Plus Wi-Fi motherboard facilitates reliable circuit transmission, boasting enhanced bandwidth and transfer speeds. Embrace the realm of overclocking and seize full control over your gaming domain.
Memory & Connectivity
Experience the extraordinary DDR5 memory, enhanced by a dedicated SMT welding process that minimizes slot solder joint defects and interference. Thanks to the exclusive Memory Boost technology, the motherboard guarantees a cleaner, higher-frequency DDR5 signal. On the connectivity front, a myriad of wireless and wired options awaits your convenience. Integrated with Wi-Fi 6E, Bluetooth 5.3, 2.5G LAN, HDMI, DisplayPort, and lightning USB-C connections, you'll be geared up and ready to embark on your gaming journey in no time.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 8000/ 7000 Series Desktop Processors
- 64-bit Support: Yes
- Socket: AM5

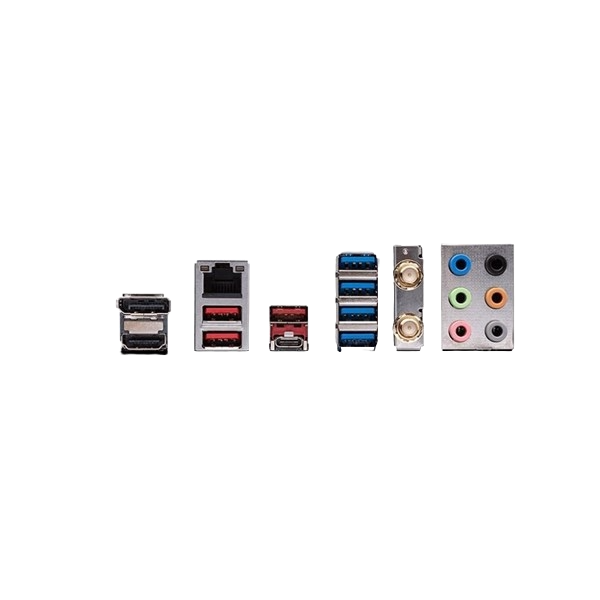

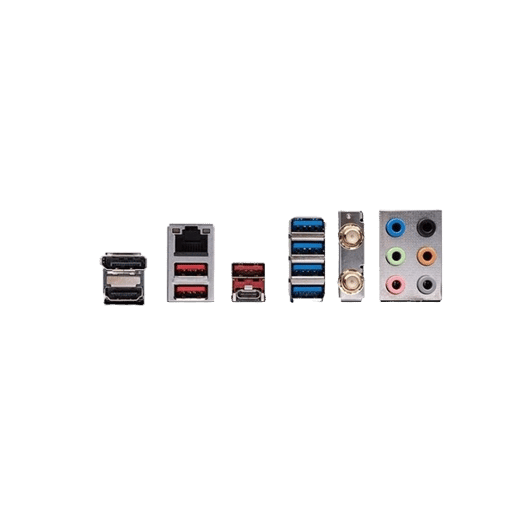

Rear Panel I/O Ports
- USB Ports: 1 x USB-C 3.2
- 3 x USB 3.1
- 4 x USB 3.0
- DisplayPorts: 1 x DisplayPort
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA III
- USB Connectors: 1 x USB-C 3.1 header (supports 1 port)
1 x USB 3.0 header (supports 2 ports) - 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 7200 MHz
- Memory Type: DDR5
Motherboard
- Northbridge: AMD B650
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 4 x 3.5mm Jacks
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Pump fan header
- 4 x System fan headers
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 2 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Type 2280/22110 (PCIe Gen4)
- 1 x M.2 slot, Type 2260/2280 (PCIe Gen4)
- 2 x 3-pin ARGB LED headers
- 2 x 4-pin RGB LED headers
Expansion
- Number of PCI Express Slots: 2 x PCI Express 4.0 x16 slots (@ x16/x4)
- 1 x PCI Express 3.0 x1 slot
Memory
- Maximum RAM: 192 GB
- Memory Slot: DDR5
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek 8125BG
- Network Speeds Supported: Up to 2.5 Gbps
- Wireless LAN: Yes - Wi-Fi 6E
- Wireless Network Speed: Up to 2.4 Gbps
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- In The Box: Motherboard
- Wi-Fi Antenna
- SATA Cable
- 2 x EZ M.2 Clips
- I/O Shield
- Quick Installation Guide
- EU Regulatory Notice
- Width: 244 mm
- Length: 305 mm
- Weight: 1.2 kg
Identifiers
- Stock Code: MBD3509
- Mfg Code: B650 GAMING PLUS WIFI
Warranty
- Warranty: 3 Years
