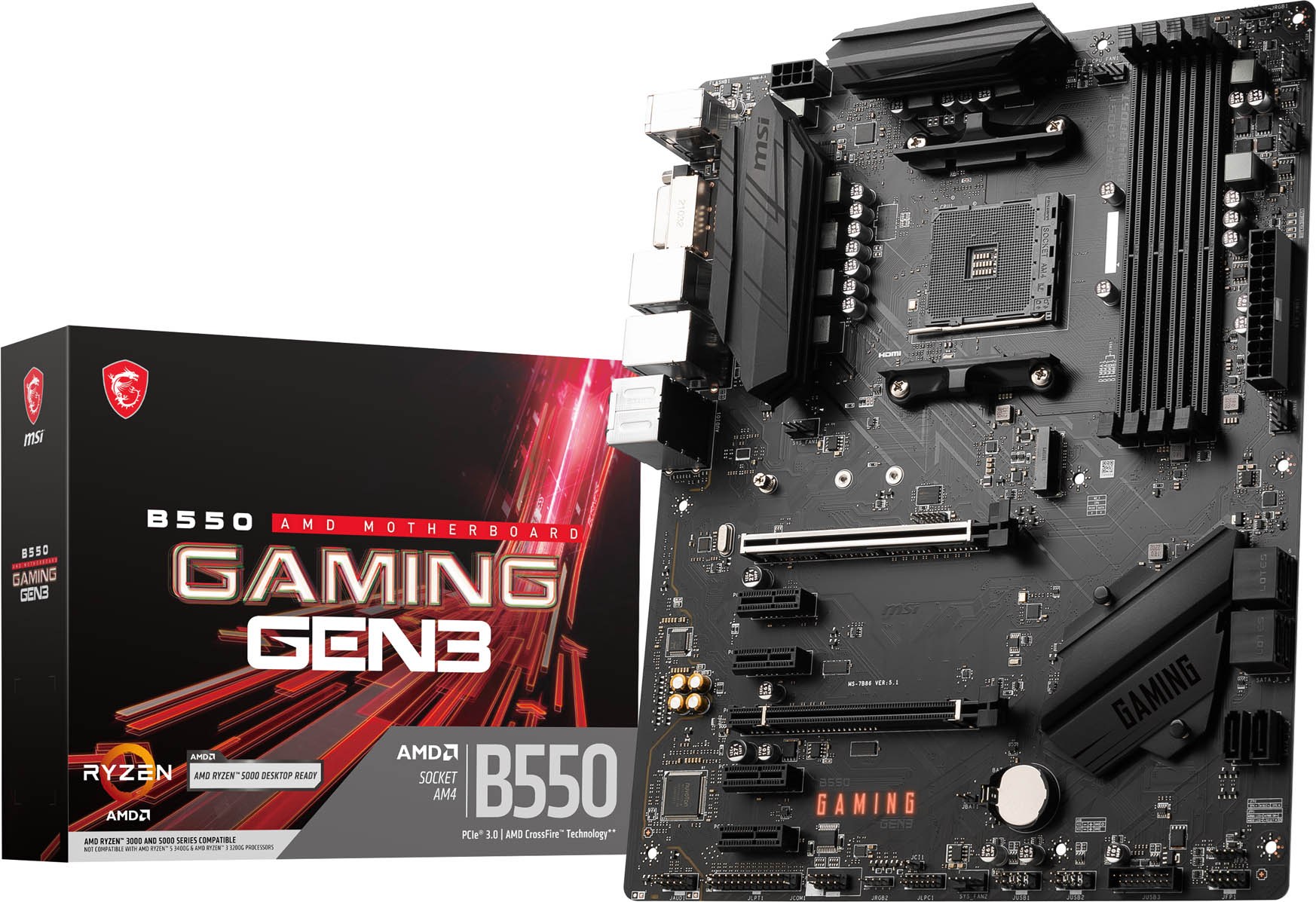

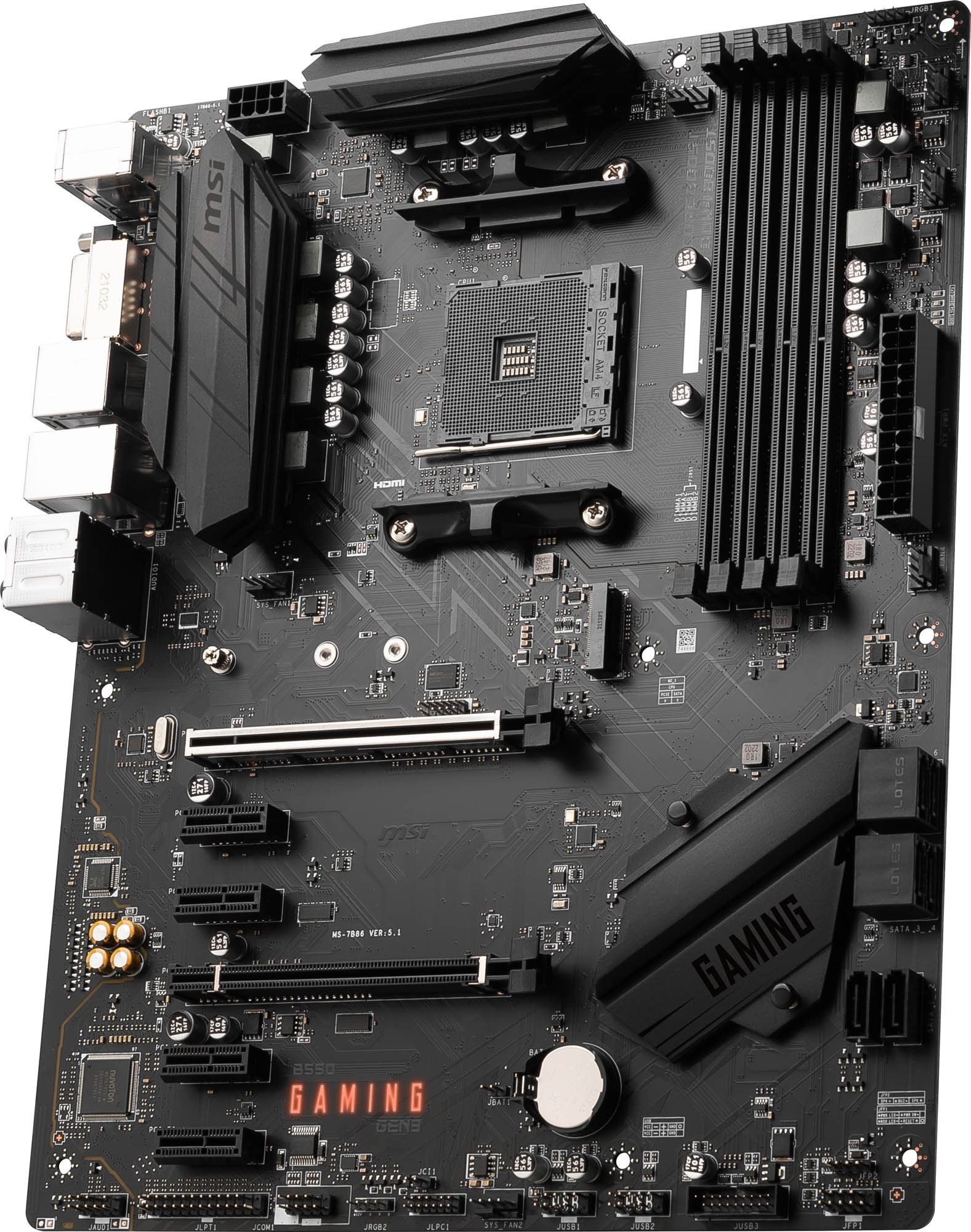

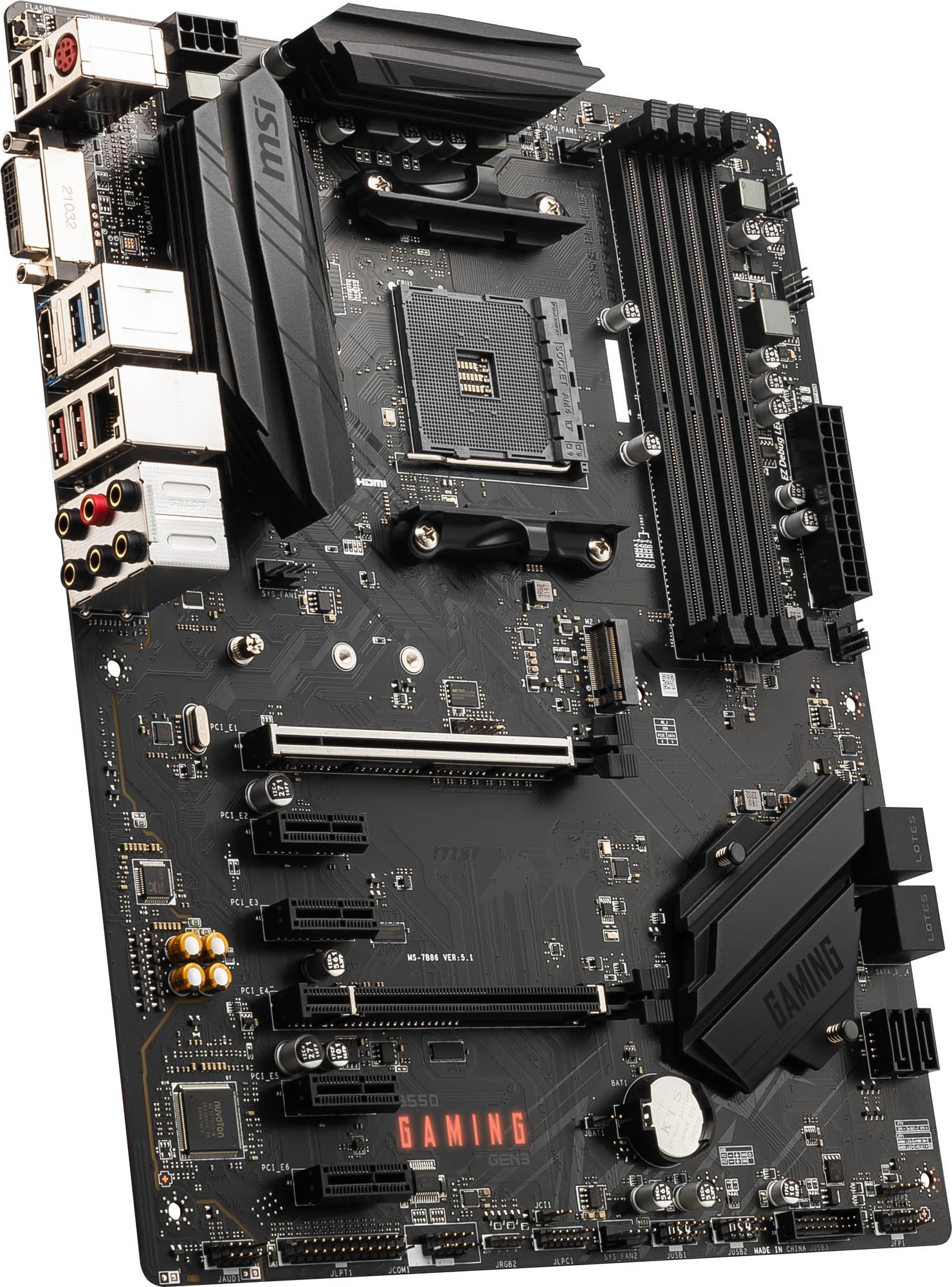

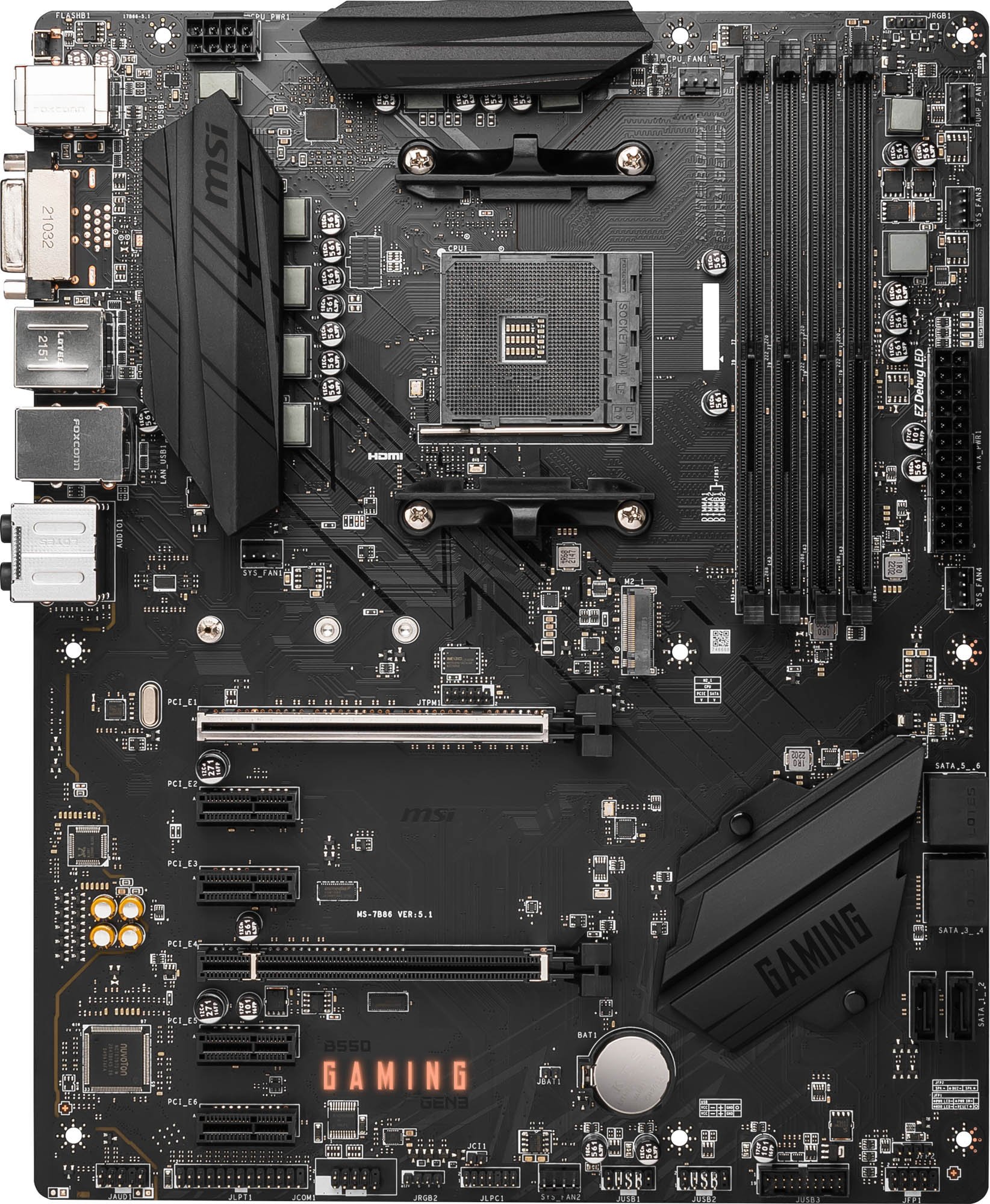

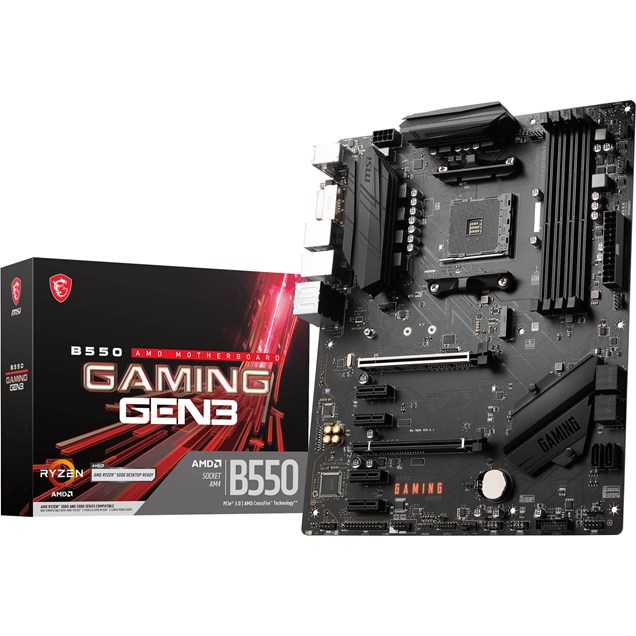

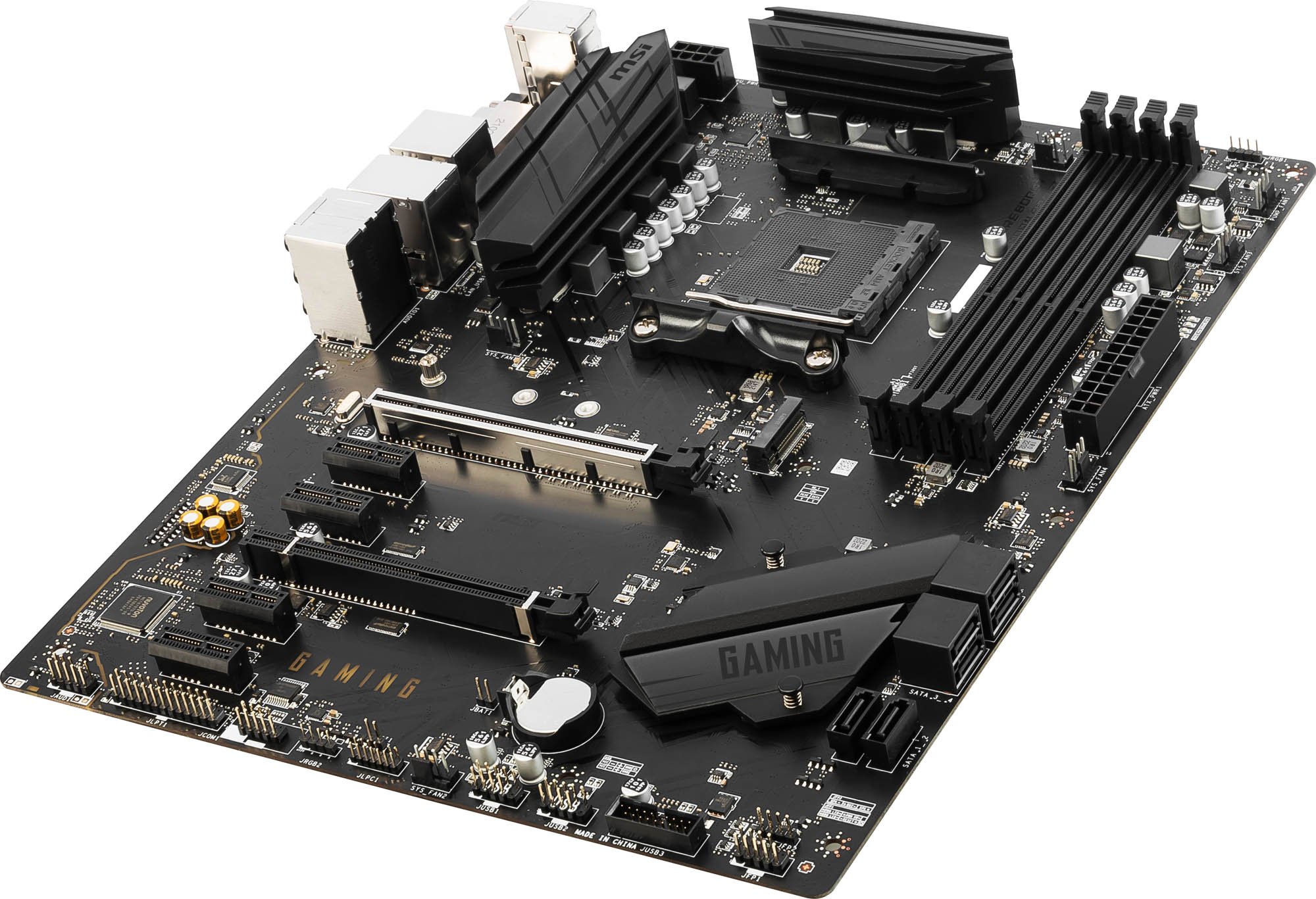

MSI B550 GAMING GEN3 ATX Motherboard for AMD AM4 CPUs
PREMIUM HARDWARE DESIGN
With years of experience, MSI is no stranger to building high-performance motherboards. Our R&D and engineering teams have reviewed countless designs, evaluated a wide selection of high quality components, and developed products for reliability even under extreme conditions.
ENHANCED PERFORMANCE
High performance MSI motherboards are loaded with advanced features and the latest technology to overwhelm any challenge at hand no matter whether you’re a gamer, prosumer, or PC enthusiast.
CONNECTIVITY
MSI motherboards are built with a variety of connectors to satisfy gamers. Enhanced audio, advanced LAN networking capabilities, USB and Mystic Light turn any gaming experience into an immerse one.
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: AMD Ryzen 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
- 64-bit Support: Yes
- Socket: AM4

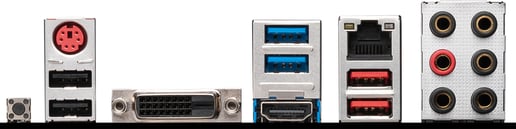

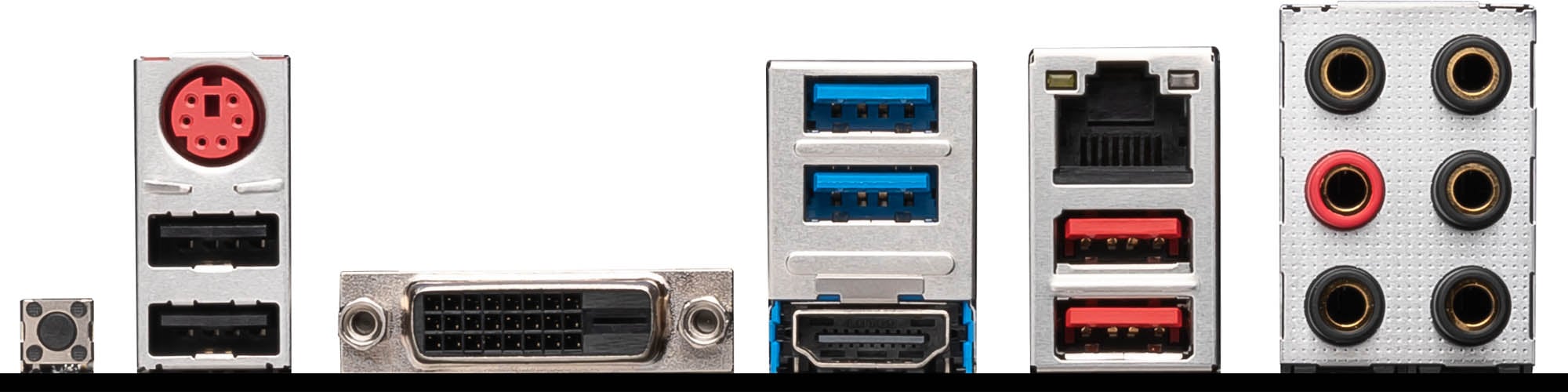

Rear Panel I/O Ports
- USB Ports: 2 x USB 3.1
- 2 x USB 3.0
- 2 x USB 2.0
- HDMI Port: 1 x HDMI 2.0b
Internal I/O Connectors
- SATA Connectors: 6 x SATA III
- USB Connectors: 1 x USB 3.0 header (supports 2 ports)
- 2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 4400 MHz
- Memory Type: DDR4
Motherboard
- Chipset Manufacturer: AMD
- Northbridge: B550
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- Keyboard/Mouse Combo Port: 1 x PS/2
- RJ-45 Ports: 1 x RJ-45
- Digital Port: 1 x DVI-D
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 4 x 3.5mm Jacks
- Microphone In Port: 1 x 3.5mm Jack
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x Water Pump fan header
- 4 x System fan headers
- Parallel Connectors: 1 x LPT header
- Serial Connectors: 1 x COM header
- Chassis Intrusion Connector: 1 x Chassis Intrusion header
- TPM Header: 1 x TPM header
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Key M, Type 2260/2280/2210 (PCIe Gen3 or SATA)
Expansion
- Number of PCI Express Slots: 2 x PCI Express 3.0 x16 slots (@ x16, x4)
- 4 x PCI Express 2.0 x1 slots
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes (CPU dependant)
Sound
- Integrated Sound: Realtek ALC897
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek RTL8111H
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: No
- Bluetooth: No
System
- BIOS: 1x 256 Mb flash
- UEFI AMI BIOS
- ACPI 6.1, SMBIOS 2.8
- Multi-language
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
- SLi/Crossfire Features: Supports AMD CrossFire Technology
Physical
- Form Factor: ATX Motherboard

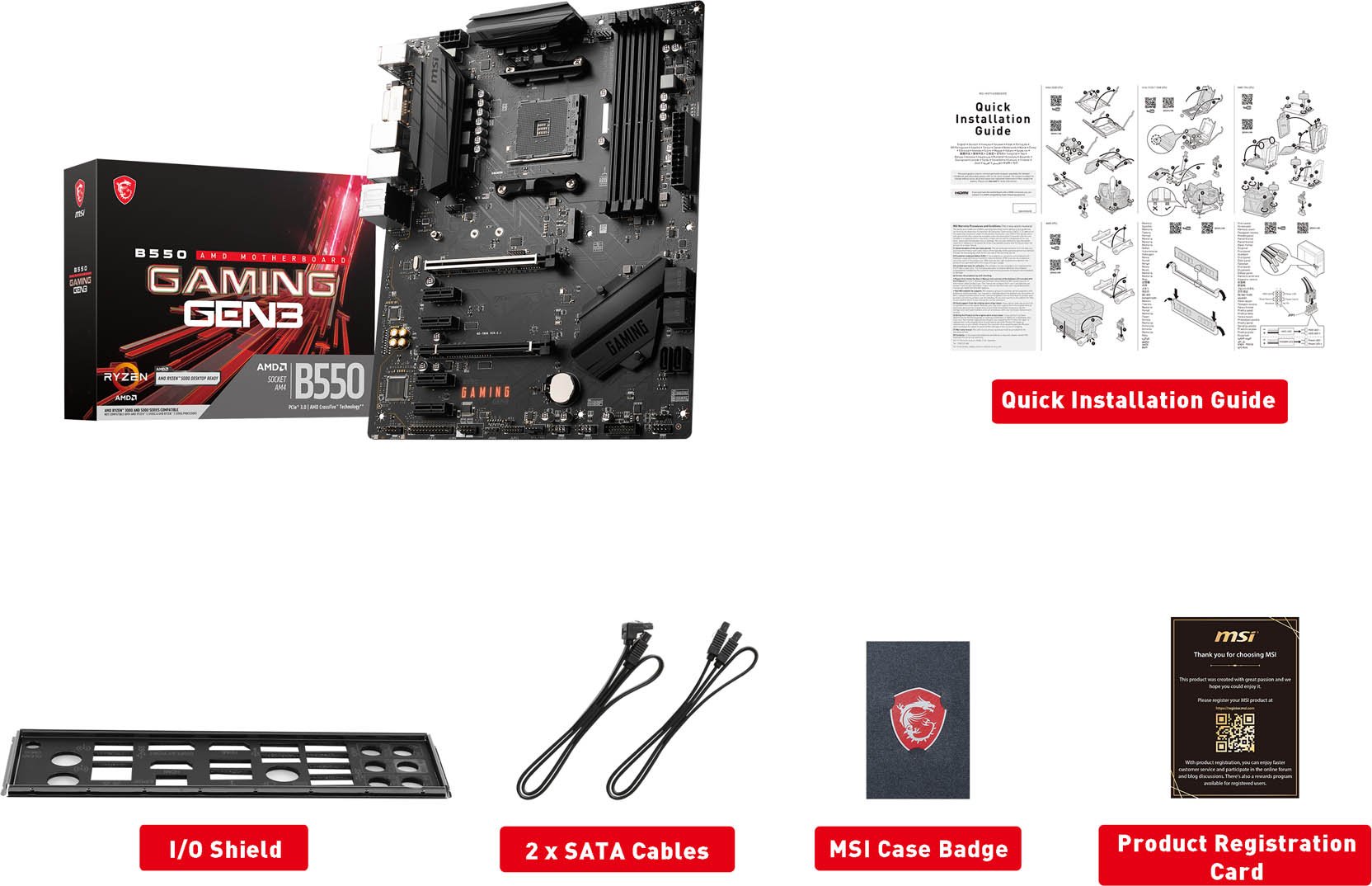

- In The Box: Motherboard
- Quick Installation Guide
- I/O Shield
- 2 x SATA Cables
- MSI Case Badge
- Product Registration Card
- Width: 305 mm
- Length: 244 mm
Identifiers
- Stock Code: MBD3295
- Mfg Code: B550 GAMING GEN3
Warranty
- Warranty: 3 Years
