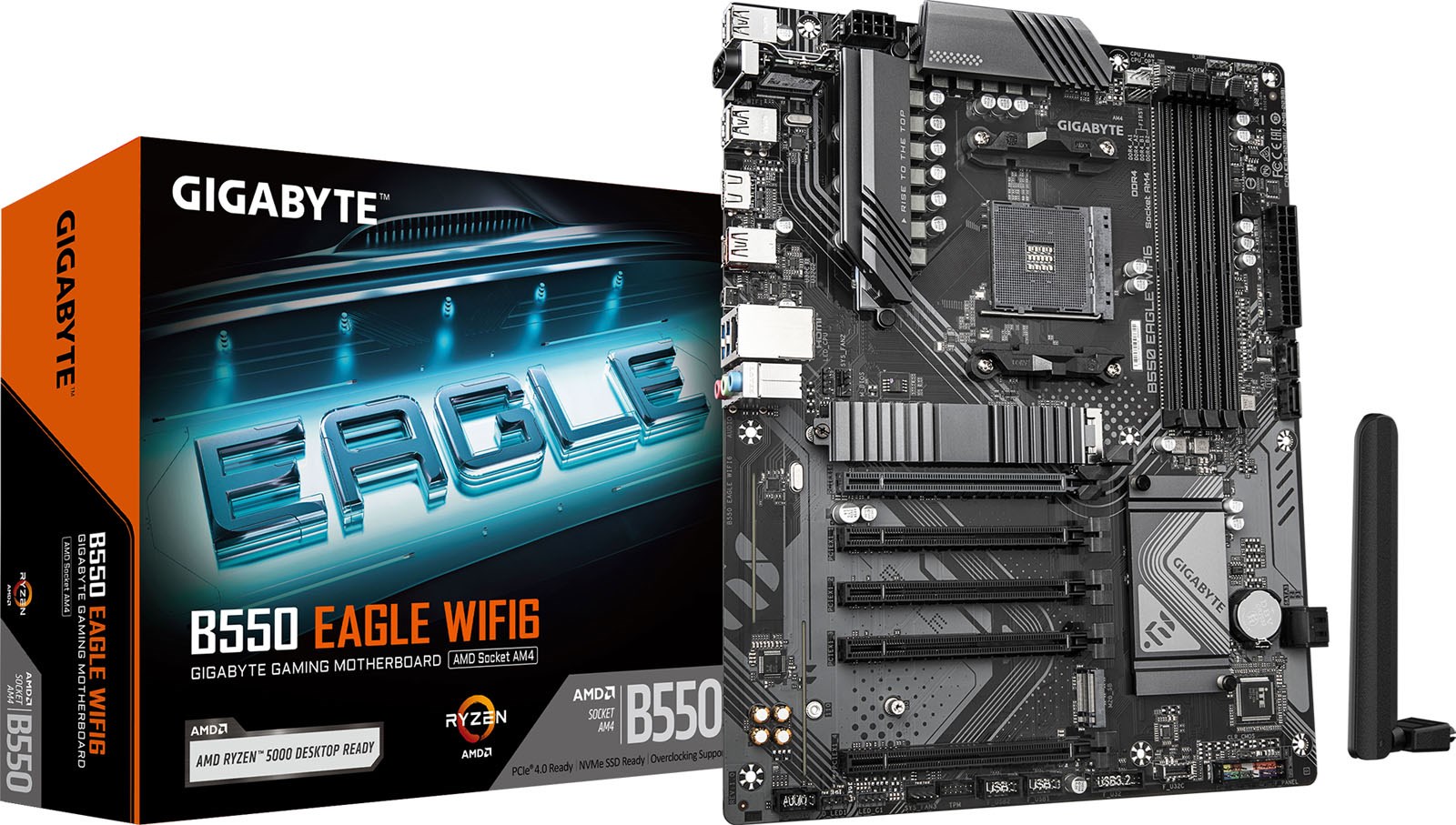

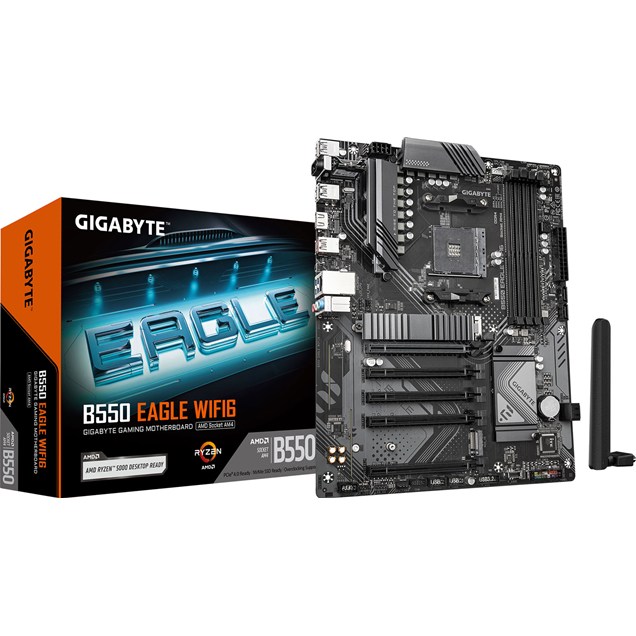

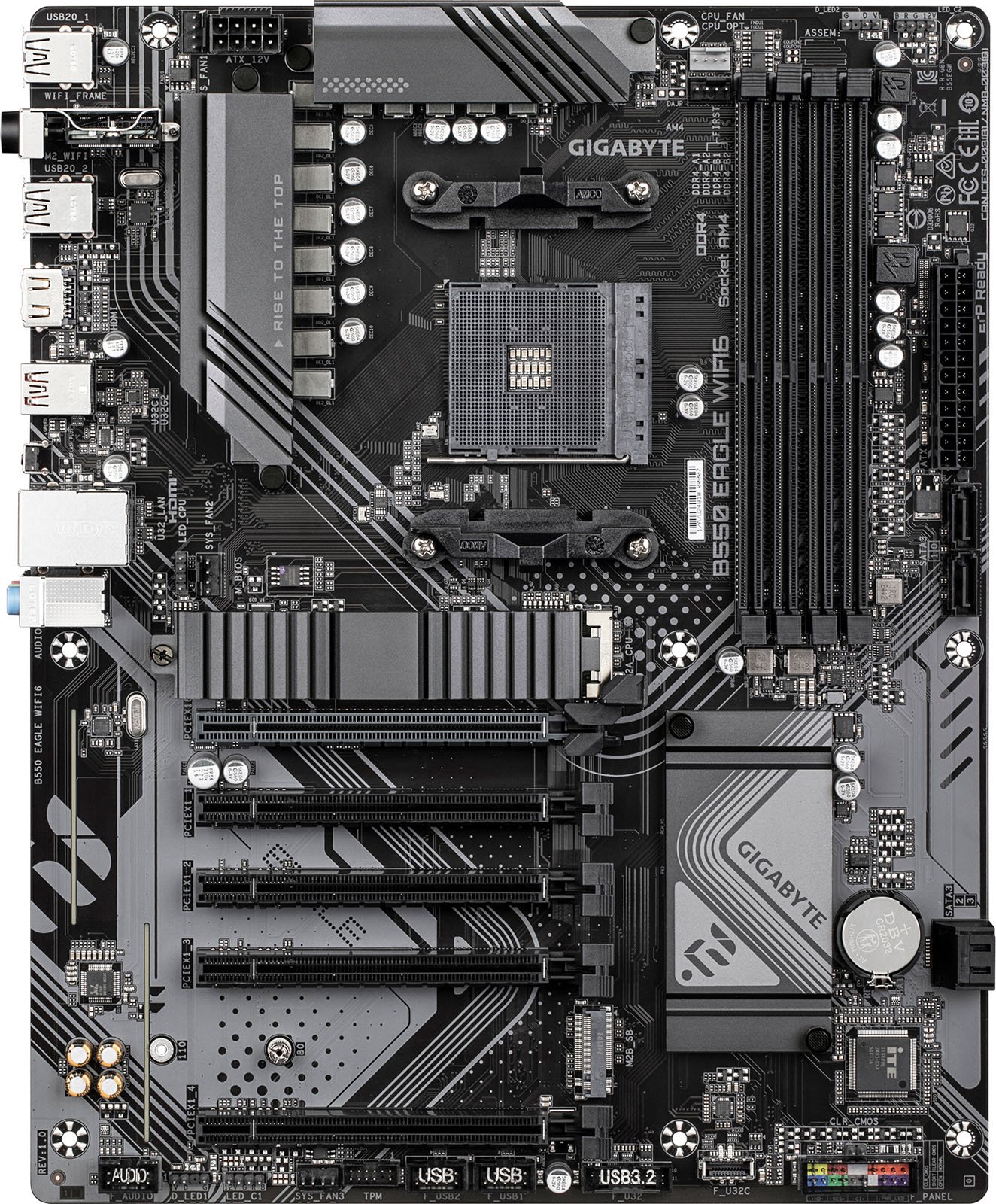

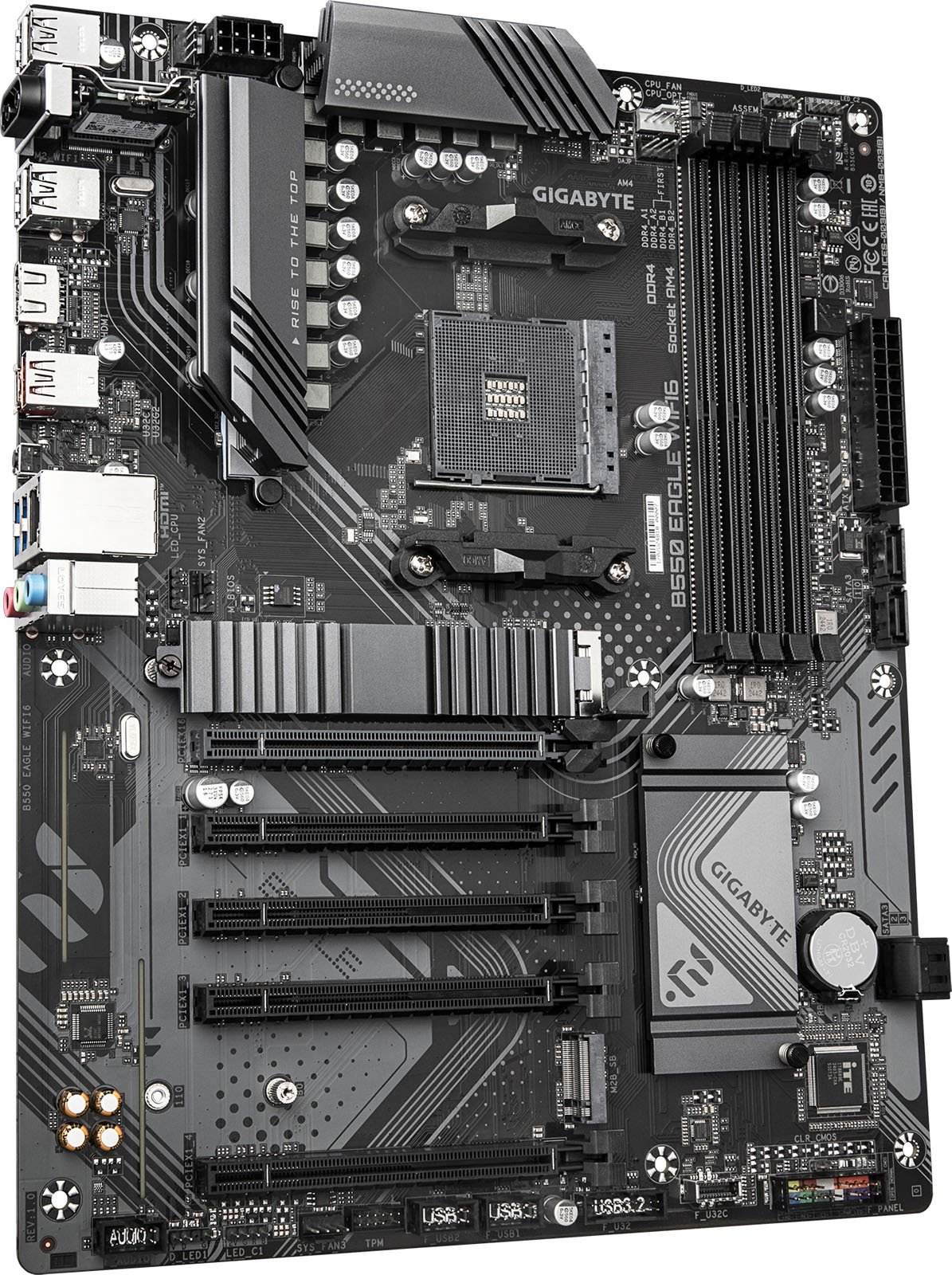

Gigabyte B550 EAGLE WIFI6 ATX Motherboard for AMD Socket AM4 CPUs
SAVE £49
Available for delivery from Tomorrow
Click & Collect from Today
In stock
Order within
You have 0 of these in your basket
Building a PC?
Get this motherboard in a bundle that's fully compatible and assembled to assist your build!
fd8a87b2-e0ba-4ce5-a09e-40cca6748914.png)
- AMD Socket AM4: Supports AMD Ryzen™ 5000 / 4000 / 3000 Series Processors
- Digital twin 10+3+1 phases VRM solution
- Dual Channel DDR4: 4 x DIMMs with AMD EXPO™ Memory Module Support
- EZ-Latch: PCIe slots with Quick Release Design
- Friendly UI: Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW.
- Ultra-Fast Storage: 2 x M.2 slots, including PCIe 4.0 x1
- Efficient Thermal: VRM Thermal Armor Advanced
- Fast Networking: GbE LAN & Wi-Fi 6
- Extended Connectivity: HDMI, Displayport
- PCIe UD Slot: PCIe 4.0 x16 slots with 10X strength for graphics card & Better Heat dissipation effect
CPU
- Installed Processors (Max): 0 (1)
- Supported Processor Manufacturer: AMD
- Supported Processors: Ryzen 5000 / 4000 / 3000 Series Processors
- 64-bit Support: Yes
- Socket: AM4

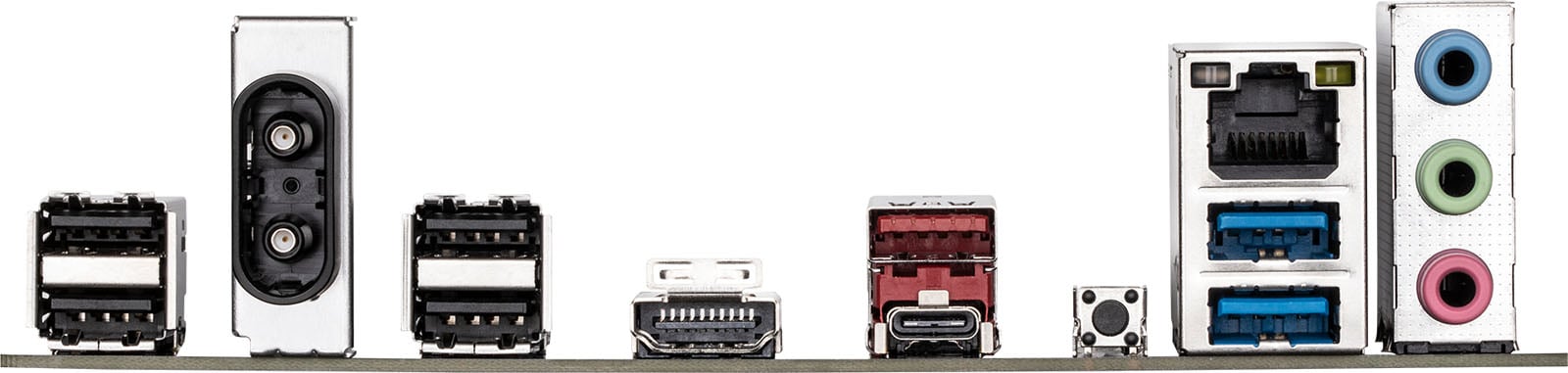

Rear Panel I/O Ports
- USB Ports: 1 x USB 3.1
- 1 x USB-C 3.0
- 2 x USB 3.0
- 4 x USB 2.0
- HDMI Port: 1 x HDMI 2.1
Internal I/O Connectors
- SATA Connectors: 4 x SATA
- USB Connectors: 1 x USB-C 3.0 header (supports 1 port)
- 1 x USB 3.0 header (supports 2 ports)
2 x USB 2.0 headers (supports 4 ports)
Memory
- Memory Bus Speed: Up to 3200 MT/s
- Memory Type: DDR4
Motherboard
- Northbridge: AMD B550
- RAID Supported: Yes
- RAID Format: RAID 0, 1, 10
- SATA Supported: Yes
Rear Panel I/O Ports
- RJ-45 Ports: 1 x RJ-45
- Audio Line In Ports: 1 x 3.5mm Jack
- Audio Line Out Ports: 1 x 3.5mm Jack
- Microphone In Port: 1 x 3.5mm Jack
- Antenna Connector(s): 2 x SMA Antenna
Internal I/O Connectors
- Front Panel Connectors: 1 x Front Panel
- 1 x Front Audio
- Cooling Fan Support: 1 x CPU fan header
- 1 x CPU fan/Water Cooling pump header
- 3 x System fan headers
- TPM Header: 1 x TPM header (2x6 pin, for the GC-TPM2.0_S module only)
- Power Connector Port: 1 x 24-pin ATX
- 1 x 8-pin EPS
- Other Connectors: 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen4 or SATA)
- 1 x M.2 slot, Socket 3, M Key, Type 2280/22110 (PCIe Gen3)
- 2 x 3-pin ARGB headers
- 2 x 4-pin RGB headers
Expansion
- Number of PCI Express Slots: 1 x PCI Express 4.0 x16 slot
- 4 x PCI Express 3.0 x1 slots
Memory
- Maximum RAM: 128 GB
- Memory Slot: 4 x DIMM
Graphics Device
- Integrated Graphics Supported: Yes
Sound
- Integrated Sound: Realtek
Warranty
- Warranty: 3 Years
Network
- Integrated Network: Realtek
- Network Speeds Supported: Up to 1 Gbps
- Wireless LAN: Yes - Wi-Fi 6
- Bluetooth: Yes
- Bluetooth Version: 5.3
System Requirements
- Operating Systems Supported: Microsoft Windows 11
System
- Jumpers: 1 x Clear CMOS
- Software Included: Yes
- Drivers: Yes
Physical
- Form Factor: ATX Motherboard
- Width: 244 mm
- Length: 305 mm
Identifiers
- Stock Code: MBD3889
- Mfg Code: B550 EAGLE WIFI6
Warranty
- Warranty: 3 Years
